Allen Bradley AB Red Cap Booted HD Push Button Unit 800H-R6A /F

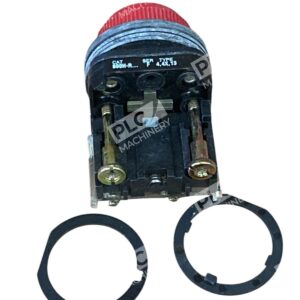

Allen-Bradley 800H-R6A Red Cap Booted Heavy-Duty Push Button Unit

The Allen-Bradley 800H-R6A is a 30mm momentary push button designed for heavy-duty industrial applications. Featuring a booted head with a red synthetic rubber cap, this push button ensures durability and reliable performance in demanding environments.

Key Features

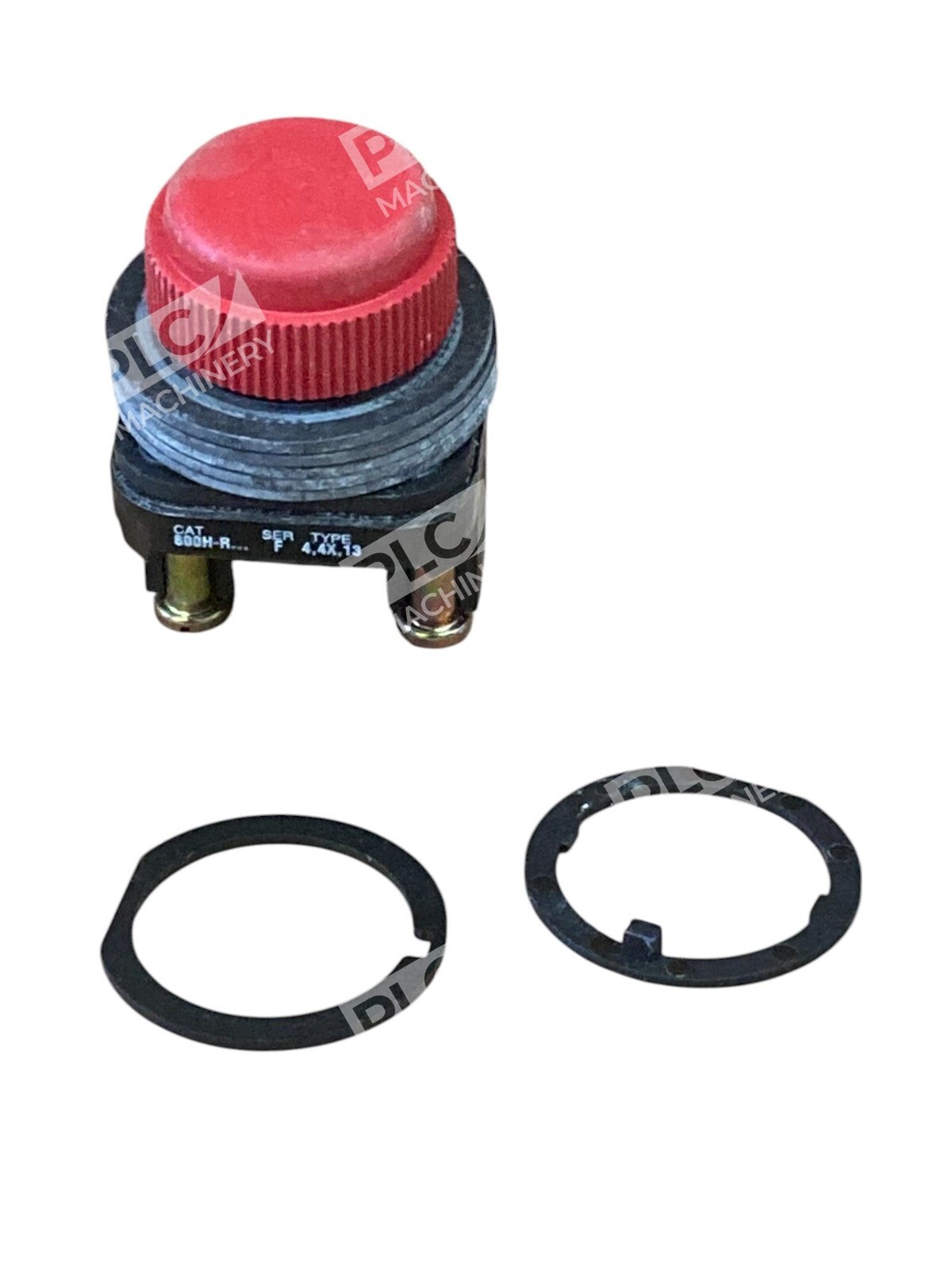

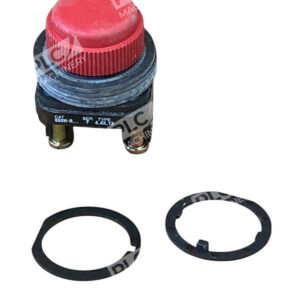

• Operator Cap: Round, booted head made of synthetic rubber, providing enhanced protection against contaminants.

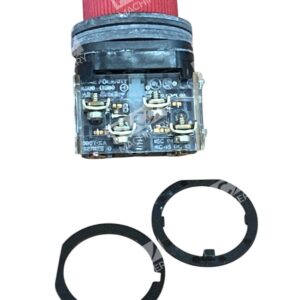

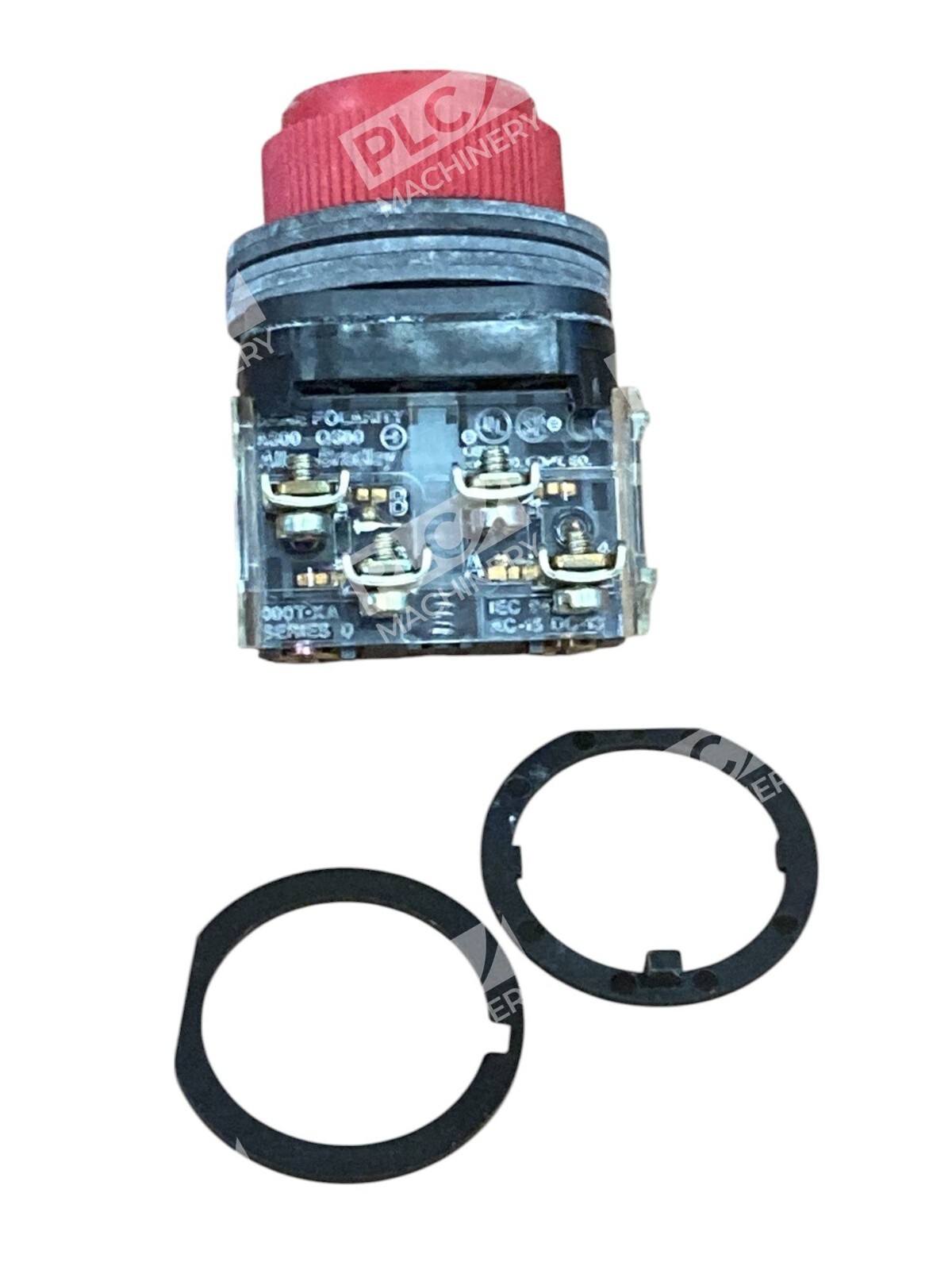

• Contact Configuration: Equipped with one normally open (NO) and one normally closed (NC) standard contact block (800T-XA).
• Electrical Ratings: Supports a thermal current rating of 10 A, with operational voltage up to 600V AC/DC. Suitable for AC-15 (A600) and DC-13 (Q600) utilization categories.
• Mechanical Durability: Designed for a minimum mechanical lifespan of 10 million cycles, ensuring long-term reliability.
• Environmental Compatibility: Operates effectively within a temperature range of -25°C to 50°C, with storage capabilities down to -40°C. Compatible with NEMA Type 1, 4, 4X, 12, and 13 enclosures, offering versatility across various industrial settings.
• Certifications: Complies with multiple international standards, including ABS, CCC, CE, CSA, EAC, GOST, and UL, affirming its quality and safety credentials.

Applications

The 800H-R6A push button is ideal for use in control panels, machinery, and other industrial equipment where a robust and reliable momentary contact is required. Its booted design offers additional protection, making it suitable for environments exposed to dust, moisture, or other contaminants.

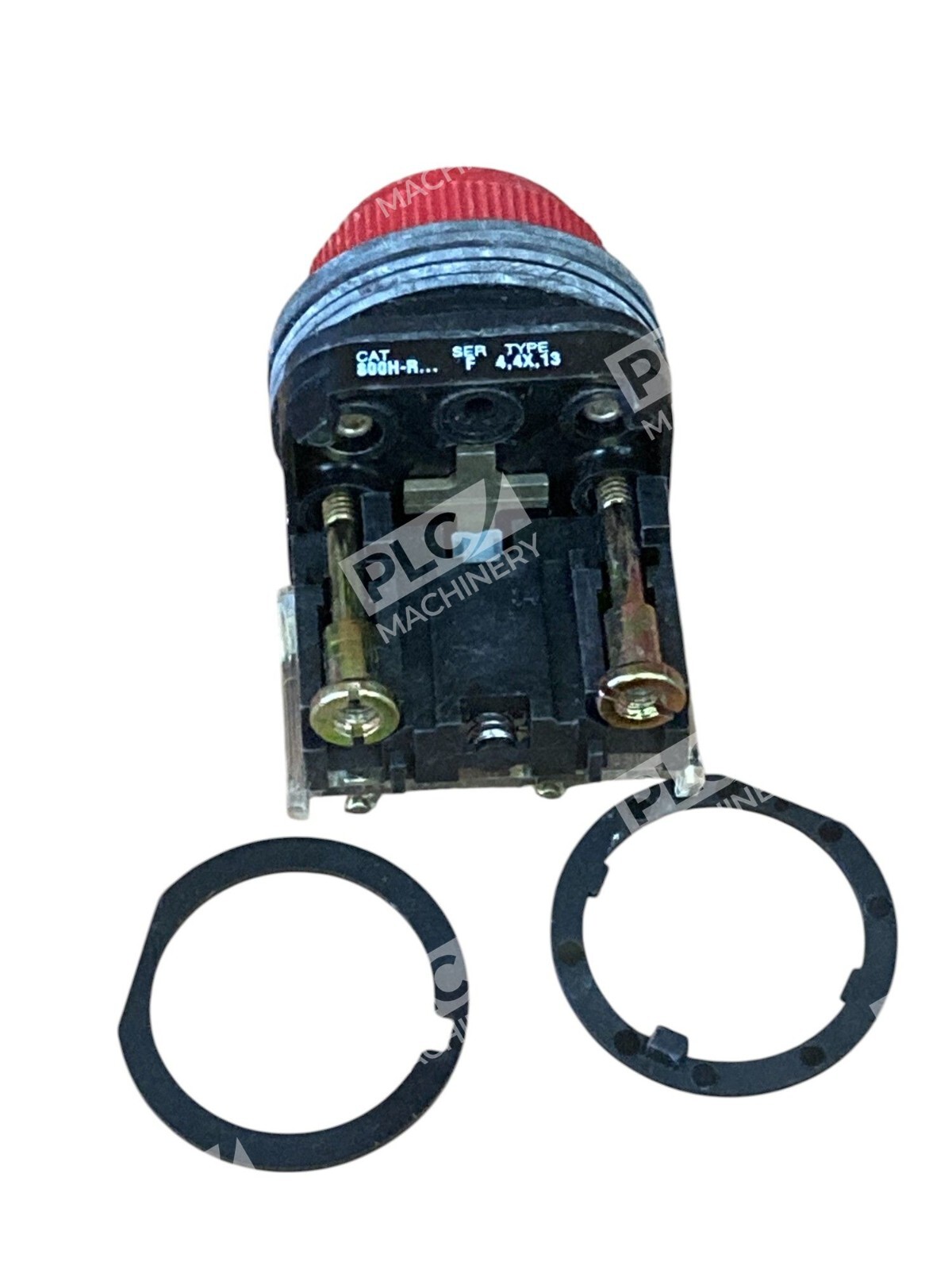

Installation and Maintenance

Featuring a 30.5 mm mounting hole diameter and screw connection terminals, the 800H-R6A allows for straightforward installation. The contact block terminals accommodate wire ranges from 14 to 18 AWG, with a recommended tightening torque of 6 – 8 in-lb (0.7 – 0.9 N-m). Designed for minimal maintenance, this push button ensures consistent performance over its extensive operational lifespan.

For detailed technical specifications and installation guidelines, refer to the product documentation provided by the manufacturer.
