Overview

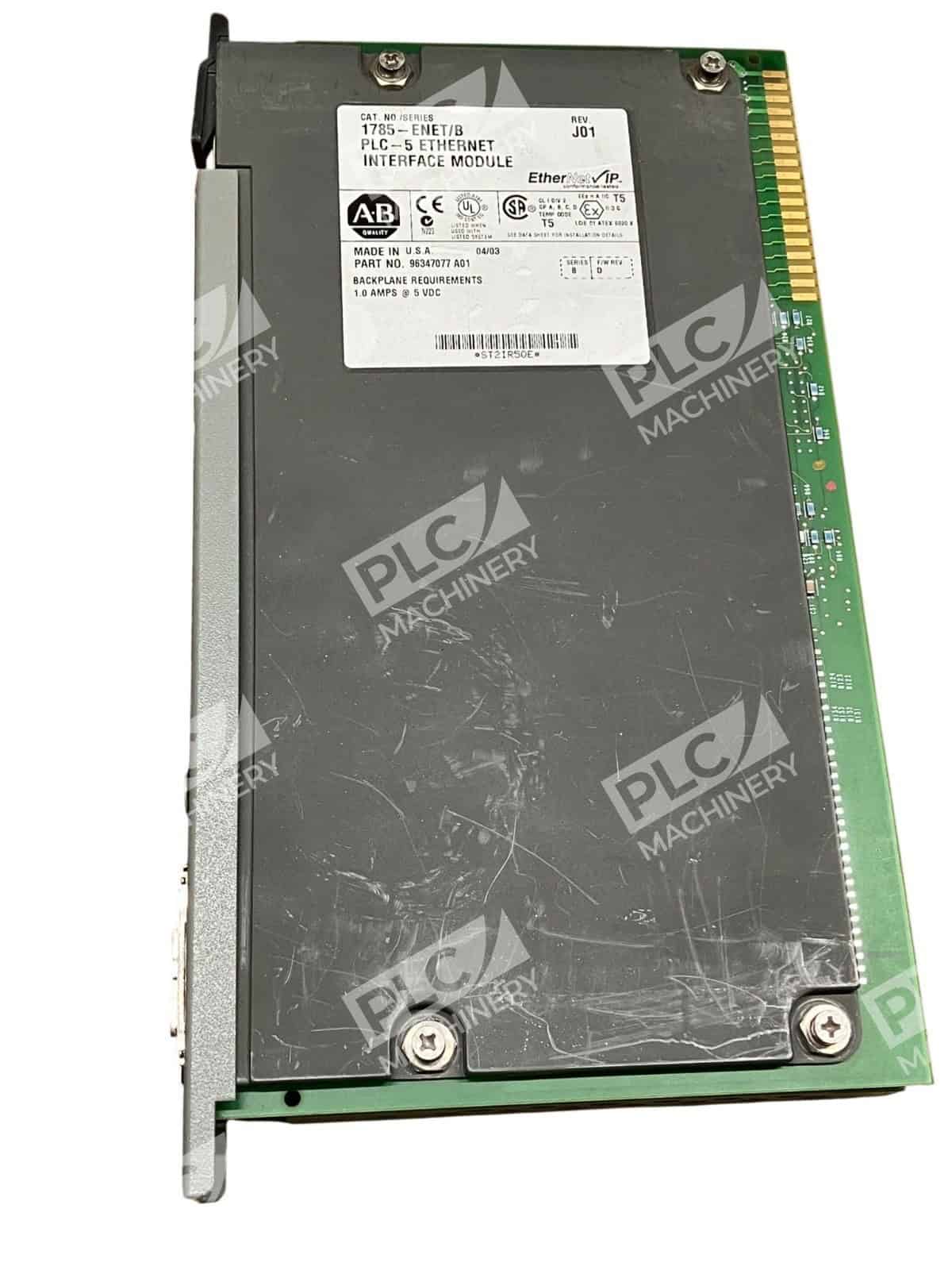

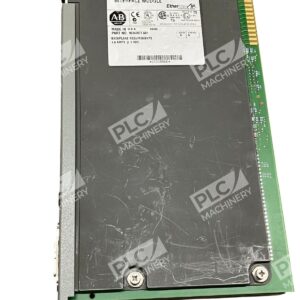

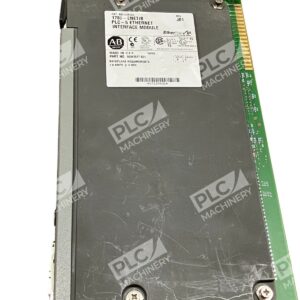

The Allen-Bradley 1785-ENET is an Ethernet interface module designed to add TCP/IP communication capabilities to PLC-5 processors via Channel 3A. This module is used to provide Ethernet connectivity to a PLC-5 controller for implementation of Distributed I/O system, communication to visualization systems such as Human Machine Interface (HMI), Supervisory Control and Data Acquisition (SCADA) and Distributed Control Systems (DCS), and may also be used to communicate with programming devices for downloading of user programs and establishing online connection to the controller.
Key Features
Communication Protocol: This Ethernet interface module has One (1) RJ45 Port supporting Ethernet TCP I/P protocol. It supports data transmission speed of 10/100 Mbps with auto-negotiation capability.

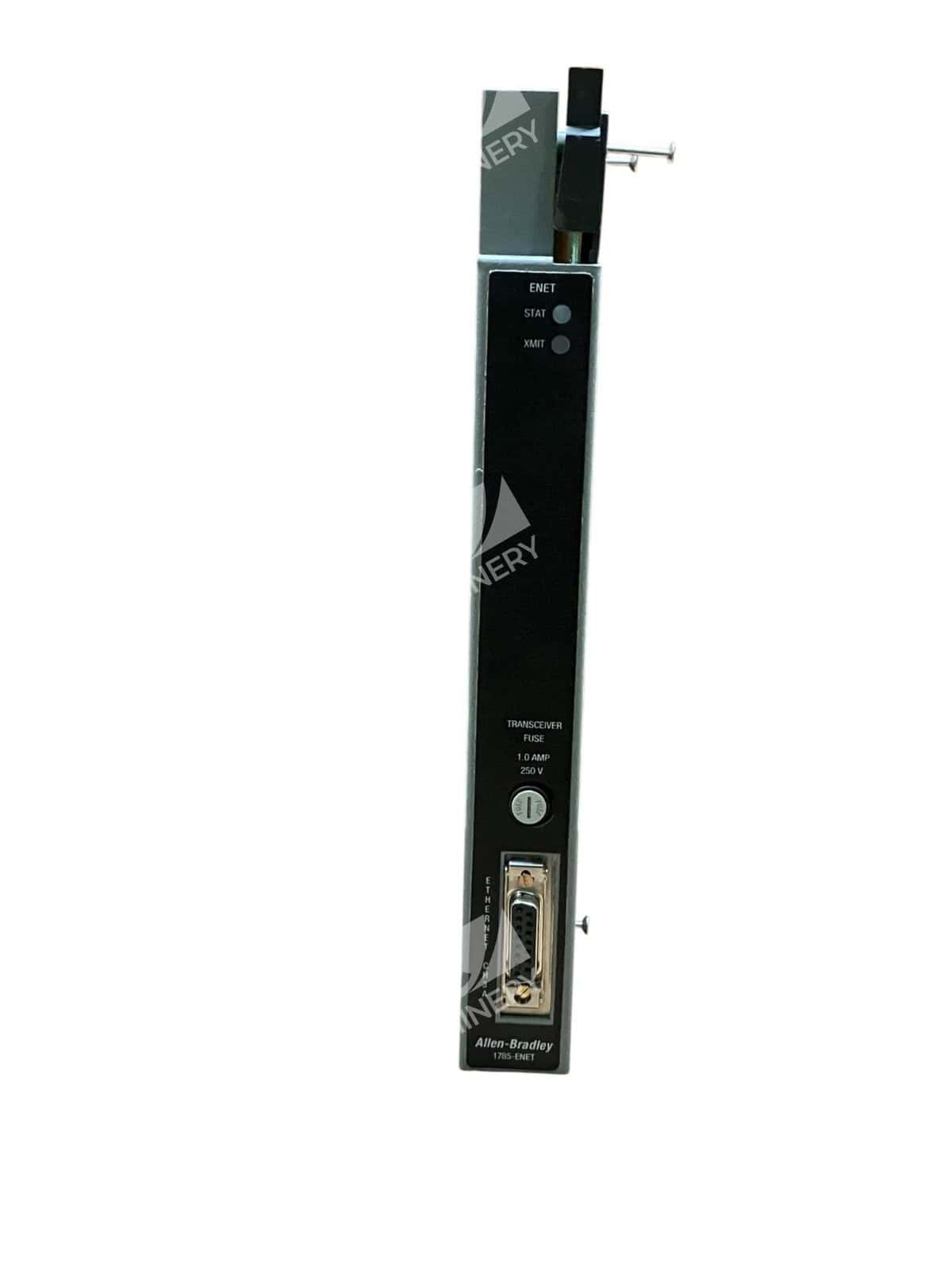

Status Indicators: It has built-in status indicators such as STAT, 100M and 10M. These indicators provide real-time visibility into module status and network link activity.
Power Efficiency: This module has a backplane rating of 1.0 A at 5 Volts DC and dissipates 5 Watts power.
Enhanced Connectivity: When used with an enhanced PLC-5 controller, the 1785-ENET enables EtherNet connectivity without disabling the DH+/RIO ports and conveniently provides Ethernet connectivity with a ControlNet PLC-5 controller. It can also run dual Ethernet links with the Ethernet PLC-5 controller.
Technical Specifications
- Module Type: Communication Interface Module
- Manufacturer: Allen-Bradley (Rockwell Automation)

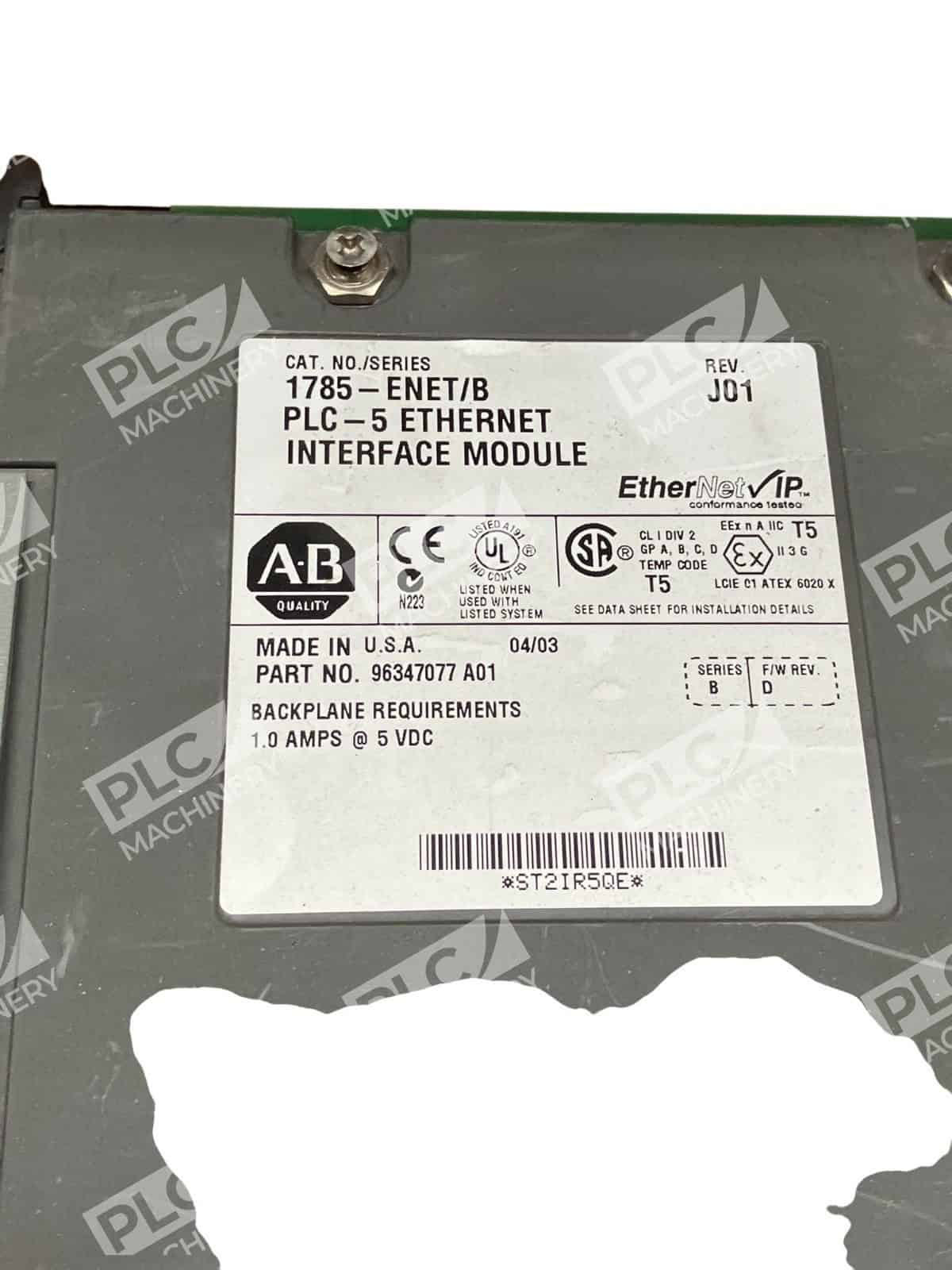

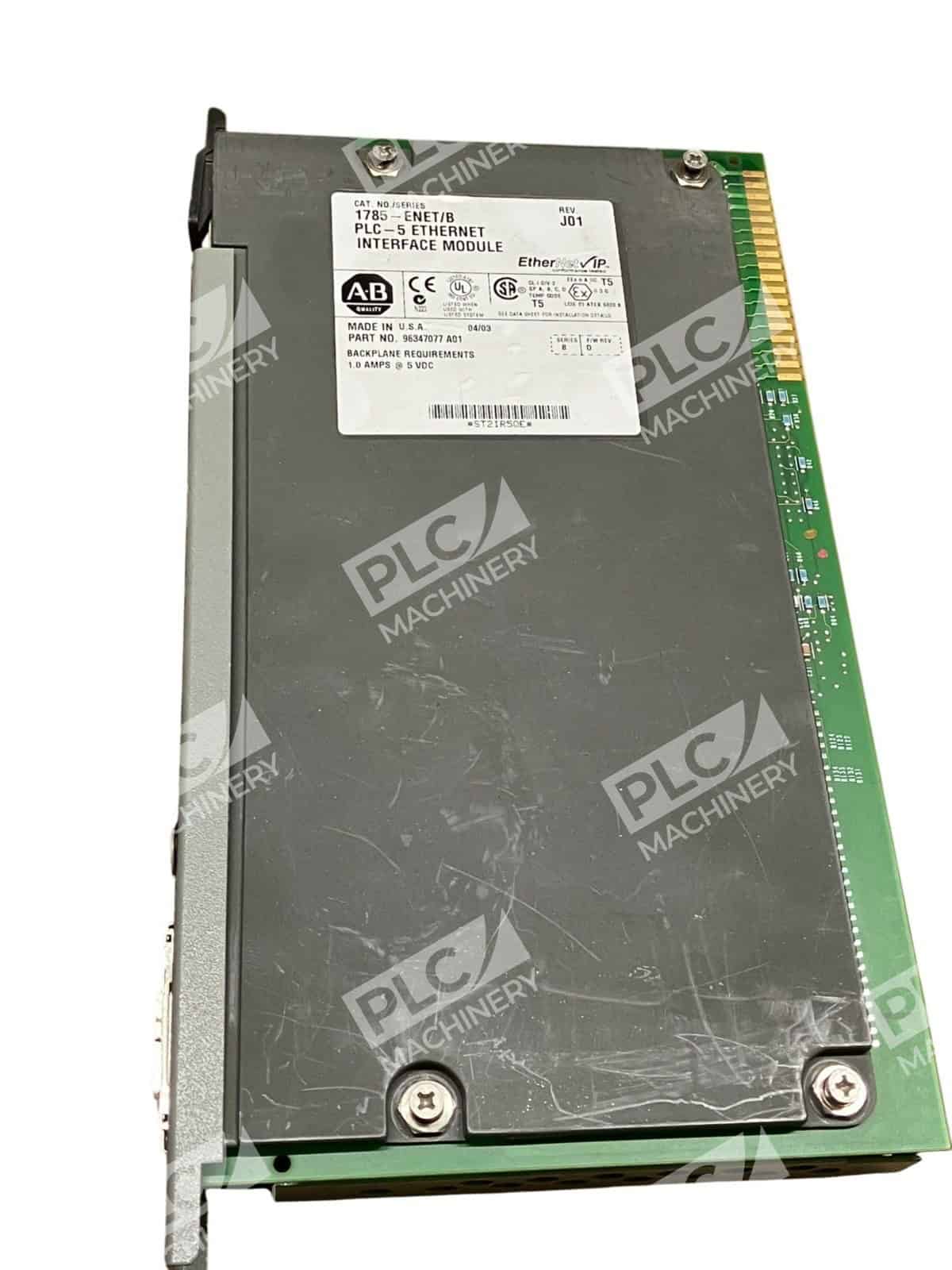

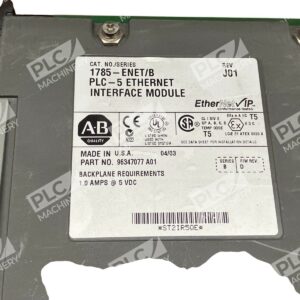

- Part Number: 1785-ENET /B Rev J01
- Communication Protocol: EtherNet/IP (TCP/IP)
- Network Speed: 10/100 Mbps with auto-negotiation
- Connections: RJ45 Ethernet port
- Backplane Current: 1.0 A @ 5 VDC
- Power Dissipation: 5 W (37.54 BTU/hr)
- Operating Temperature: 0 to 60°C (32–140°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Dimensions: 273.05 x 31.75 x 146.05 mm (10.75 x 1.25 x 5.75 in)
- Weight: 0.77 kg (1.7 lbs)
- Max Modules per System: 4
Typical Applications
Distributed I/O Control: Enables remote I/O communication across Ethernet networks for flexible, scalable automation systems spread across large facilities.
HMI & SCADA Integration: Facilitates real-time communication with Human Machine Interface systems and SCADA software for supervisory control and data acquisition.
Engineering Access: Allows programming devices and engineering workstations to download user programs and establish online connections for diagnostics and configuration.
Machine-to-Machine Communication: Supports peer-to-peer messaging between PLC-5 controllers and other intelligent devices on Ethernet networks.
Legacy System Modernization: Bridges legacy PLC-5 systems to modern Ethernet infrastructure without replacing the core controller.
Compatibility & Replacements
Compatible With
- PLC-5/11, PLC-5/20, PLC-5/26, PLC-5/30, PLC-5/40, PLC-5/40L, PLC-5/46, PLC-5/60, PLC-5/60L, PLC-5/80, PLC-5/86, PLC-5/20E, PLC-5/40E, PLC-5/80E, PLC-5/20C, PLC-5/40C, PLC-5/80C
- All Enhanced, Ethernet, and ControlNet PLC-5 controllers
- 1785 Backplane systems
- RSLinx and INTERCHANGE software packages
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This module is designed as the primary Ethernet interface solution for PLC-5 systems and does not have direct equivalents from other manufacturers, though some users may employ alternative communication modules depending on network topology.
Works With
- Allen-Bradley RSLinx software
- FactoryTalk View and FactoryTalk Services Platform
- INTERCHANGE software packages
- EtherNet/IP networks
- TCP/IP communication protocols
- Distributed I/O systems
- SCADA platforms
- HMI systems supporting Ethernet
