Overview

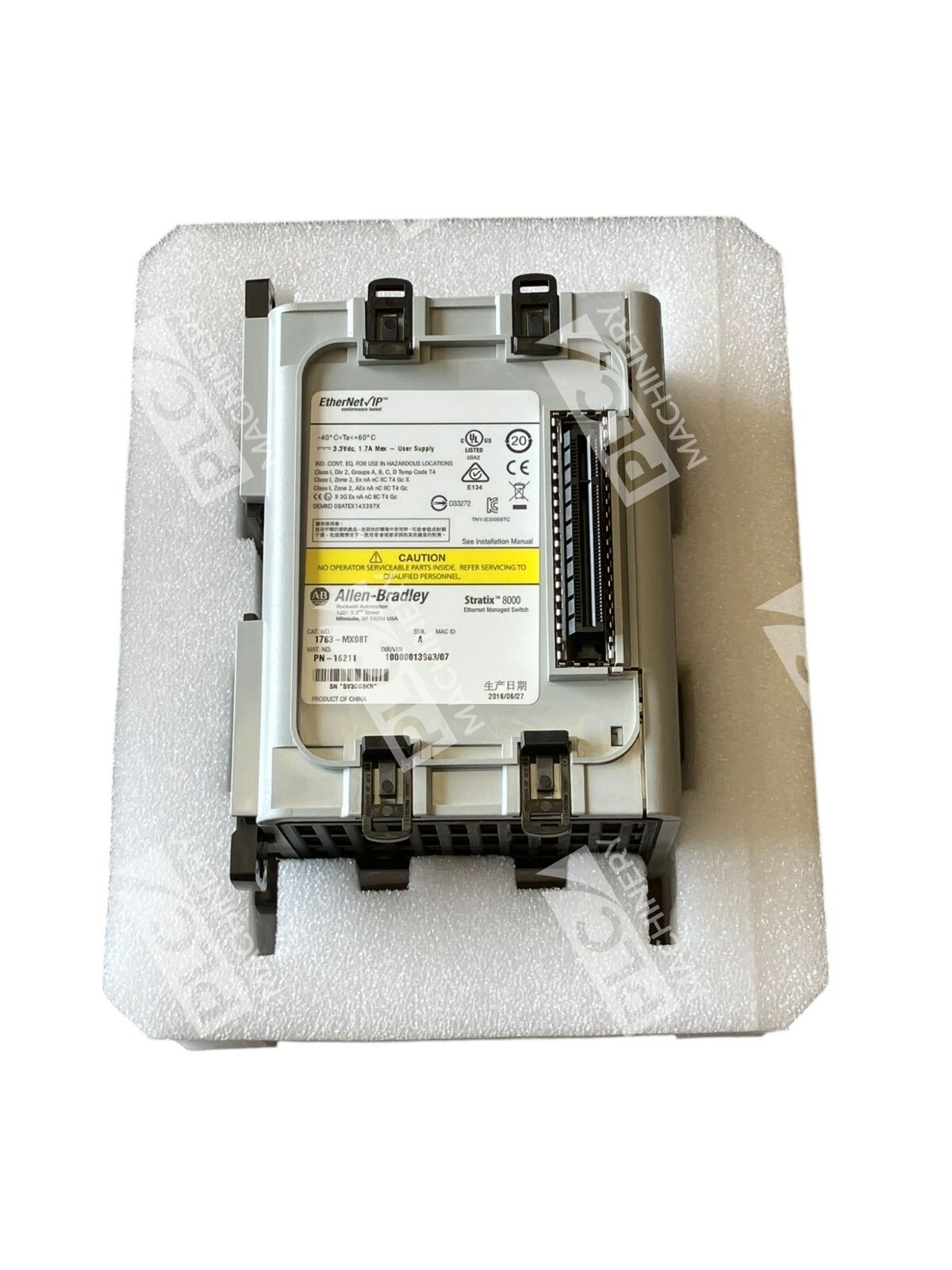

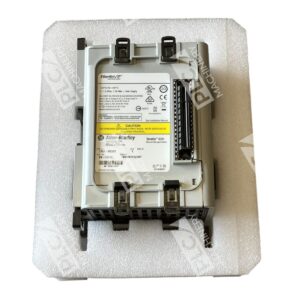

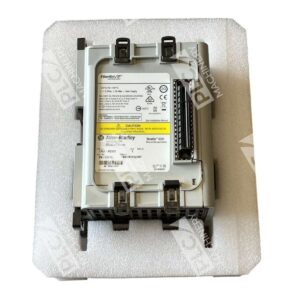

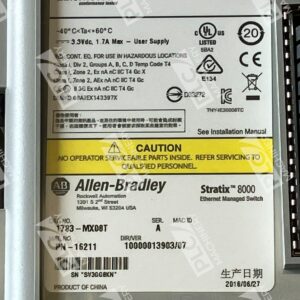

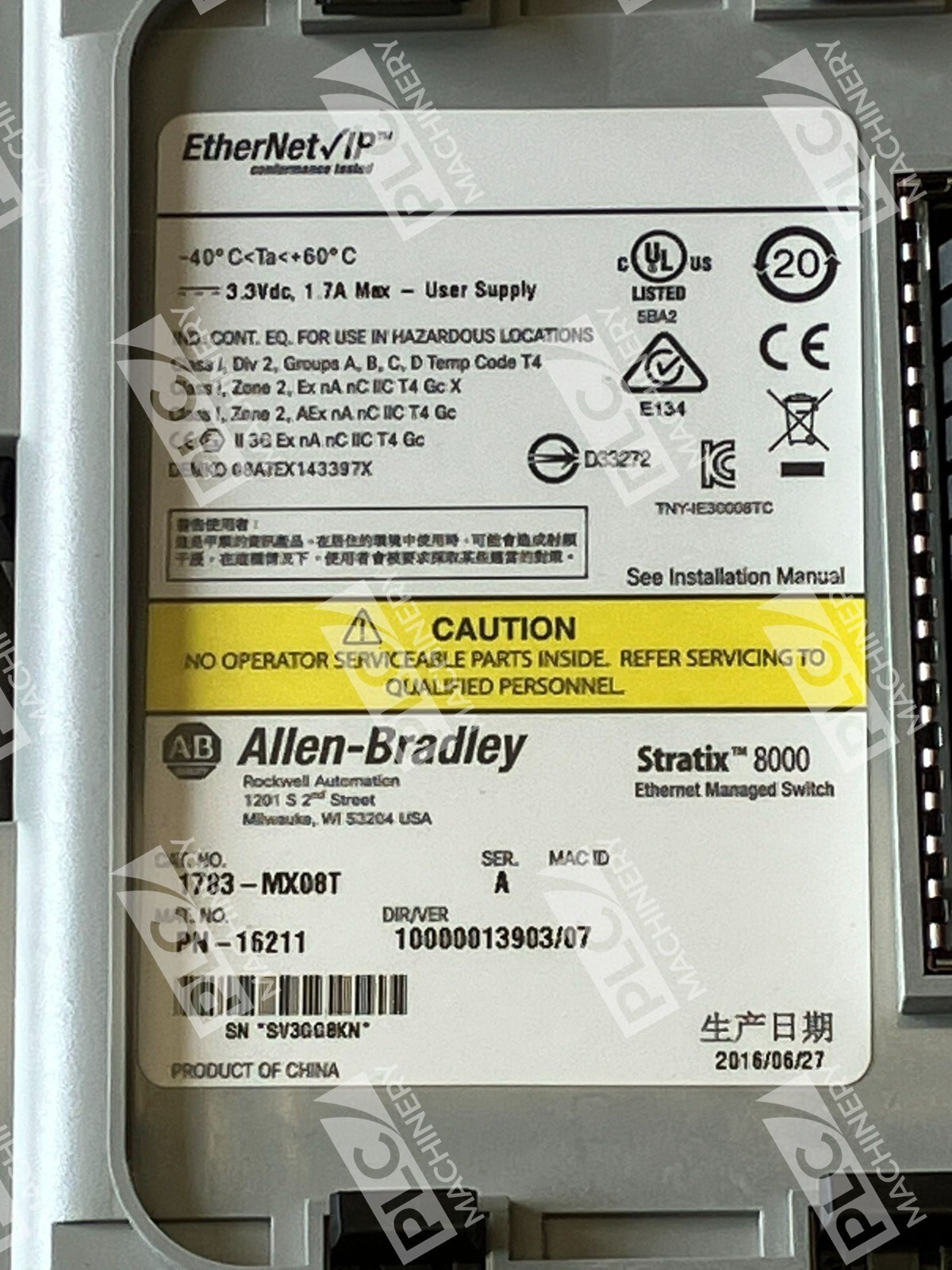

The Allen-Bradley 1783-MX08T is a Stratix 8000 modular managed Ethernet switch engineered for industrial automation and manufacturing environments. Manufactured by Rockwell Automation and developed in collaboration with Cisco, this switch combines powerful managed switch capabilities with seamless EtherNet/IP integration. The 1783-MX08T is an expansion module designed to extend connectivity on existing Stratix 8000 or 8300 systems, providing eight 10/100 Base-T copper Ethernet ports for connecting PLCs, VFDs, HMIs, and other industrial control devices.
Key Features

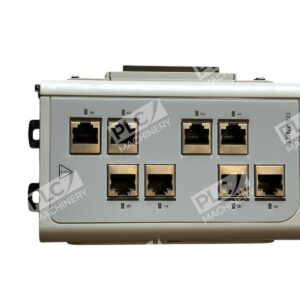

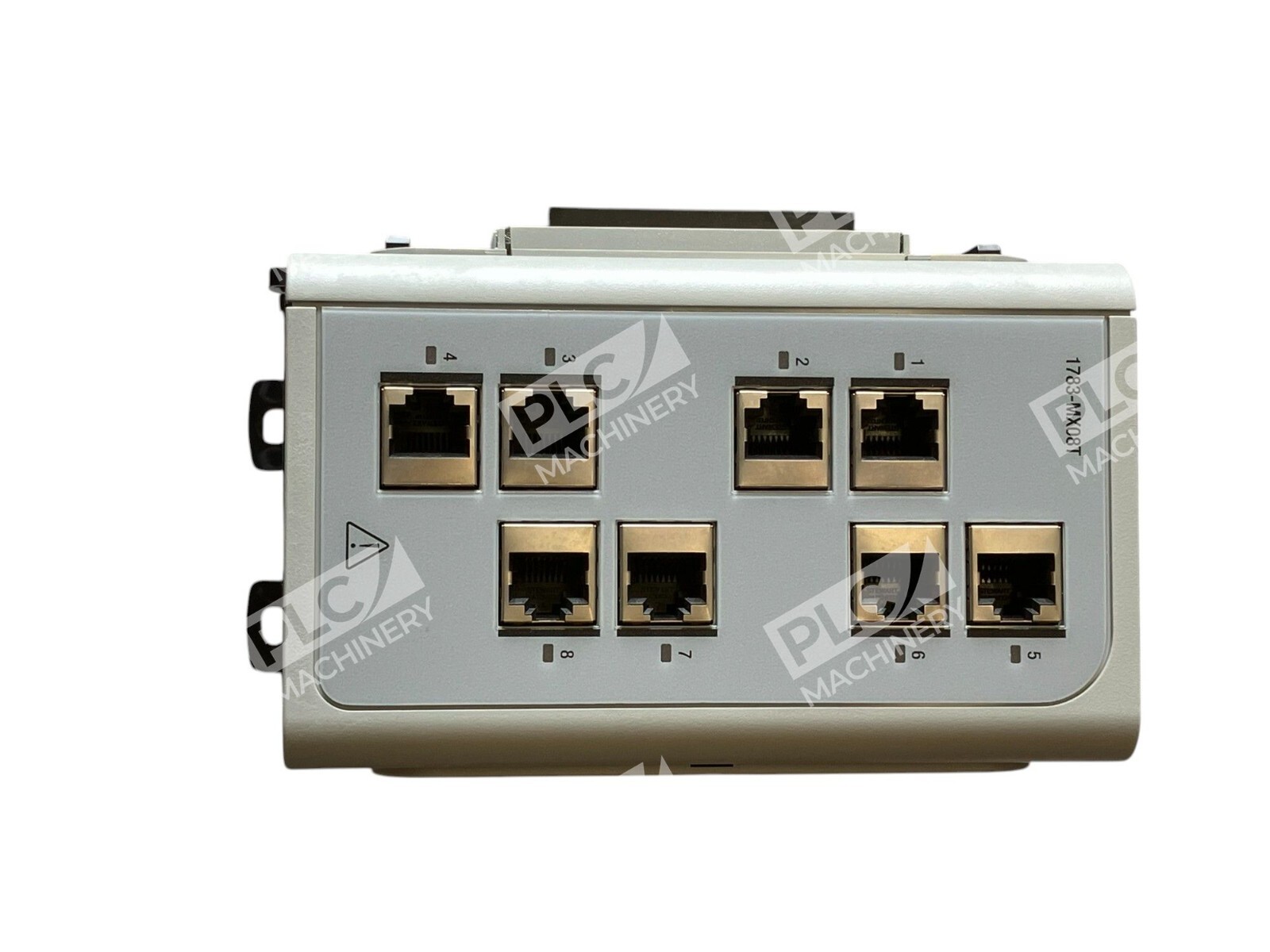

- Eight 10/100 Mbps copper ports – RJ45 connectors for flexible network architecture
- Managed switch capabilities – VLAN, QoS, and security settings for segmented automation networks
- Rockwell/Cisco collaboration – Industry-leading networking technology integrated with Logix platform
- Common Industrial Protocol (CIP) support – Direct integration with enterprise networks and EtherNet/IP systems
- Compact modular design – DIN-rail mountable for flexible system scaling
- Diagnostic faceplates – Studio 5000 integration for monitoring and troubleshooting
Technical Specifications
- Power Supply: 24–48 VDC
- Power Consumption: 5.6 W (3.3 V DC, 1.7 A maximum)
- Ethernet Ports: 8 × 10/100 Base-T copper (RJ45)
- Operating Temperature: −40 to +60 °C
- Storage Temperature: −40 to +85 °C
- Relative Humidity: 5–95% non-condensing
- Memory: CompactFlash
- Enclosure: Open type
- Inrush Current: 2 A maximum
- Weight: 0.6 kg
- Dimensions: 112 mm (L) × 97 mm (W) × 147 mm (H)
Typical Applications
The 1783-MX08T expansion module is ideal for:
- Building secure, segmented automation networks in manufacturing facilities
- Connecting multiple PLCs, VFDs, servo drives, and HMIs to a centralized EtherNet/IP backbone
- Expanding port capacity on existing Stratix 8000/8300 managed switch installations
- Applications requiring network diagnostics, security hardening, and high-availability deployment
- Pharmaceutical, automotive, food & beverage, and discrete manufacturing environments
Compatibility & Replacements
The 1783-MX08T is a dedicated expansion module for Stratix 8000 and 8300 modular switch systems. It requires a Stratix 8000 or 8300 base unit for operation and is not a standalone switch. This module is compatible with Studio 5000 and RSLogix environments, supporting direct integration with Logix controllers via EtherNet/IP and industrial networks. For standalone managed switch solutions or alternative port configurations, consult with Rockwell Automation or authorized distributors regarding equivalent Stratix base unit models.
