Overview

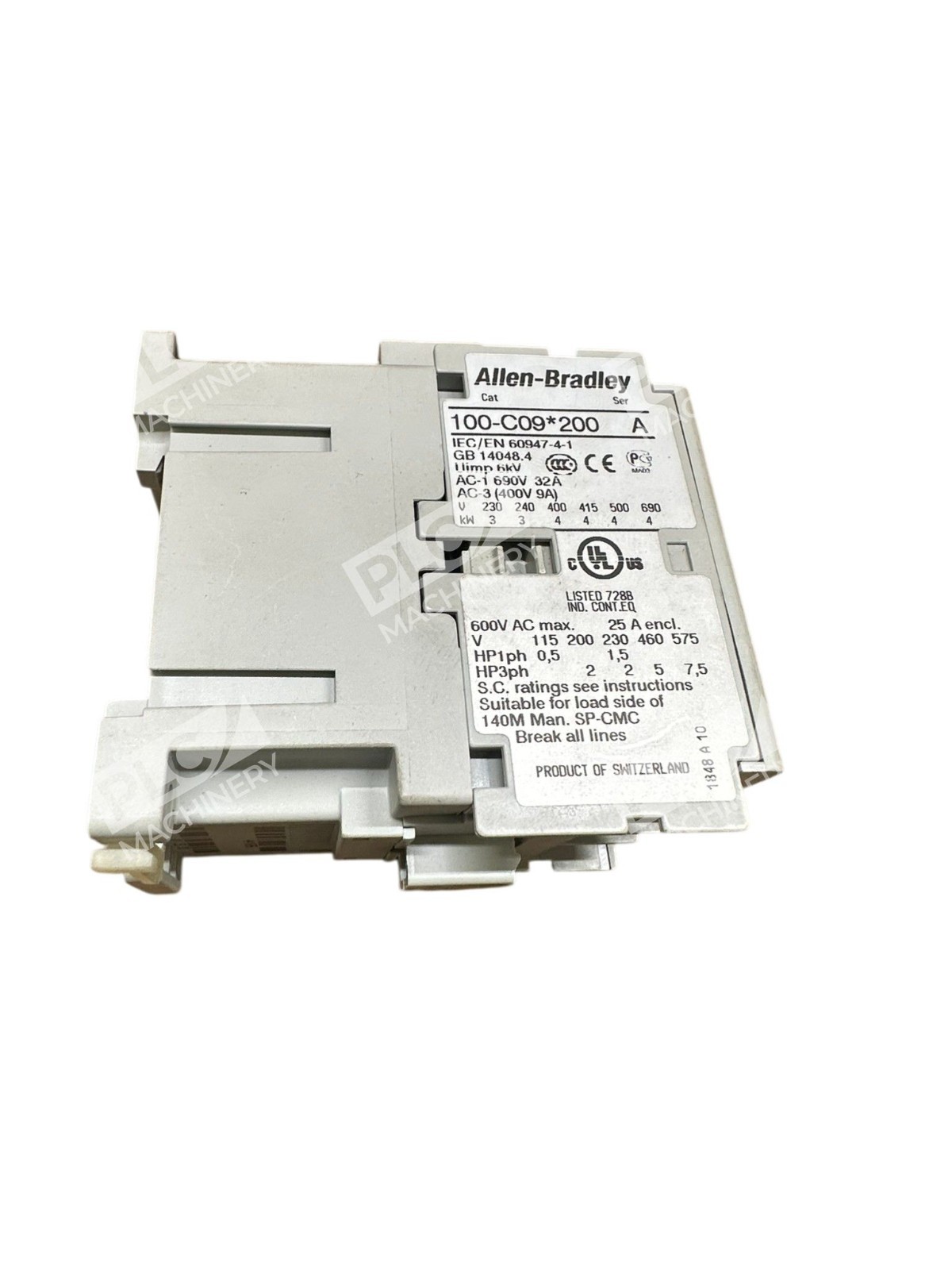

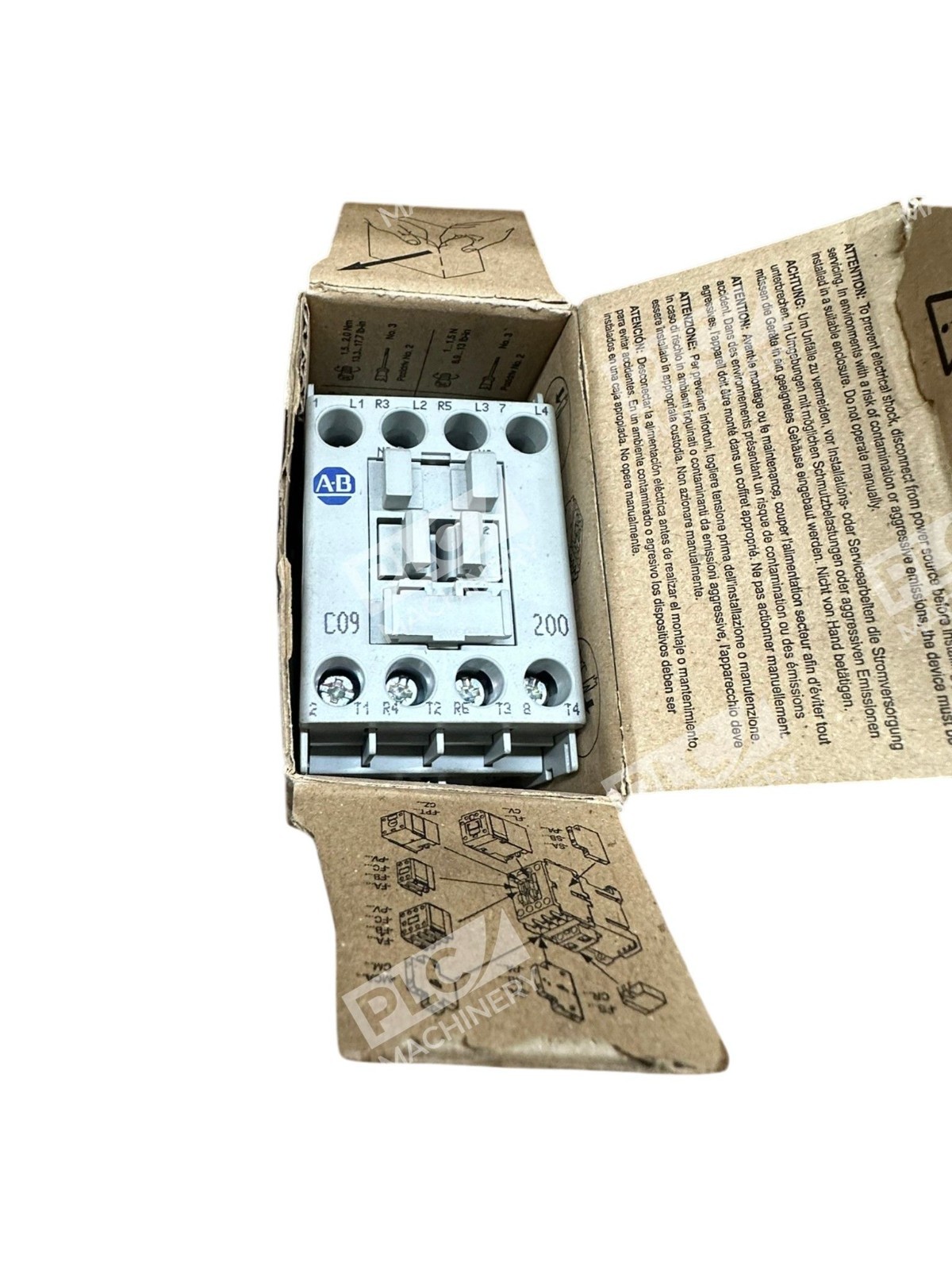

The Allen-Bradley 100-C09D200 is a 9-amp IEC contactor part of the Bulletin 100-C family. It is a 4-pole device rated for motors up to 2 HP at 230V and 5 HP at 460V three-phase. This contactor is engineered for space-saving, high-performance motor control in industrial automation and HVAC systems, delivering reliable contact action with low coil power consumption.
Key Features
- 4-Pole Configuration: 2 normally open and 2 normally closed main power poles for flexible circuit control
- 120V AC Coil: 110V 50Hz / 120V 60Hz rated operating coil with line-side termination included
- Screw Terminals: Standard screw-type connection points for field wiring and troubleshooting access
- Compact Footprint: Space-saving design ideal for high-density panel layouts and retrofit applications
- Built-In Coil Suppression: Integrated surge suppression extends coil life in inductive control environments
- Dual-Rating Standard: Conforms to both IEC/EN 60947-4-1 and UL/CSA standards for global application flexibility
Technical Specifications
- Current Rating: 9 Amp at 400 VAC-3 (AC-3 duty)
- Power Rating: 4 kW at 400 VAC
- AC-1 Rating: 32 Amp at 400 VAC
- Operating Voltage Range: 230–690 VAC at 50 Hz; 115–575 VAC at 60 Hz
- Coil Voltage: 110V 50Hz / 120V 60Hz AC
- Contact Configuration: 2 NO, 2 NC main poles
- Mounting: Base mount or 35mm DIN rail mountable
- Terminals: Screw-type connections (standard line-side coil termination)
- Standards: CCC, CE, CSA, CUL, C-TICK, GOST, KC, UL
Typical Applications
- Motor starters and motor control circuits
- HVAC equipment and refrigeration systems
- Industrial pump and compressor control
- Automation panels with space constraints
- Remote control circuits and interlocking systems
Compatibility & Replacements
Compatible With
- Allen-Bradley 193-E and 193-EE electronic overload relays (direct-mount motor starter assembly)
- Allen-Bradley 592-series bimetallic overload relays
- Standard 35mm DIN rail enclosure mounting systems
- IEC/EN motor starter assemblies and control panels
Replaces / Drop-In Replacement For
- Allen-Bradley 100-A series legacy contactors (with same pole configuration and rating)
- Other 9A 4-pole IEC contactors with 2NO/2NC contact patterns
Works With
- IEC 60947-4-1 compliant motor control systems
- UL 508 industrial control panel assemblies
- Across 50Hz and 60Hz power distribution networks globally
