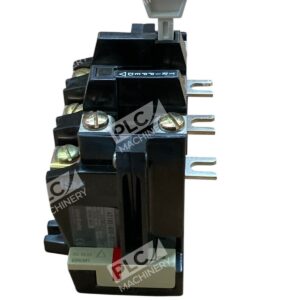

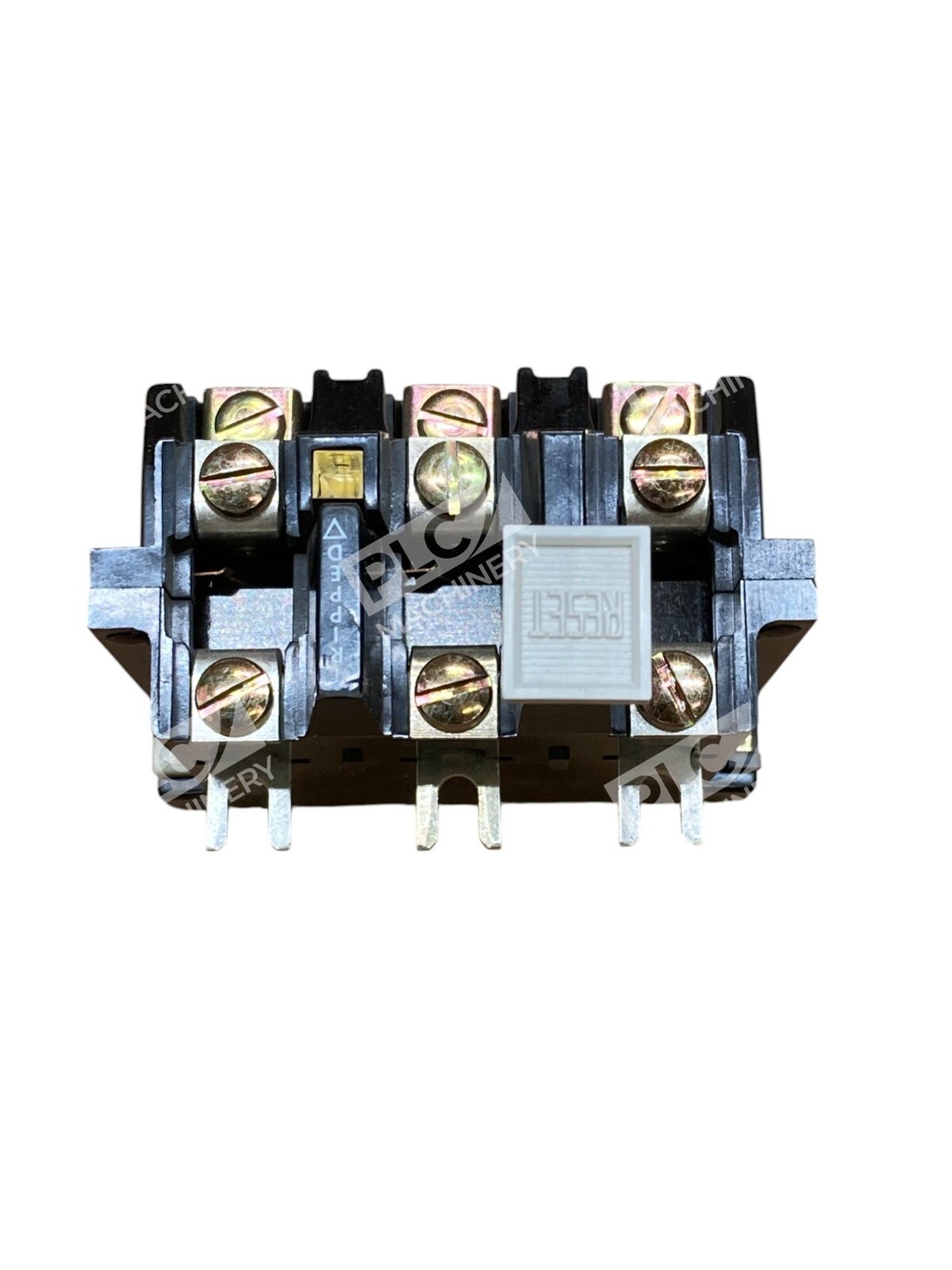

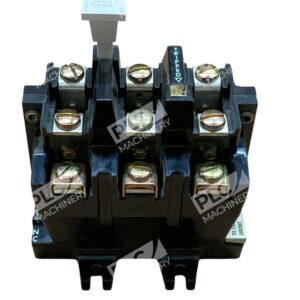

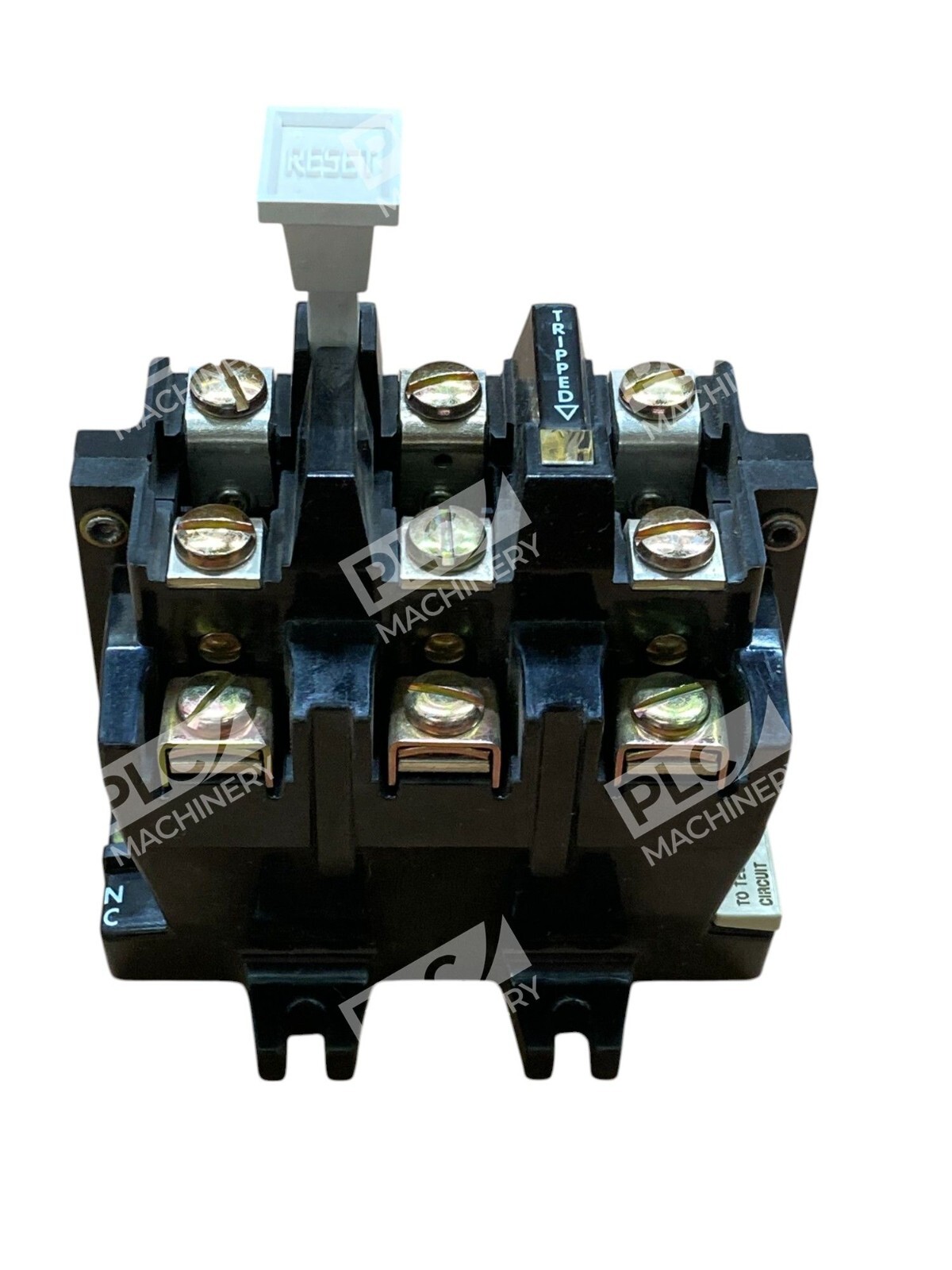

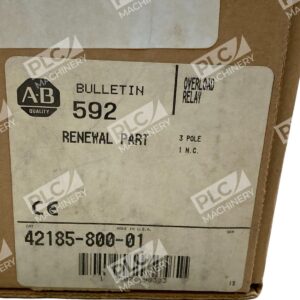

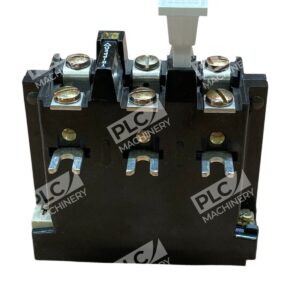

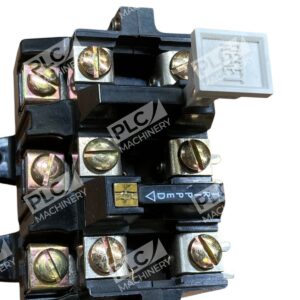

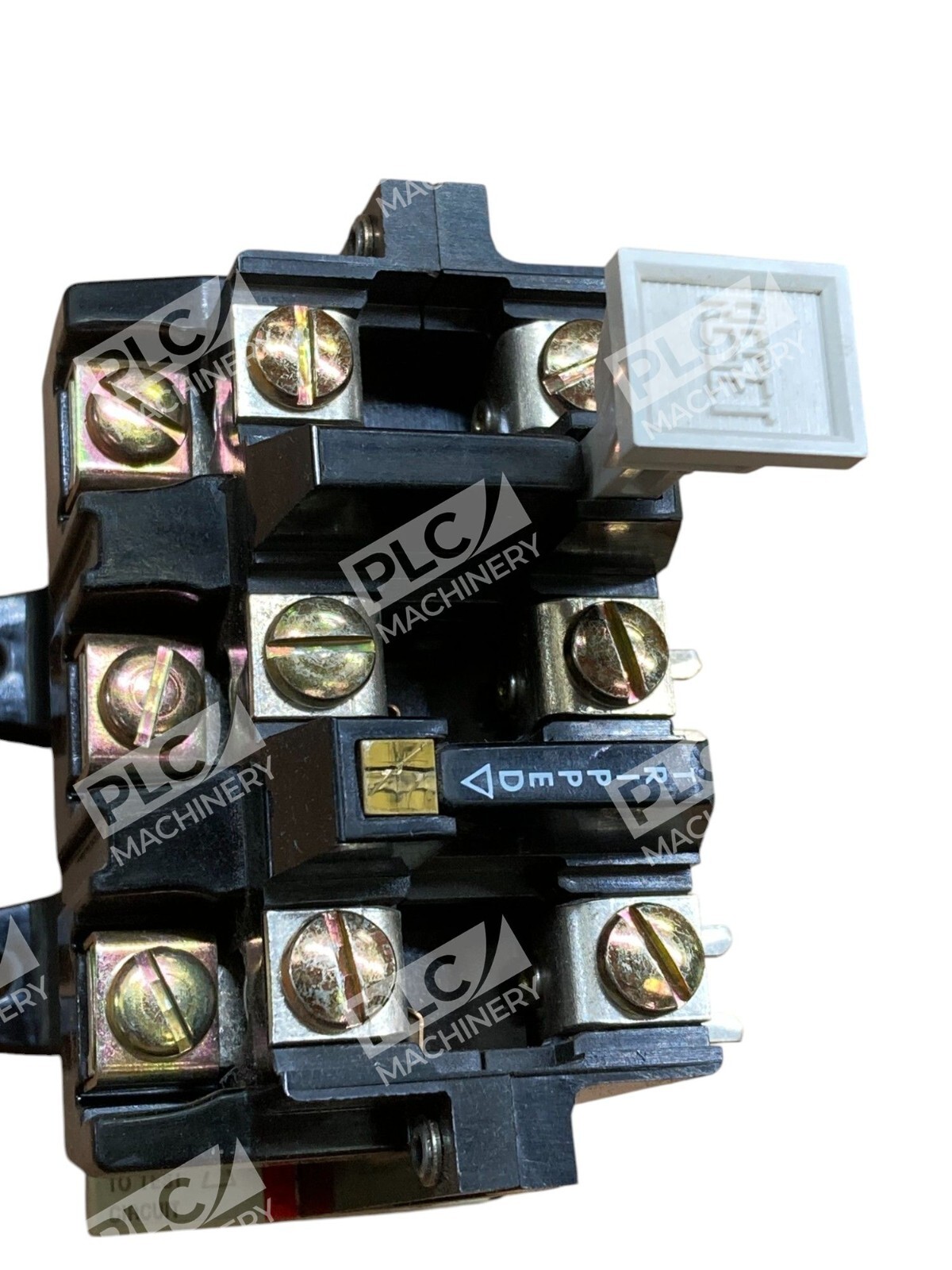

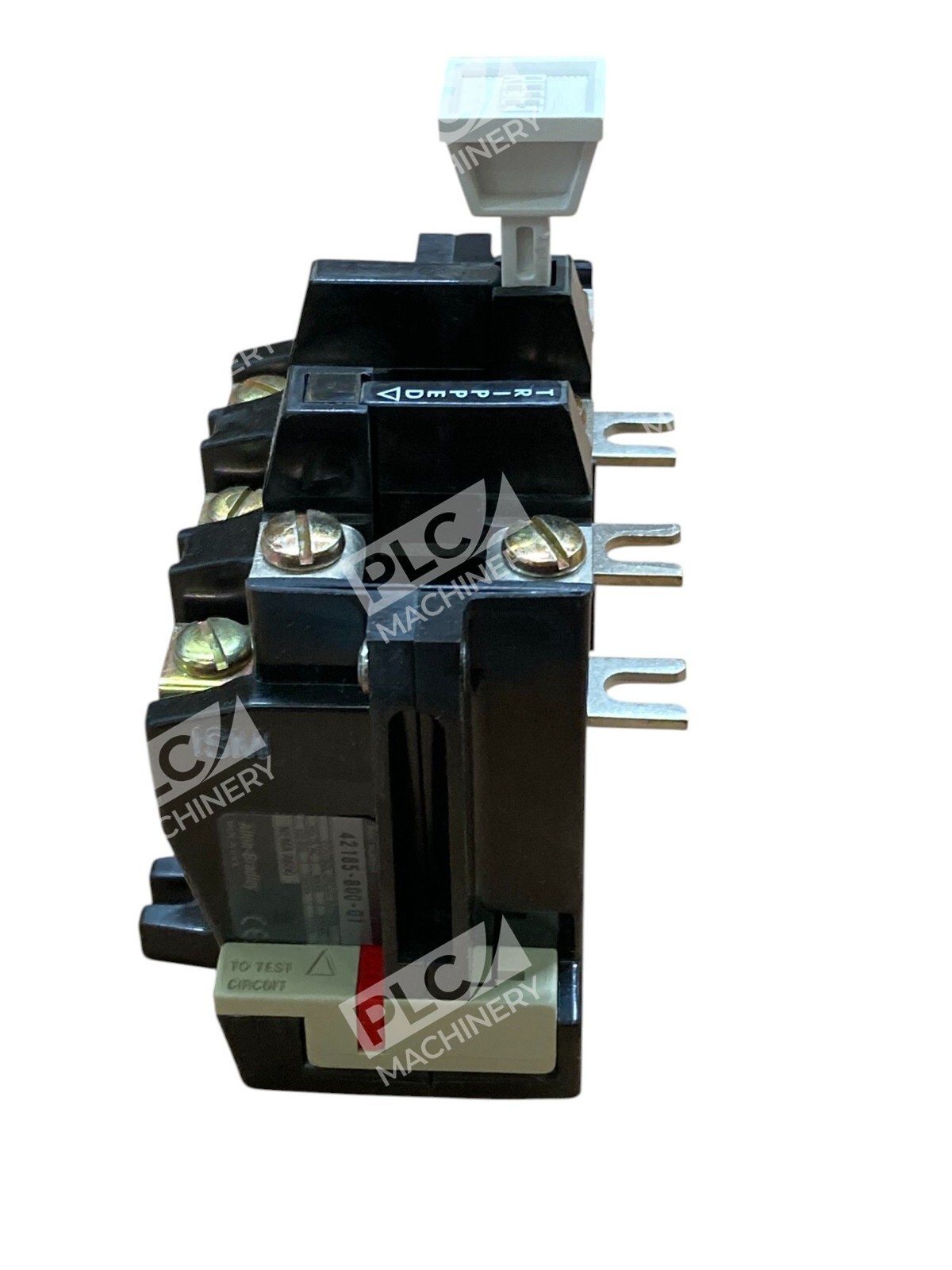

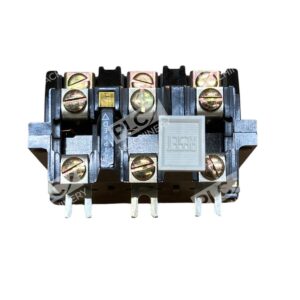

The Allen-Bradley Bulletin 592 3-Pole Overload Relay (Catalog Number: 42185-800-01) is engineered to provide reliable protection for electric motors by detecting and responding to overcurrent conditions.
Key Features
- Three-Pole Configuration: Ensures comprehensive monitoring and protection across all phases of the motor.
- Voltage Compatibility: Operates effectively within a voltage range of 120 to 600 Volts AC, accommodating various industrial applications.
- Contact Configuration: Equipped with one normally closed (N.C.) contact, facilitating straightforward integration into control circuits.

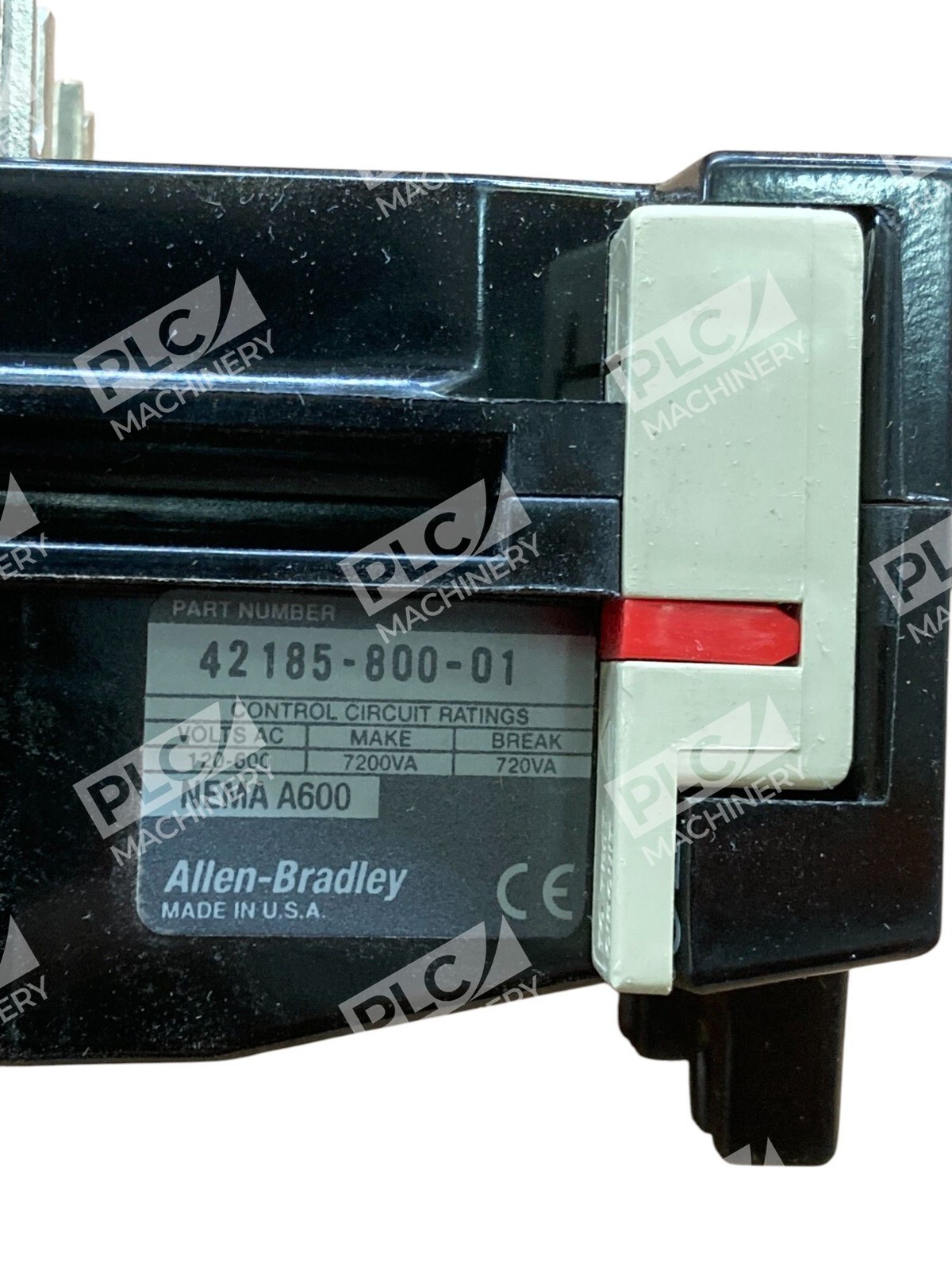

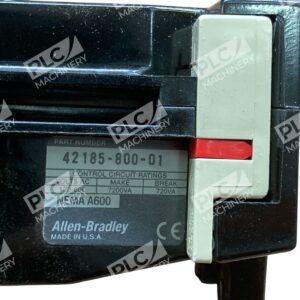

- Enclosure Rating: Features a NEMA A600 rating, indicating suitability for demanding industrial environments.
- Performance Ratings: Boasts a make capacity of 7200 VA and a break capacity of 720 VA, ensuring robust performance during operation.
- Starter Compatibility: Designed for use with Size 0-1 starters, offering versatility in motor control applications.

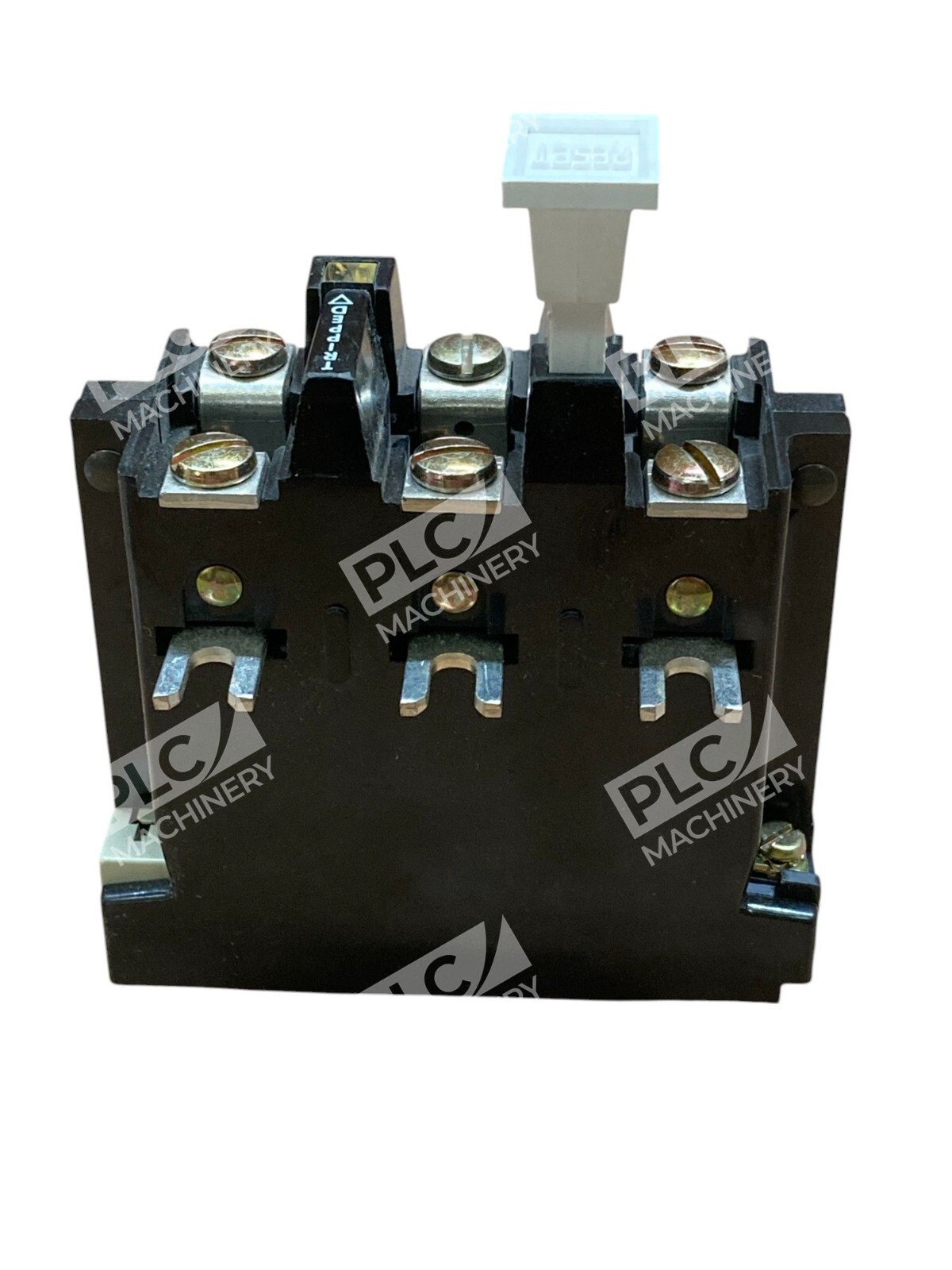

- Open Style Design: Allows for easy mounting and integration into existing systems.
- Heater Elements: Requires three heater elements, which are sold separately, enabling customization based on specific motor requirements.
Applications
This overload relay is ideal for safeguarding motors in various industrial settings, including manufacturing plants, processing facilities, and other environments where motor protection is critical.
Additional Information
The 42185-800-01 model includes a test module (40185-499-01) for convenient functionality verification. Its open style design facilitates straightforward installation and maintenance.
Please note that heater elements are required for operation and must be purchased separately to match the specific motor’s requirements.
