Allen Bradley AB Breakout Board Module W/ Cable 2090-UXBB-DM15 /B

Allen-Bradley 2090-UXBB-DM15/B Breakout Board Module with Cable

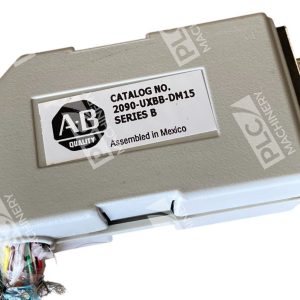

The Allen-Bradley 2090-UXBB-DM15/B is a motor feedback breakout board designed to facilitate the connection between motor feedback devices and drive systems. This module ensures efficient signal transmission and system integration.

Key Features

• Compact Design: The breakout board measures approximately 7.48 inches in length, 5.47 inches in width, and 2.24 inches in height, making it suitable for various installation environments.
• Versatile Compatibility: Compatible with a range of Allen-Bradley drive systems, enhancing its applicability across different setups.
• Secure Connections: Equipped with locking tabs and cable ties to ensure stable and reliable connections, minimizing the risk of signal loss or interference.
• Easy Installation: Features mounting screws and clear guidelines for cable shield termination, simplifying the installation process.

Technical Specifications

• Maximum Cable Diameter: 11.4 mm (0.45 in.)
• Screw Terminal Wire Size: 0.06 to 1.31 mm² (30 to 16 AWG)
• Recommended Wire Strip Length: 25 to 51 mm (1 to 2 in.)
• Recommended Torque:
  • Mounting Screws: 0.40 N·m (3.5 lb·in)
  • Terminal Screws: 0.25 N·m (2.2 lb·in)

Installation Guidelines

To ensure optimal performance and safety, follow these steps during installation:

1. Position the cable shield against the designated termination pad.
2. Secure the cable using the provided cable tie and locking tab.
3. Use the mounting screws to affix the breakout board firmly in place.
4. Ensure all connections are tight and properly insulated to prevent electrical faults.

For detailed installation instructions and compatibility information, refer to the Kinetix Motion Control Selection Guide.

Note

While the 2090-UXBB-DM15/B breakout board offers robust performance and reliability, always consult the latest product documentation or contact the manufacturer for the most current information and support.
