Allen Bradley AB 3 Position Spring Return Selector Switch 800T-J91A /T

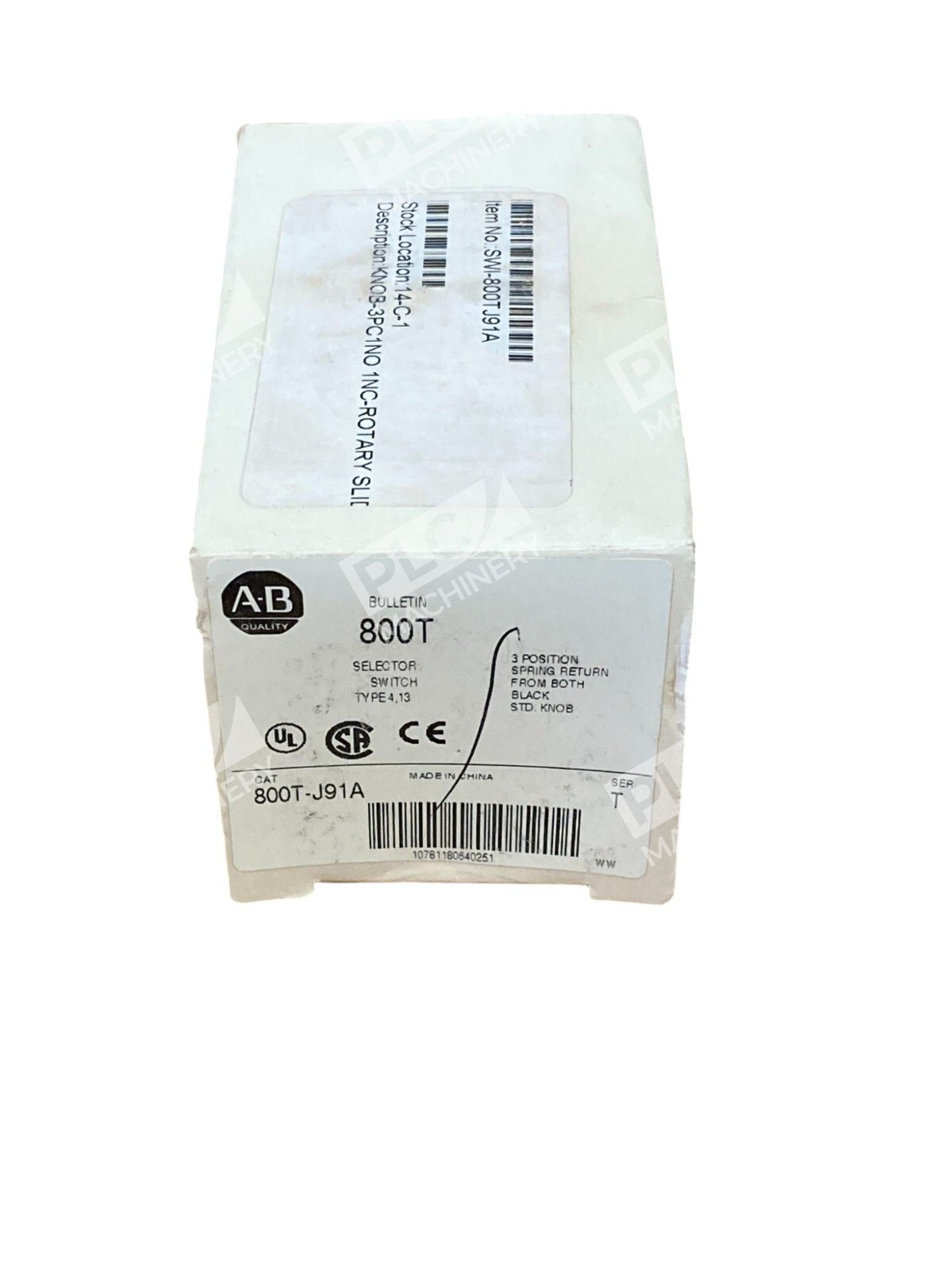

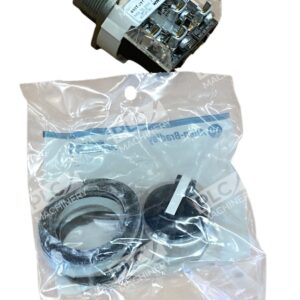

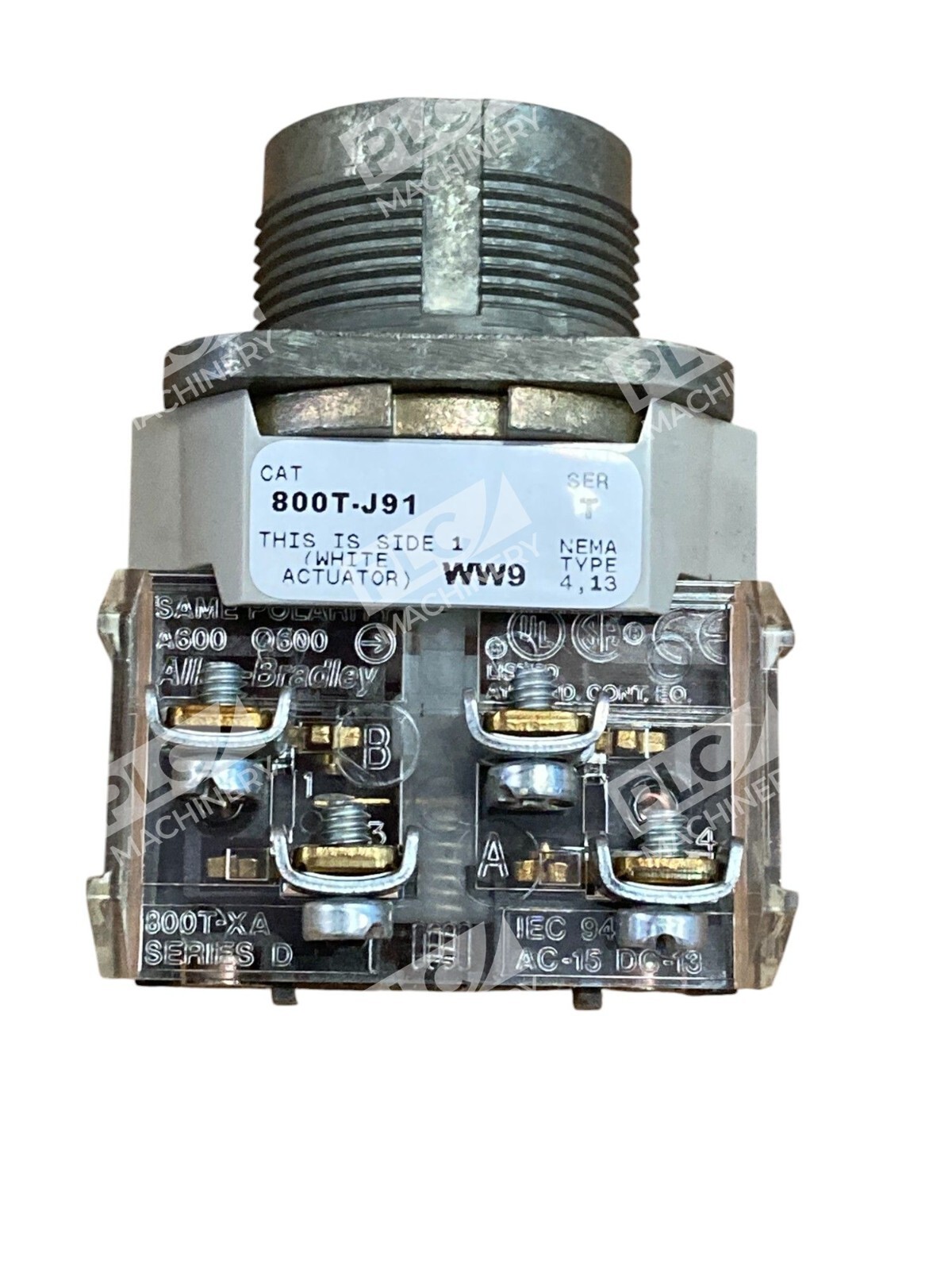

Allen-Bradley 800T-J91A 3-Position Spring Return Selector Switch

The Allen-Bradley 800T-J91A is a robust 30 mm selector switch designed for demanding industrial environments. This three-position switch features a standard knob with a black cap and white insert, providing clear visual indication of switch positions.

Key Features

• Operator Function: Spring return from both left and right positions to center, ensuring reliable operation and quick reset.

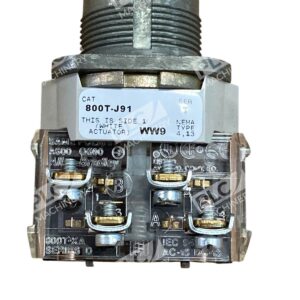

• Contact Configuration: Equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) standard contact blocks, facilitating versatile control applications.
• Durability: Engineered for longevity with a mechanical design life of at least 1,000,000 cycles and an electrical design life of 1,000,000 cycles at maximum load.
• Environmental Ratings: Compatible with NEMA Type 1, 4, 12, and 13 enclosures, offering protection against various environmental conditions.
• Electrical Ratings: Supports operational voltages up to 600V AC and 600V DC, with a thermal current rating of 10 A.
• Construction: Features a metal operator construction with a plastic cap, ensuring durability and ease of use.
• Certifications: Meets international standards with certifications including ABS, CCC, CE, CSA, EAC, GOST, and UL.

Specifications

• Hole Diameter: 30.5 mm
• Operator Cap Type: Standard knob
• Operator Cam Code: Standard cam
• Shock Resistance: 25 G (contact fragility) / 100 G (no damage)
• Vibration Resistance: Up to 10 G
• Operating Temperature Range: -25°C to +50°C
• Storage Temperature Range: -40°C to +85°C
• Humidity: Up to 50%

The Allen-Bradley 800T-J91A selector switch is an ideal choice for applications requiring a reliable, durable, and easy-to-operate control interface in industrial settings.
