Overview

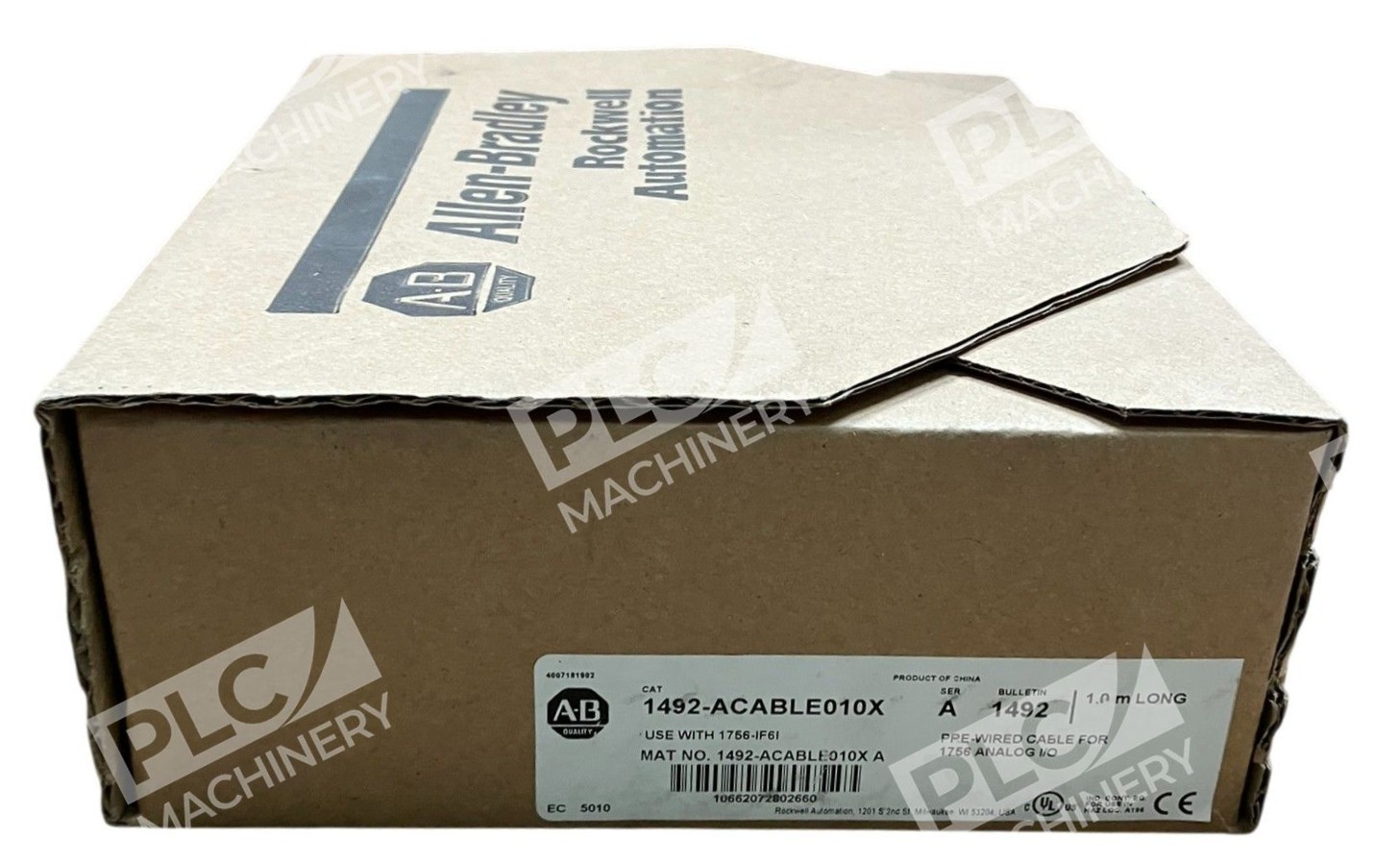

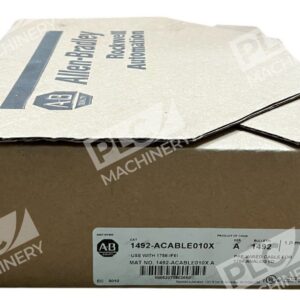

The Allen-Bradley 1492-ACABLE010X is a pre-assembled analog I/O cable engineered for use with CompactLogix and ControlLogix 1756-IF16 (current) analog input modules. This 1-meter cable arrives fully terminated with a 1756-TBNH module connector on one end and an industry-standard AIFM 25-pin D-shell connector on the field side, eliminating on-site termination work and reducing the risk of mis-wired connections.
Key Features
- Pre-wired and factory-tested—eliminates terminal block assembly time on the bench
- 9 shielded twisted-pair conductors, #22 AWG for noise rejection in industrial environments
- 1756-TBNH module connector ensures secure, keyed connection to analog input modules
- AIFM 25-pin D-shell field connector compatible with standard analog transducers and sensor cabinets
- 1-meter length (3.28 feet) suitable for short to medium automation cabinet runs
Technical Specifications
- Cable Length: 1.0 meter (3.28 feet)
- Conductor Gauge: #22 AWG
- Pair Count: 9 twisted pairs
- Shielding: Overall shield
- Module Connector: 1756-TBNH (keyed)
- Field Connector: AIFM 25-pin D-shell
- Compatible Module: 1756-IF16 (current analog input)
- Certifications: UL, CSA, CE, CCC, CUL, KC
Typical Applications
- Process control—connecting pressure transmitters, temperature sensors, and flow meters to ControlLogix analog input modules
- Machine automation—wiring 4–20 mA analog signals from drives, load cells, and position sensors
- Batch and OEM integration—reducing assembly labor for pre-configured control systems
- Industrial cabinet builds—short-run connections between I/O modules and termination blocks or connectors
Compatibility & Replacements
The 1492-ACABLE010X is a direct factory replacement for damaged or worn analog cables on 1756-IF16 modules. Alternative length versions are available: the 1492-ACABLE010TB (for 1756-IF8 S-ended modules) and other 1492-ACable variants with different terminations and lengths. Verify module part number and connector type before ordering to ensure fit.
