Overview

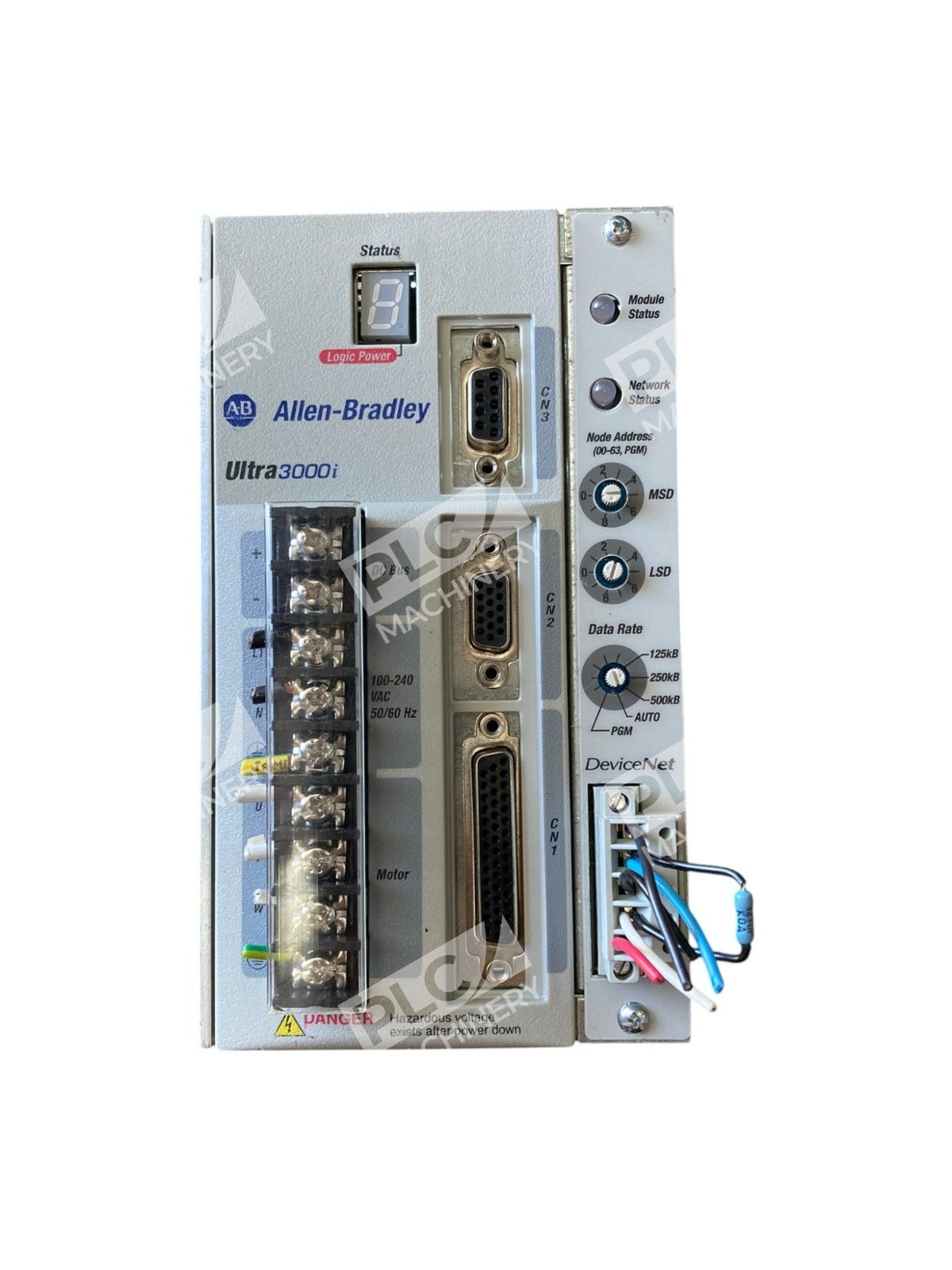

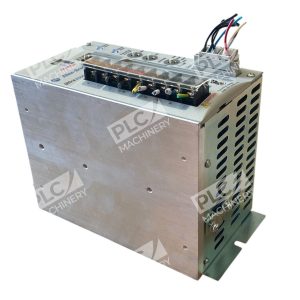

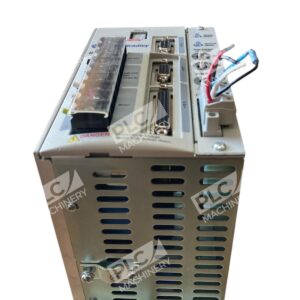

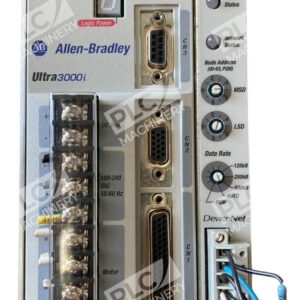

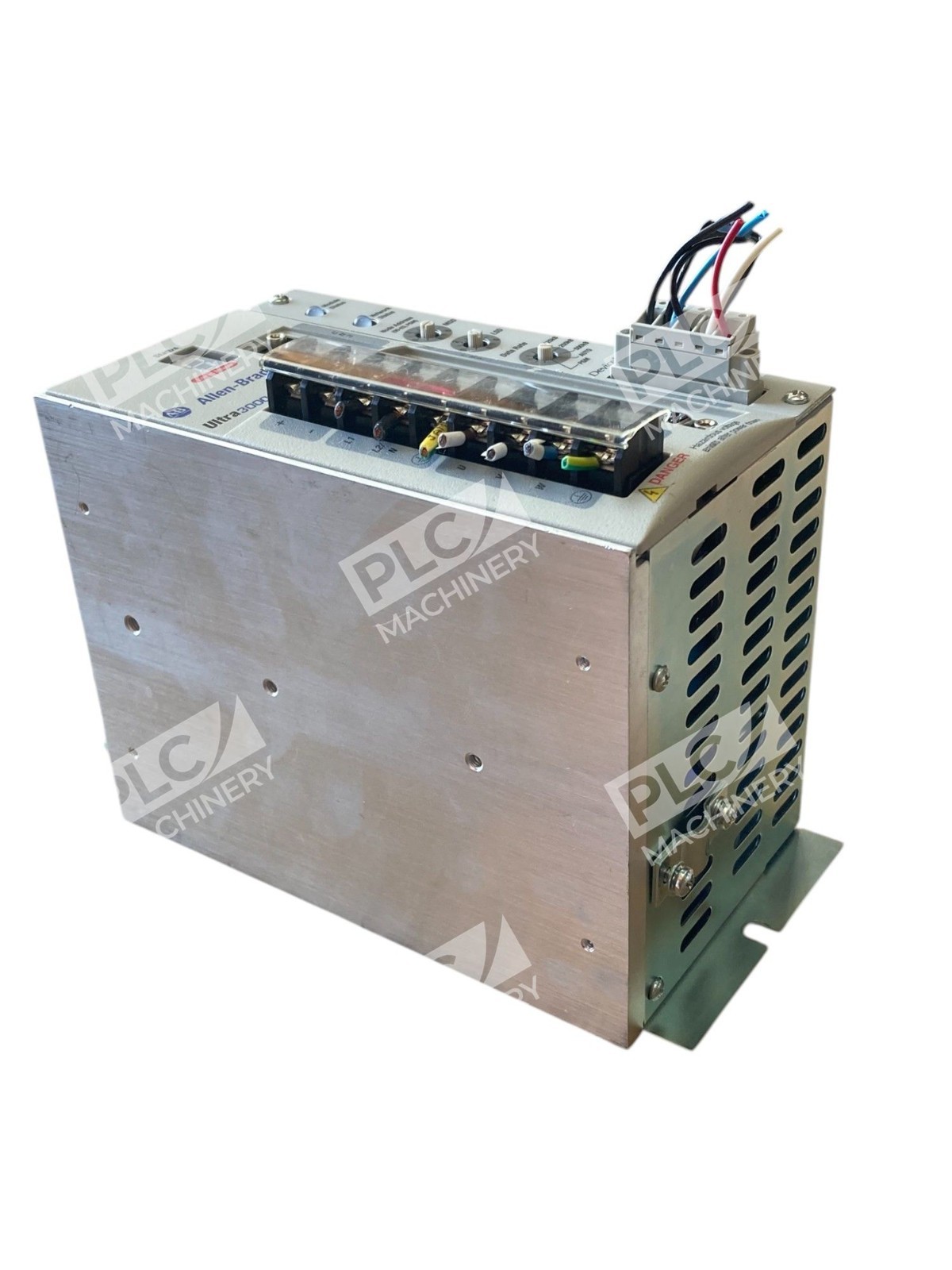

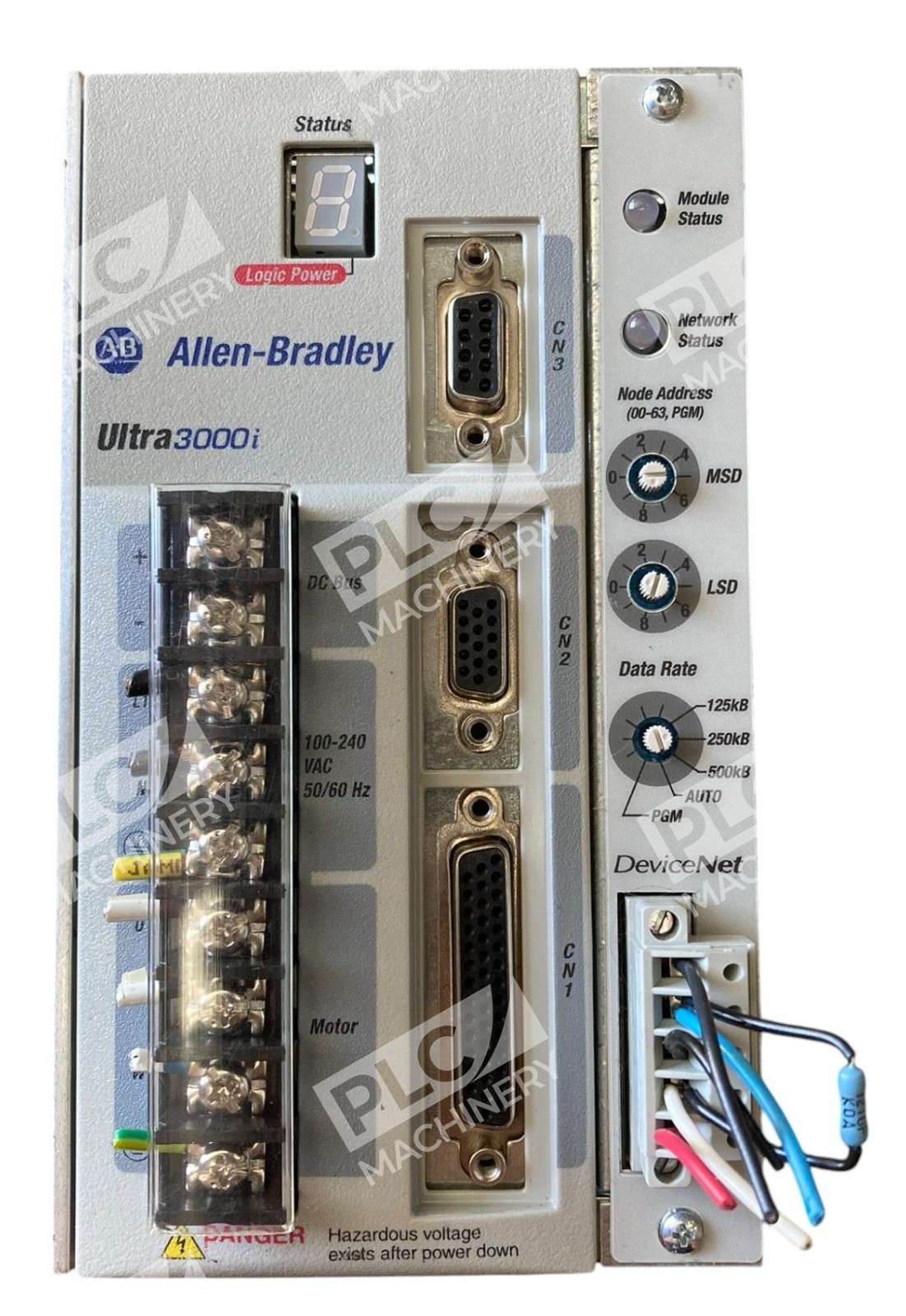

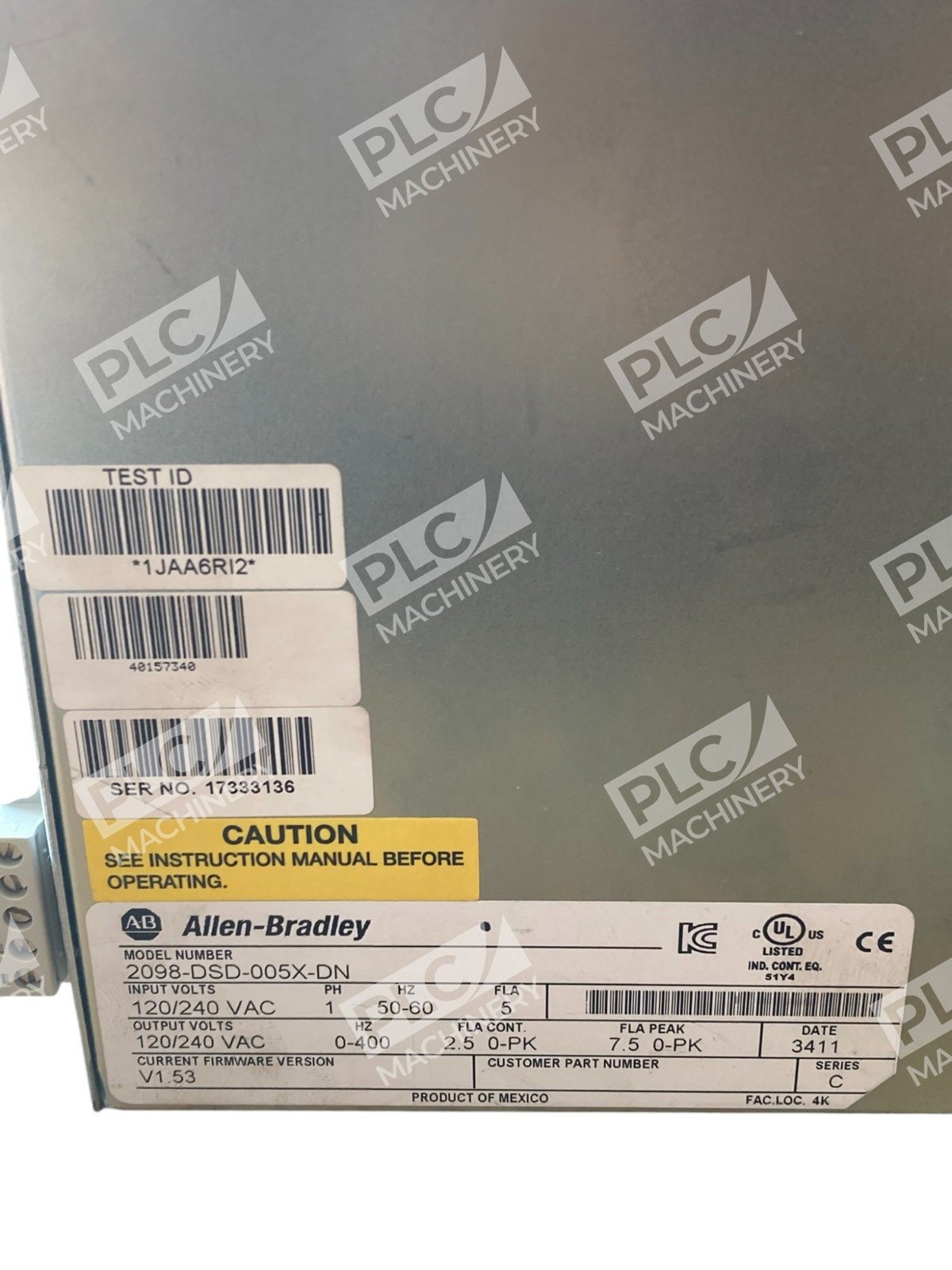

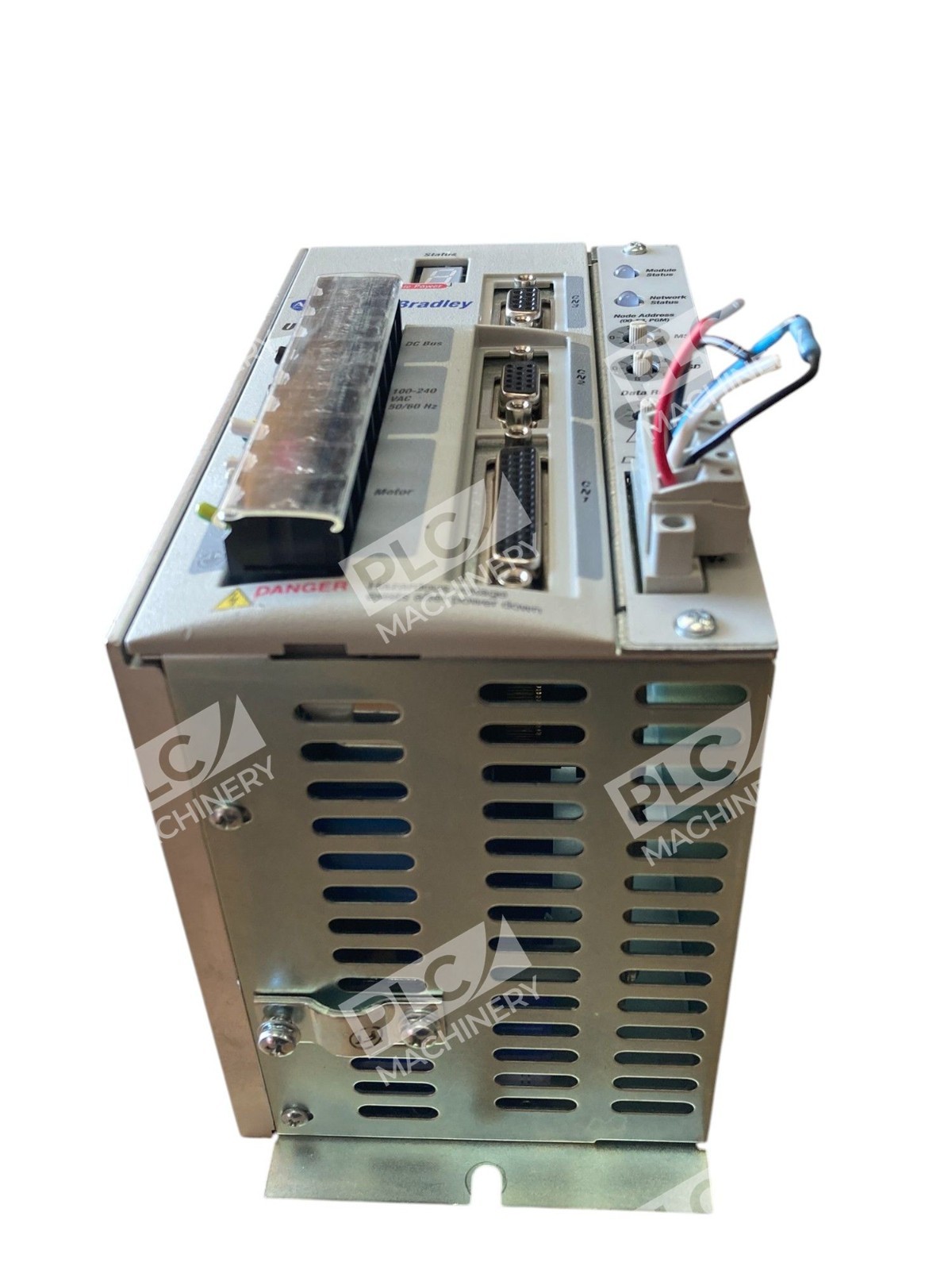

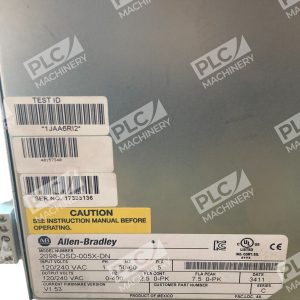

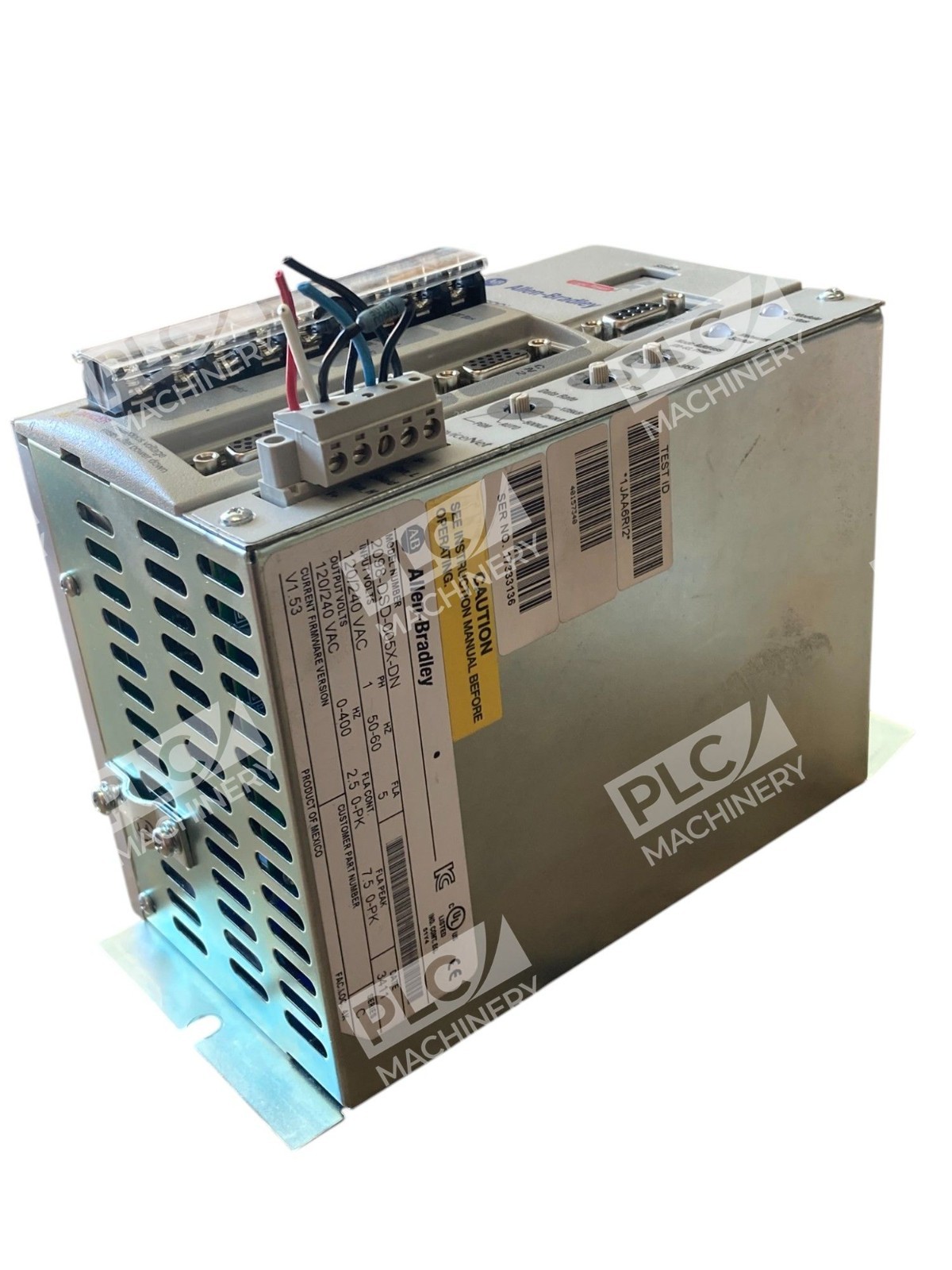

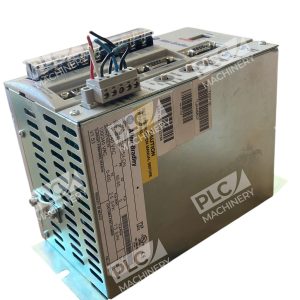

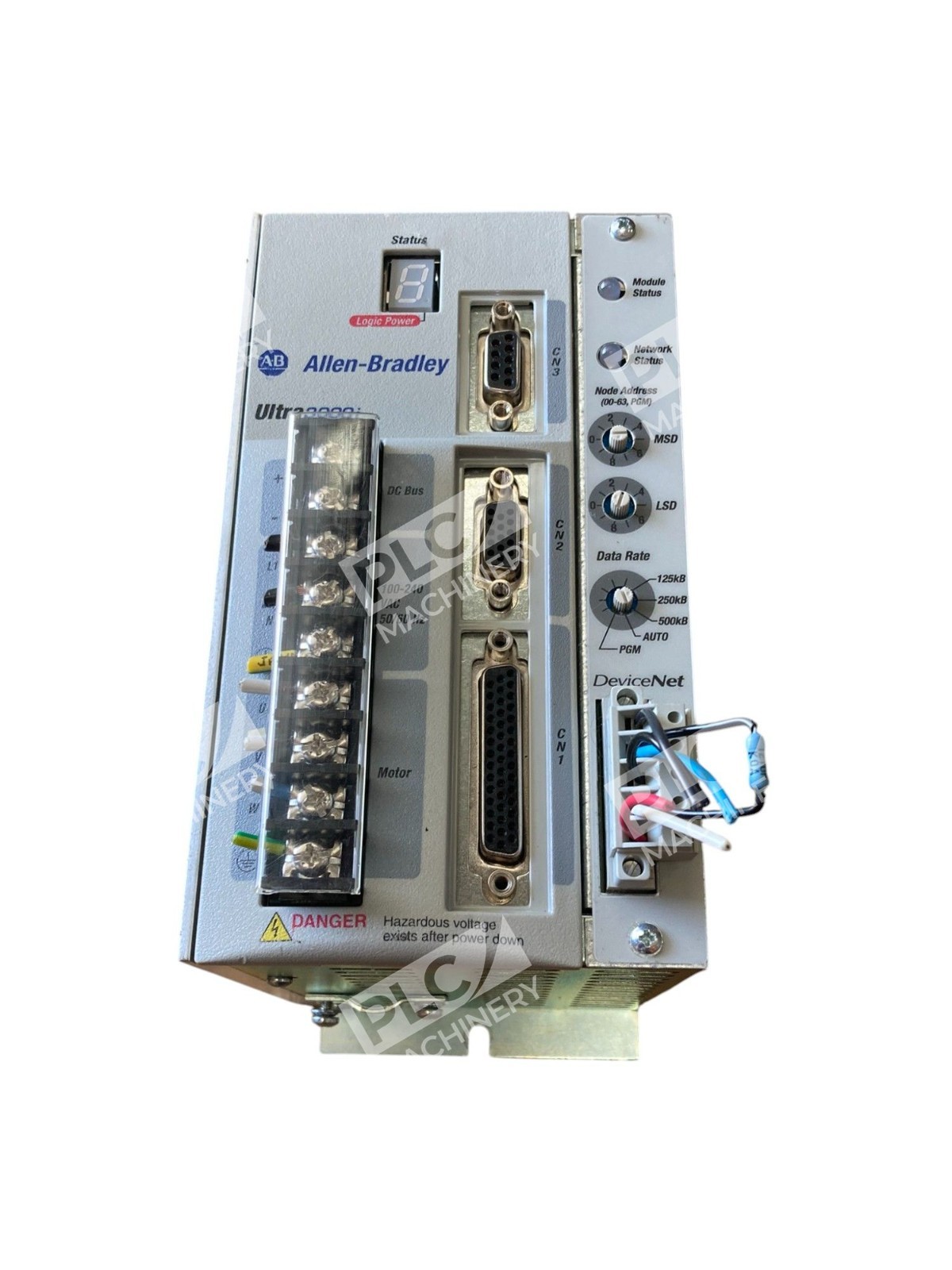

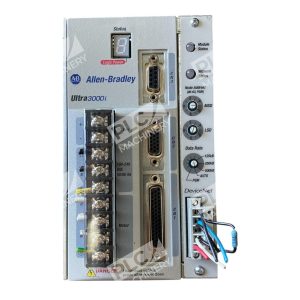

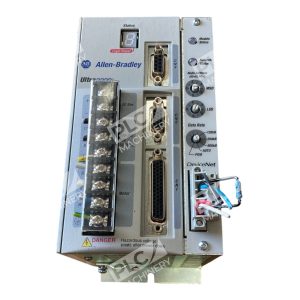

The Allen-Bradley 2098-DSD-005X-DN is a digital servo drive from the Ultra3000 series engineered for industrial motion control and precision positioning. This single-phase drive accepts 100–240V AC input and outputs variable frequency voltage (0–590 Hz) to drive Allen-Bradley servo motors with exacting speed and torque control. The DeviceNet interface enables networked operation in distributed control systems, while indexing functionality supports repeatable, pre-programmed motion routines essential for assembly, packaging, and material handling.
Key Features
- DeviceNet communication for real-time motion control integration
- Indexing capability for repeatable, programmable positioning sequences
- Single-phase 100–240V AC operation (47–63 Hz); no three-phase power required
- Compact DIN-rail mounting (98.1 mm × 32.77 mm × 65.02 mm)
- SERCOS protocol support for compatible servo motors
- External 12–24V DC power supply required for I/O logic; onboard 5V supply for logic hold-up
Technical Specifications
- Input Voltage: 100–240V AC (RMS), single-phase
- Input Frequency: 47–63 Hz
- Input Current: 5A nominal; 100A surge
- Output Power: 0.5 kW at 230V AC; 0.25 kW at 115V AC
- Output Current: 2.5A continuous (0–peak); 7.5A intermittent (0–peak)
- Output Voltage: 0–590V AC variable frequency
- Bus Voltage (DC): 400V DC overvoltage protection
- Energy Absorption: 38 J at 230V AC
- Communication: DeviceNet; SERCOS serial interface
- Indexing: Yes—pre-defined motion paths supported
- Operating Temperature: 0–55 °C (32–131 °F)
- Storage Temperature: −40–70 °C (−40–158 °F)
- Humidity: 5–95% (non-condensing)
- Dimensions: 98.1 mm × 32.77 mm × 65.02 mm
- Weight: 1.8 kg (4.1 lbs)
- Certifications: CE, KC
- Mounting: DIN-rail
Typical Applications
The 2098-DSD-005X-DN excels in factory automation requiring synchronized motion coordination:
- Pick-and-place and robotic arm servo control
- Indexing conveyor and rotary table positioning
- CNC spindle and stepper-motor alternative applications
- Precision packaging and assembly line servo actuation
- Material handling systems with networked motion synchronization
Compatibility & Replacements
The 2098-DSD-005X-DN is fully compatible with Allen-Bradley H-Series, F-Series, MP-Series, 1326AB-Series, and Y-Series servo motors equipped with SERCOS interfaces. DeviceNet integration supports real-time feedback through Allen-Bradley control systems (CompactLogix, ControlLogix, Micro800) and third-party ODVA-certified network nodes. This drive is part of the discontin… product line; however, in-stock used inventory remains available for immediate replacement of failed units or retrofit installations. For three-phase power environments or higher output ratings, consider the Ultra3000/5000 series with three-phase input variants.
