Allen Bradley 802M-AY12 Bulletin 802M Factory Sealed Limit Switch

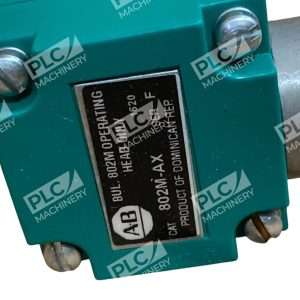

Allen-Bradley 802M-AY12 Factory Sealed Limit Switch

The Allen-Bradley 802M-AY12 is a robust factory-sealed limit switch designed to deliver reliable performance in demanding industrial environments. As part of the 802M series, this switch is engineered to meet the stringent requirements of NEMA 1, 4, 6P, and 13 enclosures, making it ideal for applications involving wet conditions and wash-down procedures.

Key Features

• Actuation Type: Lever type with spring return, standard operating torque.
• Mode of Operation: Supports both clockwise (CW) and counterclockwise (CCW) operations.
• Number of Circuits: Equipped with 2 circuits, each capable of handling a maximum continuous carrying current of 5 A per pole at 24V DC.

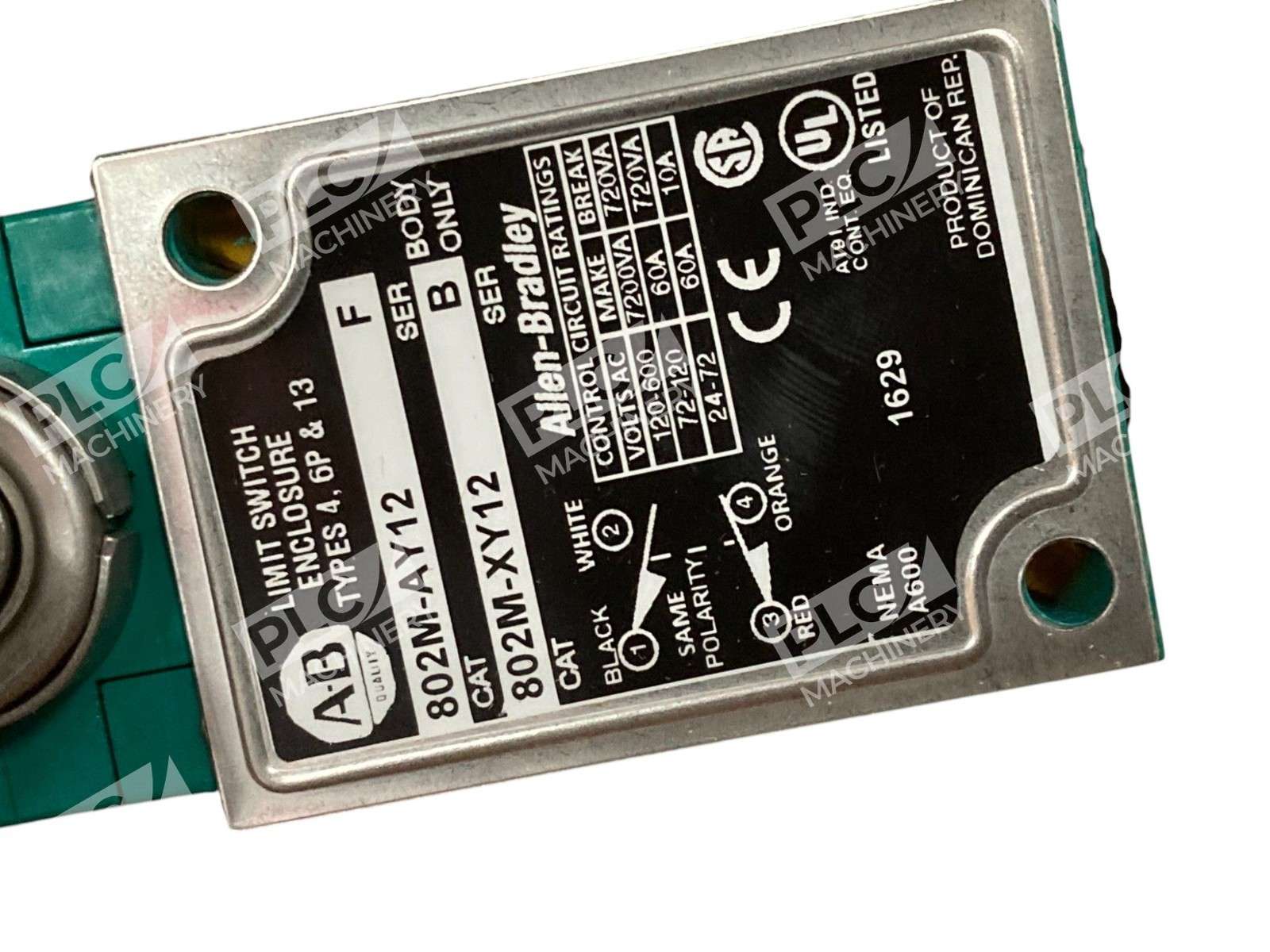

• Contact Configuration: Features 1 normally open (NO) and 1 normally closed (NC) contact.
• Travel Specifications:
  • Maximum travel: 86°
  • Travel to operate contacts: 15°
  • Travel to reset contacts: 6°
• Torque to Operate Contacts: Maximum of 0.34 Nm.

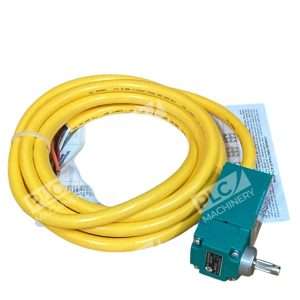

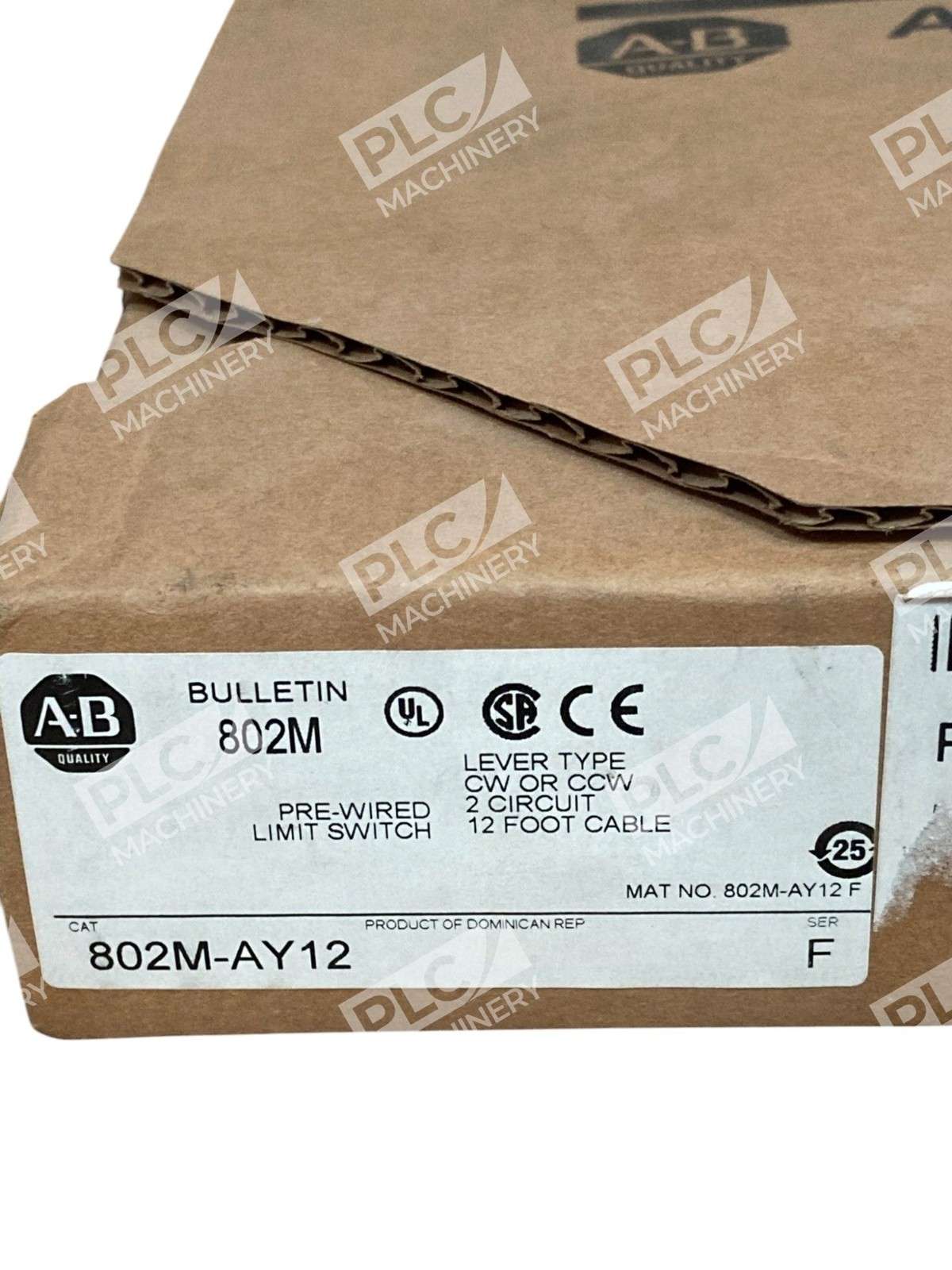

• Connection Type: Pre-wired with a 12 ft (3.66 m) cable for straightforward installation.
• Environmental Ratings: Rated IP67, ensuring protection against dust and immersion in water up to 1 meter depth.
• Certifications: CE Marked, CSA Certified, UKCA Marked, and UL Listed, affirming compliance with international safety and quality standards.

Applications

The 802M-AY12 limit switch is well-suited for a variety of industrial applications, including:

• Material handling systems
• Packaging machinery
• Food processing equipment
• Transportation systems

Its factory-sealed design ensures durability and reliability, even in harsh operating conditions.

Dimensions

• Width: Approximately 41.3 mm
• Height: Approximately 57.9 mm
• Length: Approximately 119 mm

These compact dimensions facilitate integration into various equipment and machinery setups.

Operating Conditions

• Ambient Temperature Range: 0°C to 80°C (32°F to 176°F), with the minimum temperature based on the absence of freezing moisture or water.

The Allen-Bradley 802M-AY12 Factory Sealed Limit Switch combines durability, precision, and compliance with international standards, making it a reliable choice for industrial automation needs.
