Overview

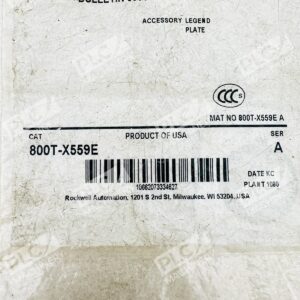

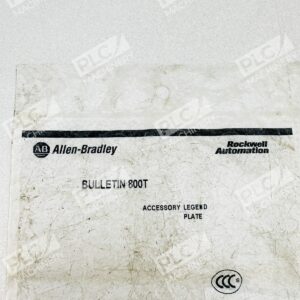

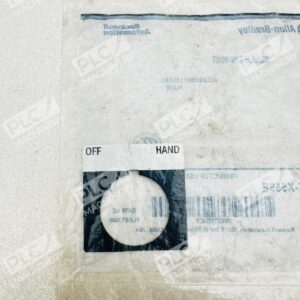

The Allen-Bradley 800T-X559E legend plate is a 30.5mm gray aluminum nameplate designed for labeling and identifying 800T series push buttons, indicator lights, and operator station components. Built to NEMA 4 and NEMA 13 enclosure standards, this plate provides a durable, corrosion-resistant solution for clearly marking industrial control points. Custom engraving allows technicians and operators to quickly identify button functions, reducing troubleshooting time and improving system safety.
Key Features
- 30.5mm gray aluminum construction rated for NEMA 4 and NEMA 13 enclosures
- Standard engraved finish with custom text options available
- Lightweight and corrosion-resistant design
- Compatible with all 800T 30mm push button and pilot device family
- New in Box condition, ready for immediate deployment
Technical Specifications

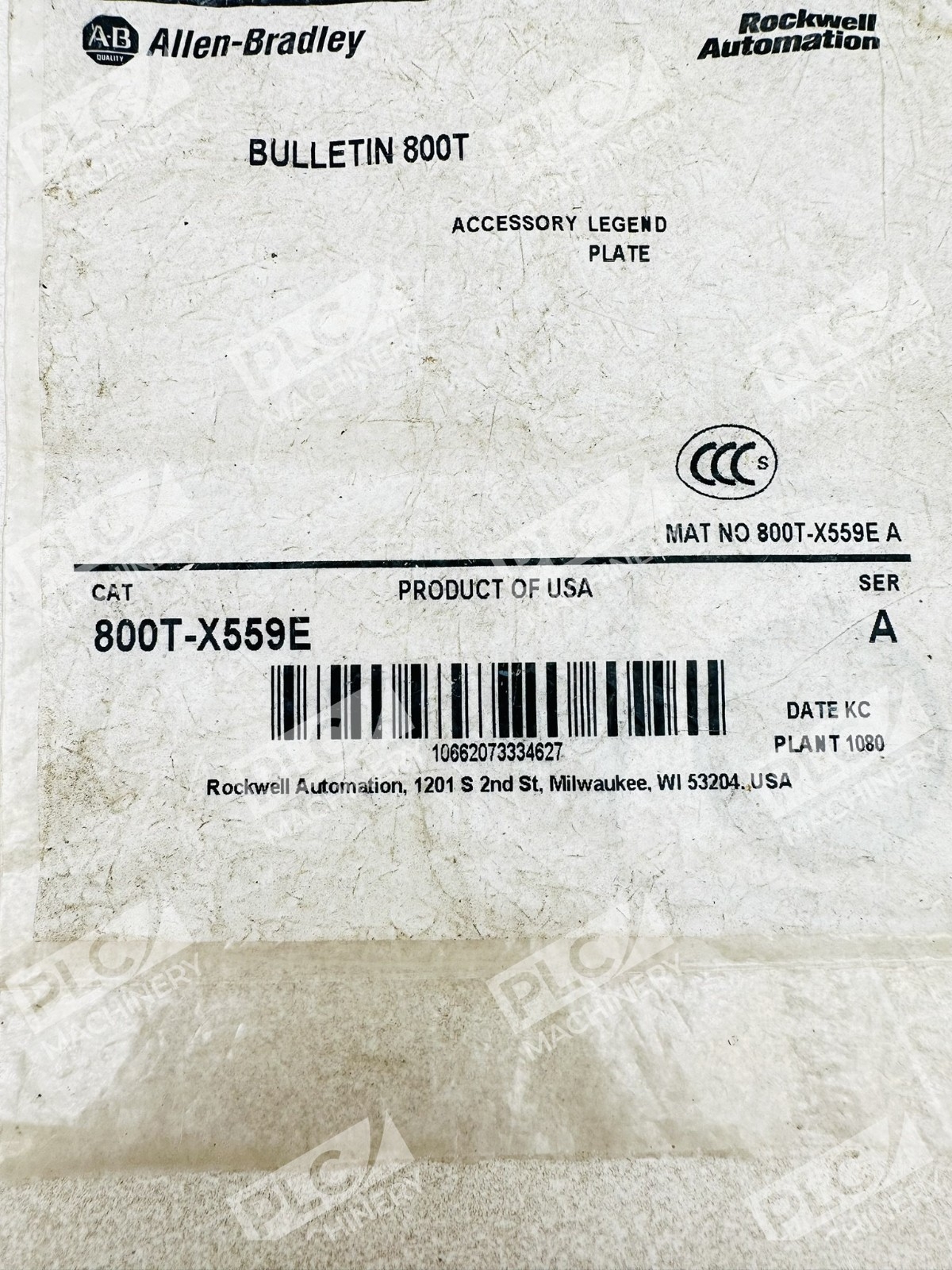

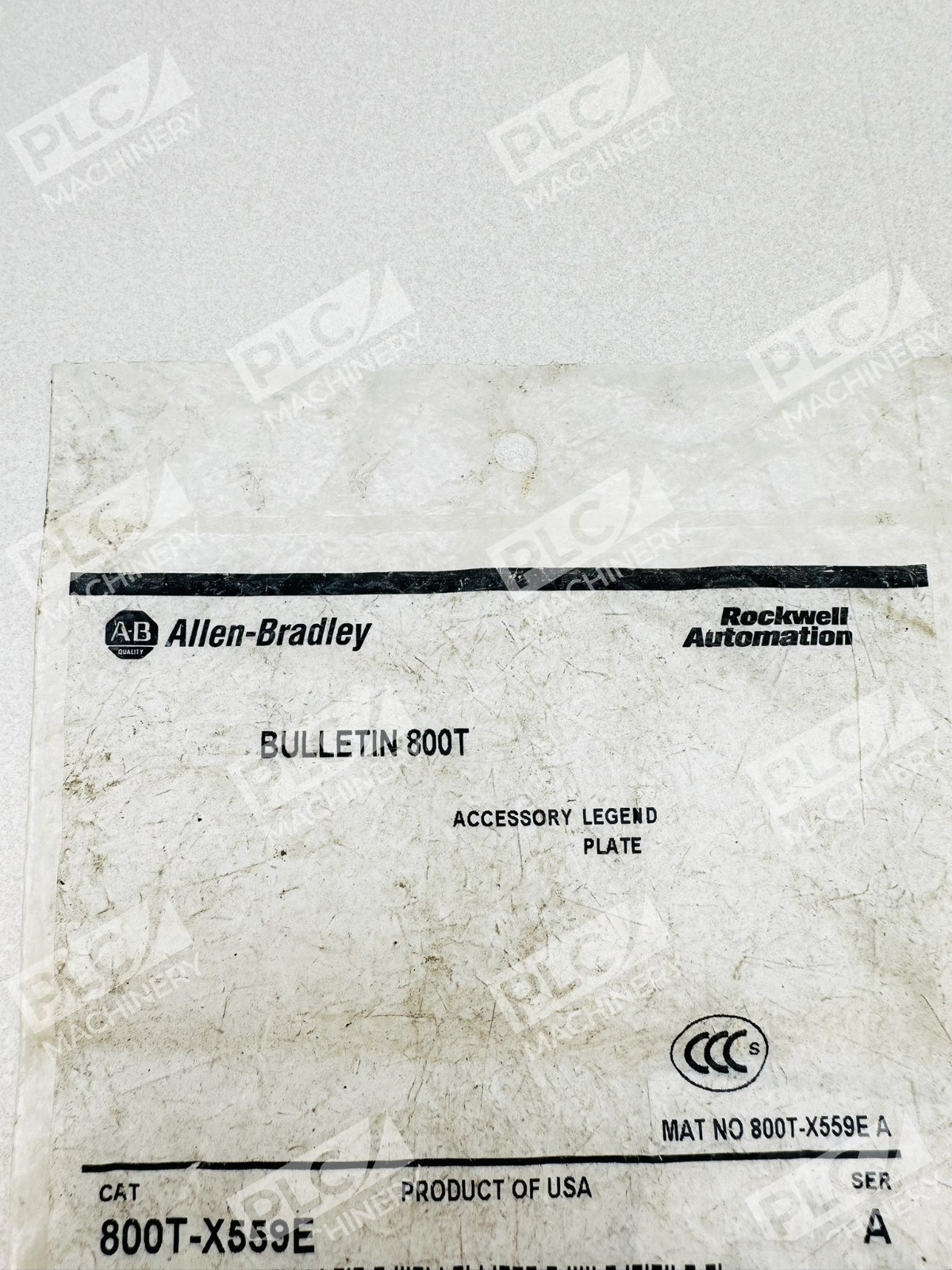

- Part Number: 800T-X559E
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Size: 30.5mm
- Material: Aluminum
- Color: Gray
- Type: Standard, Engraved
- NEMA Rating: 4, 13
- Legend Style: Custom Text
- Weight (each): 0.01 lbs
- UPC: 662073334620

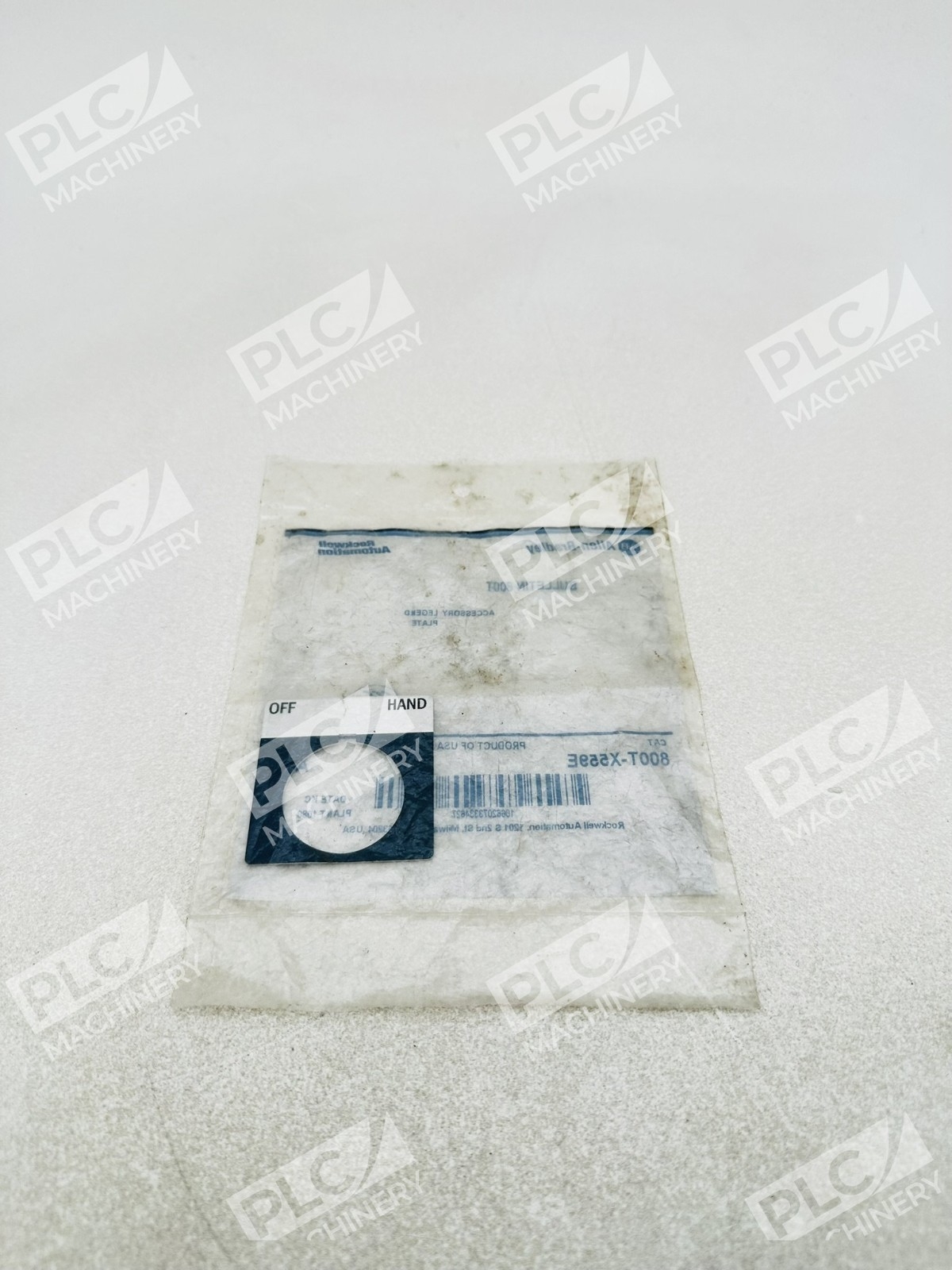

- Condition: New in Box
Typical Applications
- Operator station labeling and identification
- Push button function marking on control panels
- Indicator light and pilot device identification
- Industrial machinery control console labeling
- Food, beverage, pharmaceutical, and manufacturing automation systems
Compatibility & Replacements
Compatible With
- 800T Series 30mm push buttons
- 800T Series indicator lights and pilot devices
- 800T Series operator station assemblies
- NEMA 4 and NEMA 13 rated enclosures
Replaces / Drop-In Replacement For
- Used as direct accessory for 800T-X559E family legend plate variations
- Verify specific text engraving requirements with your system integrator before ordering
Works With
- Allen-Bradley 800T push button and selector switch family
- Rockwell Automation Studio 5000 operator interface documentation
- Standard industrial control panel marking practices per NEMA standards
