Overview

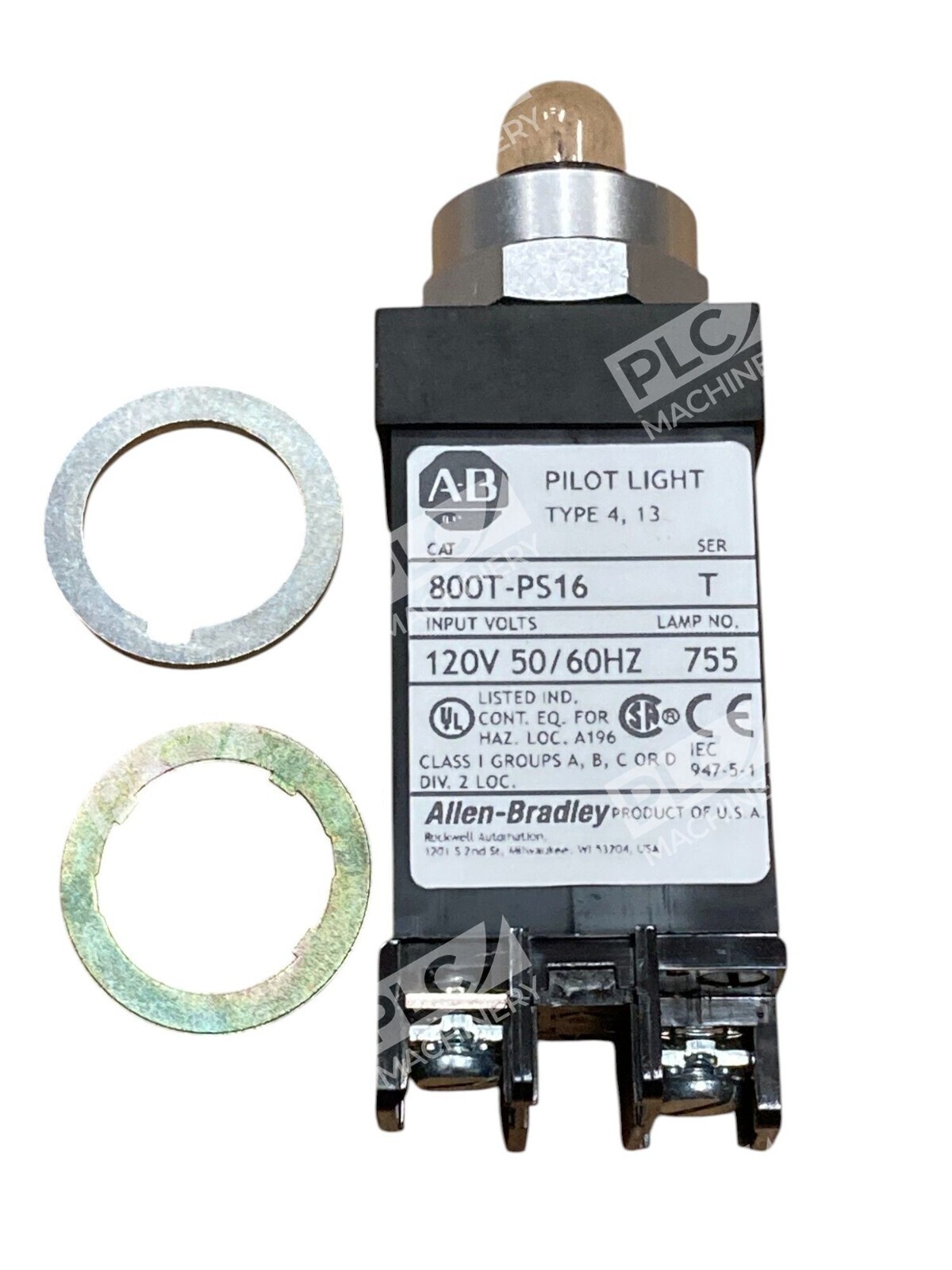

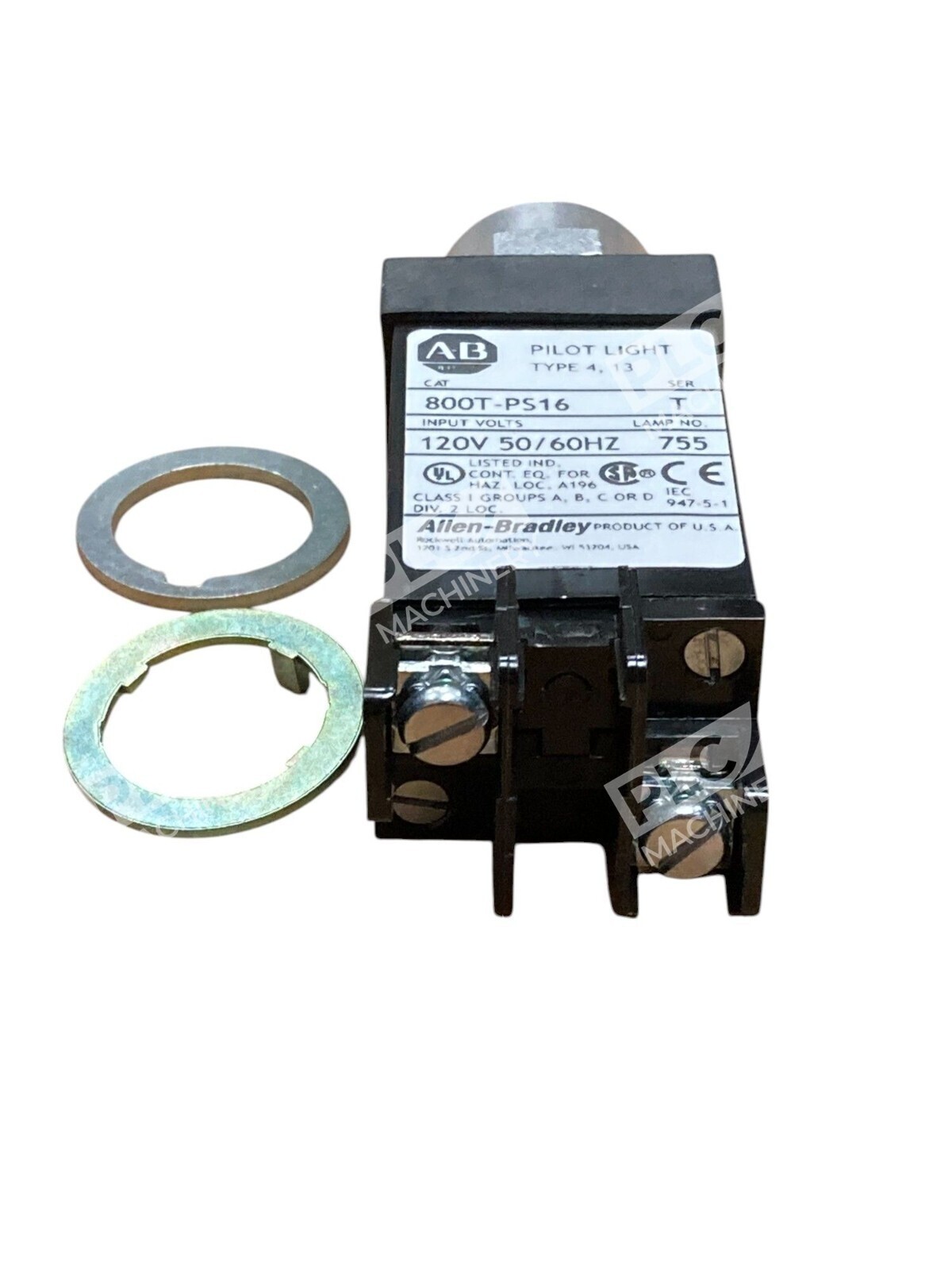

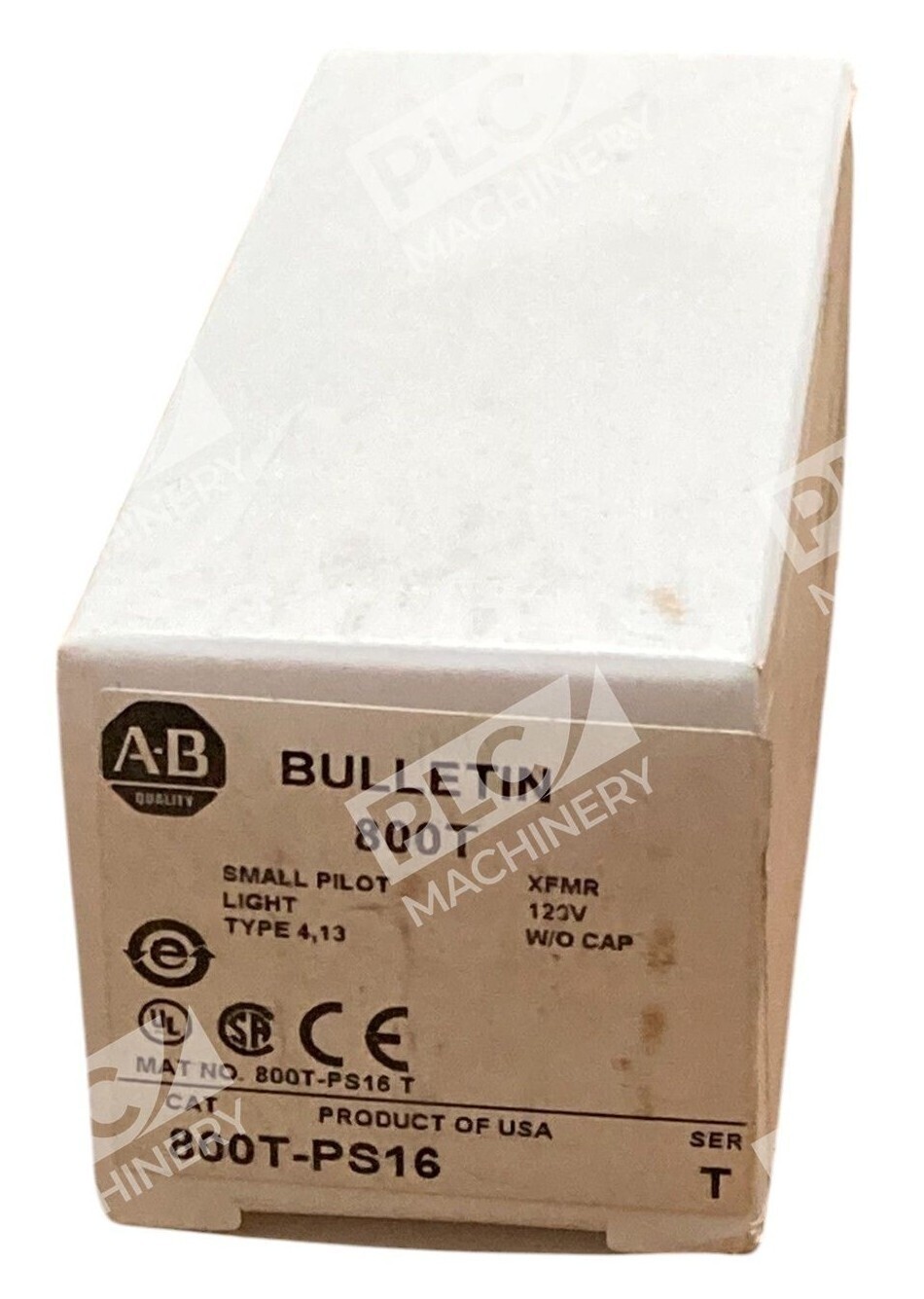

The Allen-Bradley 800T-PS16 is a 30.5 mm panel-mount pilot light from Rockwell Automation’s 800T heavy-duty pilot device family. It is configured as a transformer (or dual input) type with an incandescent lamp and is rated 120V AC 50/60 Hz, making it a direct-fit indicator for industrial control panels, machine consoles, and operator stations. Supplied new in box, this 800T-PS16 unit is ideal for like-for-like replacement of existing 800T pilot lights without panel modification.
Key Features
- Transformer-type pilot light with integrated step-down for 120V AC supply
- NEMA Type 4 and 13 ratings for resistance to dust, oil, and water in harsh environments
- Standard 30.5 mm panel-mount cutout for quick and secure mounting
- Accepts a standard incandescent bulb for a bright and clear visual signal
- Metal housing built for heavy industrial duty
- Certifications include CCC, CE, CSA, cUL, KC, Marine, and UL
Technical Specifications
Verified specs for the Allen-Bradley 800T-PS16 from the Rockwell Automation cut sheet and authorized distributors are listed below.
Typical Applications
- Machine status indication on packaging, conveying, and processing lines
- Operator panels and pushbutton stations in NEMA 4/13 enclosures
- Motor run, fault, and power-on indication in MCCs
- Wash-down and oily environments where standard plastic indicators fail
- Replacement of legacy 800T Series pilot lights in existing installations
Compatibility & Replacements
The 800T-PS16 belongs to Rockwell Automation’s 800T 30.5 mm metal pilot device line and shares mounting and wiring with other 800T pilot lights and pushbuttons. Rockwell Automation lists 800T-PS16 within the 800T PB family. Color-specific variants such as 800T-PS16R (red) and 800T-PS16G (green) use the same body and transformer arrangement, and the newer 800H series provides a corrosion-resistant equivalent for outdoor or chemical environments. Always confirm lens color, lamp voltage, and certification requirements against the original equipment specification before installation.
