Overview

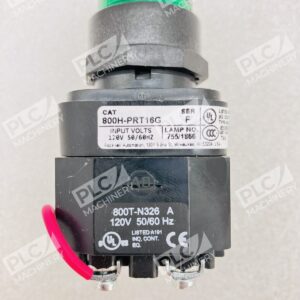

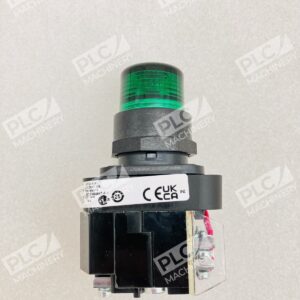

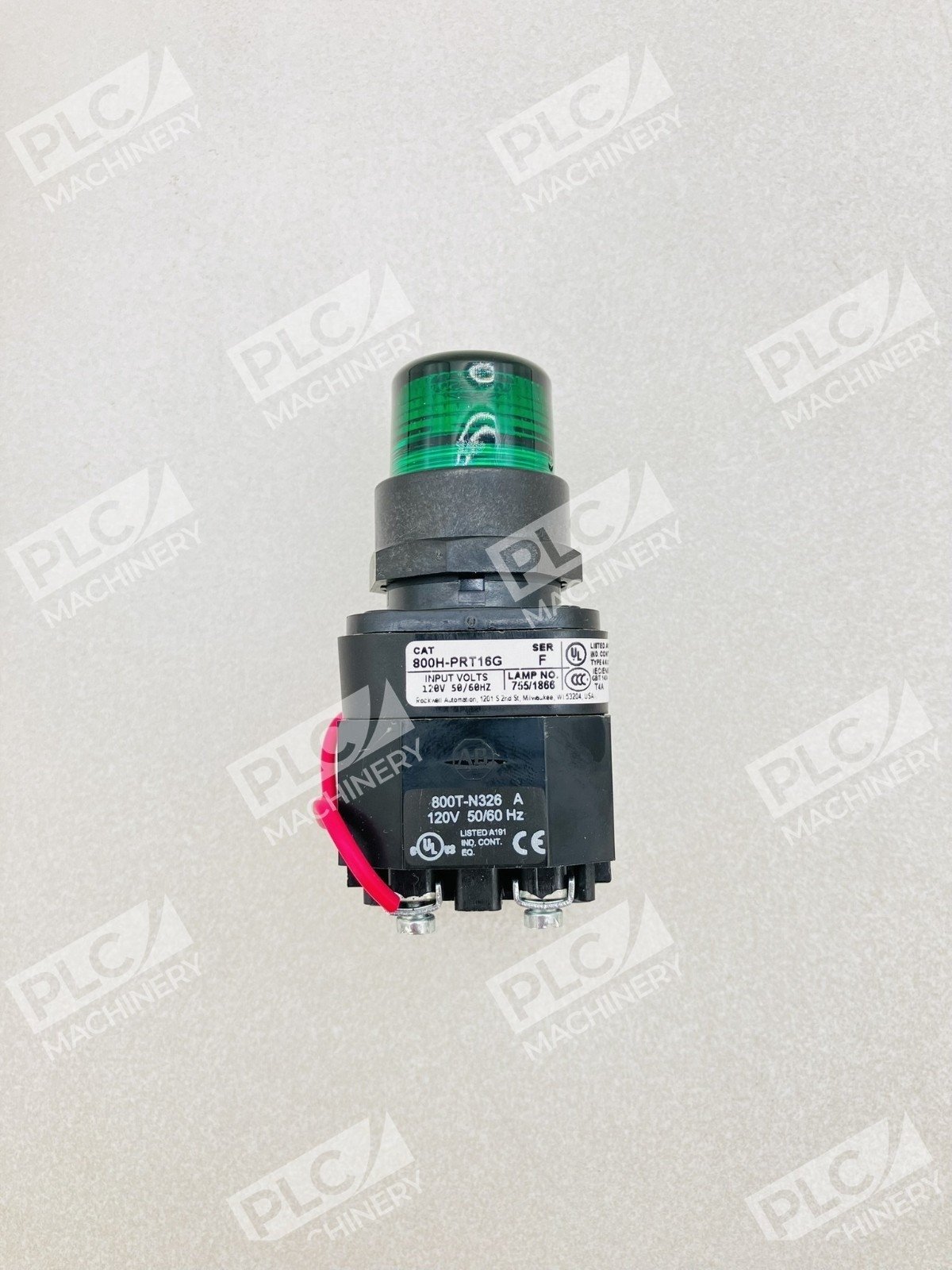

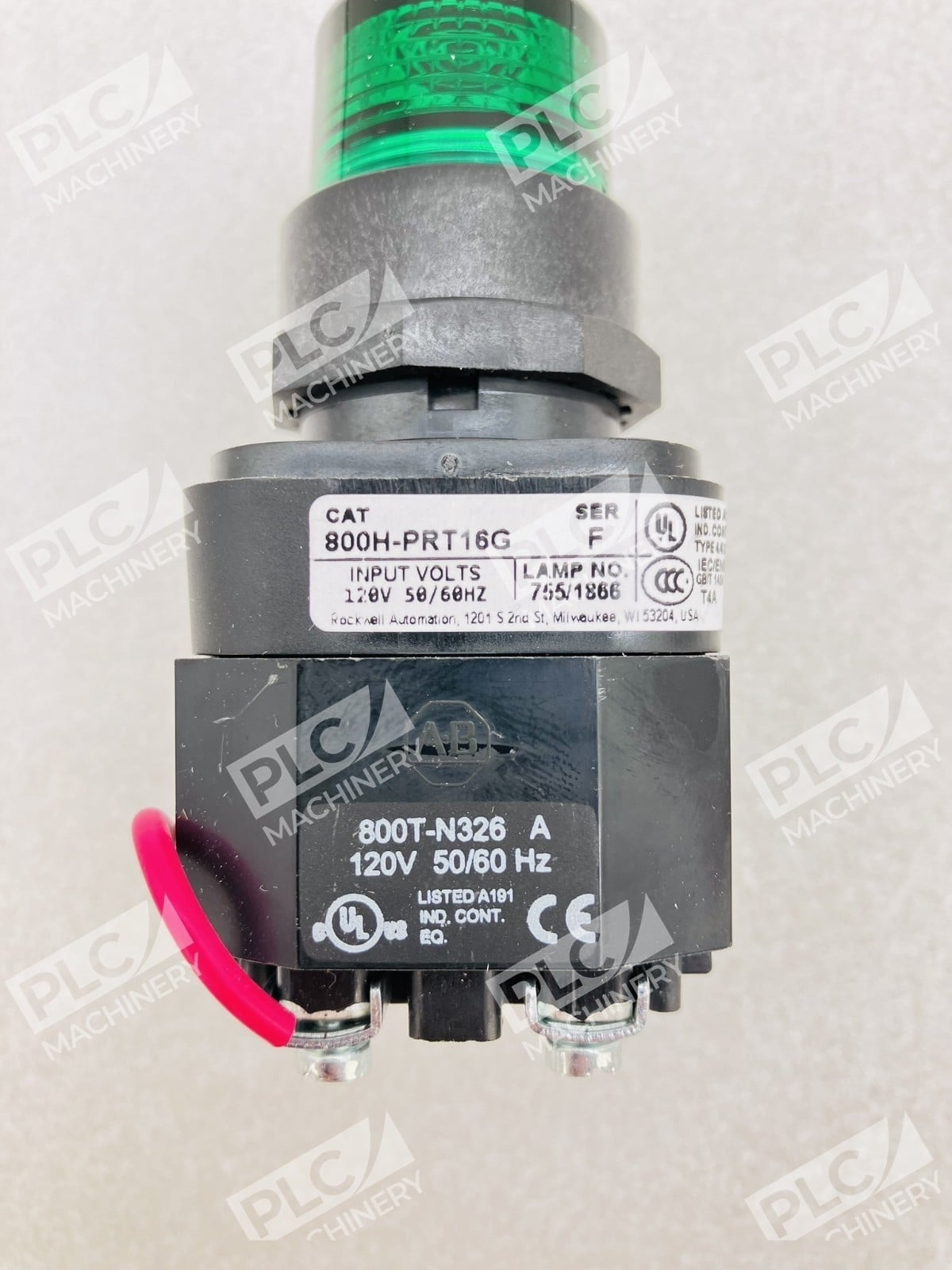

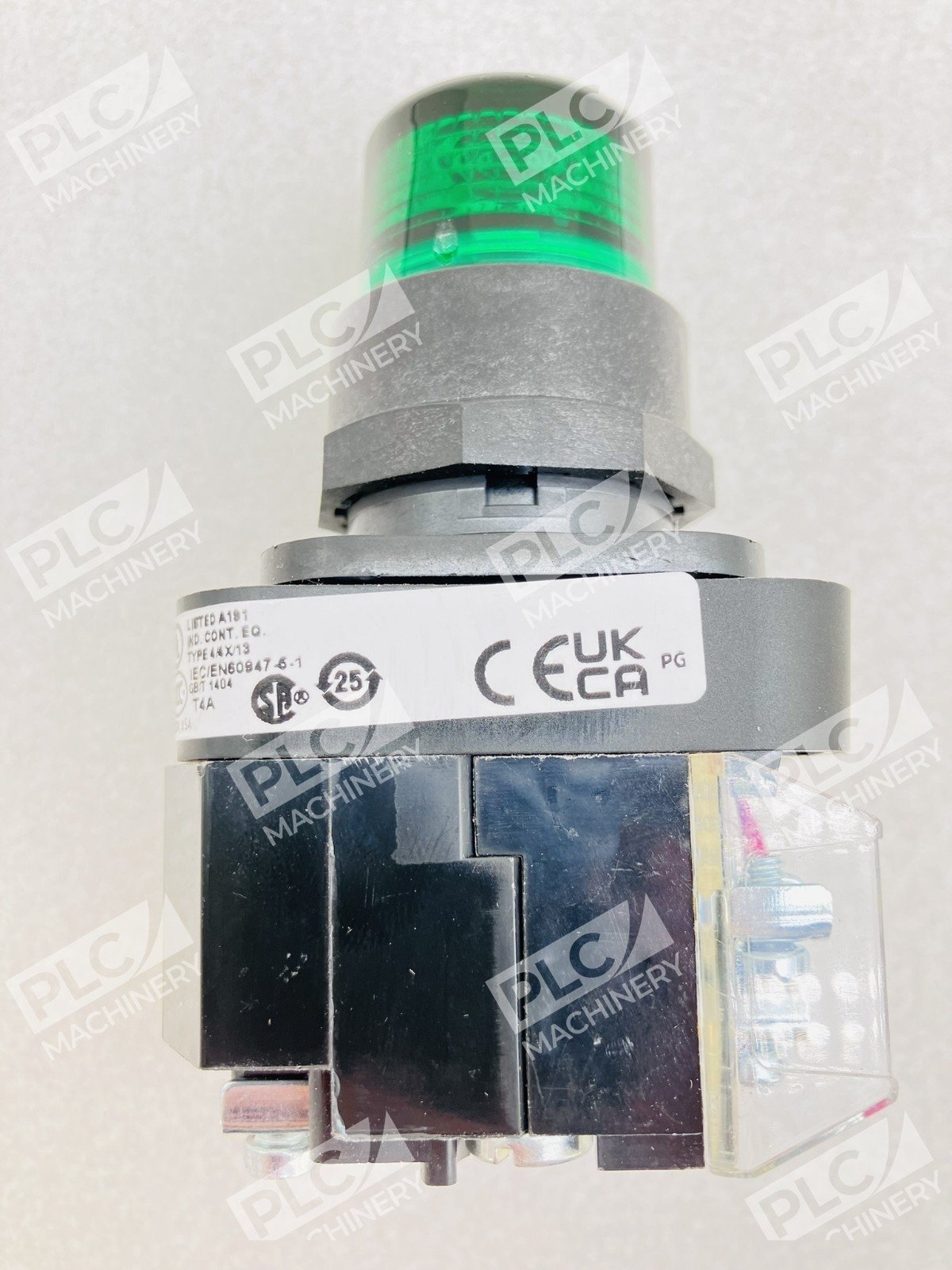

The Allen-Bradley 800H-PRT16G is a 30mm pilot light module designed for use in industrial control panels and machine automation systems. This illuminated push button unit features 120V AC 50/60Hz operation with a green incandescent lamp and integrated push-to-test capability. Built to NEMA 4/4X/13 environmental standards, it delivers the durability and visibility required for demanding manufacturing and process control environments.
Key Features
- 30mm compact form factor for standard panel cutouts
- Green incandescent lamp with bright, reliable illumination
- Push-to-test functionality for lamp operation verification
- Transformer-type input for safe low-voltage switching logic compatibility
- NEMA 4/4X/13 rating for wet locations, dust, and corrosive environments
- 1 NO / 1 NC electrical contacts for flexible circuit integration
Technical Specifications
- Voltage Rating: 120V AC
- Frequency: 50/60Hz
- Illumination Type: Incandescent
- Lens Color: Green
- Size: 30mm (30.5mm)
- NEMA Rating: Type 4/4X/13
- Input Type: Transformer
- Contacts: 1 NO – 1 NC
- Function: Push-to-Test (Lamp Test)
- Certifications: CCC, CE, CSA, CUL, KC, UL, Marine-duty
- UPC: 662073624738
Typical Applications
The 800H-PRT16G pilot light is ideal for:
- Control panel status indication and fault signaling
- Press-to-test lamp diagnostics in automated equipment
- Visual feedback in machinery startup and operation sequences
- Industrial process monitoring and HMI integration
- Wet location and outdoor control installations
- Food, beverage, pharmaceutical, and chemical processing systems
Compatibility & Replacements
Compatible With
- Allen-Bradley ControlLogix and CompactLogix PLC systems
- Standard 30mm control panel cutout designs
- 120V AC industrial control circuits
- Modular pushbutton/pilot light enclosures
- Push-to-test lamp circuits with transformer-isolated inputs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Allen-Bradley 800H series maintains consistent 30mm form factor and mounting, but contact switching ratings vary across specific models. Consult manufacturer documentation for your exact legacy model number.
Works With
- Allen-Bradley Studio 5000 / RSLogix control software
- 120V AC transformer-based control logic circuits
- Standard DIN rail and panel mount enclosures
- Push-button stations and operator interface modules
- Industrial LED and incandescent control lamp systems
