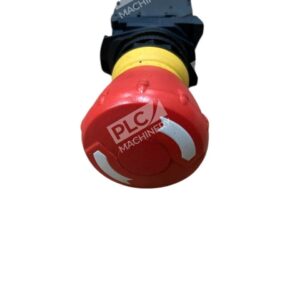

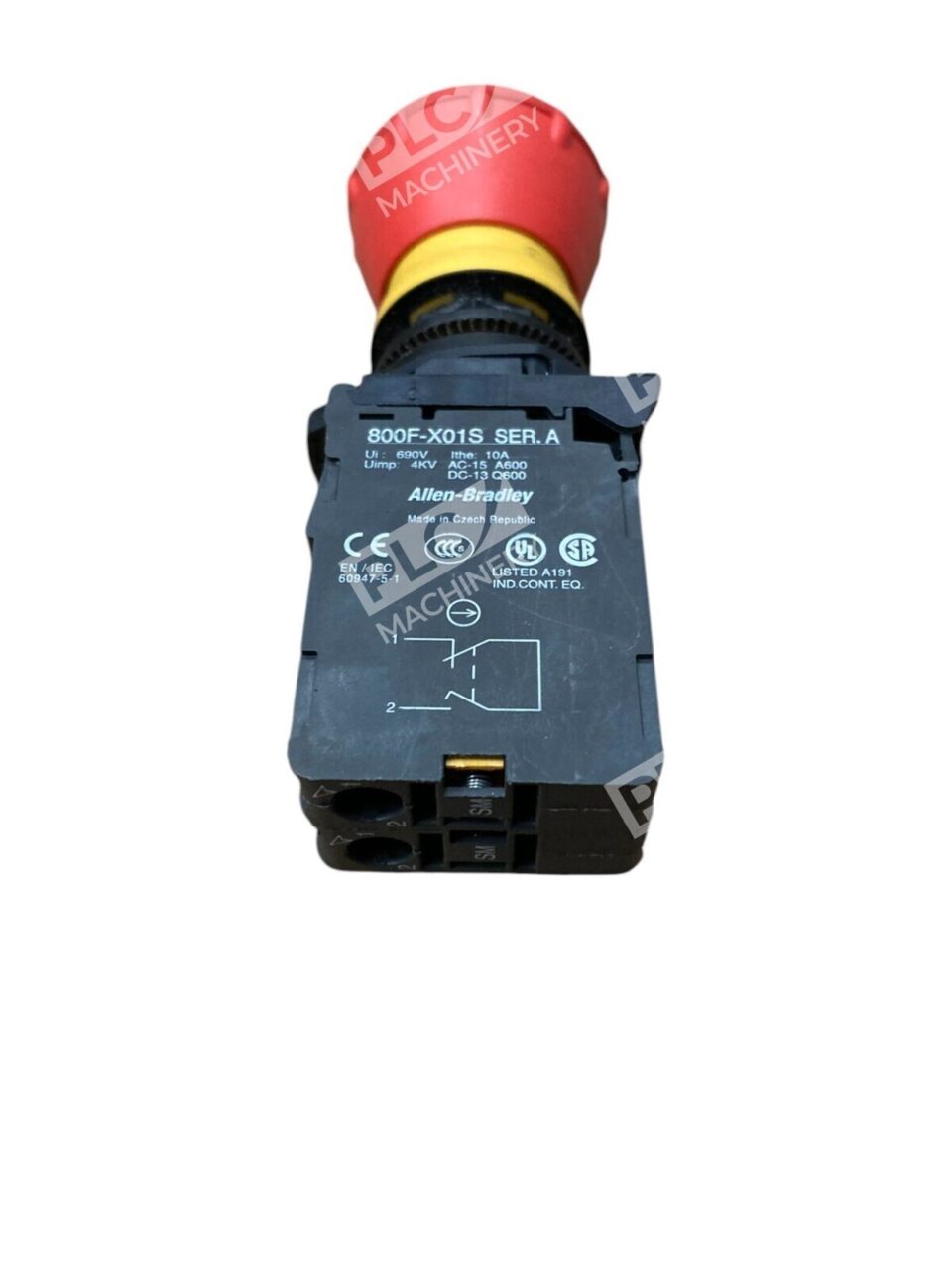

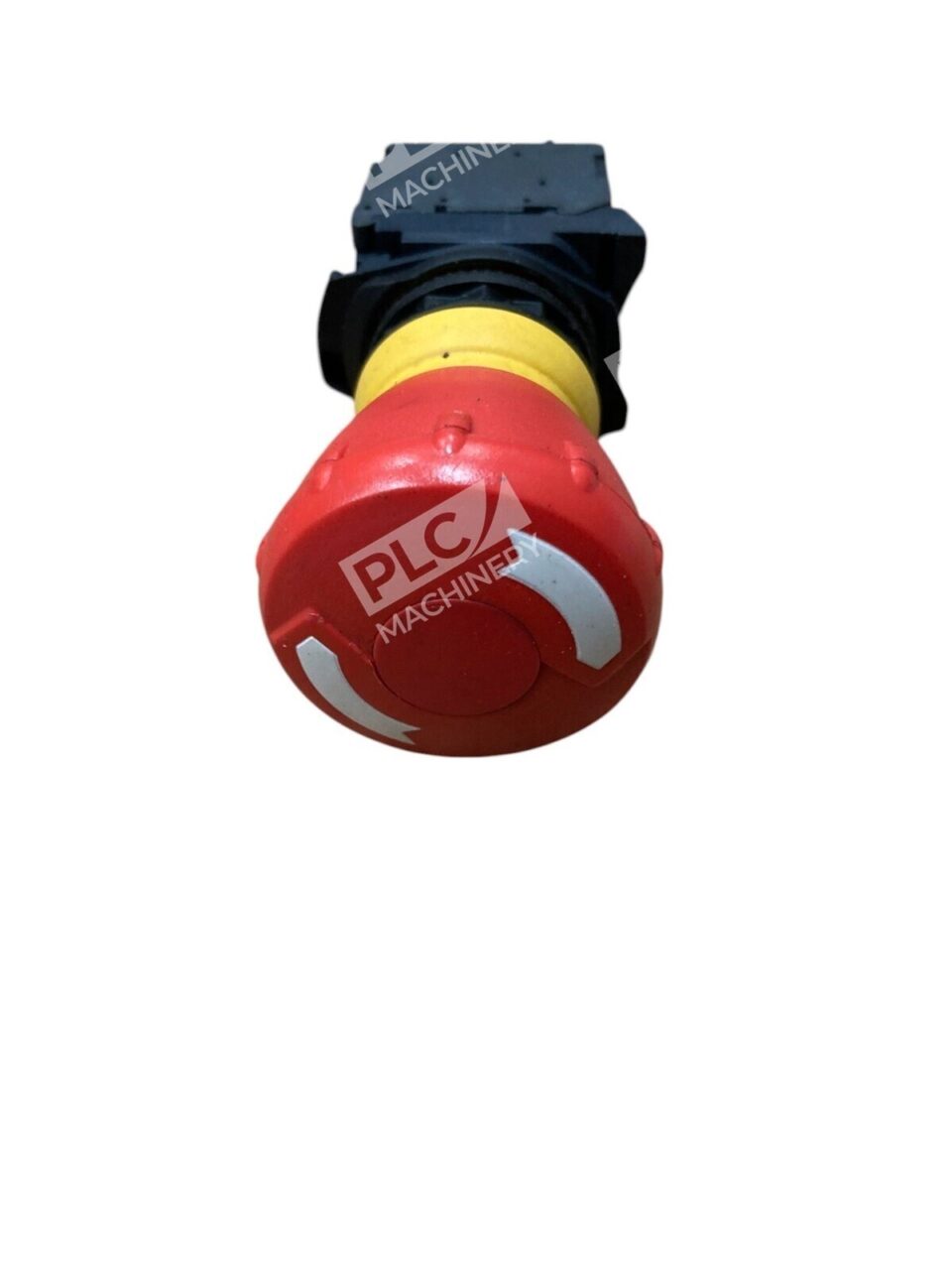

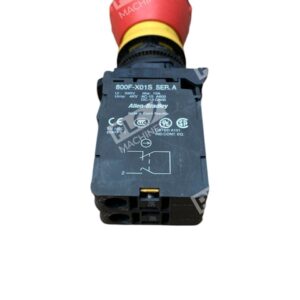

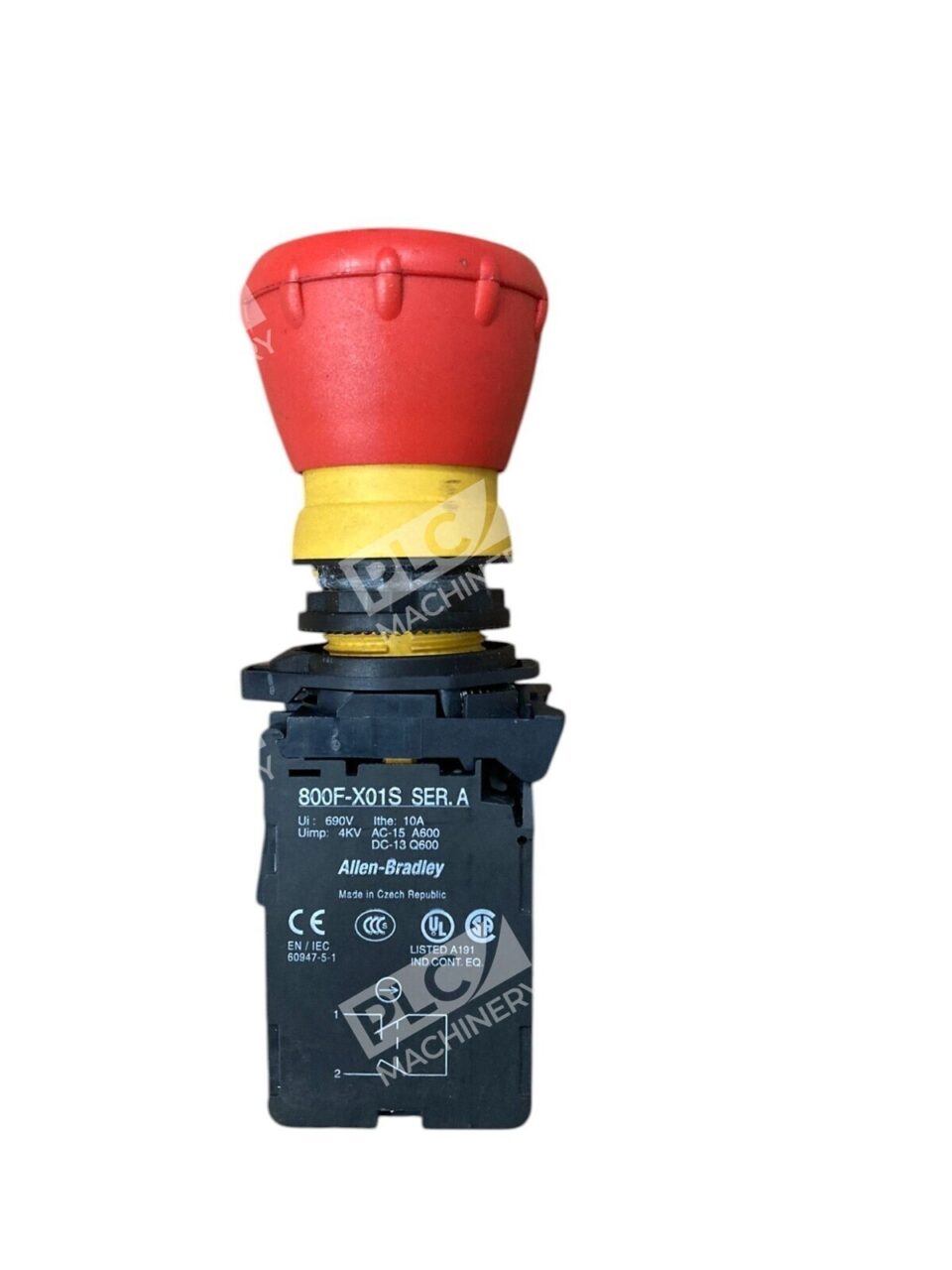

The Allen-Bradley 800F-X01S is a 22mm self-monitoring contact block designed for emergency stop push buttons, ensuring enhanced safety in industrial applications.
Key Features
- Self-Monitoring Capability: Incorporates a unique, patented contact arrangement that monitors the installation of contact blocks to the actuator, initiating a stop command if separated from the operator.
- Durable Construction: Built with engineering-grade thermoplastics and die-cast metal, ensuring consistent performance in demanding environments.
- Electrical Ratings:
- Operational Voltage: Up to 600V (A600, Q600)
- Thermal Current Rating: 10 A
- Utilization Category (AC): A600, AC 15 – screw termination
- Utilization Category (DC): Q600, DC-13 – screw termination
- Mechanical Specifications:
- Mounting Style: Latch
- Termination Style: Screw
- Termination Wire Range: #18…12 AWG (0.75…2.5 mm²)
- Vibration Resistance: 10 g
- Shock Resistance: 100 g
- Operator Mounting Hole Dimension: 22.5 mm
- Durability: 10 million operations
- Environmental Ratings:
- Operating Temperature: -25°C to 70°C
- Storage Temperature: -40°C to 70°C
- Humidity: ≤95% RH from 25°C to 60°C
- Certifications: UL, UR, CSA, CCC, CE
Applications
Ideal for integration into emergency stop systems within industrial machinery, the 800F-X01S contact block provides reliable performance and safety compliance.
Installation
Designed for easy installation and assembly via modular parts, the 800F-X01S ensures a secure and efficient setup for emergency stop functions.
