Overview

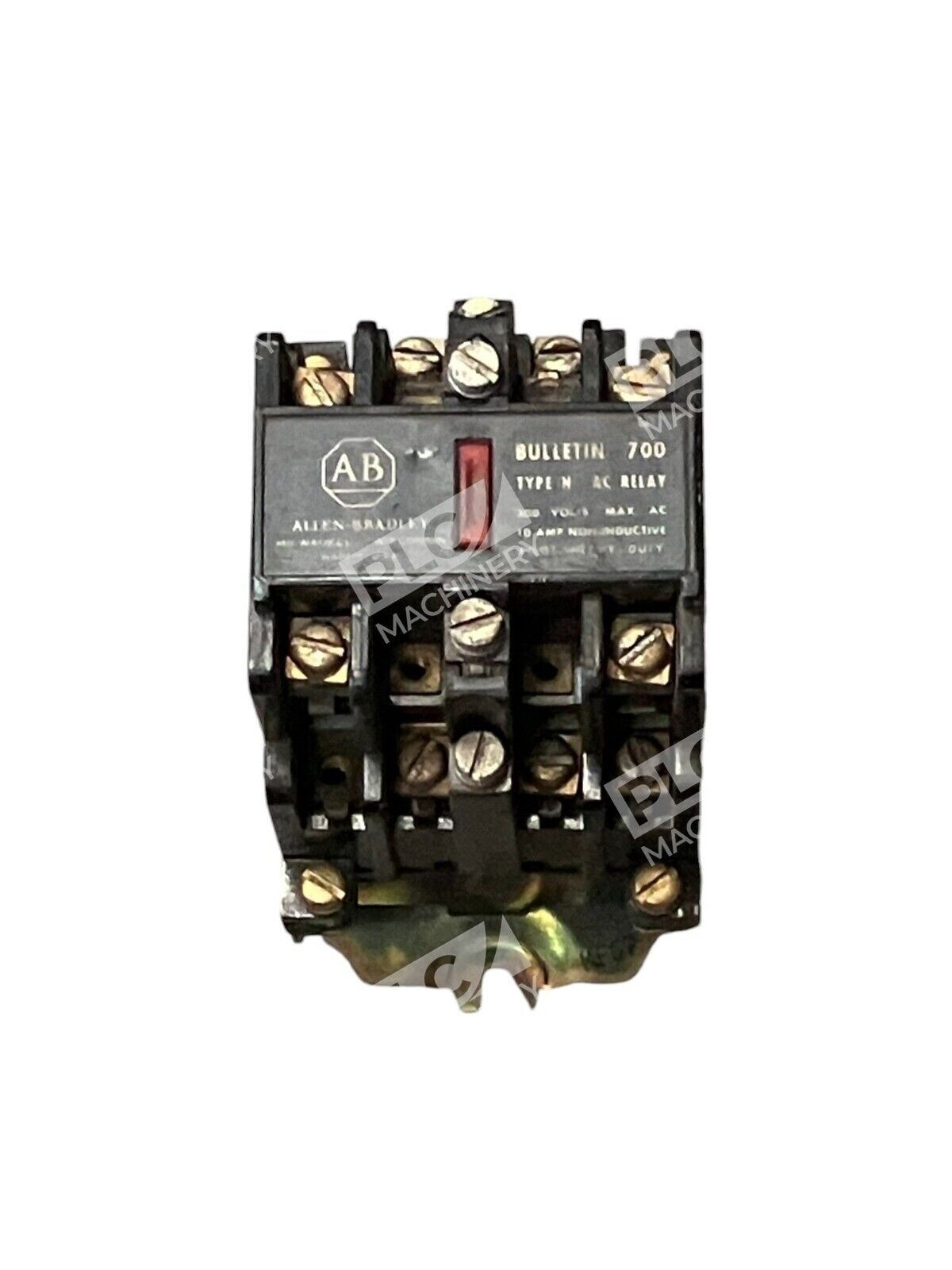

The Allen-Bradley 700-N510A1 /C is a NEMA-certified industrial control relay designed for reliable switching in machine automation and control panel applications. This electrically held relay provides robust performance with manual override capability and easy status indication via a highly visible red bar. The relay is rated for 10A at 300VAC, making it suitable for general-purpose industrial switching requirements.
Key Features
- Electrically held relay with manual override for operational flexibility

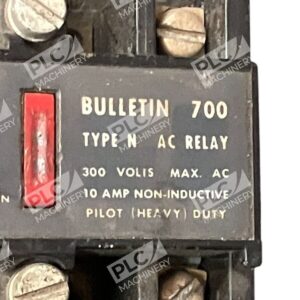

- Highly visible red bar indicator for easy status identification
- NEMA-rated for industrial automation environments
- Manual reset capability with clear operational feedback
- Time-tested Allen-Bradley quality and durability
Technical Specifications

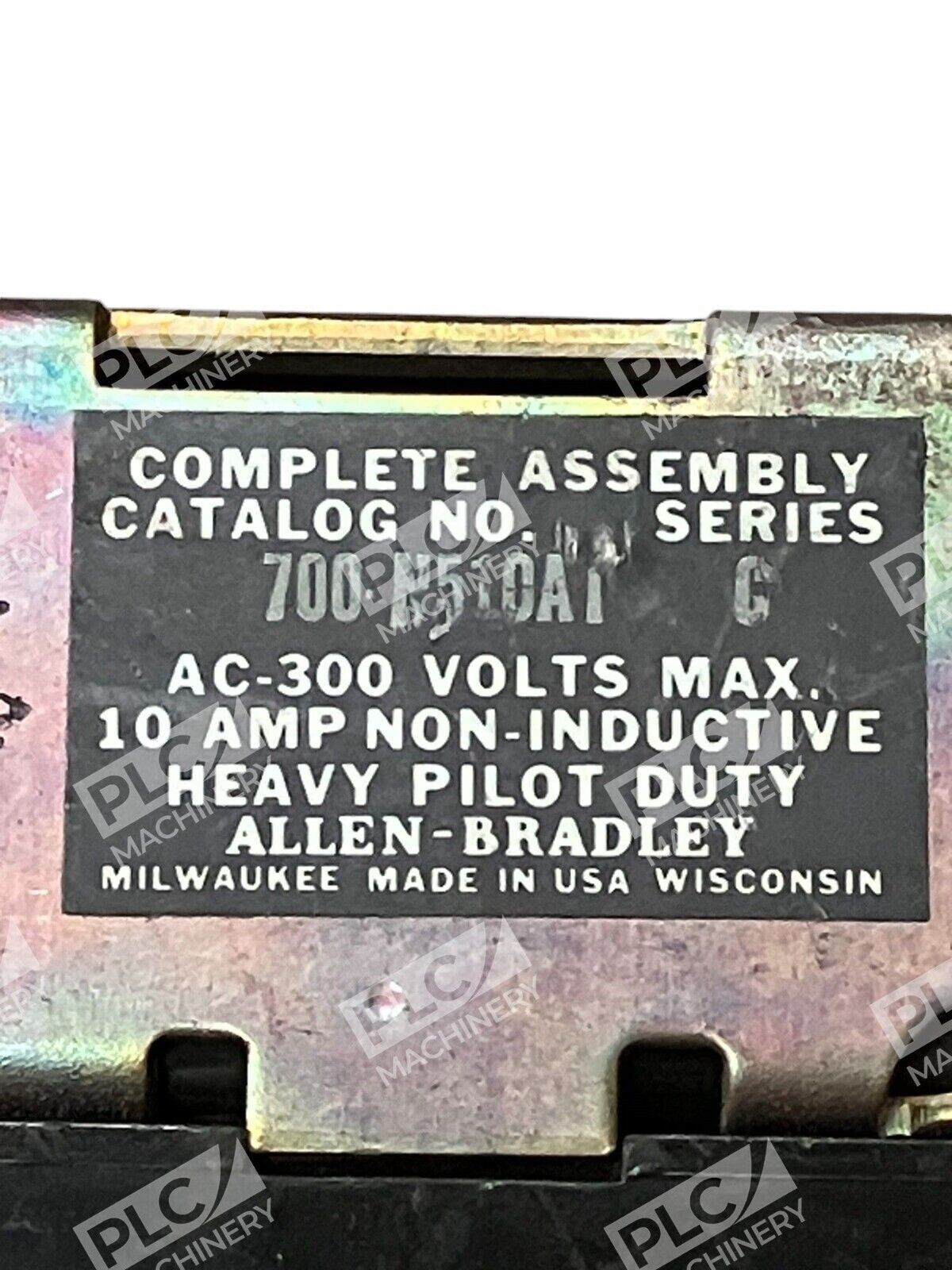

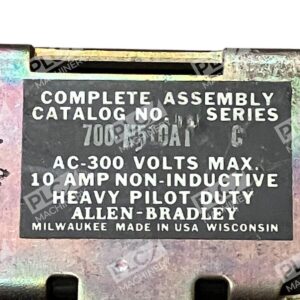

The 700-N510A1 /C is designed to provide dependable control switching in standard industrial applications. With its 10A 300VAC rating, this relay meets UL 508 and CSA C22.2 No. 14 certifications, ensuring compliance with North American industrial standards. The electrically held design eliminates the need for constant coil power, making it energy-efficient for pulse-control or latching applications common in legacy industrial systems.
Typical Applications
- Machine motor control and reversing circuits
- Pump start/stop control systems
- Conveyor automation and sequencing
- Process control logic implementation
- Industrial legacy system retrofits and replacements
Compatibility & Replacements

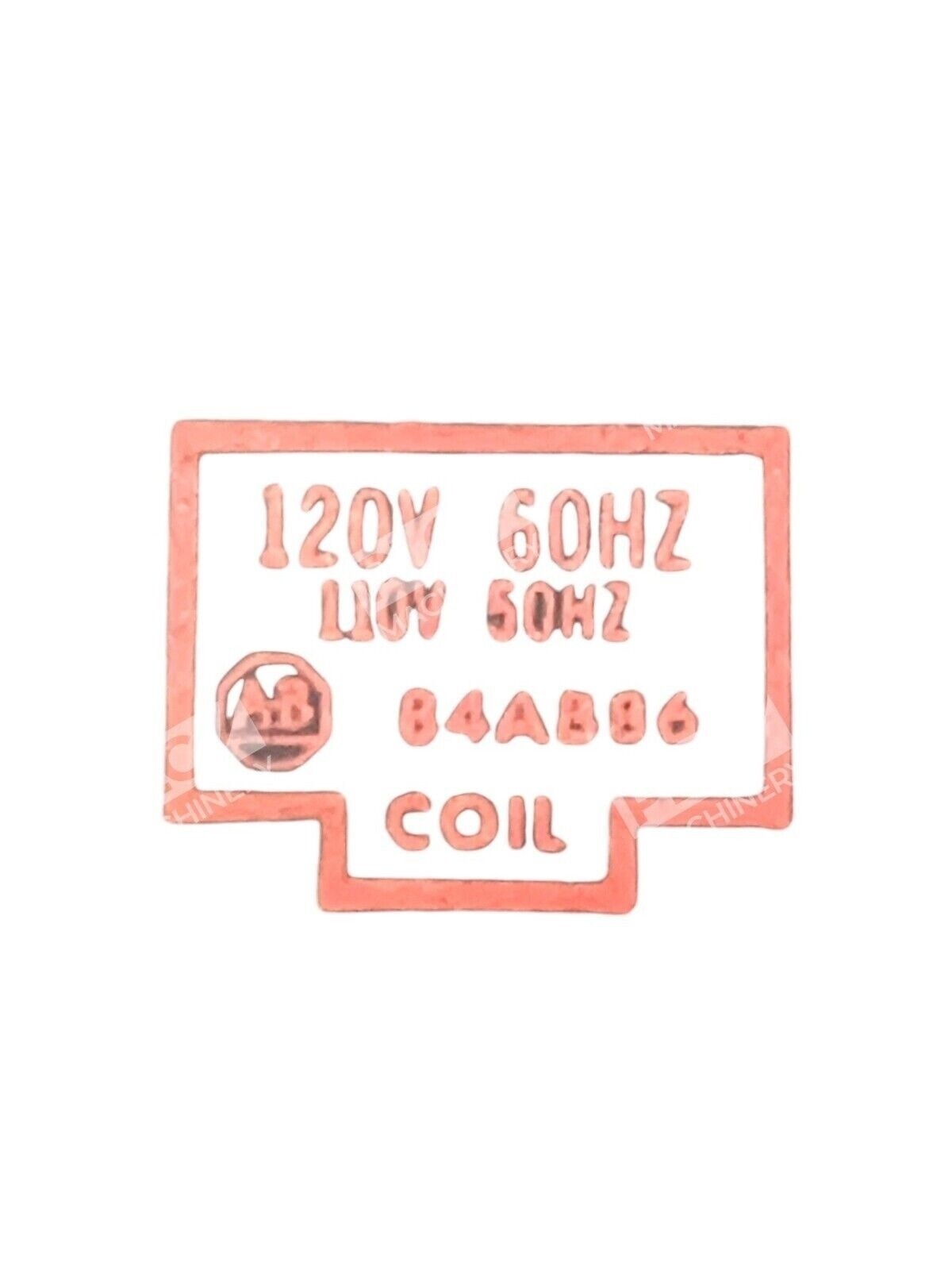

This unit is compatible with standard 700-N relay sockets and mounting configurations used in industrial control panels. The 84AB86 module provided with this relay extends functionality and may provide auxiliary contact configurations for multi-circuit switching. For integration into existing systems, verify socket compatibility and contact configuration before installation. When replacing older relay designs, confirm that the electrical parameters and contact ratings meet your specific application requirements.
