Overview

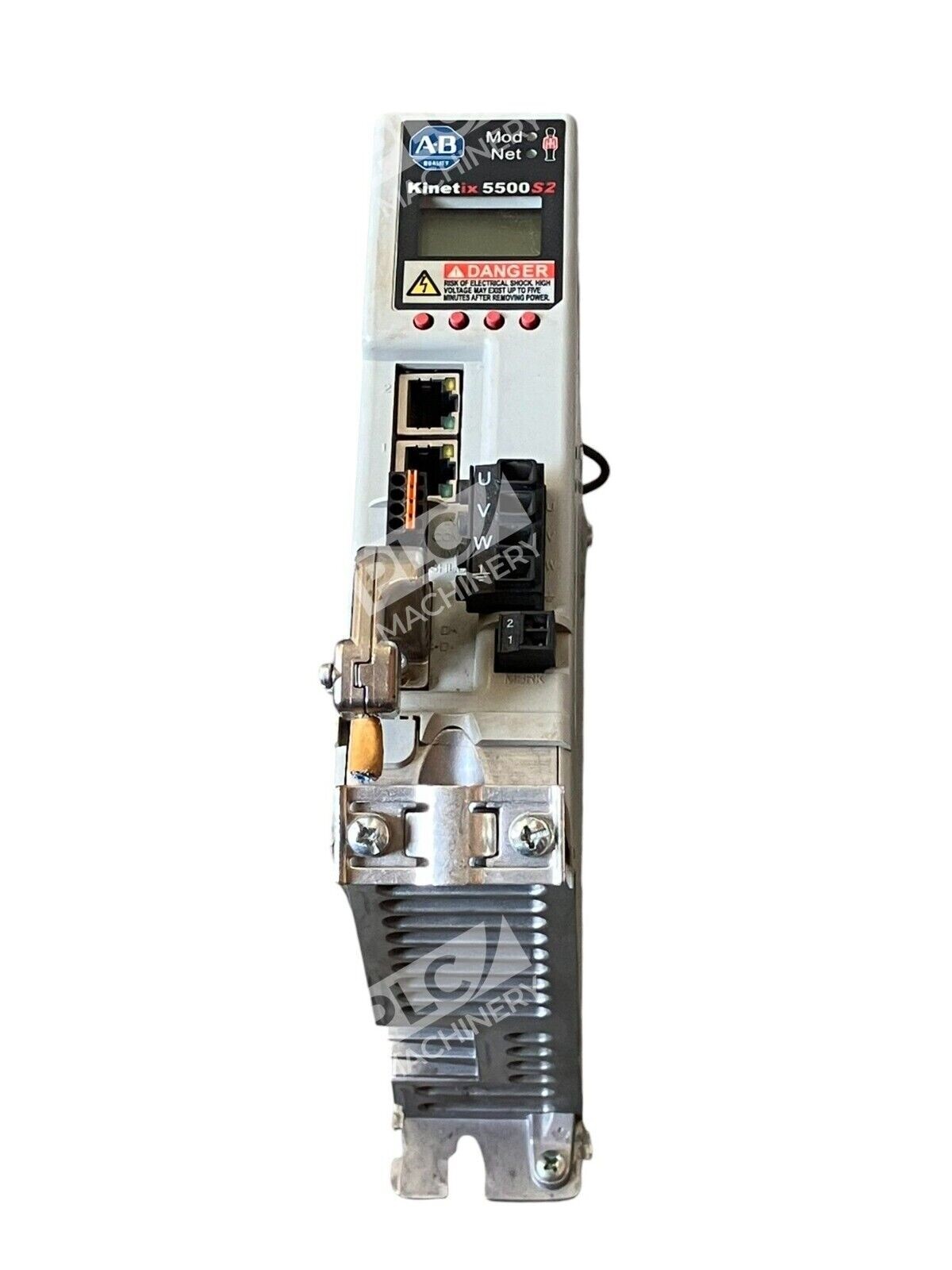

The Allen-Bradley 2198-H008-ERS2 is a Kinetix 5500 Ethernet I/P servo drive engineered for high-performance motion control in multi-axis and single-axis automation systems. This drive features a dual integrated Ethernet I/P communication port which enable this drive to connect to an existing Ethernet network for the purposes of implementing integration and integrated Safe Torque Off (STO) functionality. This used surplus unit is a cost-effective replacement for OEMs and integrators running existing Kinetix 5500 systems.
Key Features
- Dual EtherNet/IP ports to support both linear and Device Level Ring (DLR) network topologies
- Integrated Safe Torque-Off (STO) over EtherNet/IP, simplifying safety circuit wiring (SIL 2 / PLd)
- Offers a wide input voltage range, accepting 240V single/three-phase or 480V three-phase power
- Compact, zero-stacking design allows for efficient use of panel space in multi-axis applications
- The 2198-H008-ERS2 servo drive uses a solid-state motor overload protection that operates in accordance with UL 508C. Motor overload protection is provided by algorithms (thermal memory) that predict actual motor temperature based on operating conditions
Technical Specifications
This drive is operation when supplied with 195…264V rms, single-phase (240V nom); 195…264V rms, three-phase (240V nom) and 324…528V rms, three-phase (480V nom).
Typical Applications
- Single-axis or multi-axis motion control for packaging, converting, and printing machinery
- Robotics, automated assembly, and other applications requiring high-performance servo control
- CNC machinery and precision motion positioning
- Material handling and automated manufacturing systems
Compatibility & Replacements
Designed for premier integration with CompactLogix controllers using the Studio 5000 environment. The 2198-H008-ERS2 is a direct replacement for existing Kinetix 5500 systems and compatible with Rockwell Automation motion control architectures. This used surplus drive maintains full electrical and mechanical compatibility with original factory equipment specifications.
