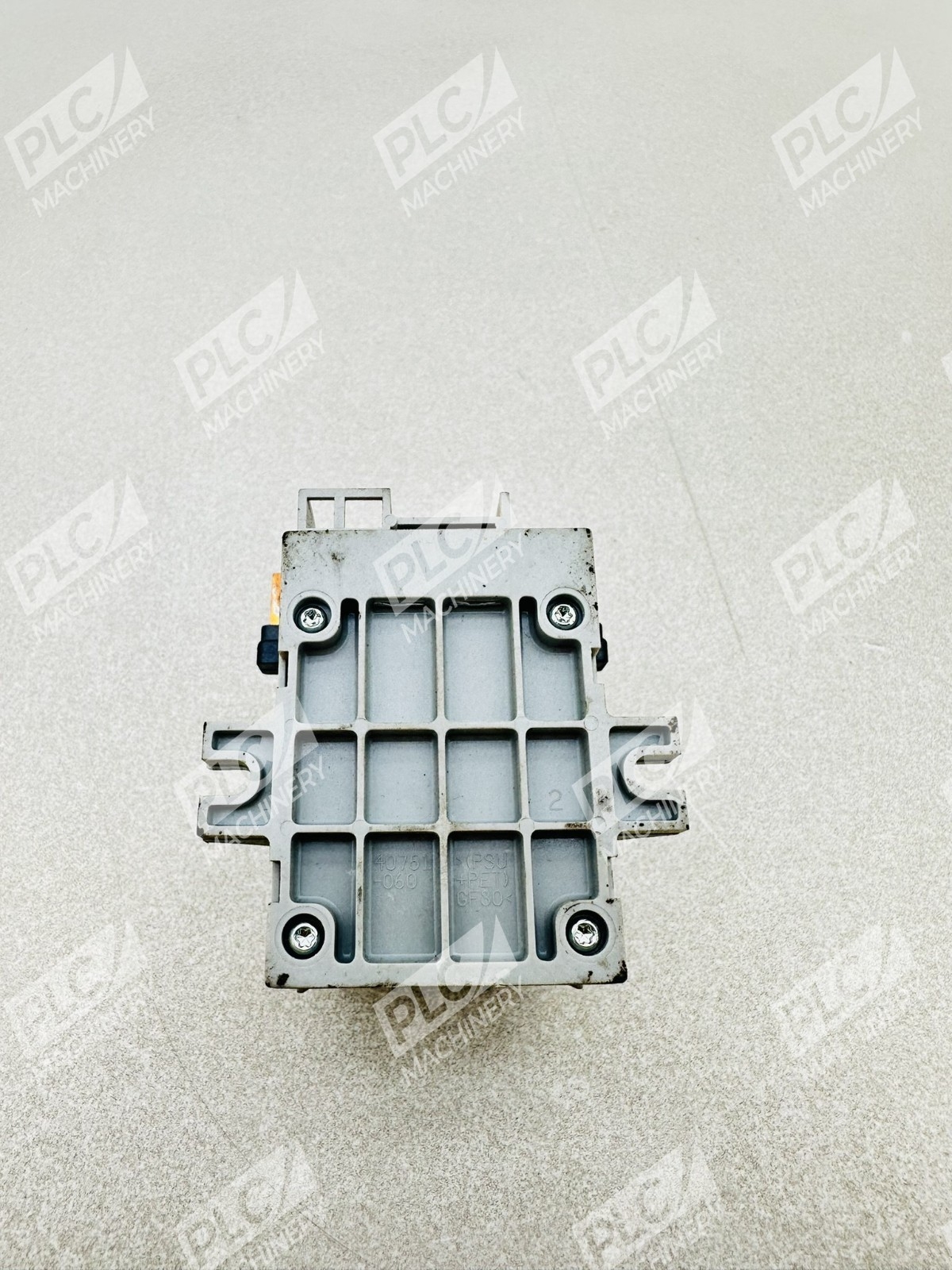

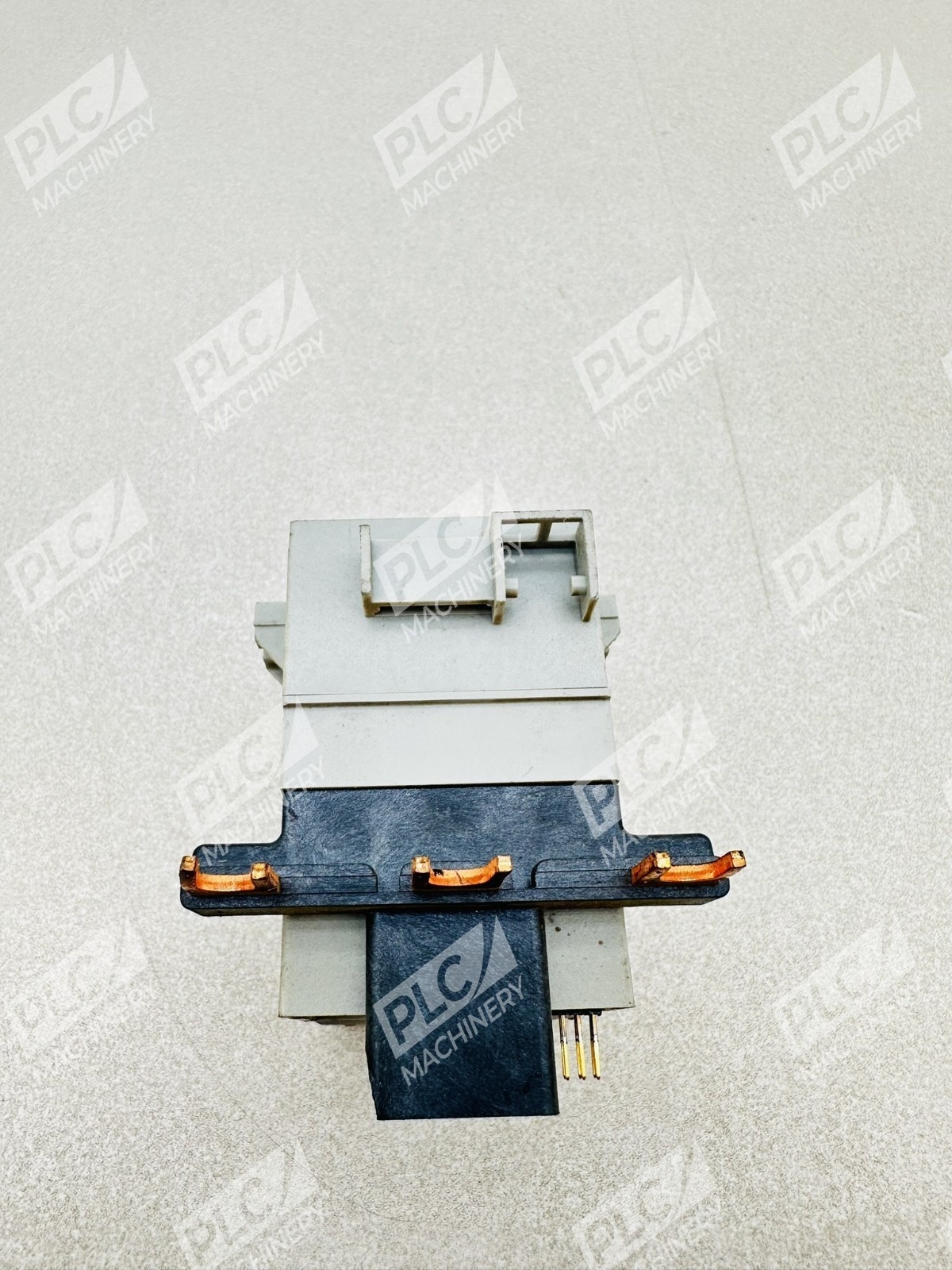

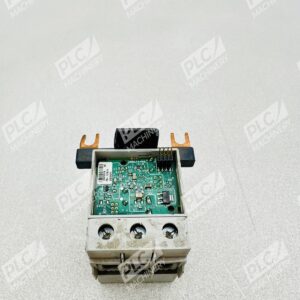

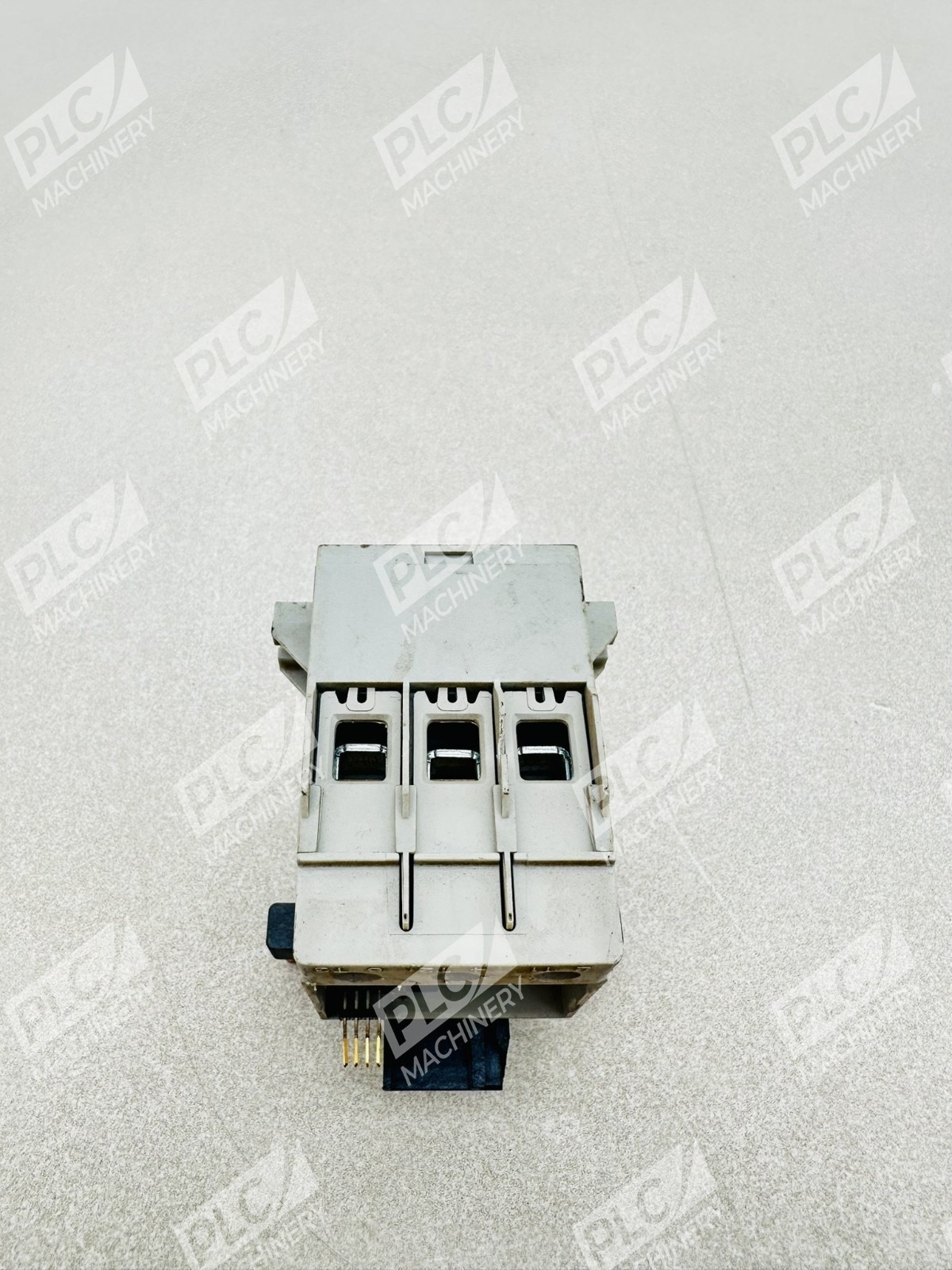

Overview

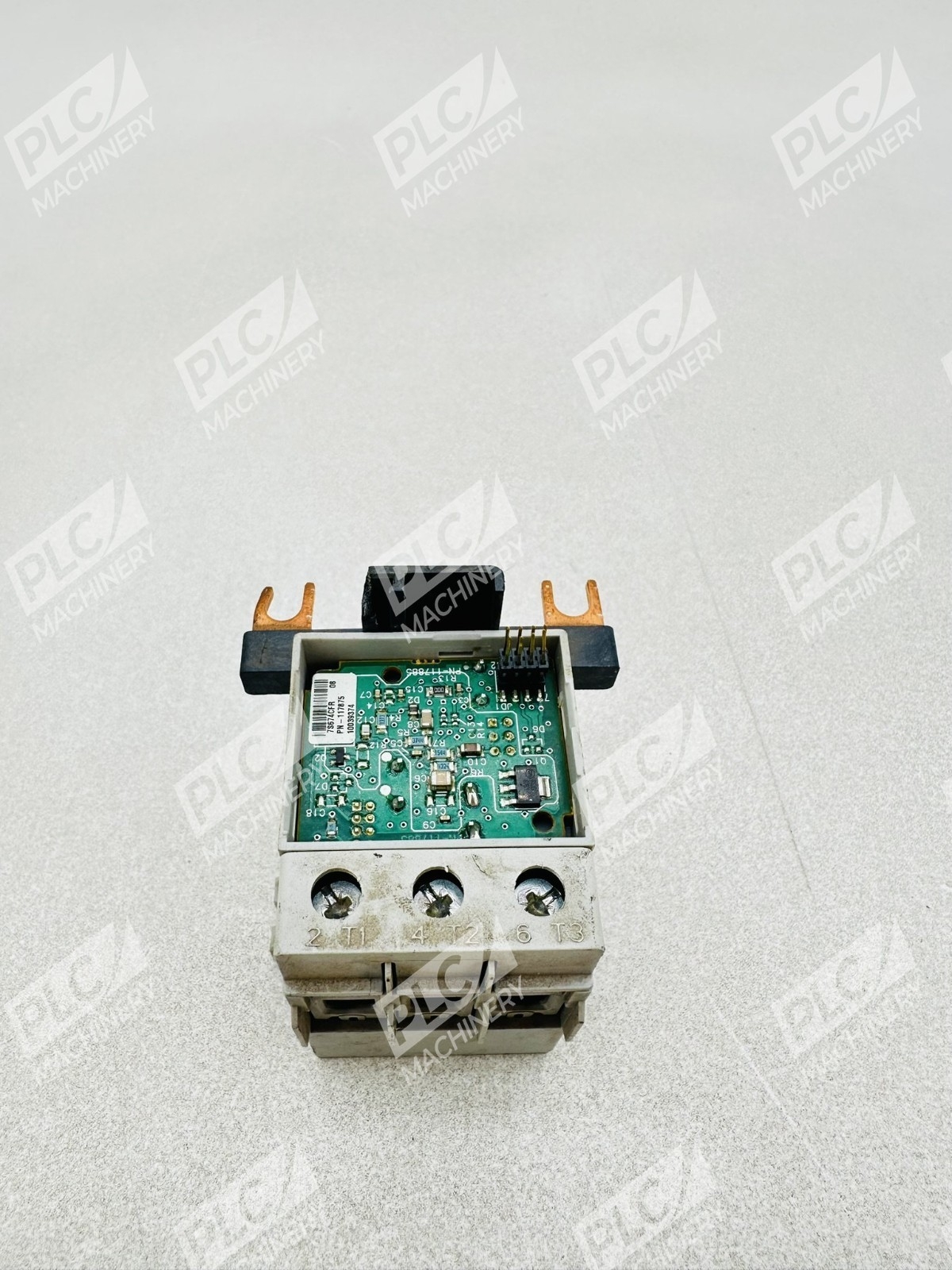

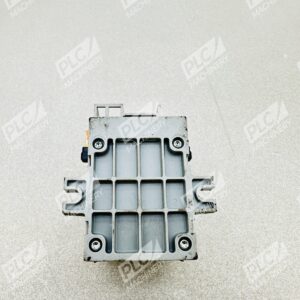

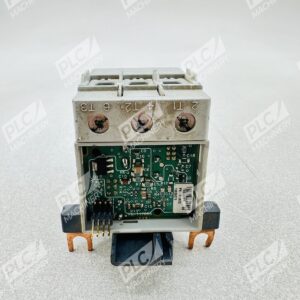

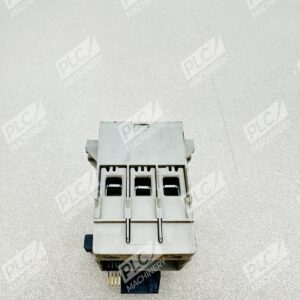

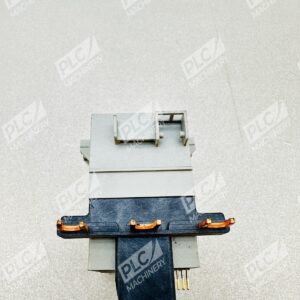

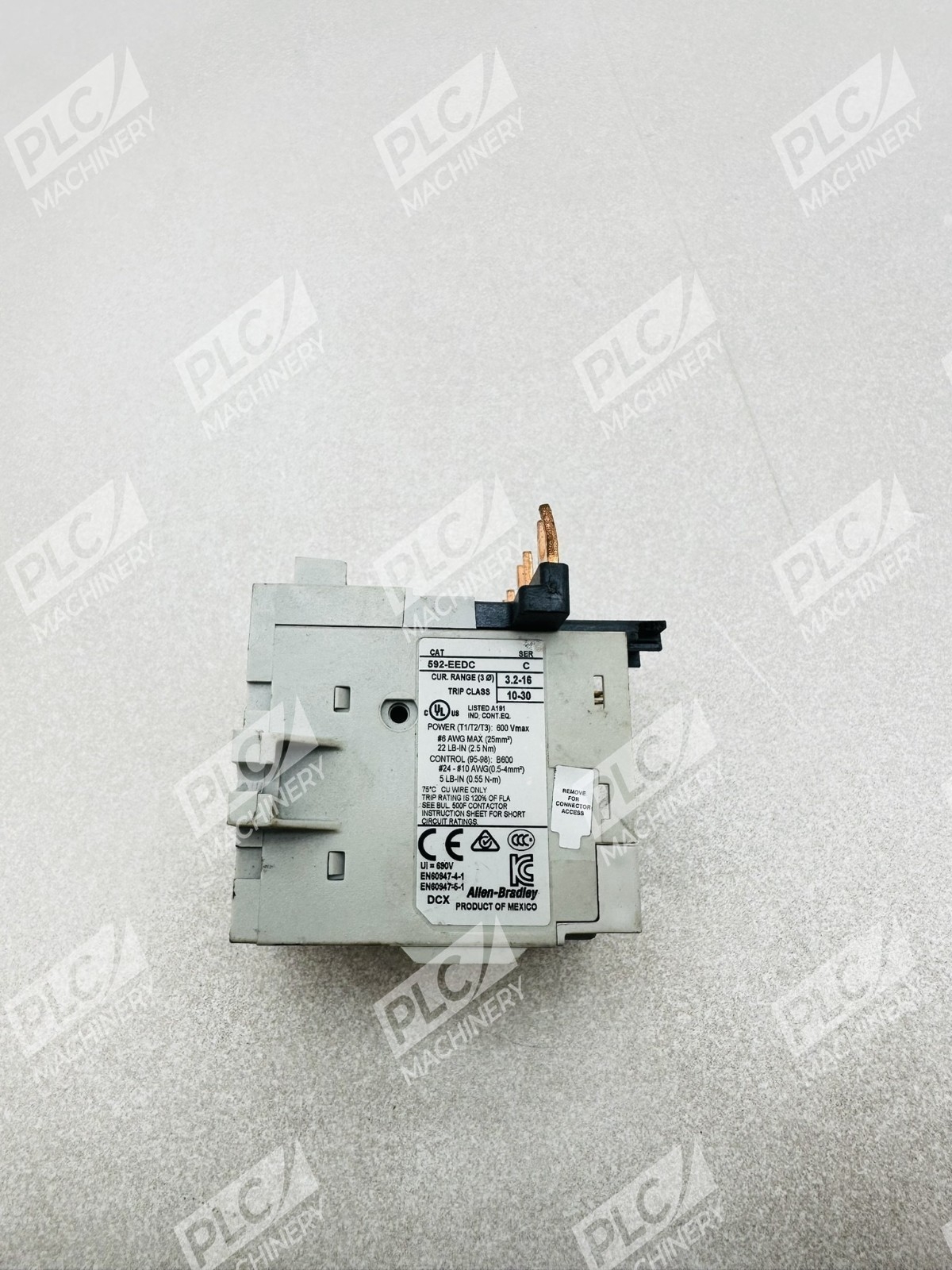

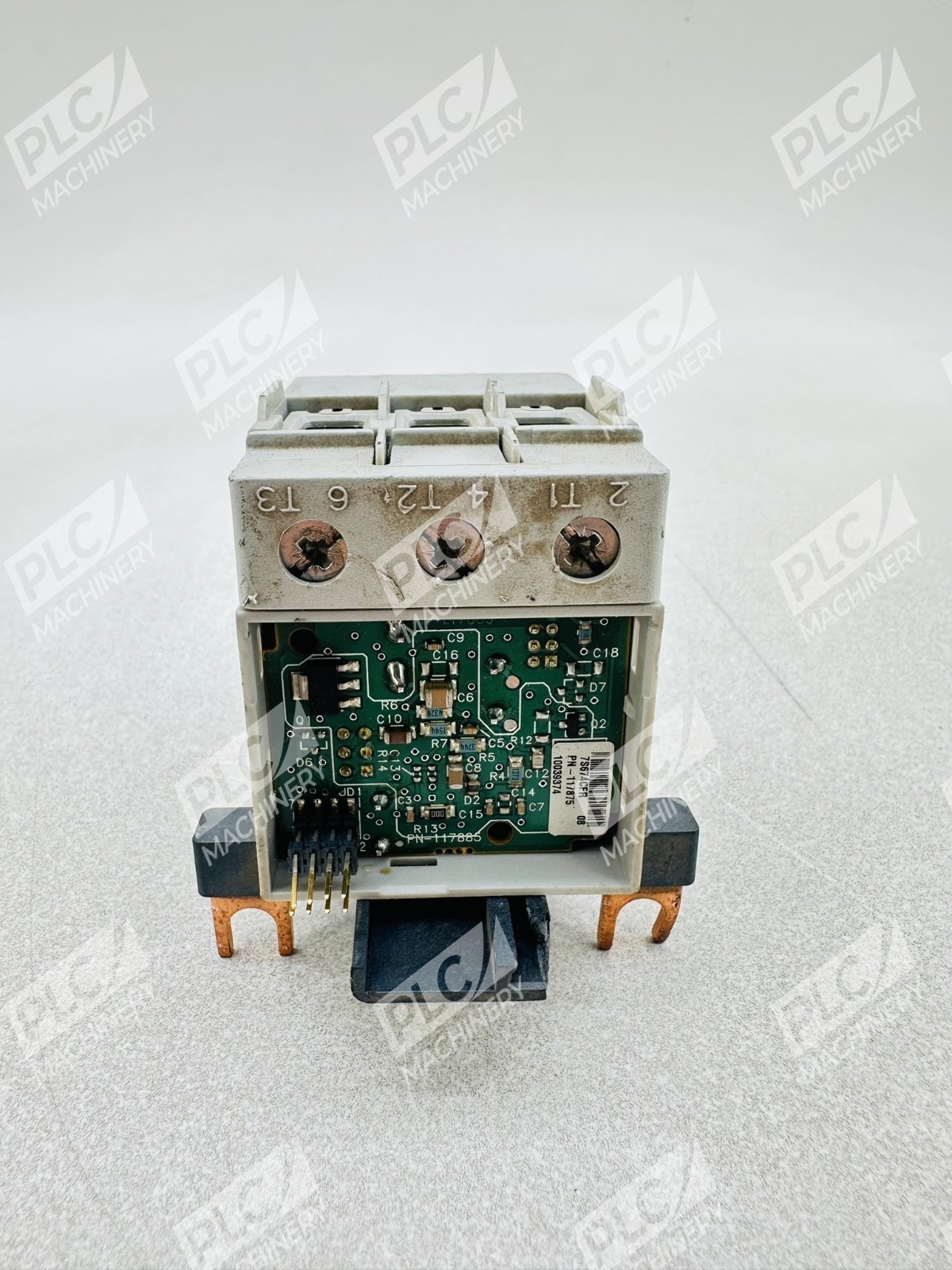

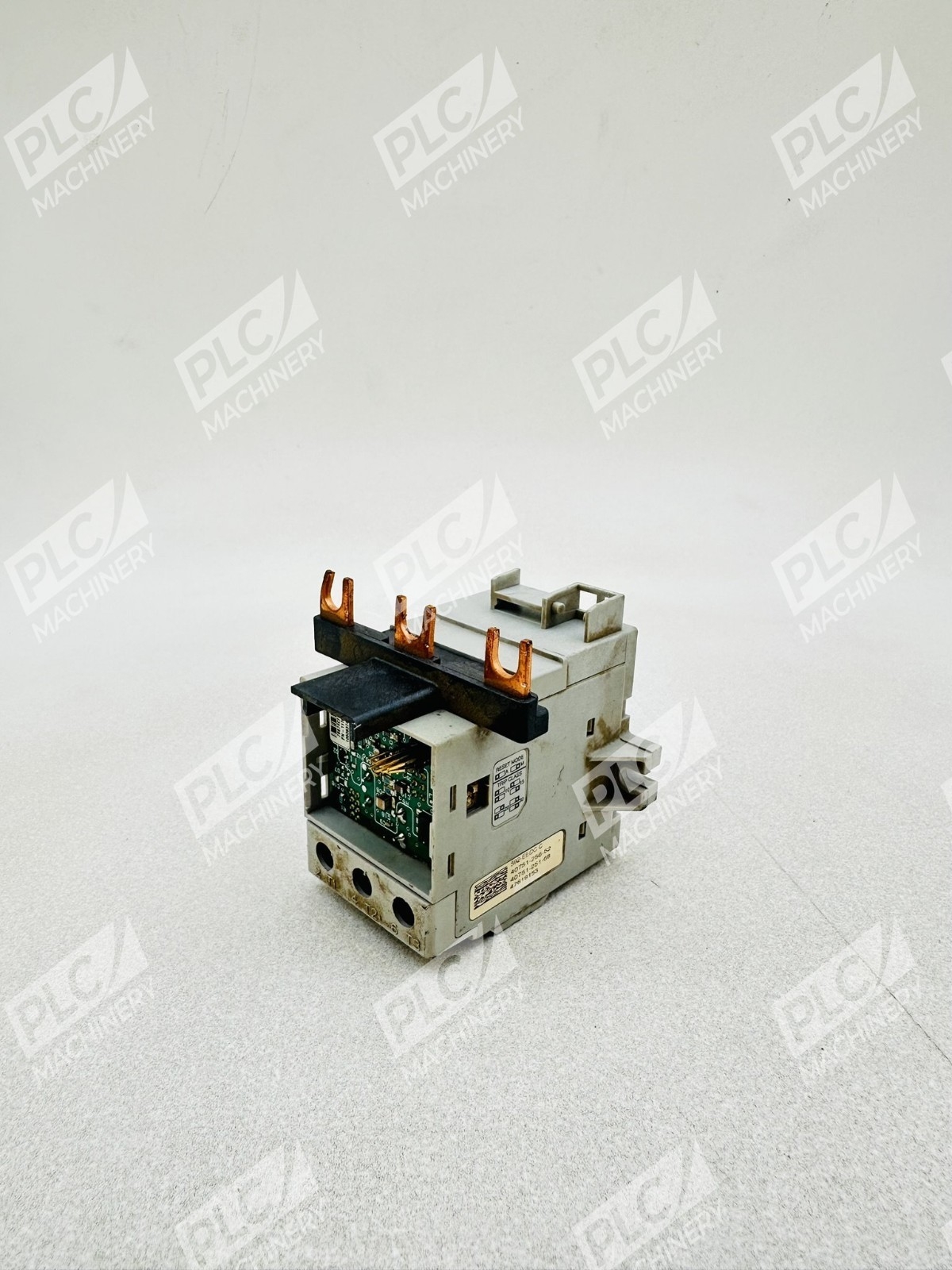

The Allen-Bradley 592-EEDC is a solid-state overload relay from the Bulletin 592 E1 Plus family, designed for motor overload protection in industrial automation. This relay operates at a nominal NEMA voltage of 600 Volts with a rated current range of 0.1 to 800 Amps, and provides full load current protection from 3.2 to 16 Amps with 1 Normally Open and 1 Normally Closed contact. It mounts to NEMA size 0 to 2 Bulletin 500 contactors, making it a drop-in solution for existing motor starter installations.
Key Features
- Selectable trip class (10, 15, 20, or 30) with auto-manual or manual reset options
- Trip-free mechanism provides overload protection even when the reset button is pressed
- Adjustment range of 5:1 with 3-second phase loss detection
- Current measurement-based protection with thermal memory and enhanced phase loss protection
- Optical indicator for visible trip indication
- Rugged construction with integrated current transformers and molded power connections

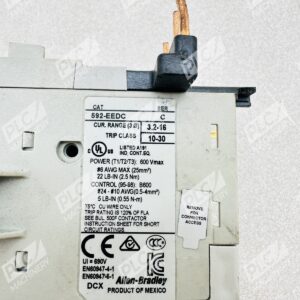

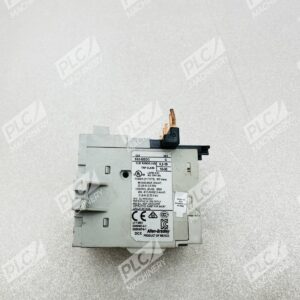

Technical Specifications

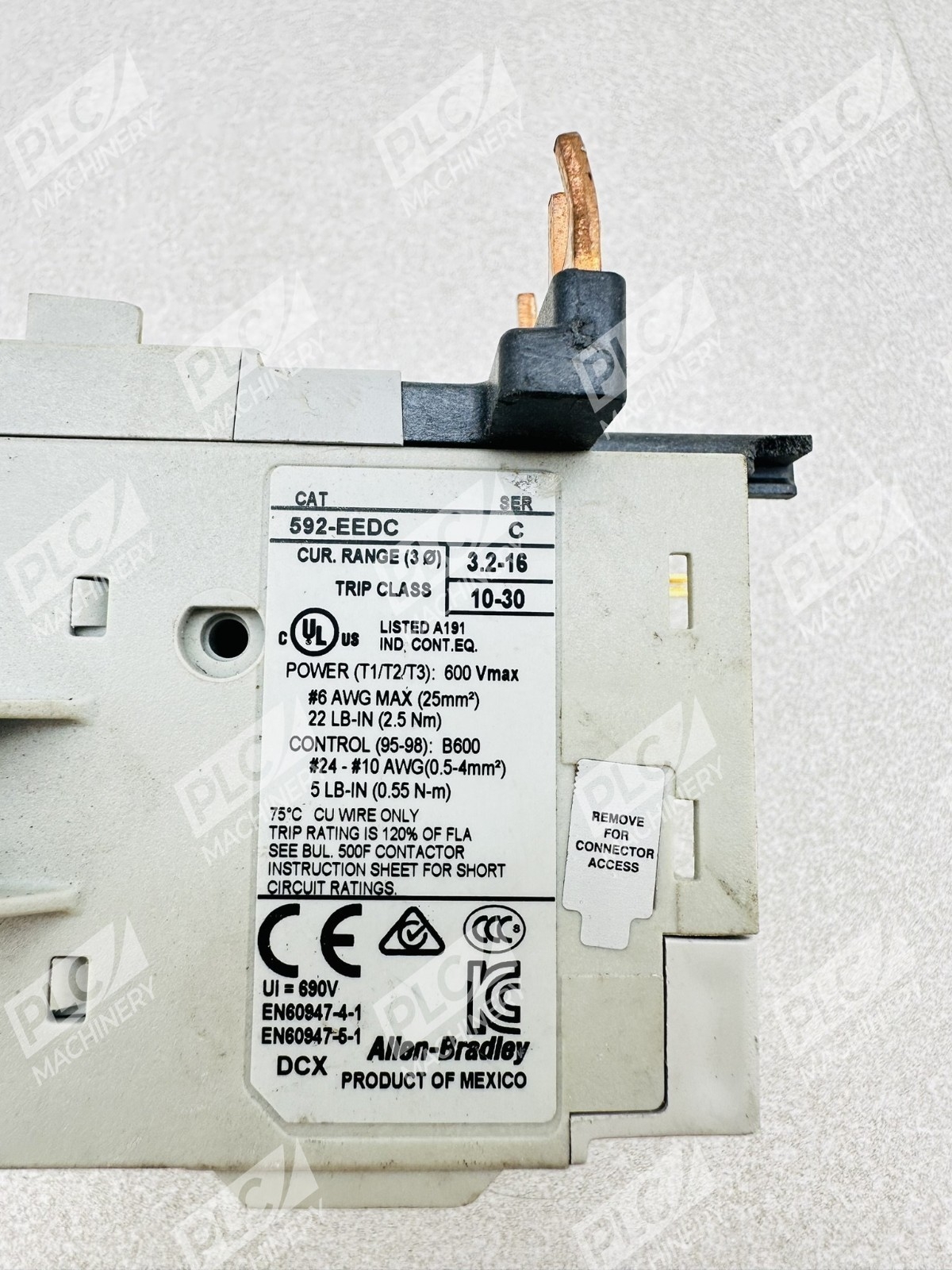

- Part Number: 592-EEDC
- Product Family: Bulletin 592, E1 Plus
- Overload Current Range (3-Phase): 3.2–16.0 A
- Nominal Voltage (NEMA): 600 V AC
- Nominal Voltage (IEC): 690/1000 V AC
- Insulation Voltage Rating: 690 V AC
- Rated Impulse Strength: 6 kV AC
- Trip Class (Selectable): 10, 15, 20, 30
- Trip Rating: 120% FLA
- Contacts: 1 NO, 1 NC
- Reset Options: Manual or Auto-Manual
- Mounting: NEMA Contactor Size 0, 1, 2 (Bulletin 500)
- Adjustment Range: 5:1
- Phase Loss Detection: 3 seconds
- Operating Temperature Range: −40 to +185 °F (−40 to +85 °C)
- Storage Temperature Range: −4 to +140 °F (−20 to +60 °C)
- Protection Rating: IP20
- Terminal Type: M8 terminal screws (24 Nm for single-conductor, 4 Nm for 2-conductor)
- Weight: 0.61 lbs
- Certifications: UL, CSA, C-Tick, RCM, CE, cULus
Typical Applications
The Allen-Bradley 592-EEDC is ideal for:
- Three-phase motor starter protection in small to mid-range industrial motors
- Pump and compressor motor overload protection
- Machine tool and production equipment motor control circuits
- HVAC and facility automation systems
- General industrial motor control applications requiring selectable trip characteristics
Compatibility & Replacements
Compatible With
- NEMA Bulletin 500 Contactors (Sizes 0, 1, and 2)
- Three-phase AC motor control circuits rated up to 600 V (NEMA) or 690/1000 V (IEC)
- Industrial motor starters and soft-start systems
- Control circuits requiring 1 NO and 1 NC auxiliary contacts
Replaces / Drop-In Replacement For
The 592-EEDC is directly compatible with earlier NEMA size 0–2 overload relay applications and may replace thermal or eutectic alloy overload relays in Bulletin 500 starter configurations. Verify compatibility with your system integrator before ordering to ensure trip class and reset requirements match your application.
Works With
- Rockwell Automation Allen-Bradley motor starters and contactors
- Industrial control systems using NEMA-rated motor protection
- Automation platforms requiring selectable overload trip classes
- Standard three-phase AC power distribution up to 600 V (NEMA standard)
