Overview

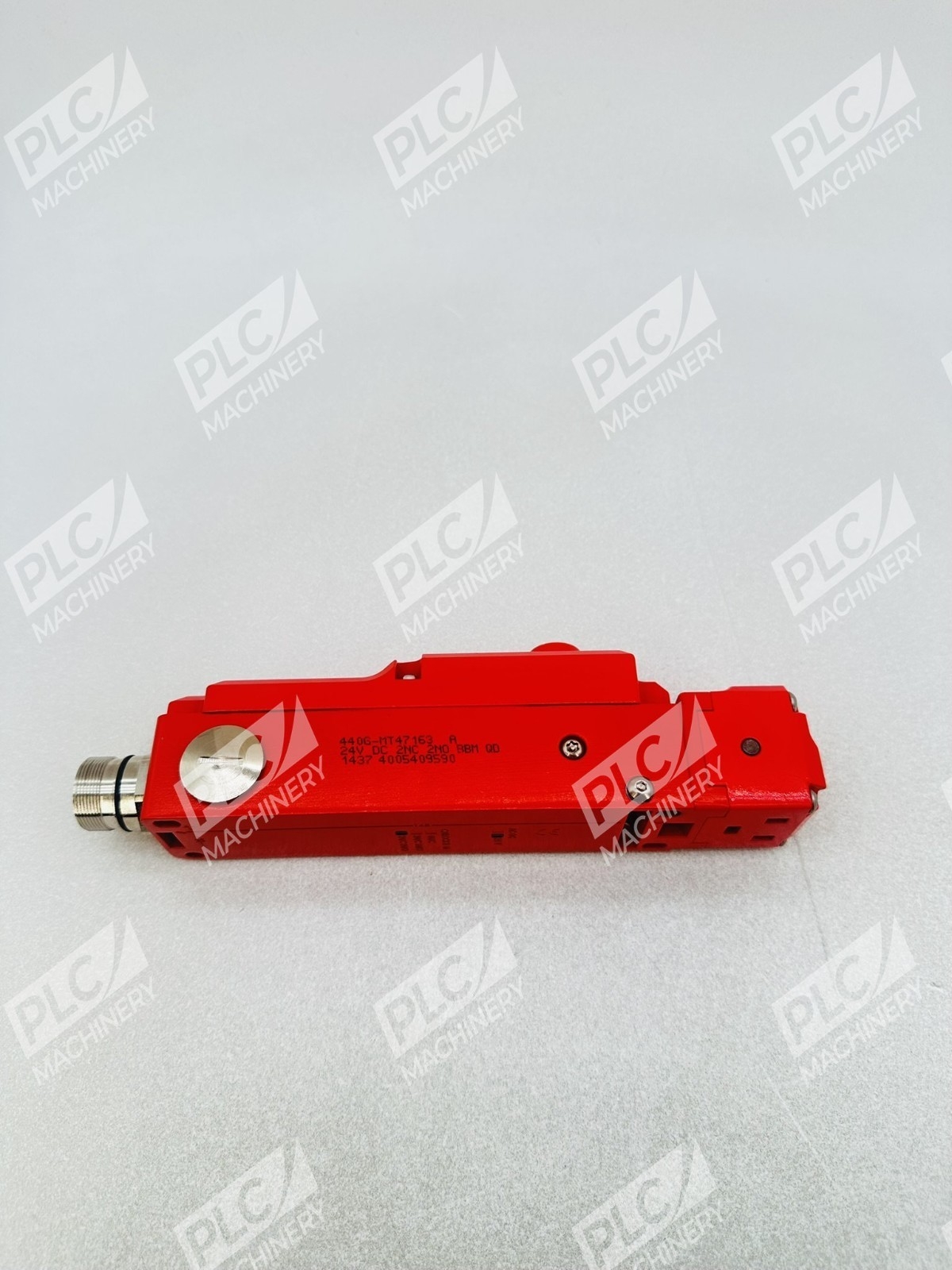

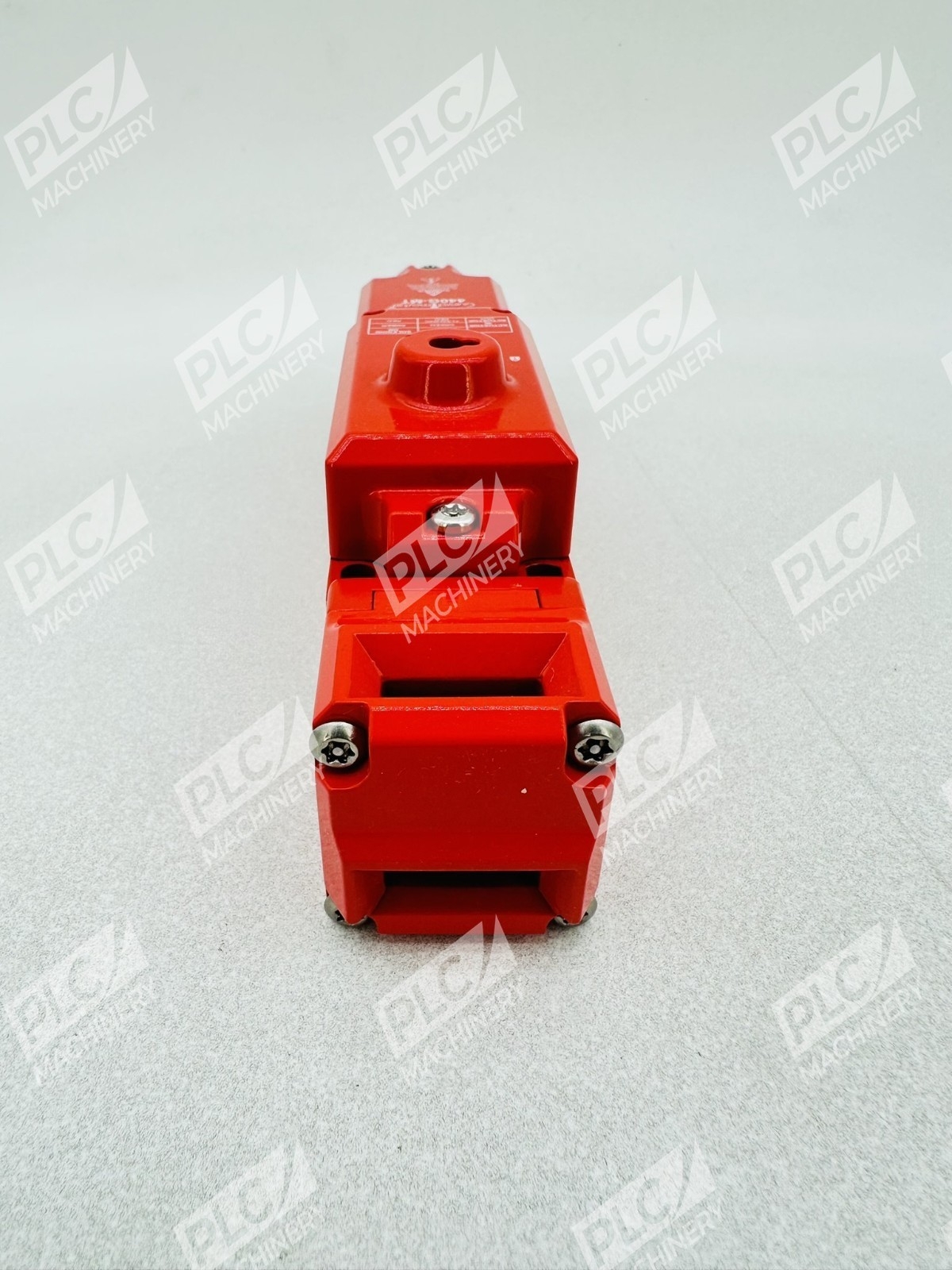

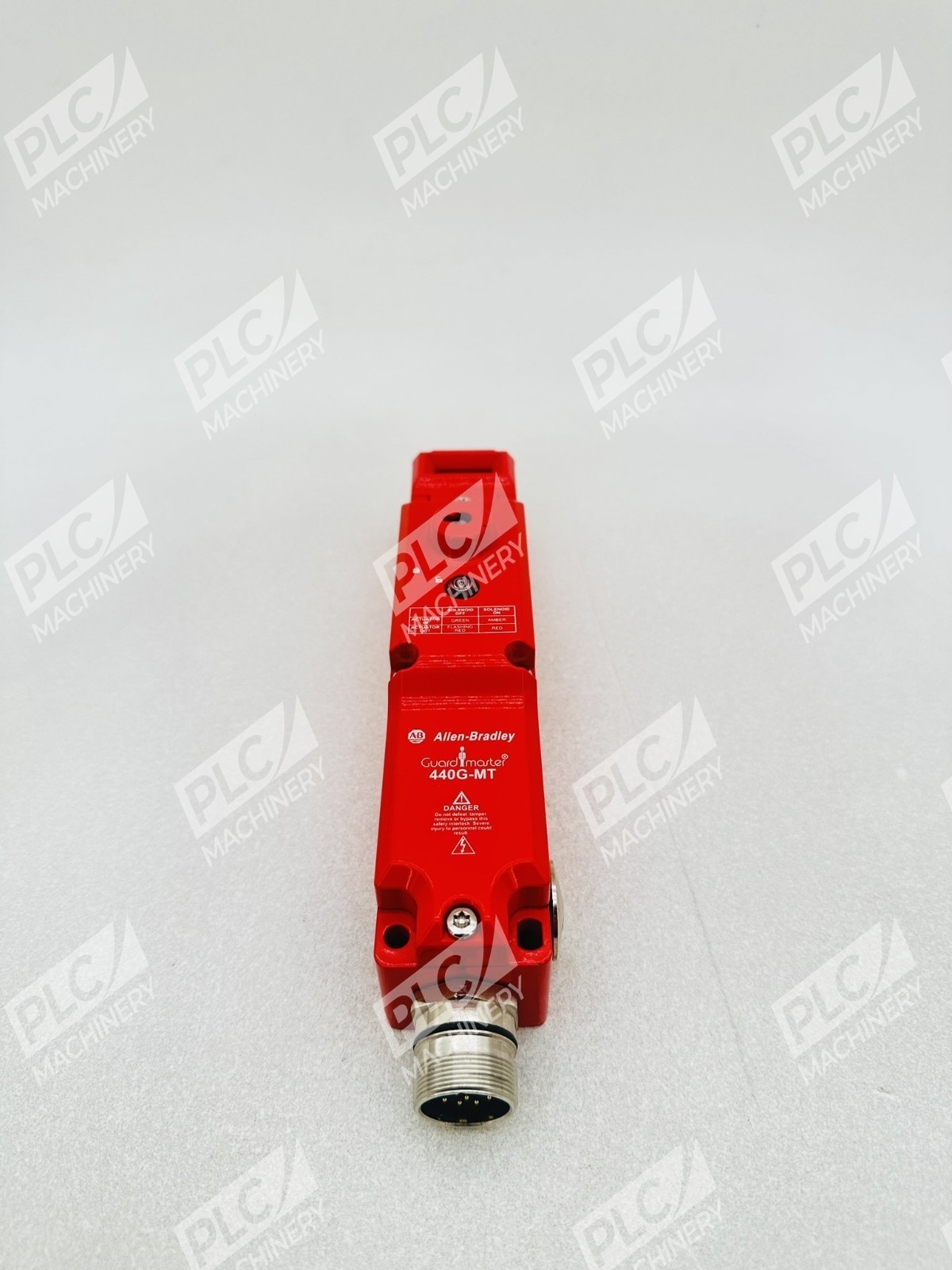

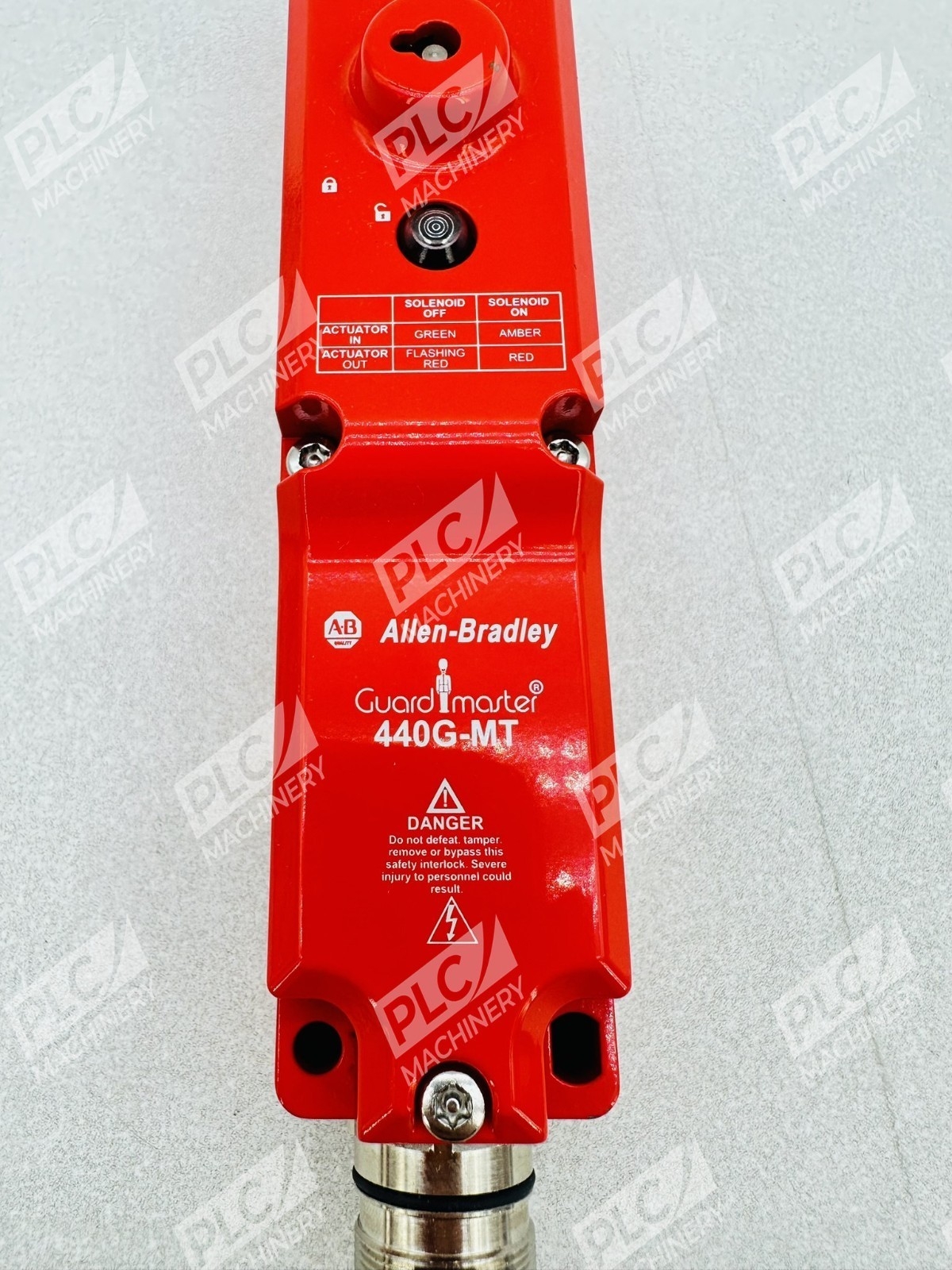

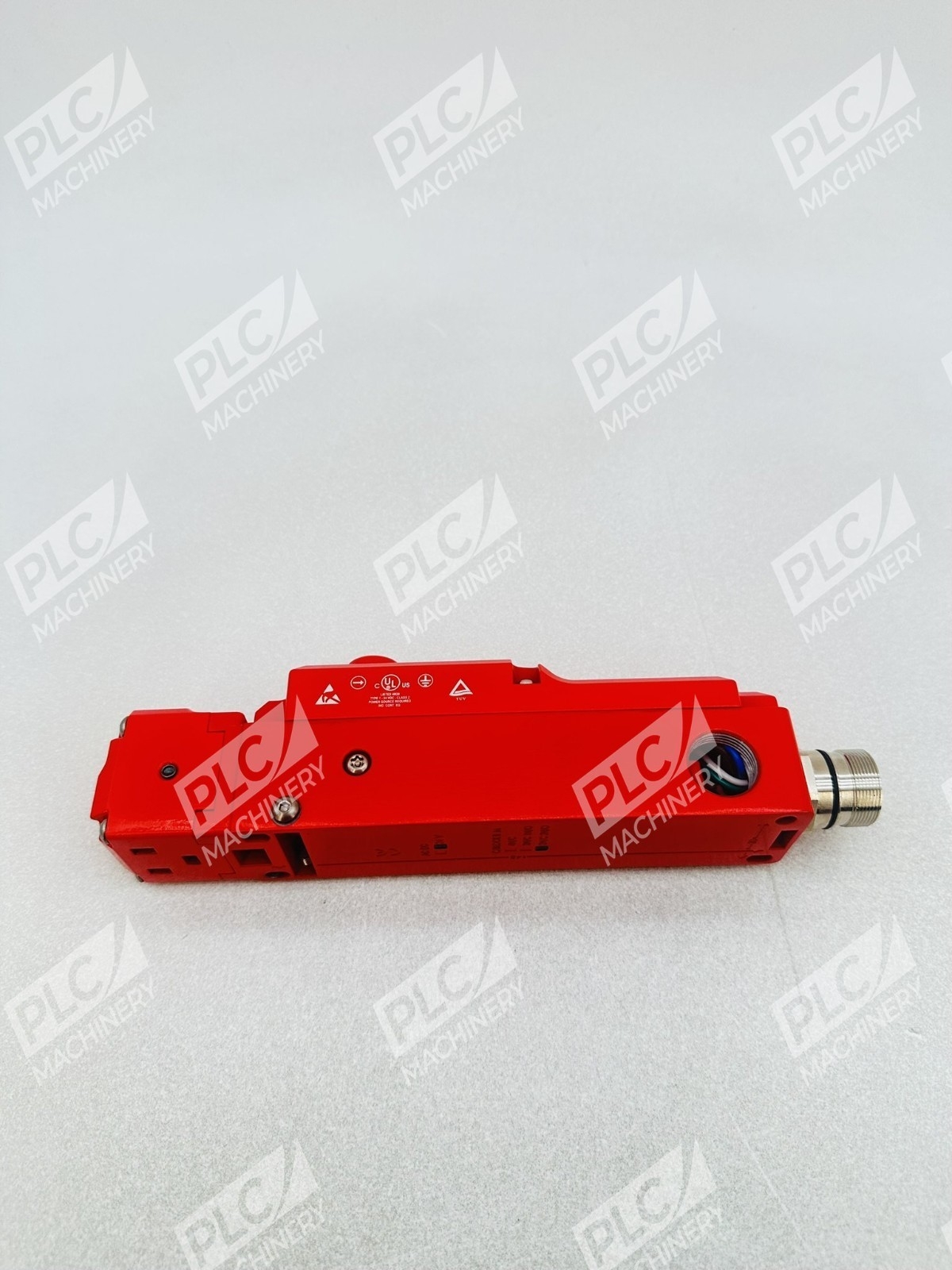

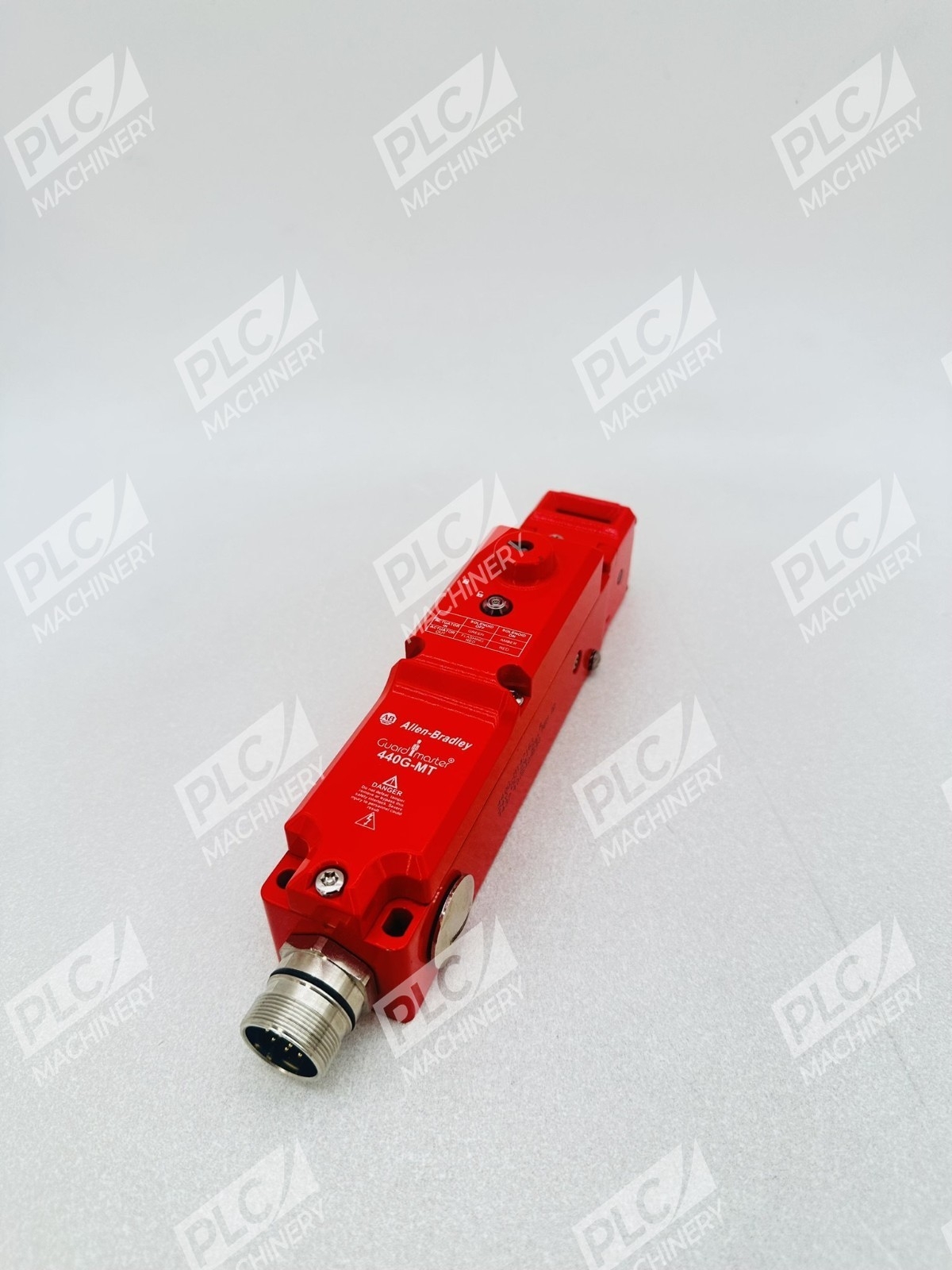

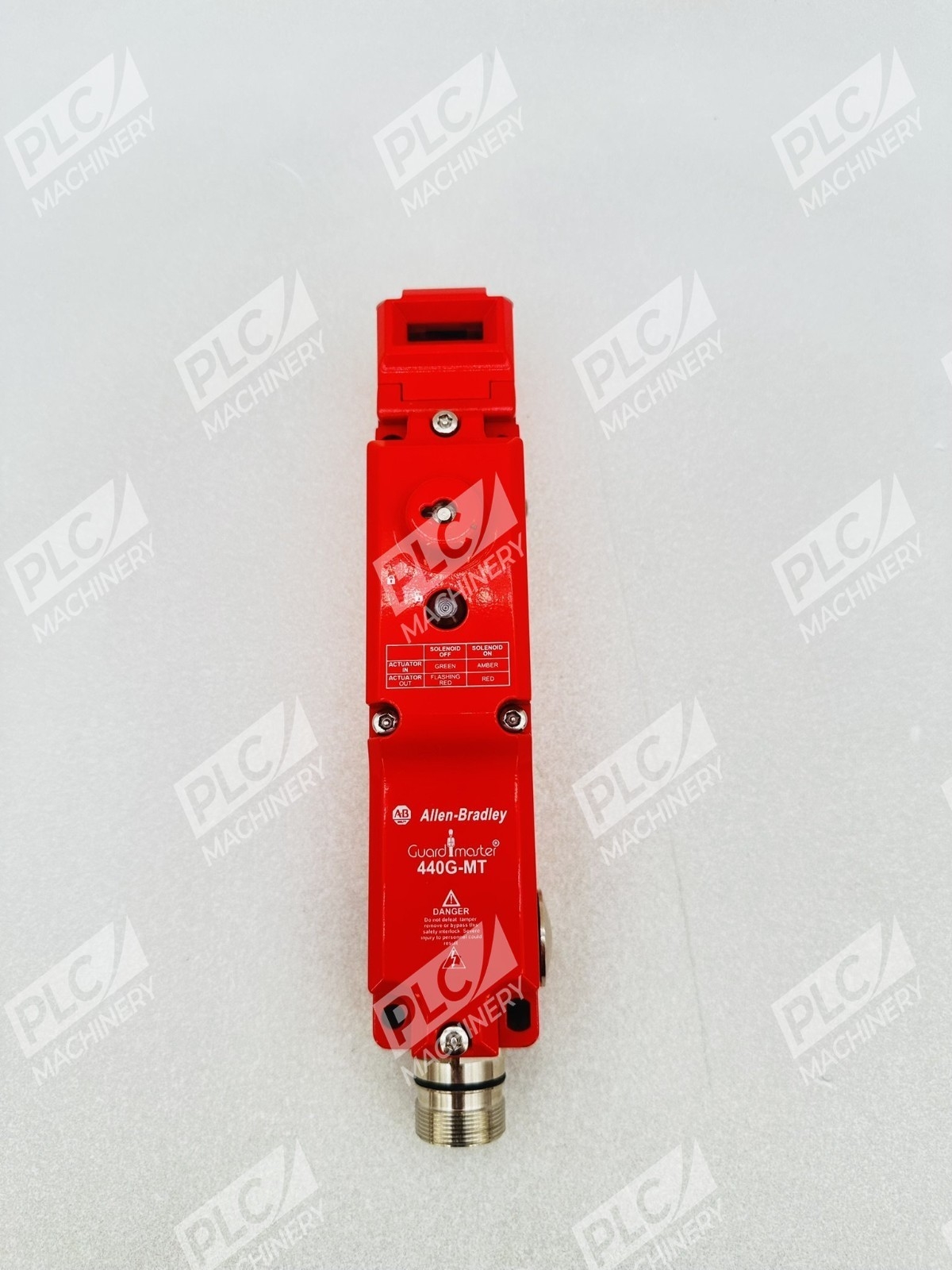

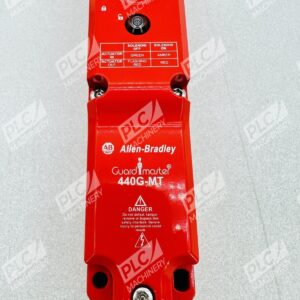

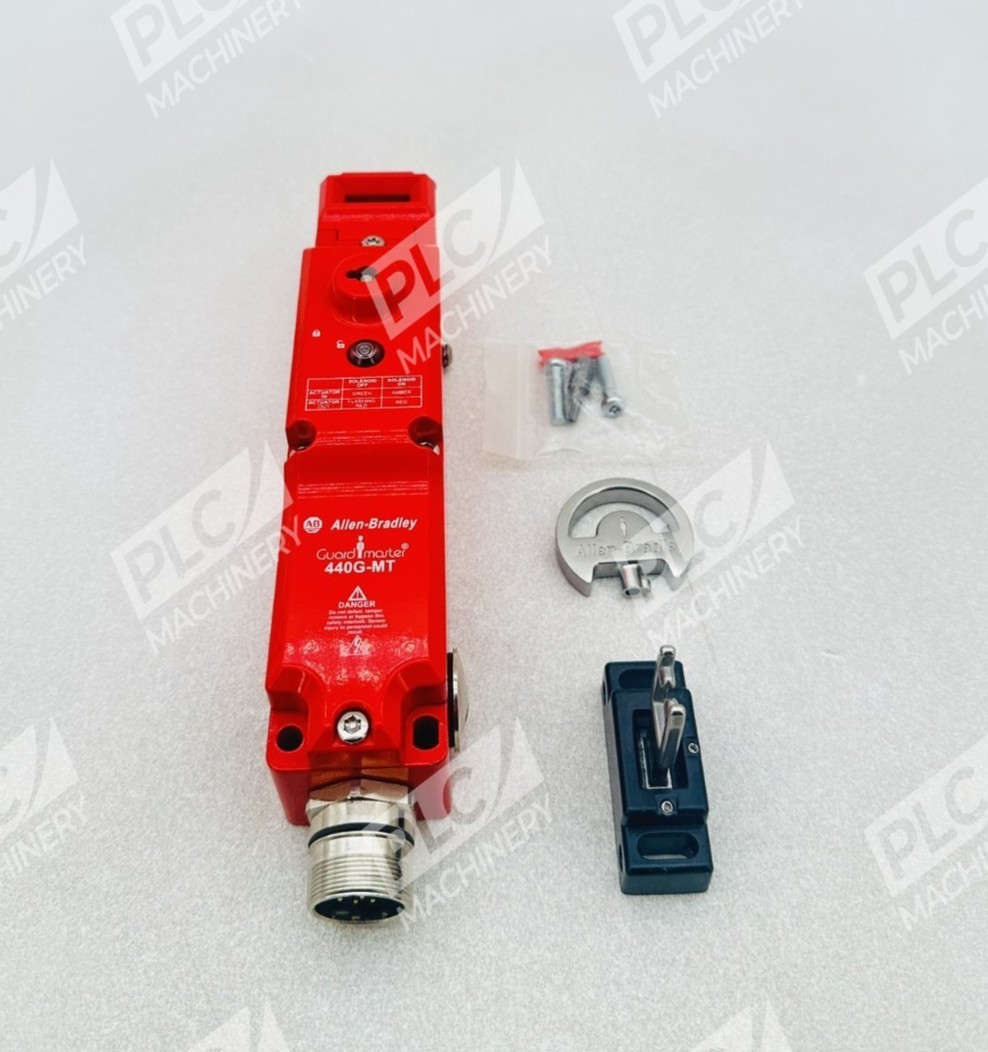

The Allen-Bradley 440G-MT47163 is a Type 2 interlocking guard locking switch from Rockwell Automation’s Guardmaster® safety product line. This positive-mode, tongue-operated guard locking interlock switch locks a machine guard closed until power is isolated, and the guard may only be opened when a signal is applied to the internal solenoid, which releases the lock mechanism. The 440G-MT47163 is engineered for industrial automation systems requiring robust machine safety compliance.
Key Features
- 24V DC solenoid voltage with diagnostic function and metal override key
- 2 Normally Closed and 2 Normally Open safety and auxiliary contacts
- Fully-Flex actuator with 12-Pin M23 conduit entry
- Compliant with ISO 14119 Type 2 Interlocking Device with Guard Locking and low coding
- No integrated actuator—accepts separate flex/rigid guard actuation hardware
- Electrical output independent of solenoid status, maximum output 100 mA
Technical Specifications
- Solenoid Voltage: 24V DC
- Contact Configuration: 2 N.C. (safety), 2 N.O. (auxiliary)
- Contact Type: Break Before Make

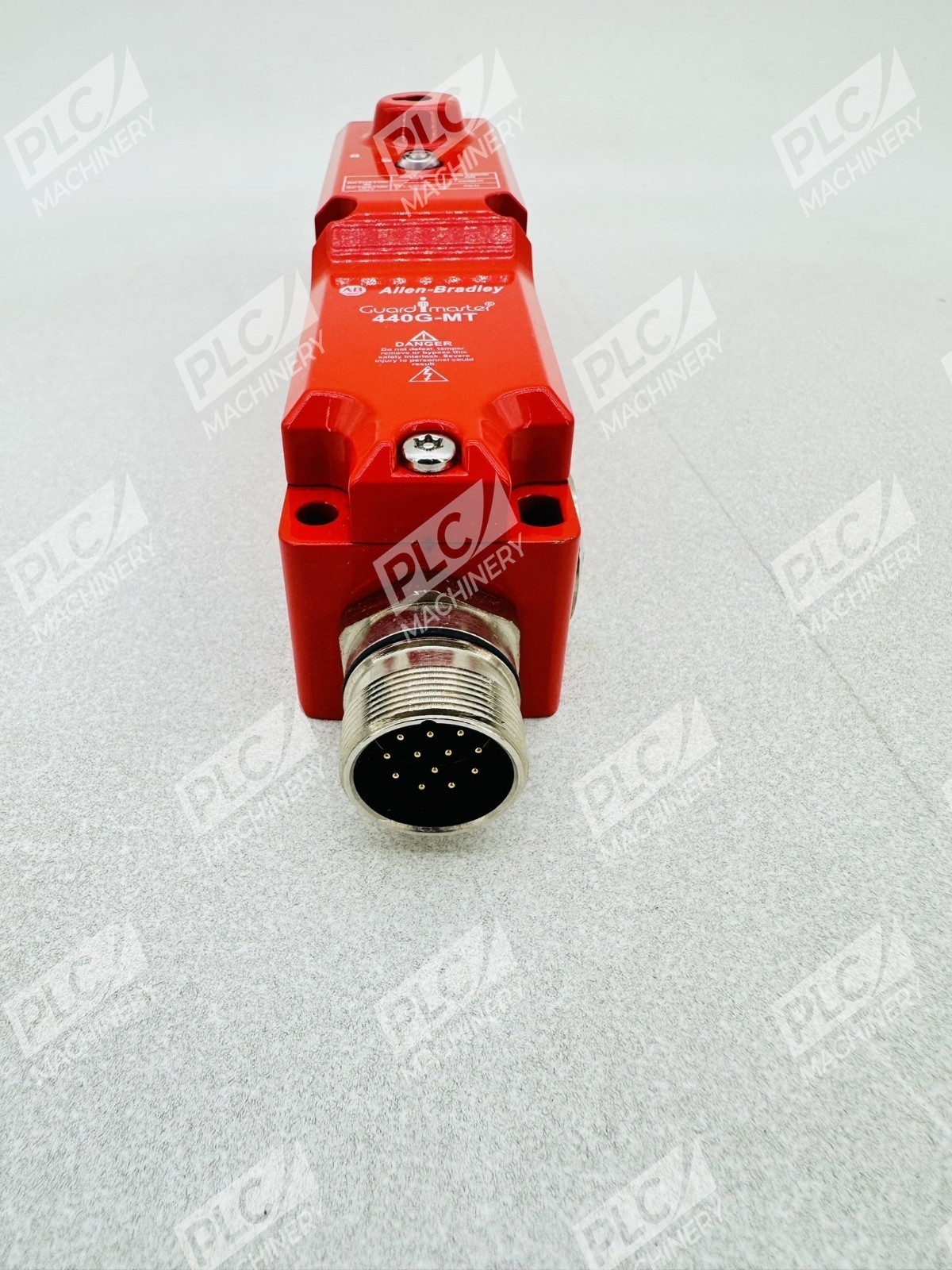

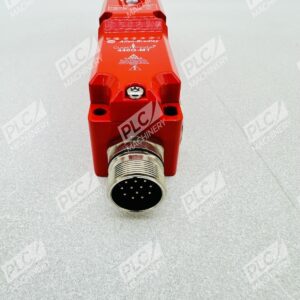

- Connection: 12-Pin M23 Style QD
- Actuator: Flexible
- Material: Die-Cast Alloy
- Standards: KC, TC
- Mounting: Guard interlock applications
Typical Applications
The 440G-MT47163 is ideal for:
- Industrial machinery guard protection and personnel safety interlock systems
- Automated production lines requiring safety-rated guard locking
- Motion control systems where hazardous guarding compliance is mandatory
- Equipment retrofits and upgrades in existing automation installations
- OEM equipment designs requiring Type 2 interlocking certification
Compatibility & Replacements
Compatible With
- Rockwell Automation Guardmaster safety controller systems
- Industrial PLC and motion control safety circuits
- Standard 24V DC industrial control voltage supplies
- M23 connector-based automation panel wiring and IP67-rated enclosures
- ISO 14119 compliant machine guarding architectures
Replaces / Drop-In Replacement For
- 440G-MT47161, 440G-MT47162 (alternative contact/actuator configurations in same series)
- Verify compatibility with your system integrator before ordering legacy replacements.
Works With
- Rockwell Automation safety-rated control systems and Studio 5000 safety modules
- Flex Guardian-coded safety interlocks per ISO 14119 Type 2
- M23 circular connectors and standard industrial 24V DC safety circuits

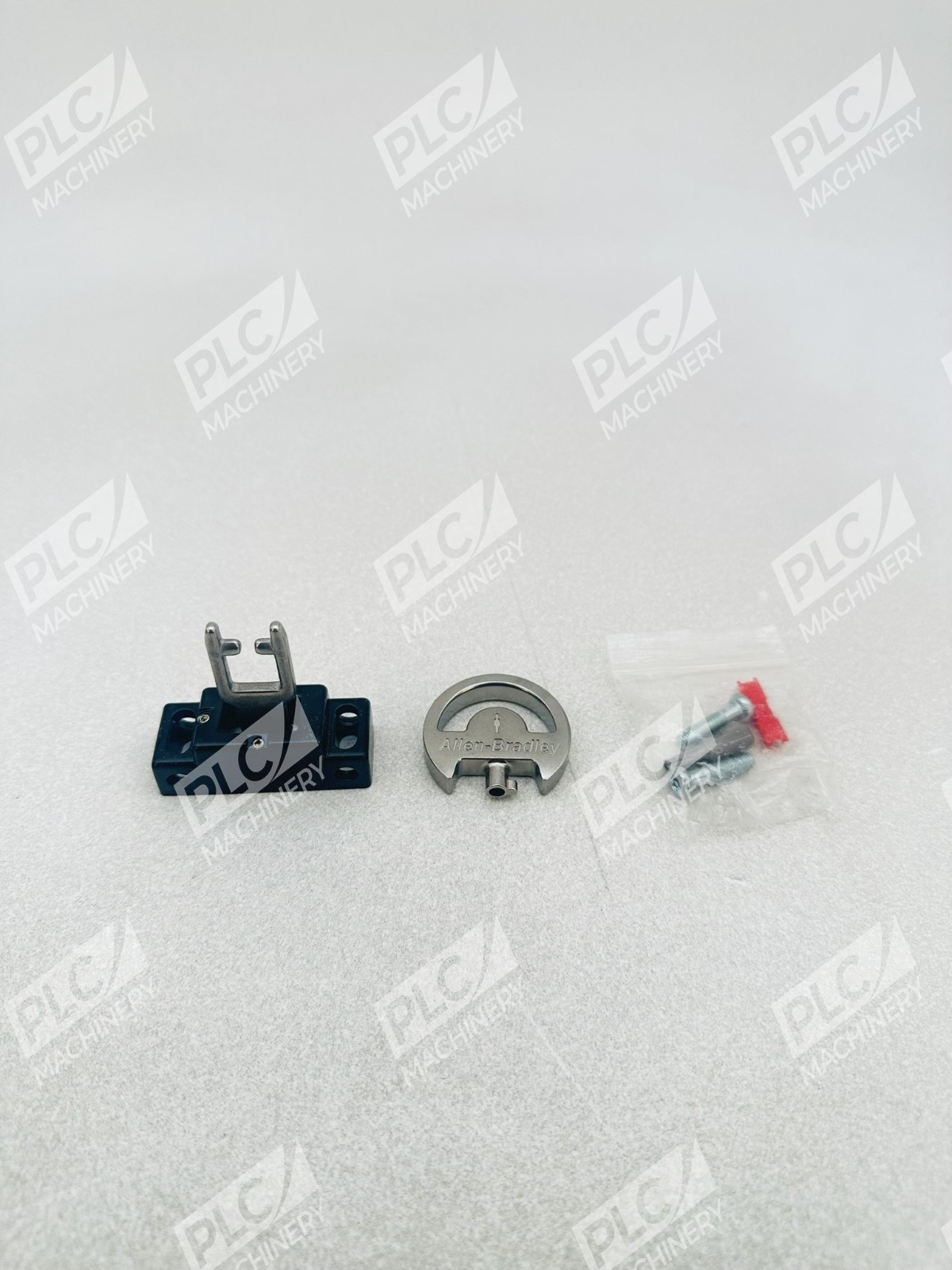

- Guard actuator hardware compatible with Guardmaster solenoid switches
