Overview

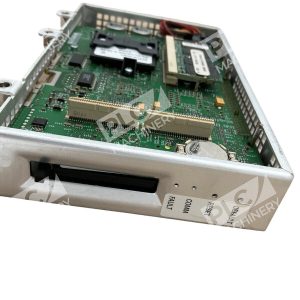

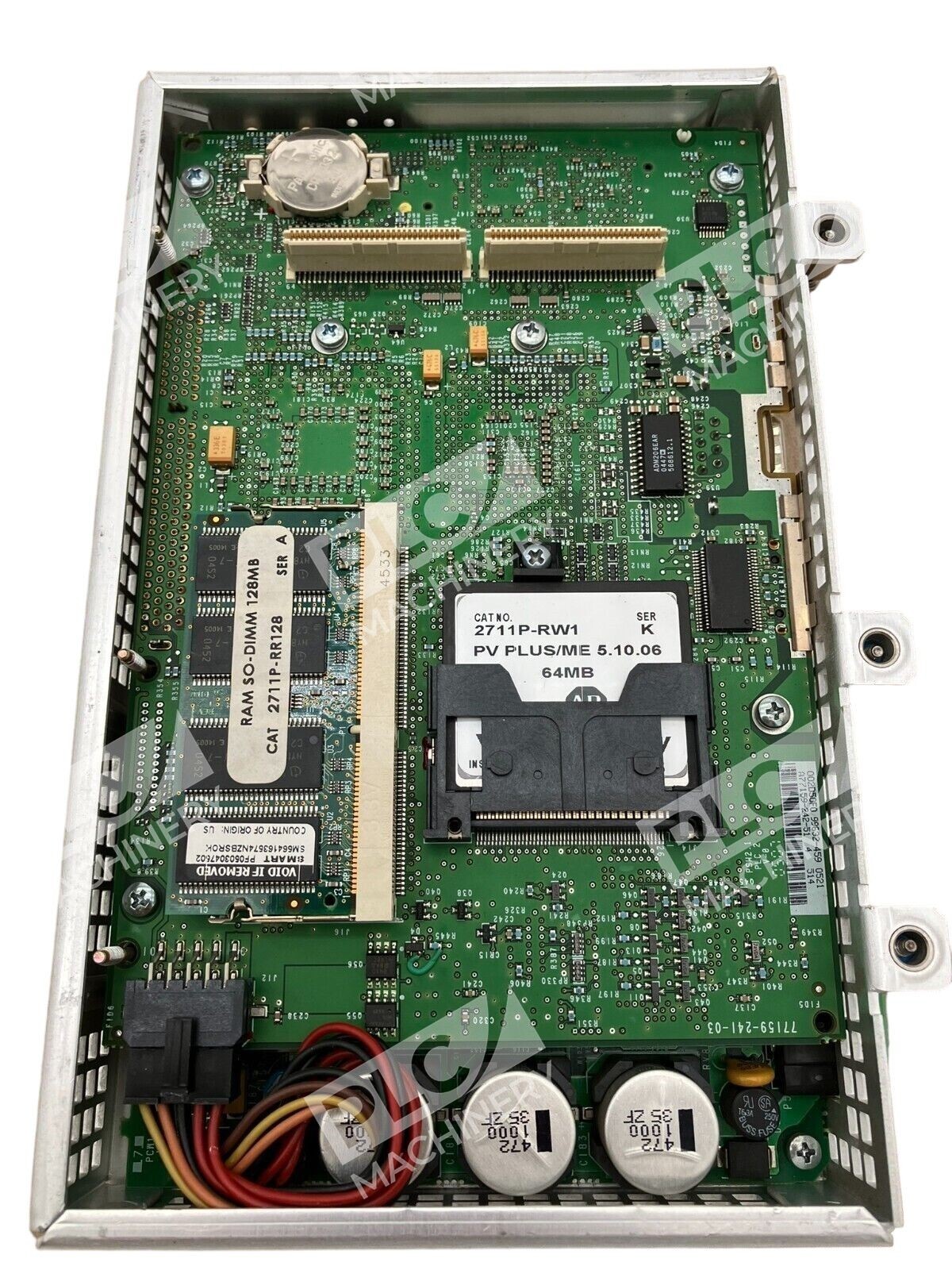

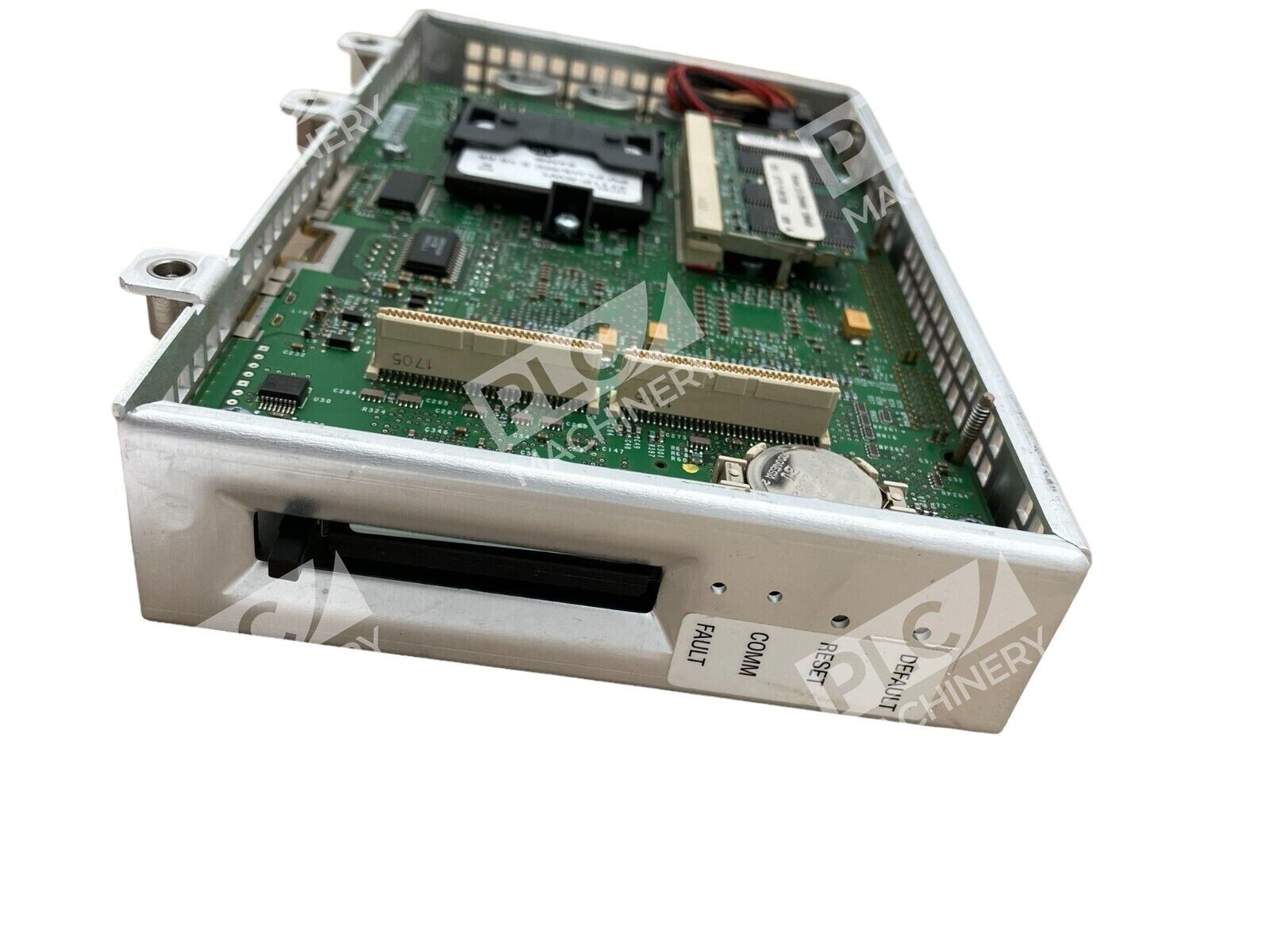

The Allen-Bradley 2711P-RP2 is a DC-powered logic module designed to mount on the back of a PanelView Plus 700–1500 display module. The logic module and display module together make a PanelView terminal that can control industrial machines and systems. This Ser C Rev A unit is withdrawn from service and available as a cost-effective used option for system upgrades and replacements.
Key Features
- 128 MB of flash memory and 128 MB of RAM
- Ethernet port for network connectivity
- Two USB ports, one RS-232 port, and a CompactFlash card slot
- Compatible with PanelView Plus CE 700, 1000, 1250, and 1500 operator terminals
- Standard features include ActiveX controls, third-party device support, a PDF reader, and an FTP server connection
Technical Specifications
- Memory: 128 MB Flash / 128 MB RAM
- Power Supply: 24 VDC
- Power Consumption: 70 watts max
- Communication Ports: 1 Ethernet, 1 RS-232 serial, 2 USB
- Expansion Slot: CompactFlash card slot
- Mounting: PanelView Plus 700–1500 rear slot
- Weight: 2.01 lbs
- Product Type: HMI Logic Module

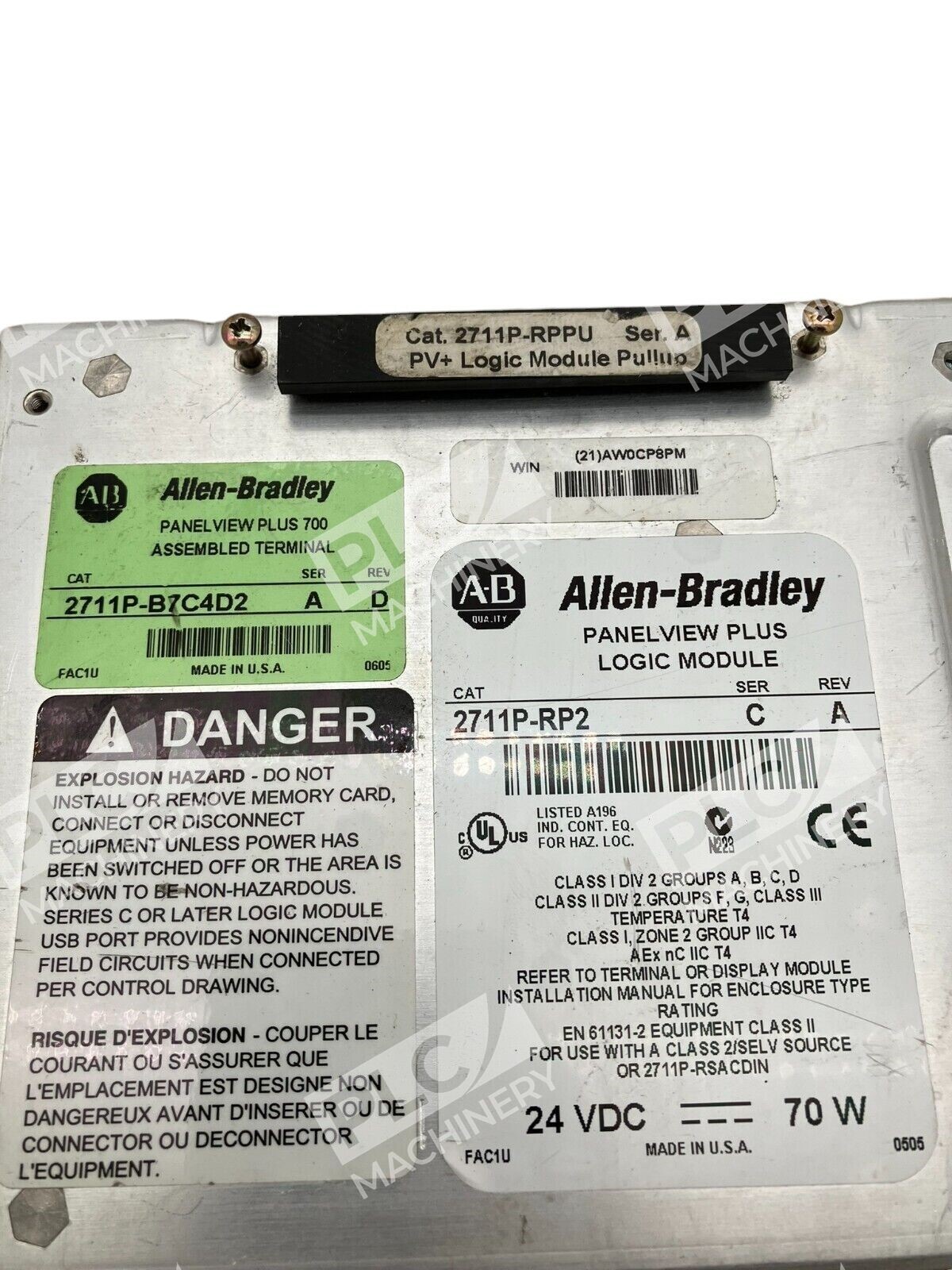

- Series: C (Rev A)
Typical Applications
The 2711P-RP2 is widely deployed in manufacturing facilities for:
- Industrial process visualization and control
- Machine interface and operator feedback
- Real-time data logging and file storage
- Multi-language and graphic-rich HMI applications
- Legacy system expansions and updates
Compatibility & Replacements
This logic module is compatible for use with PanelView Plus CE 700, 1000, 1250, 1500 operator terminals. Compared to the 2711P-RP1 which only has 64 MB Flash and RAM memory, the 2711P-RP2 has twice the size of internal memory, having 128 MB RAM and 128 MB Flash memory. The 2711P-RP2 is available in Series A, Series B, Series C, Series D, Series E, Series F, and Series G. This Ser C Rev A unit is a direct replacement for earlier and same-revision modules. Not compatible with PanelView Plus 6 terminals.
