Overview

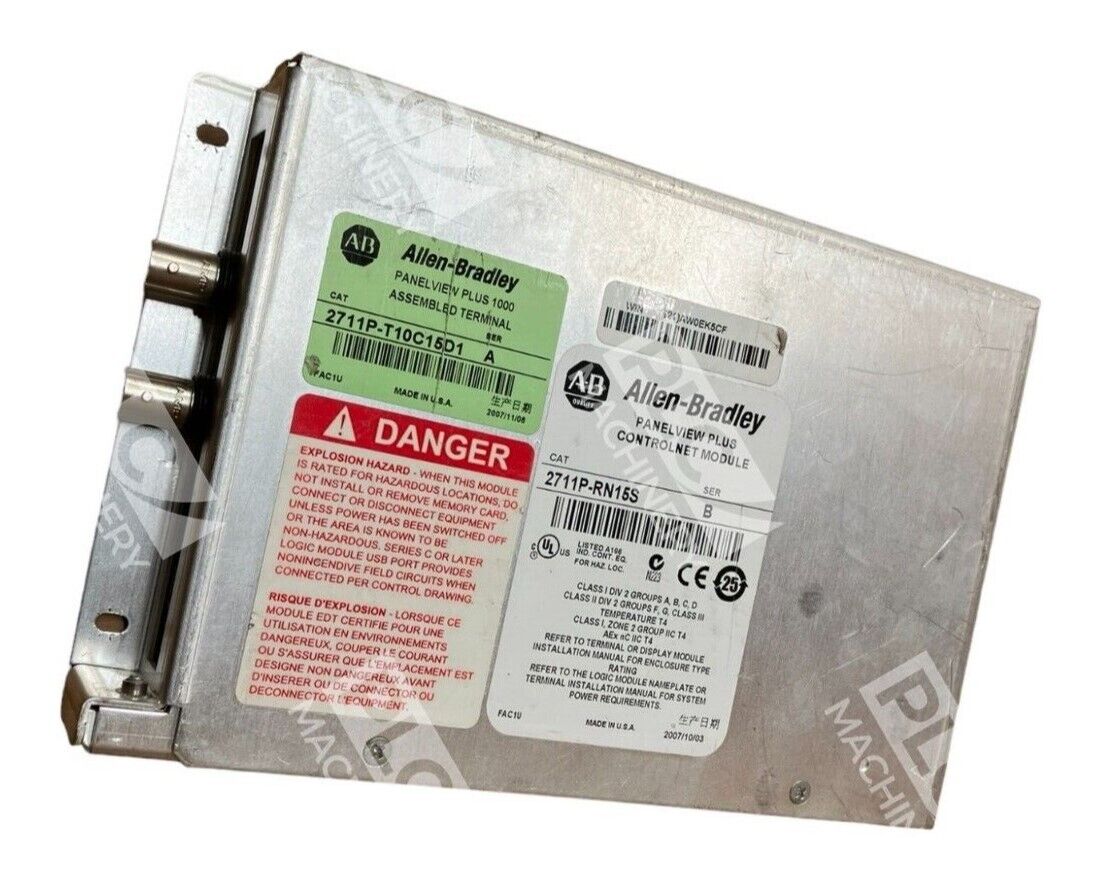

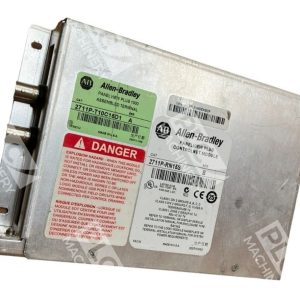

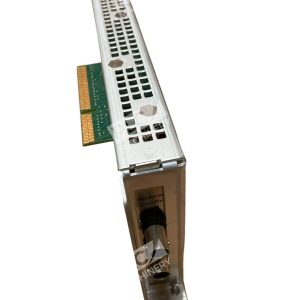

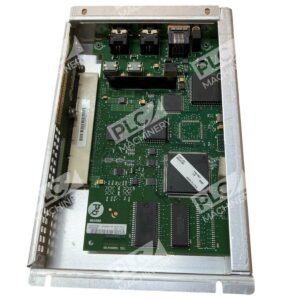

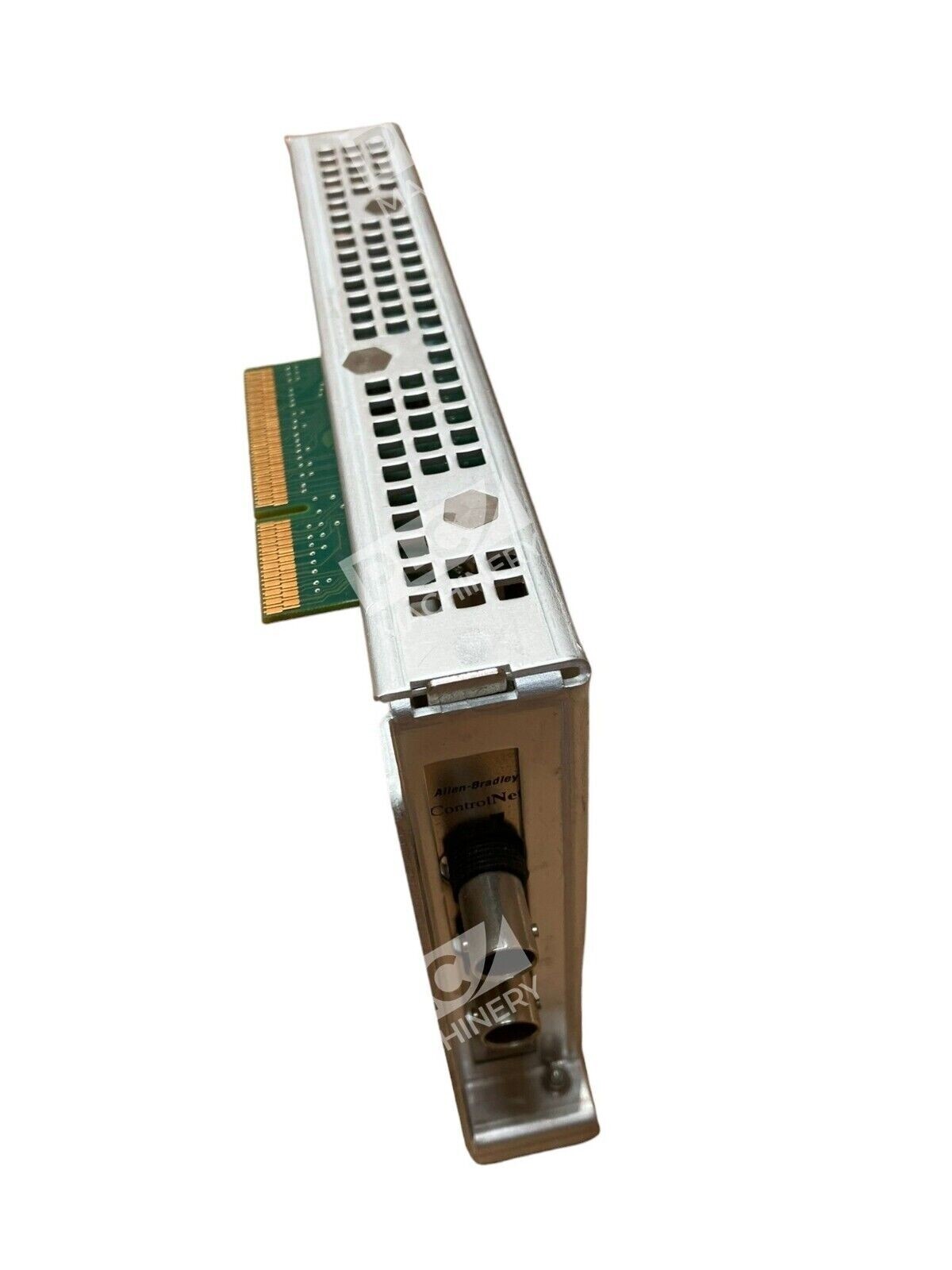

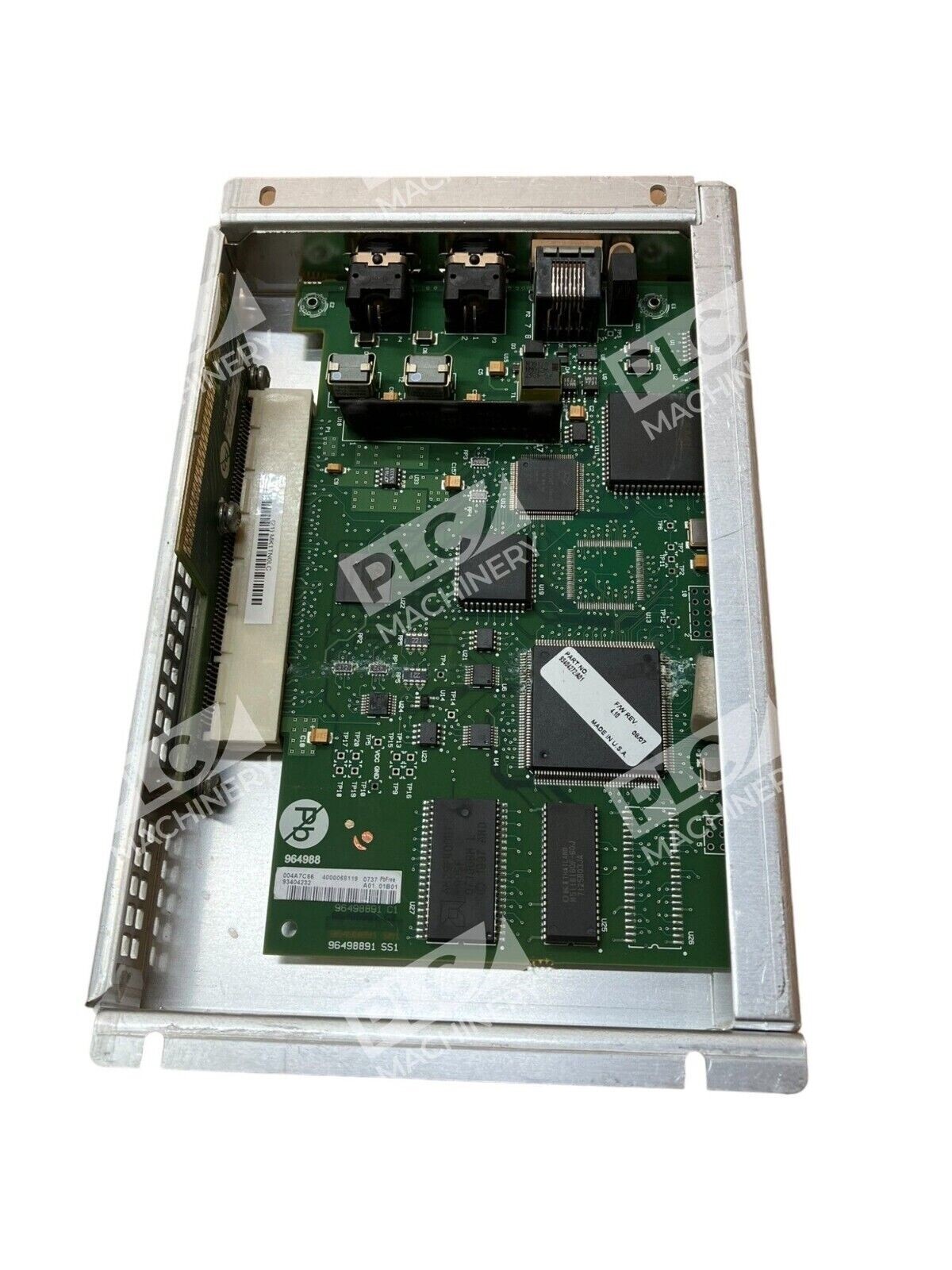

The Allen-Bradley 2711P-RN15S is an optional ControlNet communication module designed for PanelView Plus and PanelView Plus 6 operator terminals (700 to 1500 models). This module provides reliable, redundant communication between HMI terminals and ControlNet networks, enabling seamless integration in distributed industrial automation systems. The 2711P-RN15S is ideal for control engineers and system integrators upgrading legacy systems or building mixed-architecture networks with real-time I/O communication.
Key Features
- Two independent ControlNet communication channels (A and B) for redundant, high-speed networking
- Single RJ45 Network Access Port (NAP) for module configuration and diagnostics
- Compatible with PanelView Plus 700–1500 and PanelView Plus 6 700–1500 terminals
- Common Industrial Protocol (CIP) support for standardized I/O network functionality
- Status LEDs for real-time diagnostic feedback
- Field-replaceable design—no terminal replacement required
- Plug-in installation directly onto HMI logic module
Technical Specifications

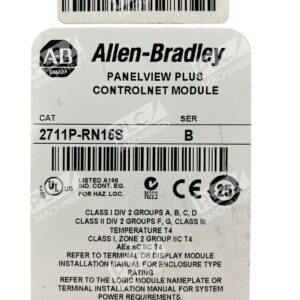

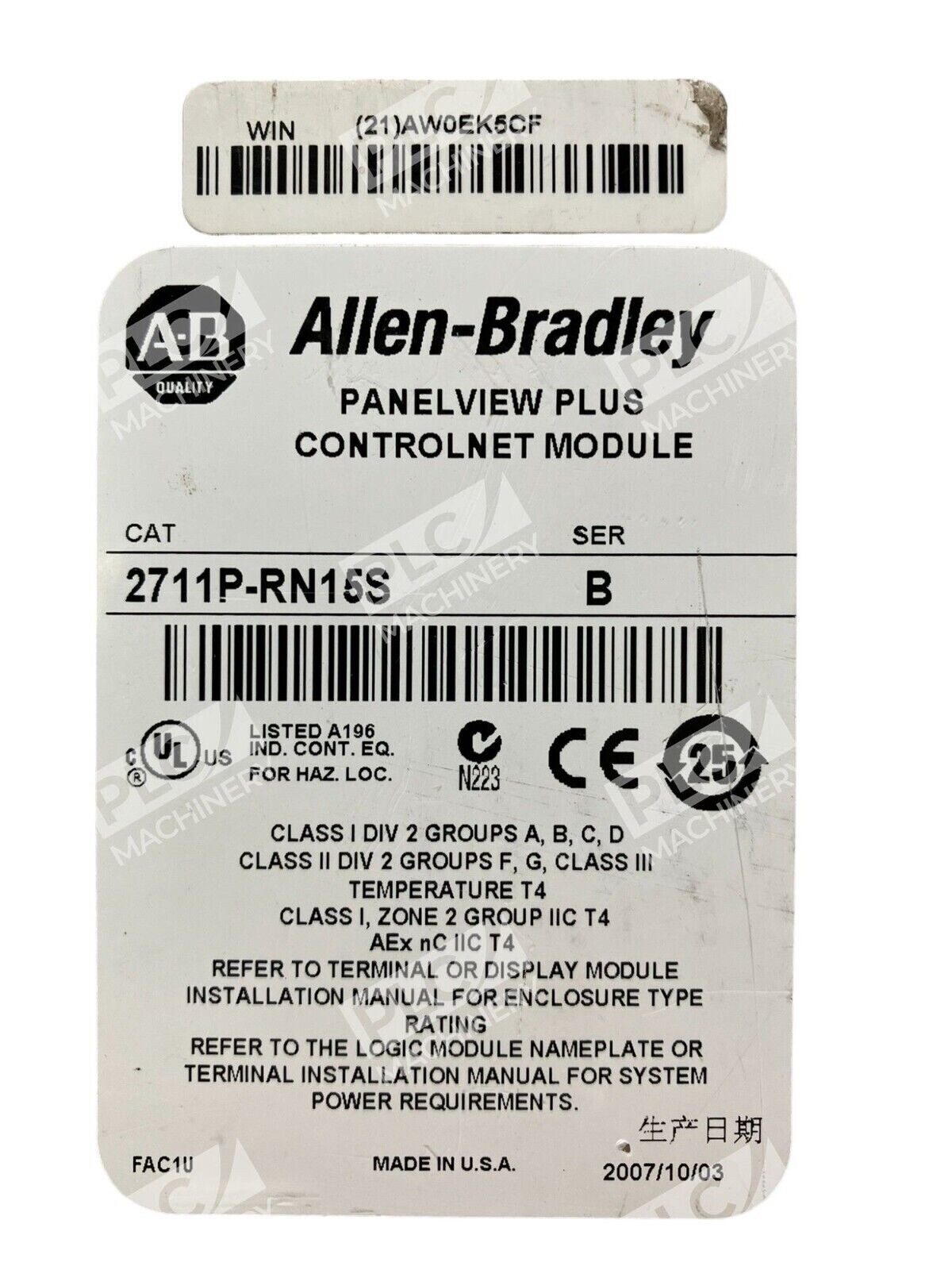

- Catalog Number: 2711P-RN15S
- Communication Protocol: ControlNet (CIP-based)

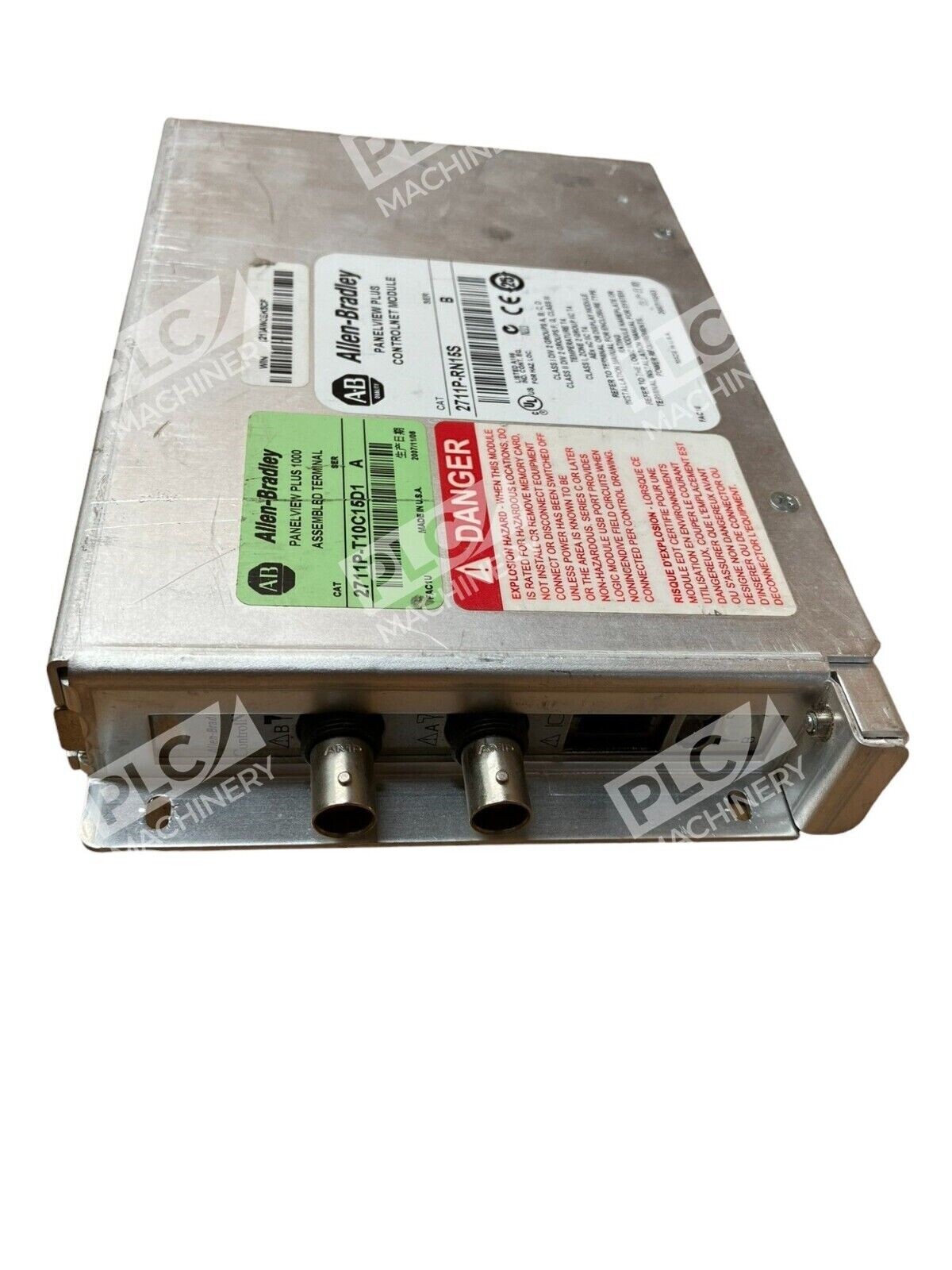

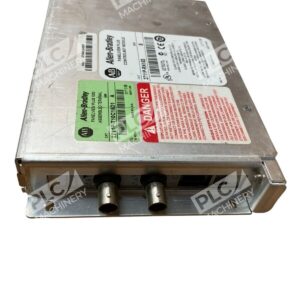

- ControlNet Ports: Two (2) independent channels
- Network Access Port: RJ45
- Compatible Terminals: PanelView Plus 700–1500, PanelView Plus 6 700–1500
- Connector Type: 8-pin Phoenix connector
- Dimensions: 11″ × 8″ × 6″ (W × H × D)
- Weight: 3 lbs (1.36 kg)
- Installation: Module stacks directly on HMI logic module
- Cable Compatibility: 1786-RG6/A and 1786-RG6F/B ControlNet cables
Typical Applications
The 2711P-RN15S is commonly used in:
- Legacy system integration: Connecting older PLC networks (DH+, RIO) to modern PanelView Plus HMIs
- Redundant network architectures: Dual ControlNet channels for critical control systems requiring high availability
- Distributed automation: Real-time I/O communication across multi-device industrial environments
- Process control: Seamless data exchange between operator terminals and distributed control systems
- Manufacturing execution: Reliable HMI-to-controller communication in automotive, food & beverage, and packaging applications
Compatibility & Replacements
The 2711P-RN15S integrates with PanelView Plus 700, 900, 1000, and 1500 operator terminals, as well as PanelView Plus 6 models in the same screen size range. This used module is a direct drop-in replacement for original equipment and is suitable for mixed-network environments combining legacy and current Rockwell Automation systems. Note: Module installation and removal must be performed with power removed from the operator terminal to prevent electrical hazards.
