Overview

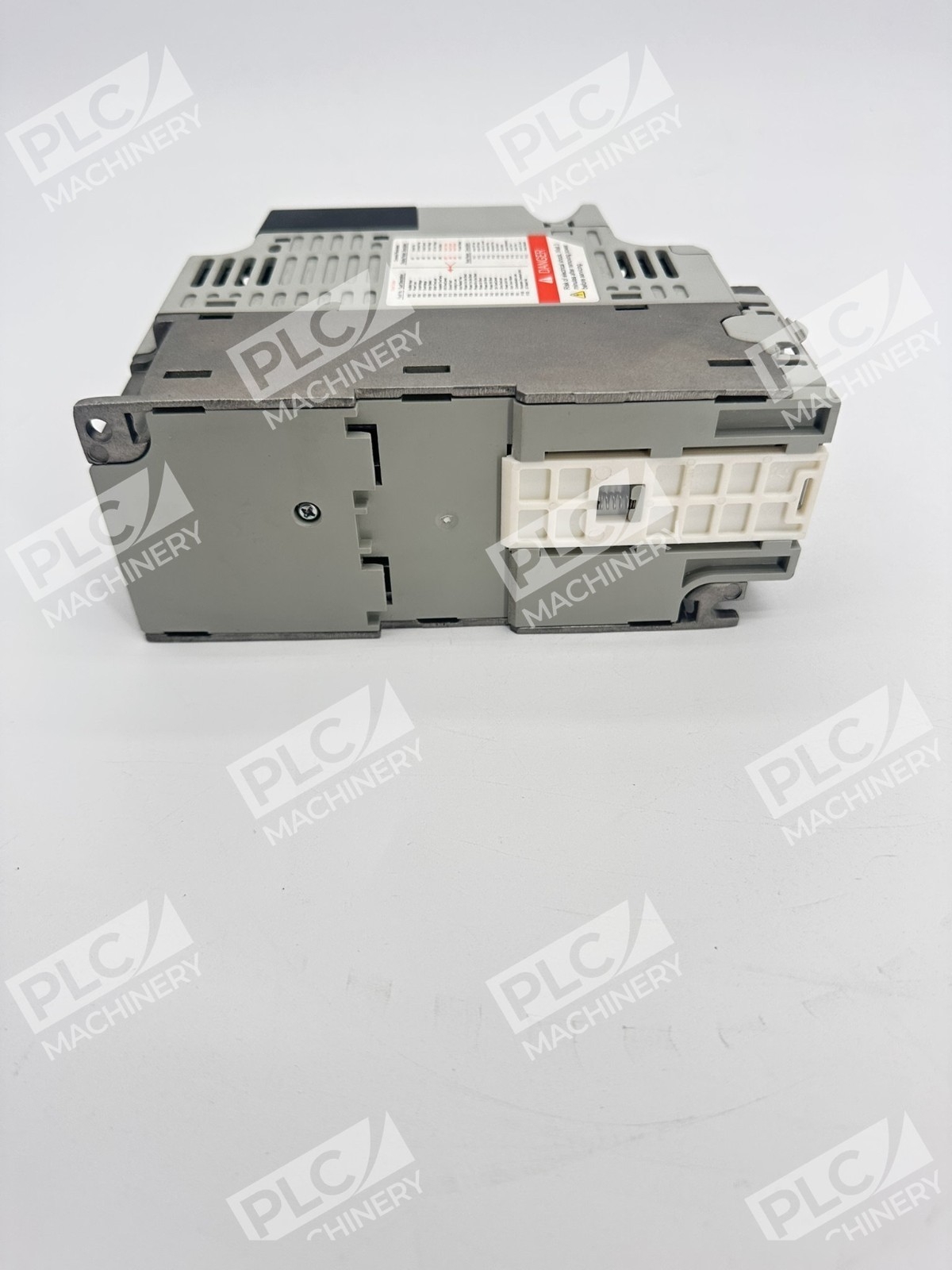

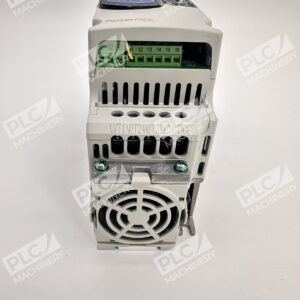

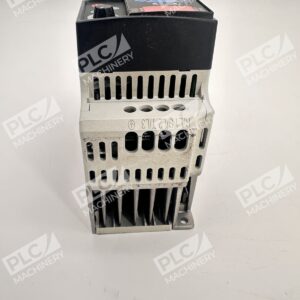

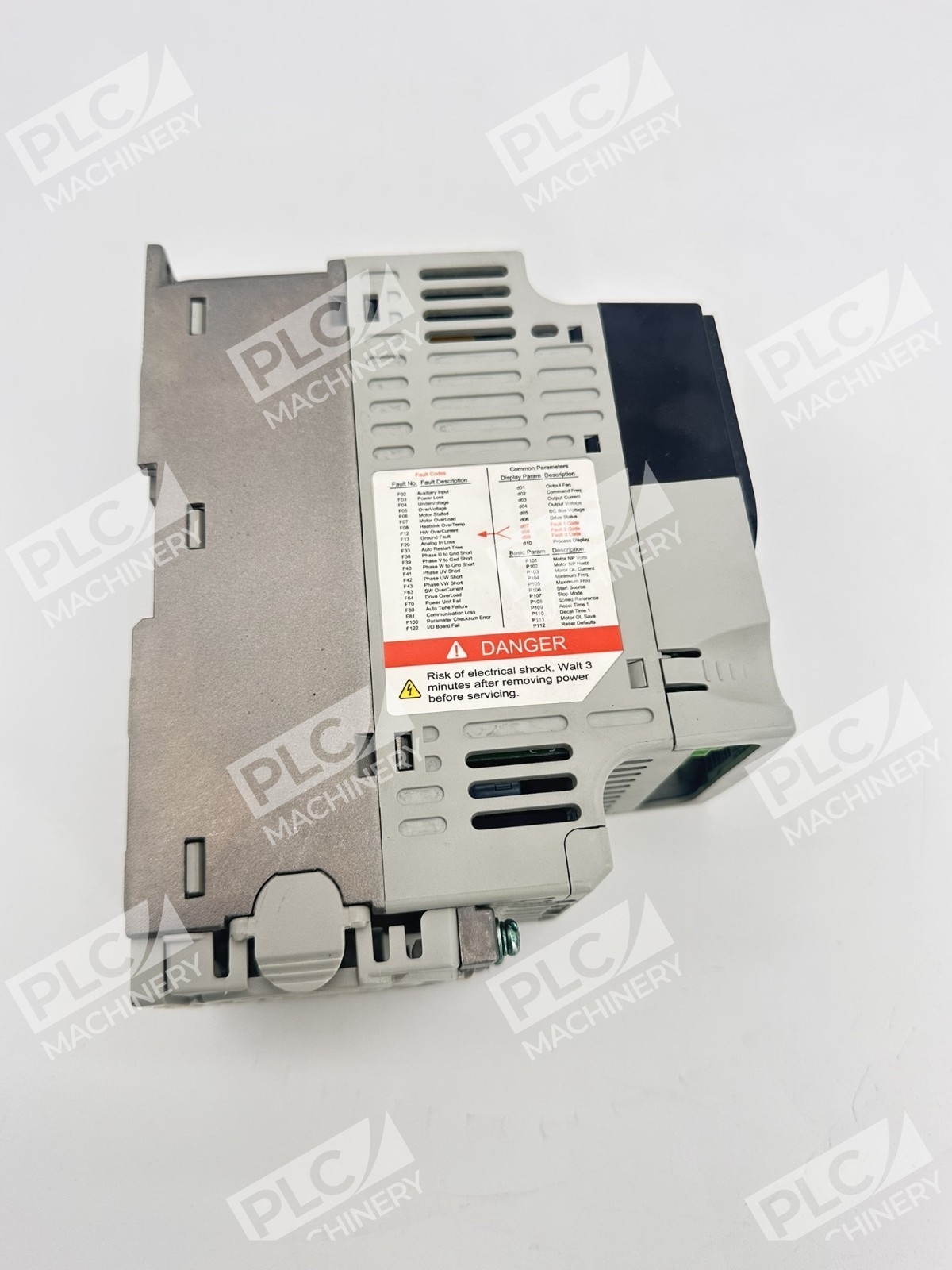

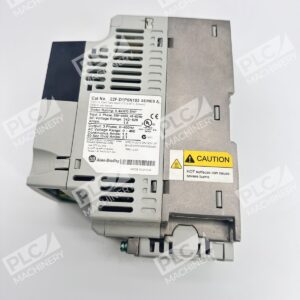

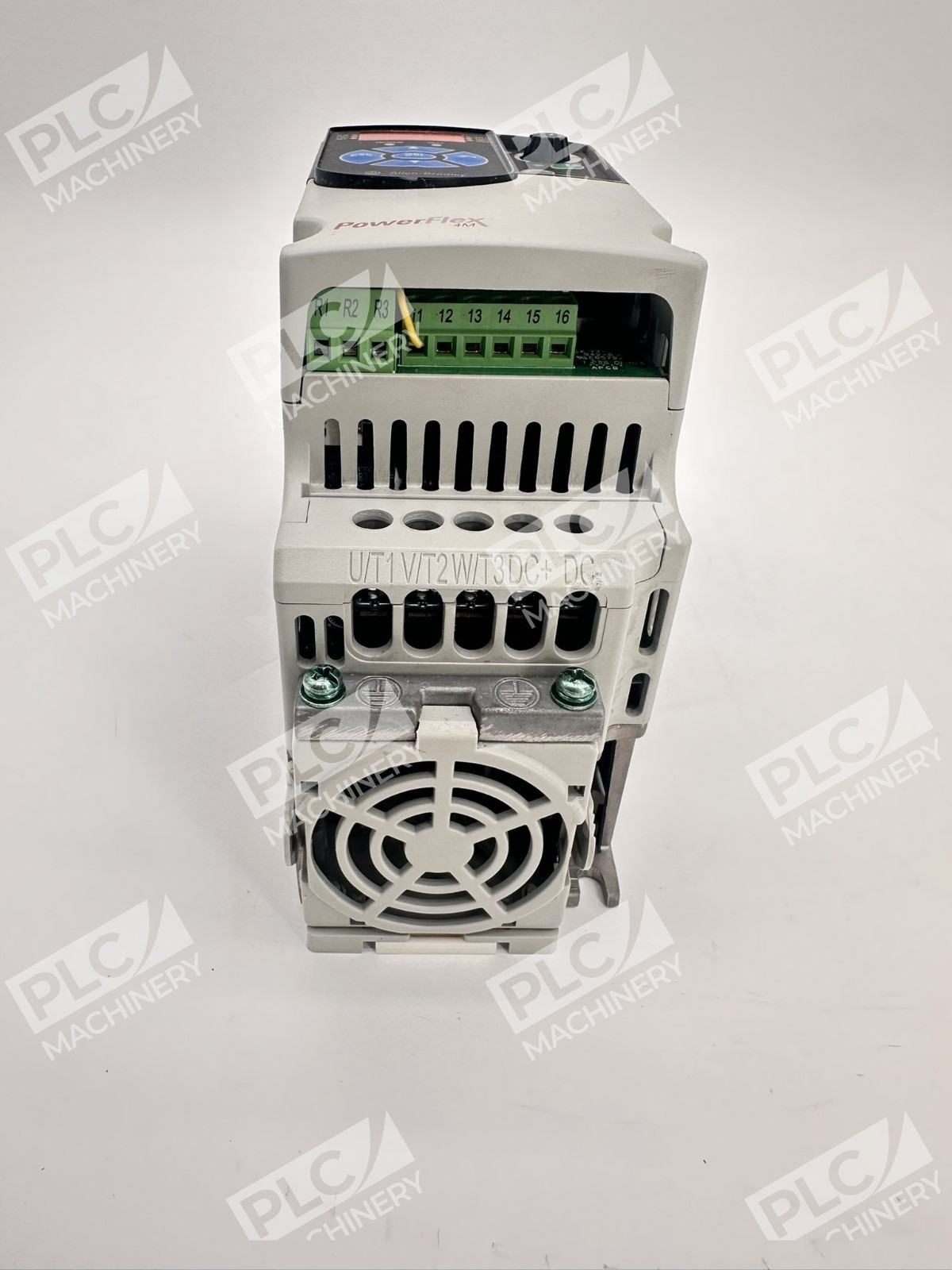

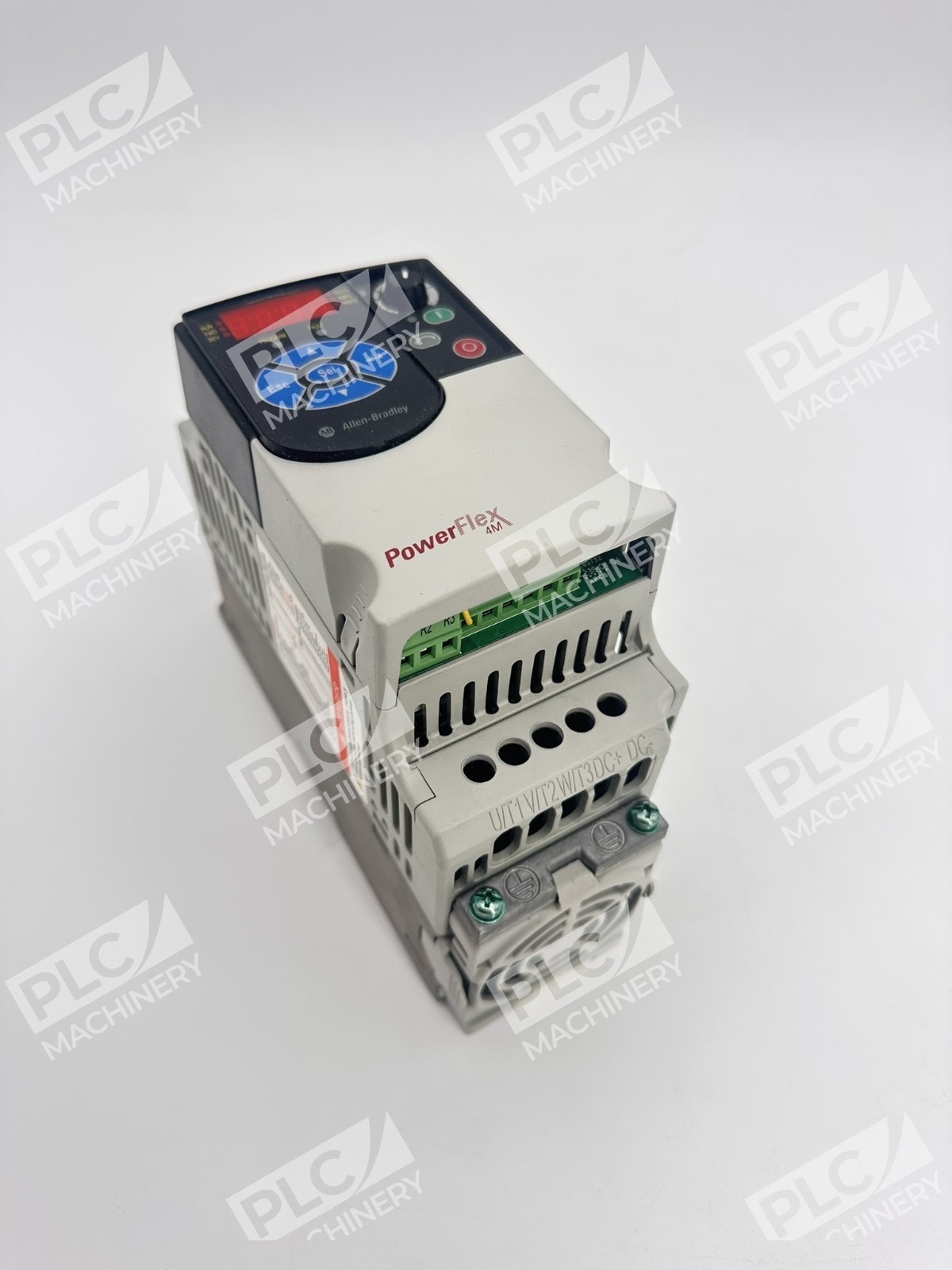

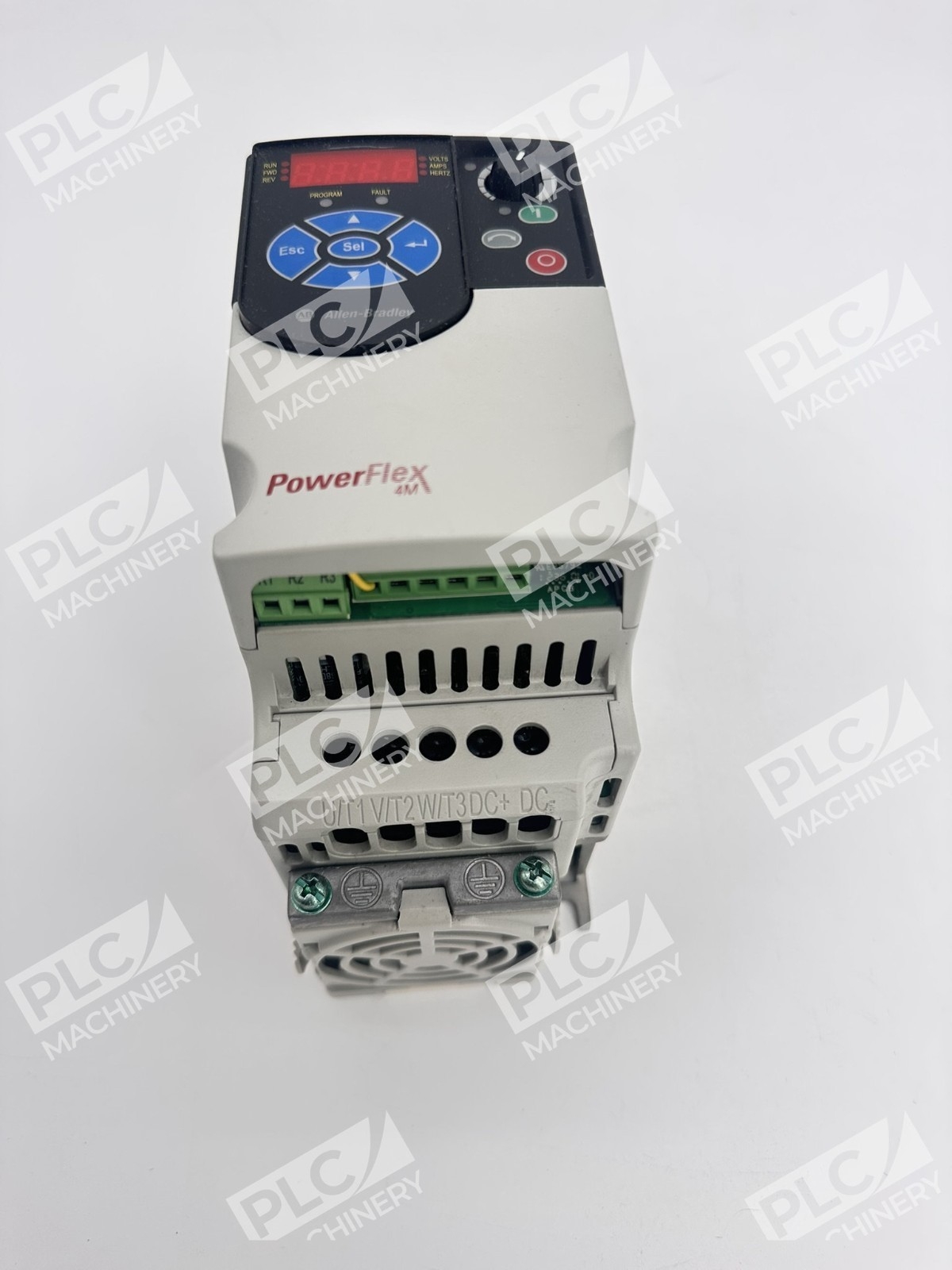

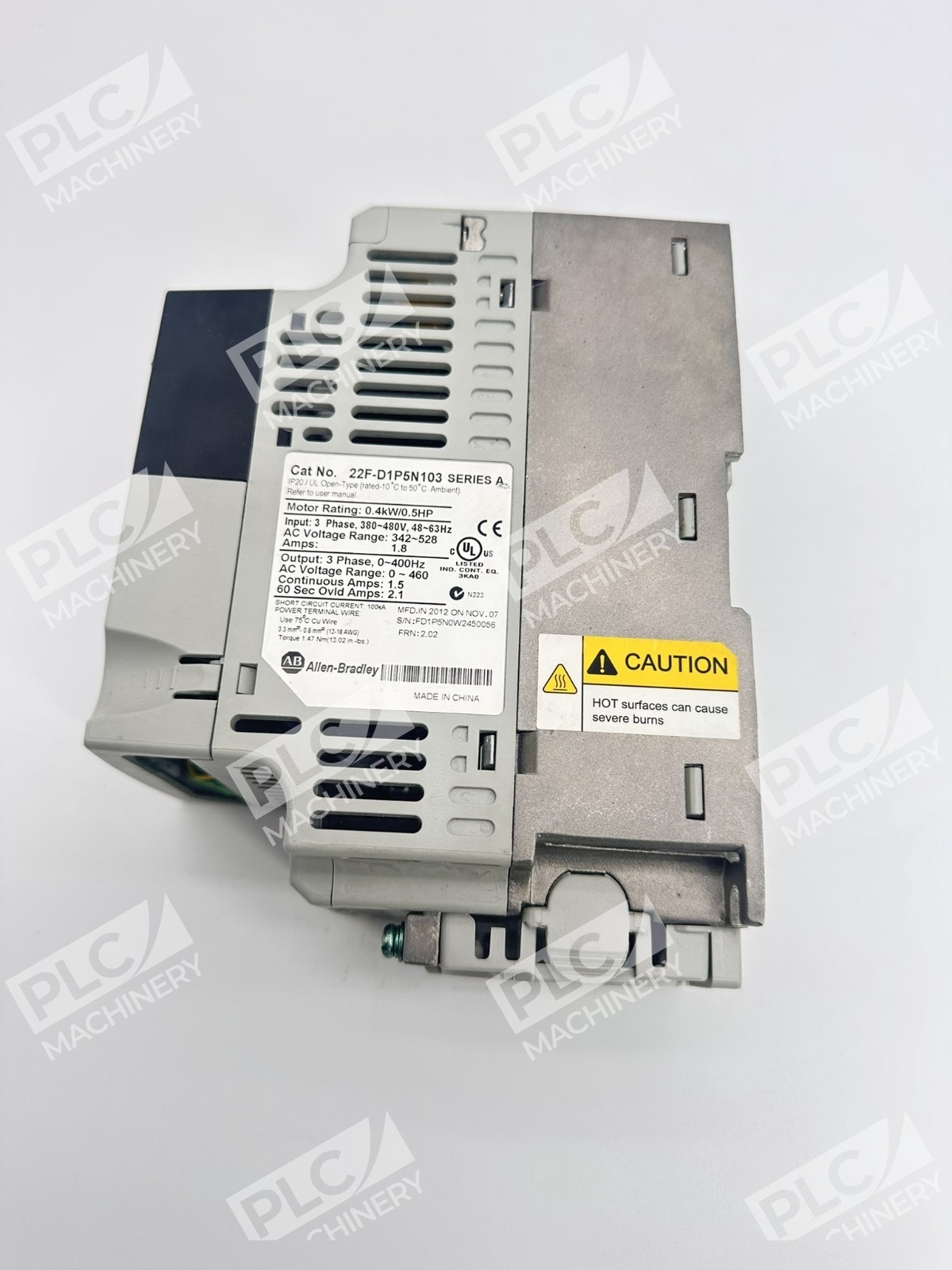

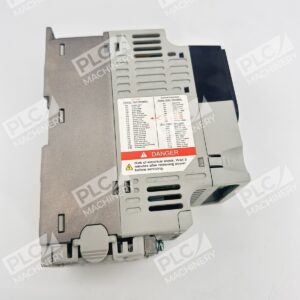

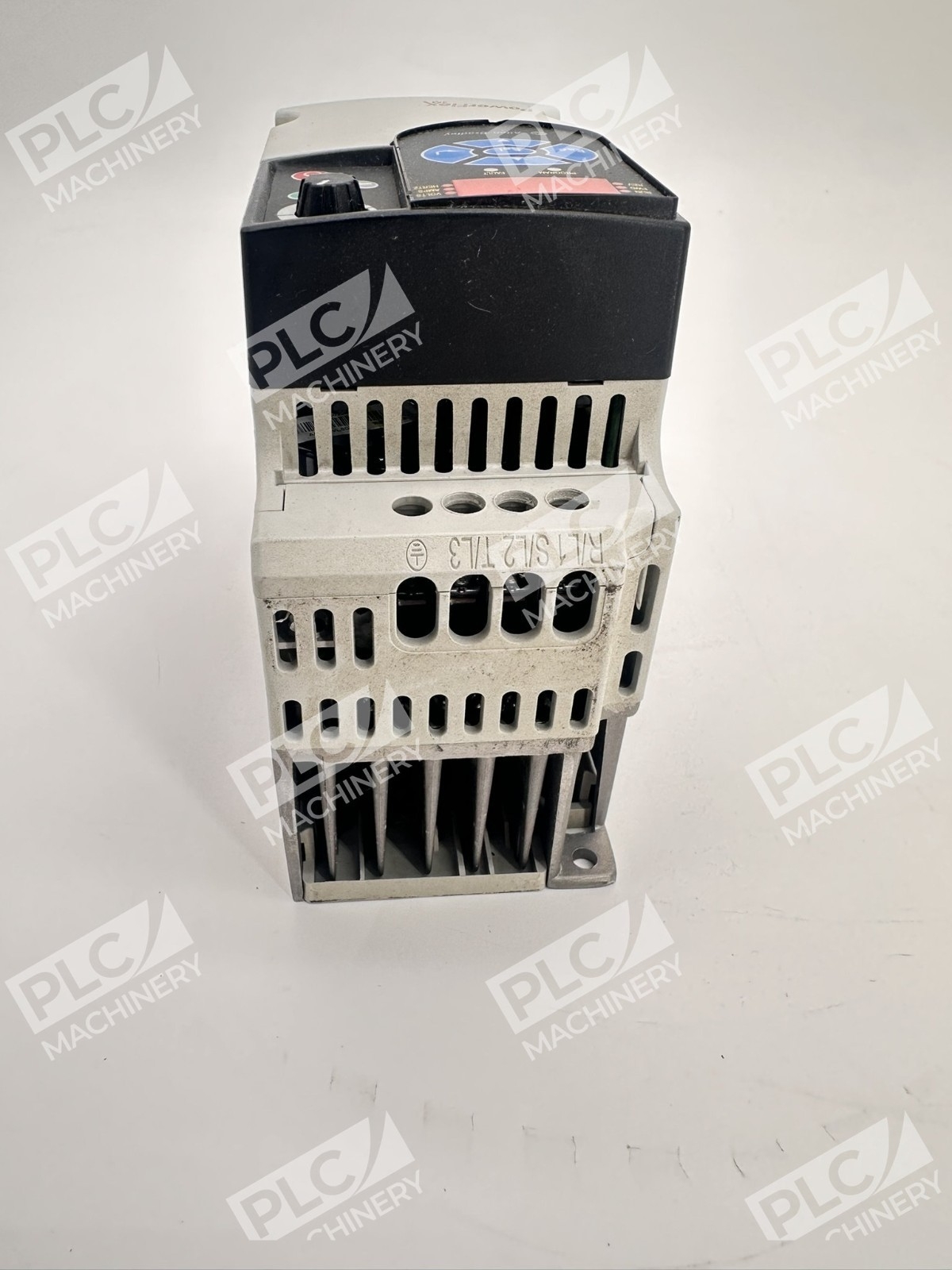

The Allen-Bradley 22F-D1P5N103 is a PowerFlex 4M series adjustable frequency AC drive designed for reliable motor speed control in compact industrial environments. This drive has input electrical ratings of 380-480 VAC, 47-63 Hz, 3-Phase and delivers an output voltage of 0-480 VAC, 3-Phase, output current of 1.5 Amperes, output power of 0.5 HP or 0.4 kW and 0-400 Hz, fully programmable with 97.5% efficiency. The 22F-D1P5N103 provides a cost-effective solution for applications requiring space-saving, easy-to-install AC drive technology with feed-through wiring design.
Key Features
- Embedded Human Interface Module (HIM) without an IGBT brake and EMC filter
- Programmable start and stop profiles such as acceleration and deceleration times, ramp-up and ramp-down parameters, and a variety of programmable stop modes such as Ramp, Coast, DC-Brake, Ramp-to-Hold and S-curve
- Provides Volts/Hertz (V/F) control for basic applications and Sensorless Vector Control for more demanding applications that require better torque regulation and precision
- IP20, NEMA UL Type Open enclosure with fixed terminal block connection
- Integral RS-485 communications for programming from a PC
- Supports zero stacking installation
Technical Specifications

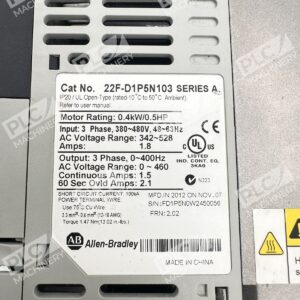

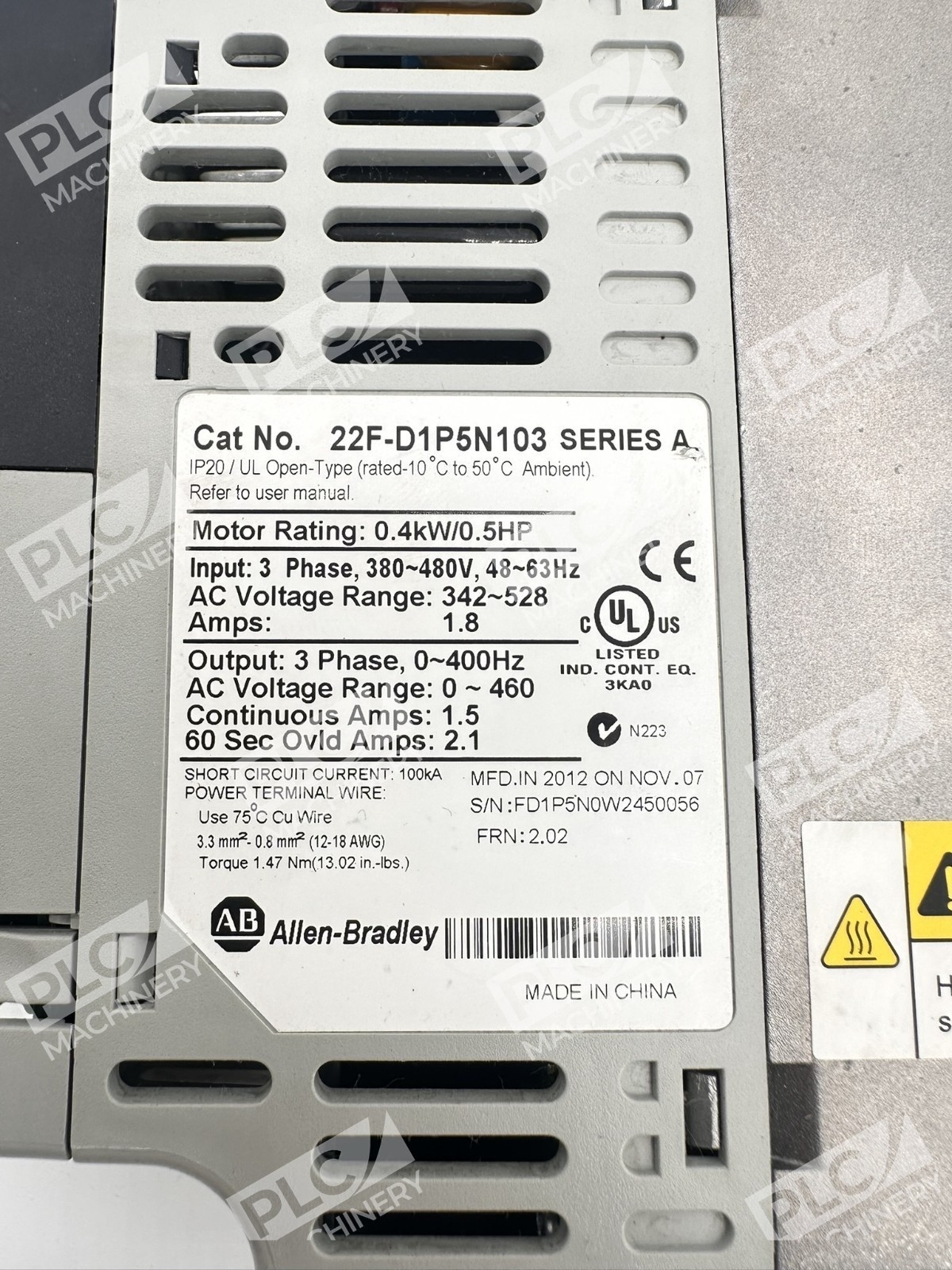

- Input Voltage: 380-480 VAC, 47-63 Hz, 3-Phase
- Output Voltage: 0-480 VAC, 3-Phase, 0-400 Hz
- Output Current: 1.5 Amperes
- Power Rating: 0.4 kW or 0.5 HP
- Efficiency: 97.5%
- Enclosure: IP20, NEMA UL Type Open

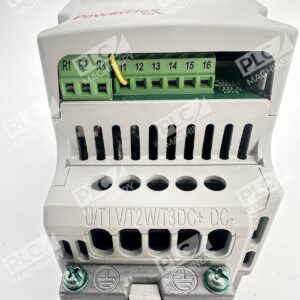

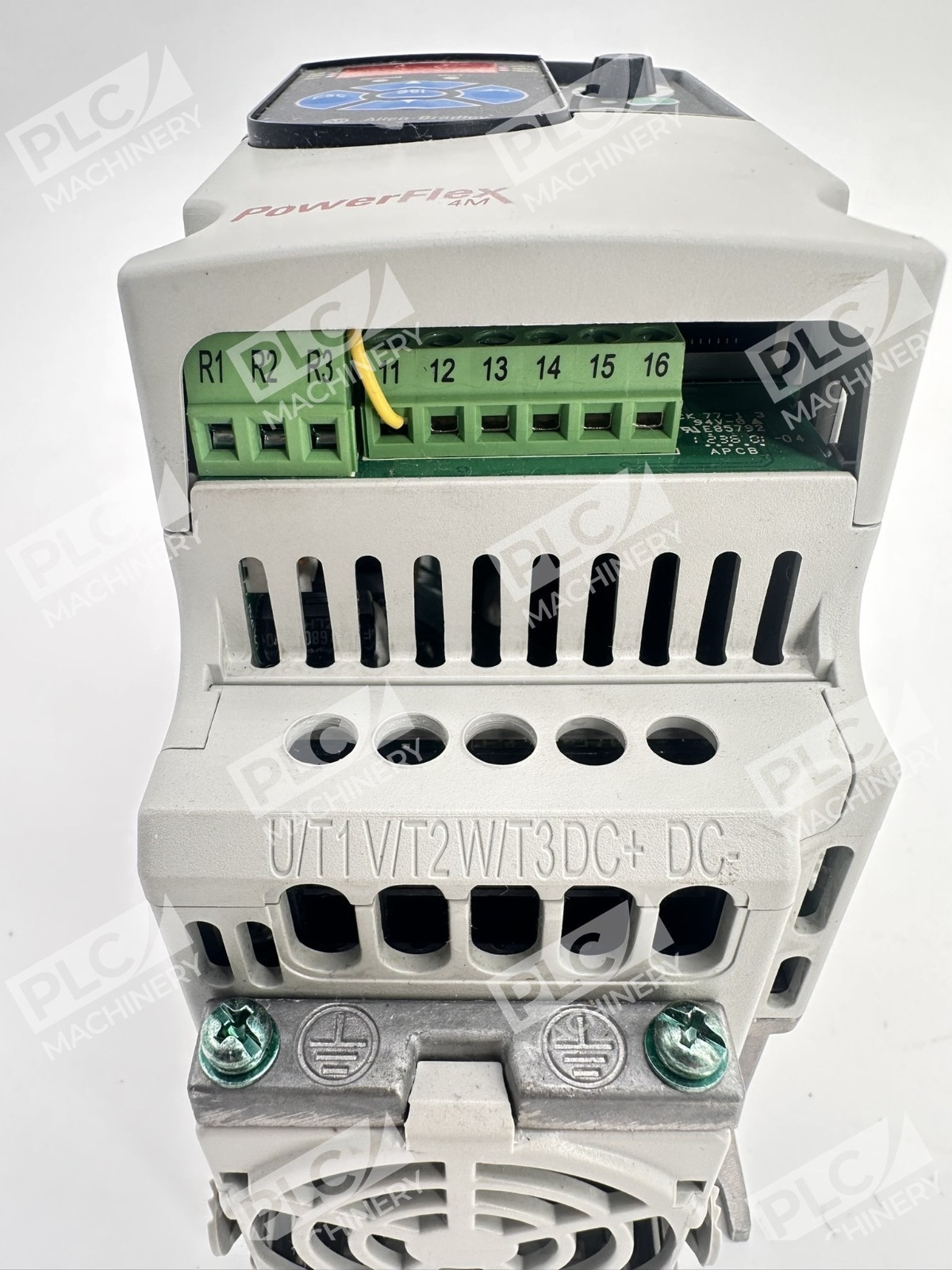

- Connection: Fixed Terminal Block
- Weight: 2.95 lbs
- Frame Size: A Frame

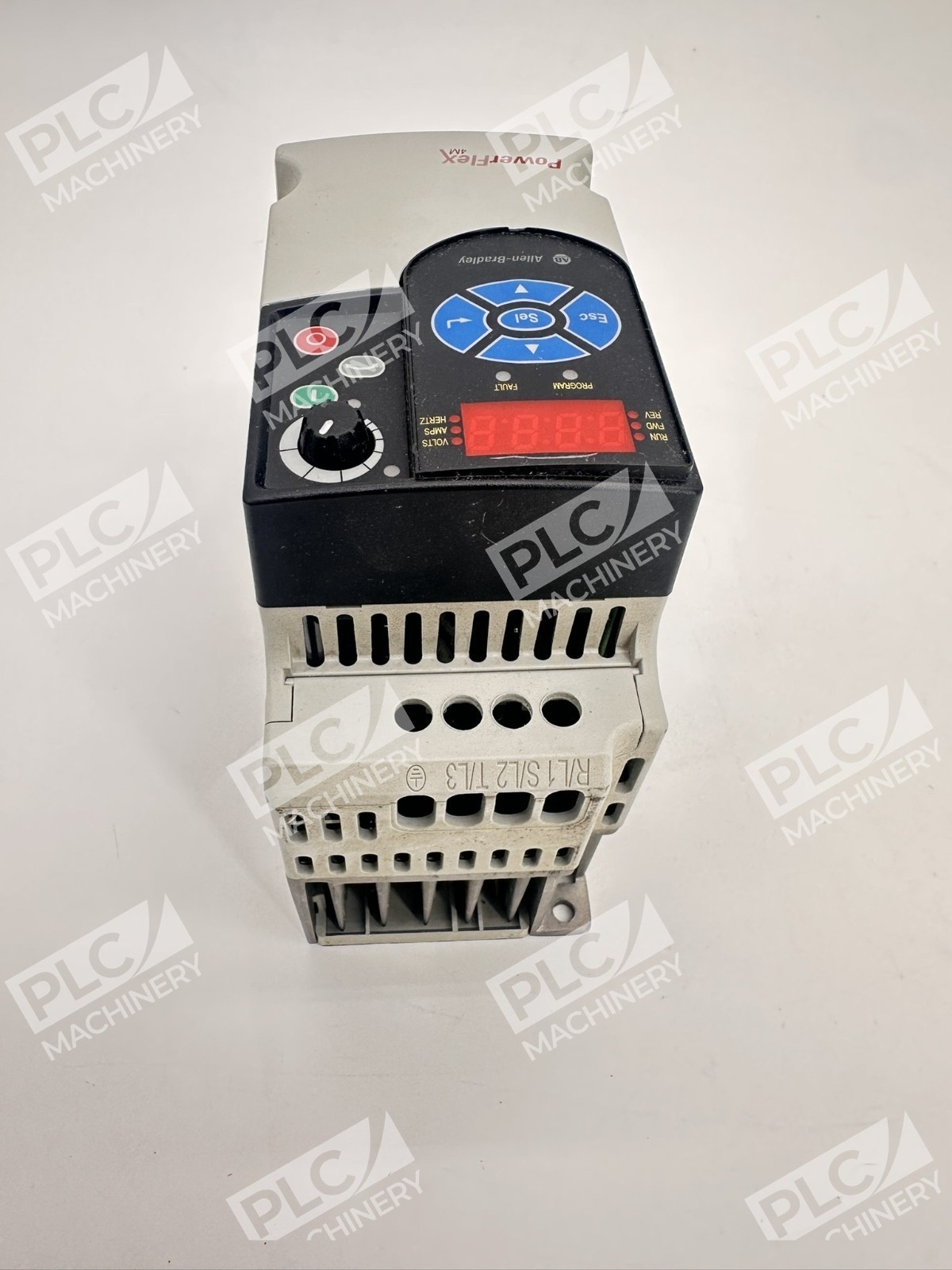

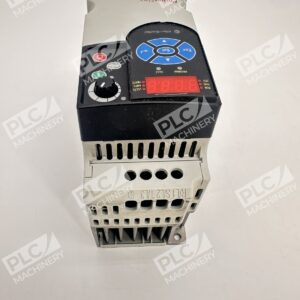

- Interface: Integral LCD keypad, remote keypad capable
Typical Applications
The drive is suitable for controlling motors in a wide range of industrial applications such as conveyors, pumps, fans, and more. The 22F-D1P5N103 is ideal for machine-level speed control, process automation, and systems requiring energy-efficient variable frequency motor control. The drive may also be used to lower energy consumption.
Compatibility & Replacements
Compatible With
- DeviceNet, EtherNet/IP, MODBUS, PROFIBUS communication protocols
- SLC™ 500 and ControlLogix® controllers
- Integral RS-485 for multi-drop network configuration
- Panel mount installation with DIN rail capability (Frame A)
Replaces / Drop-In Replacement For
The 22F-D1P5N103 comes with an integrated keypad however, it is not provided with an integrated EMC filter and dynamic braking resistor compared to the 22F-D1P5N114 which is a more complete drive with the same output and input parameters as to the 22F-D1P5N103. Verify compatibility with your system integrator before ordering for specific replacement applications.
Works With
- DriveTools and DriveExecutive software for configuration and programming
- EtherNet/IP, PROFIBUS, MODBUS protocols
- Allen-Bradley Logix control platforms (SLC 500, ControlLogix)
- Third-party RTU Master scanners for MODBUS communication
