Overview

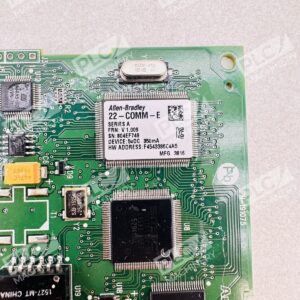

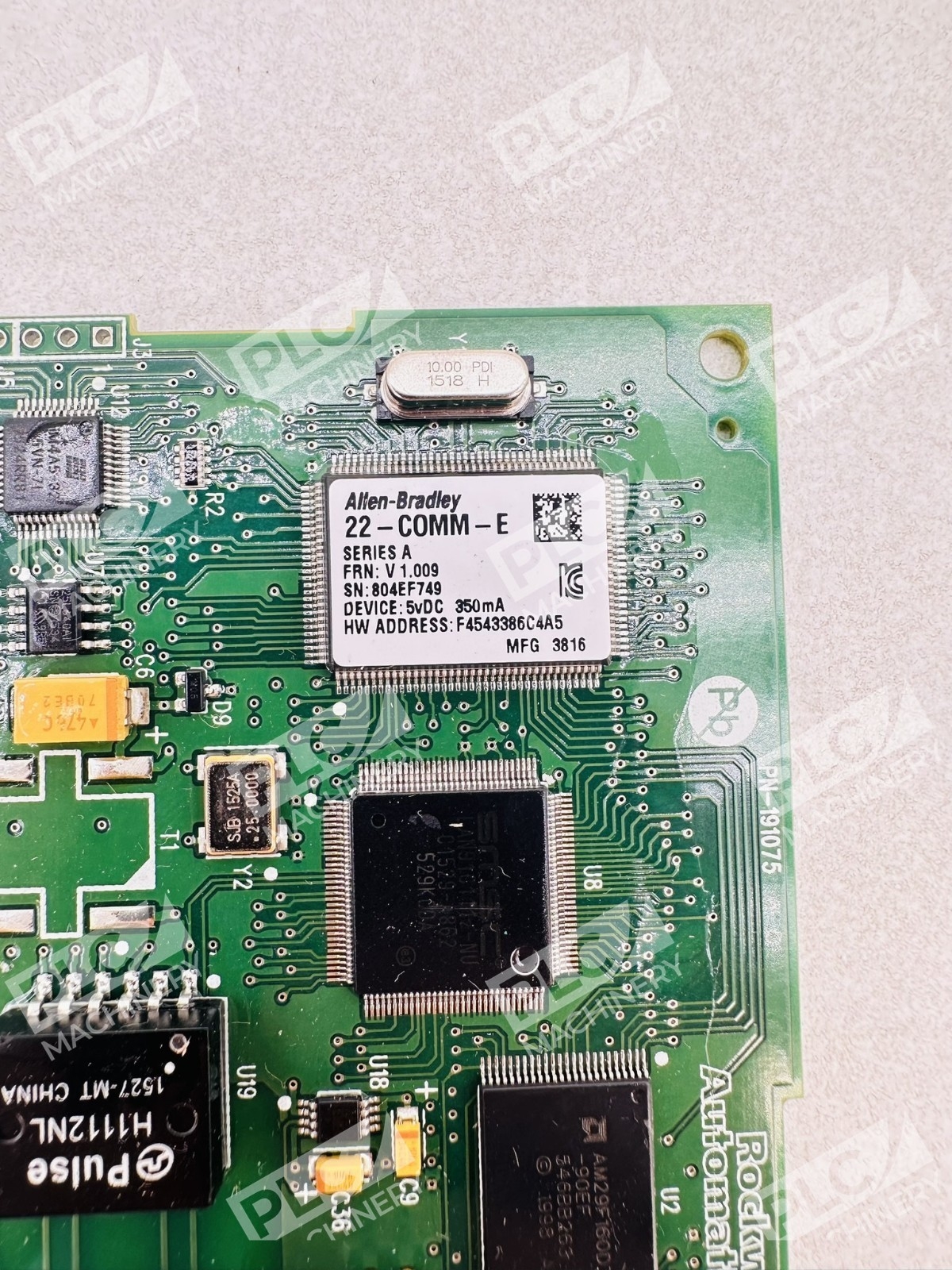

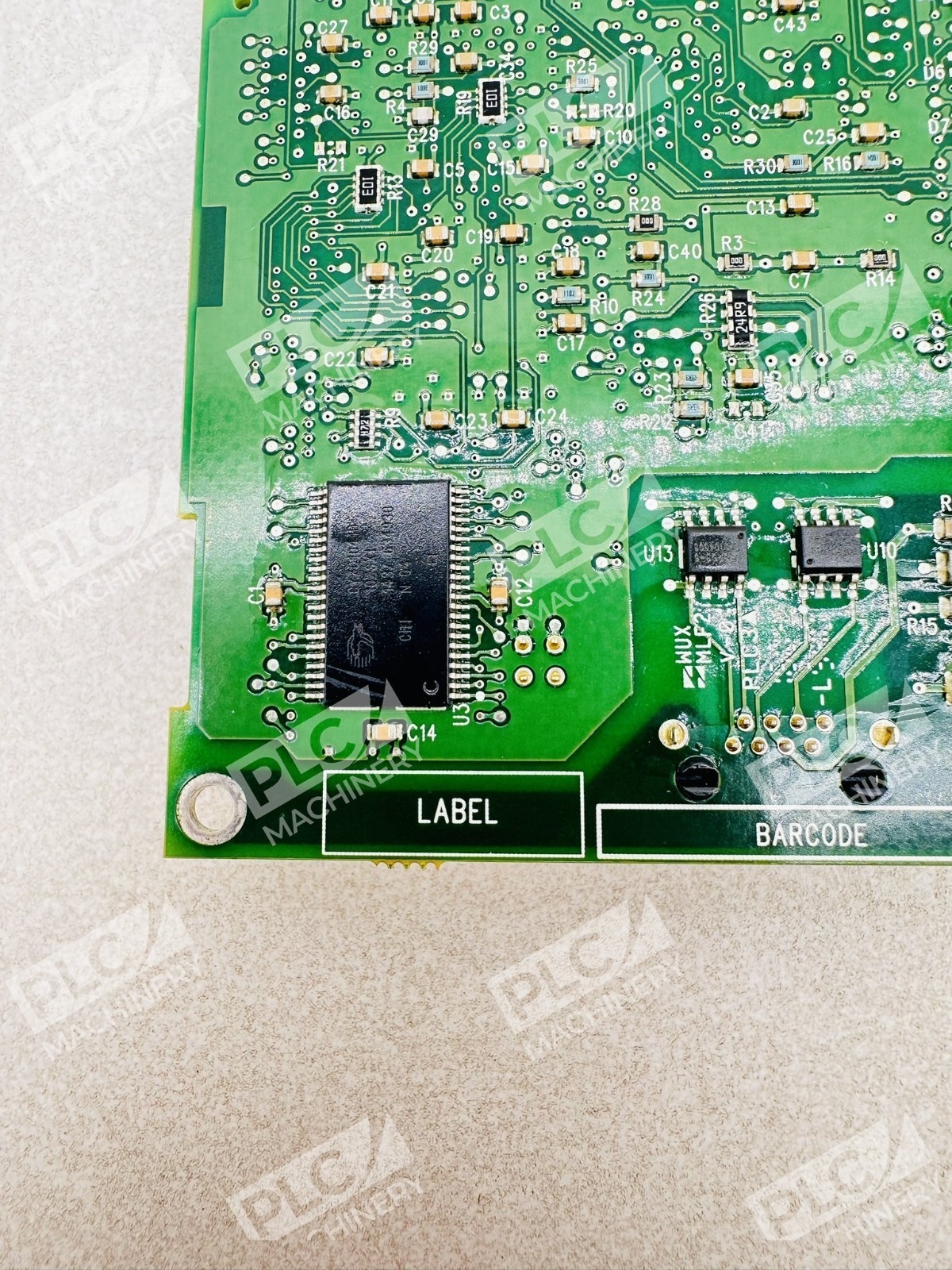

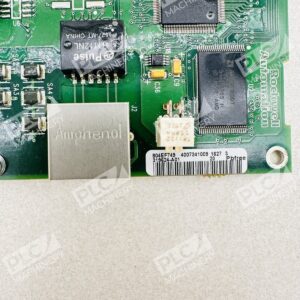

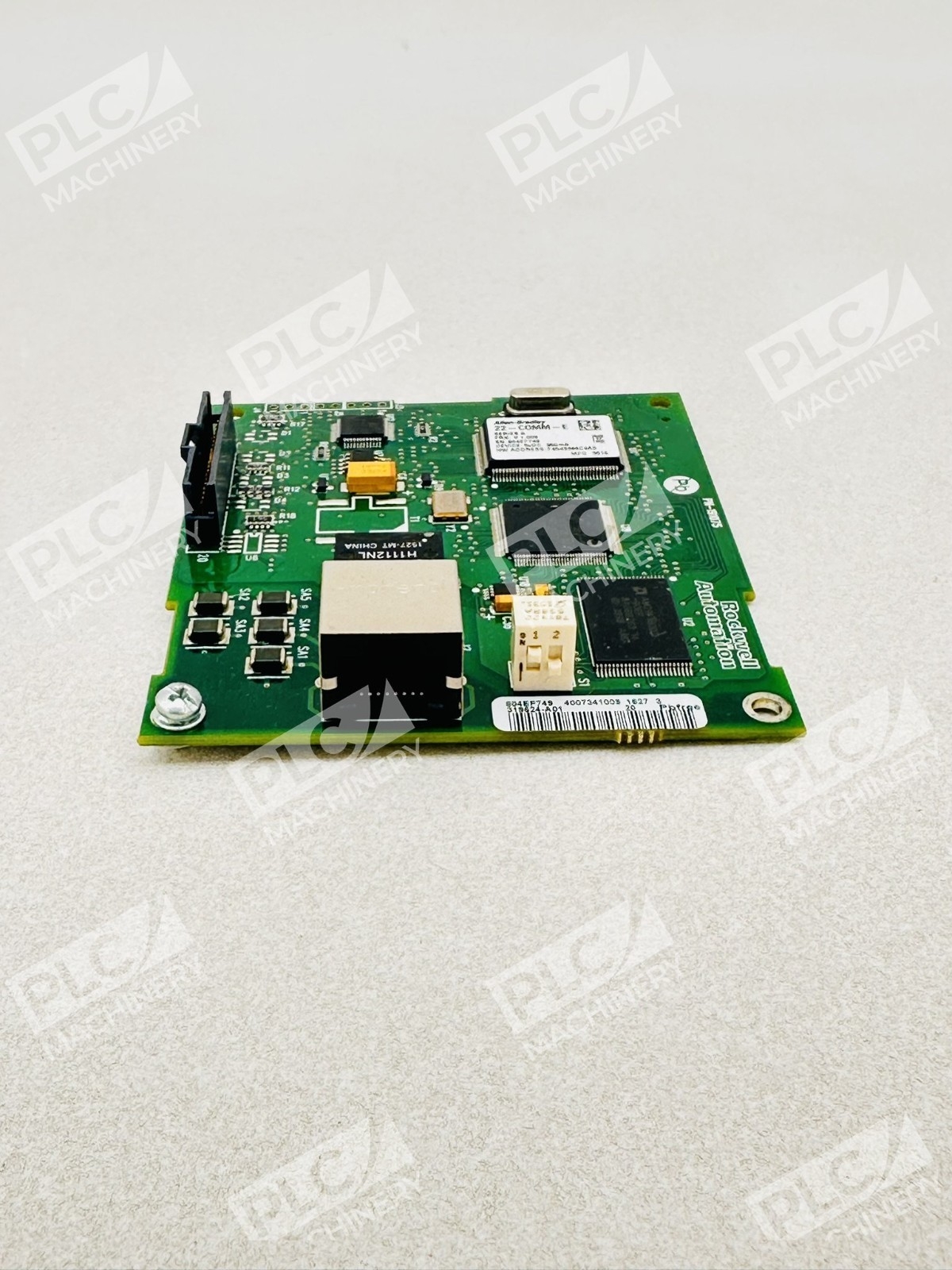

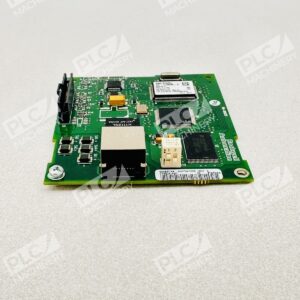

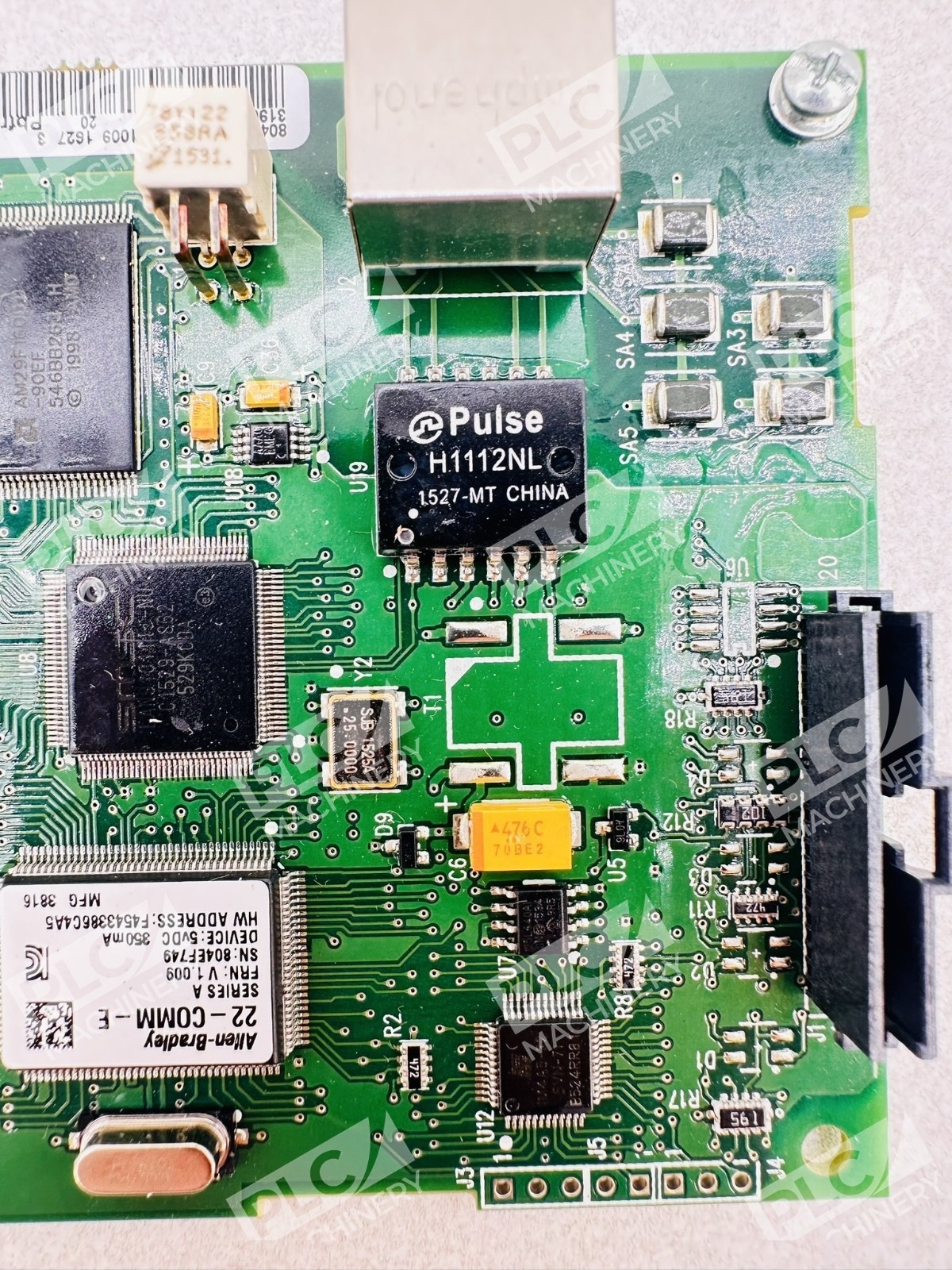

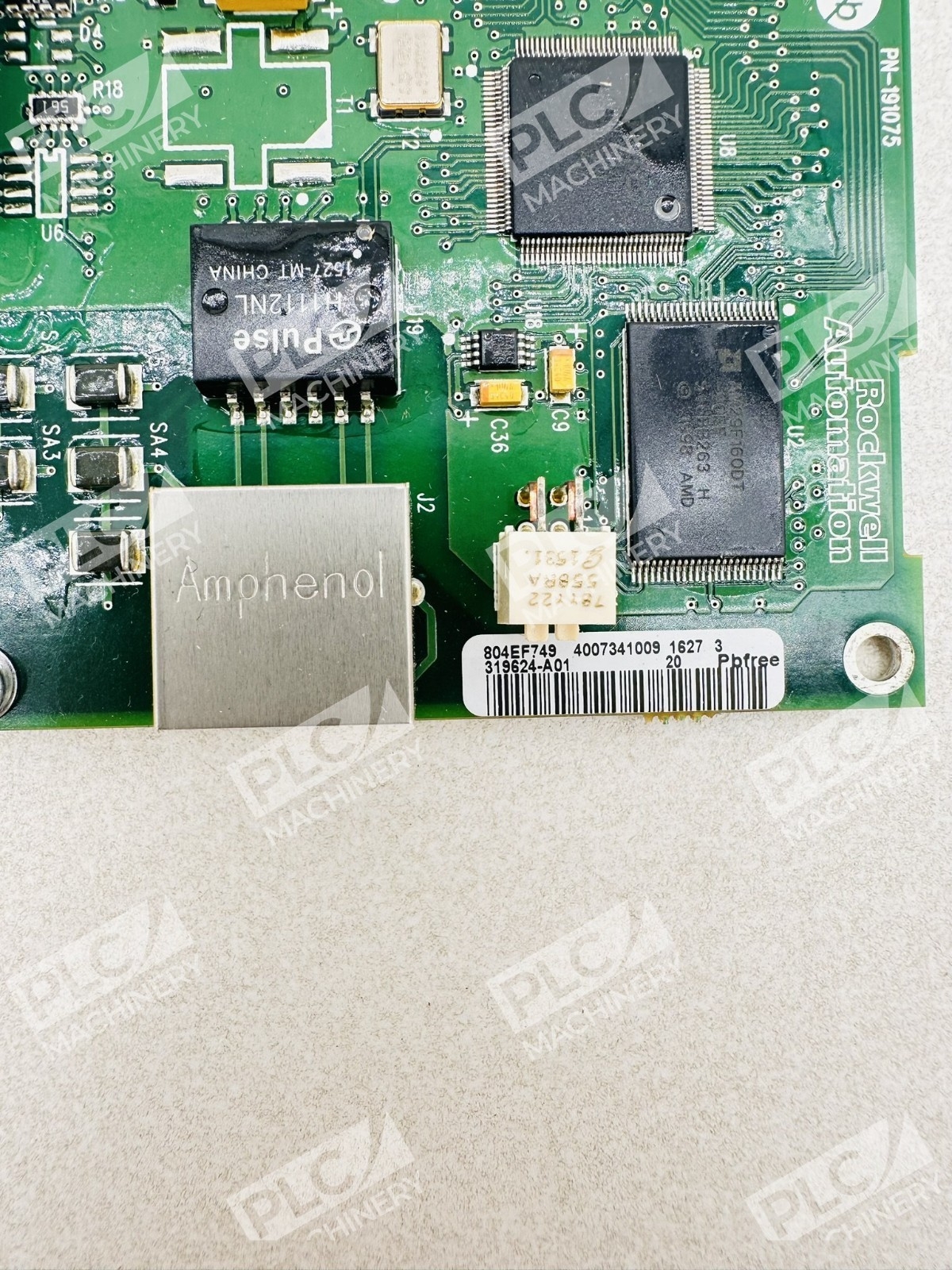

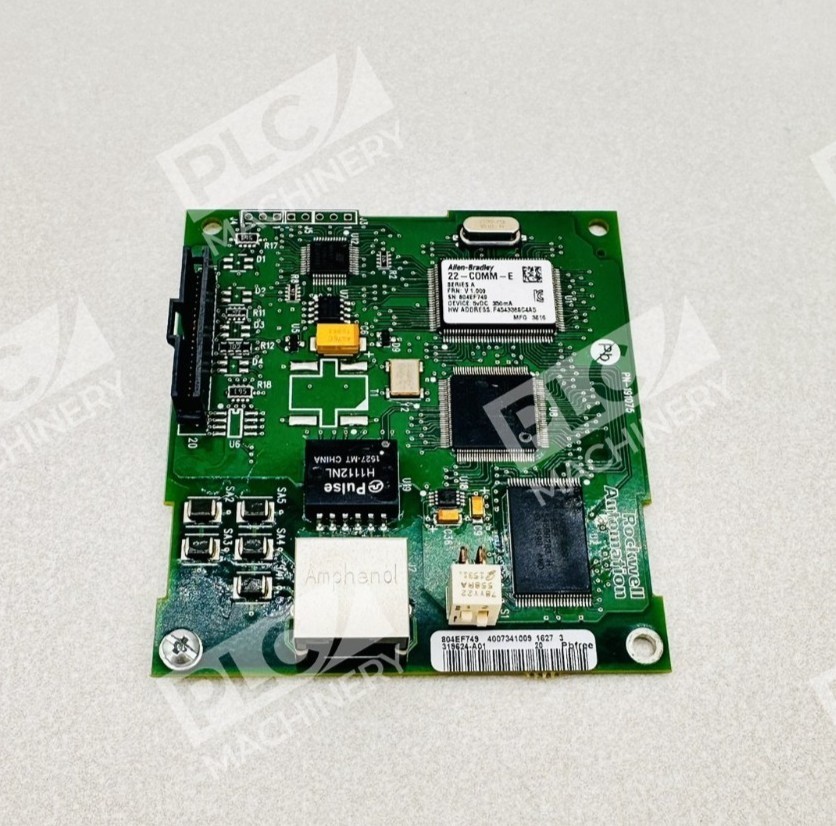

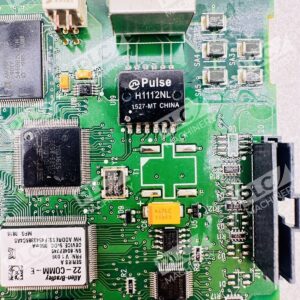

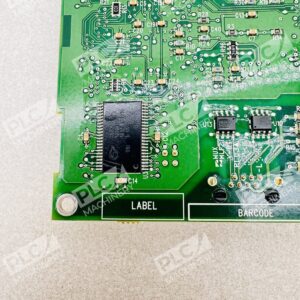

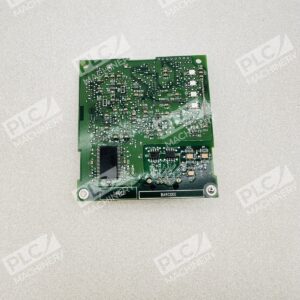

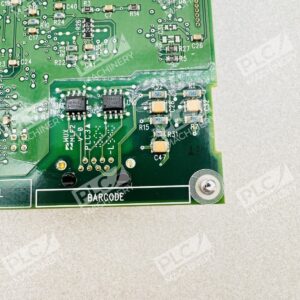

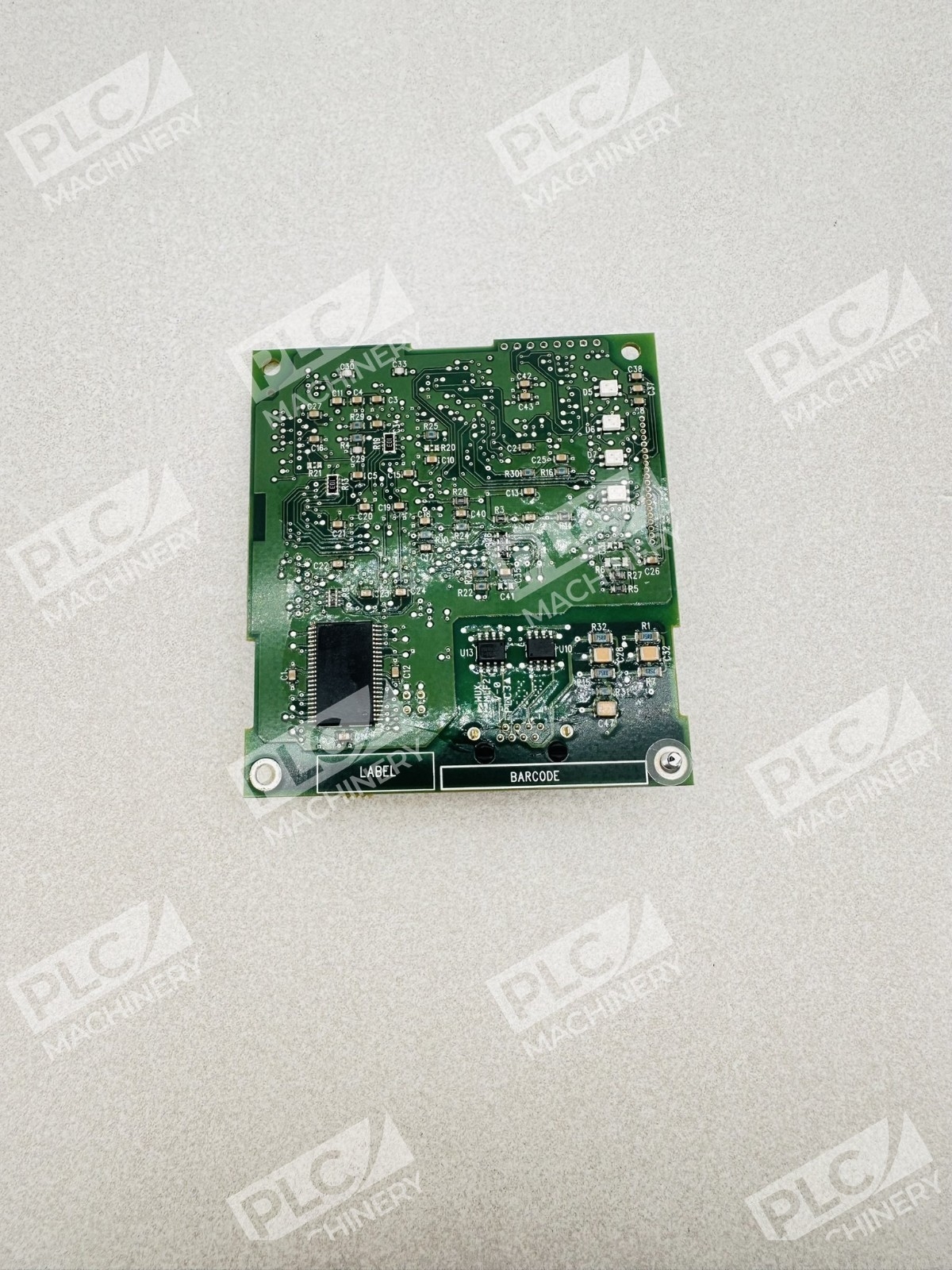

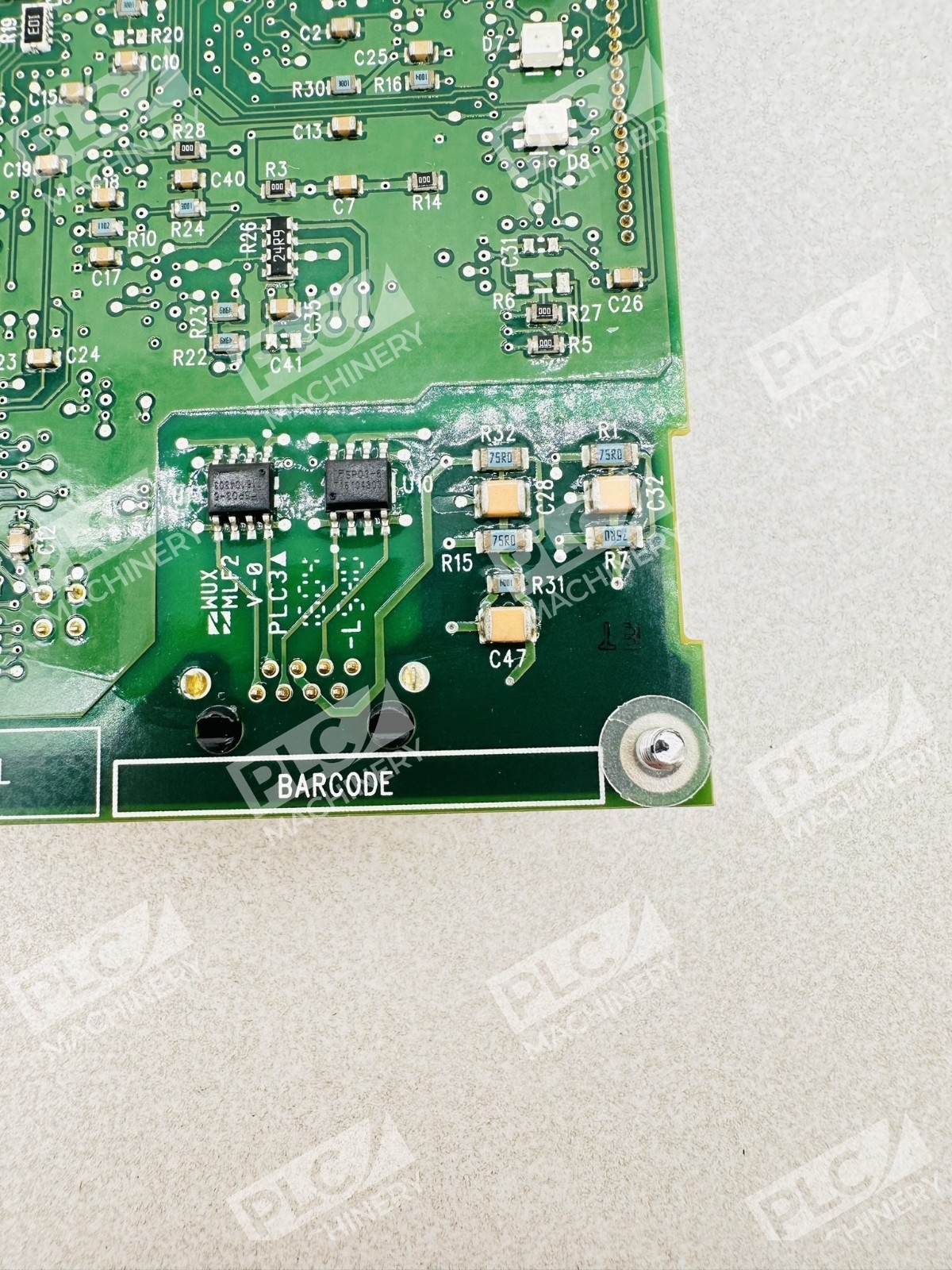

The Allen-Bradley 22-COMM-E is a compact EtherNet/IP communication adapter designed to integrate PowerFlex 4, 40, and 400 AC drives into EtherNet/IP networks. This adapter mounts internally into the drive’s communication slot, providing direct high-speed Ethernet connectivity to PLC controllers, HMIs, and other industrial devices on your network.
Key Features
- Supports 10 or 100 Mbps communication with full and half-duplex operation
- Internal mounting design for compact integration into PowerFlex drives
- Up to 30 simultaneous TCP connections for distributed control applications
- Handles up to 400 total I/O packets per second with minimum 5 ms RPI support
- Built-in web interface for diagnostics, configuration, and real-time status monitoring
- Email notification capability for drive faults and communication events
- Four onboard status LEDs for quick network, module, and DSI health verification
- DIP switch configuration for IP address settings (DHCP or static) and network speed
Technical Specifications
- Communication Protocol: EtherNet/IP
- Data Rate: 10 or 100 Mbps
- Duplex Modes: Full and half-duplex
- Power Supply: 5 VDC (internal from drive)
- Current Draw: 350 mA
- Operating Temperature: −10 to +50°C
- Storage Temperature: −40 to +85°C
- Mounting: Internal mount into PowerFlex communication slot
- Connector: 20-pin single-row DSI (Drive Serial Interface)
- Network Connector: RJ45 (with optional AK-U0-RJ45-TB2P terminal block for daisy-chaining)
- Dimensions: 10.2 cm × 10.2 cm × 5.1 cm
- Weight: 2.3 kg (with mounting hardware)
- Certifications: CE, UL, CUL, C-TICK, CCC, GOST, KC
Typical Applications
The 22-COMM-E is ideal for applications requiring real-time coordination across multiple drives on a single EtherNet/IP network:
- Coordinated multi-drive conveyor and packaging systems
- Manufacturing lines requiring synchronized motor control
- Distributed drive networks in automotive and food processing
- Integration of legacy PowerFlex drives into modern Ethernet-based control architectures
- Remote monitoring and diagnostics of drive performance over standard industrial networks
- Systems where daisy-chaining of up to 5 drives per adapter reduces network infrastructure costs
Compatibility & Replacements
Compatible With
- PowerFlex 4 component-class AC drives
- PowerFlex 40 component-class AC drives
- PowerFlex 40P component-class AC drives
- PowerFlex 400 component-class AC drives
- EtherNet/IP-enabled Allen-Bradley PLCs (CompactLogix, ControlLogix, GuardLogix)
- Standard EtherNet/IP networks and SCADA systems
- BOOTP/DHCP utilities for automated IP assignment
Replaces / Drop-In Replacement For
Verify current availability of replacement part numbers with your distributor or Rockwell Automation representative, as legacy product availability may vary.
Works With
- Studio 5000 (for PLC program configuration and drive control)
- DriveExplorer software (for firmware updates and diagnostics)
- EtherNet/IP protocol stack on all major industrial PLCs
- Standard web browsers (for built-in diagnostic web pages)
- HyperTerminal and ControlFLASH utilities (for firmware management)
- Standard Ethernet tools and network infrastructure (switches, gateways, industrial routers)
