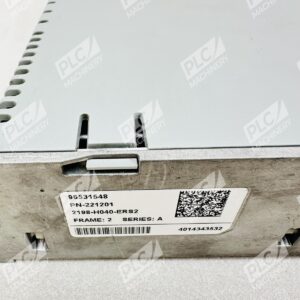

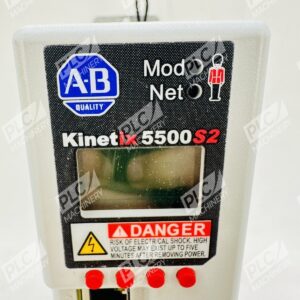

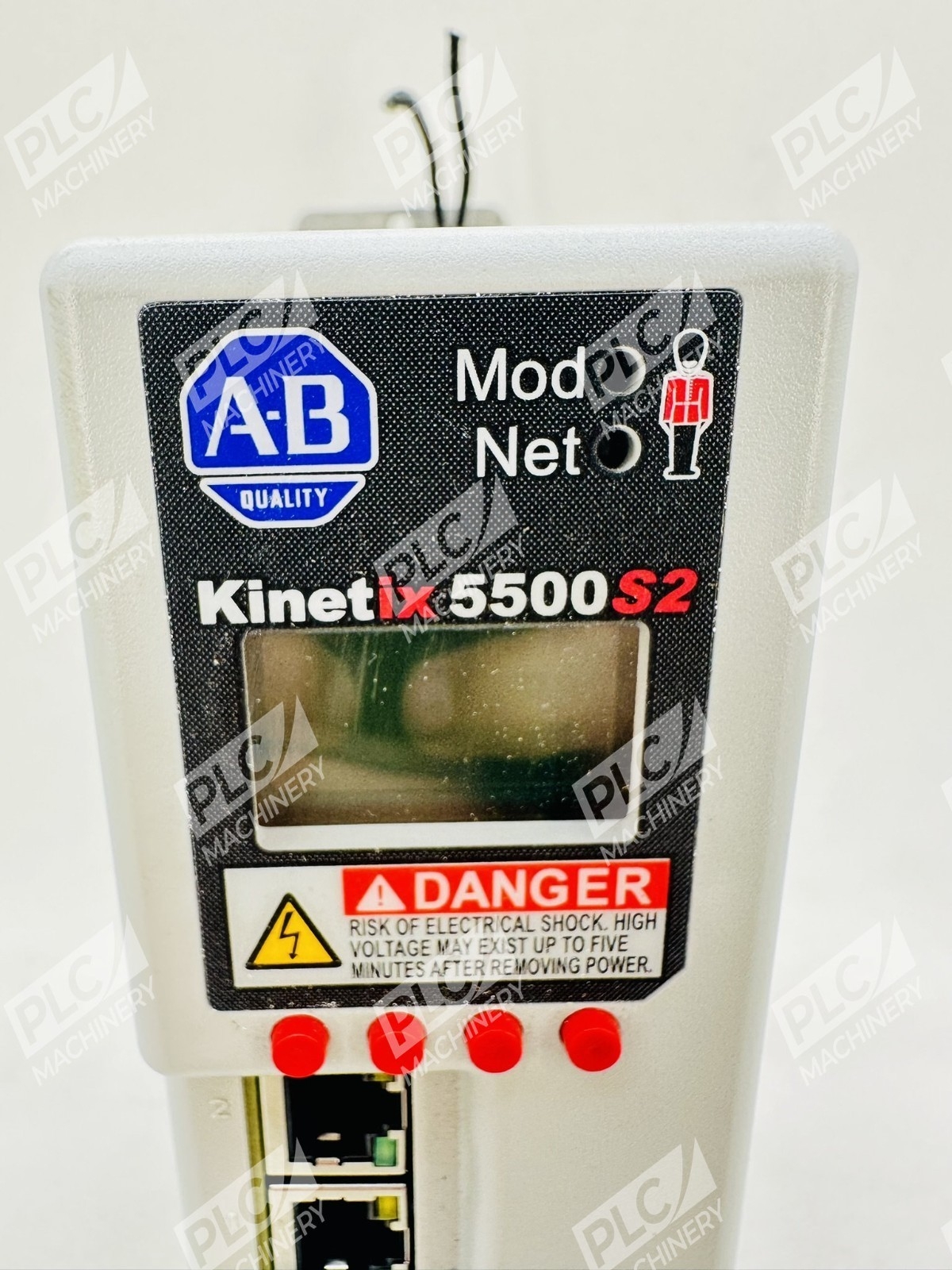

Overview

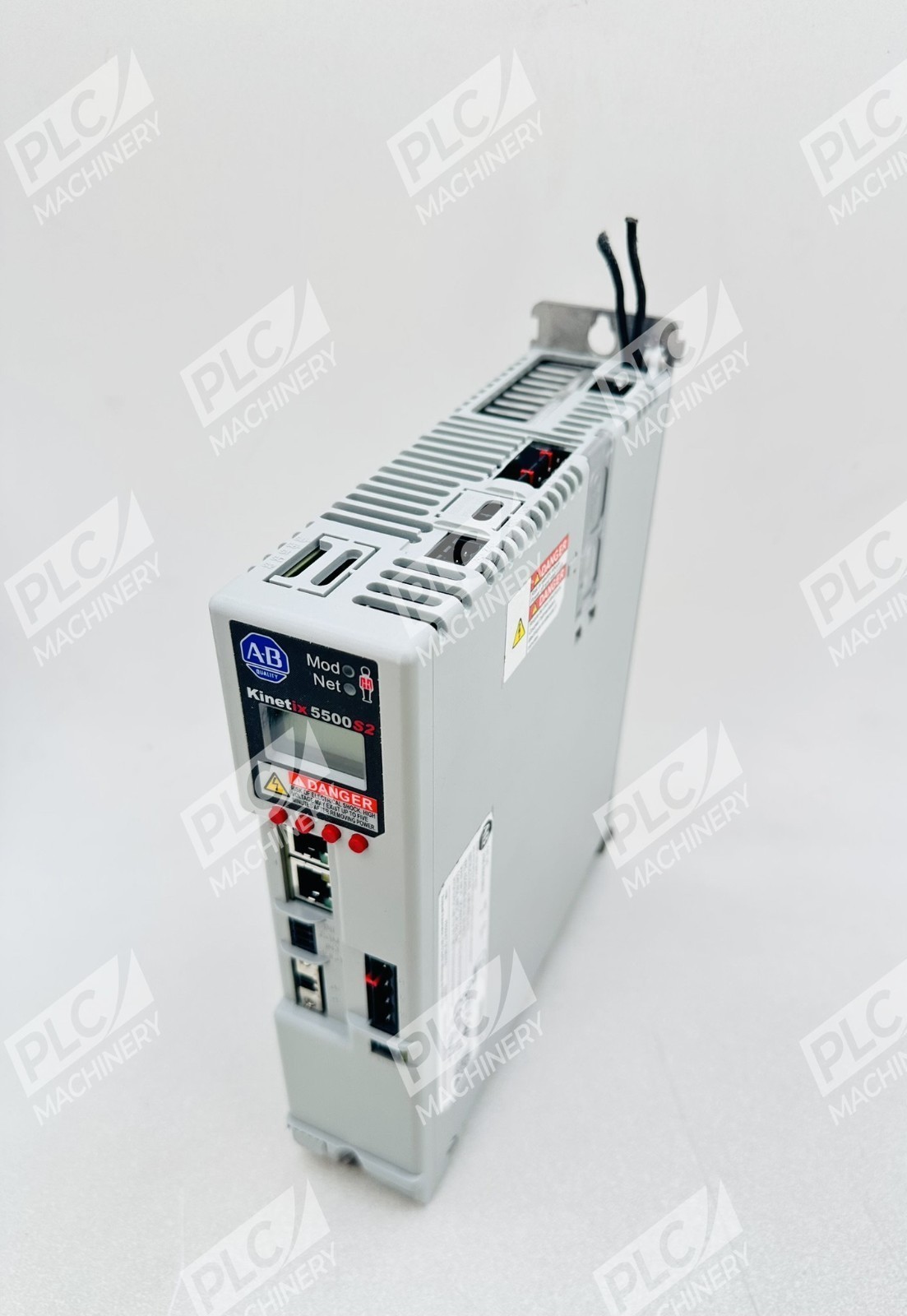

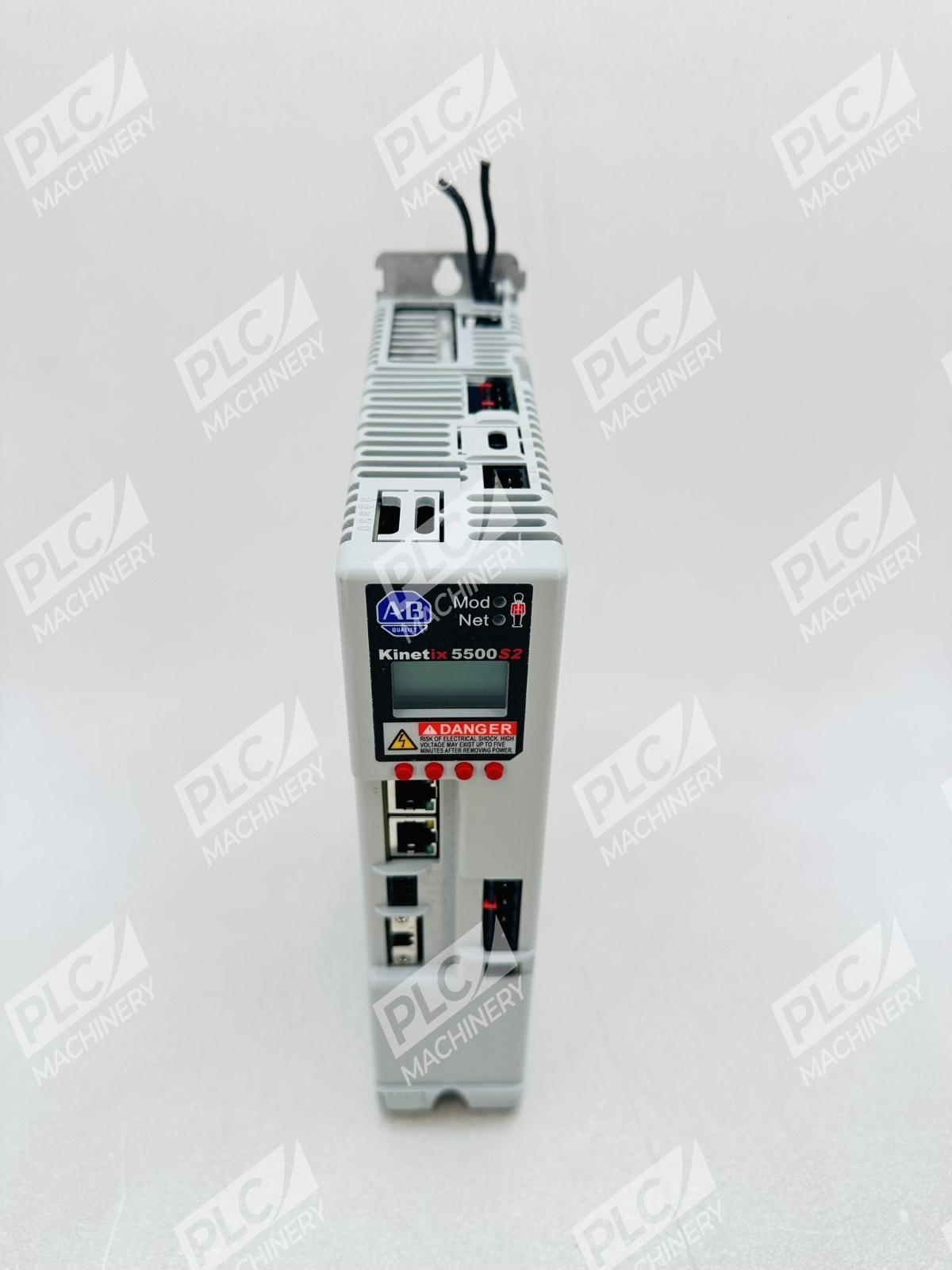

The Allen-Bradley 2198-H040-ERS2 is a compact, high-performance Kinetix 5500 servo drive engineered for integrated motion control on EtherNet/IP networks. This Frame Size 2 drive combines precision torque, velocity, and position control with hardwired Safe Torque Off (STO) safety functionality, making it ideal for demanding industrial automation applications where reliability and performance matter.
Key Features
- Integrated Safety Over EtherNet/IP: Hardwired Safe Torque Off connections provide flexible relay-based or network-based safety architecture
- Single-Cable Motor Technology: Hiperface DSL support reduces wiring complexity and cable tray space by combining power and feedback in one connector

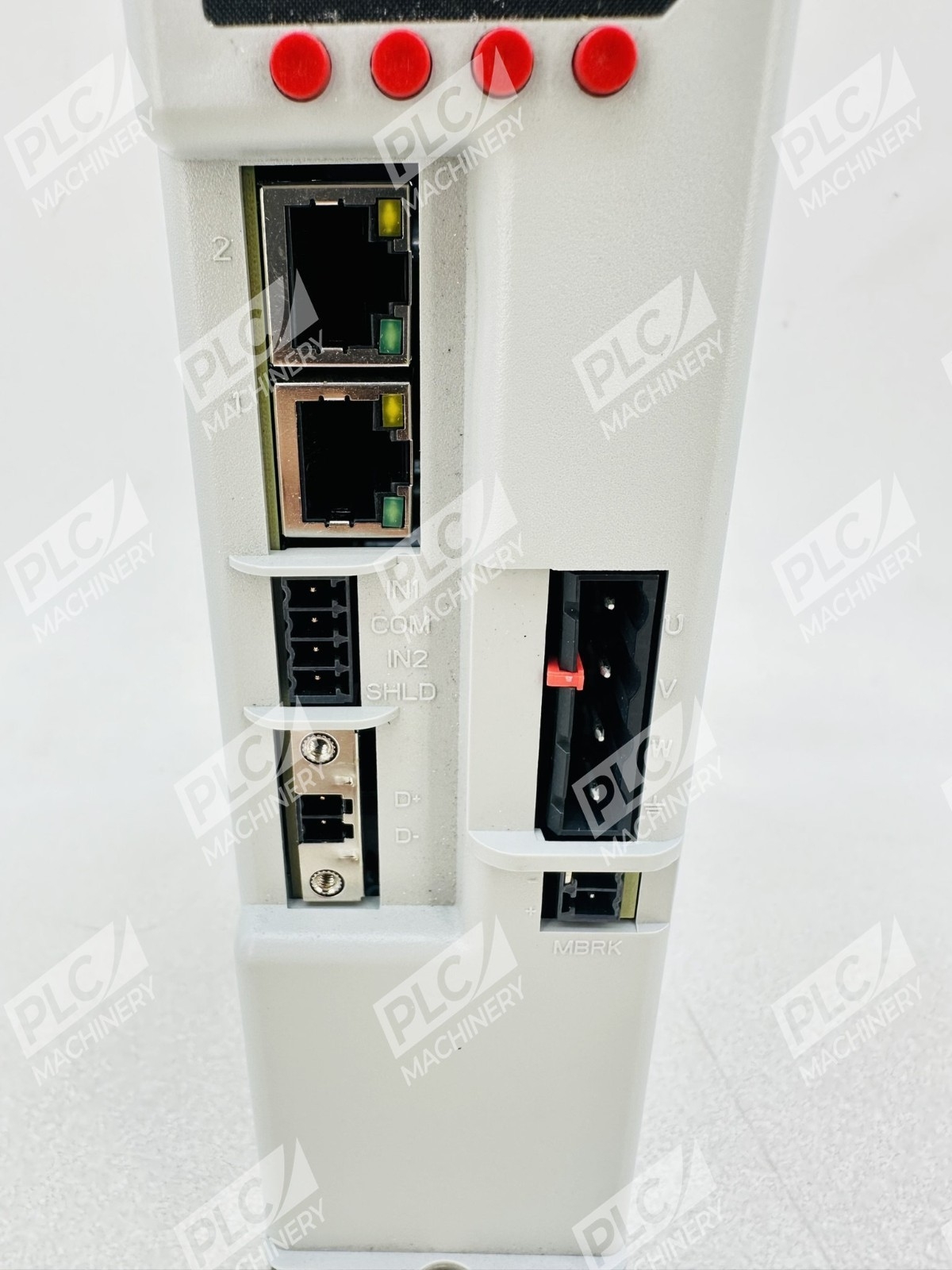

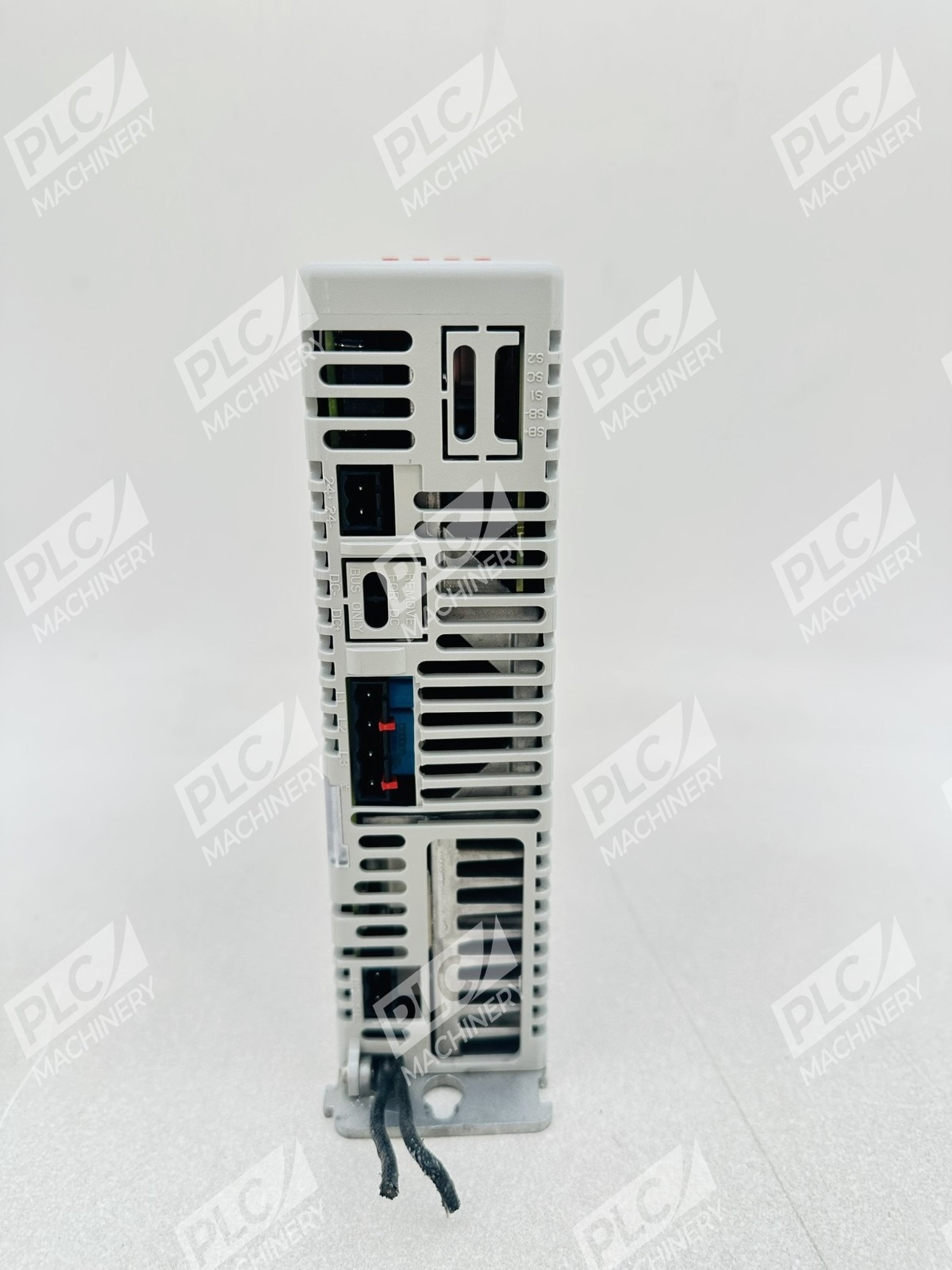

- Dual EtherNet/IP Ports: Integrated switch supports Linear, Star, and Device Level Ring (DLR) topologies for network resiliency
- Wide Input Voltage Range: 190–528V AC 3-phase operation provides flexibility across different industrial power infrastructures

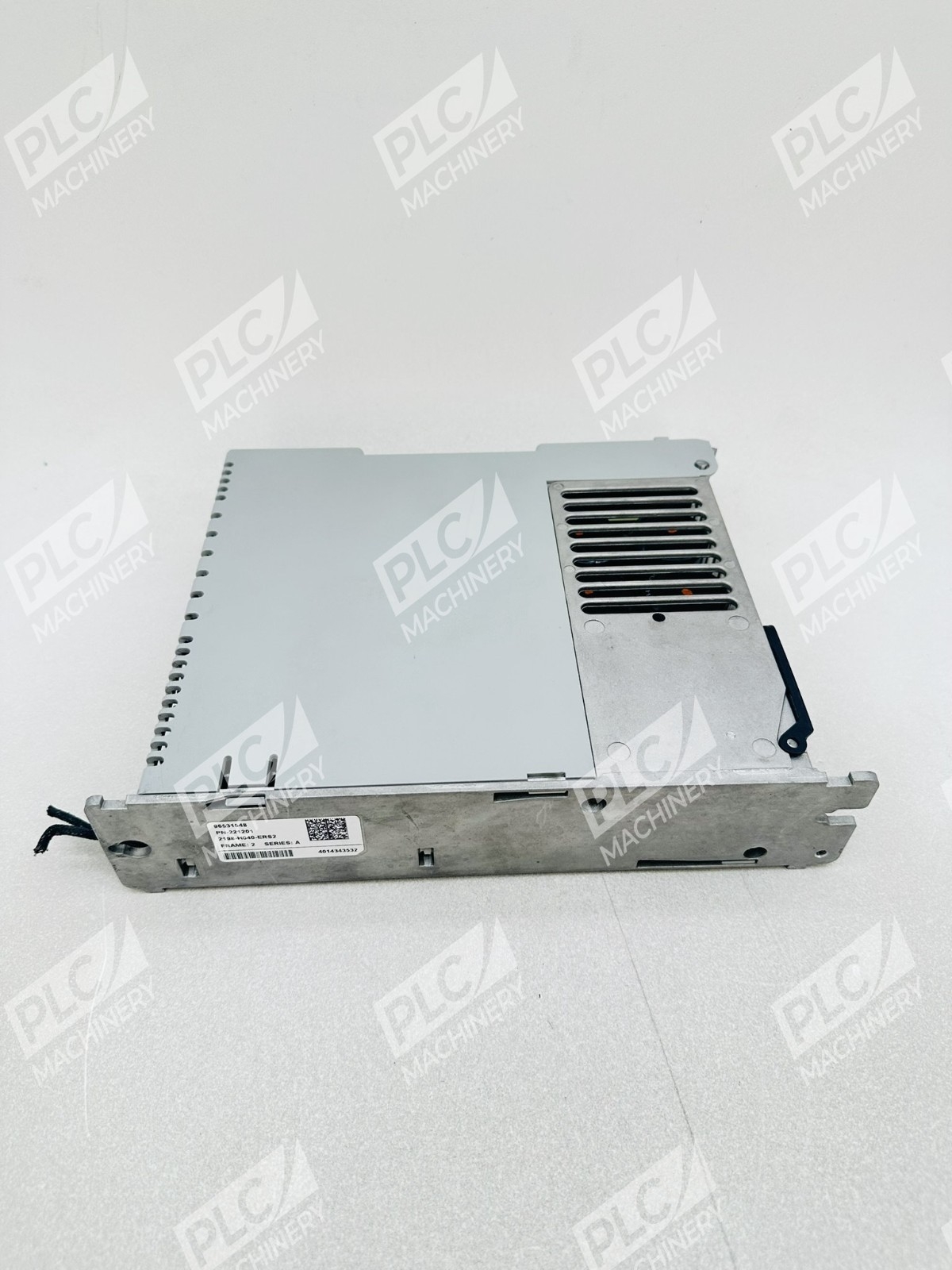

- Compact Footprint: Frame Size 2 design minimizes panel space while delivering high dynamic performance
- Studio 5000 Integration: Native compatibility with CompactLogix controllers and Rockwell integrated motion programming
Technical Specifications

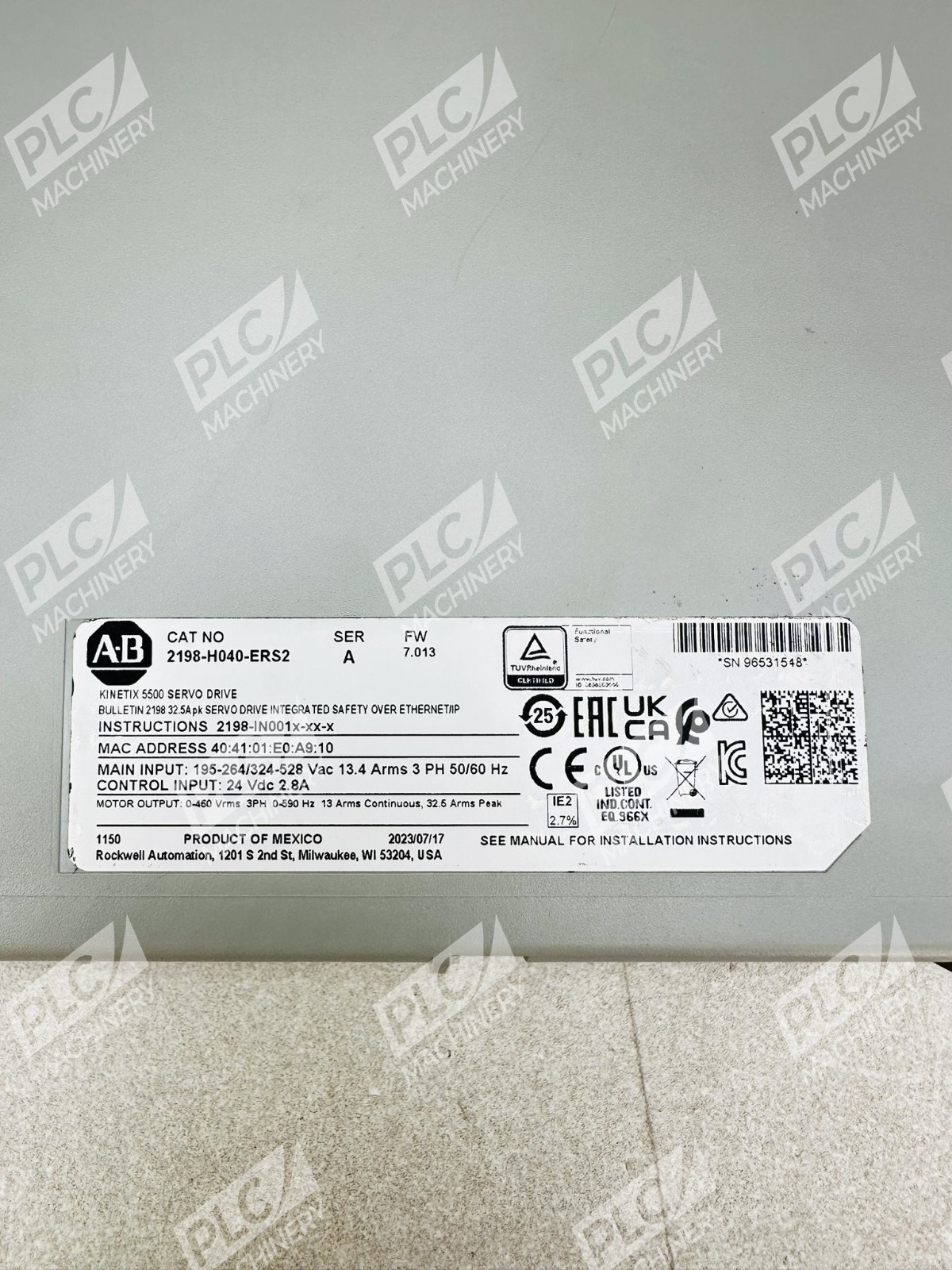

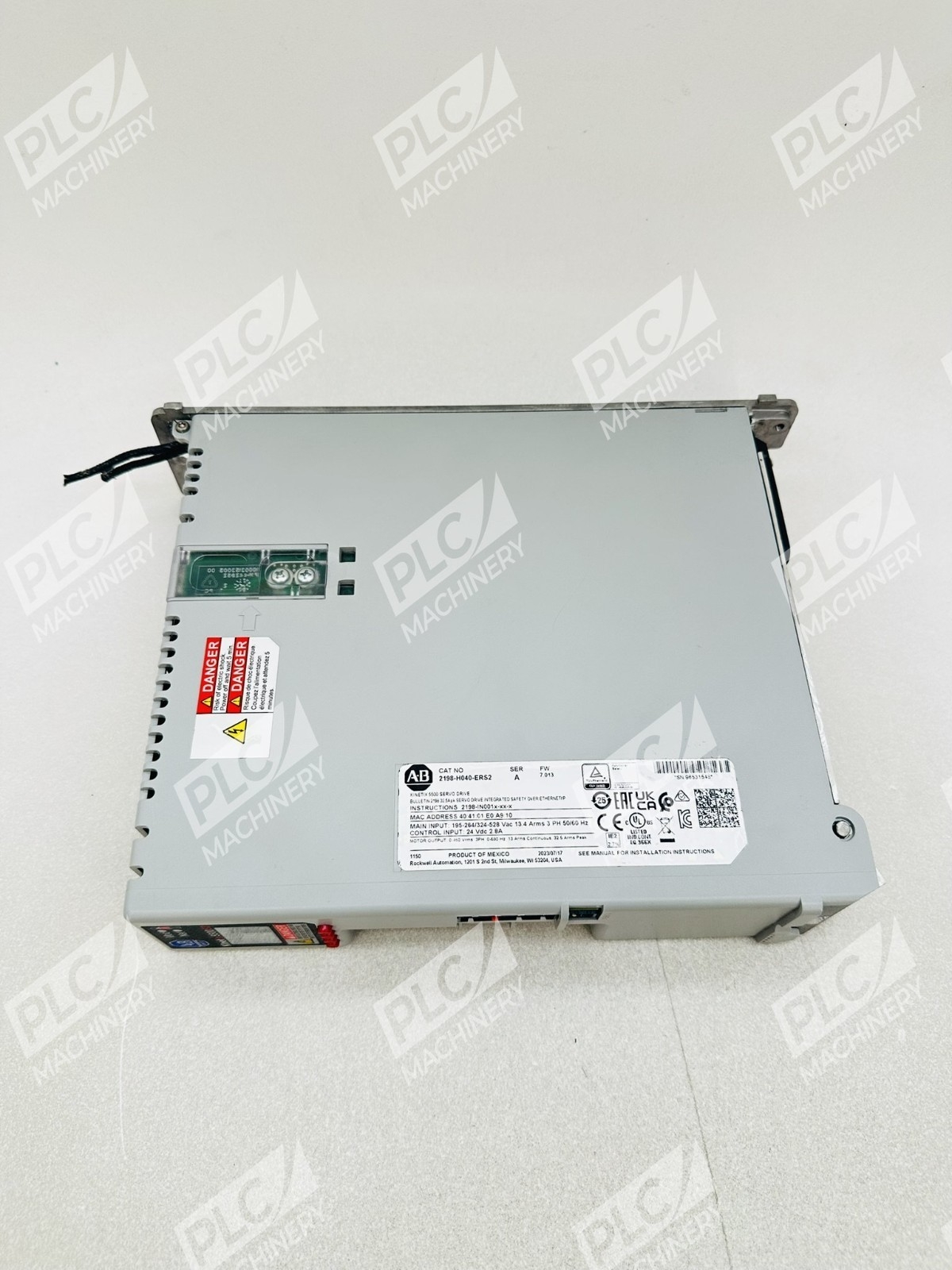

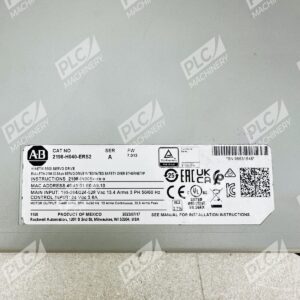

- Input Voltage: 195–528 VAC, 3-phase
- Input Current: 13.4 A (Main AC), 40.2 A (Peak AC)
- Output Current (Continuous): 18.4 A (rms)
- Output Current (Peak): 32.5 A (0-peak)
- Power Rating: 4.0 kW @ 195–264V; 8.3 kW @ 324–528V
- Frequency: 47–63 Hz
- Control Input: 24 VDC auxiliary power for control logic
- Communication Protocol: EtherNet/IP with integrated safety

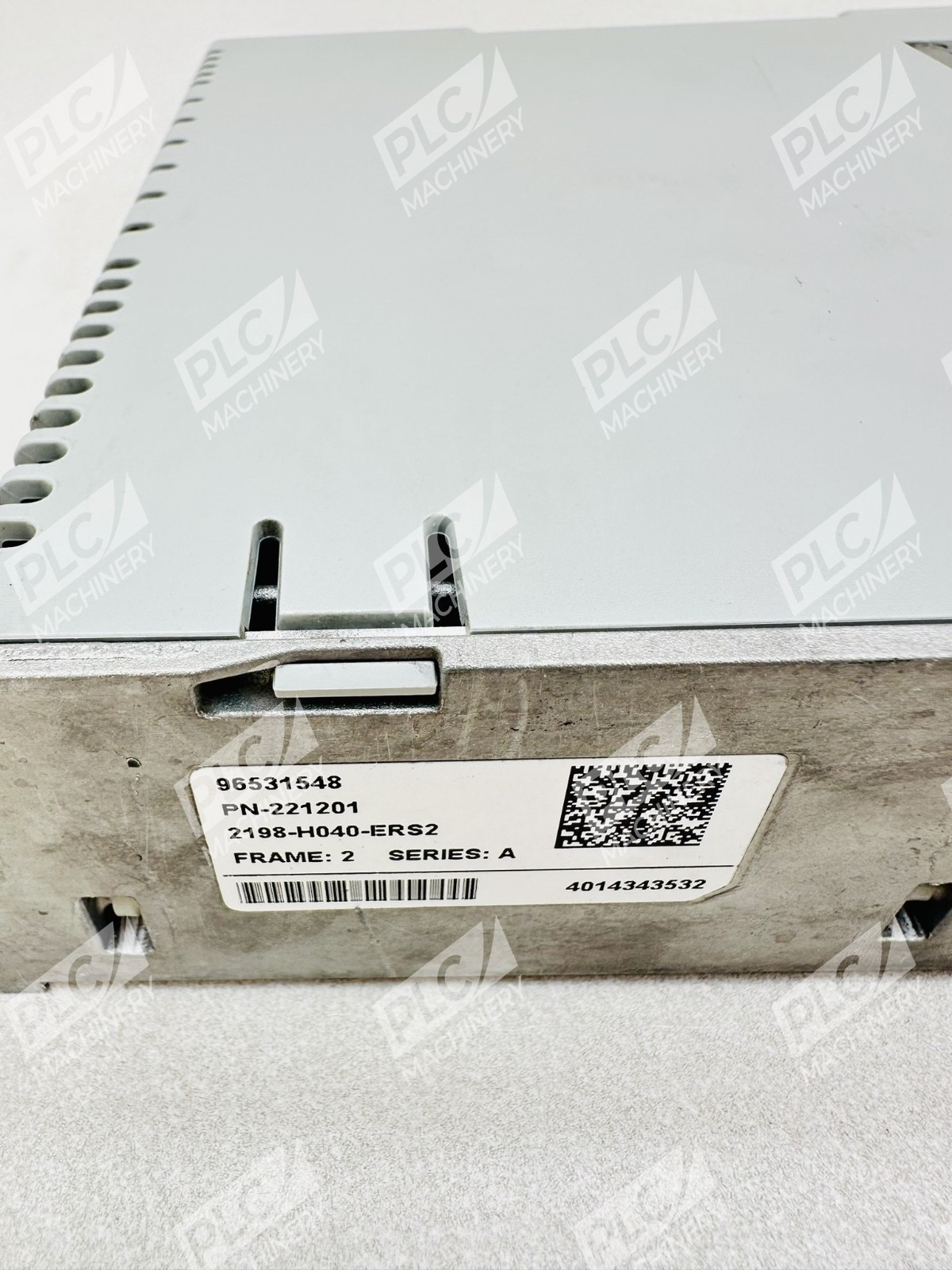

- Frame Size: 2
- Weight: 5.0 lbs (2.3 kg)
- Operating Temperature: 0–50°C
- Storage Temperature: −40–70°C

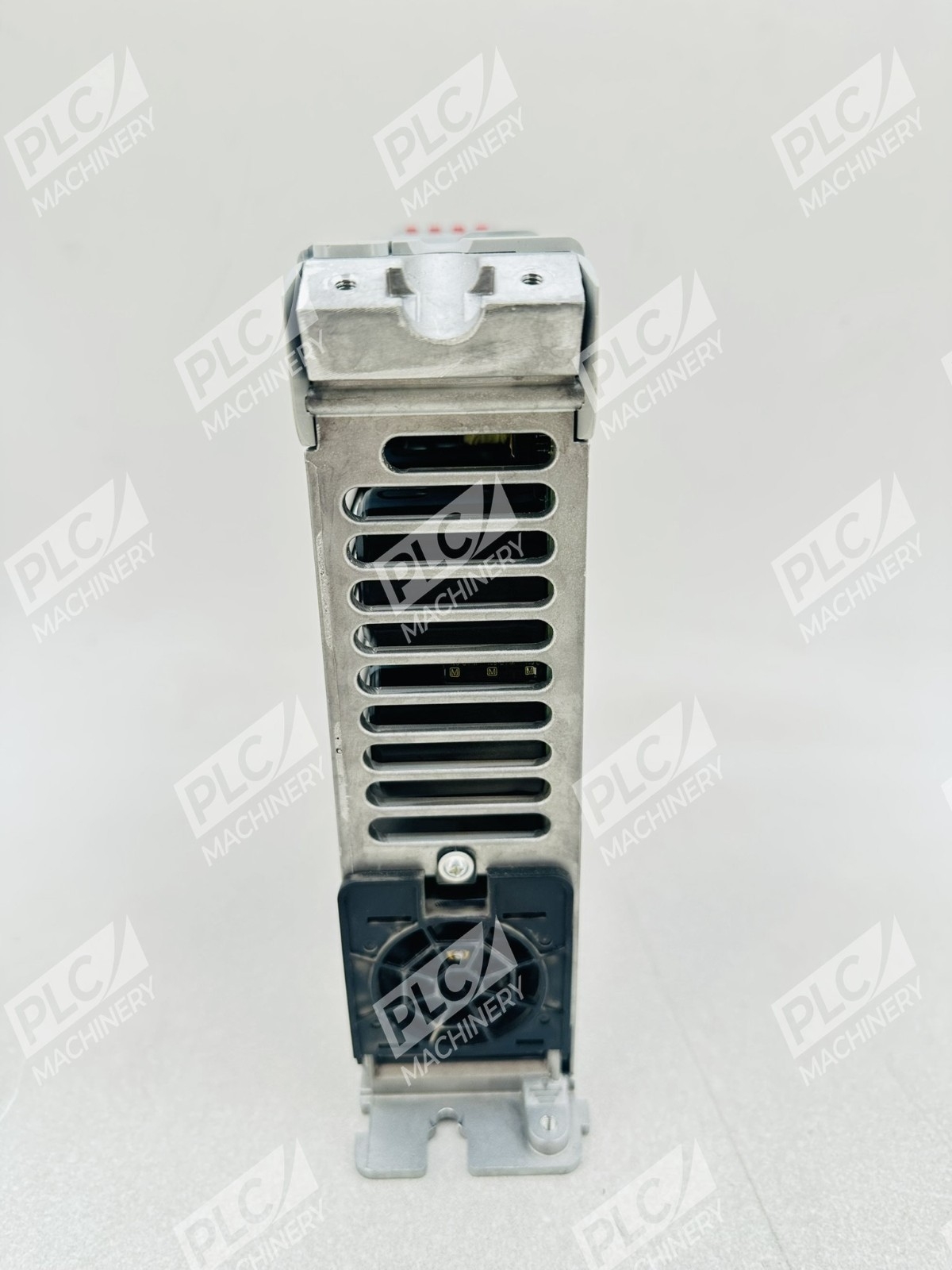

- Cooling: Natural air cooling (cabinet ventilation recommended)
- Motor Cable Length: 50 m standard
Typical Applications
The 2198-H040-ERS2 is widely used in:
- Coordinated motion systems and multi-axis robotics
- High-speed packaging and converting equipment
- Material handling and automated assembly lines
- CNC machinery and precision manufacturing
- Food and beverage processing automation
- Pharmaceutical and printing industry motion control
Compatibility & Replacements
Compatible With
- CompactLogix controllers (L16, L18, L19, L20, L24, L33)
- ControlLogix 5570/5580 platforms
- Allen-Bradley VPL, VPF, and VPH series servo motors with Hiperface DSL
- Studio 5000 v30.00 and later for integrated motion programming
- EtherNet/IP devices supporting Linear, Star, and DLR topologies
Replaces / Drop-In Replacement For
- Kinetix 5500 -ERS (earlier model without hardwired STO)
- PowerFlex 7000 servo drives (in compatible voltage/current applications)
Works With
- Studio 5000 motion programming and Add-On Profiles
- EtherNet/IP communication protocols
- Rockwell FactoryTalk View HMI platforms
- Safe Torque Off safety certification via integrated hardwired STO
- TIA Portal gateway integration (with appropriate EtherNet/IP adapters)
