Overview

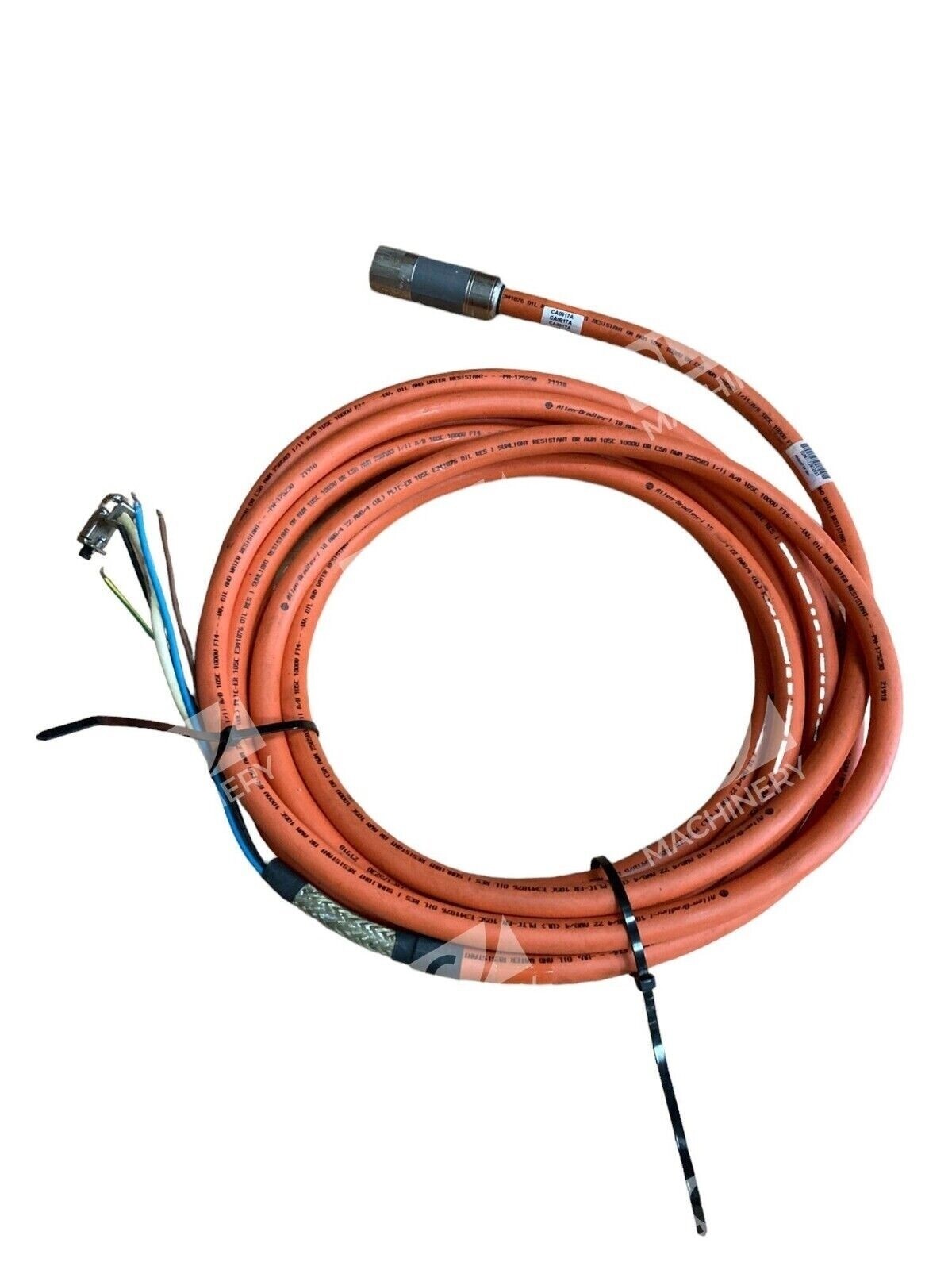

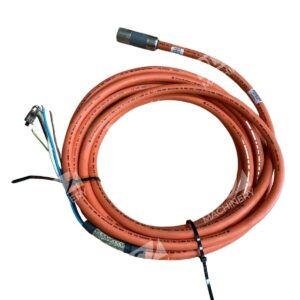

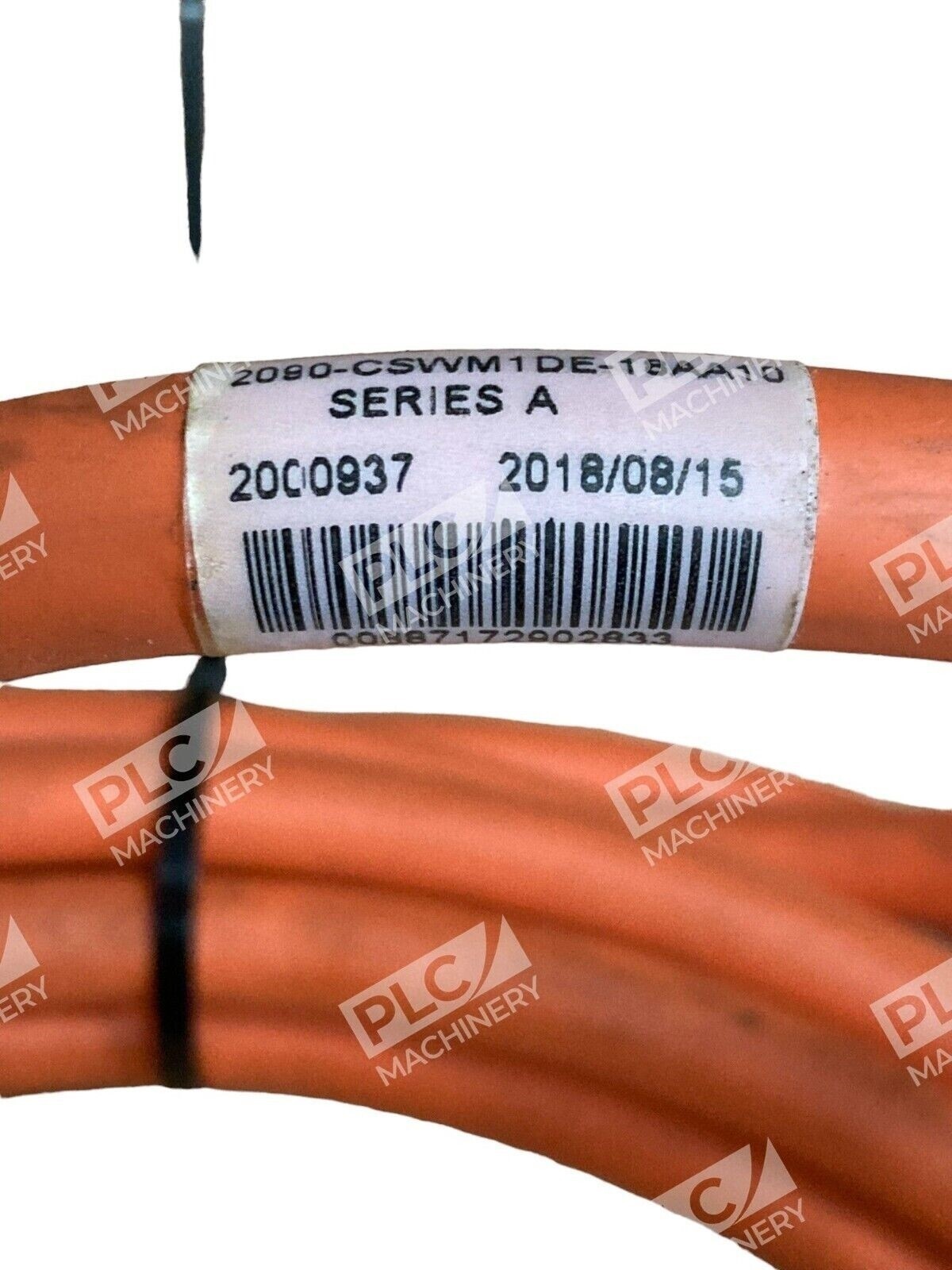

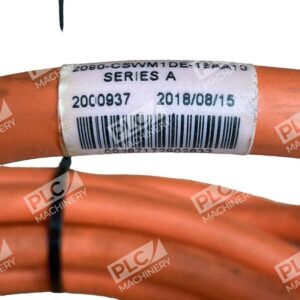

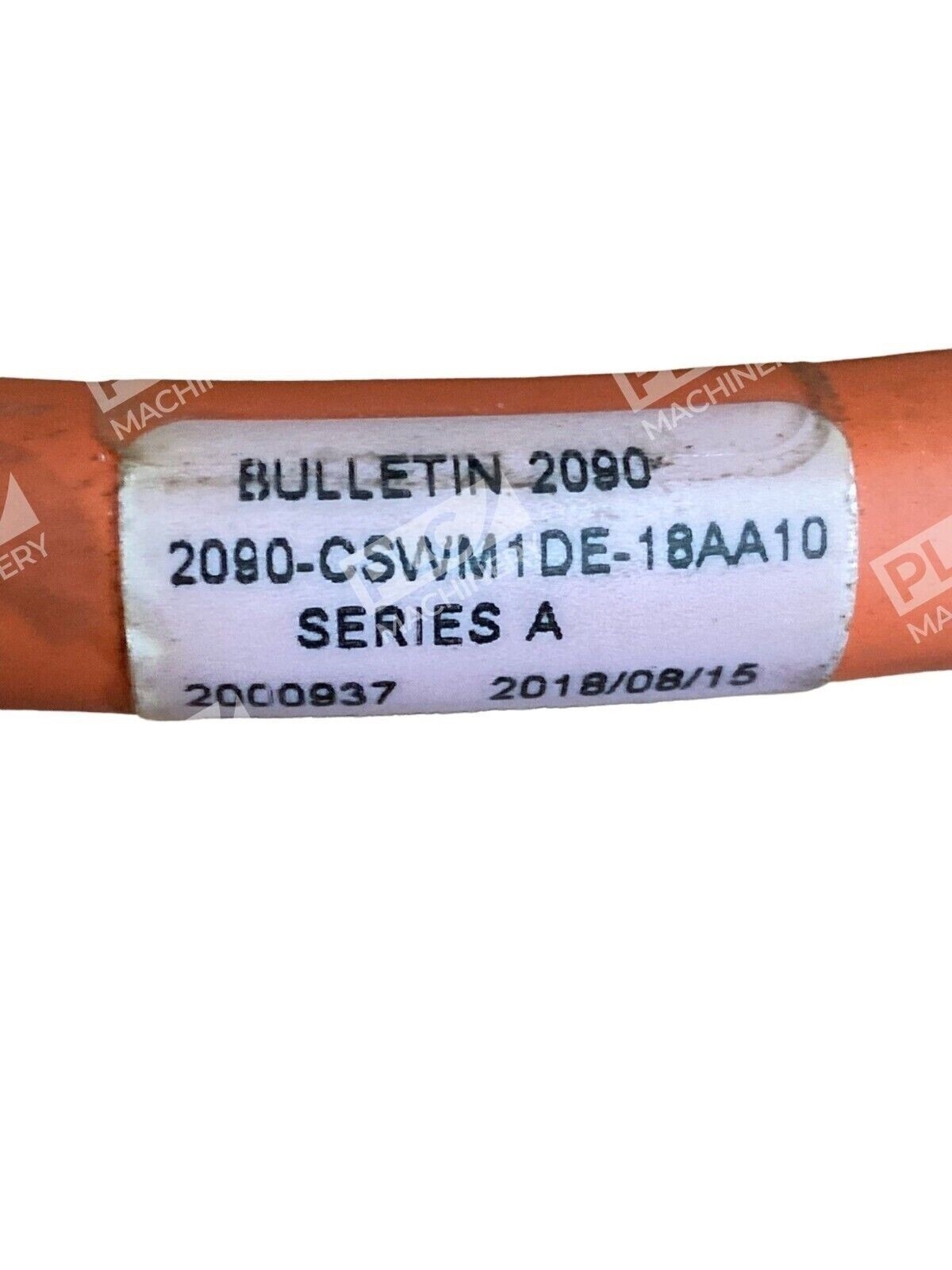

The Allen-Bradley 2090-CSWM1DE-18AA10 is a Kinetix 2090 series single motor cable designed specifically for Kinetix 5700 servo drive systems. This 10-meter cable assembly provides combined power, brake, and feedback signal transmission in a single integrated package, eliminating the need for separate cable runs and reducing installation complexity. The “DE” designation indicates drive-end flying-lead configuration with a pre-wired feedback connector kit optimized for Kinetix 5700 operation.
Key Features
- Single DSL (Dual SeriesLink) cable combining power, feedback, and brake signals

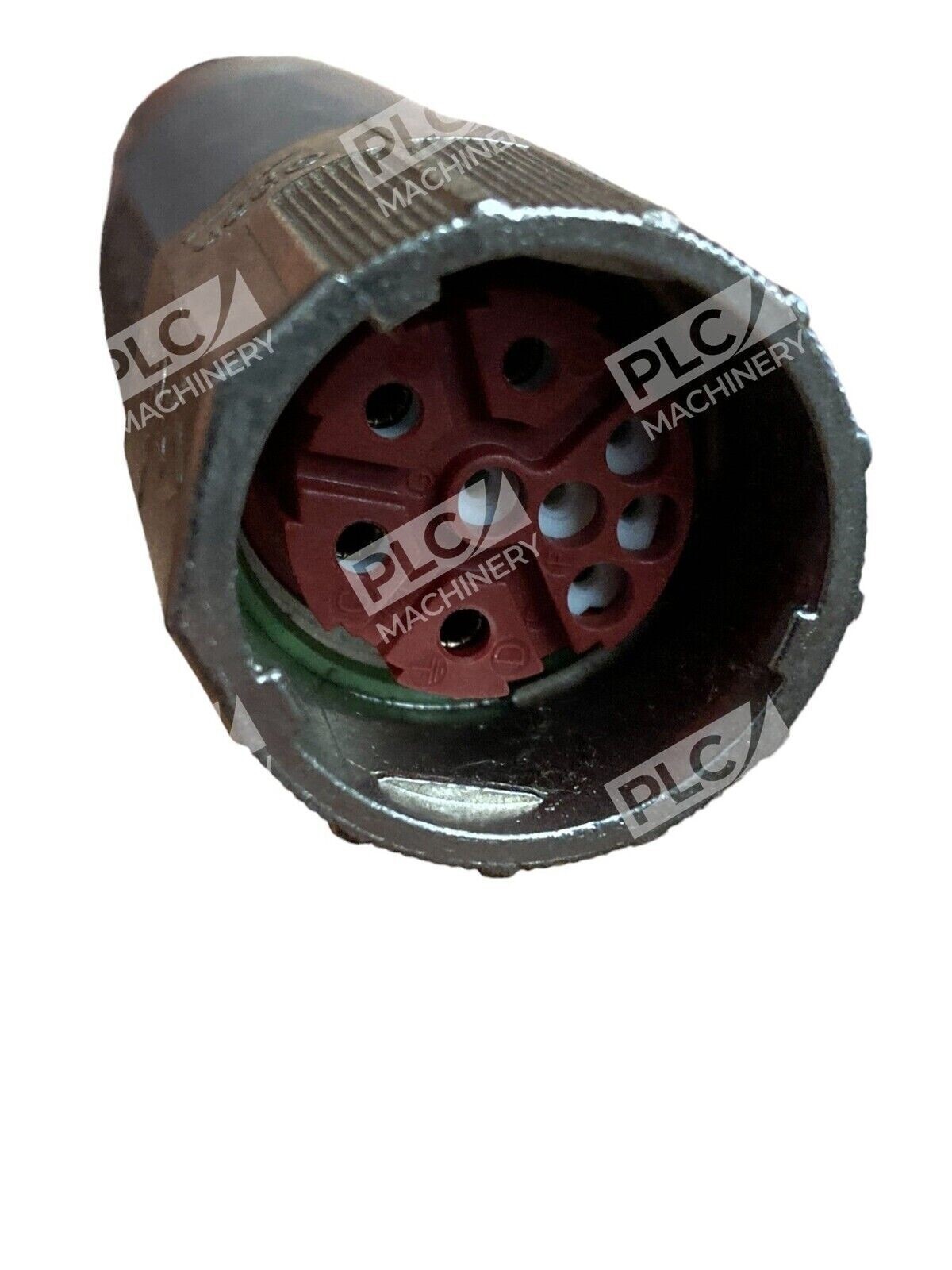

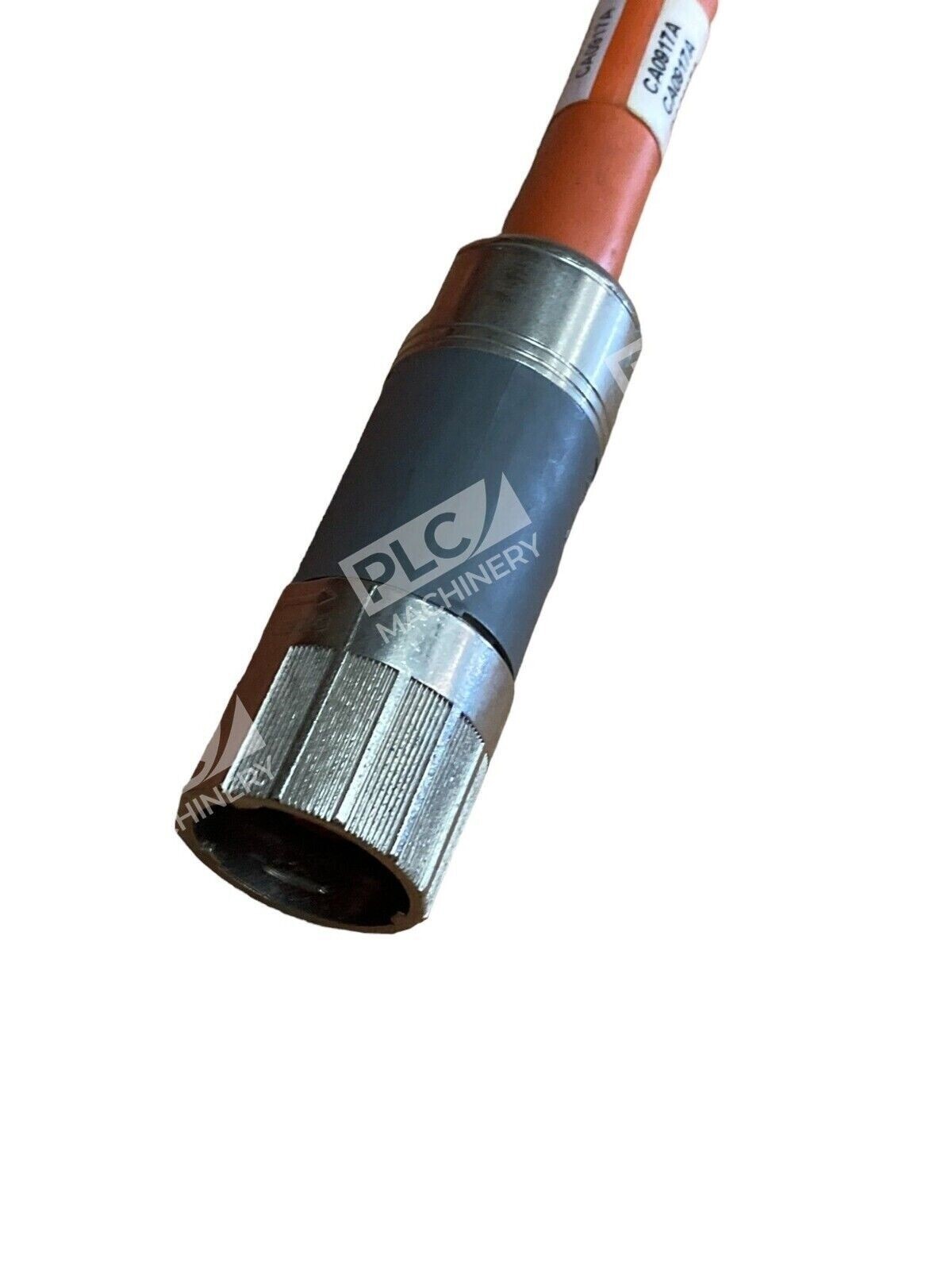

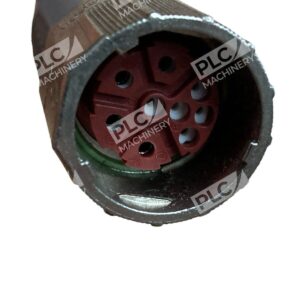

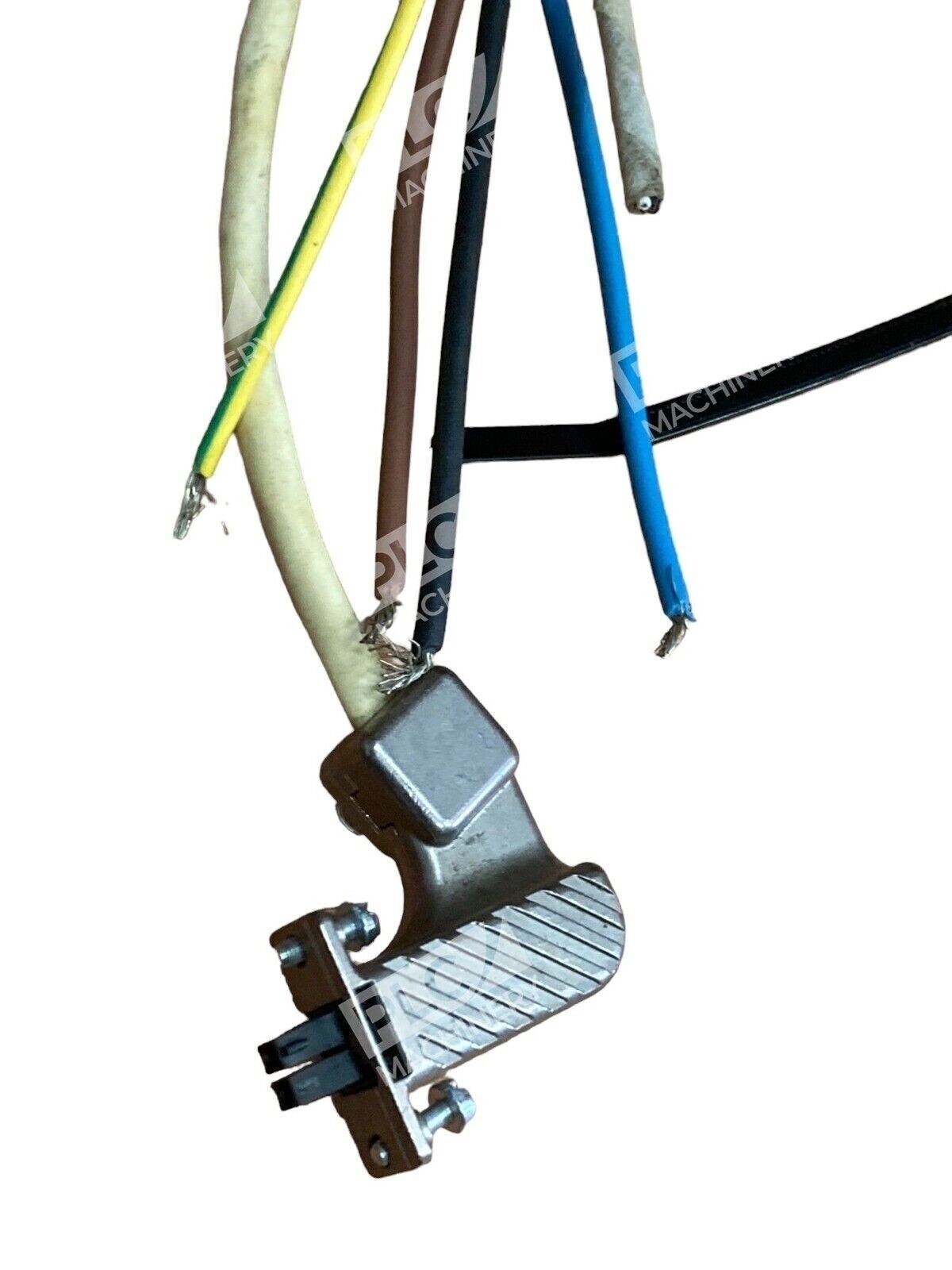

- Single SpeedTec DIN connector at motor end; flying-lead power/brake wires and feedback connector at drive end
- 18 AWG conductors rated for 1000 Volt operation
- 10 meter (32.8 ft) standard non-flexible cable length

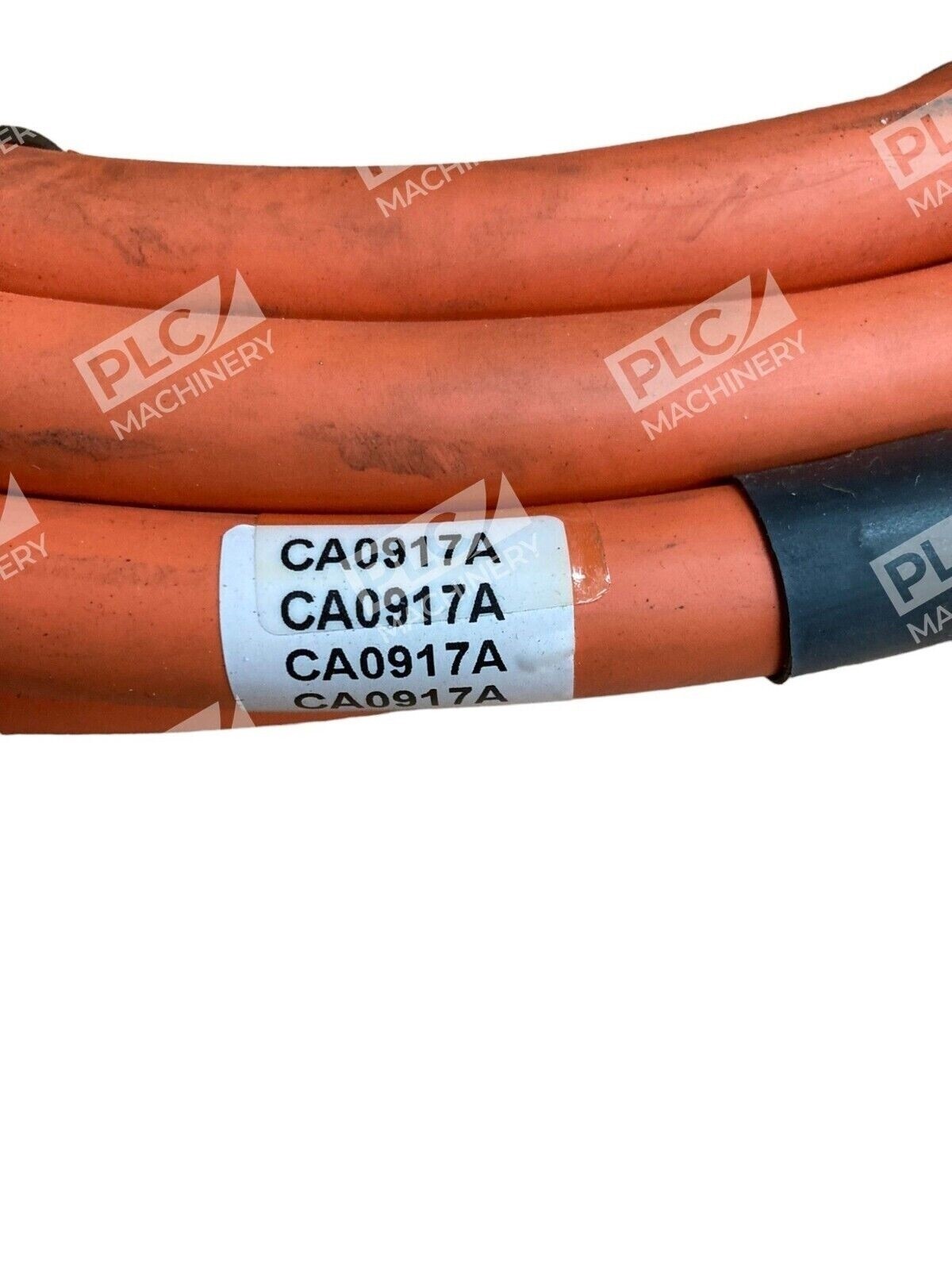

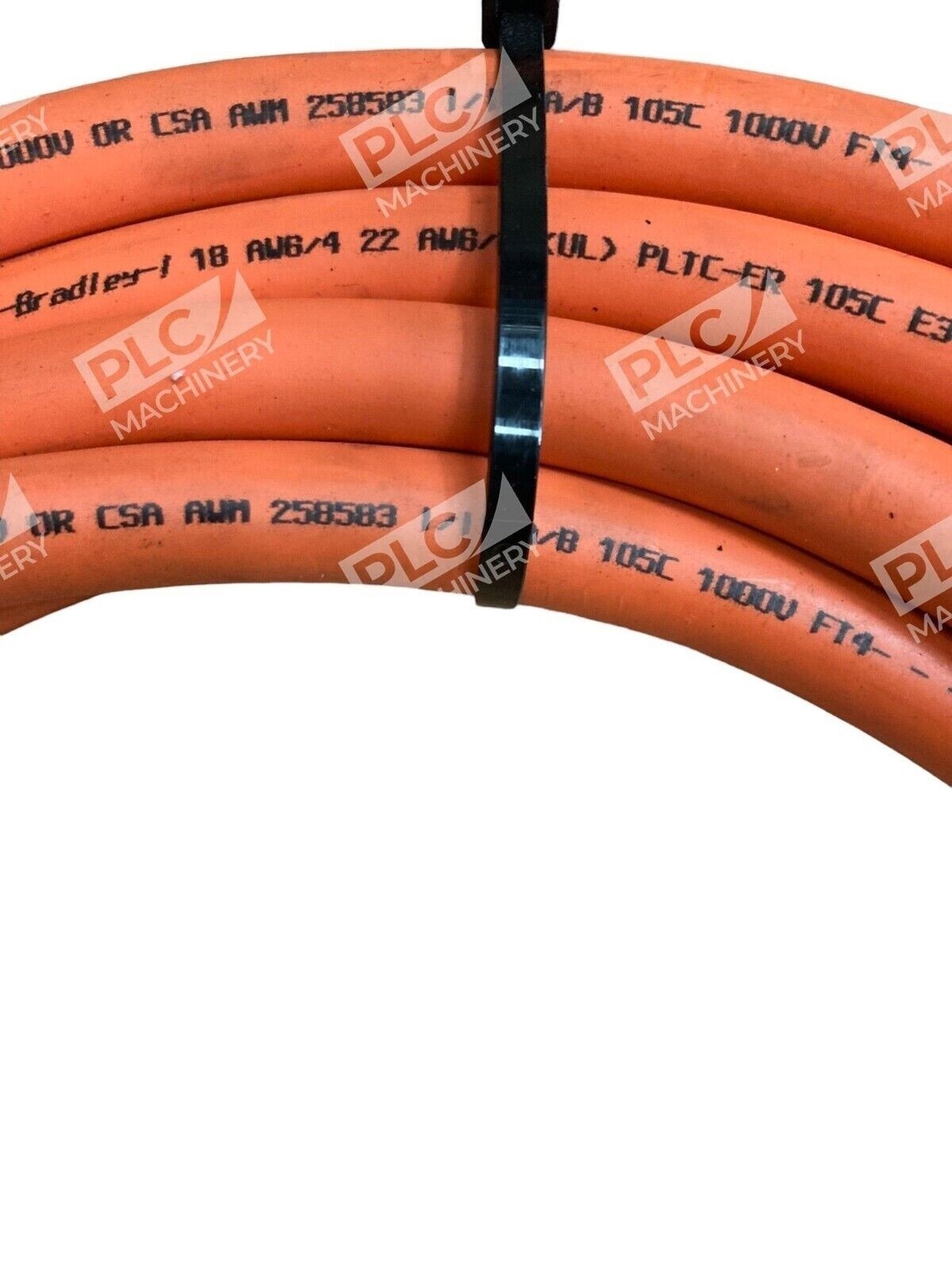

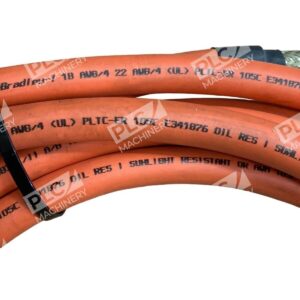

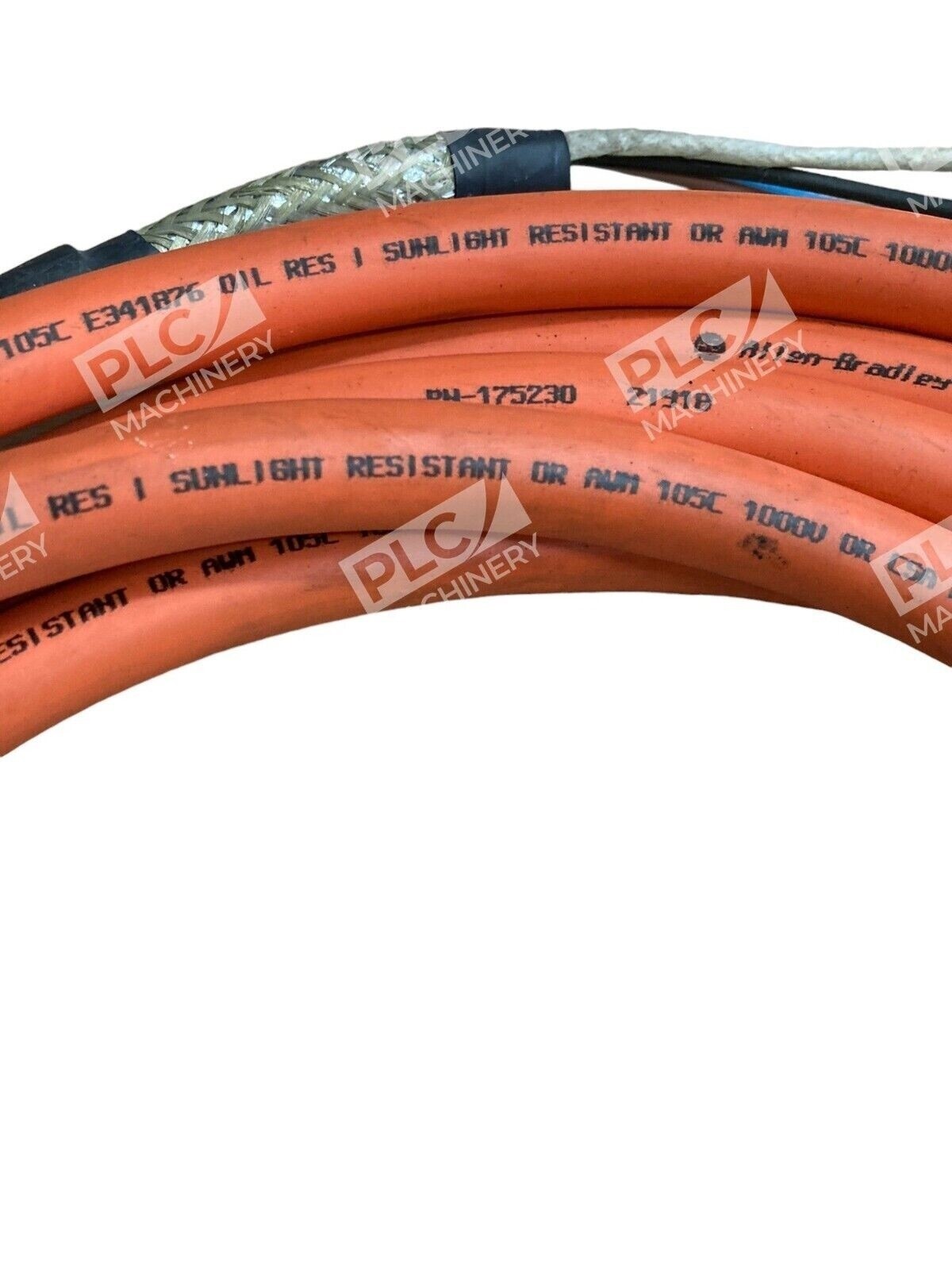

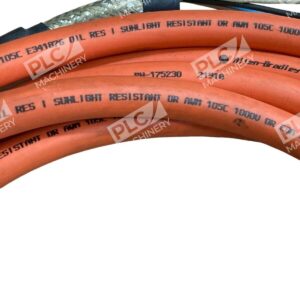

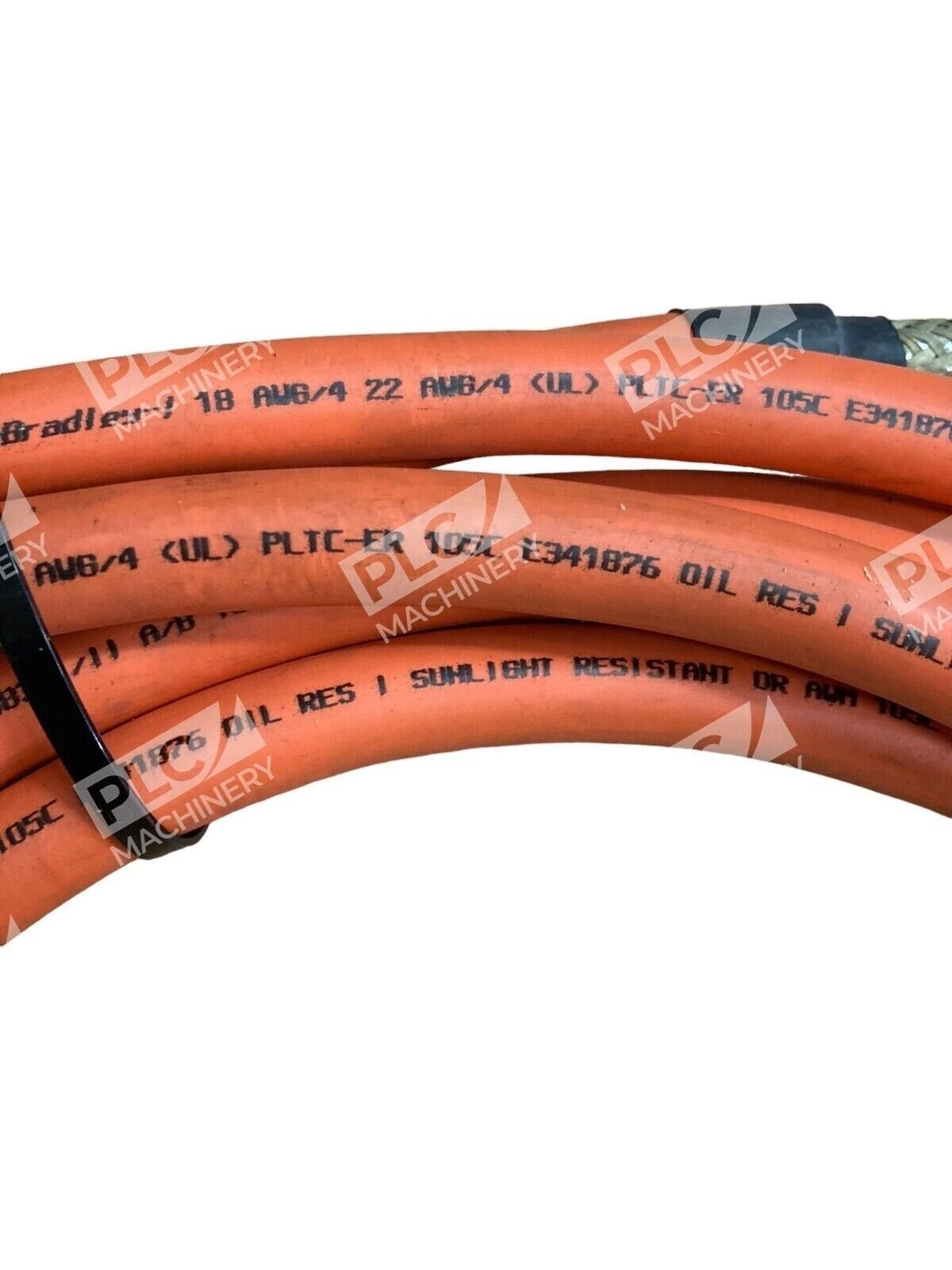

- Orange TPE jacket for easy identification and durability

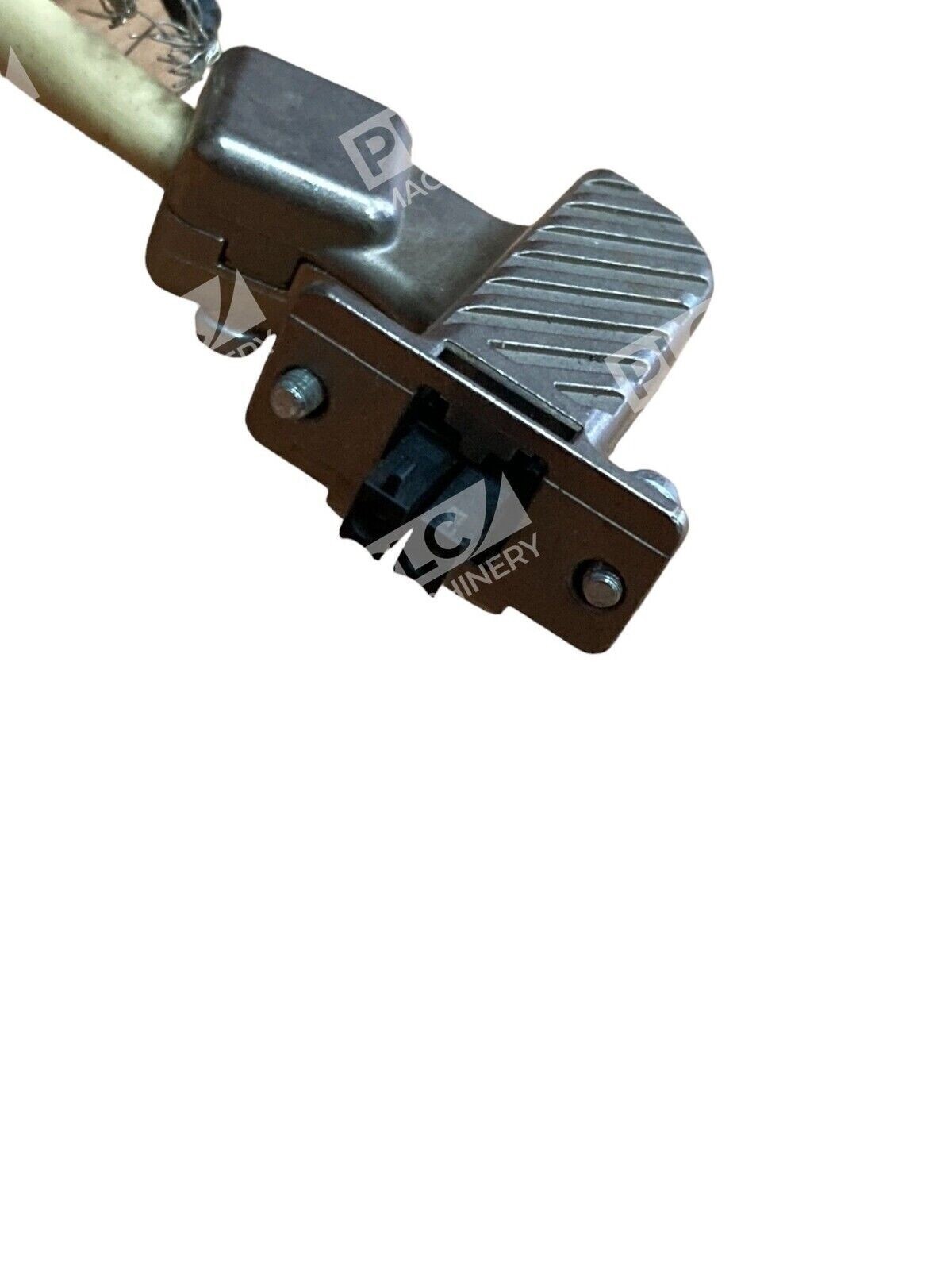

- Includes pre-wired 2198-KITCON-DSL feedback connector kit for Kinetix 5700 drives
Technical Specifications

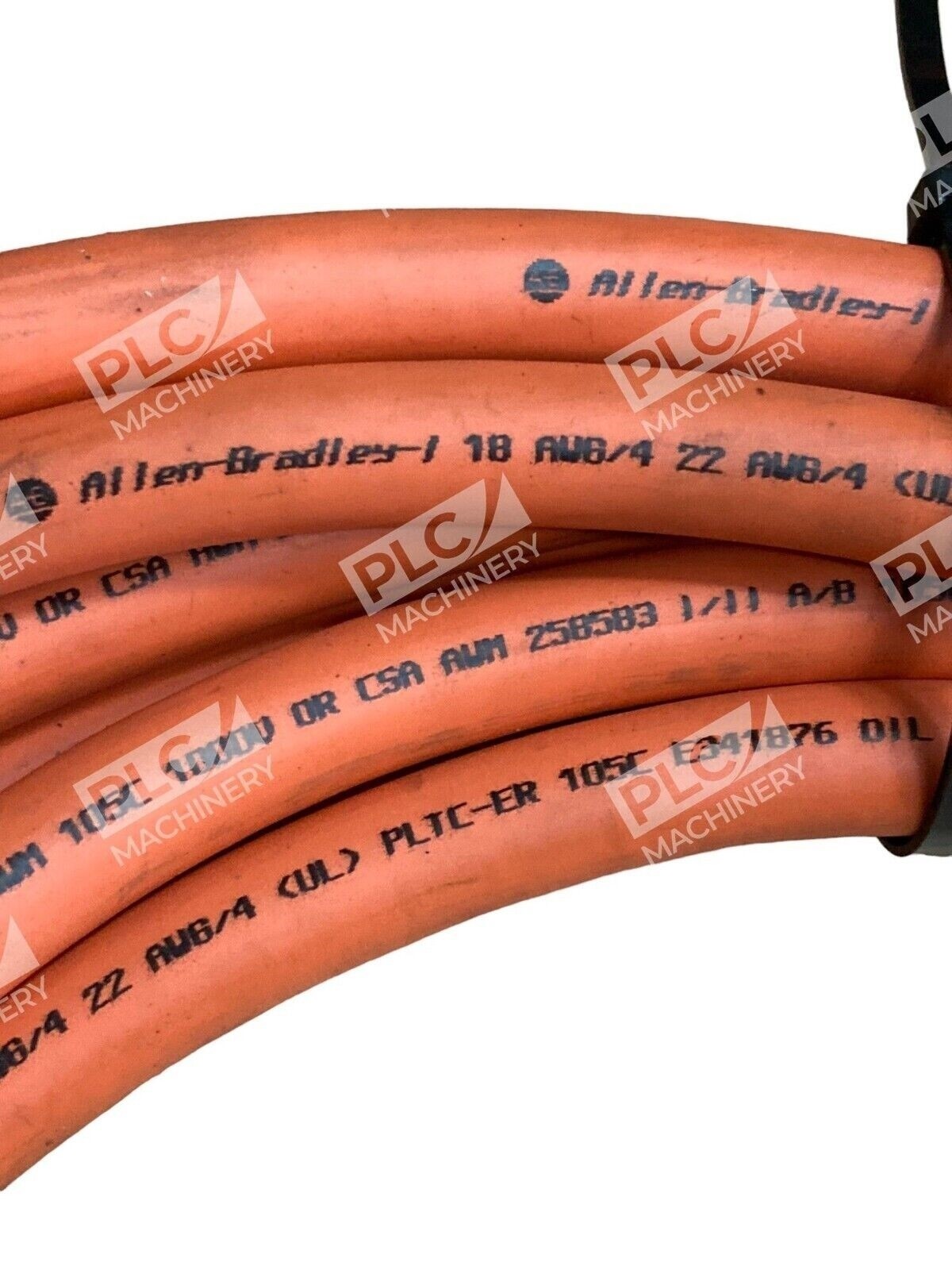

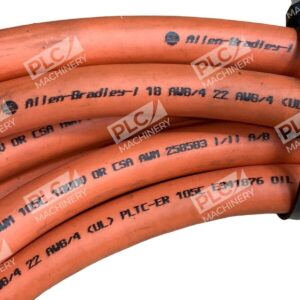

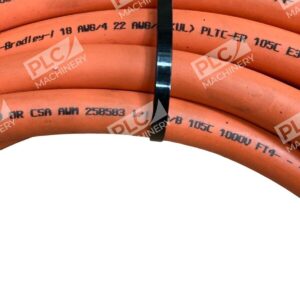

- Conductor Configuration: 4 x 18 AWG power + 2 x 18 AWG feedback + 2 x AWG 22 brake
- Voltage Rating: 1000 V
- Wire Gauge: 18 AWG (main conductors)
- Connector Type: Single SpeedTec DIN (motor end) to flying-leads (drive end)
- Cable Type: Standard, non-flexible
- Cable Length: 10 m (32.8 ft)
- Jacket Material: TPE (thermoplastic elastomer)
- Color: Orange
- Compatibility: Kinetix 5700 servo drives
- UPC: 887172902833
Typical Applications
The 2090-CSWM1DE-18AA10 is used in Kinetix 5700 servo drive installations requiring:
- CNC machining centers and multi-axis motion control systems
- Packaging and material handling equipment
- Industrial robotics and automation platforms
- Machine tool positioning and synchronized motor control
- Cable runs up to 50 meters (164 ft) in standard applications
Compatibility & Replacements
The 2090-CSWM1DE-18AA10 is optimized specifically for Kinetix 5700 servo drive systems with the pre-wired 2198-KITCON-DSL feedback connector kit. For Kinetix 5500 drives, use the 2090-CSWM1DF variant instead. Series B versions with 18 AWG brake conductors support extended cable runs (51–90 m). Always verify drive model and cable length requirements before ordering replacement cables, as the wrong variant may not properly terminate feedback signals or brake circuits.
