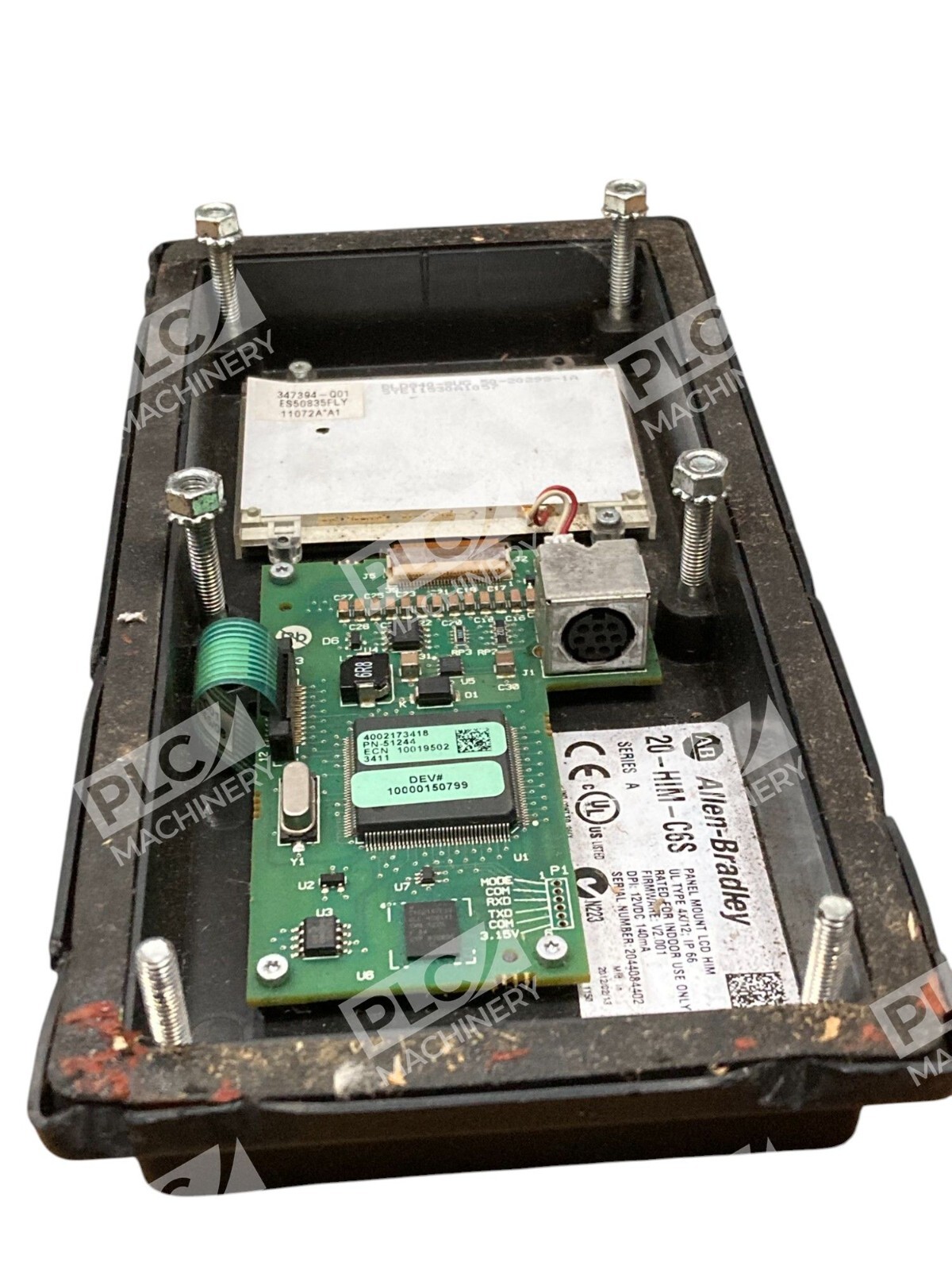

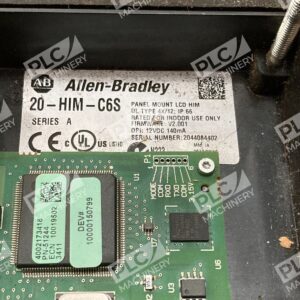

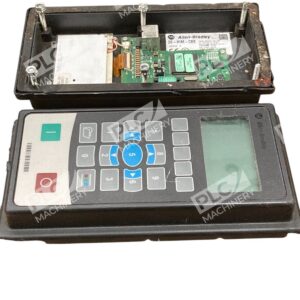

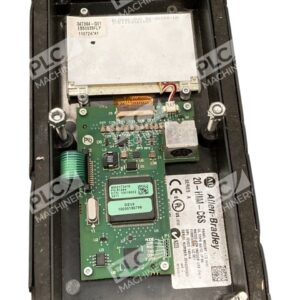

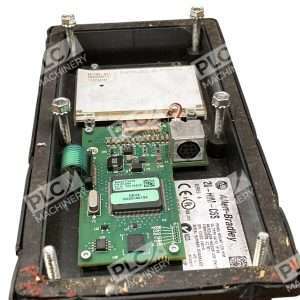

Allen-Bradley 20-HIM-C6S Human Interface Module for PowerFlex 7-Class Drives
The Allen-Bradley 20-HIM-C6S is an enhanced Human Interface Module (HIM) designed for seamless integration with PowerFlex 7-Class AC drives, including models 70, 700, 753, and 755. This module offers advanced control and monitoring capabilities, facilitating efficient drive configuration and diagnostics.
Key Features

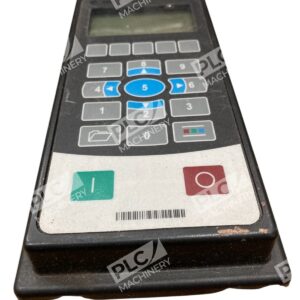

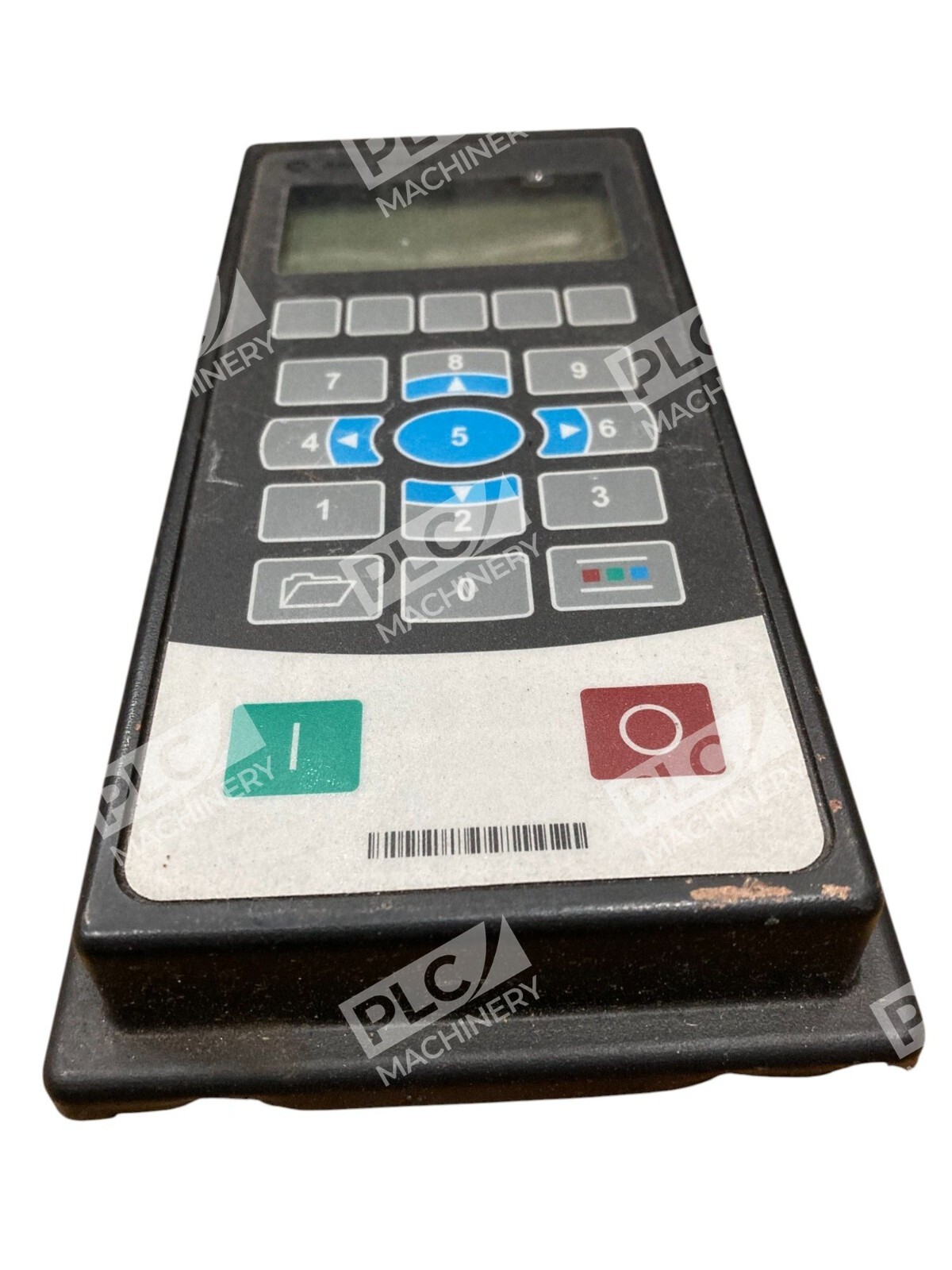

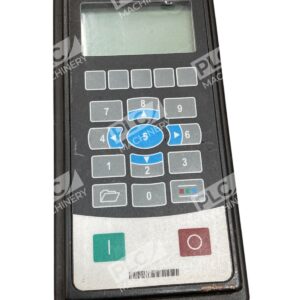

- Full Numeric Keypad: Enables straightforward data entry and navigation through drive settings.
- Remote Mounting Capability: Designed for panel or door mounting, allowing convenient access in various industrial environments.
- IP66 Enclosure Rating: Ensures protection against dust and powerful water jets, suitable for harsh industrial conditions.
- USB Connectivity: Facilitates quick parameter uploads, downloads, and drive cloning for efficient setup and maintenance.
- Multilingual Support: Offers interface options in multiple languages, enhancing usability for diverse user groups.
- Alarm History and Trending Data: Tracks operational data to assist in preventive maintenance and troubleshooting.
Technical Specifications
- Voltage: 12 VDC
- Current Consumption: 140 mA
- Enclosure Rating: IP66, UL Type 4X, NEMA Type 12
- Display Type: LCD
- Keypad: Full Numeric
- Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
- Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
The 20-HIM-C6S module enhances the functionality of PowerFlex drives by providing a user-friendly interface for real-time monitoring and control, ensuring optimal performance and ease of maintenance in industrial applications.
