Overview
The Allen-Bradley 194R-PY operating handle is a padlockable rotary disconnect switch handle engineered for industrial motor control and power distribution applications. Manufactured by Rockwell Automation, this accessory is designed to work with Bulletin 194R fused and non-fused disconnect switches rated up to 60A. The red and yellow color scheme ensures high visibility and clear identification of the disconnect point, while its robust plastic construction provides durability in harsh indoor and outdoor environments.
Key Features
- Red/yellow color for high-visibility identification and safe operation
- Padlockable design accommodates up to 3 padlocks in OFF position for OSHA lockout/tagout (LOTO) compliance
- Touch-safe rotary mechanism for safe operator handling
- IP66 ingress protection with NEMA 3, 3R, 4, 4X, and 12 ratings
- Compatible with 6 mm (1/4 inch) square shafts
- Lightweight and durable plastic construction for extended service life
Technical Specifications

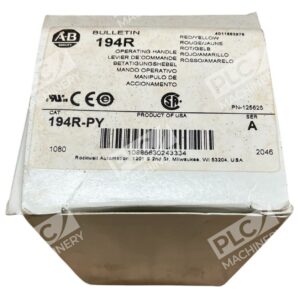

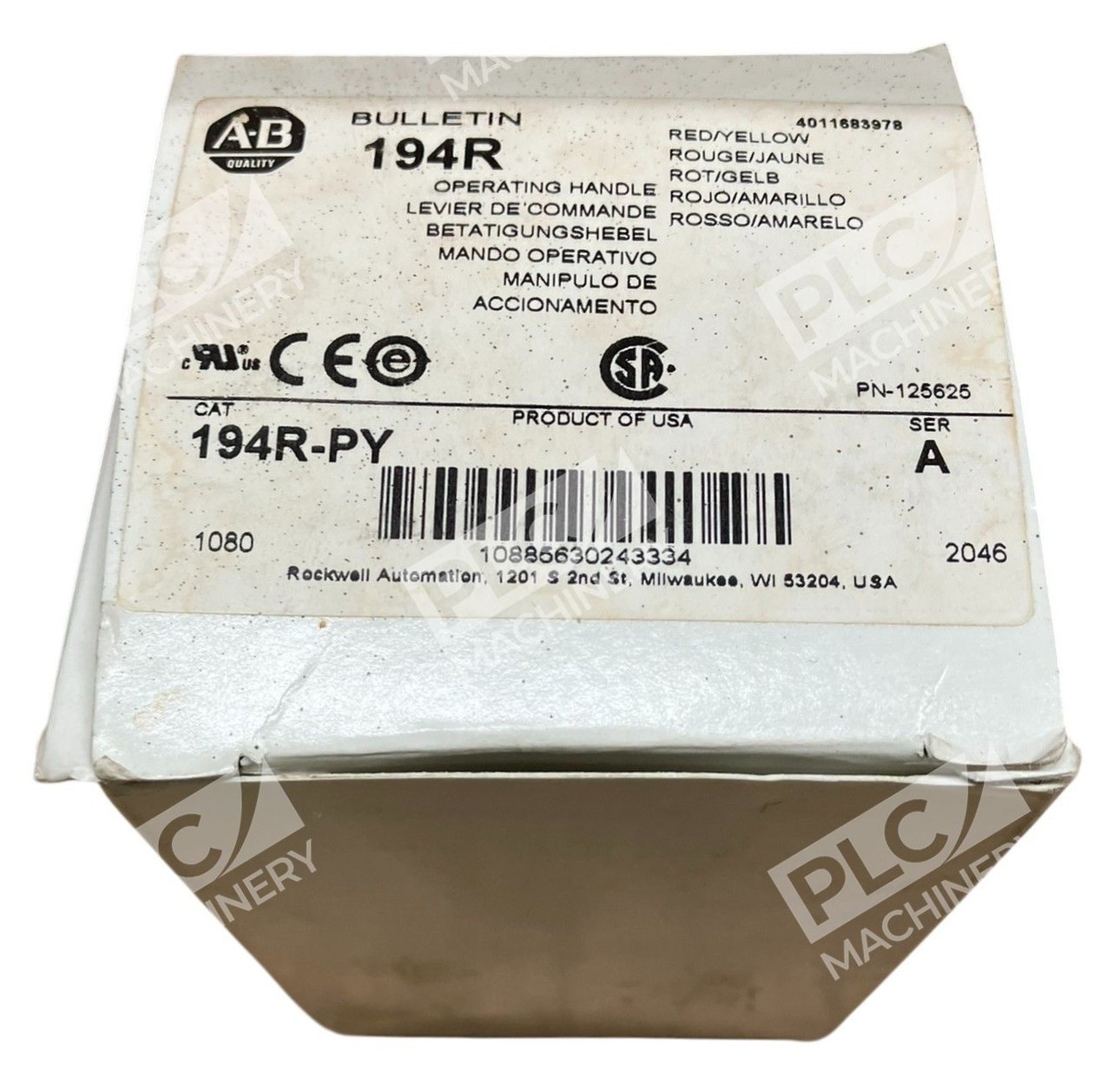

- Catalog Number: 194R-PY
- Manufacturer: Allen-Bradley / Rockwell Automation
- Product Type: Operating Handle, Rotary
- Handle Color: Red/Yellow
- Current Rating: Up to 60 Amp
- Padlock Capacity: Accepts 3 padlocks
- IP Rating: IP66
- NEMA Rating: 3, 3R, 4, 4X, 12
- Operating Shaft: 6 mm (1/4 inch) square
- Material: Durable plastic
- Weight: 0.64 lbs
- Standards Compliance: UL 98, CSA C22.2 No. 4, IEC 60947-3
- Certifications: CE Marked, cULus Recognized
- Series: A
- Replaces: 194R-HS1
Typical Applications
- Motor control and power disconnect in manufacturing plants and processing facilities
- HVAC system isolation and maintenance shutdowns
- Industrial machinery safety lockout/tagout procedures
- Outdoor motor enclosures and weatherproof motor control centers
- Equipment maintenance requiring personnel protection during power disconnection
Compatibility & Replacements
The 194R-PY is a direct accessory for Bulletin 194R disconnect switches rated 30–60A. It replaces the legacy 194R-HS1 handle and is compatible with both fused and non-fused 194R switch bodies. The handle accepts standard 6 mm square operating shafts and meets international electrical safety standards (UL 98, CSA C22.2 No. 4, IEC 60947-3), making it a trusted retrofit or new-build component. Confirm compatibility with your specific 194R model before ordering.
