Overview

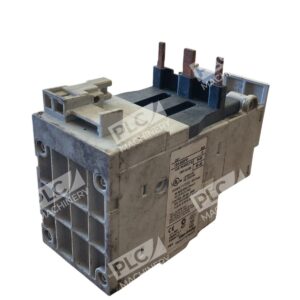

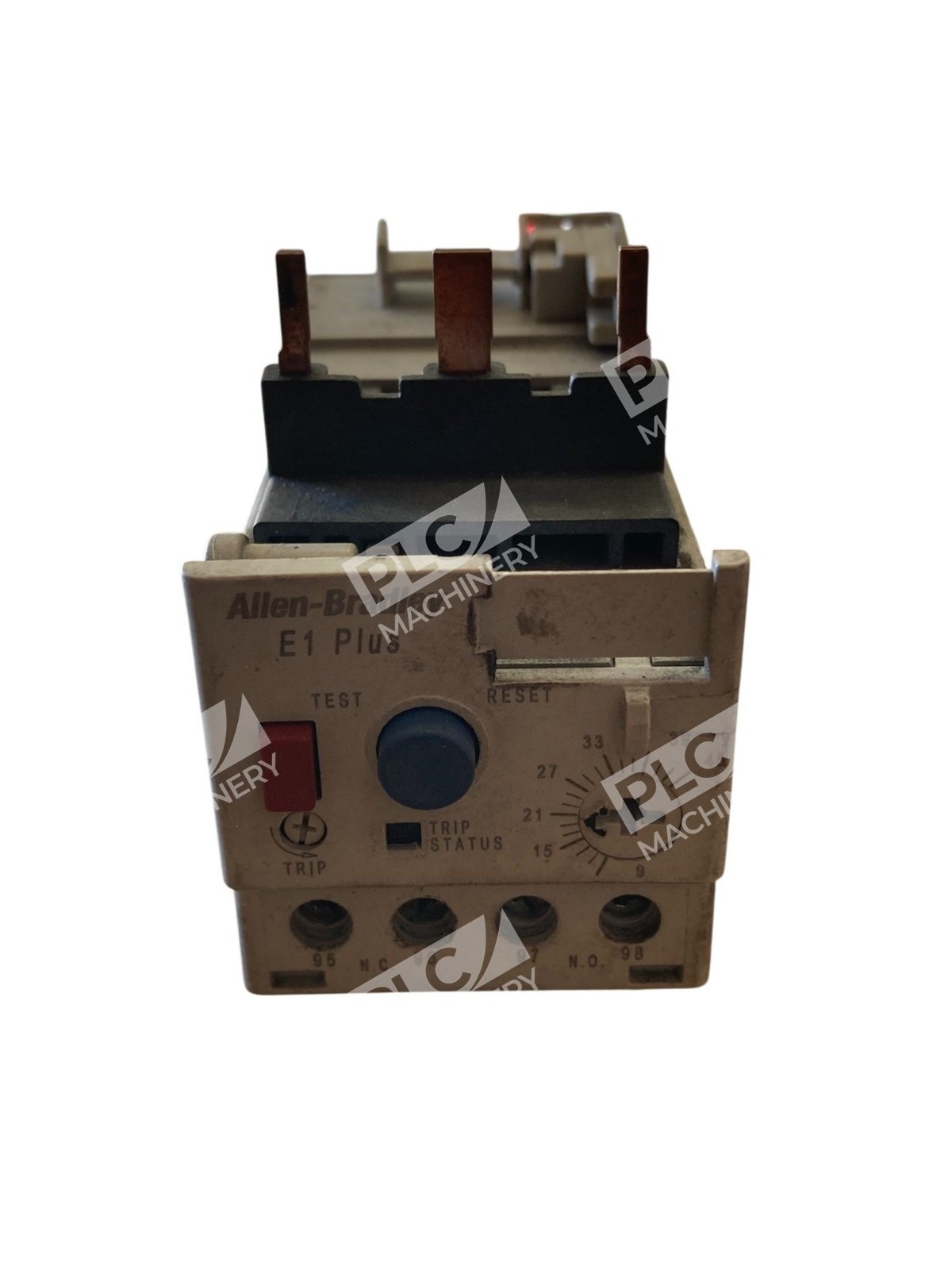

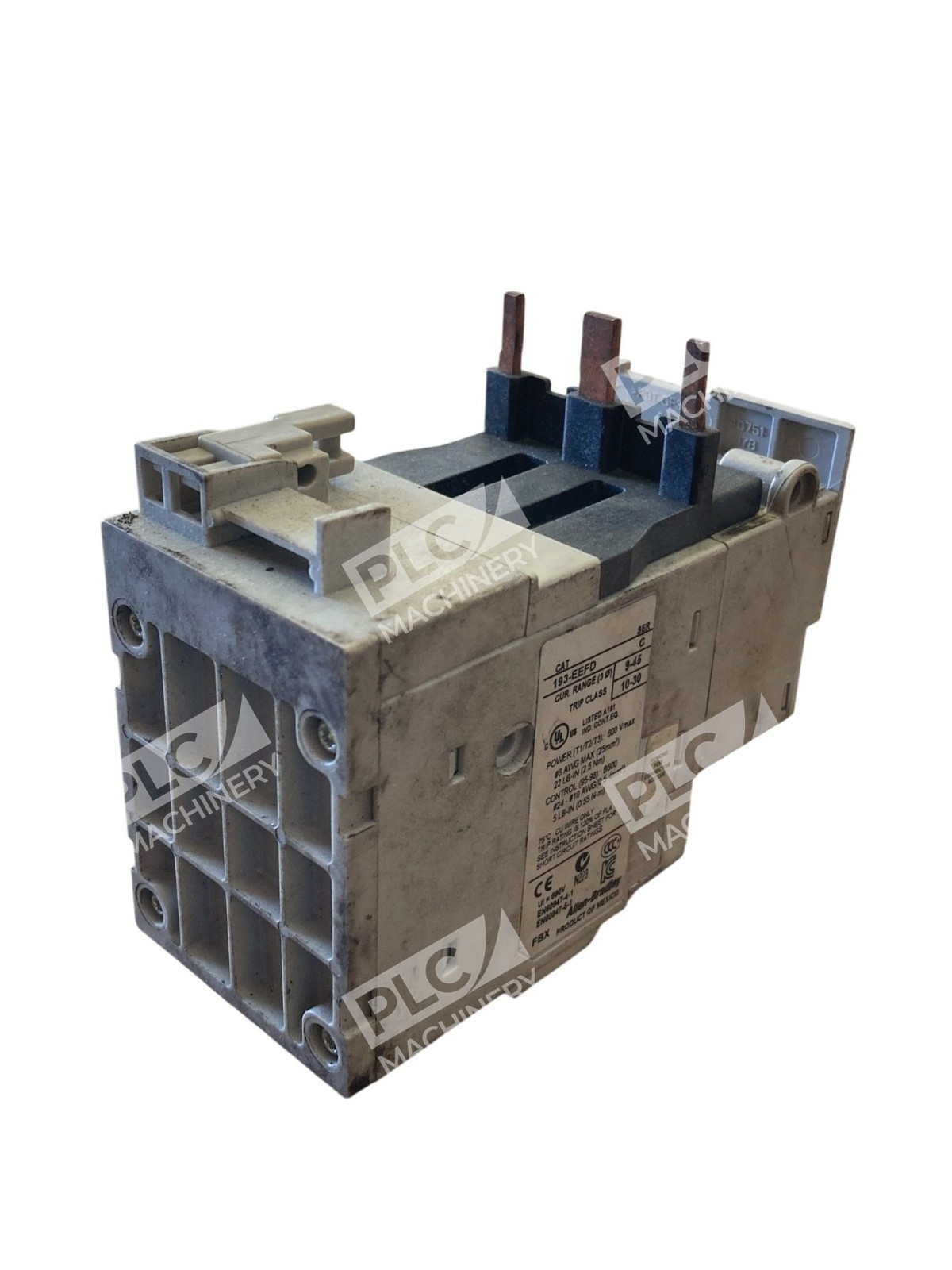

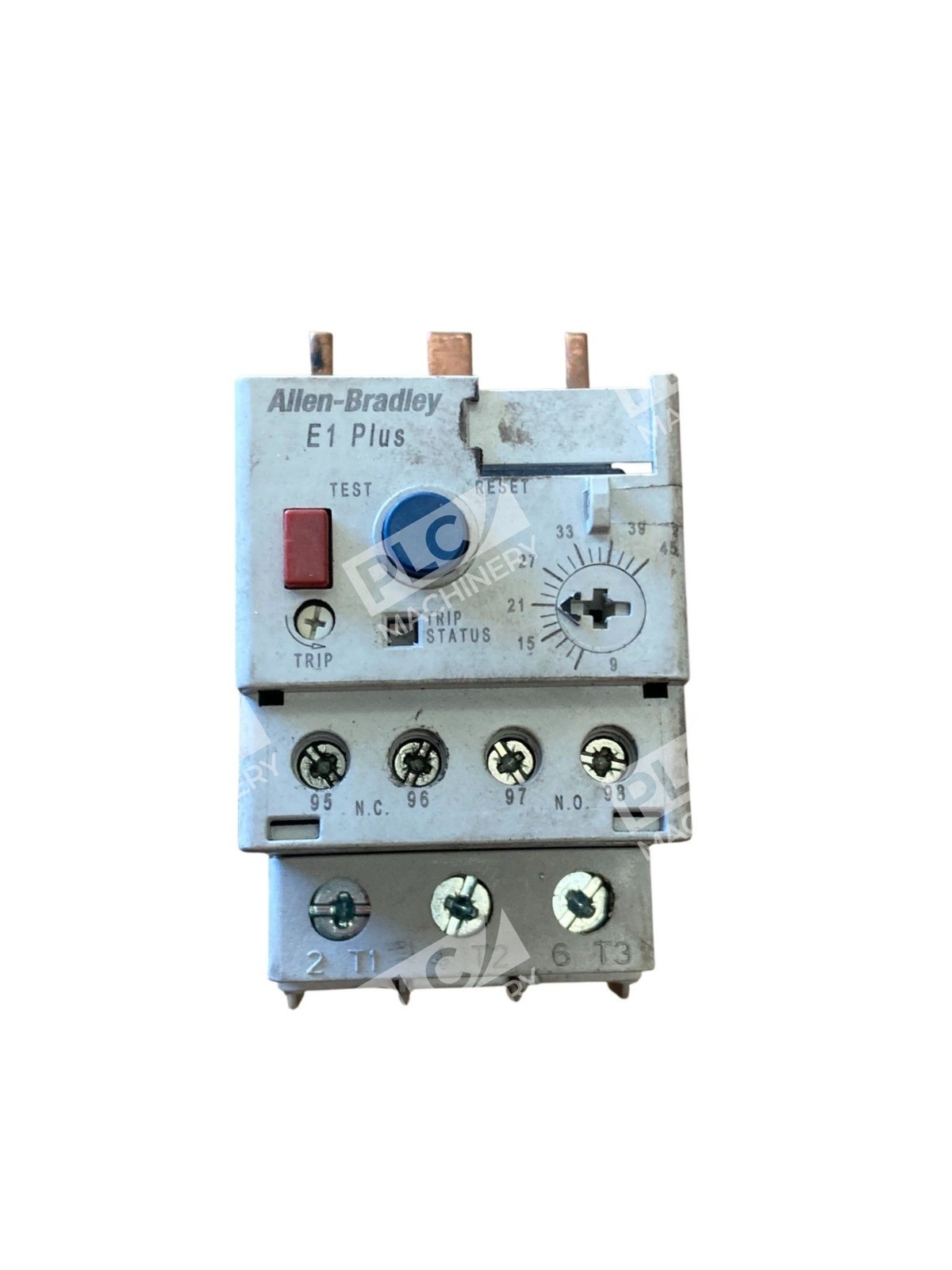

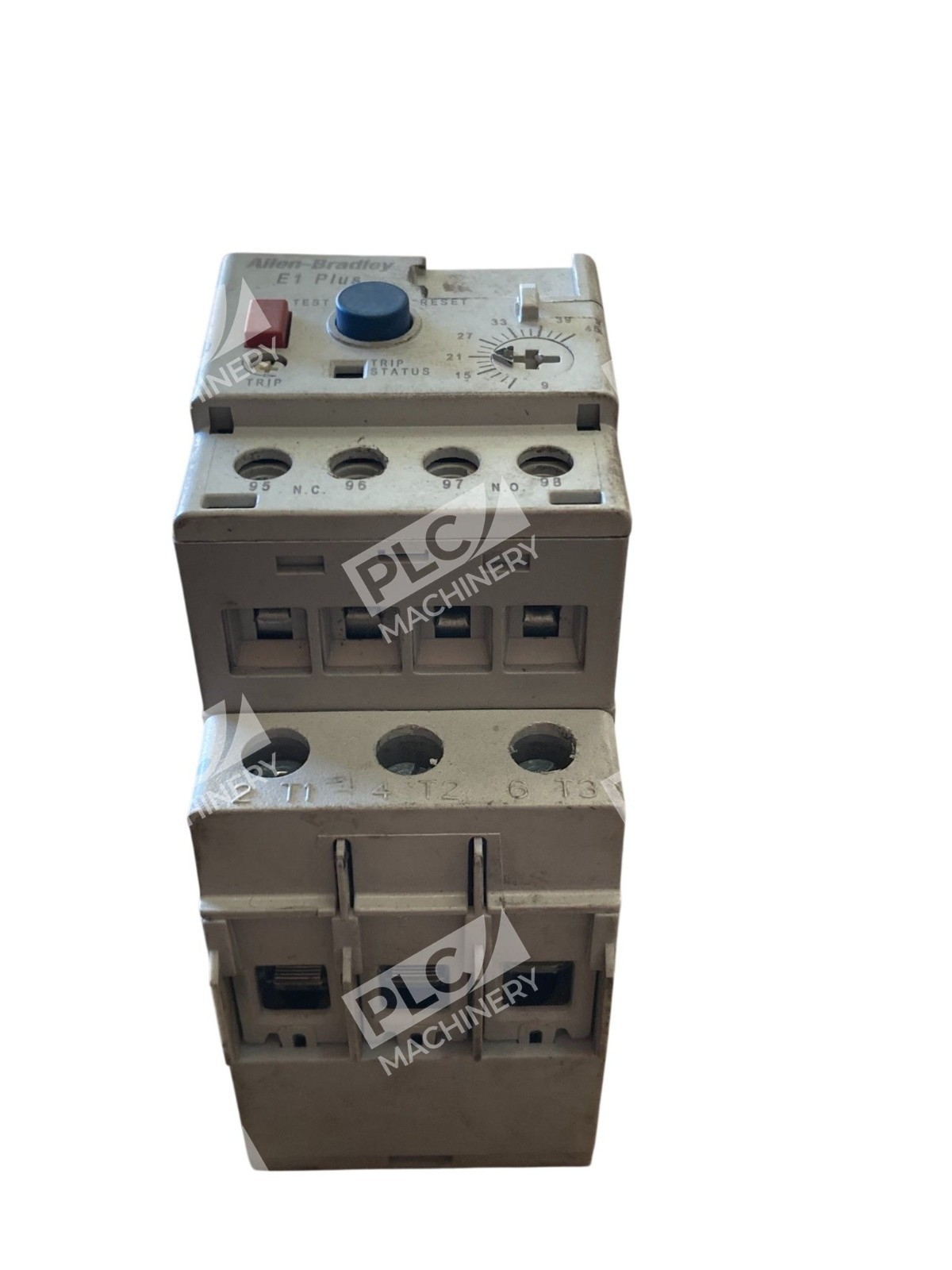

The Allen-Bradley 193-EEFD is a three-phase electronic overload relay from the E1 Plus series, engineered to deliver precise motor overload protection in industrial automation and control applications. This IEC overload relay is designed for motor protection applications with adjustable current settings from 9 to 45 amps. The unit features DIP switch settings to select the trip class (10, 15, 20 or 30) and the reset mode (manual or automatic), making it highly adaptable to diverse motor-starting characteristics and load profiles.
Key Features
- Supports 9–45 A adjustable current range, suitable for a wide variety of motor sizes, and includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact for feedback or interlock circuits
- Integrates directly with Allen-Bradley 100-C30 to 100-C43 contactors
- Selectable trip classes (10, 15, 20, 30) for customized motor protection
- Application-specific integrated circuit (ASIC) monitors motor performance continuously
- IEC-compliant design for international motor protection standards
- Phase loss protection built-in

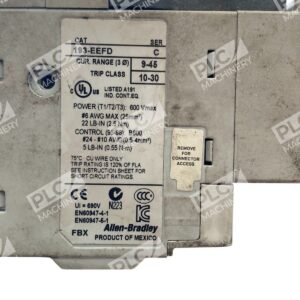

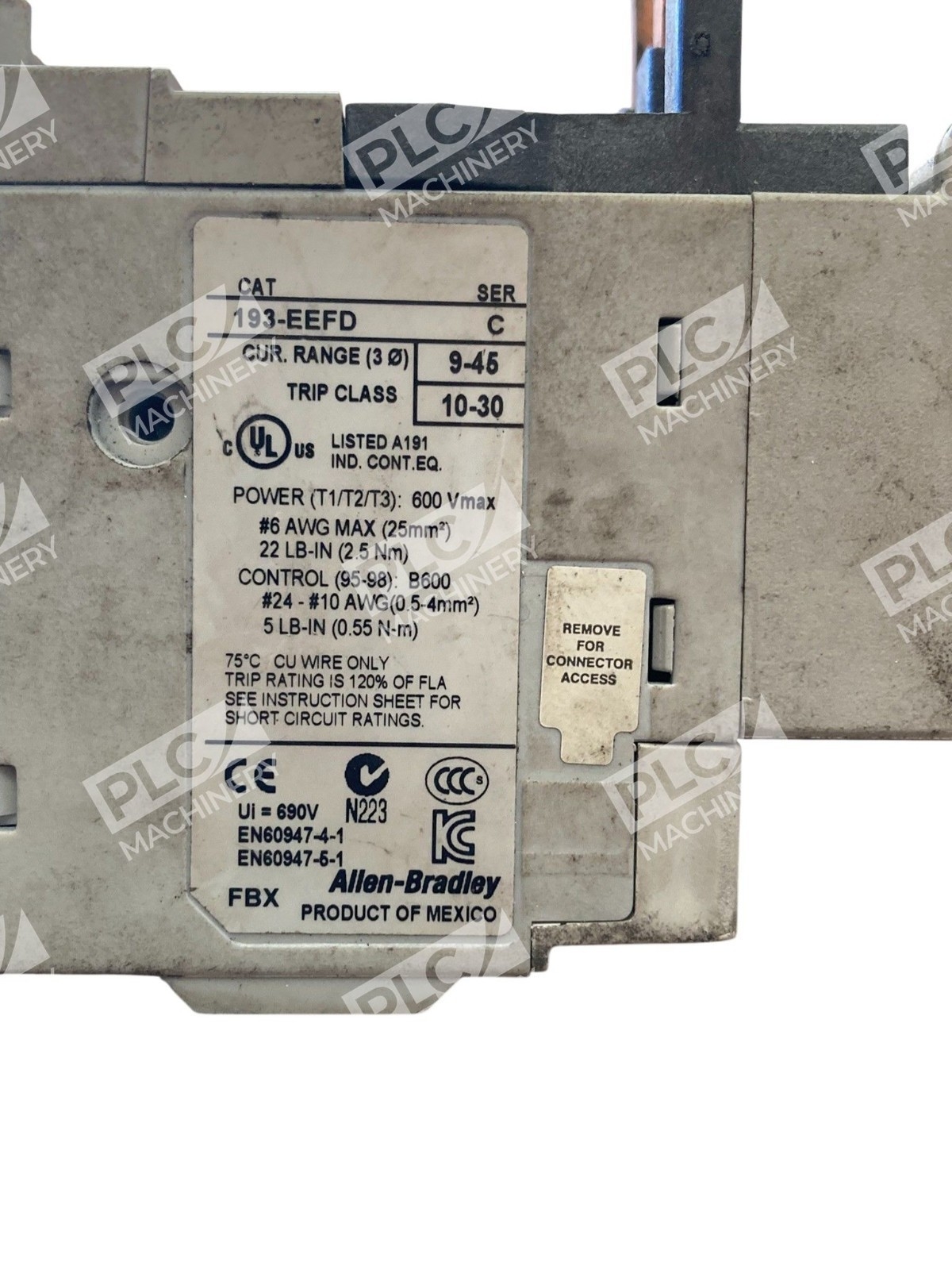

Technical Specifications
- Amperage Range: Adjustable from 9 to 45 A to match motor current ratings
- Trip Class: Selectable thermal trip class 10, 15, 20, or 30 for tailored protection
- Contact Rating: 1 NO / 1 NC (45 A @ 600V AC)
- Voltage Rating: 600-690 VAC at 50/60 Hz
- Series: E1 Plus
- Configuration: 3-Phase IEC Electronic Overload Relay
- Reset Modes: Manual or Automatic (selectable)
- Standards: UL508, CSA C22.2 No. 14, NEMA ICS 2-1993 Part 4, EN 60947-4-1, EN 60947-5-1
Typical Applications
The 193-EEFD is ideal for:
- Motor starter assemblies in manufacturing facilities
- Industrial control panels and machine tool controls
- HVAC and process cooling equipment protection
- Pump and fan motor circuits

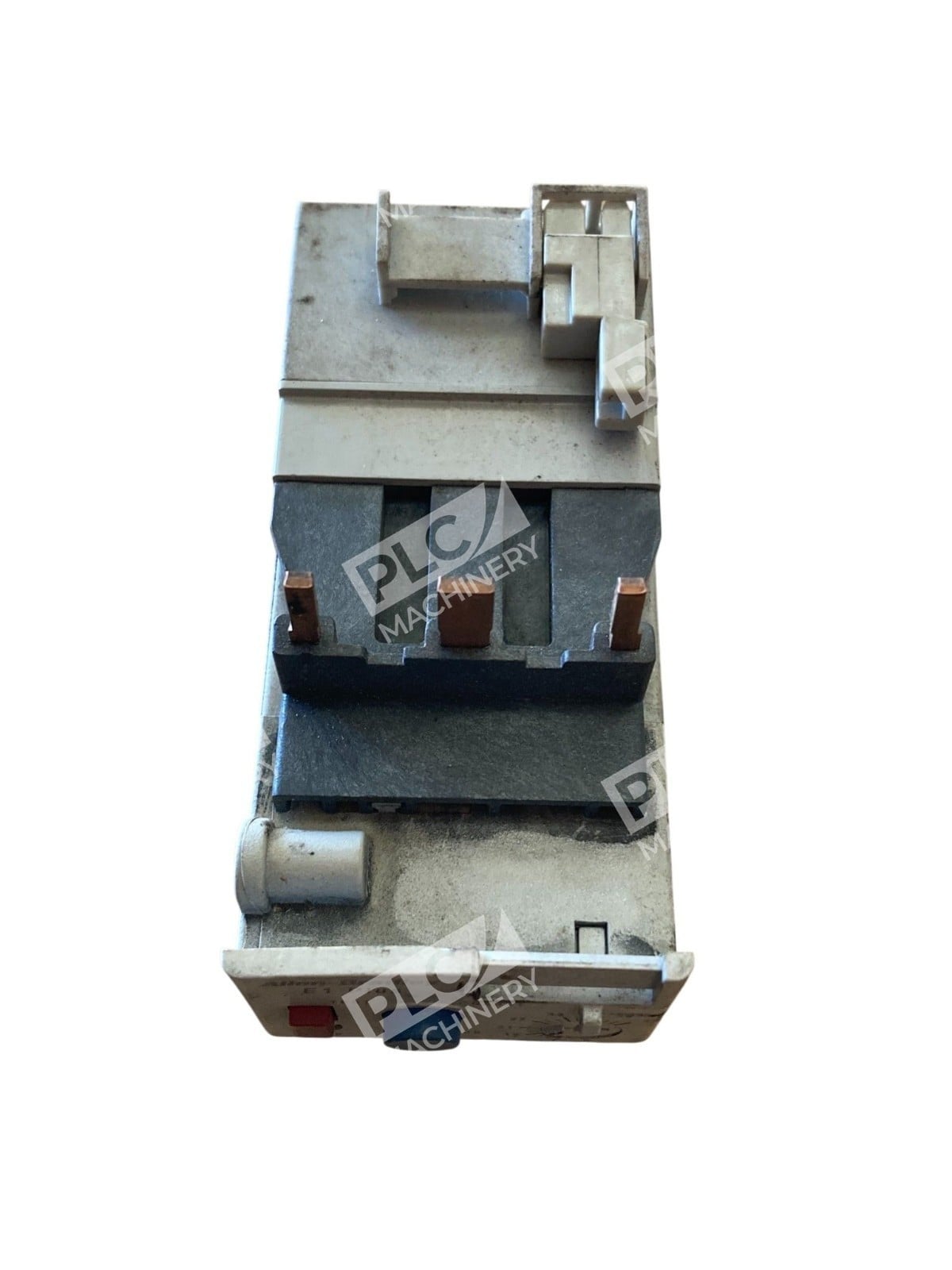

- Three-phase motor protection with direct mounting onto 100-C30 through 100-C43 contactors
- IEC-compliant automation systems in international markets
Compatibility & Replacements
Compatible With
- Allen-Bradley 100-C30, 100-C37, and 100-C43 contactors
- Three-phase motor circuits rated 9–45 amperes FLC
- IEC-compliant starter packages and control panels
- External current transformers (when required by application)
Replaces / Drop-In Replacement For
The 193-EEFD is the standard E1 Plus model for the 9–45A range. Cage Clamp Control Terminals are available by changing the Bulletin number from 193 to 193R (Example: 193R-EEFD). Consult technical documentation for specific variant interchangeability.
Works With
- Allen-Bradley Integrated Architecture motor control systems
- 193-EDN DeviceNet Communication Side-Mount Module provides seamless deployment of motor starters onto the Integrated Architecture
- Remote reset and auxiliary protection modules (193-ERR, 193-EGF, 193-EJM available as options)
- Standard three-phase motor protection schemes per IEC 60947-4-1
- Compatible with DIN Rail and panel mount configurations
