Overview

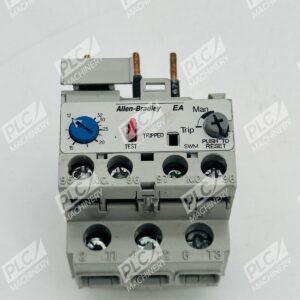

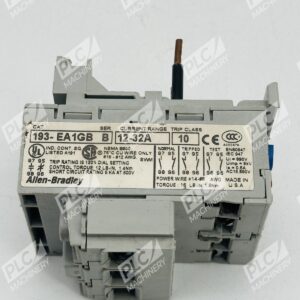

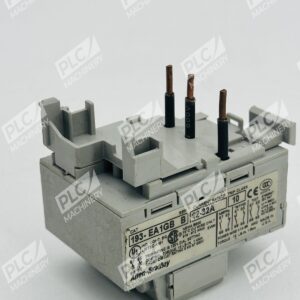

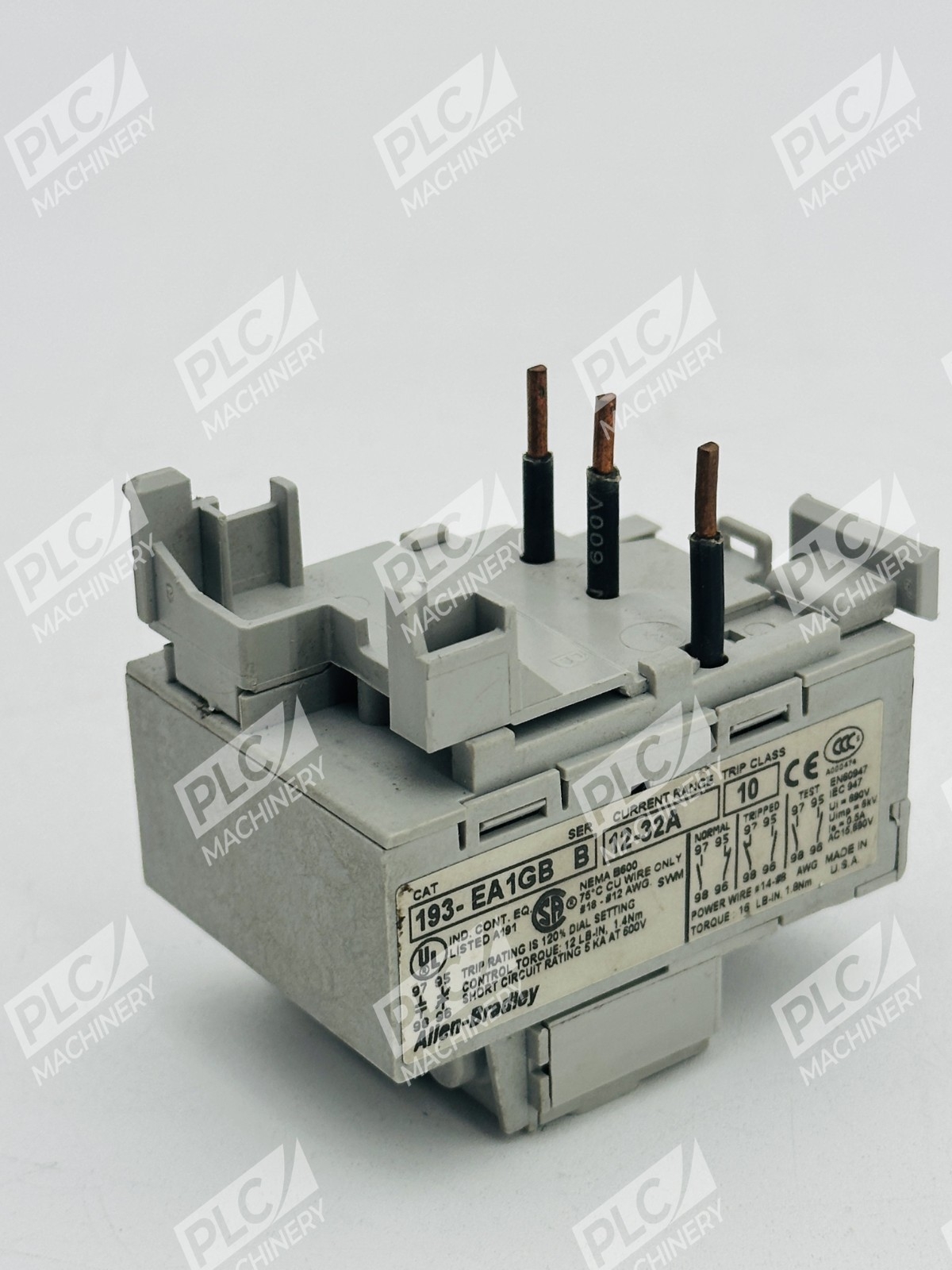

The Allen-Bradley 193-EA1GB is a Bulletin 193-EA solid-state overload relay engineered for reliable motor protection in industrial control systems. This Class 10 overload relay provides adjustable overload detection and manual reset operation, making it suitable for motor starters using Bulletin 100-C09 through 100-C23 contactors in NEMA Size 00 applications.
Key Features
- Solid-state construction (SMP-1 platform) for enhanced reliability and fast response
- Adjustable current range: 12–32A for flexible motor application sizing
- Class 10 trip curve for standard AC induction motor protection
- Manual reset operation ensures controlled restart after overload events
- Integrated auxiliary contacts (normally open and normally closed) for motor status signaling
- Compact design for easy installation in existing motor control enclosures

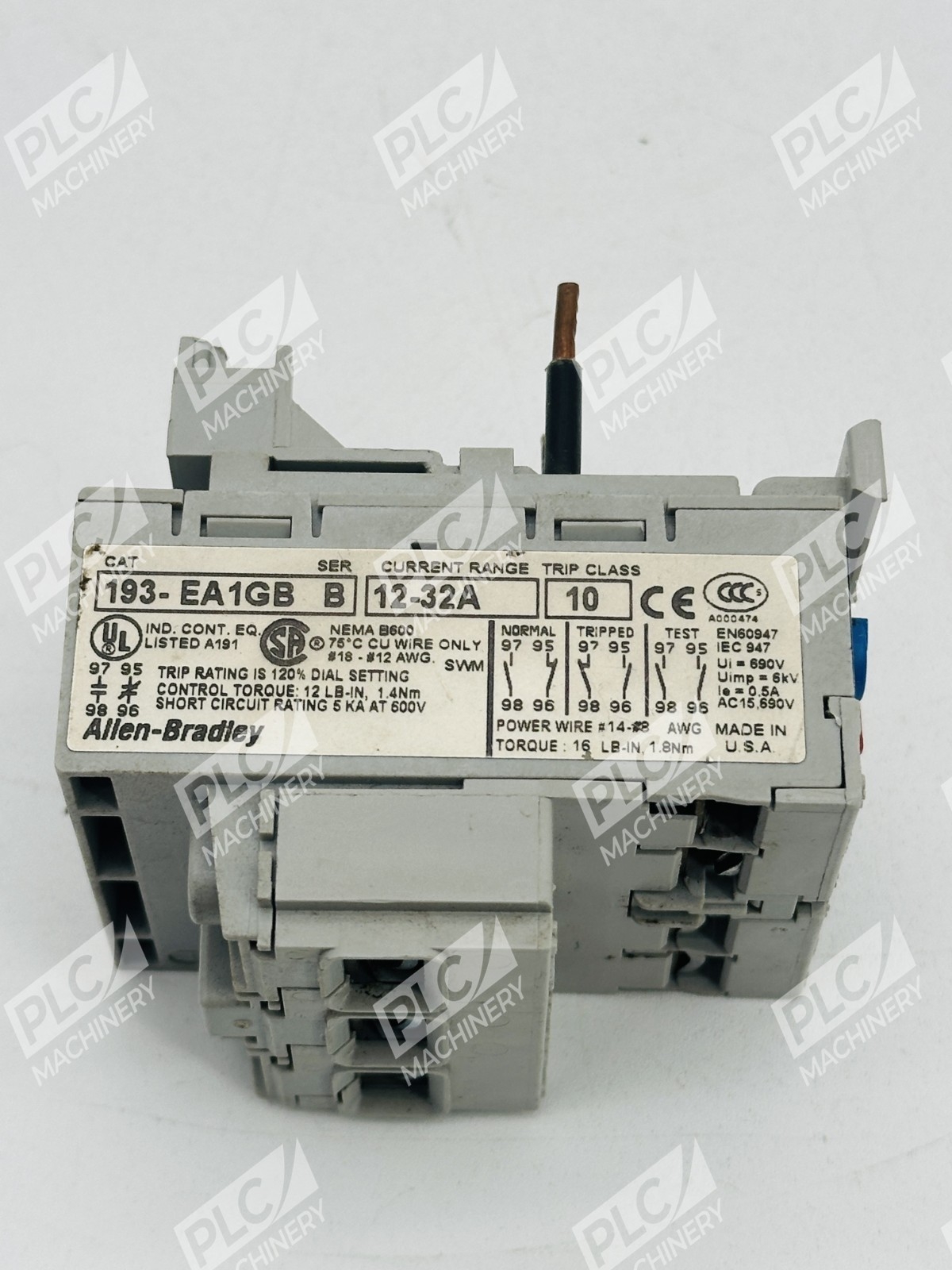

Technical Specifications
- Product Family: Bulletin 193-EA
- Series: 193-E (Allen-Bradley 193-E Series)
- Current Adjustment Range: 12–32A
- Trip Class: Class 10
- Reset Type: Manual
- Relay Type: Solid State
- Compatible Controllers: Bulletin 100-C09, 100-C10, 100-C18, 100-C23 contactors
- Weight: 0.40 lbs
- Protection Function: Overload and phase loss detection
- Mount Style: DIN rail compatible mounting
Typical Applications
The 193-EA1GB is commonly deployed in:
- NEMA motor starter assemblies with small to medium AC induction motors (12–32A range)
- Industrial control panels requiring overload and phase-loss protection
- Machinery automation systems with predictable motor loads
- Facility maintenance and retrofit projects for aging motor control systems
- OEM equipment builds requiring drop-in relay replacements
Compatibility & Replacements
Compatible With
- Allen-Bradley Bulletin 100-C09 through 100-C23 IEC contactors
- NEMA Size 00 motor control assemblies
- AC induction motor protection systems
- Industrial automation control panels with 12–32A motor loads
- Allen-Bradley 193-E Series relay systems
Replaces / Drop-In Replacement For
- Original Allen-Bradley 193-EA1GB units (same catalog number)
- Legacy thermal overload relays in NEMA Size 00 starters
- Verify compatibility with your system integrator before ordering if replacing older or non-Allen-Bradley units
Works With
- Bulletin 193 electronic and solid-state overload relay ecosystem
- Allen-Bradley motor control and automation platforms
- Manual or automatic contactor control circuits
- Auxiliary signaling systems and status monitoring circuits
