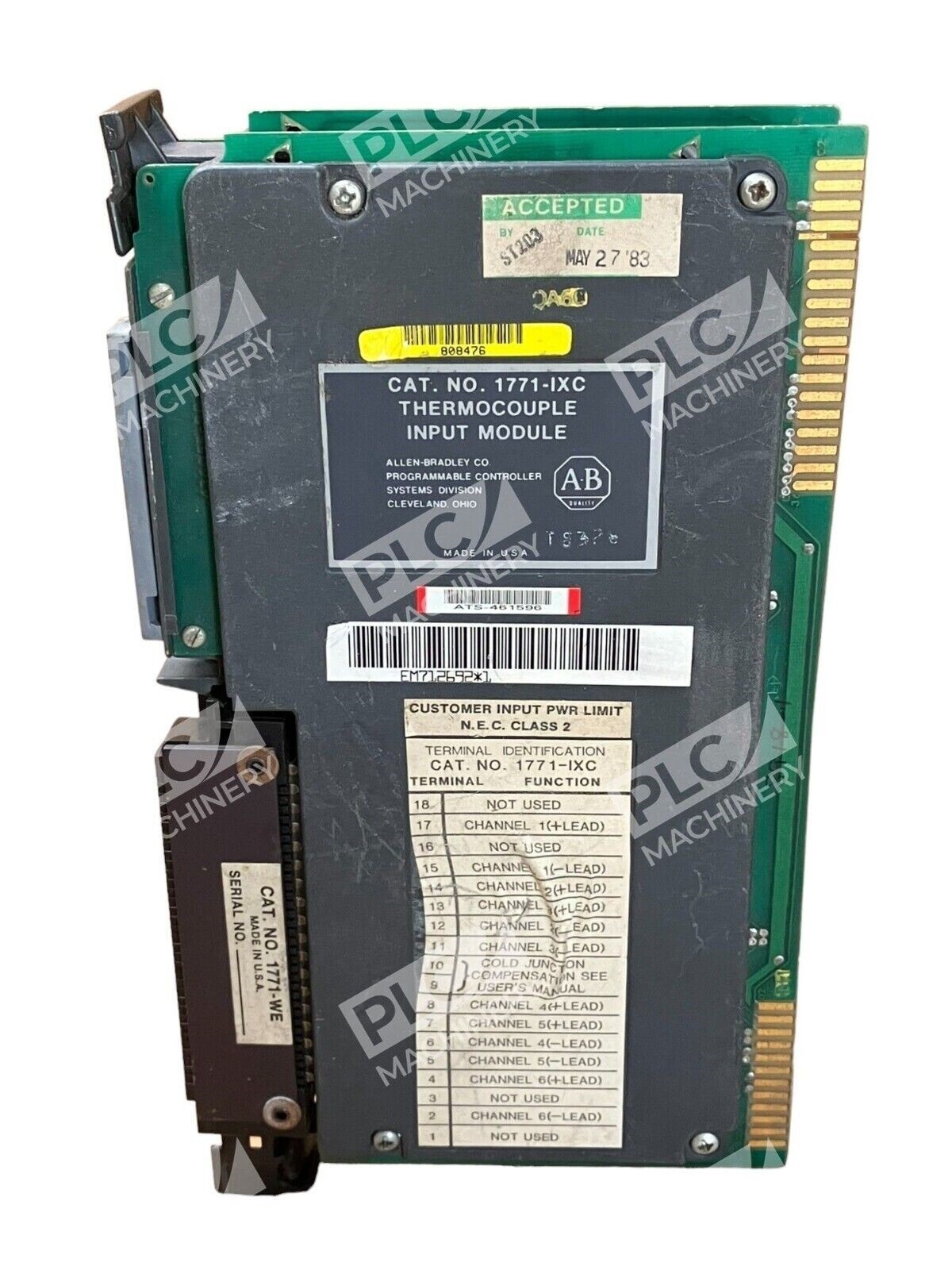

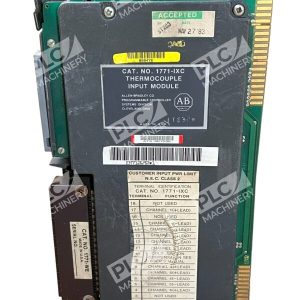

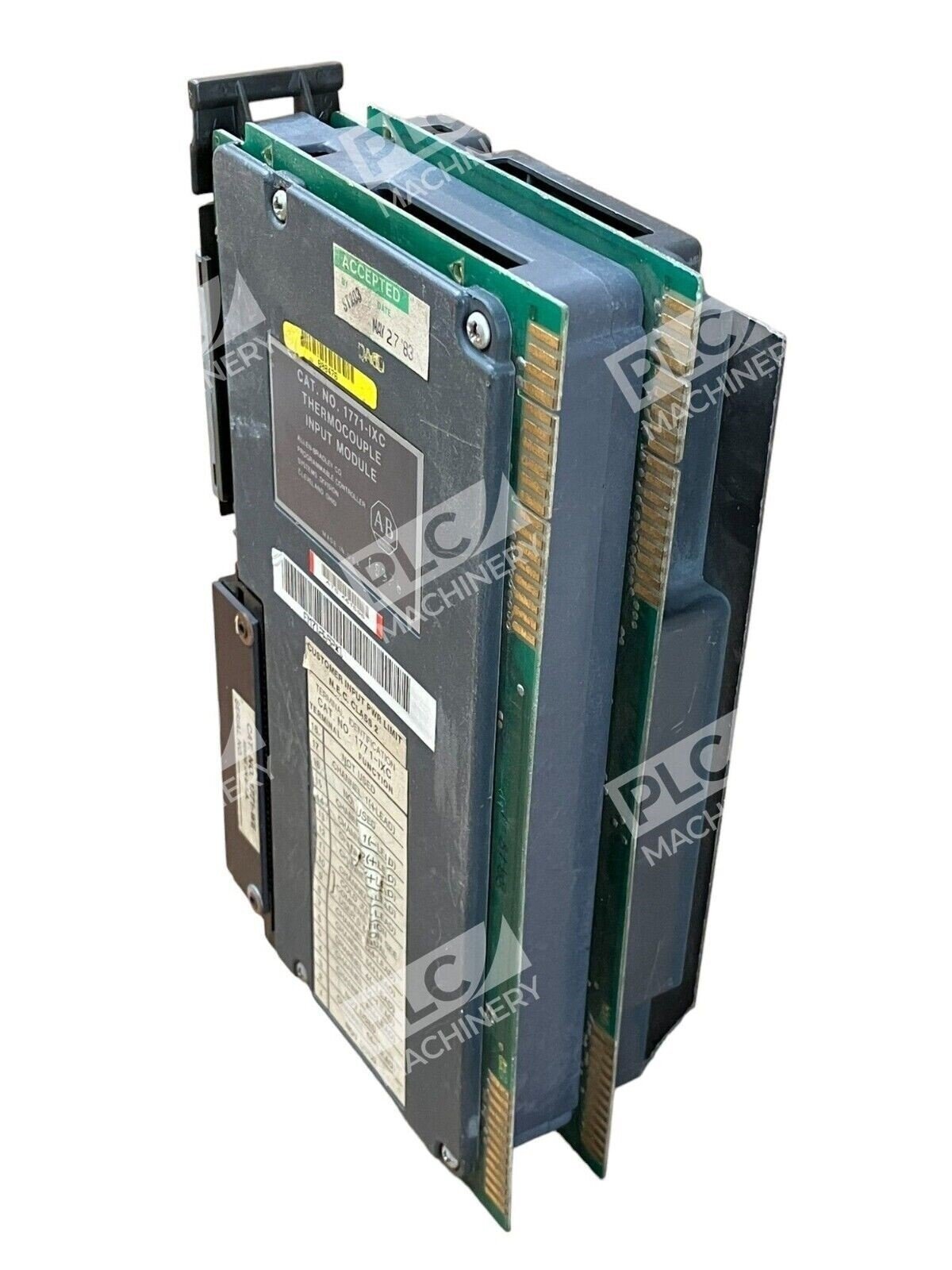

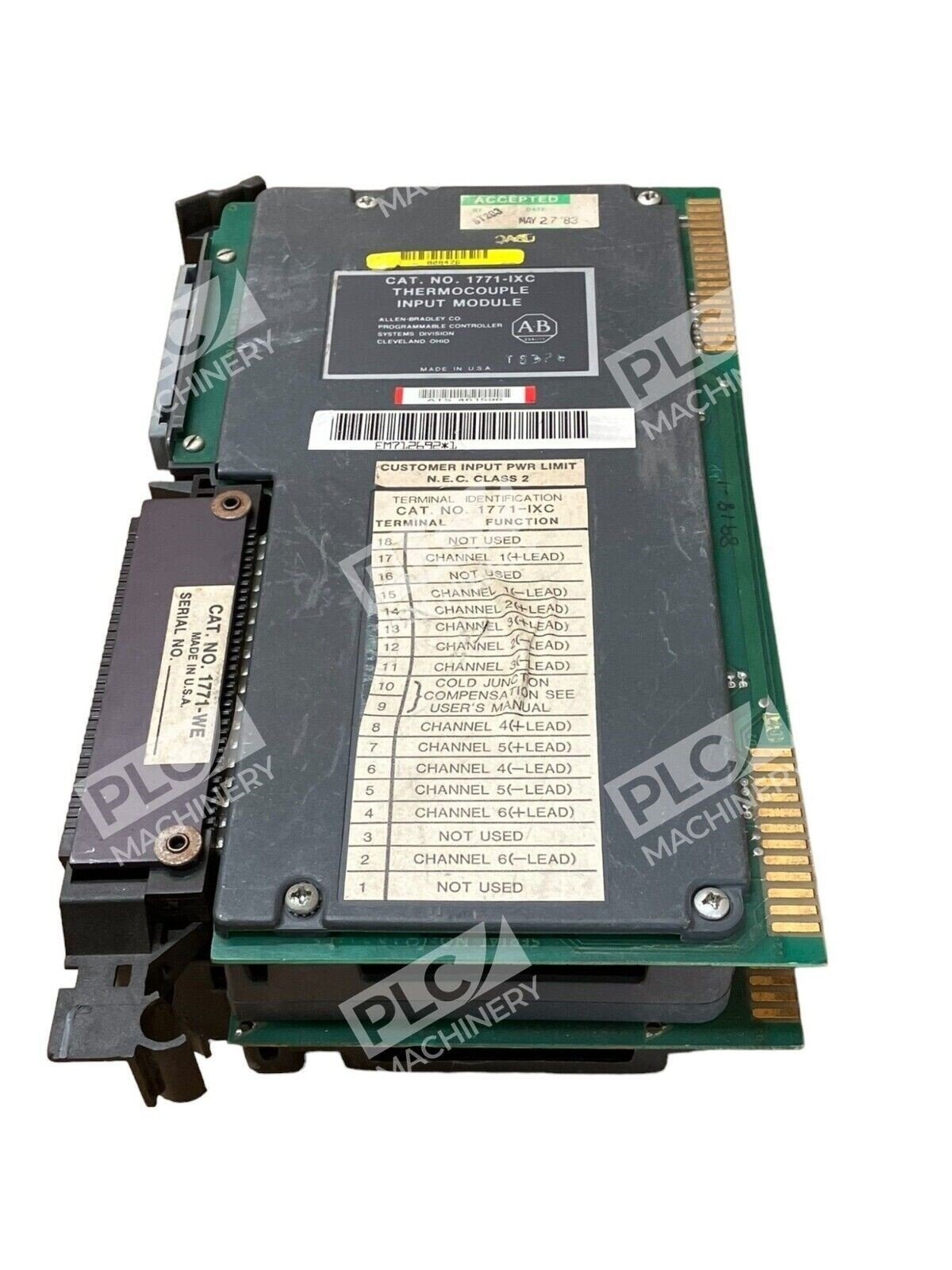

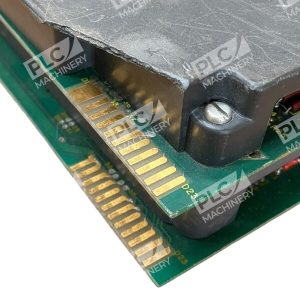

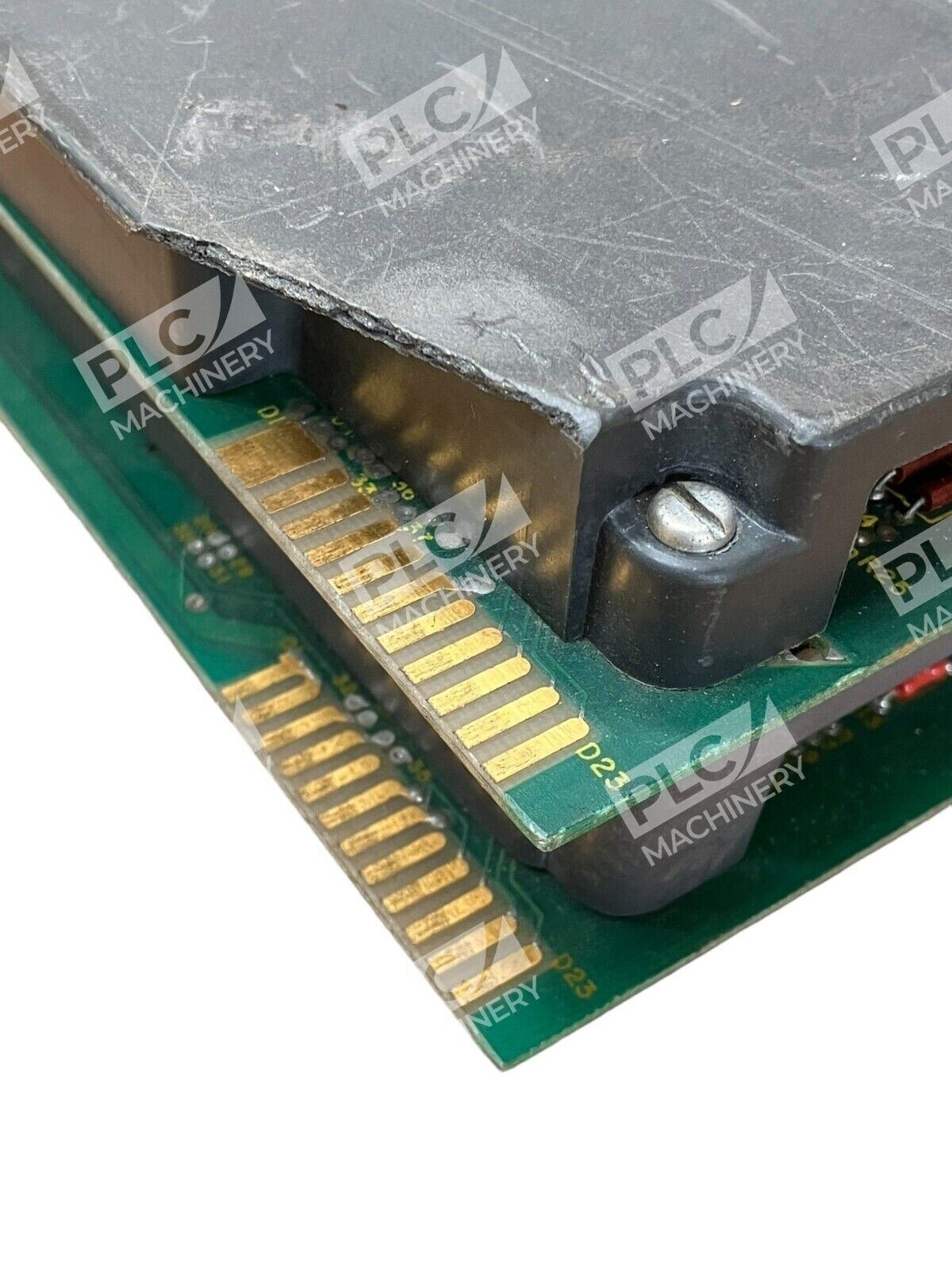

Allen Bradley 1771-IXC Thermocouple Input Module

Allen-Bradley 1771-IXC Thermocouple Input Module

The Allen-Bradley 1771-IXC is a thermocouple input module designed for precise temperature measurement applications within industrial automation systems. This module seamlessly integrates with the PLC-5 series, offering reliable and accurate data acquisition from various thermocouple types.

Key Features

• Input Channels: Equipped with 8 differential input channels, the 1771-IXC supports connections for multiple thermocouples, facilitating comprehensive temperature monitoring across different processes.
• Thermocouple Compatibility: The module is compatible with a range of thermocouple types, including E, J, K, T, R, and S, accommodating diverse industrial requirements.
• Cold Junction Compensation: Incorporates cold junction compensation within a range of 0 to 60°C, ensuring accurate temperature readings by compensating for ambient temperature variations.
• Temperature Resolution: Offers a resolution of 1°C or 1°F, providing precise temperature measurements essential for critical applications.
• Millivolt Input Range: Supports a millivolt input range of ±100 mV, enhancing its versatility in handling various sensor outputs.
• Channel Update Time: Achieves a channel update time of 50 milliseconds for all 8 channels, ensuring timely data acquisition and system responsiveness.
• Backplane Current Load: Consumes 750 mA at 5V DC from the backplane, optimizing power usage within the system.
• Wiring and Installation: Utilizes the 1771-WI field wiring arm, simplifying the wiring process and allowing for easy module replacement without disconnecting field wiring.

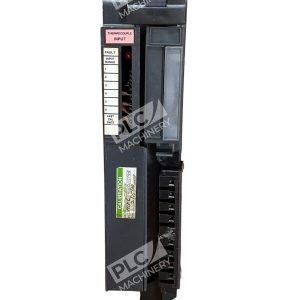

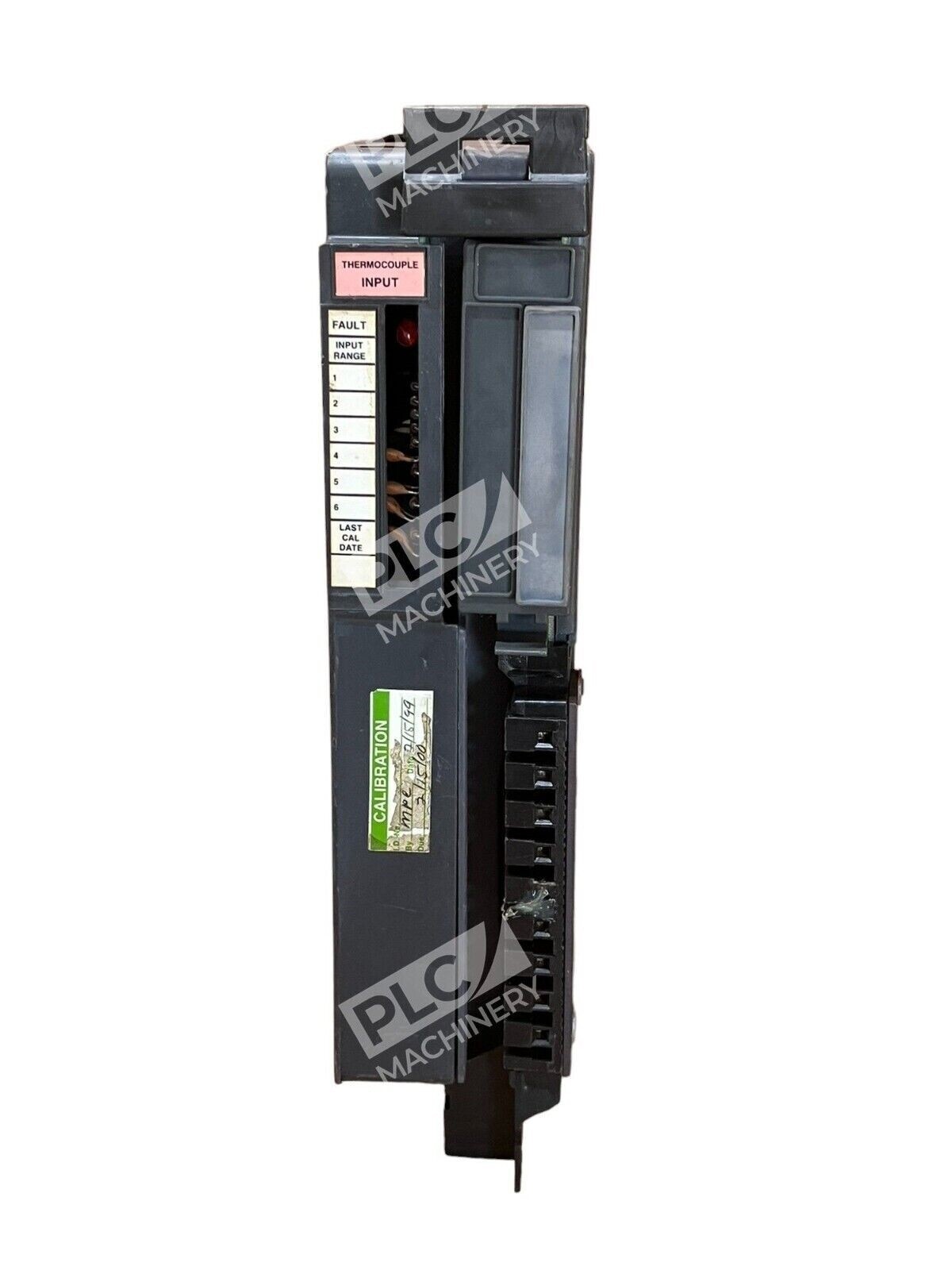

• Diagnostic Indicators: Features front panel indicators, including a green RUN LED and a red FAULT LED, providing immediate visual status updates for operational monitoring.

Applications

The 1771-IXC module is ideal for industries requiring precise temperature monitoring and control, such as chemical processing, food and beverage production, and pharmaceutical manufacturing. Its compatibility with multiple thermocouple types and reliable performance make it a valuable component in maintaining process integrity and product quality.

Installation and Configuration

Designed for seamless integration into the 1771 I/O chassis, the 1771-IXC occupies a single slot and does not require an external power supply. Configuration is facilitated through block transfer programming, allowing for efficient setup and calibration to meet specific application needs.

By incorporating the Allen-Bradley 1771-IXC Thermocouple Input Module into your automation system, you can achieve accurate and reliable temperature measurements, essential for optimizing process control and ensuring product consistency.
