Overview

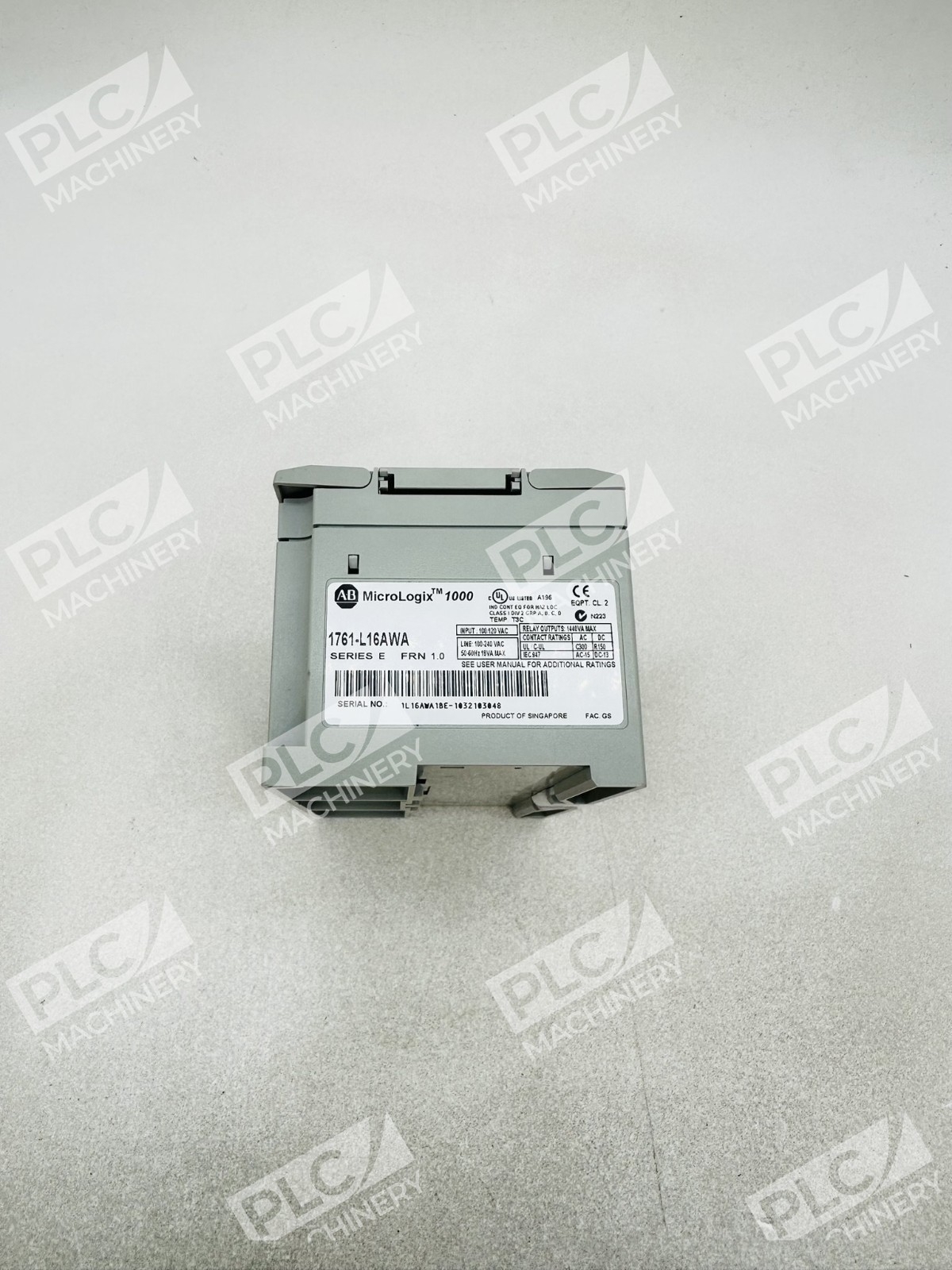

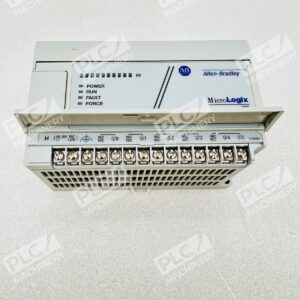

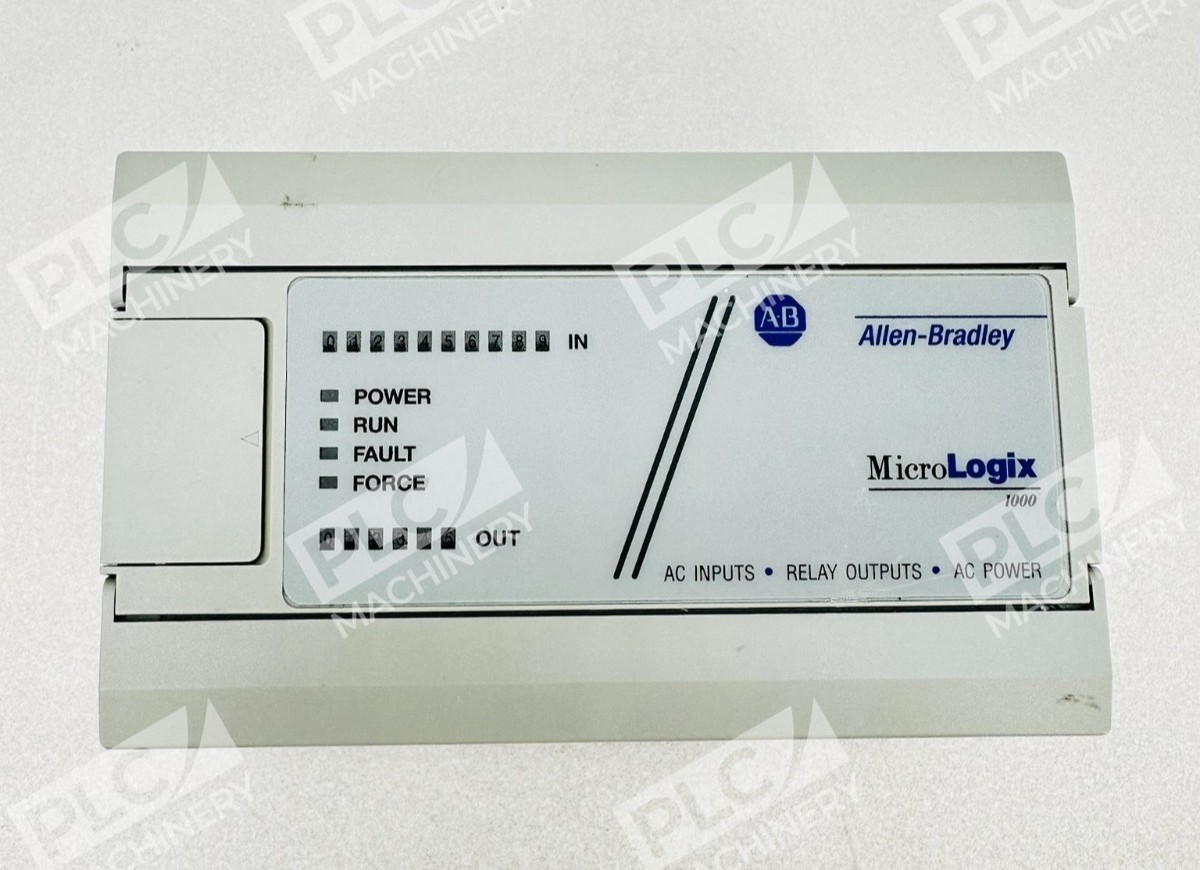

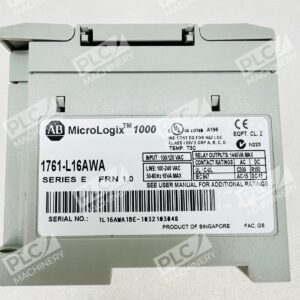

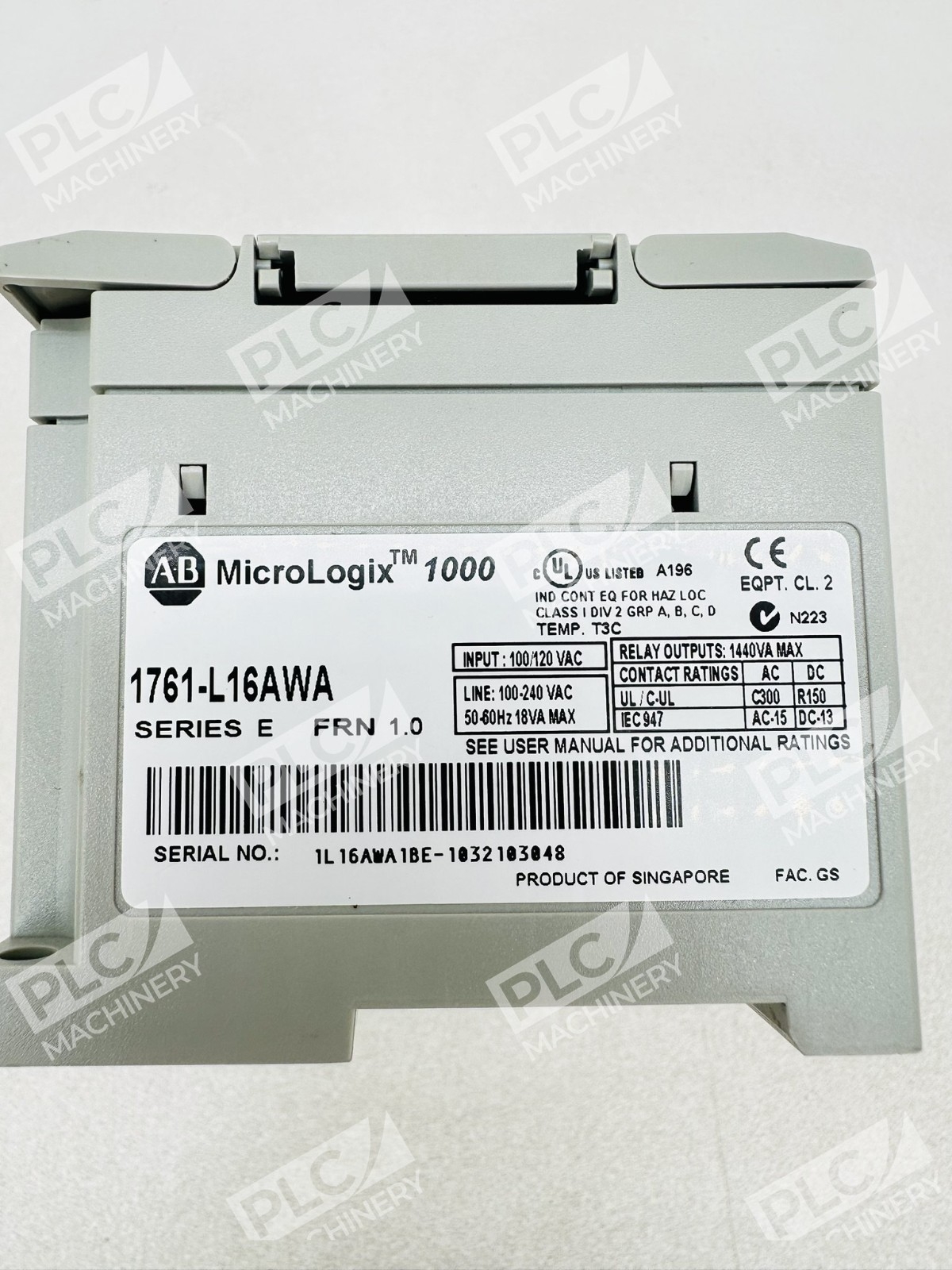

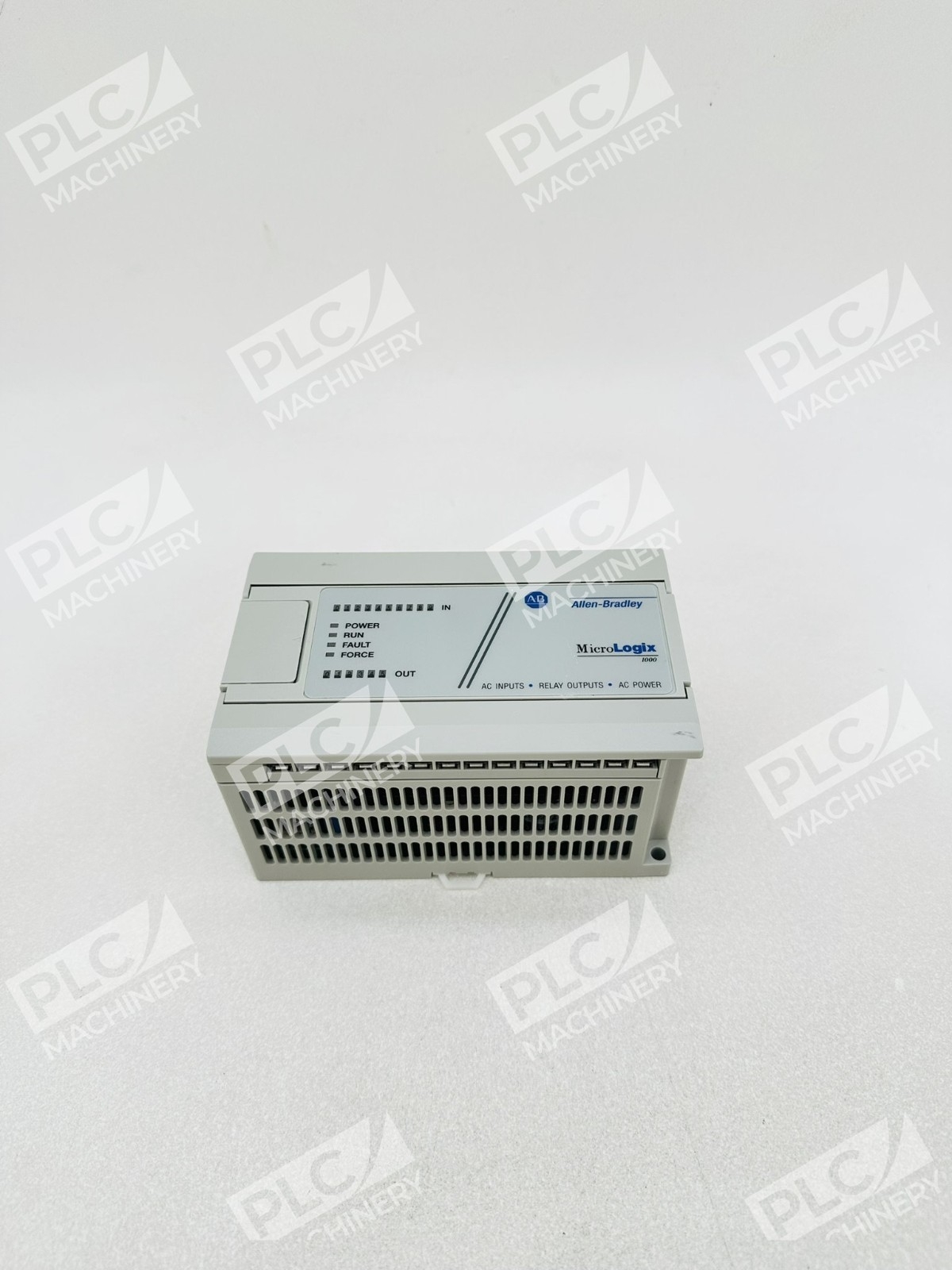

The Allen-Bradley 1761-L16AWA is a compact controller from the MicroLogix 1000 family, designed for basic control capabilities in small to mid-size industrial automation applications. This compact controller features 1K memory, integrated RS232 communication port, sixteen discrete inputs and six relay outputs. Ideal for use in micro and small automation requirements, the 1761-L16AWA integrates power supply, I/O channels, memory, and communication in a single compact unit.
Key Features

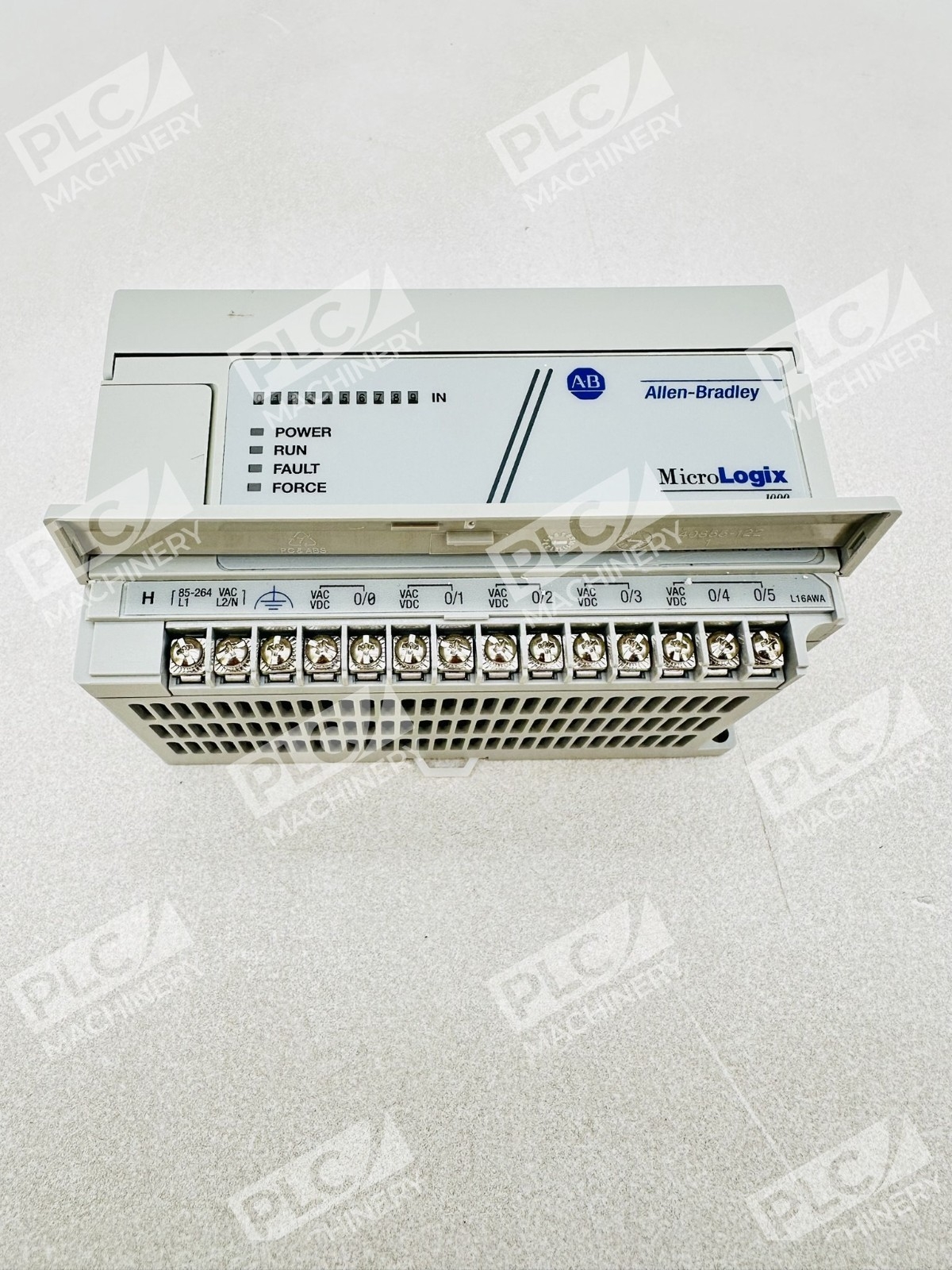

- 16 integrated I/O points comprising ten 79-132 VAC rated inputs and six relay output channels rated for 24-125 VDC and 120-240 VAC
- One RS232 8-pin mini DIN communication port supporting DF1 and MODBUS slave protocols
- 1K EEPROM memory with approximately 737 instructions and 437 data words capacity
- 40 timers with 2 milliseconds typical program scan time per Kword
- Capable of implementing discrete and analog control as well as time-based, counter-based, and simple motion control applications
- DIN rail or panel mounting for flexible installation
Technical Specifications
- Power Supply: 85-264 VAC rated input
- Digital Inputs: 10 at 79-132 VAC
- Relay Outputs: 6 relay channels rated 24-125 VDC and 120-240 VAC
- Memory: 1K EEPROM
- Communication: RS232 DF1, MODBUS slave
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Enclosure Rating: IP20
- Certifications: C-TICK, CE, GOST, KC

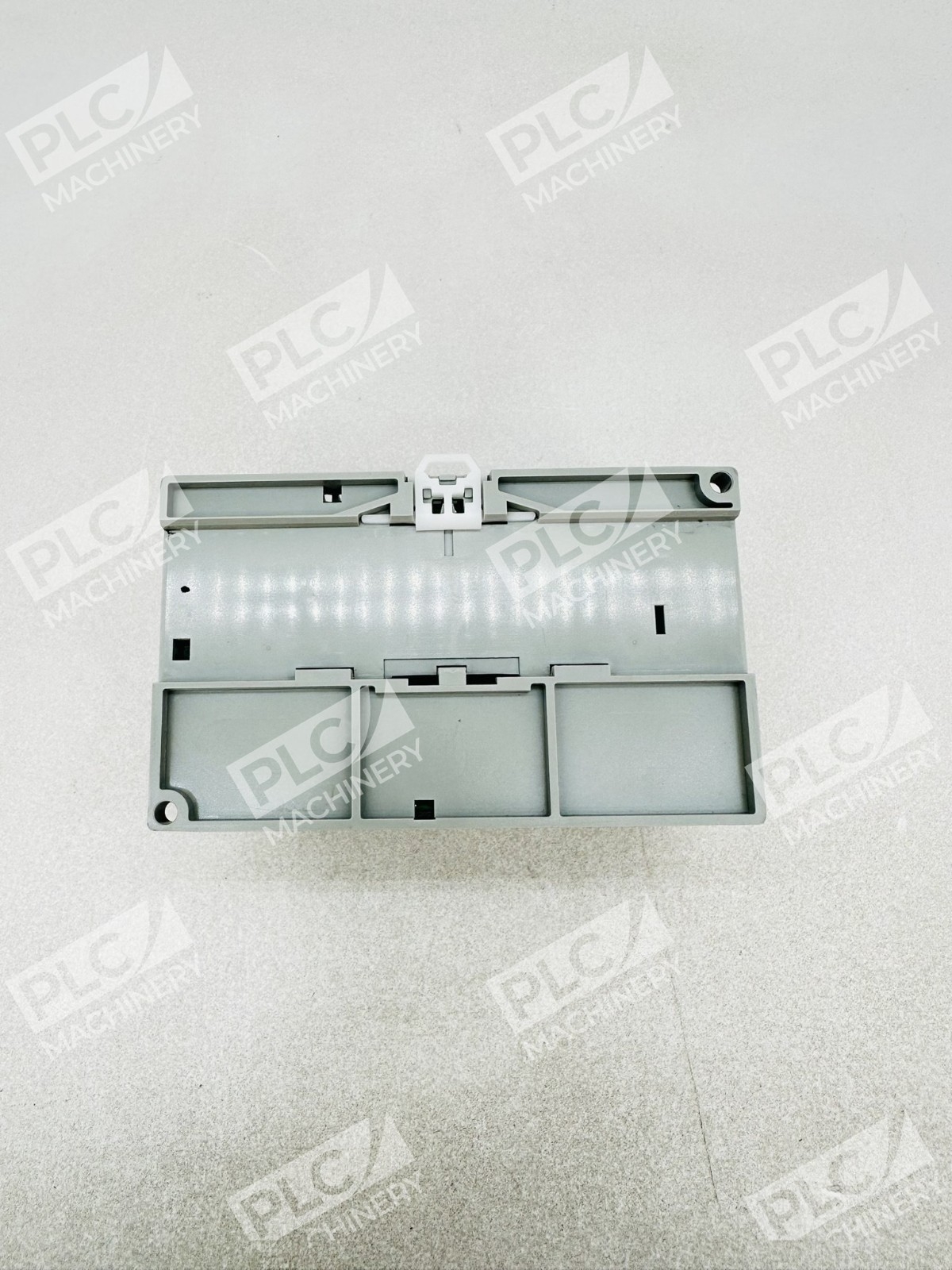

- Mounting: DIN rail or panel mount
Typical Applications
The 1761-L16AWA is suited for discrete control in small automation systems including motor control, pneumatic circuit control, simple sequencing, alarm monitoring, and basic process control. Common applications include packaging equipment, conveyor systems, small assembly machines, and facility automation where basic I/O control is required without advanced networking capabilities.
Compatibility & Replacements
Compatible With
- MicroLogix Hand-Held Programmer (HHP)
- RS232 serial communication networks
- DF1 and MODBUS slave protocols
- Allen-Bradley legacy automation systems
- Basic discrete logic programming environments
Replaces / Drop-In Replacement For
The 1761-L16AWA is a member of the MicroLogix 1000 family. Compared to 1761-L10AWA which has 6 inputs and 4 outputs, this controller has greater I/O capacity with similar features. Verify compatibility with your system integrator before ordering to ensure this unit meets your application requirements.
Works With
- MicroLogix programming software and hand-held programmer
- DF1 serial communication protocol
- MODBUS slave protocol
- RS232 serial communication interfaces
- Allen-Bradley proprietary diagnostic and monitoring tools
