<h2>Overview</h2>

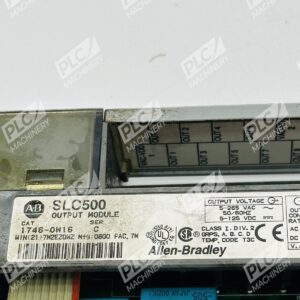

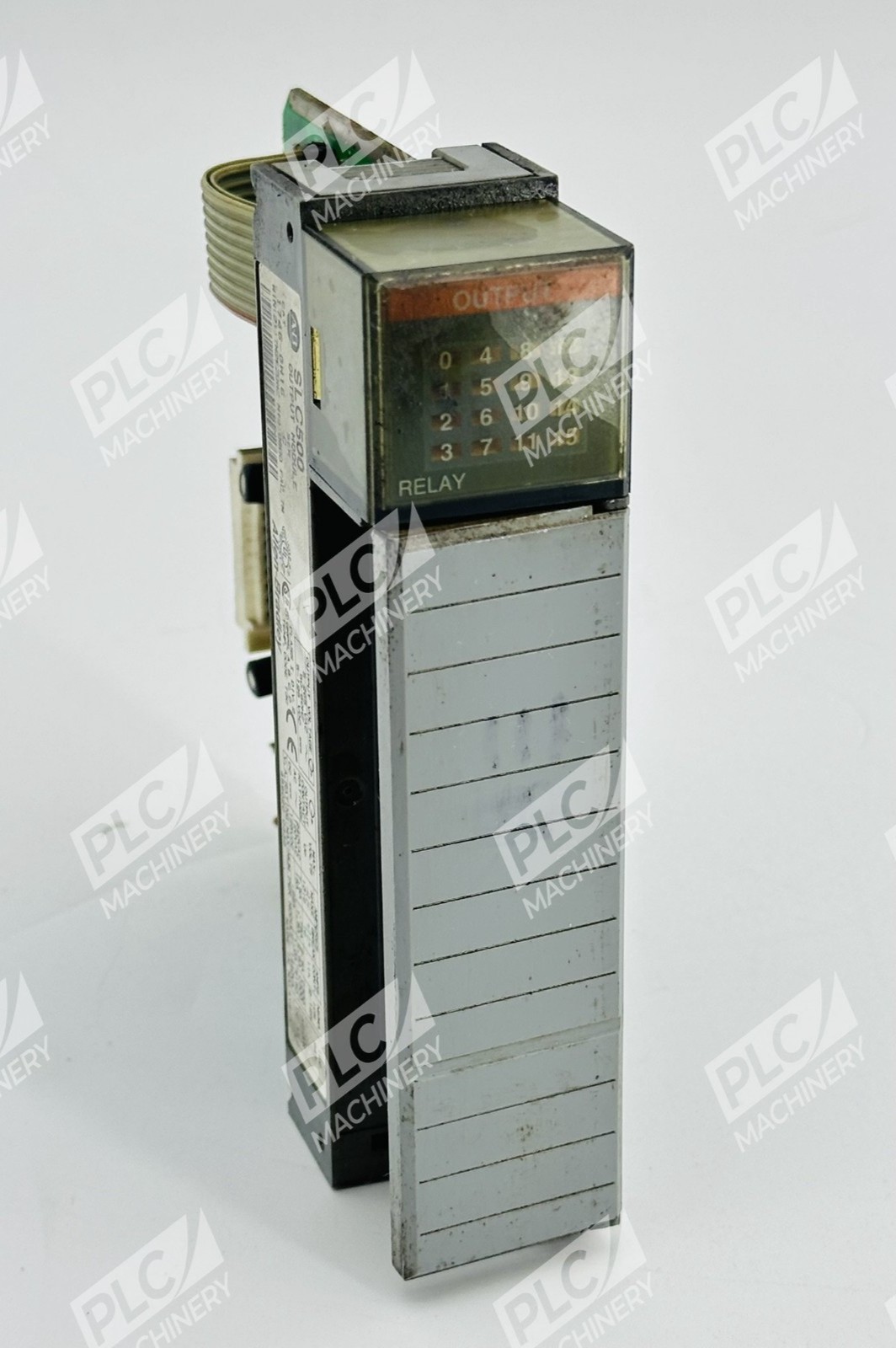

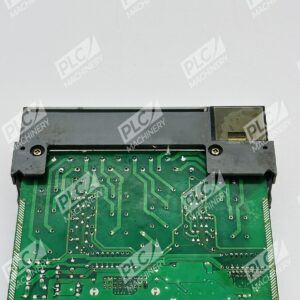

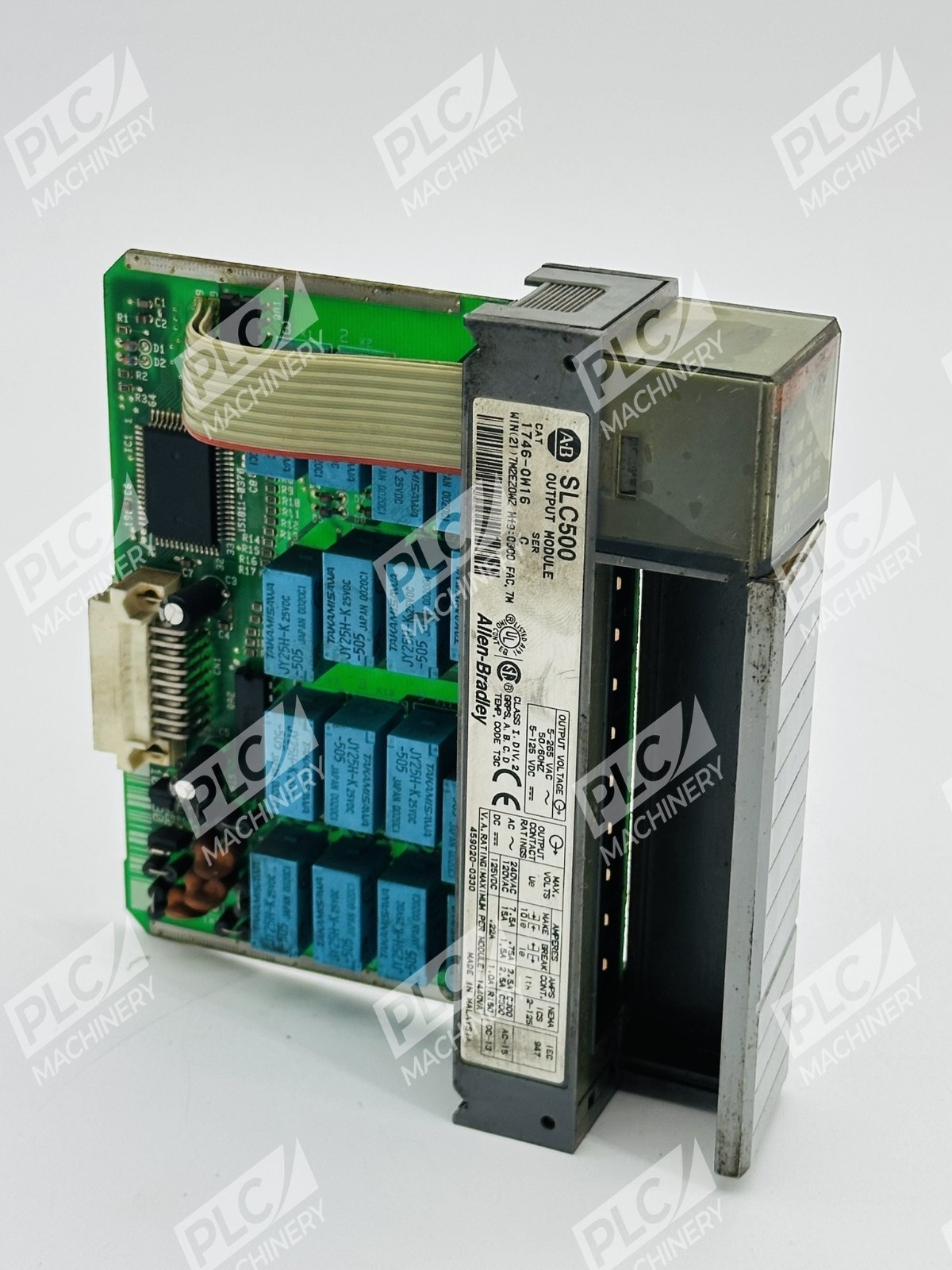

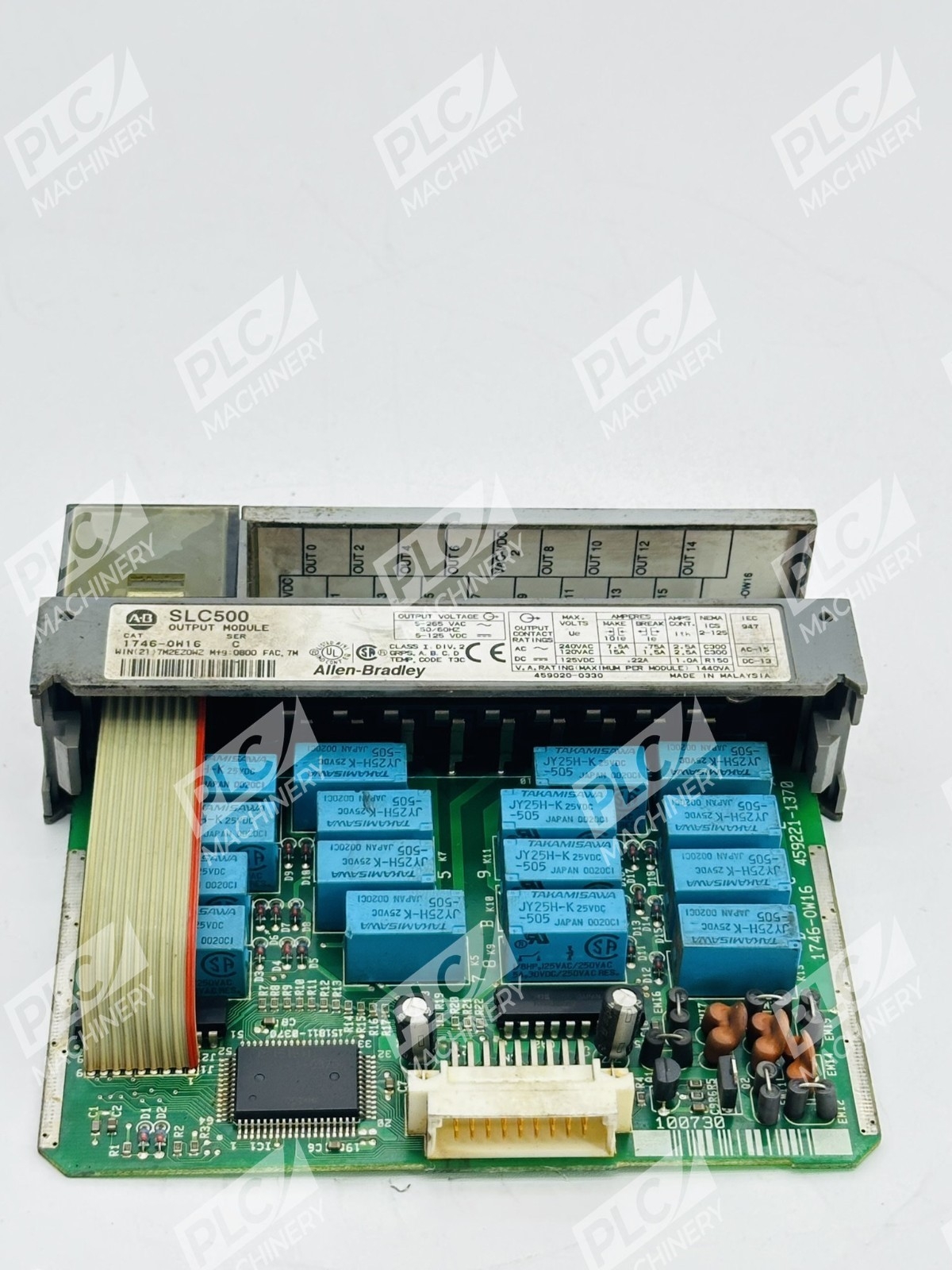

<p>The <strong>Allen-Bradley 1746-OW16</strong> Series C is a digital relay output module designed for the SLC 500 family of programmable logic controllers. <cite index=”4-1″>This 16-channel relay output module</cite> provides normally open relay contact outputs that switch both AC and DC loads across a wide voltage range. <cite index=”5-11″>As a relay output module from the SLC 500 programmable controllers series</cite>, the 1746-OW16 is ideal for industrial applications requiring isolated switching of external circuits without heavy software overhead.</p>
<h2>Key Features</h2>
<ul>
<li><cite index=”10-2″>16 relay outputs organized in 2 groups of 8 per common</cite></li>
<li><cite index=”5-2″>Operates with AC and DC relay voltage with backplane voltage levels of 5 Volts DC or 24 Volts DC</cite></li>

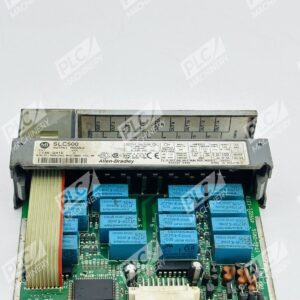

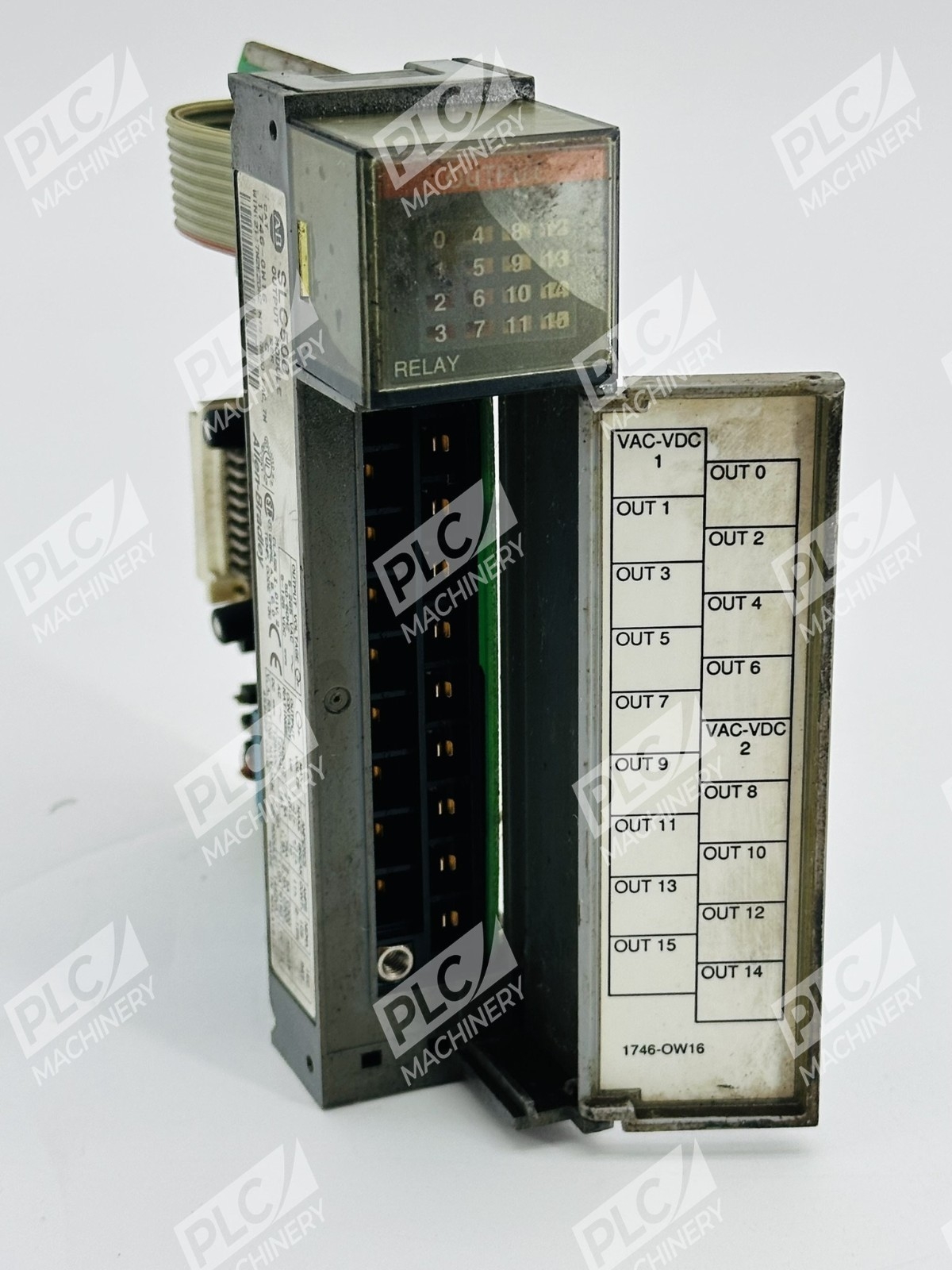

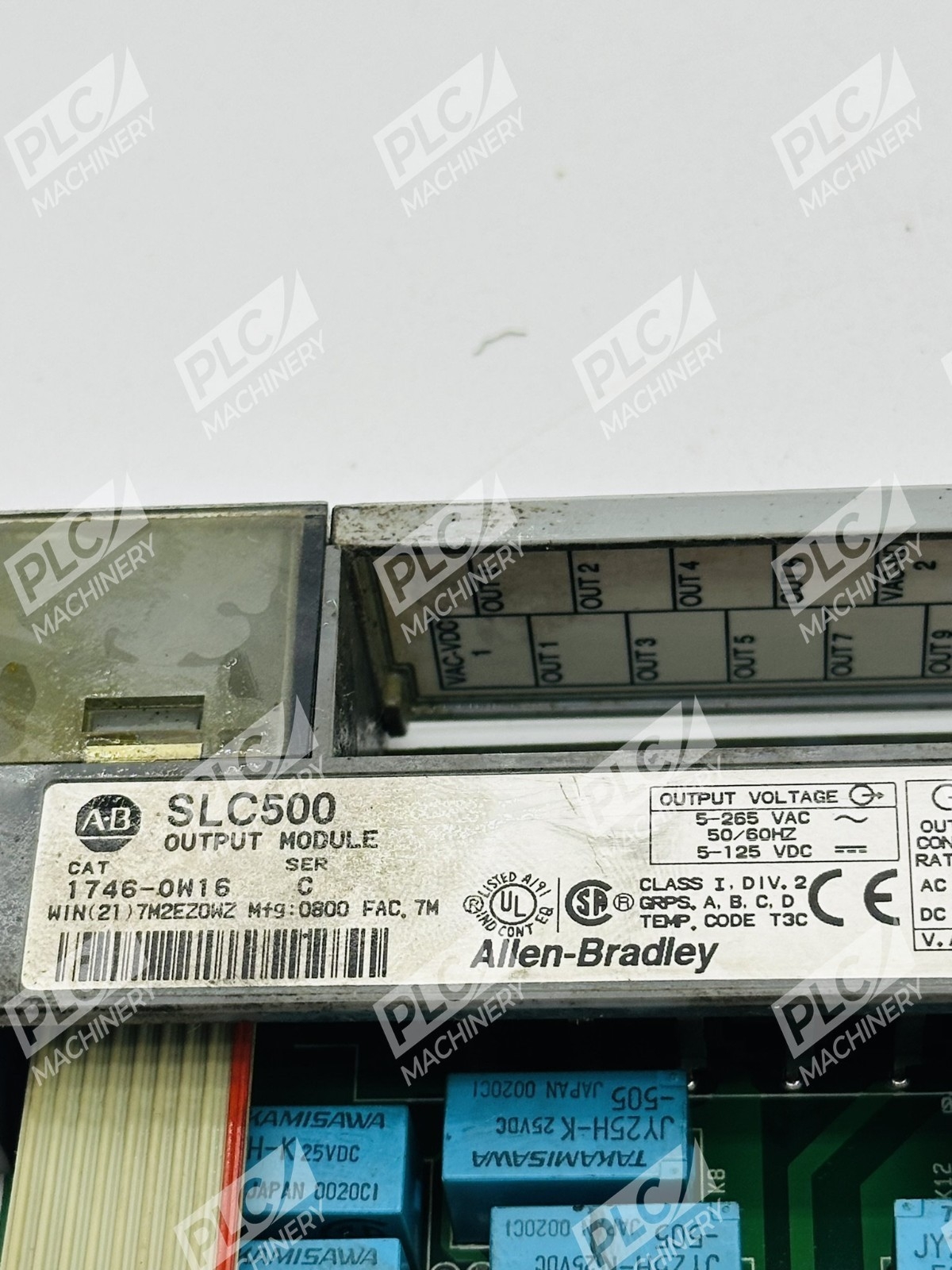

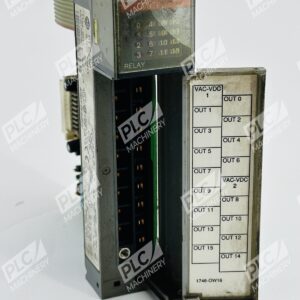

<li><cite index=”9-9″>Removable terminal block facilitates easy wiring and maintenance</cite></li>
<li><cite index=”10-2″>Isolation voltage of 1500V AC (backplane to output) and 500V DC (between outputs and user power)</cite></li>
<li><cite index=”5-18″>Terminal blocks guarded with barriers to prevent shorting of wiring</cite></li>
<li><cite index=”5-14″>All fixed and modular SLC 500 processors can receive data from the 1746-OW16 module</cite></li>
</ul>

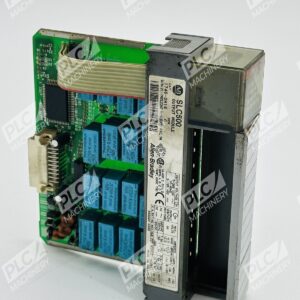

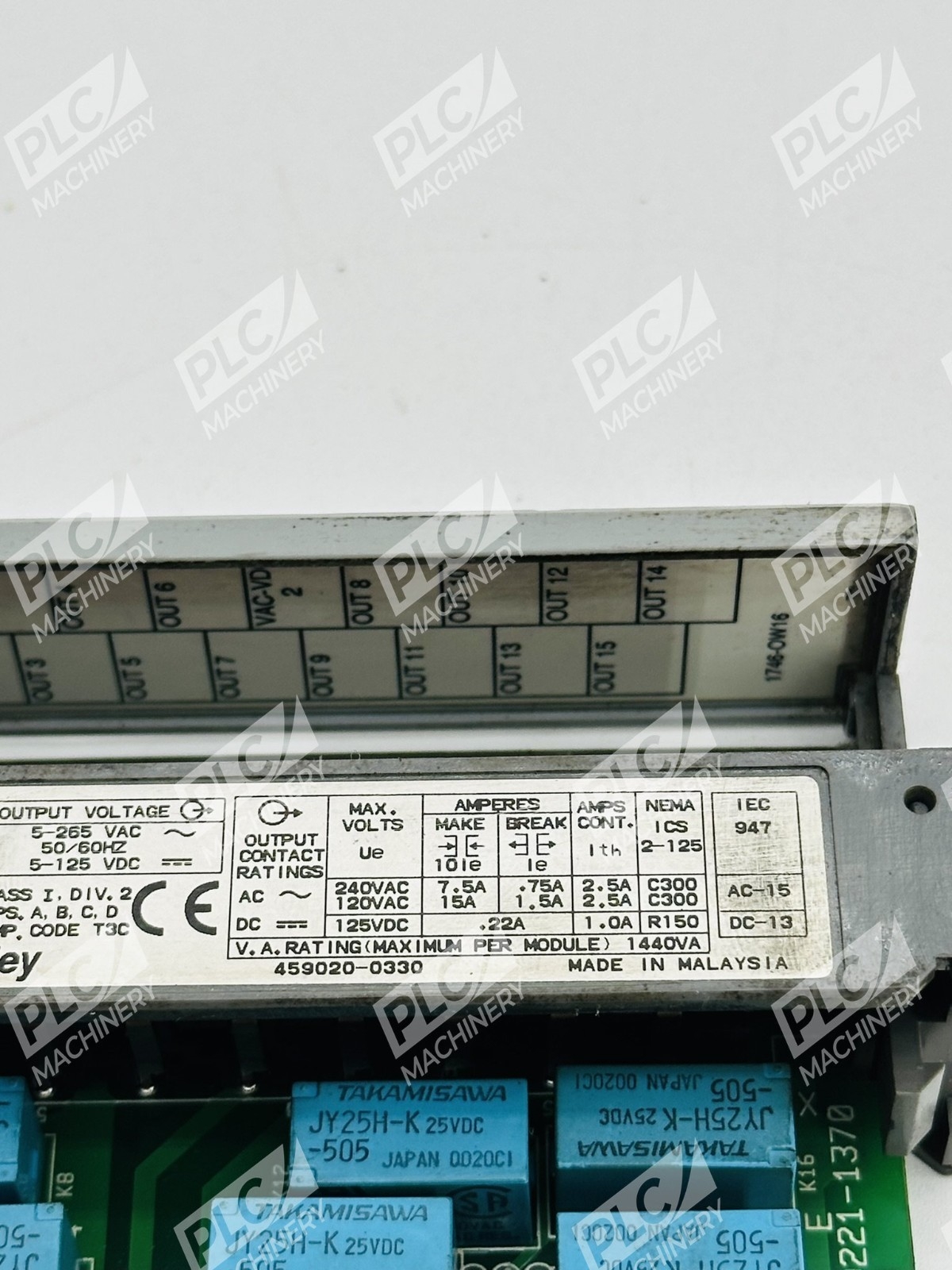

<h2>Technical Specifications</h2>
<ul>
<li><cite index=”10-2″>Output type: Relay (Normally Open)</cite></li>
<li><cite index=”10-2″>Number of outputs: 16 (2 groups of 8 per common)</cite></li>
<li><cite index=”10-2″>Operating voltage: AC 5–265V, DC 5–125V</cite></li>

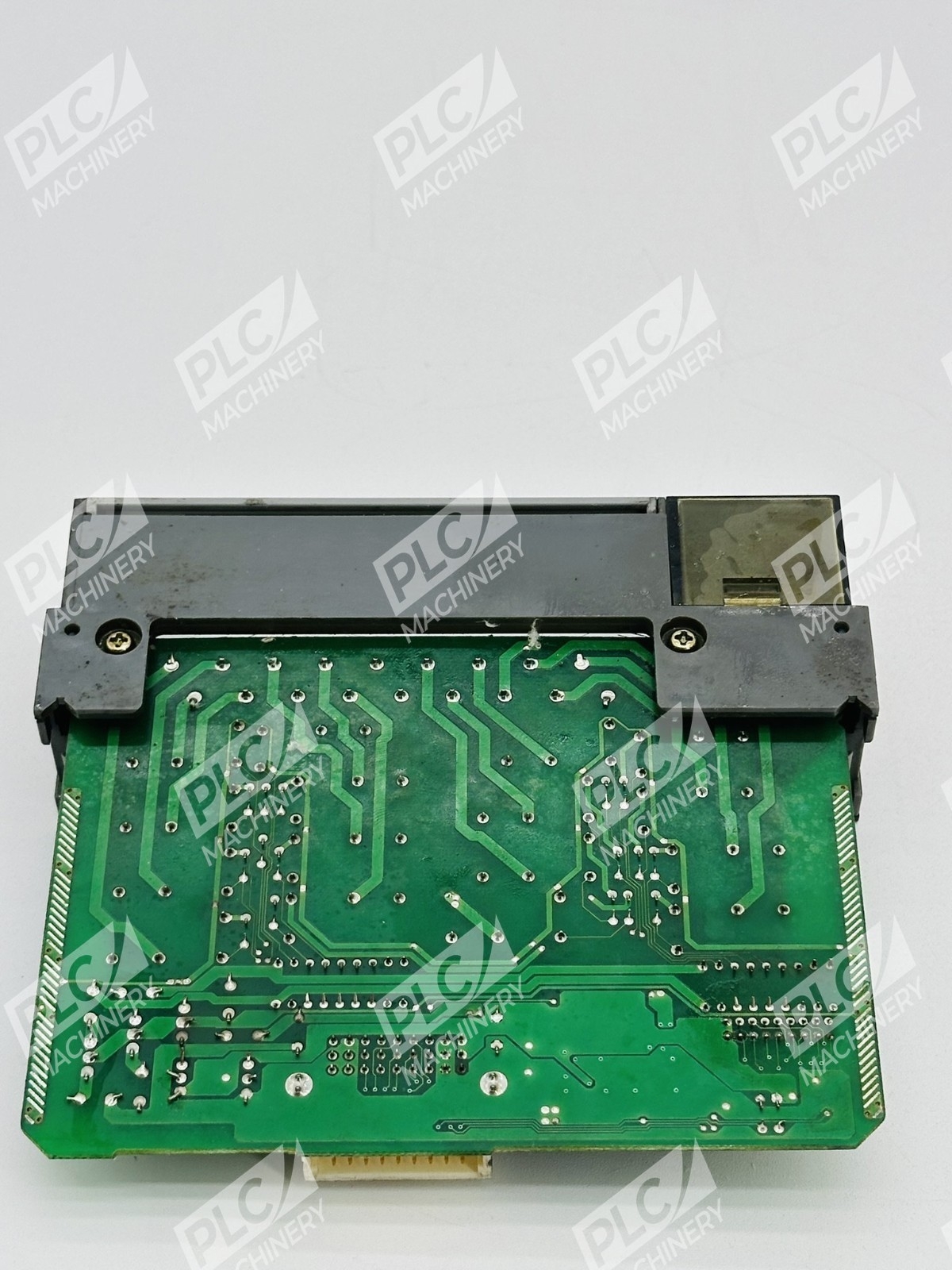

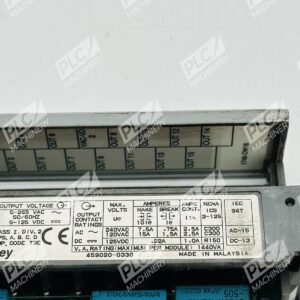

<li><cite index=”10-2″>Continuous current per output: 1.5A @ 120V AC, 1.2A @ 24V DC</cite></li>
<li><cite index=”10-2″>Backplane current draw: 170 mA @ 5V DC, 180 mA @ 24V DC</cite></li>
<li><cite index=”10-2″>Max signal delay (resistive load): 10 ms ON / 10 ms OFF</cite></li>
<li><cite index=”5-1″>Heat dissipation: 0.033W per point, 5.7W total maximum</cite></li>
<li><cite index=”10-2″>Mounting: Rack mountable</cite></li>
<li><cite index=”10-2″>Series: C</cite></li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li><cite index=”8-9″>Controlling motor starters and solenoids</cite></li>
<li><cite index=”8-10″>Switching lights, alarms, or other indicator devices</cite></li>
<li>HVAC system control and activation</li>
<li>Assembly line automation and equipment sequencing</li>
<li>Process control with external load isolation</li>
<li>Industrial facility automation where AC/DC mixed-voltage control is required</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>All fixed and modular SLC 500 programmable logic controllers</li>
<li>SLC 500 modular chassis</li>
<li>RSLogix 500 programming software</li>
<li>Standard SLC 500 I/O network</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<p>The 1746-OW16 Series C directly replaces earlier revisions of the 1746-OW16. Verify compatibility with your system integrator before ordering to ensure proper Series/revision match for your application.</p>
<h3>Works With</h3>
<ul>
<li>RSLogix 500 (ladder logic programming)</li>
<li>Allen-Bradley SLC 500 modular platform</li>
<li>Industry standard relay control circuits</li>
<li>External AC/DC load devices (motors, solenoids, lights, alarms)</li>
</ul>
