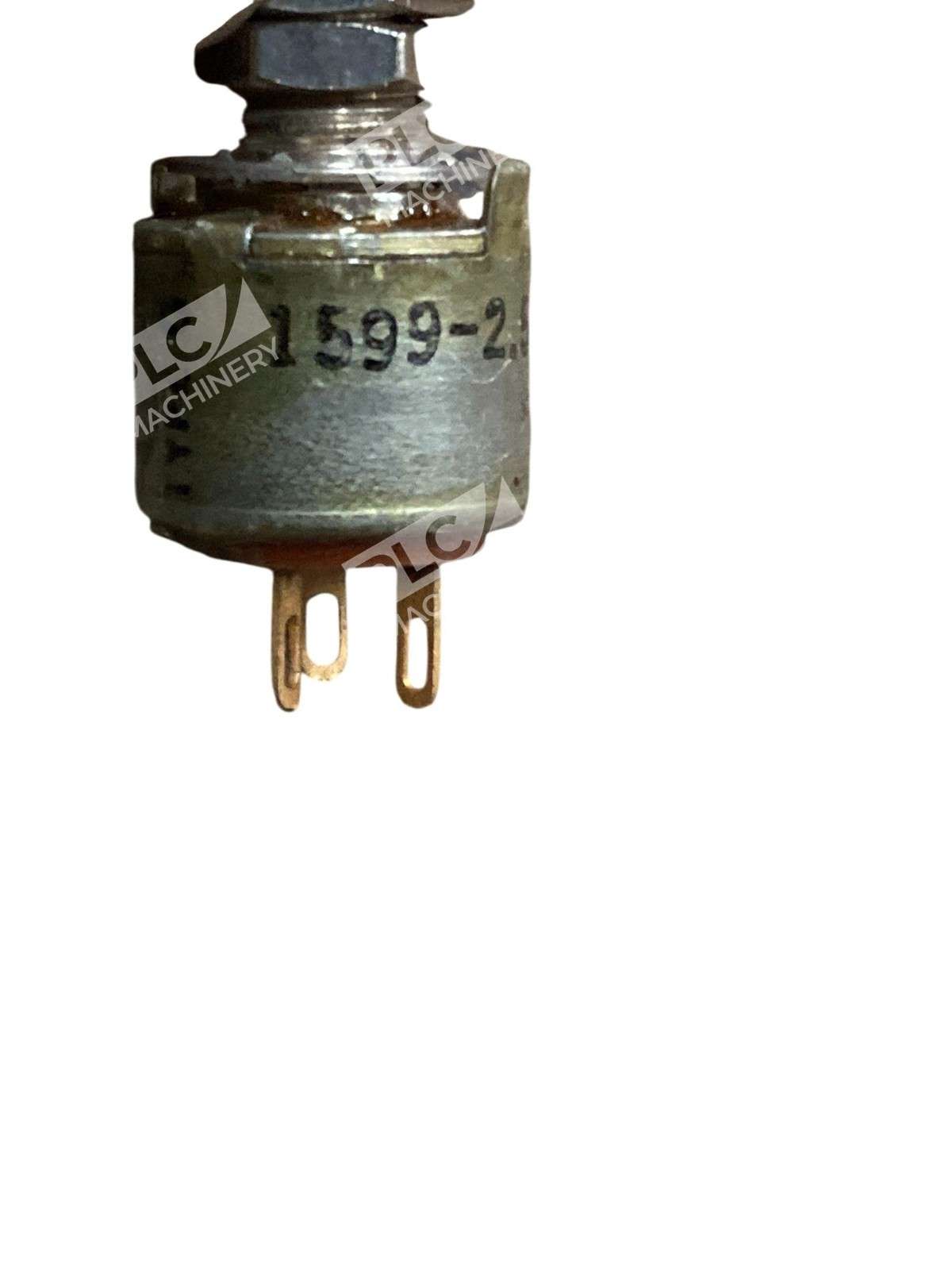

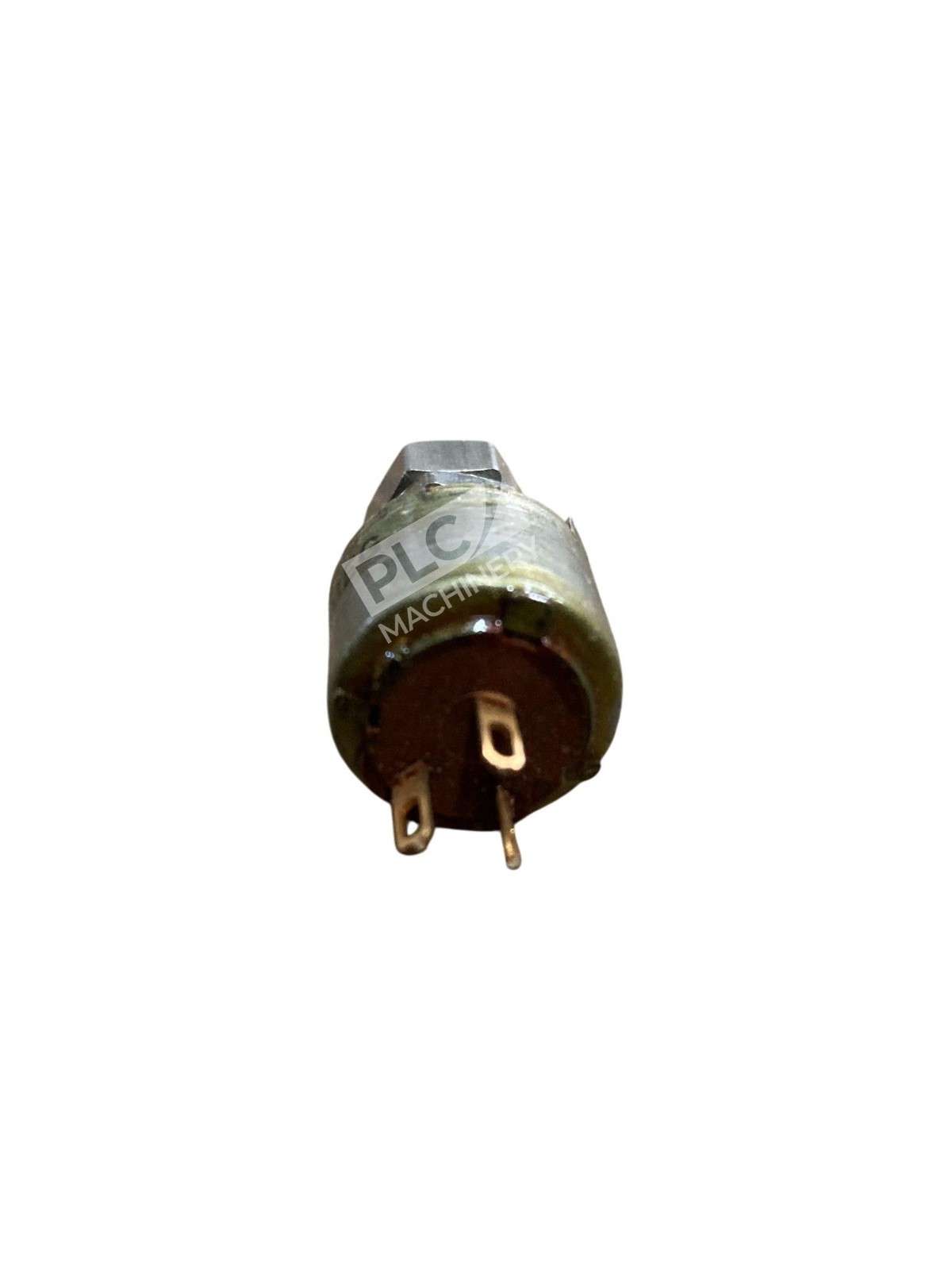

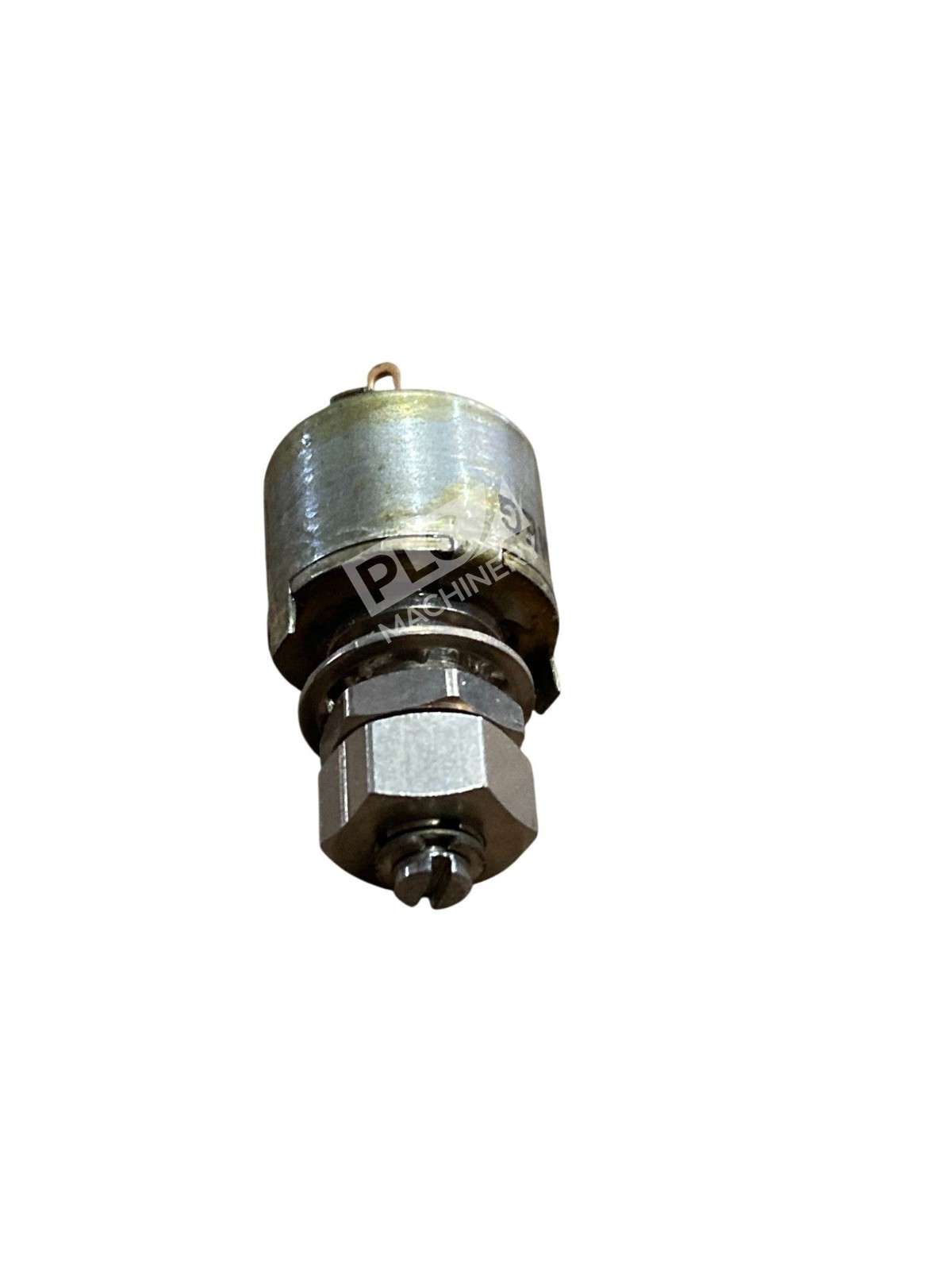

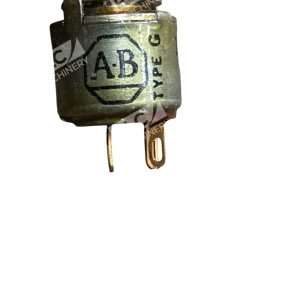

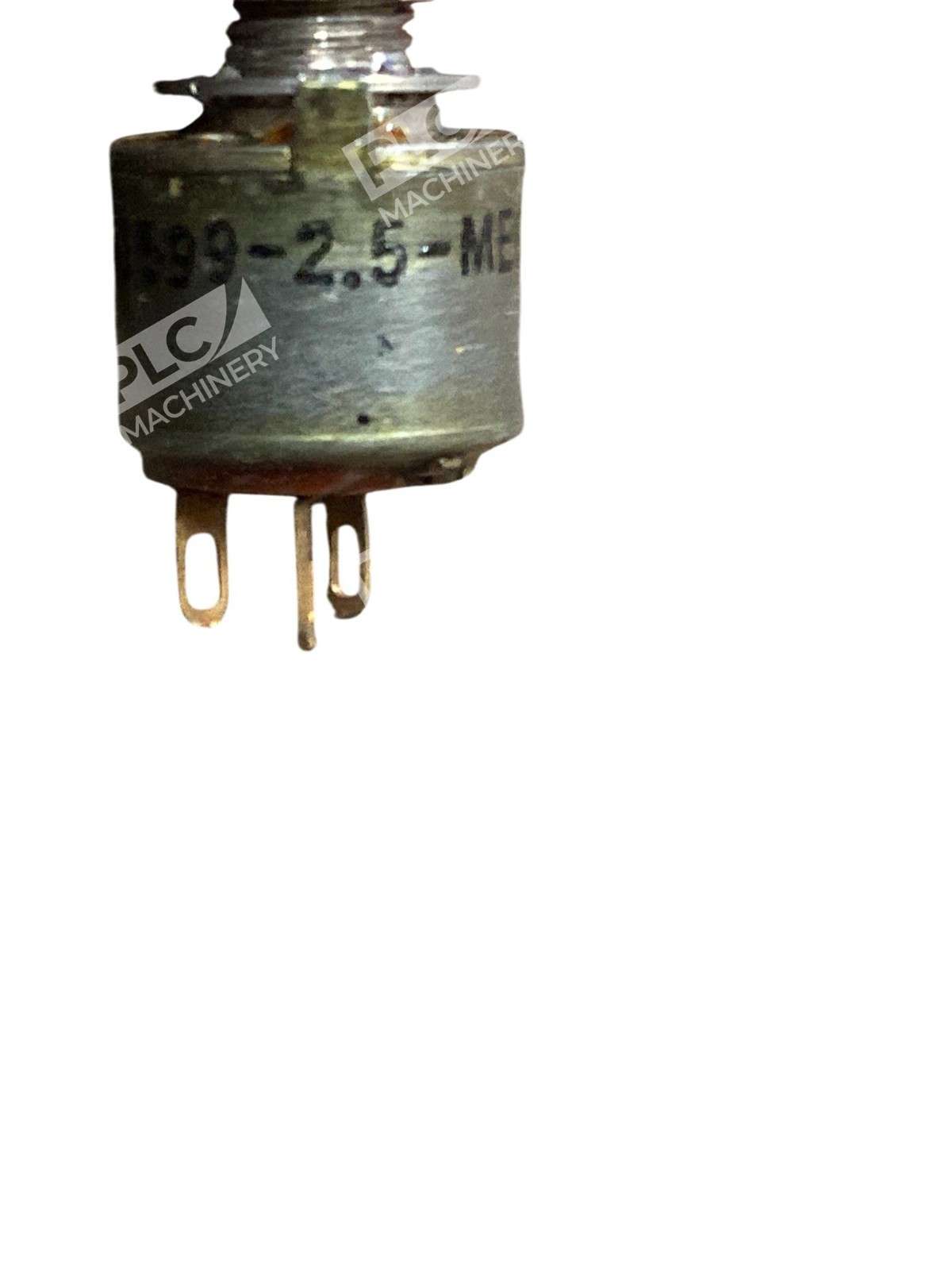

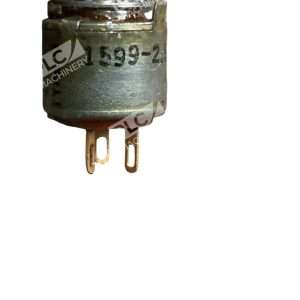

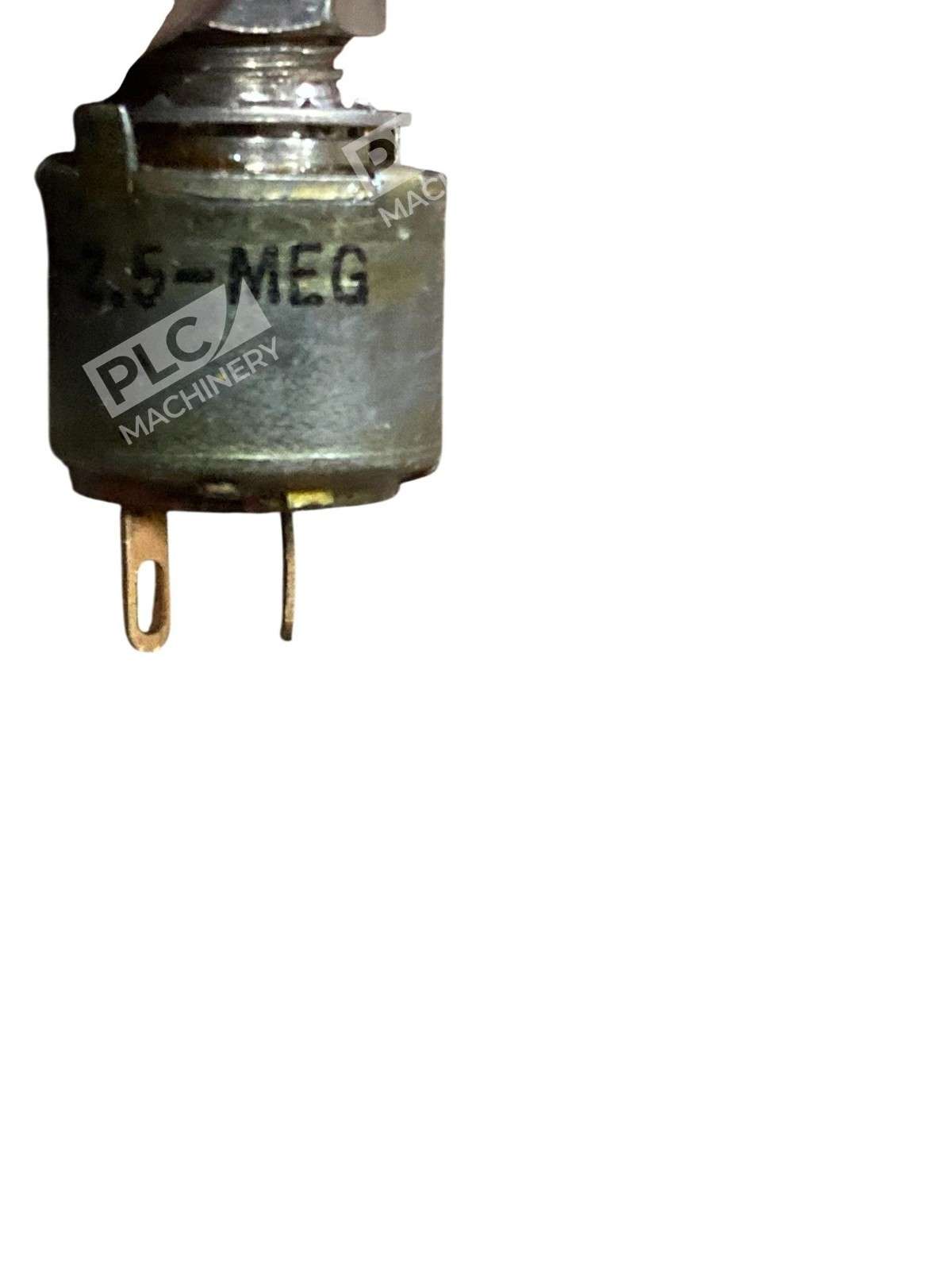

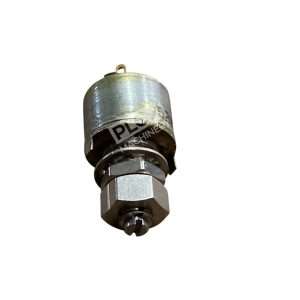

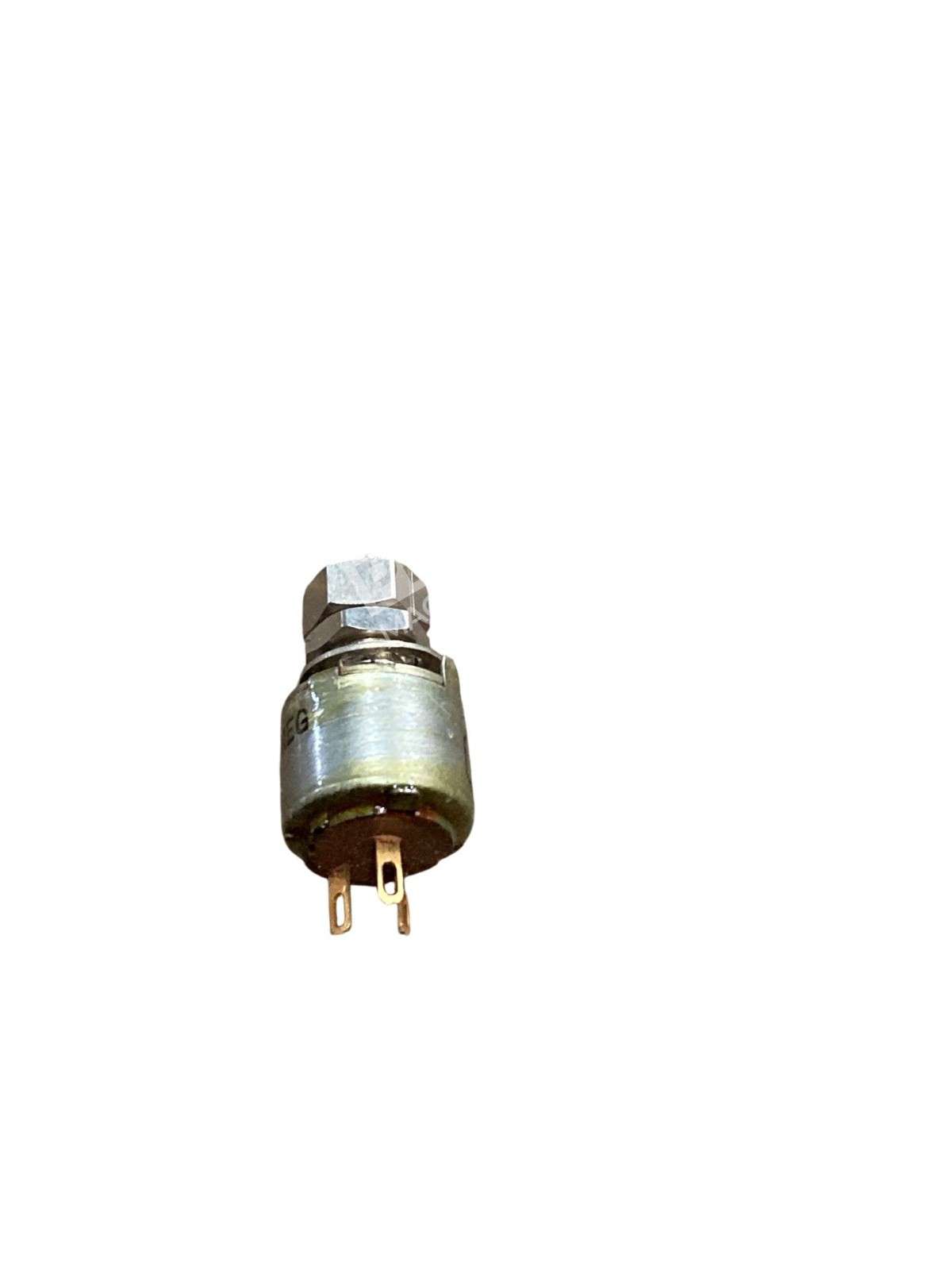

Allen-Bradley 1599-2.5-MEG Type G Potentiometer

Allen-Bradley 1599-2.5-MEG Type G Potentiometer

The Allen-Bradley 1599-2.5-MEG Type G Potentiometer is a high-quality variable resistor designed for precise control in electronic circuits. With a resistance value of 2.5 megohms, this potentiometer is suitable for applications requiring fine adjustments and reliable performance.

Key Features

• Resistance Value: 2.5 megohms, ideal for high-resistance applications.
• Power Rating: Rated at 0.5 watts at 70°C, ensuring efficient operation under standard conditions.
• Temperature Range: Operates effectively between -55°C and +120°C, accommodating various environmental conditions.
• Construction: Features a hot-molded resistance element for durability and consistent performance.
• Design: Compact 1/2-inch diameter, making it suitable for space-constrained applications.
• Sealing: Incorporates an “O” ring seal between the shaft and bushing, providing water-tight protection up to 15 psi.

Applications

This potentiometer is commonly used in:

• Industrial control systems
• Audio equipment
• Instrumentation
• Telecommunications

Its robust design and high resistance value make it a reliable choice for applications requiring precise resistance adjustments.

Specifications

• Resistance Tolerance: ±10% or ±20%, depending on the specific model.
• Voltage Rating: Maximum working voltage of 350 volts RMS or DC.
• Rotation: Total rotation of 295 degrees ±3 degrees.
• Mounting: Panel mount with a standard 1/4-inch diameter bushing.

The Allen-Bradley 1599-2.5-MEG Type G Potentiometer combines precision, durability, and versatility, making it an excellent component for various electronic applications.
