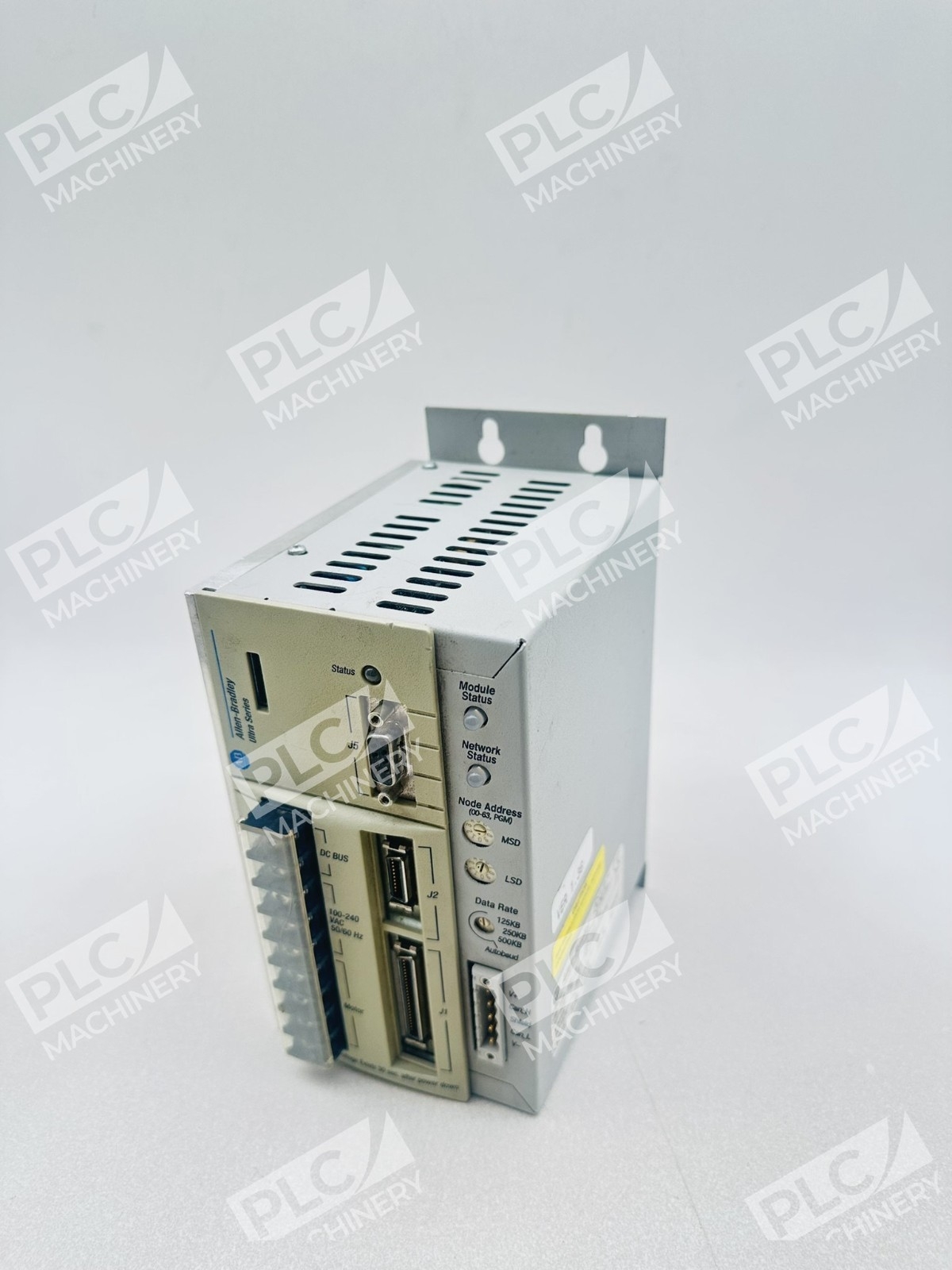

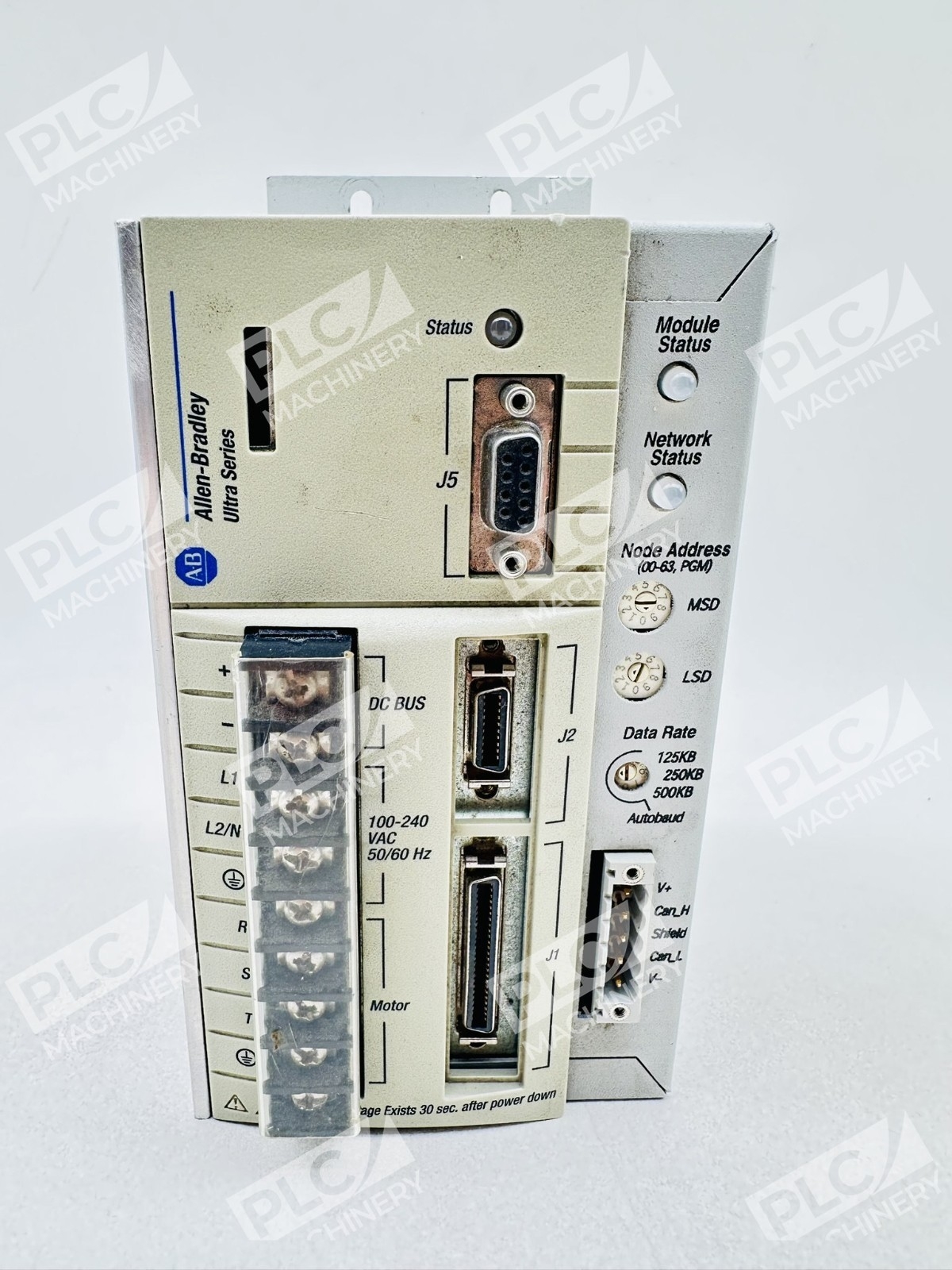

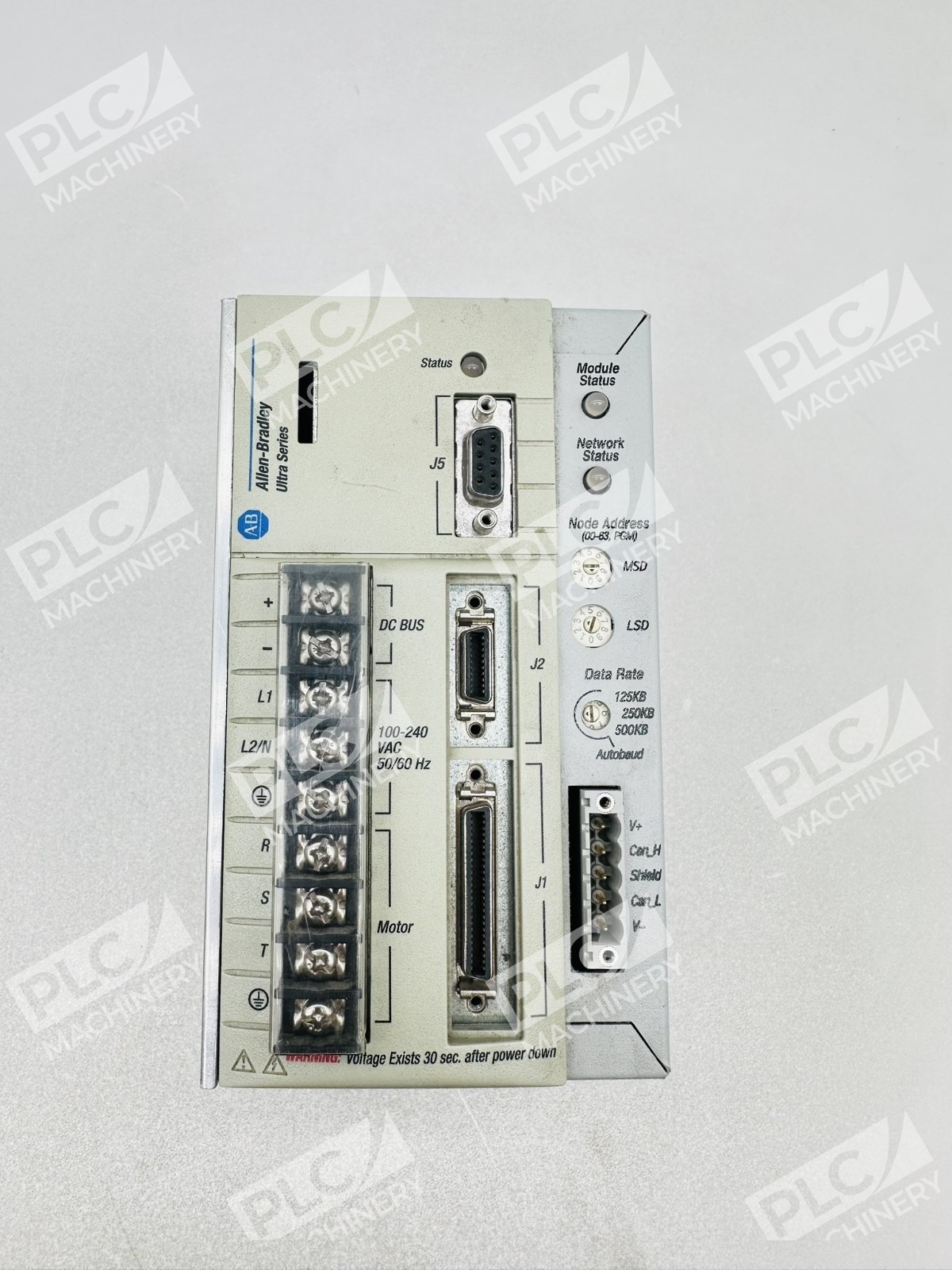

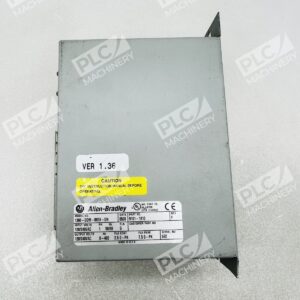

Overview
The Allen-Bradley 1398-DDM-005X-DN is part of the Ultra 100 series of digital servo drives designed for precision motion control and indexing applications. The 1398-DDM-005X-DN combines high-performance servo control with DeviceNet networking capabilities, making it suitable for flexible automation systems requiring networked drive management and precise positioning.

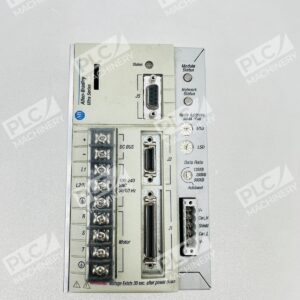

Key Features
- DeviceNet Interface: Built-in DeviceNet interface card with 125kbps baud rate supporting up to 32 drives
- Digital Control Architecture: Microcontroller-based digital servo drive that manages current, velocity, and position digitally
- Indexing Capability: Supports incremental indexing, registration indexing, and absolute indexing
- Compact Design: All electronics enclosed; no external transformer required on the power line
- Motor Protection: 200% overload protection for 8 minutes and 600% overload for 20 seconds
- Serial Communication: RS-485 and RS-232 ports with baud rates from 1200-19,200

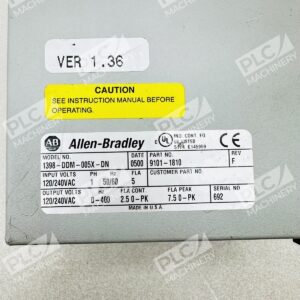

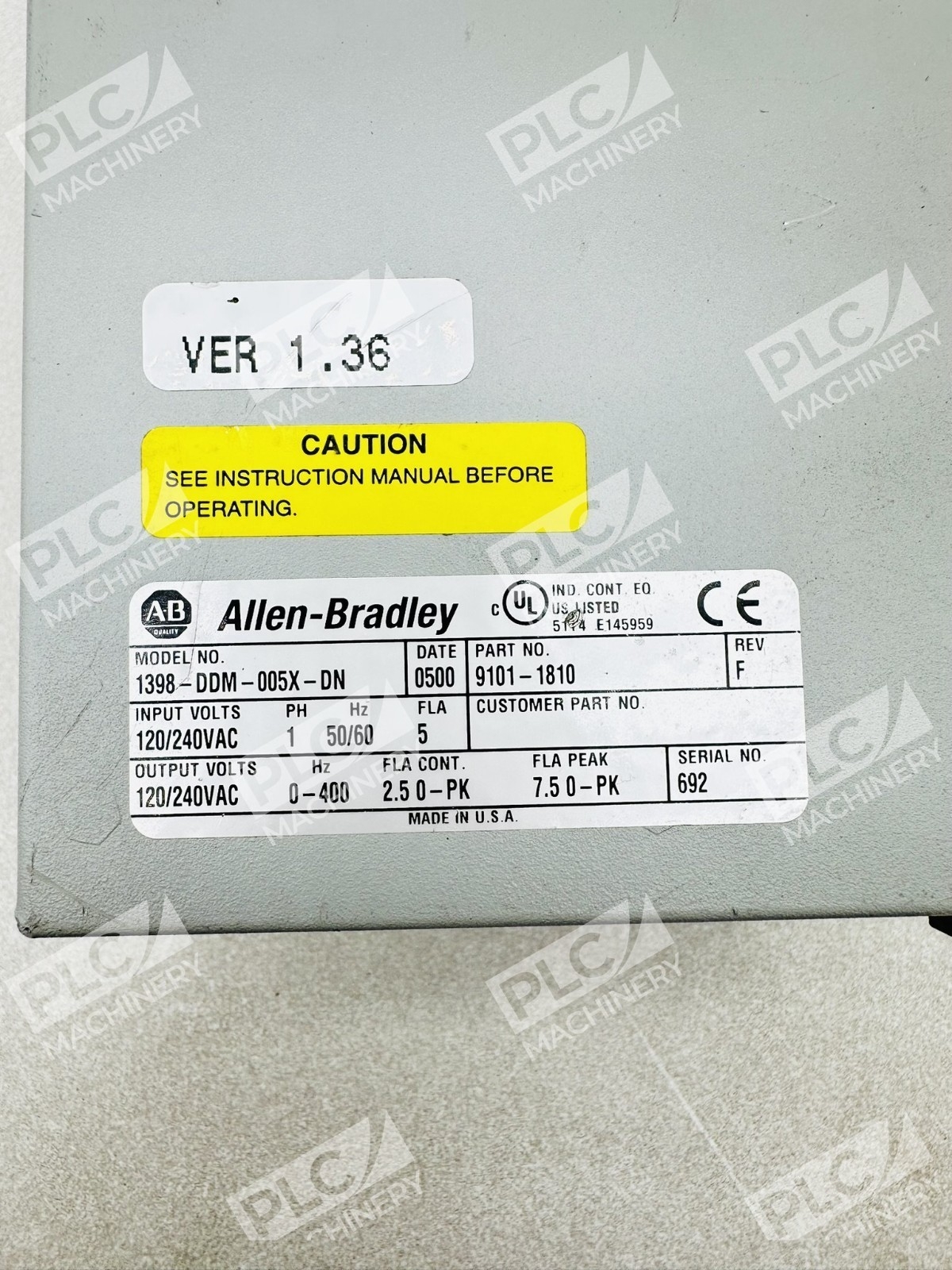

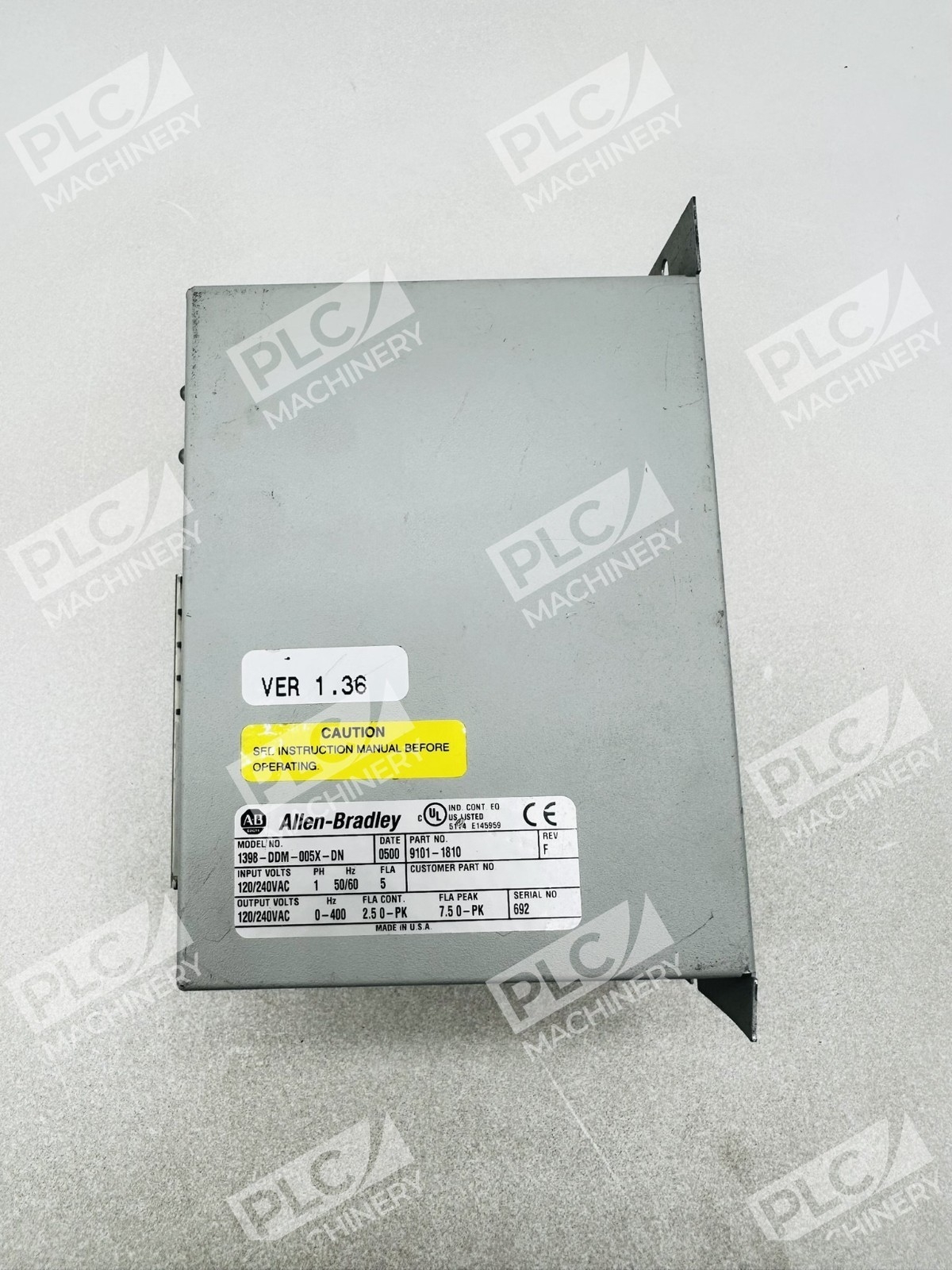

Technical Specifications
- Input Voltage: 100-240 VAC single-phase, 47-63 Hz
- Input Current: 5.0 Amps RMS
- Output Current (Continuous): 2.5 Amps
- Output Current (Peak): 7.5 Amps
- Power Rating: 0.3 kW at 120 VAC; 0.6 kW at 240 VAC continuous
- Bus Voltage: 141-339 VDC
- Speed Range: 1-8000 rpm with digital PI 300 Hz speed regulator
- Heat Dissipation: 48W
- Dimensions: 198.12 × 72.60 × 146.05 mm
- Weight: 1.68 kg (3.7 lbs) including DeviceNet interface card
- DeviceNet Power Consumption: 60 milliamperes
Typical Applications
The 1398-DDM-005X-DN is well-suited for:
- Precision positioning and indexing systems
- Conveyor and material handling automation
- Printing and labeling equipment
- Assembly and test automation
- Networked multi-axis motion systems using DeviceNet
Compatibility & Replacements
Compatible With
- Allen-Bradley F-Series, H-Series, N-Series, W-Series, and Y-Series servo motors
- DeviceNet-capable automation networks
- Ultra Master configuration software (Windows-based)
- ULTRA 100 and 200 series ecosystem
Replaces / Drop-In Replacement For
- 1398-DDM-005X (non-DeviceNet version)
- Verify compatibility with your system integrator before ordering.
Works With
- DeviceNet communication protocol (125 kbps, up to 32 nodes)
- Serial communication (RS-232, RS-485)
- Ultra Master software for drive setup and commissioning
