Overview

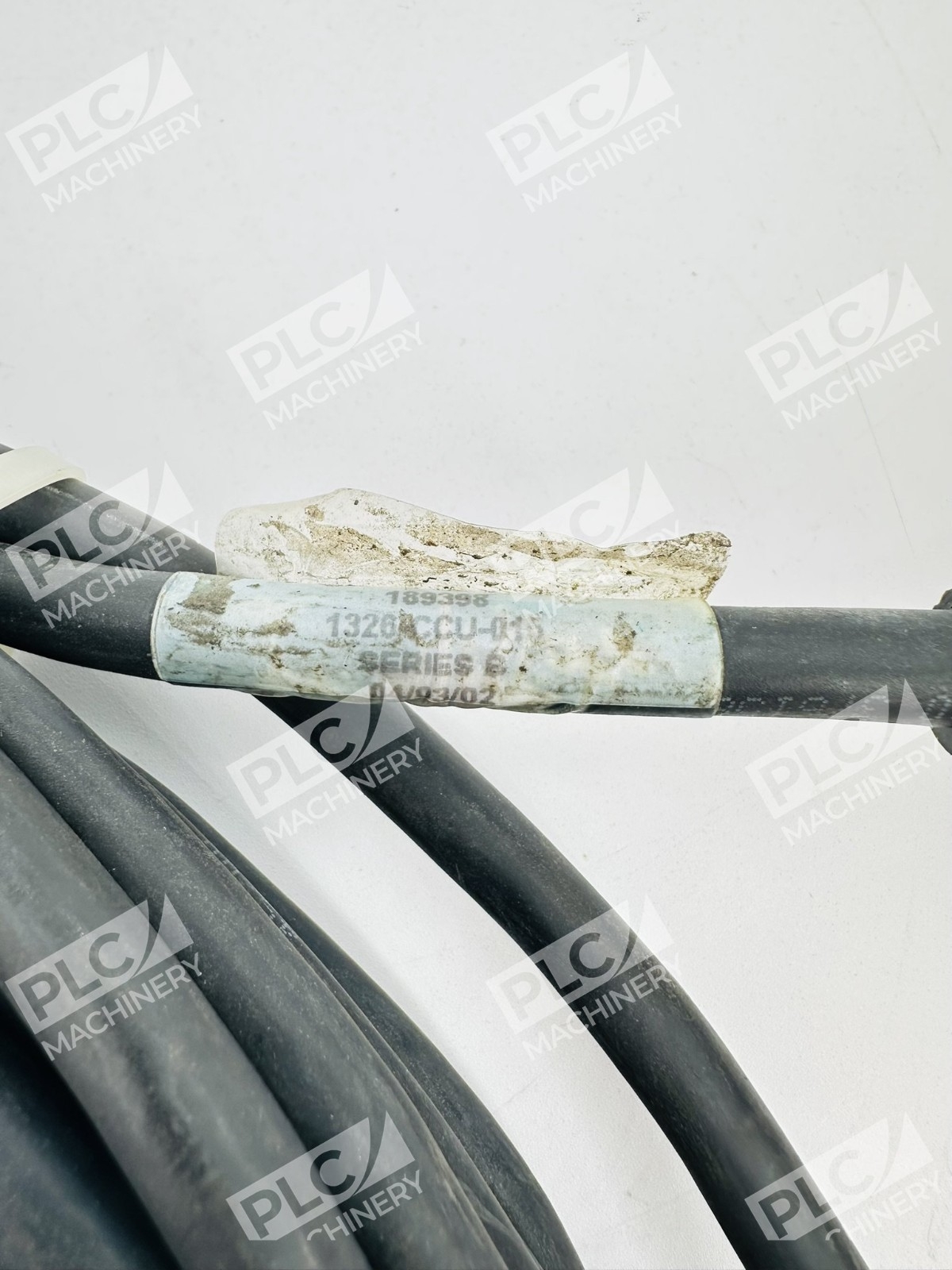

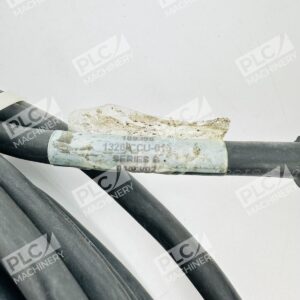

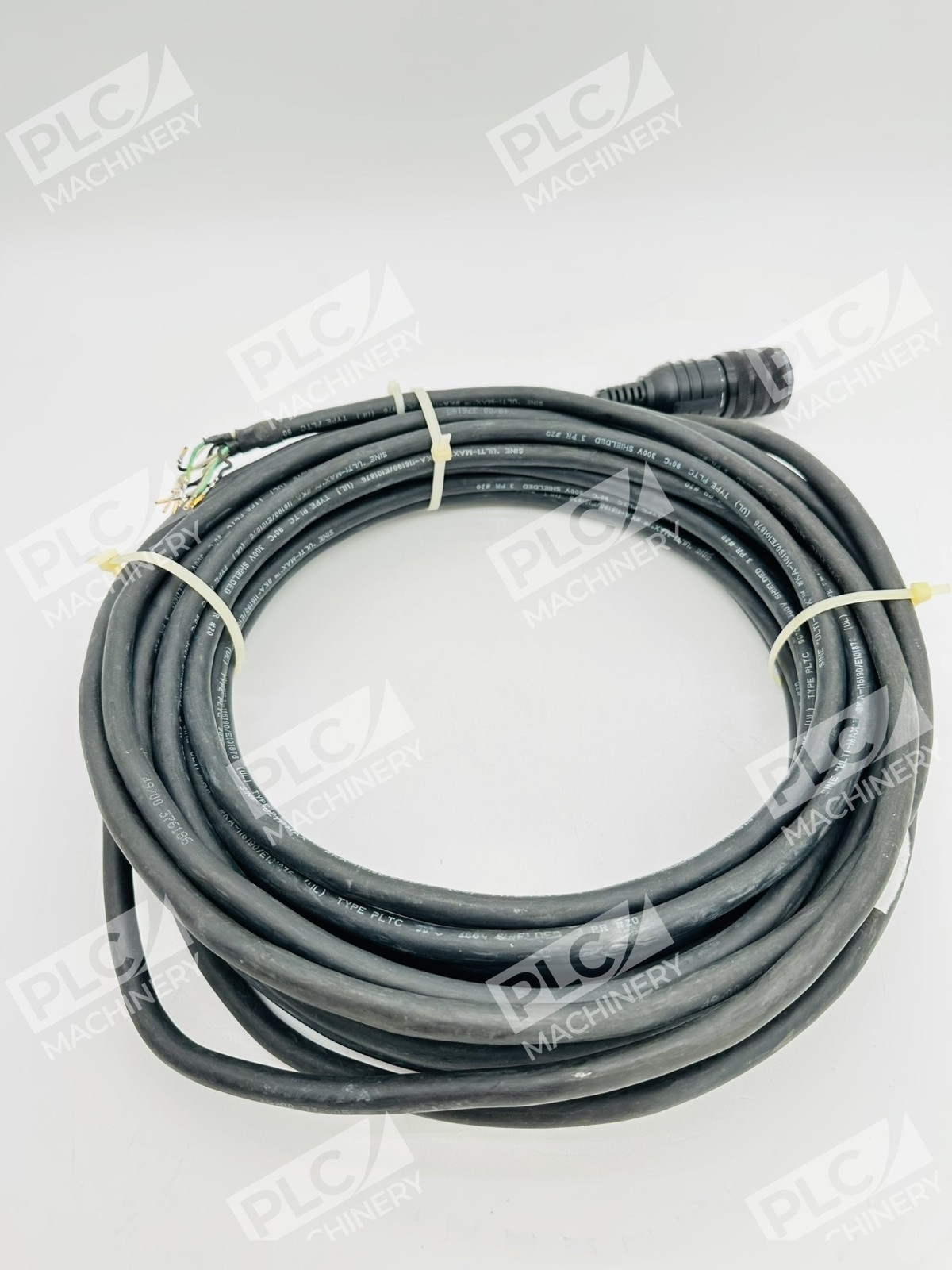

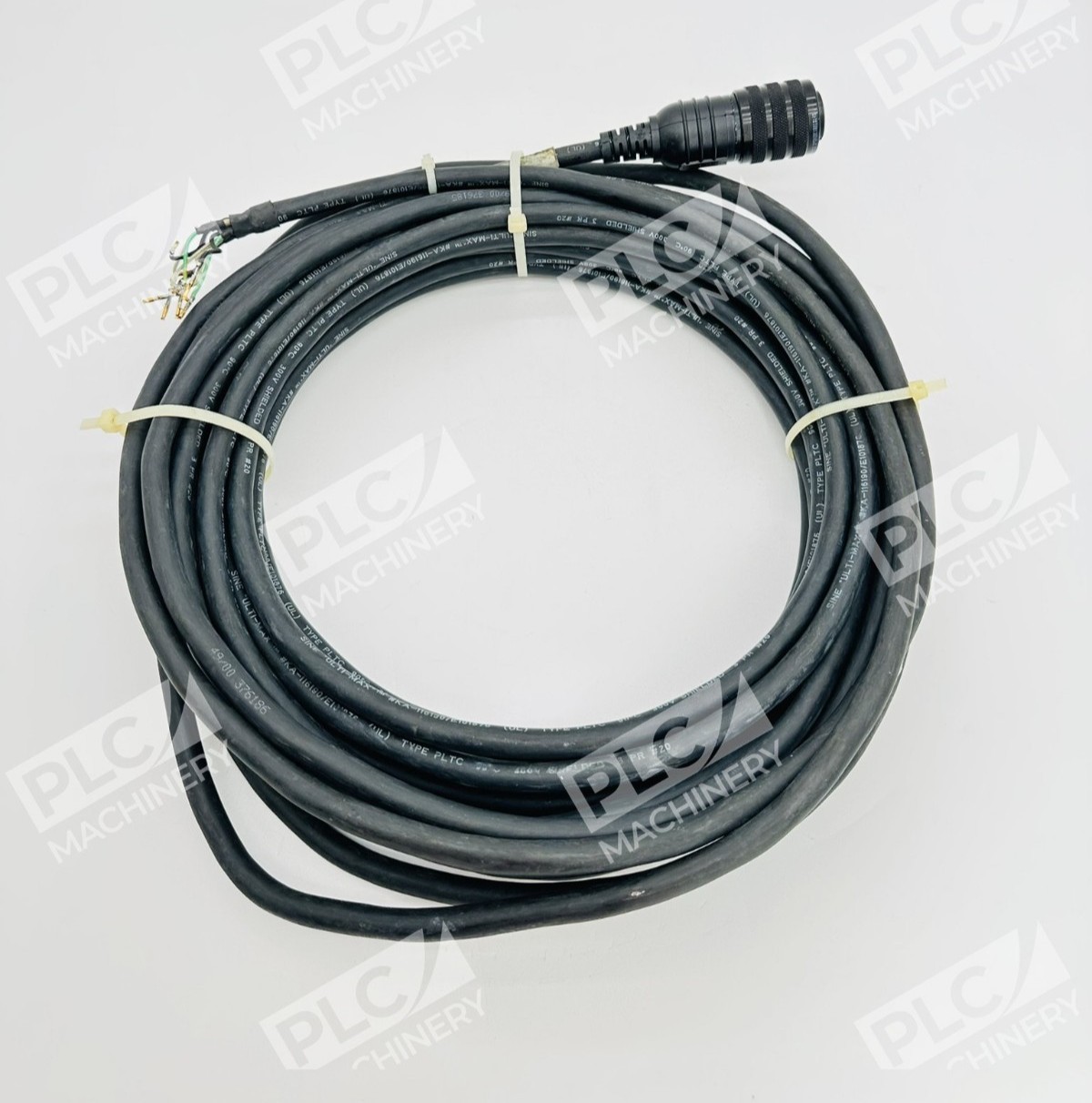

The Allen-Bradley 1326-CCU-015 Series B servo motor feedback cable is a purpose-built commutation and resolver feedback cable assembly designed for precision servo motor control applications. This flex-rated cable connects to 1326AX-BXX motors with resolver feedback, making it essential for motion control systems that require reliable encoder signal transmission. The cable features a single standard connector with IP 65 rating and 15-meter length, providing EMI protection and environmental sealing for industrial automation environments.
Key Features
- IP 65 protection rating for temporary water-proof and dust-tight sealing
- Braided shield design protects against electromagnetic interference from external sources

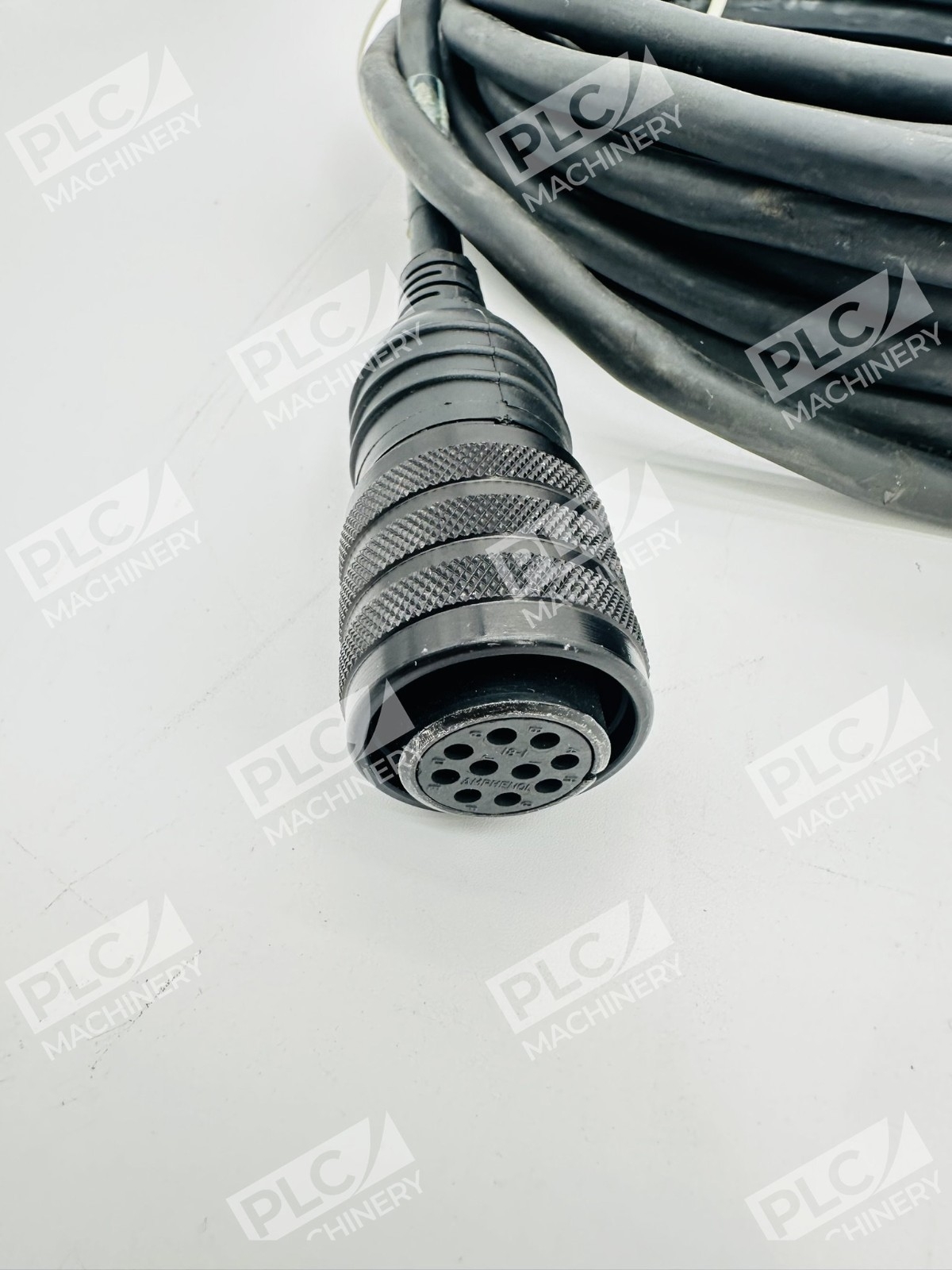

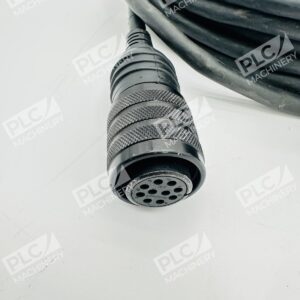

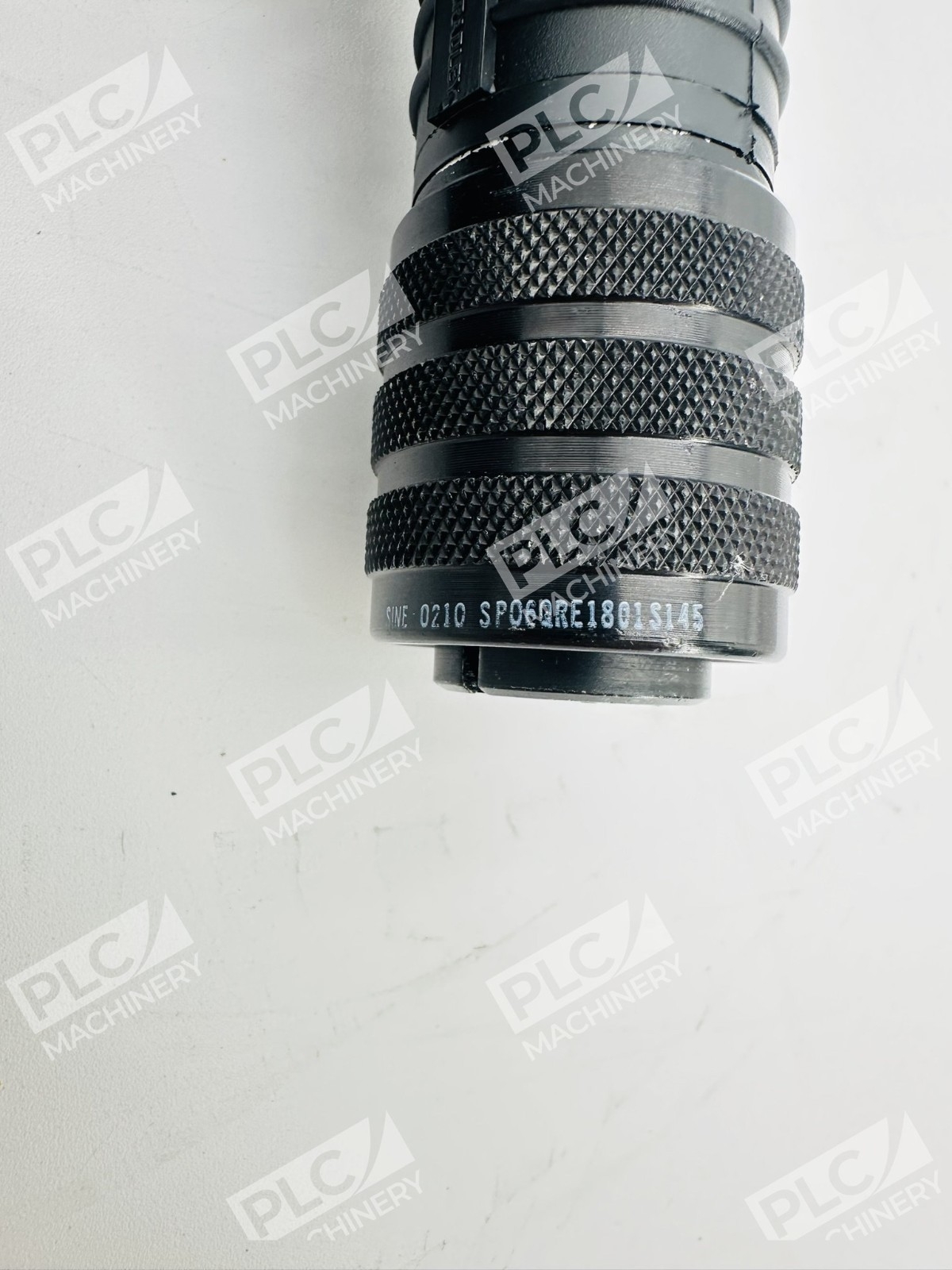

- Single standard flex-rated connector for reliable, repeatable connections
- Push and pull connector ends enable easy installation and maintenance
- Supports both in-line cabinet connections and remote cable connections outside control cabinets
- 15-meter cable length suitable for larger machine layouts
Technical Specifications
- Cable Length: 15 meters
- IP Rating: IP 65
- Connector Type: Single standard with push-pull design
- Feedback Type: Resolver feedback
- Series: B
- Configuration: Flex-rated commutation and encoder
- Cable Construction: Braided shielded design
- Manufacturer Part Number: 1326-CCU-015
Typical Applications
The 1326 motor series works with Allen-Bradley Kinetix 6000, Ultra, and 1394 motion control systems, widely used in automotive, metal forming, converting, packaging, and material handling industries. This cable is essential for:
- Servo motor commutation feedback in motion control cabinets
- Multi-axis coordinated motion systems
- Robotics and precision positioning equipment
- Industrial packaging and assembly automation
- CNC and machine tool servo feedback loops
Compatibility & Replacements
Compatible With
- Allen-Bradley 1326AX-BXX servo motor series
- Kinetix 6000 servo drive systems
- Kinetix Ultra motion control platforms
- Bulletin 1394 motion control systems
- All Series B 1326-CCU cable applications
Replaces / Drop-In Replacement For
This is the standard 15-meter resolver feedback cable for 1326AX-BXX servo motors with commutation feedback requirements. Verify compatibility with your specific motor model and drive platform before ordering.
Works With
- Allen-Bradley 1326AX servo motors (all frame sizes)
- CompactLogix and ControlLogix PLC systems (via motion modules)
- EtherNet/IP networked motion systems
- Standard 1326-CCU commutation cable assemblies tray-rated for stationary and one-time flex applications
