Overview

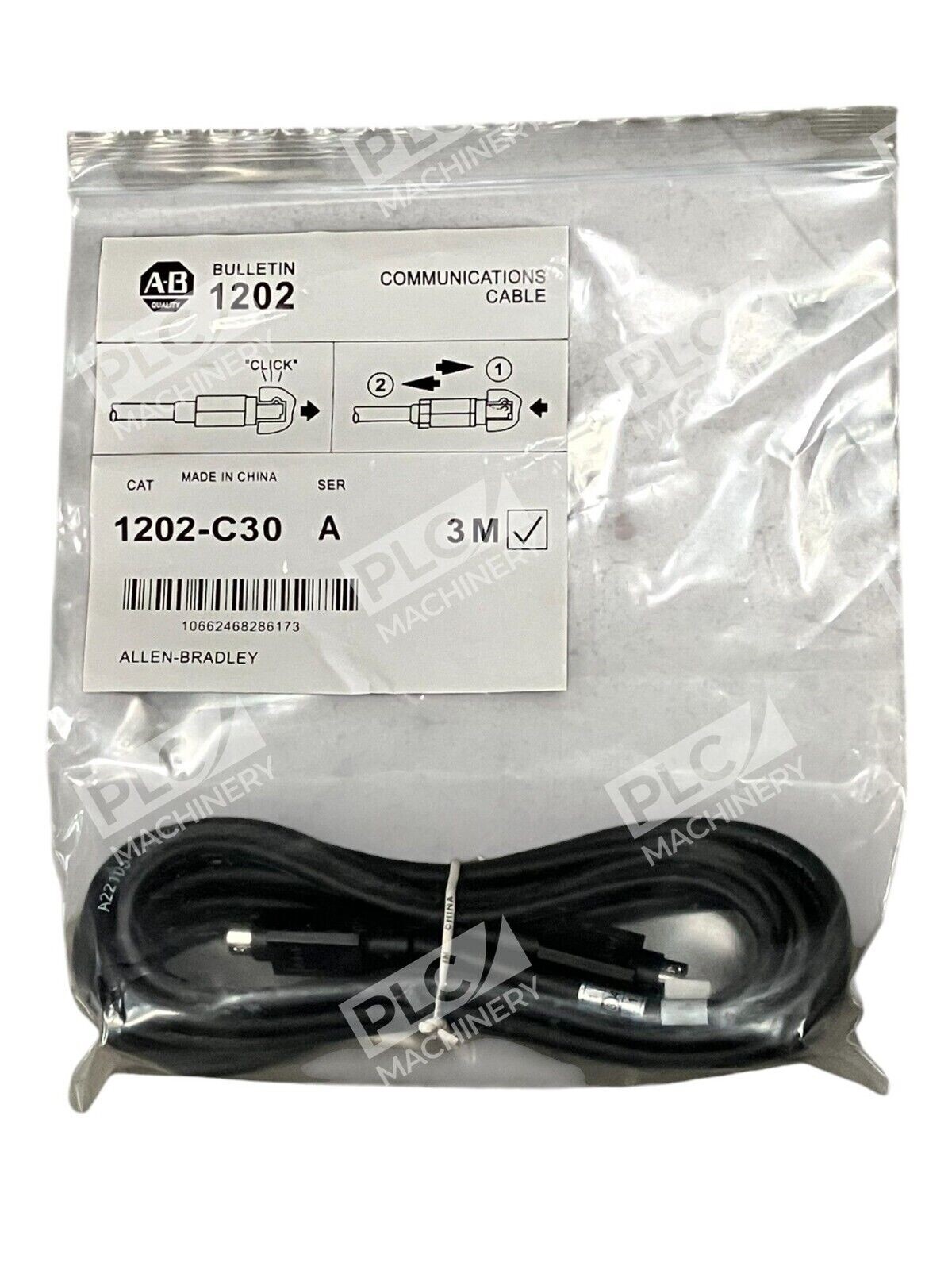

The Allen-Bradley 1202-C30 (Series A) is a factory-built SCANport 3 m HIM cable used to link an Allen-Bradley Human Interface Module (HIM) to a SCANport-compatible drive. It connects HIM to drive with male-to-male connectors and is intended for products supporting SCANport. Commonly deployed with 1336 PLUS II AC drives and other legacy Allen-Bradley SCANport-based platforms, the 1202-C30 provides a reliable communications link for parameter setup, monitoring, and diagnostics.
Key Features
- 3-meter (9.8 ft) cable length for flexible panel routing
- Male-to-male circular connectors for secure, repeatable mating
- SCANport interface compatible with Allen-Bradley HIM modules and drives
- Active lifecycle status — currently supported by Rockwell Automation
- New-in-box condition, ready for drop-in replacement
Technical Specifications
Verified specifications for the Allen-Bradley 1202-C30 SCANport HIM cable are listed below.
Typical Applications
- Connecting a HIM (Human Interface Module) to a SCANport drive
- Remote panel-mount HIM installations on Allen-Bradley AC drives
- 1336 PLUS II AC drive field-option wiring
- Drive commissioning, parameter editing, and diagnostics
Compatibility & Replacements
The 1202-C30 is designed for products supporting SCANport, including legacy Allen-Bradley drive platforms with a SCANport interface. It is also bundled with the 20-HIM-C3S full numeric keypad HIM as the included 3 m cable for use with PowerFlex 70, 700, 700H, 700S, and 700L drives. Related cables in the same family include the 1202-C10 and 1202-C90 for shorter and longer drops. Confirm SCANport vs. DPI compatibility with your specific HIM and drive before installation.
