Overview

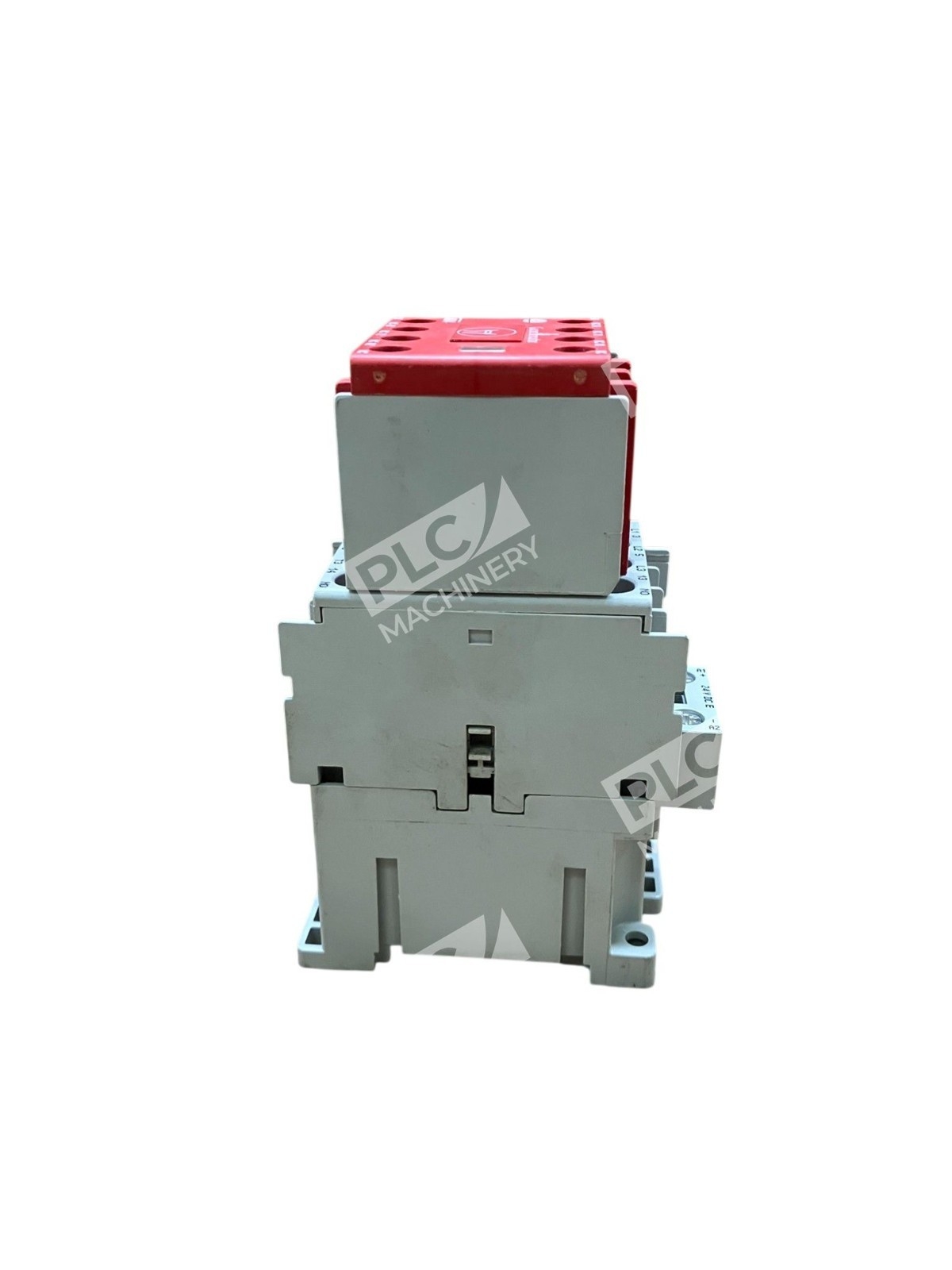

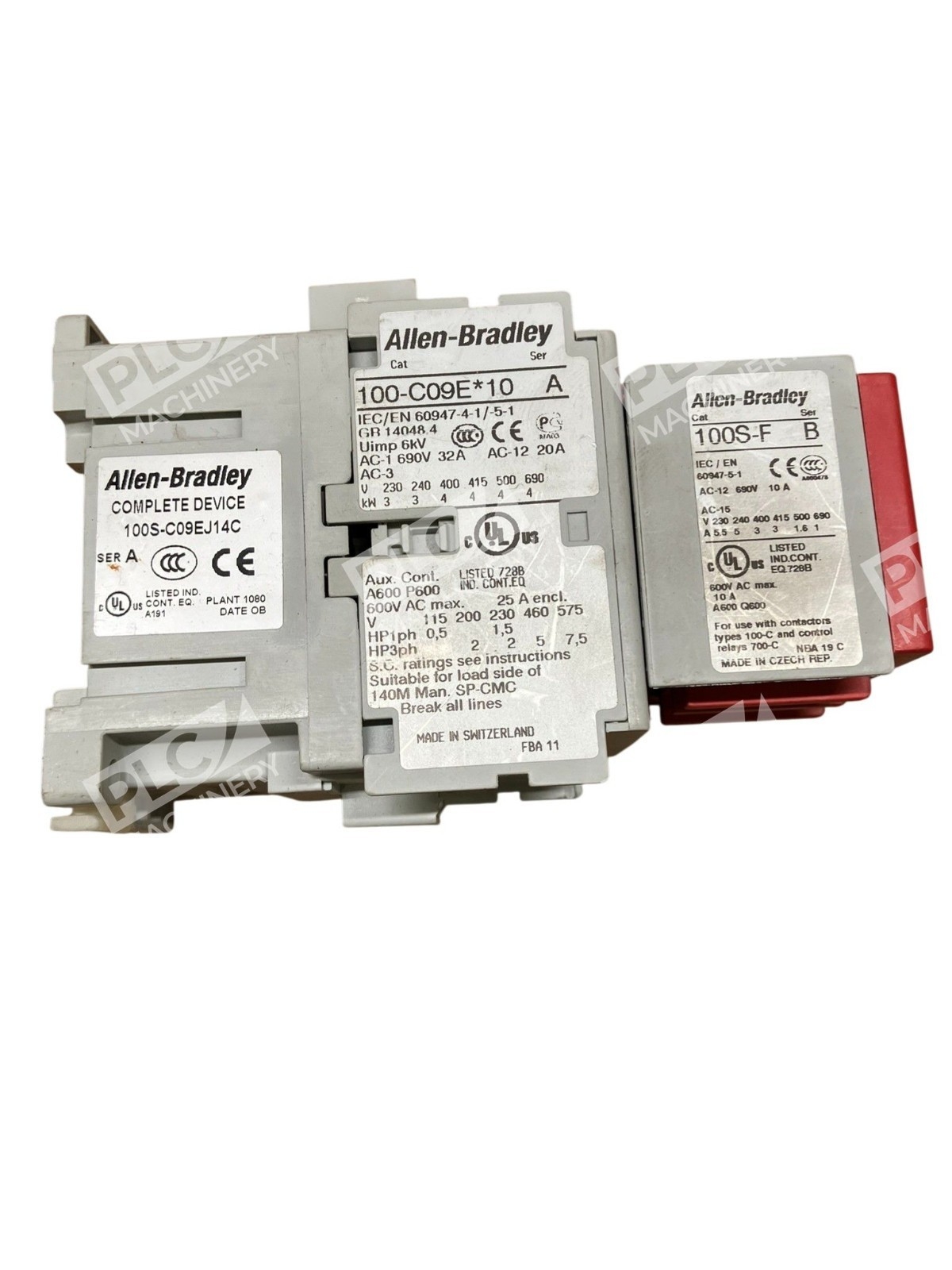

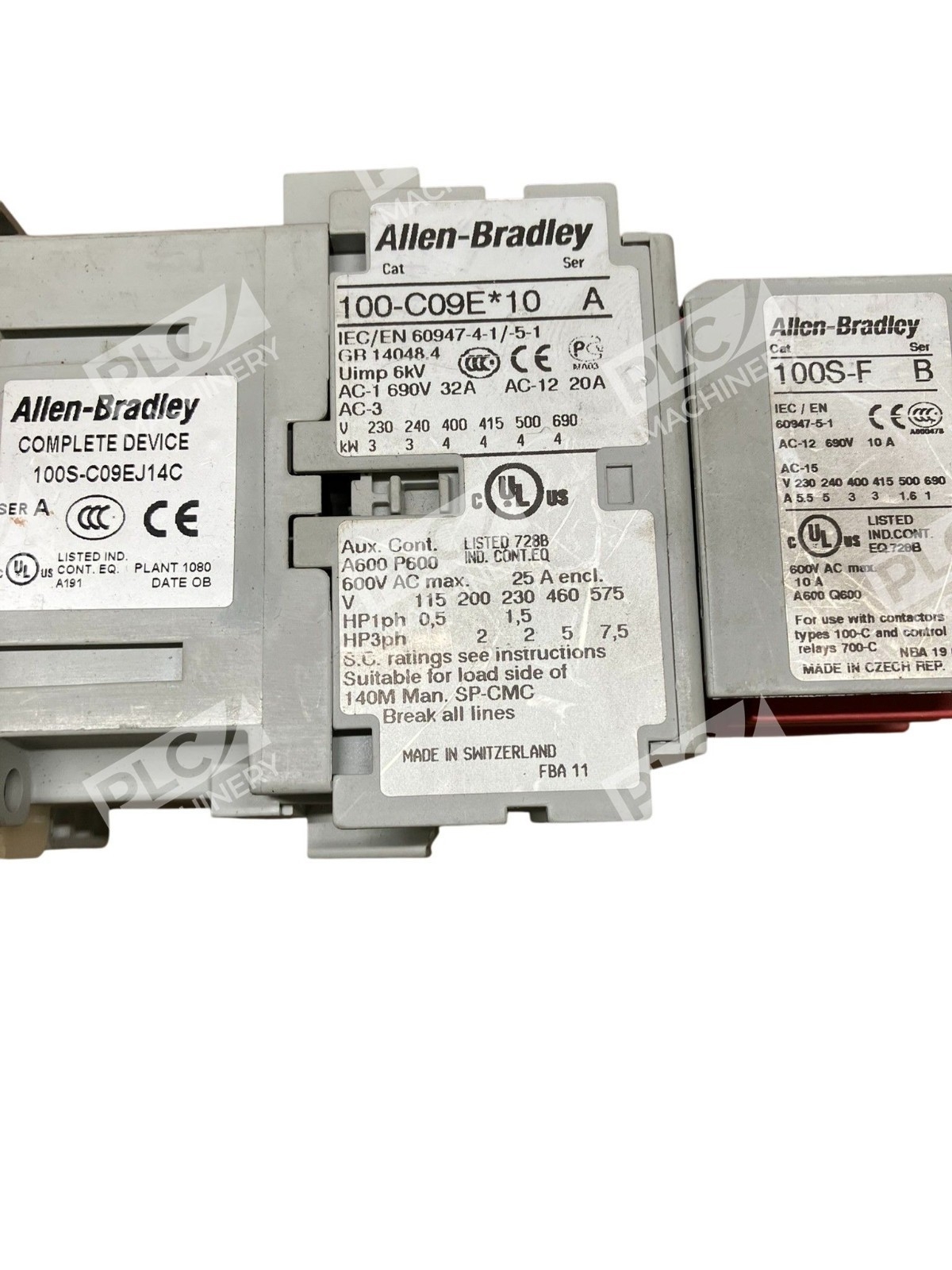

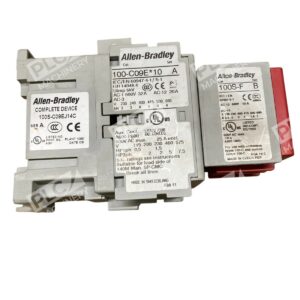

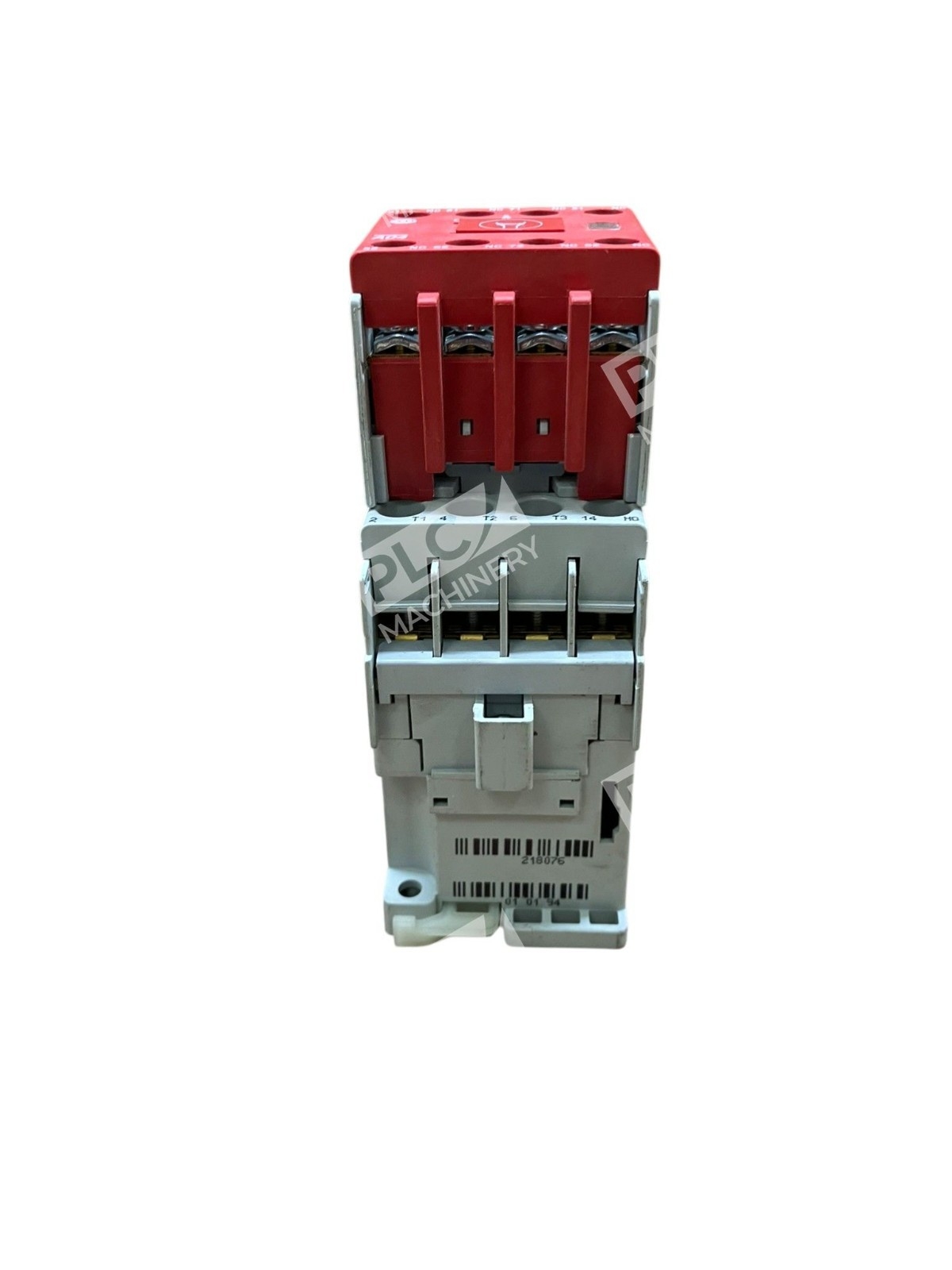

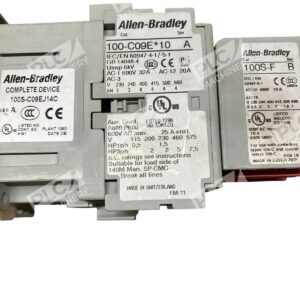

The Allen-Bradley 100S-C09EJ14C /A is a compact, line-side mounted safety contactor rated for 9A at 400 VAC (3-phase) and 32A at 400 VAC (1-phase). Operating on a 24V DC electronic coil with integrated diode, this unit meets modern safety application feedback circuit requirements with mechanically linked, positively guided contacts. It is designed for use in industrial automation, machinery control, and safety-critical switching applications where reliable, positive contact performance is essential.
Key Features
- 9A rated current for AC-3 duty cycle at 400 VAC (3-phase)
- 24V DC electronic coil with line-side termination and integrated diode
- 3 normally open (NO) main power poles for positive motor control

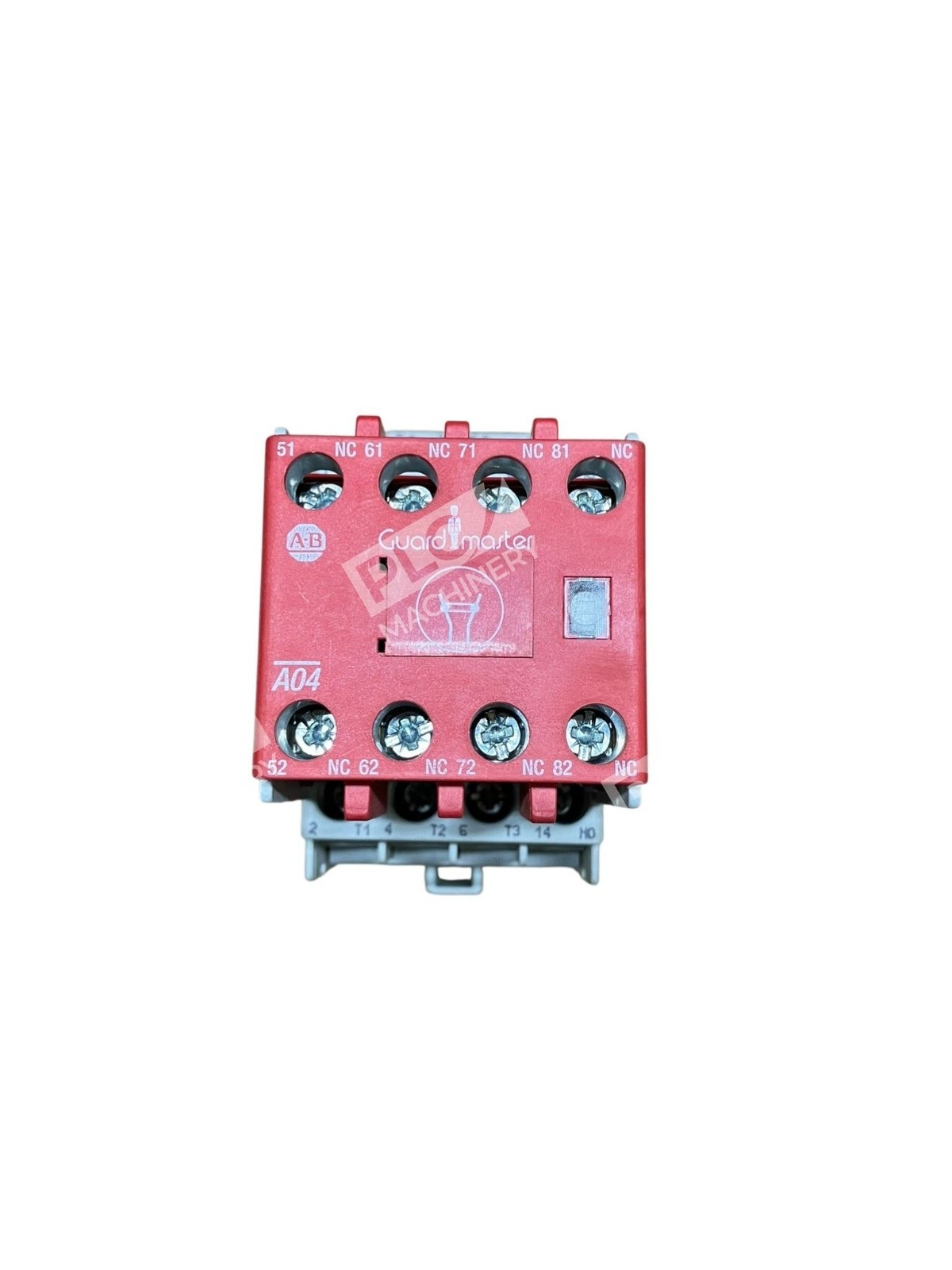

- 1 NO and 4 NC auxiliary contacts for flexible control circuit design
- DIN rail mounting for straightforward panel integration
- Operates at 50/60 Hz; IP20 rated for indoor control enclosures
Technical Specifications
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Model: 100S-C09EJ14C /A
- Rated Current: 9 A (AC-3 at 400 VAC); 32 A (AC-1 at 400 VAC)
- Coil Voltage: 24 V DC (electronic, with diode)
- Contact Configuration: 3 NO main poles; 1 NO, 4 NC auxiliary
- Power Rating: 4 kW at rated conditions
- Operating Voltage Range: 115–575 VAC (50 Hz); 230–690 VAC (60 Hz)
- Mounting: DIN rail
- Frequency: 50/60 Hz
- Protection Rating: IP20
- Standards: C-TICK, CCC, KC
- Type: IEC Safety Contactor
Typical Applications
The 100S-C09EJ14C is well-suited for:
- Emergency stop circuits and safety interlock logic
- Motor control and machinery safety systems
- Industrial automation control panels
- OLED lighting and LED driver systems requiring positive contact assurance
- Machine tool safety applications and risk reduction circuits
- Any application requiring mechanically linked, positively guided contact performance per IEC standards
Compatibility & Replacements
Compatible With
- Allen-Bradley 100S series safety contactor family
- Standard DIN rail enclosure and control panel mounting systems
- Industrial automation systems requiring 24V DC coil control voltage
- Safety control circuits and machinery safety networks
- IEC 61508 / ISO 13849 safety-rated systems (verify application-specific safety category)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or controls engineer before ordering. The 100S-C09EJ14C /A is a standard catalog item within the Allen-Bradley 100S series; confirm any legacy or OEM-specific model numbers with your equipment documentation.
Works With
- Rockwell Automation CompactLogix, ControlLogix, and SLC 500 control systems
- IEC 61131-3 control platforms
- EtherNet/IP and PROFINET safety networks (when integrated with appropriate safety modules)
- Standard industrial relay logic and motor control circuits
- Siemens STEP 7, Mitsubishi GX Works, Omron CX-Programmer (as external safety device)
