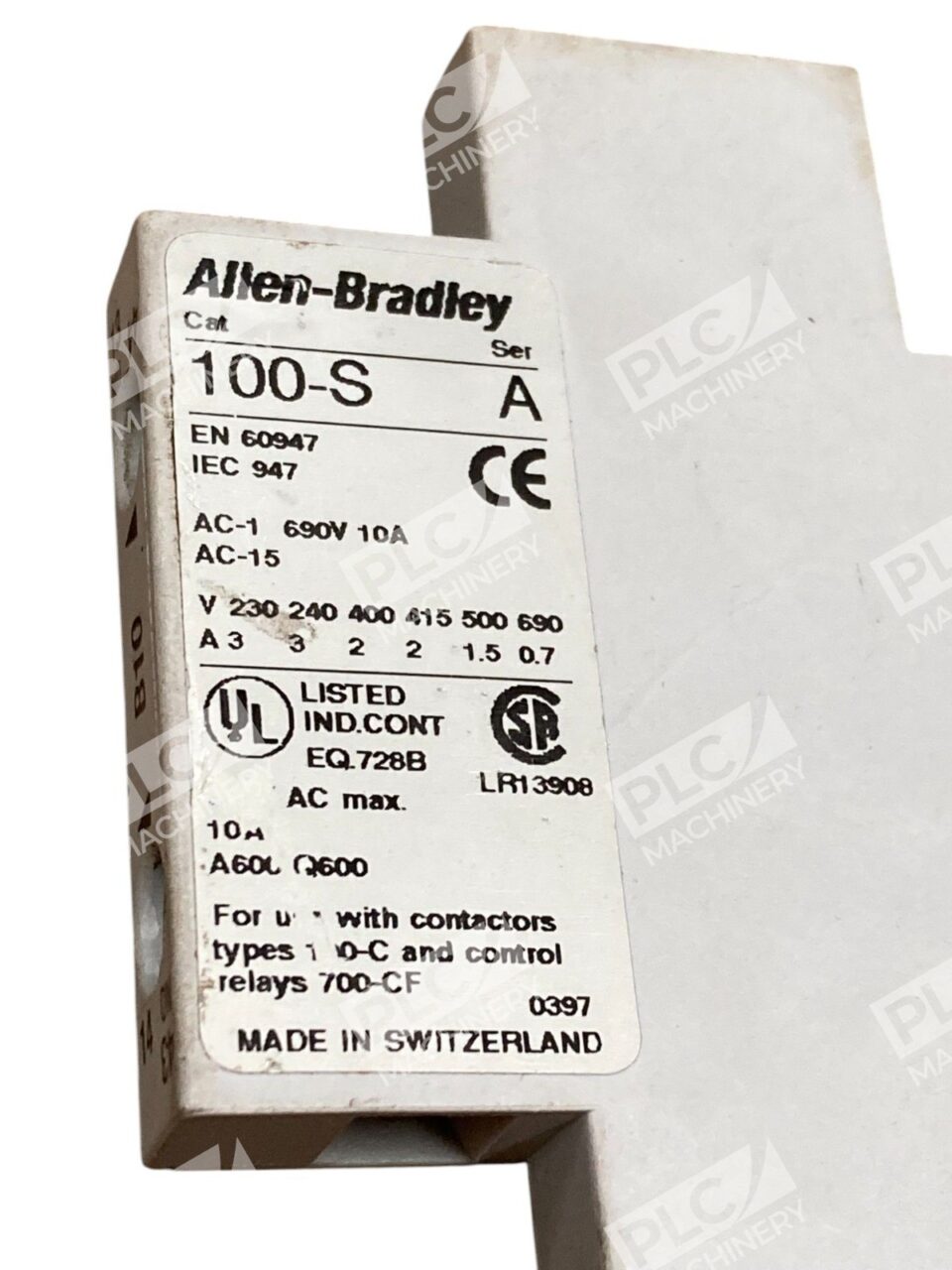

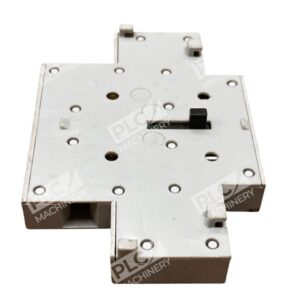

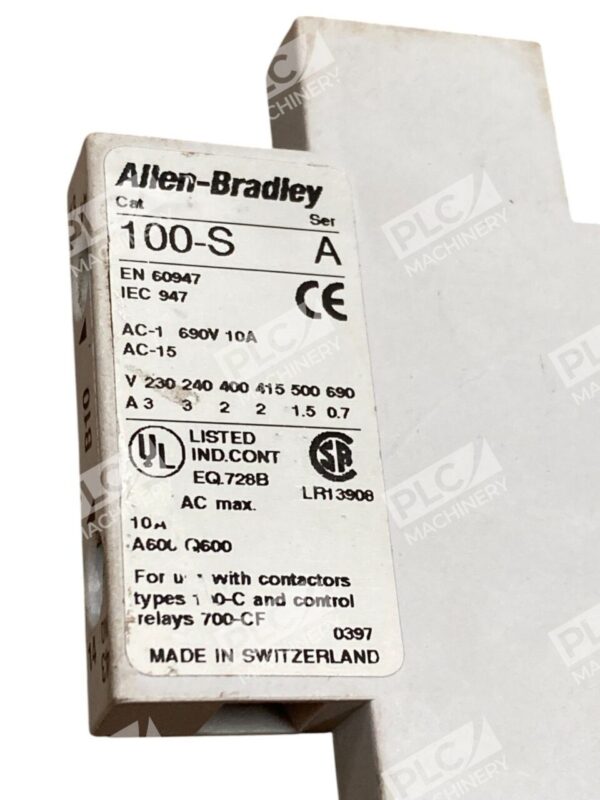

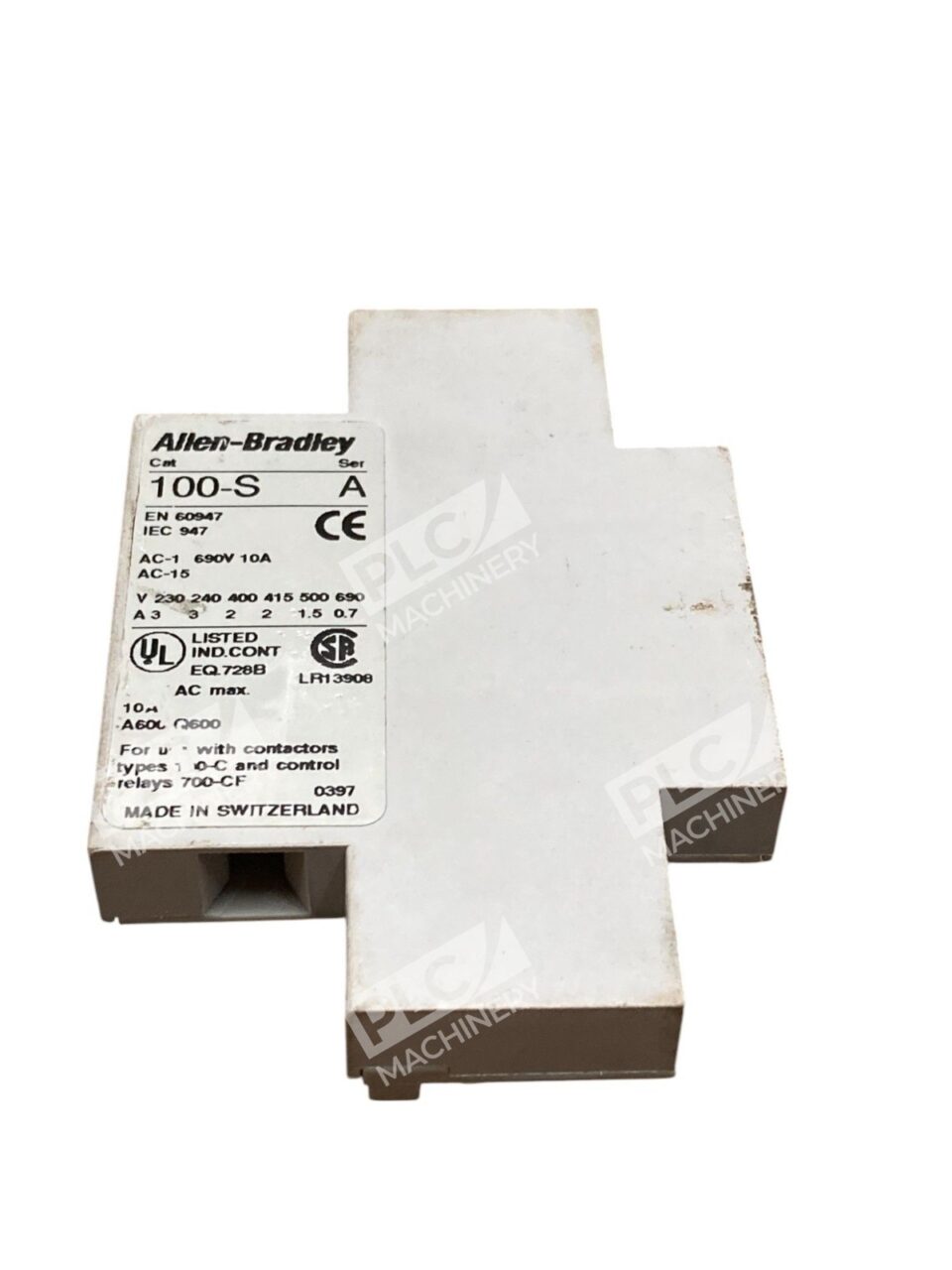

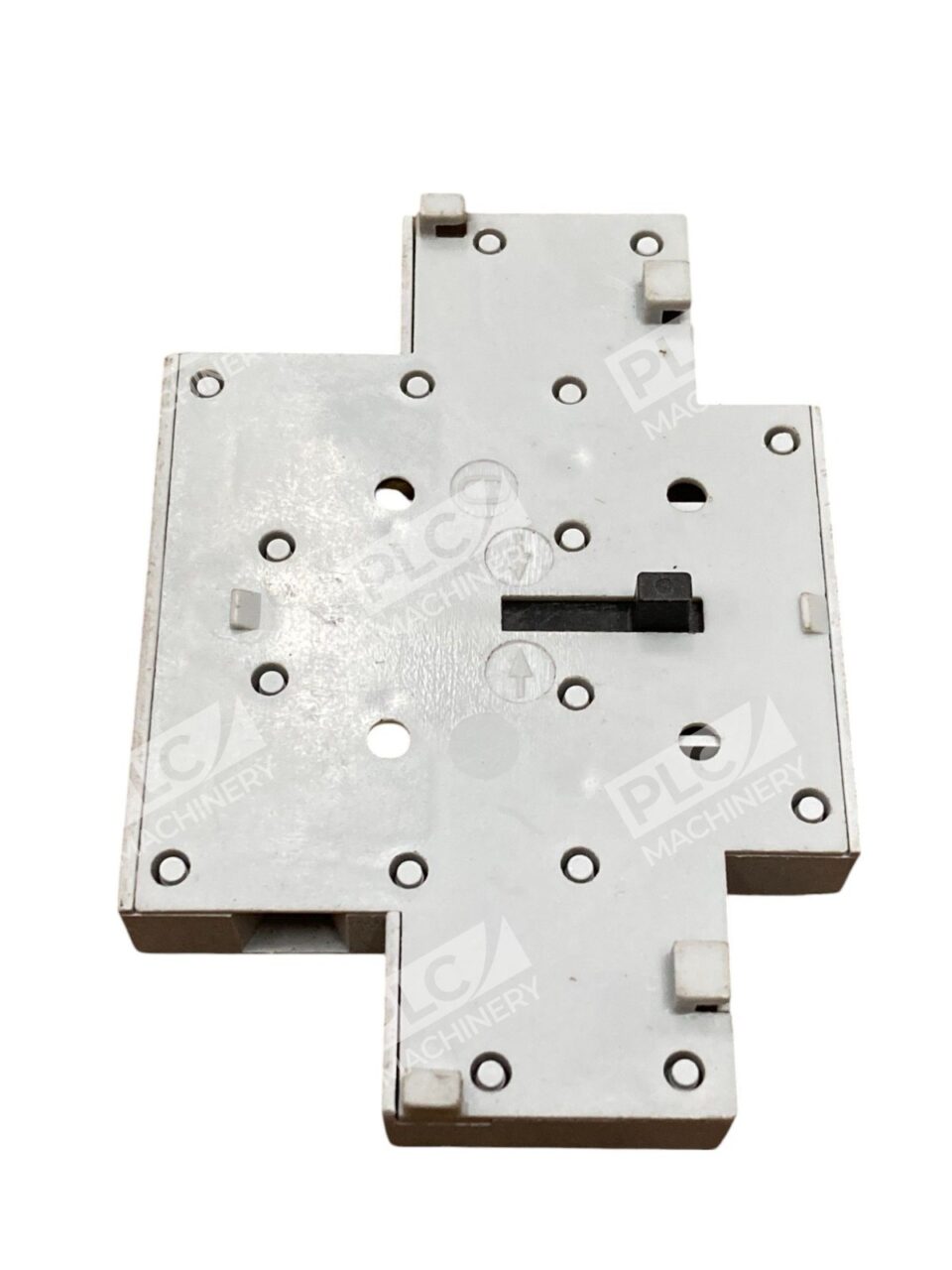

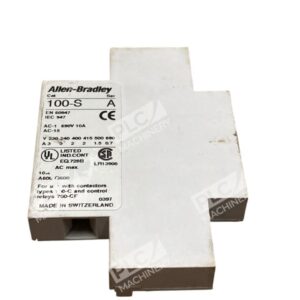

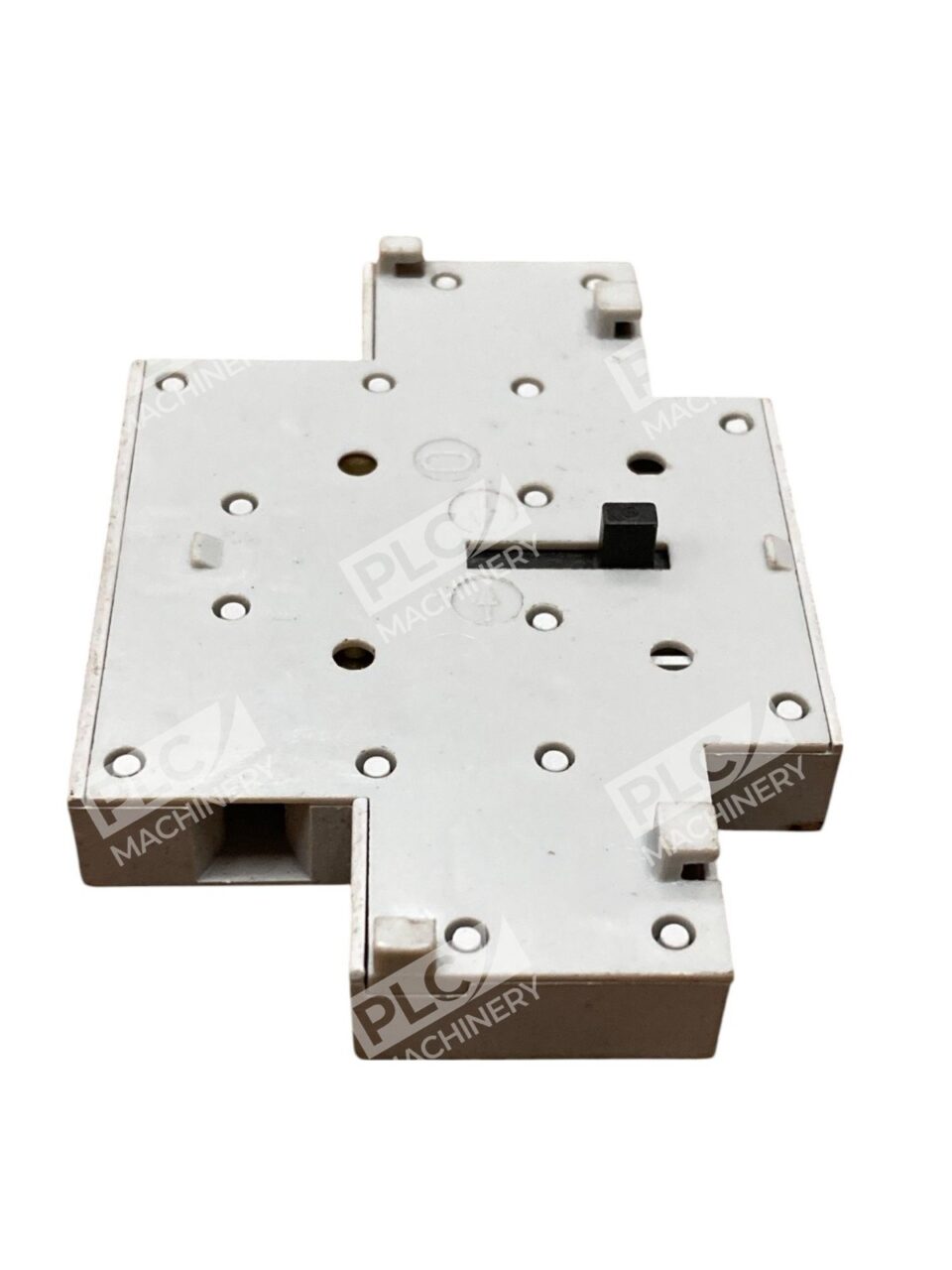

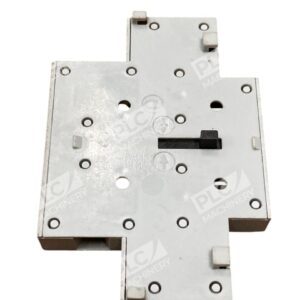

Allen Bradley 100-S Series A auxiliary contact block

The Allen-Bradley 100-S Series A Auxiliary Contact Block is a versatile component designed to enhance the functionality of industrial control systems. This auxiliary contact block provides additional contact points, enabling more complex control schemes and improved system monitoring.

Key Features

• Contact Configuration: Available in various configurations, including normally open (N.O.) and normally closed (N.C.) contacts, to suit diverse application requirements.
• Mounting Options: Designed for side mounting on Allen-Bradley 100-C series contactors, facilitating easy installation without the need for special tools.

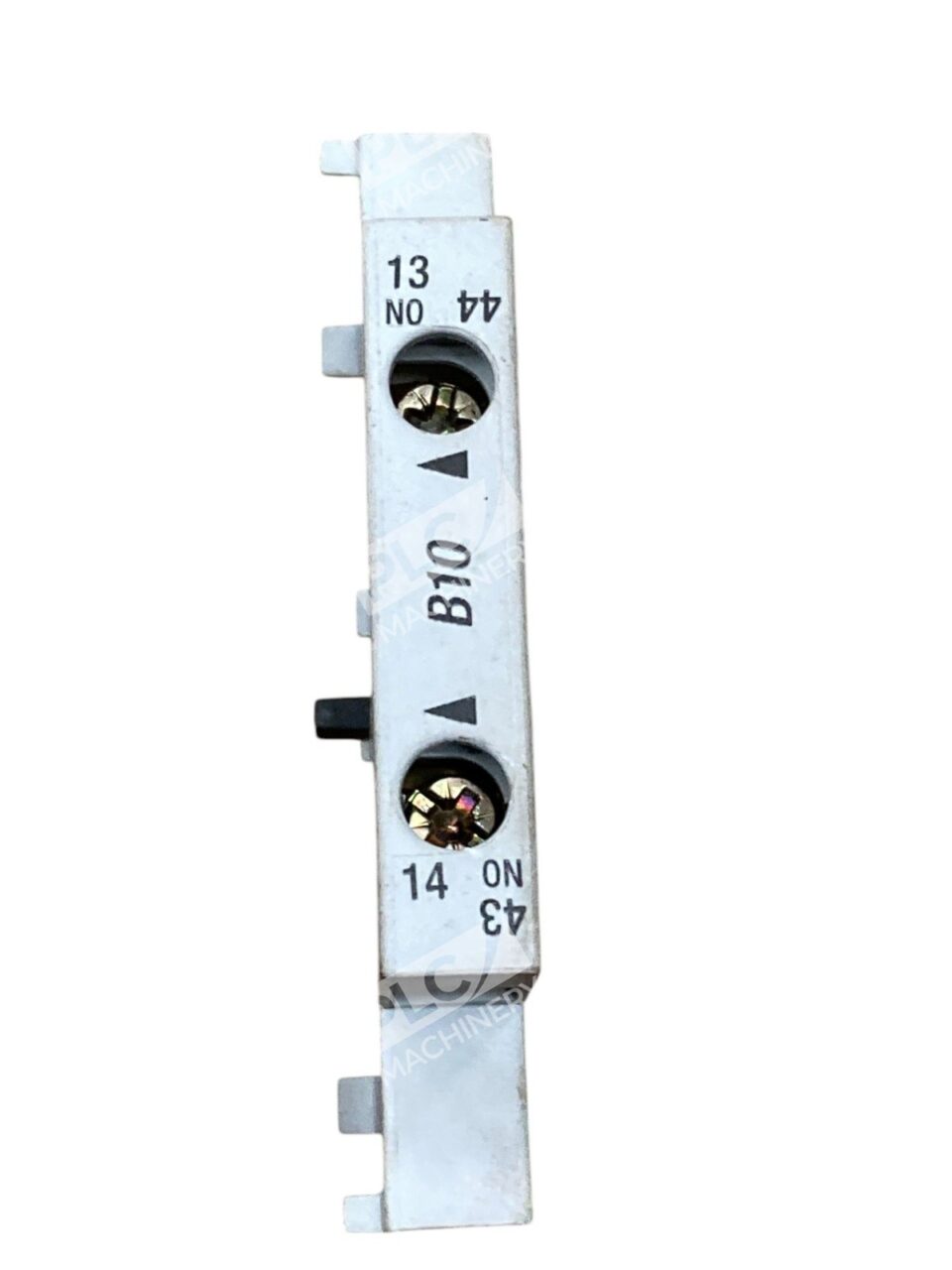

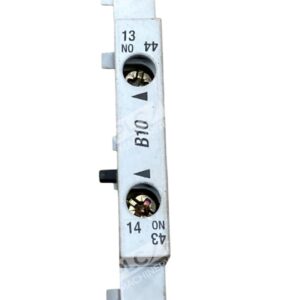

• Terminal Type: Equipped with screw terminals for secure and straightforward wiring connections.
• Durable Construction: Built to withstand the rigors of industrial environments, ensuring long-term reliability.

Technical Specifications

• Current Rating: Typically rated for 10A at 600V AC, accommodating standard industrial power requirements.
• Dimensions: Approximately 0.4″ x 2.8″ x 2.0″ (0.9 cm x 7.1 cm x 5.1 cm), allowing for compact integration into control panels.
• Weight: Approximately 1.1 oz (0.03 kg), contributing minimal additional weight to the overall system.

Applications

The 100-S Series A Auxiliary Contact Block is ideal for use in various industrial automation applications, including:

• Extending the contact capacity of existing contactors.
• Implementing interlocking and sequencing operations.
• Enhancing system feedback and monitoring capabilities.

Its compatibility with Allen-Bradley 100-C series contactors makes it a valuable addition to control systems requiring expanded contact configurations.
