Overview

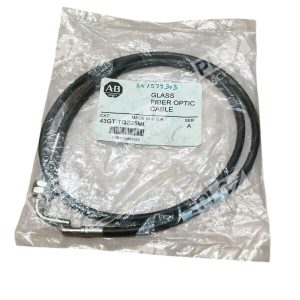

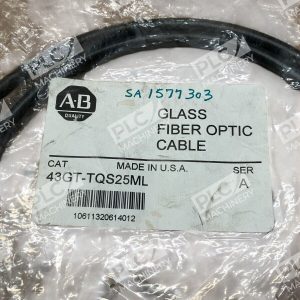

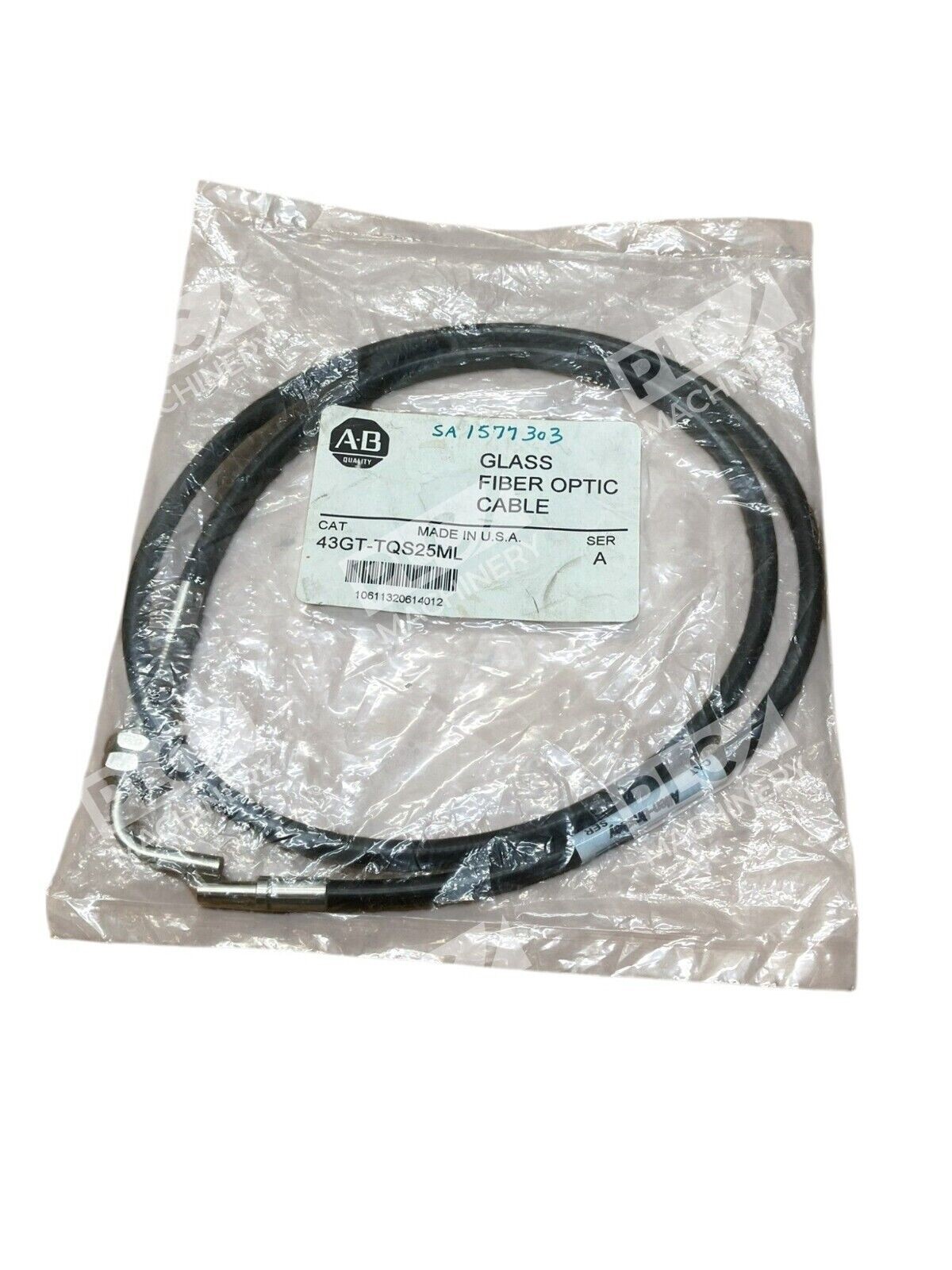

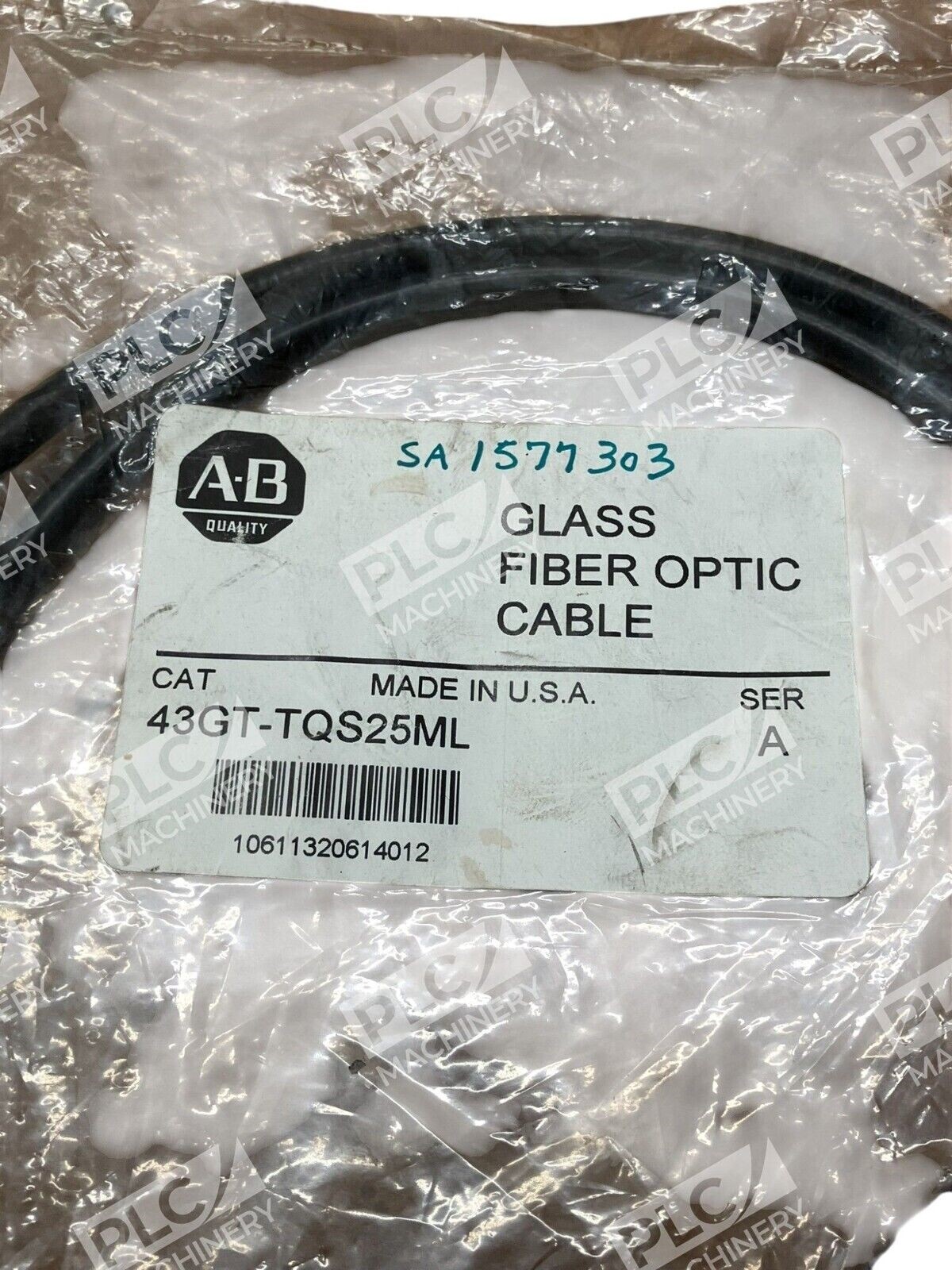

The Allen-Bradley 43GT-TQS25ML /A fiber optic cable is a precision-engineered glass fiber optic assembly for industrial sensing applications. This 0.9-meter (36-inch) cable delivers transmitted beam technology and is designed for compatibility with large aperture sensors commonly found in production machinery, material handling systems, and quality inspection equipment. The robust brass and stainless steel construction ensures long-term reliability in factory environments.
Key Features
- Glass fiber optic construction for superior light transmission and durability
- Transmitted beam sensing mode for reflective surface detection
- 0.9m (36 in.) standard length, tip-to-tip measurement
- 3.2mm (0.125 in.) diameter randomized fiber bundle
- Combination brass and stainless steel connector hardware
- TQ threaded 5/16-inch right angle connector
Technical Specifications
- Fiber Material: Glass
- Sensing Mode: Transmitted Beam (Individual Cable)
- Sensing Tip Style: Threaded, Right Angle
- Cable Length: 0.91m (36 inches)
- Fiber Bundle Diameter: 3.2mm (0.125 inches)
- Fiber Arrangement: Randomized
- Connector Material: Combination Brass/Stainless Steel
- Operating Temperature: 200°F maximum (dependent on variant)
- Sensor Compatibility: Large aperture (0.187 in. / 4.6mm OD sensors)
Typical Applications
This fiber optic cable is widely deployed in automated manufacturing for object detection, presence sensing, and quality control. Common applications include:
- Bottle and container detection on conveyor lines
- Part position and gap detection in assembly equipment
- Reflective material sensing for label and film inspection
- Light curtain and multi-point detection arrays
- Harsh environment sensing where electrical isolation is critical
Compatibility & Replacements
The 43GT series is Allen-Bradley’s standard glass fiber optic cable line for Rockwell Automation sensor products. The TQS designation indicates threaded, right-angle connector configuration. Similar models in the series include 43GT-TQC25ML and 43GT-TQC25SL variants. For custom lengths or connector configurations, Rockwell Automation can engineer bespoke fiber optic solutions. Verify sensor aperture size (large aperture, 0.187 in. / 4.6mm OD) before ordering to ensure proper coupling and sensing range. Contact your local Rockwell Automation distributor or sales office for configuration assistance or application-specific engineering.
