Overview

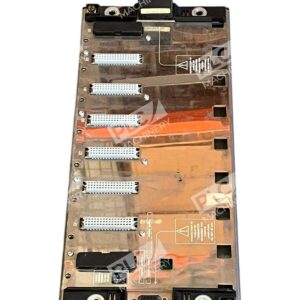

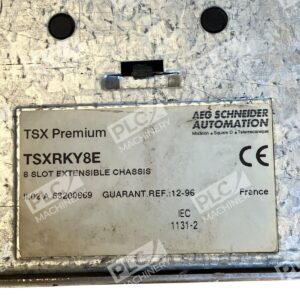

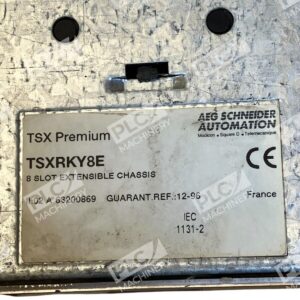

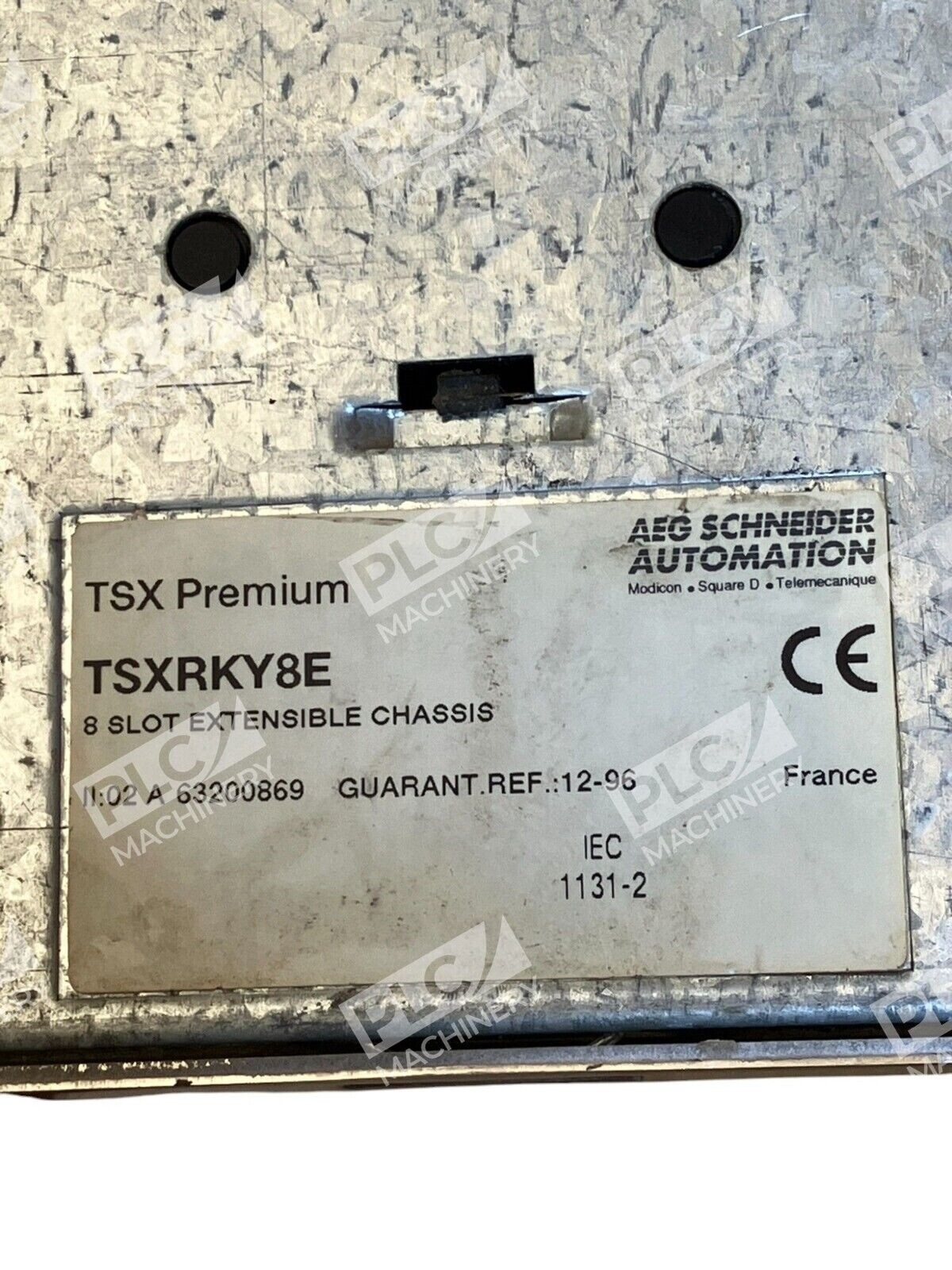

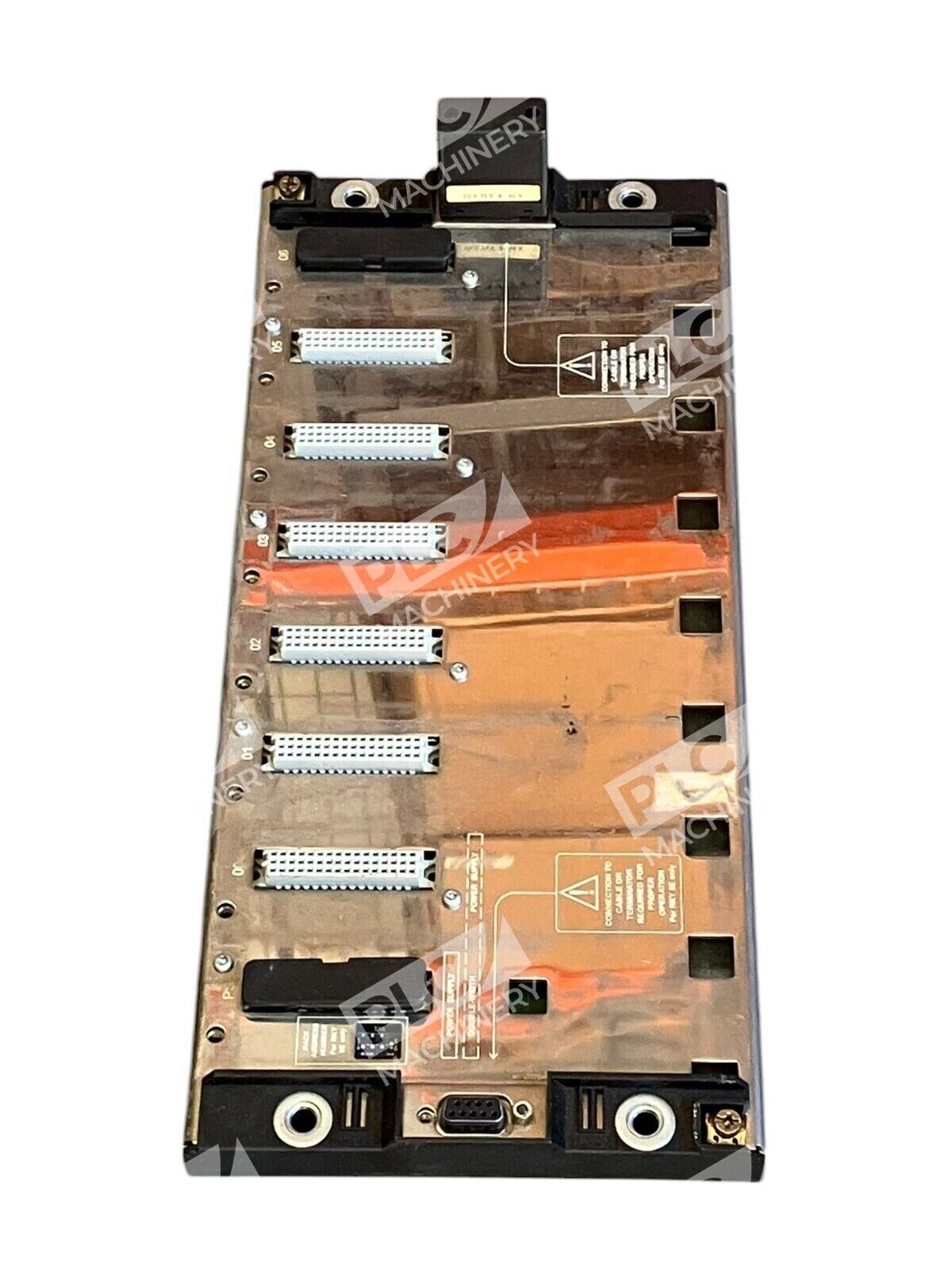

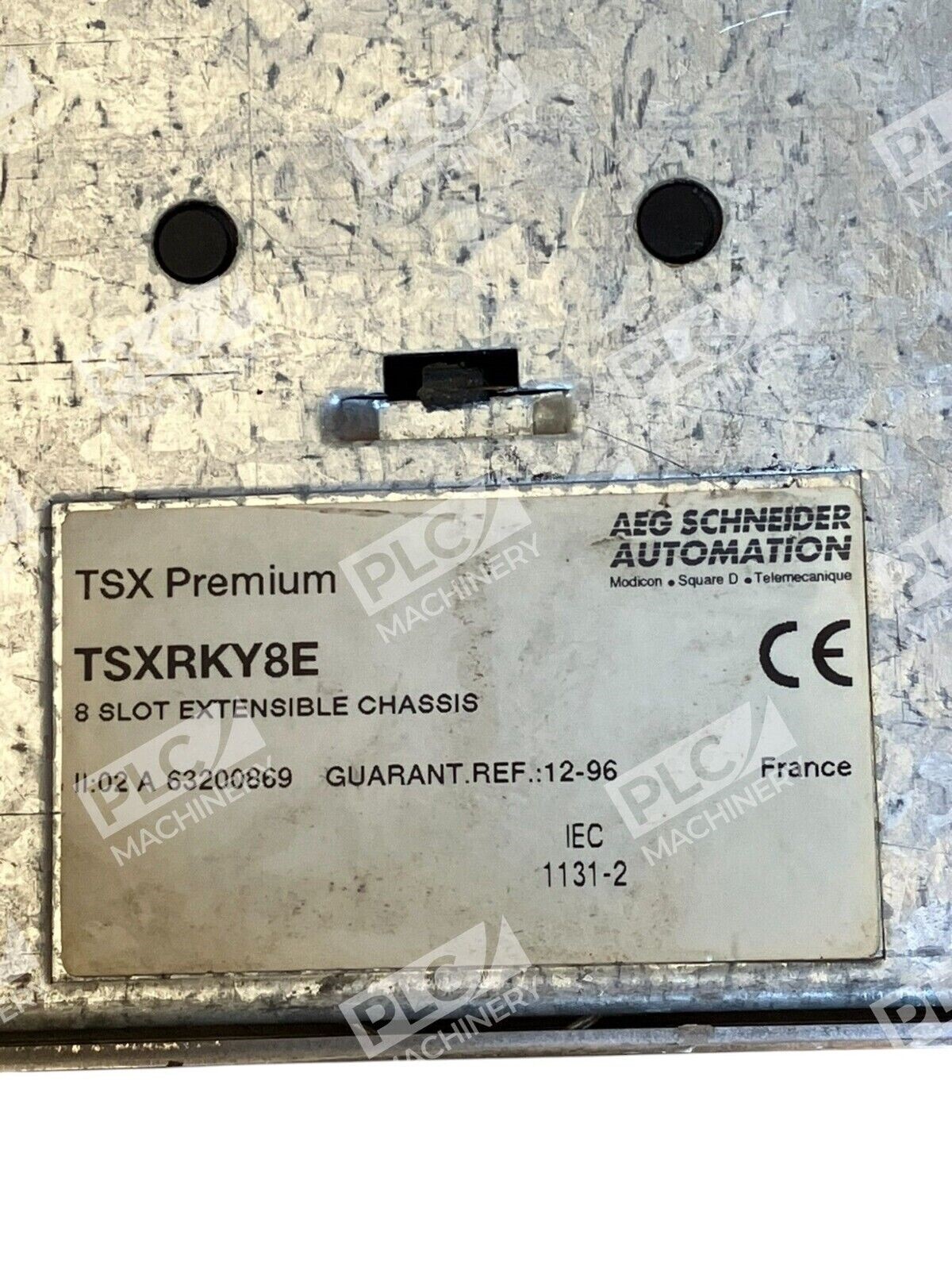

The Schneider TSXRKY8E is an 8-slot extendable chassis engineered for the Modicon Premium automation platform. Originally designed by TELEMECANIQUE, this rack provides a flexible foundation for building scalable control systems. The TSXRKY8EX is an extendable rack designed for multi-rack configurations, providing flexibility and efficiency in industrial automation systems. The TSXRKY8E enables engineers to expand systems as operational demands grow without redesigning core infrastructure.
Key Features
- 8 slots available for module installation
- Mounts on a 35 mm symmetrical DIN rail or via four M6 screws on a panel
- IP20 degree of protection, ensuring reliability in various environments
- Designed for multi-rack configurations, allowing for easy expansion and customization of automation systems
- Compliant with CSA C22.2 No 142, IEC 61131-2, UL 508, and CSA C22.2 No 213 standards
Technical Specifications
The TSXRKY8E meets industrial certification standards and is built for reliable performance in control cabinet and wall-mounted installations:
- Slot Configuration: 8 slots for I/O modules
- Mounting Options: DIN rail (35 mm symmetrical) or panel mount (four M6 screws)
- IP Rating: IP20
- Dimensions: Approximately 335.3 mm in length
- Weight: Approximately 1.78 kg (3.92 lbs)
- Standards: CSA C22.2 No 142, IEC 61131-2, UL 508, CSA C22.2 No 213
Typical Applications
The TSXRKY8E is ideal for manufacturing and process control environments where modular expansion is required. Common uses include:
- Multi-axis machinery control requiring distributed I/O
- Production line automation with future expansion capability
- Process control systems in food, beverage, and chemical processing
- Water treatment and utility automation
- Machine tool control and CNC systems
Compatibility & Replacements
Compatible With
- Compatible with I/O modules, the TSXP57 processor, and the TSXPSY power supply
- Modicon Premium automation platform modules
- Bus X daisy-chaining accessories for multi-rack systems
- TSXCBY series inter-rack cables (10 m to 100 m lengths available)
Replaces / Drop-In Replacement For
The TSXRKY8E is a legacy Modicon Premium component. Verify compatibility with your system integrator before ordering, as the TSXRKY8EX variant is noted as discontinued as of December 2, 2020. For modern Modicon implementations, consult Schneider Electric for current platform recommendations.
Works With
- Modicon Premium I/O module families
- TSXP processors (TSXP57 confirmed compatible)
- Modicon programming software and configuration tools
- Bus X communication for multi-rack expansion
