Overview

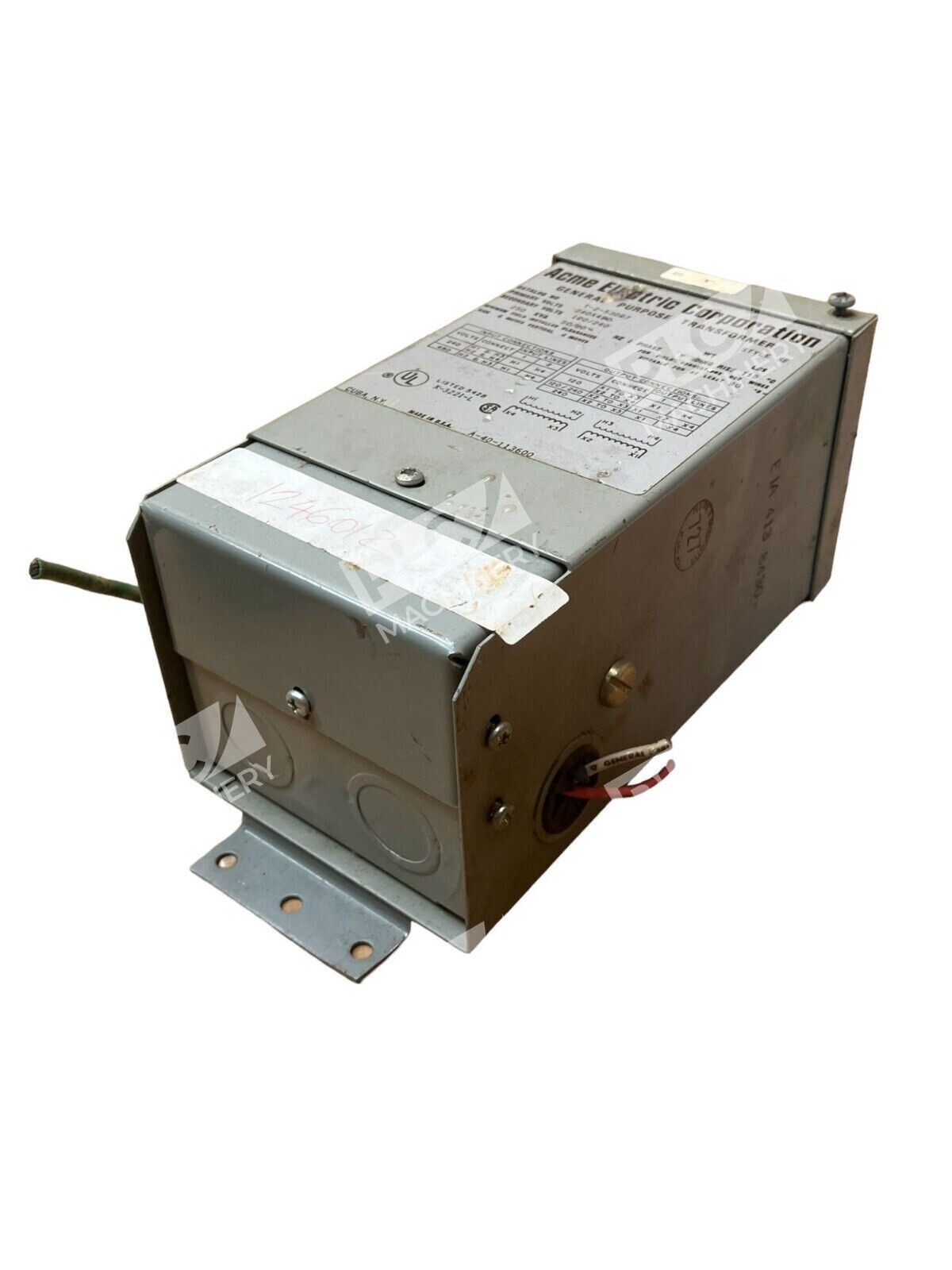

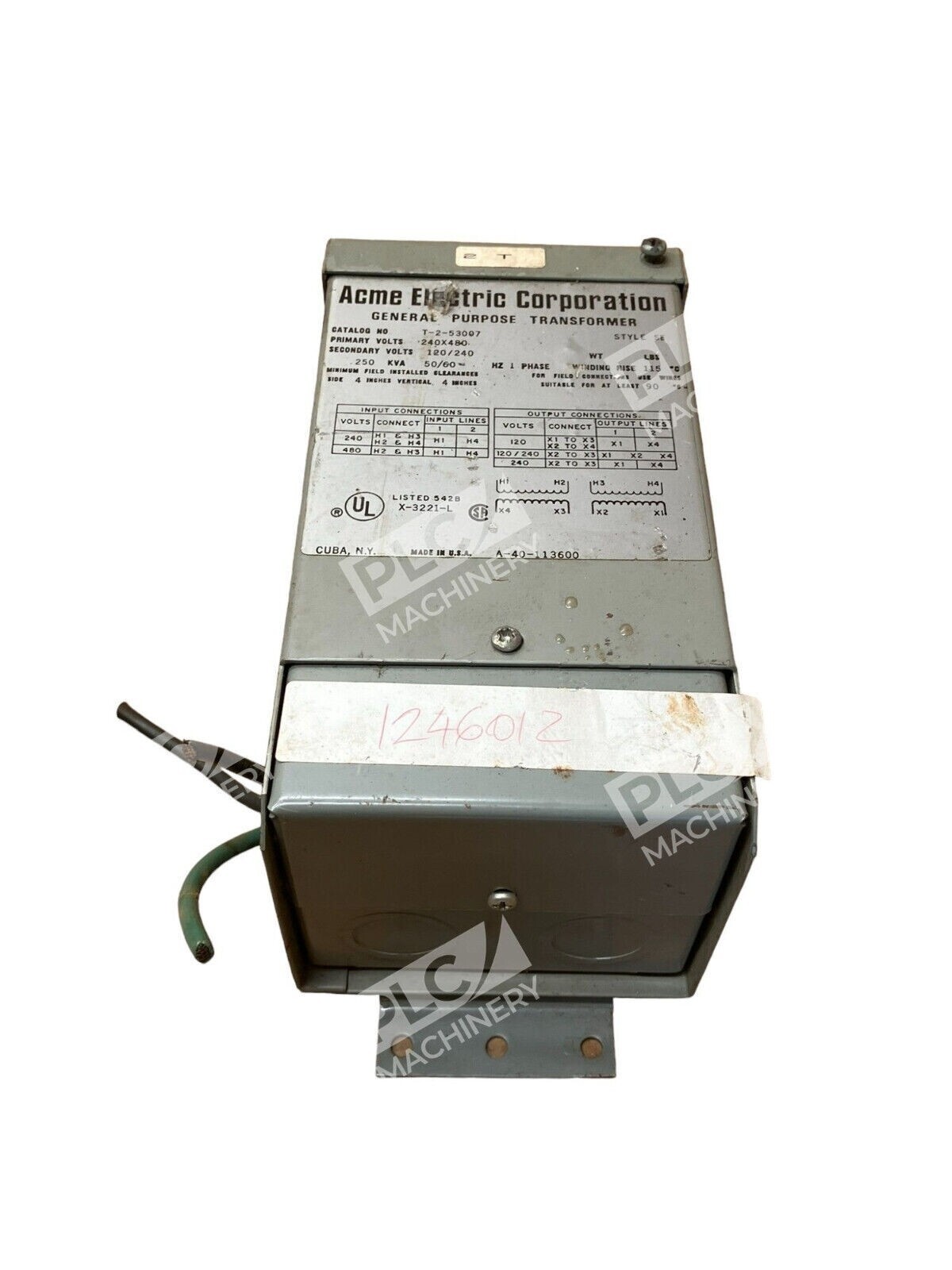

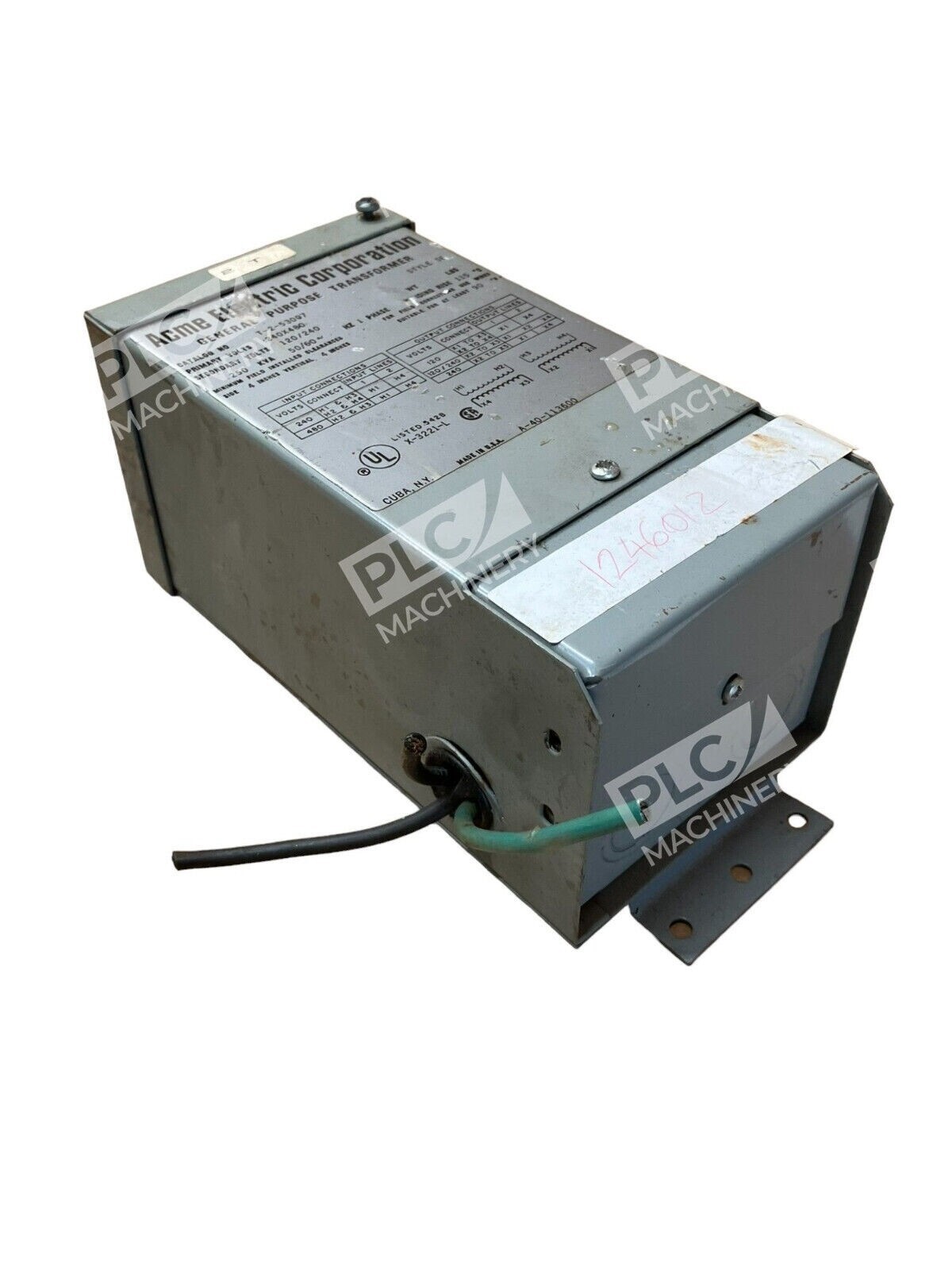

The ACME T-2-53007-S transformer is a general-purpose, dry-type isolation transformer designed for single-phase industrial control and voltage conversion applications. With a 0.25 kVA power rating, dual primary voltage input (240/480V), and secondary output of 120/240V, this compact transformer operates at both 50 and 60 Hz. The Type 2 indoor enclosure makes it suitable for equipment rooms, control panels, and general industrial environments.
Key Features
- Single-phase isolation design for complete galvanic separation between primary and secondary circuits
- Flexible primary voltage input: connects at 240V or 480V without rewiring
- Dual secondary output (120/240V) supports multiple load configurations
- 0.25 kVA (250 VA) capacity suitable for control circuits, signal conditioning, and low-load applications
- Dry-type, encapsulated construction with no oil or liquid cooling required
- Rated for 50/60 Hz operation for global deployment
- Type 2 NEMA indoor enclosure protects internal components
Technical Specifications

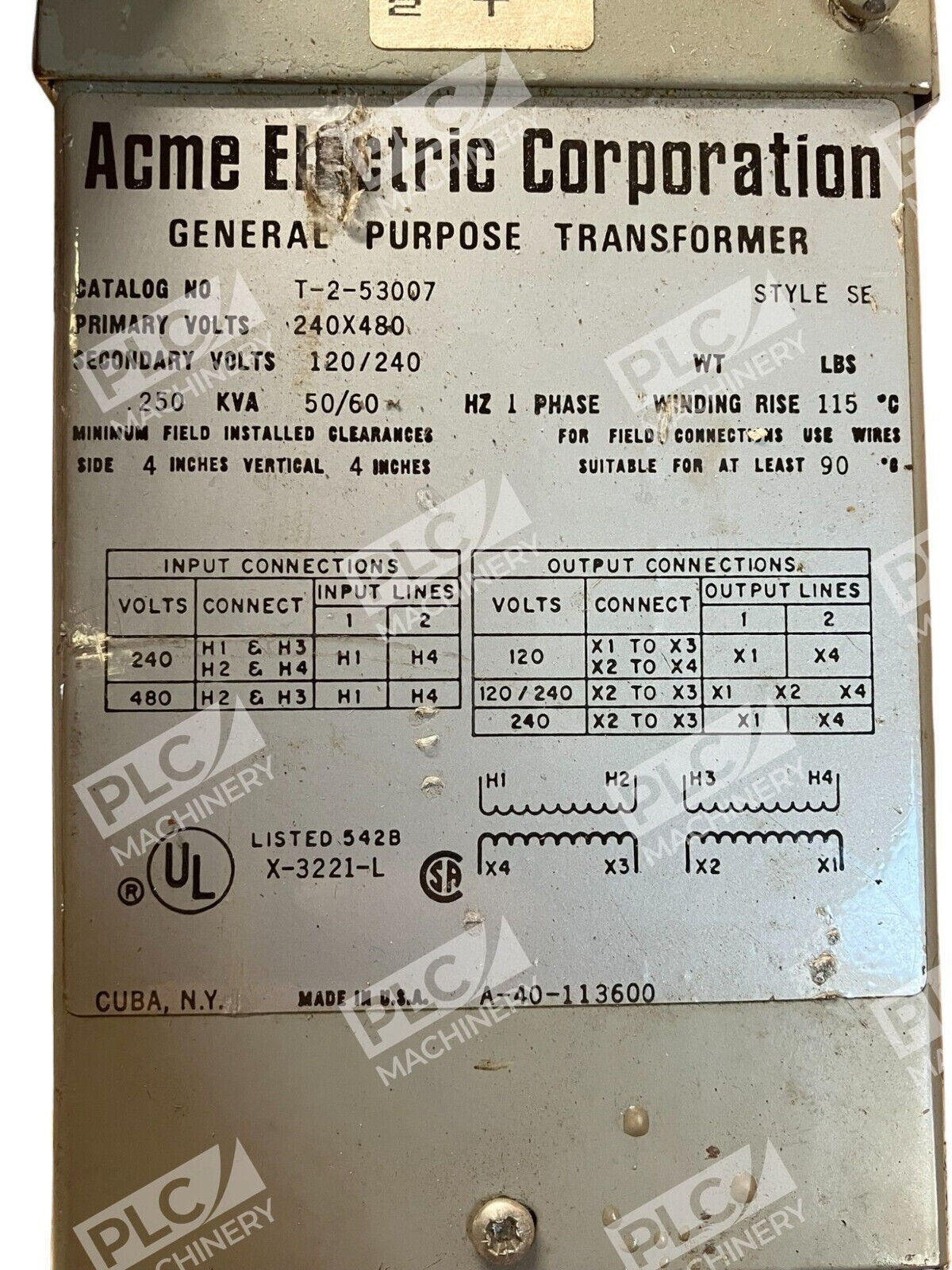

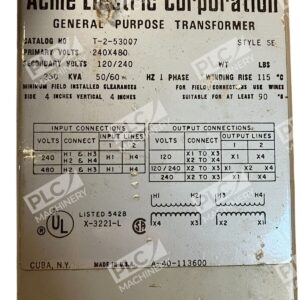

- Part Number: T-2-53007-S
- Manufacturer: ACME Electric (Hubbell subsidiary)
- Power Rating: 0.25 kVA (250 VA)
- Primary Voltage: 240/480V, 1-phase
- Secondary Voltage: 120/240V, 1-phase
- Frequency: 50/60 Hz
- Enclosure Type: NEMA Type 2, indoor
- Construction: Dry-type, encapsulated (no oil)
- Mounting: Wall mount or floor mount (brackets available)
- Impedance: Standard (typical 2–4% regulation)
- Insulation Class: 130°C (F-class)
- Operating Temperature: –30 to +40°C ambient
- Standards Compliance: UL, CSA, NEC Article 450
Typical Applications
- Industrial Control Panels: Provides isolated 120/240V for PLC inputs, relay logic, and sensor power supplies
- Machine Tool Voltage Conversion: Steps down 480V three-wire supply to 240V two-wire or 120V single-wire for auxiliary loads
- Signal Conditioning: Galvanic isolation for analog sensors, transmitters, and instrumentation
- Facility Power Distribution: Serves small facilities, portable equipment, or distributed load centers requiring low-capacity isolation
- Global Equipment Support: Dual-frequency (50/60 Hz) rating enables use in international installations
Compatibility & Replacements
Compatible With
- Industrial control systems and PLC power supplies requiring 120/240V isolation
- 480V three-phase or three-wire industrial power distributions (when connected to two phases)
- Facility electrical panels and machine tool control circuits
- UPS systems and uninterruptible power supplies requiring 120V auxiliary power
- Global industrial equipment rated 50 or 60 Hz AC
Replaces / Drop-In Replacement For
- Other ACME 0.25 kVA single-phase transformers (T-2-53007, variant models)
- Generic isolation transformers, 240/480V primary, 120/240V secondary, 0.25 kVA rating
- Legacy transformer models with equivalent voltage/kVA ratings (verify pinout and mounting before substitution)
Works With
- Standard industrial electrical panels and DIN-rail or wall-mounted enclosures
- Siemens, Allen-Bradley, Mitsubishi, Omron, and other PLC systems requiring isolated 120V or 240V control power
- NEC-compliant overcurrent protection (fuses or breakers per Article 450 sizing)
- Dry-type transformer monitoring and protection relays (optional add-ons)
