Overview

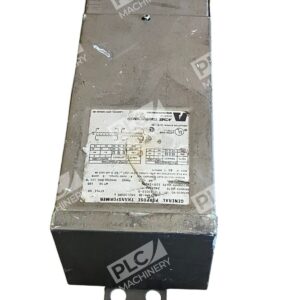

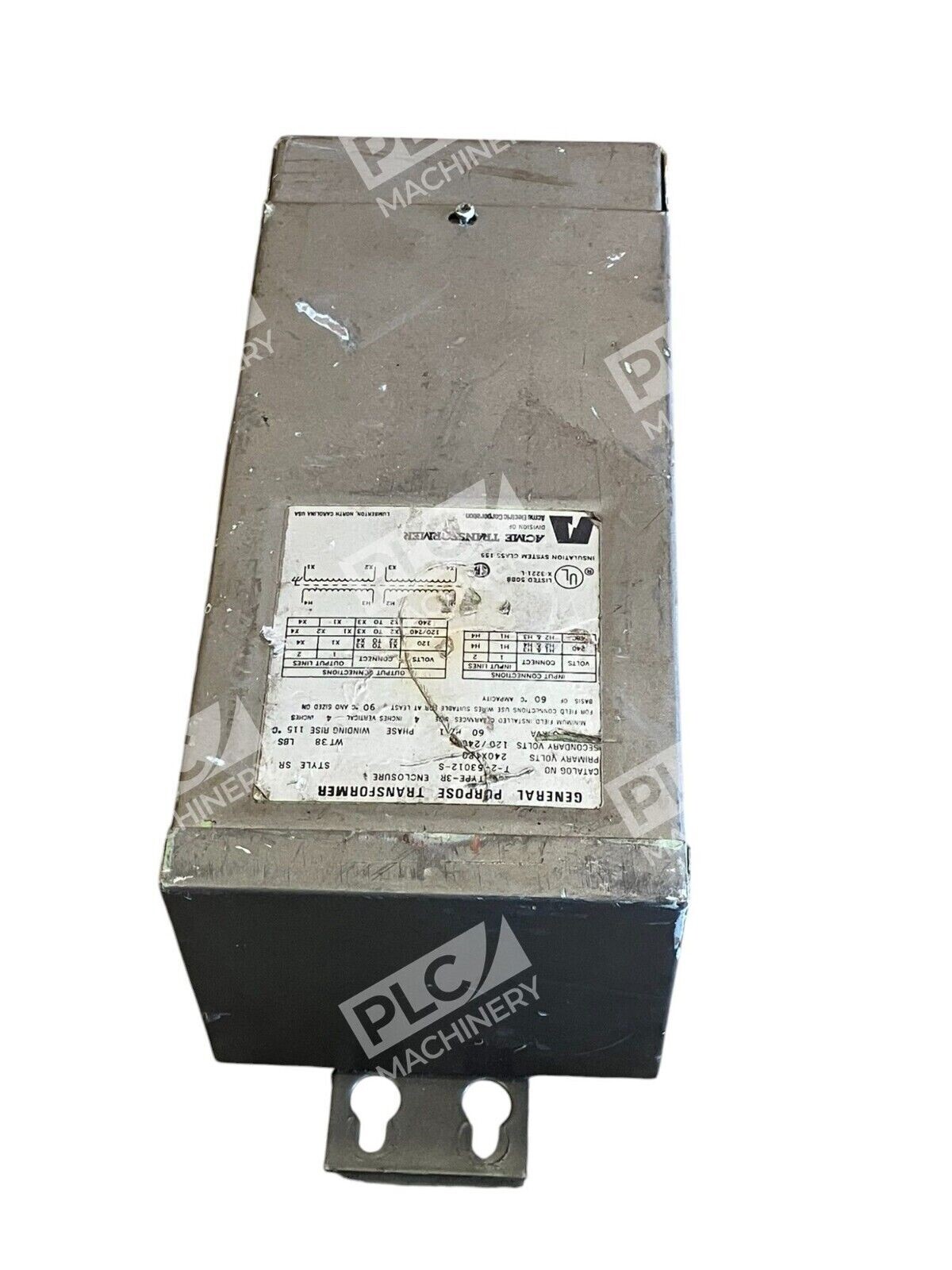

The Acme Electric T-2-53012-S is a dry-type general purpose distribution transformer rated at 2 kVA for single-phase applications. This transformer features a 240/480 VAC primary input with 120/240 VAC secondary output, operating at 60 Hz. The unit is designed for wall-mounted installation and is ideal for industrial, commercial, and facility applications requiring dependable voltage step-down conversion.
Key Features
- Fully encapsulated core and coil for superior moisture and corrosion resistance
- Electrostatic shield reduces radiated noise and electromagnetic interference
- NEMA 3R epoxy encapsulated design for indoor general-purpose use
- UL listed and CSA certified for safety and performance compliance
- Wall-mount configuration for flexible installation
- Single-phase 60 Hz operation for standard North American power systems
Technical Specifications
Electrical Ratings:
- Primary Voltage: 240/480 VAC
- Secondary Voltage: 120/240 VAC
- Capacity: 2.0 kVA
- Phase: Single (1-phase)
- Frequency: 60 Hz
Typical Applications
The T-2-53012-S is suited for a broad range of indoor industrial and commercial environments, including:
- Machine tool control circuits and automation equipment
- HVAC and climate control systems
- Lighting control and distribution panels
- Process machinery and manufacturing facilities
- Commercial building electrical infrastructure
- Facilities requiring safe step-down voltage conversion from higher supply voltages
Compatibility & Replacements
Compatible With
- Standard North American 240/480 VAC three-wire or four-wire distribution systems
- Industrial control circuits requiring 120/240 VAC secondary voltage
- Machine control and automation systems operating on 60 Hz power
- Building electrical infrastructure and panel-mount applications
Replaces / Drop-In Replacement For
- Legacy NEMA 3R single-phase transformers with similar 240/480V to 120/240V rating and capacity
- Verify compatibility with your system integrator or electrical engineer before ordering to ensure proper voltage and capacity match
Works With
- Standard electrical distribution panels and switchgear
- Motor control centers and variable frequency drives
- Building automation and control systems
- UL/CSA-compliant industrial electrical installations
