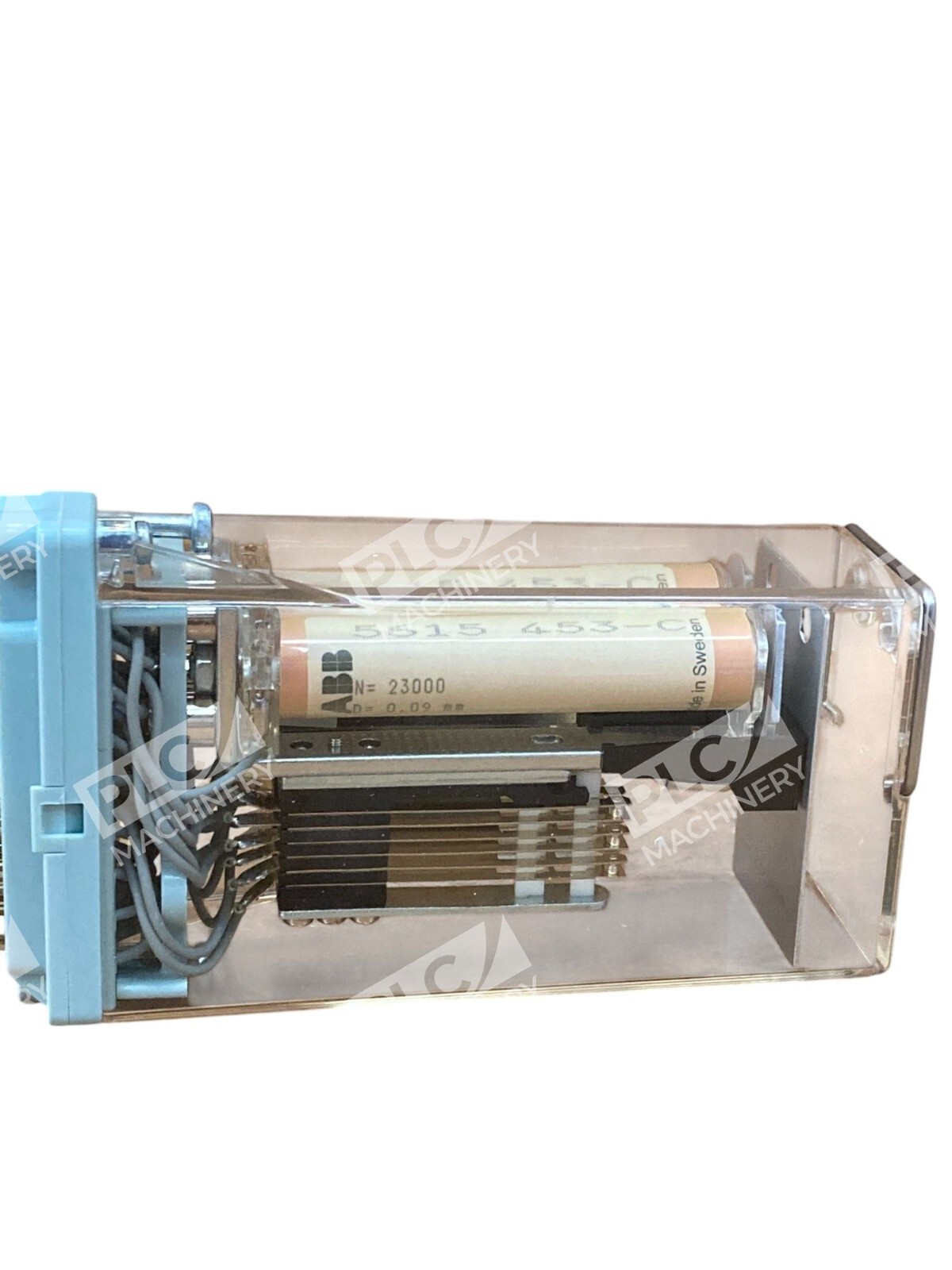

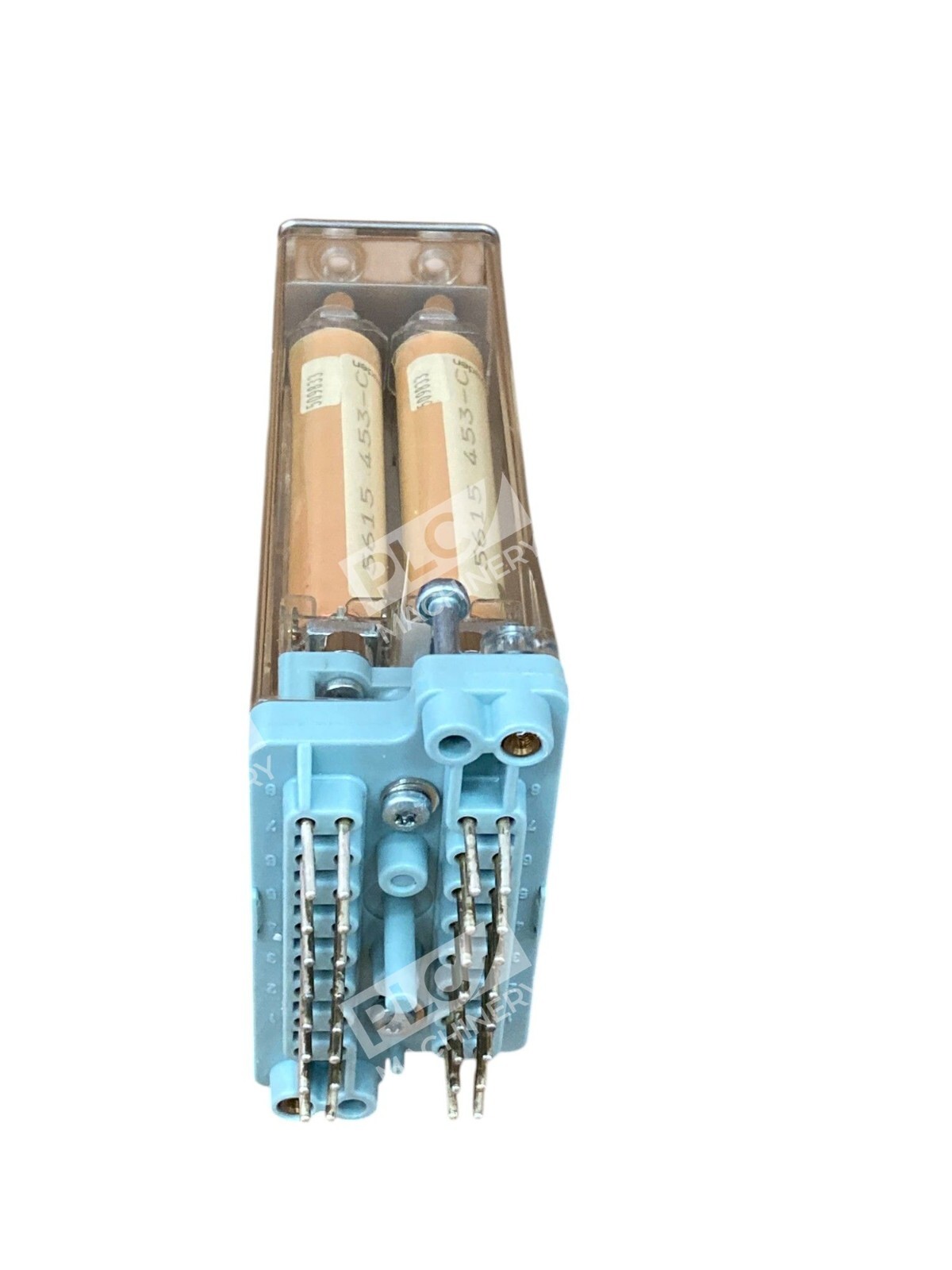

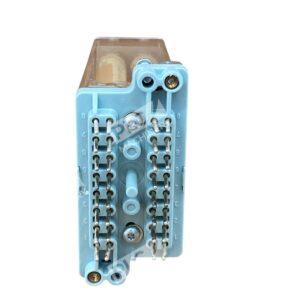

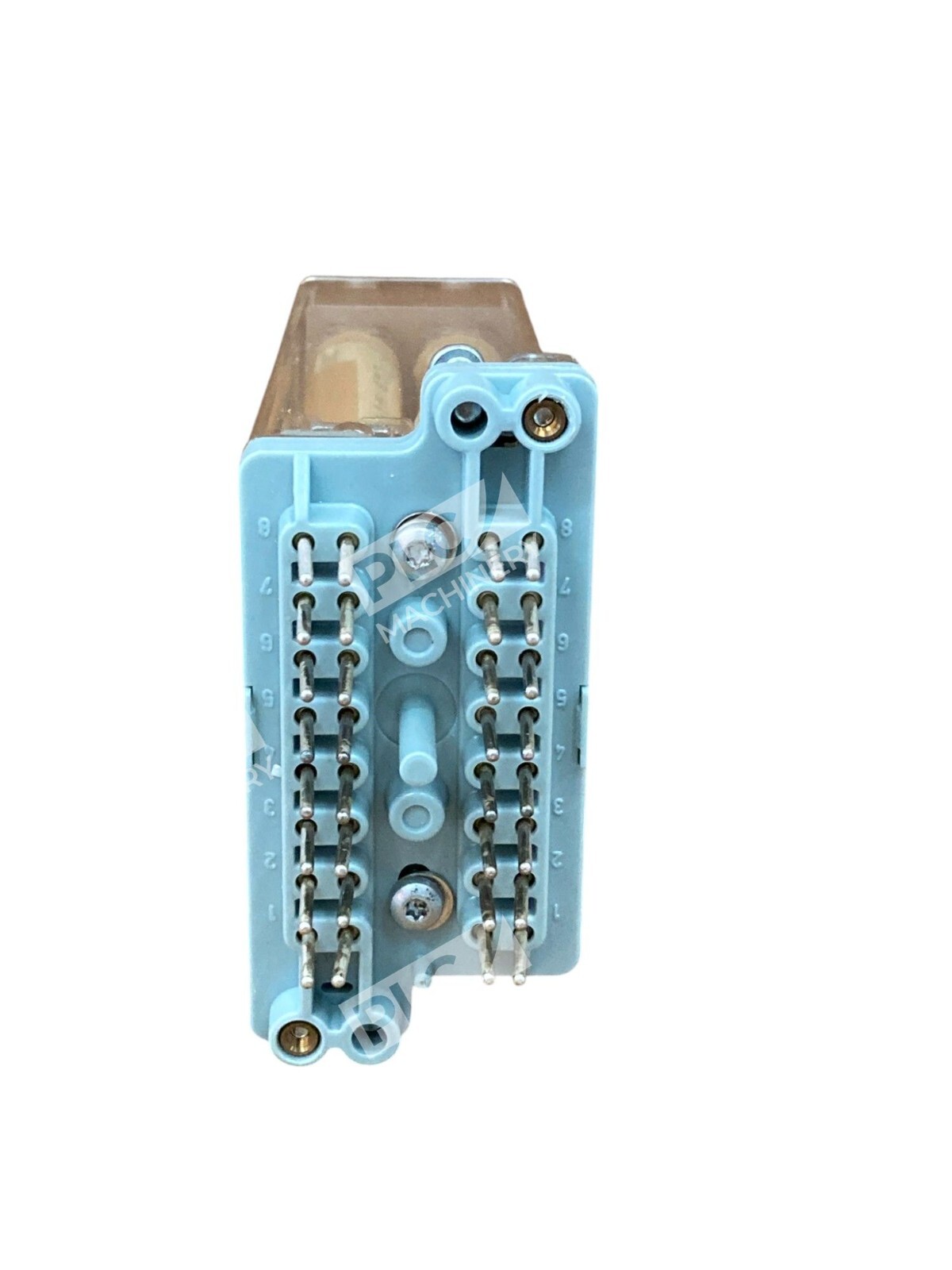

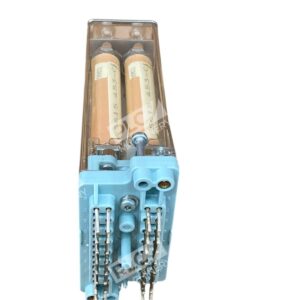

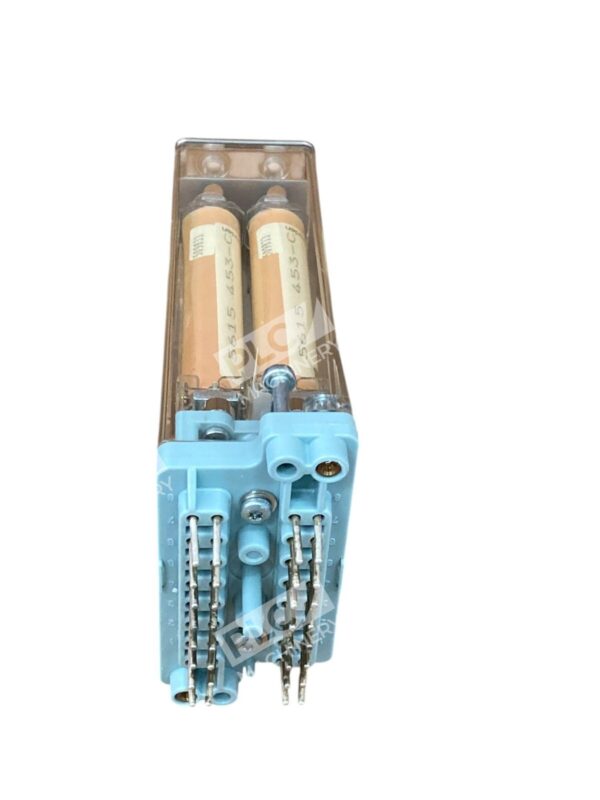

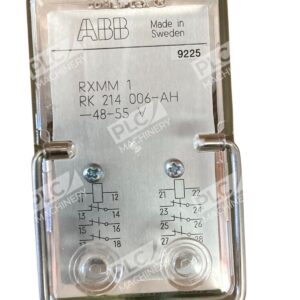

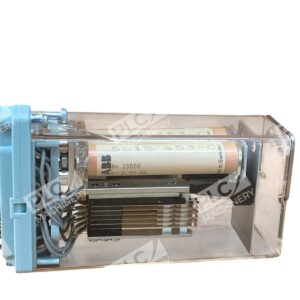

ABB RXMM1 RK214006-AH Auxiliary Relay RXMM 1 RK 214 006-AH

ABB RXMM1 RK214006-AH Auxiliary Relay

The ABB RXMM1 RK214006-AH is a versatile auxiliary relay designed for use in protection, control, and industrial systems. It is suitable for applications such as tripping, blocking, interlocking, and signaling.

Key Features

• Voltage Rating: Operates on a DC voltage of 48-55V.
• Contact Configuration: Equipped with 6 make contacts, providing reliable switching capabilities.
• High Voltage Insulation: Ensures safe operation in high-voltage environments.
• Low Power Consumption: Designed for energy-efficient performance.
• Durability: Offers long mechanical life with high resistance to shock and vibration.
• Indication Flags: Features indication flags for easy status monitoring.
• Compact Design: Space-saving construction suitable for installations where few contacts are needed.

Applications

The RXMM1 RK214006-AH is ideal for use as a position repeat relay, interposing relay in control equipment, or as an output relay in protective relays. Its robust design makes it suitable for installations with high operating requirements, including those in corrosive atmospheres or seismic areas.

Technical Specifications

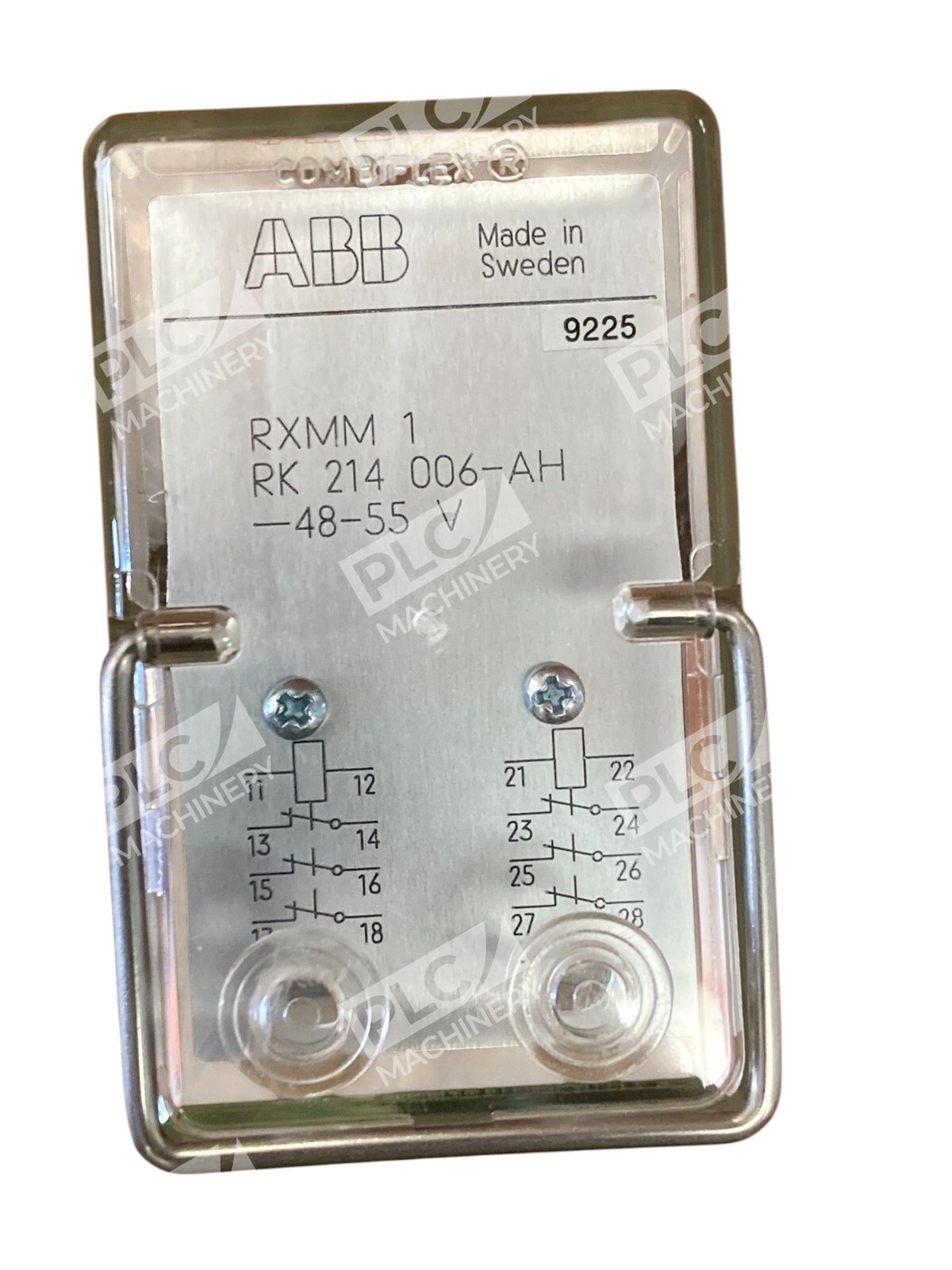

• Coil Voltage: 48-55V DC
• Contact Configuration: 6 make contacts
• Operating Temperature Range: -25°C to +55°C
• Power Consumption: 0.1 W at rated current
• Weight: Approximately 0.3 kg

With its reliable performance and robust construction, the ABB RXMM1 RK214006-AH auxiliary relay is a dependable choice for various industrial and control applications.
