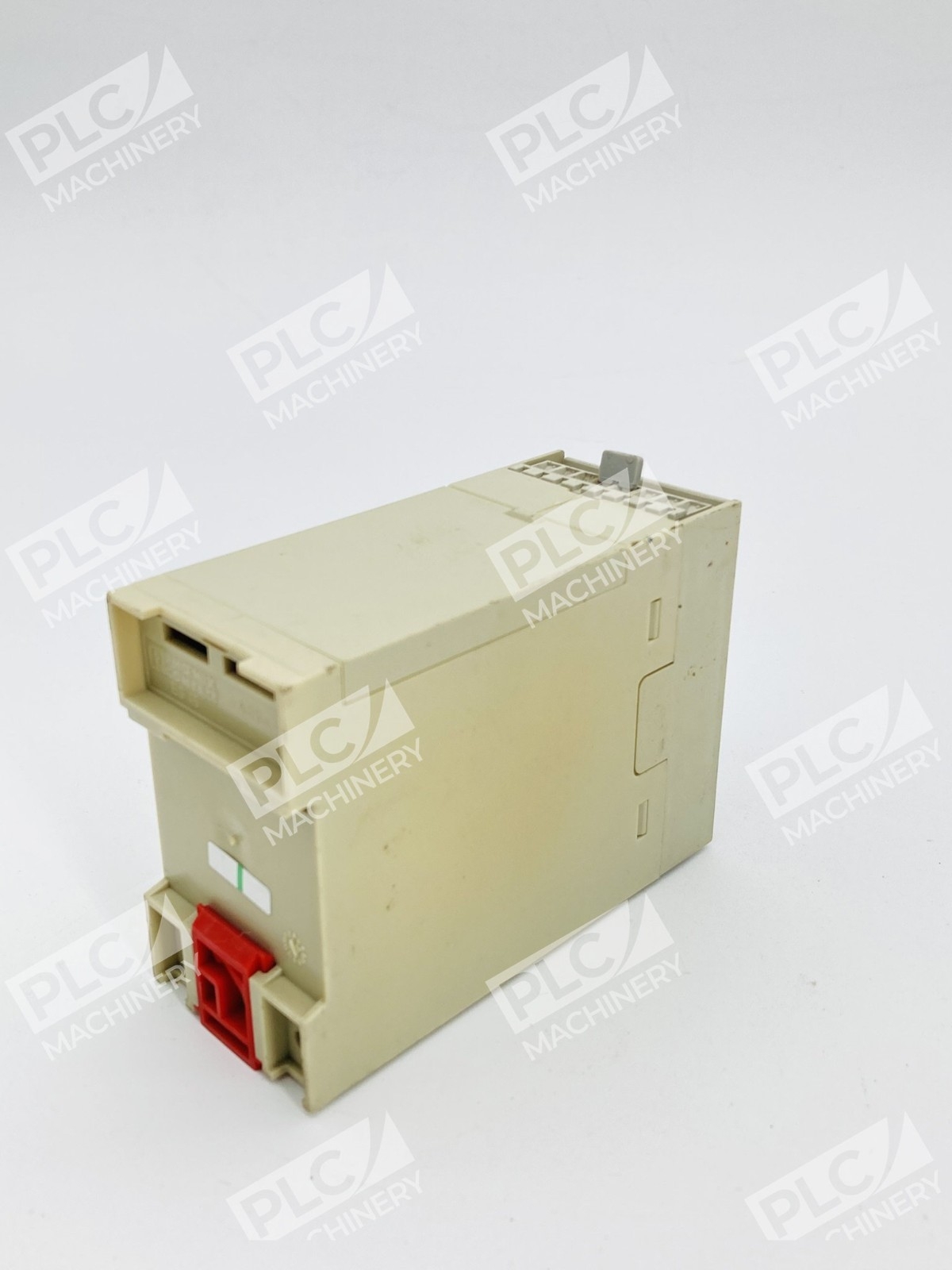

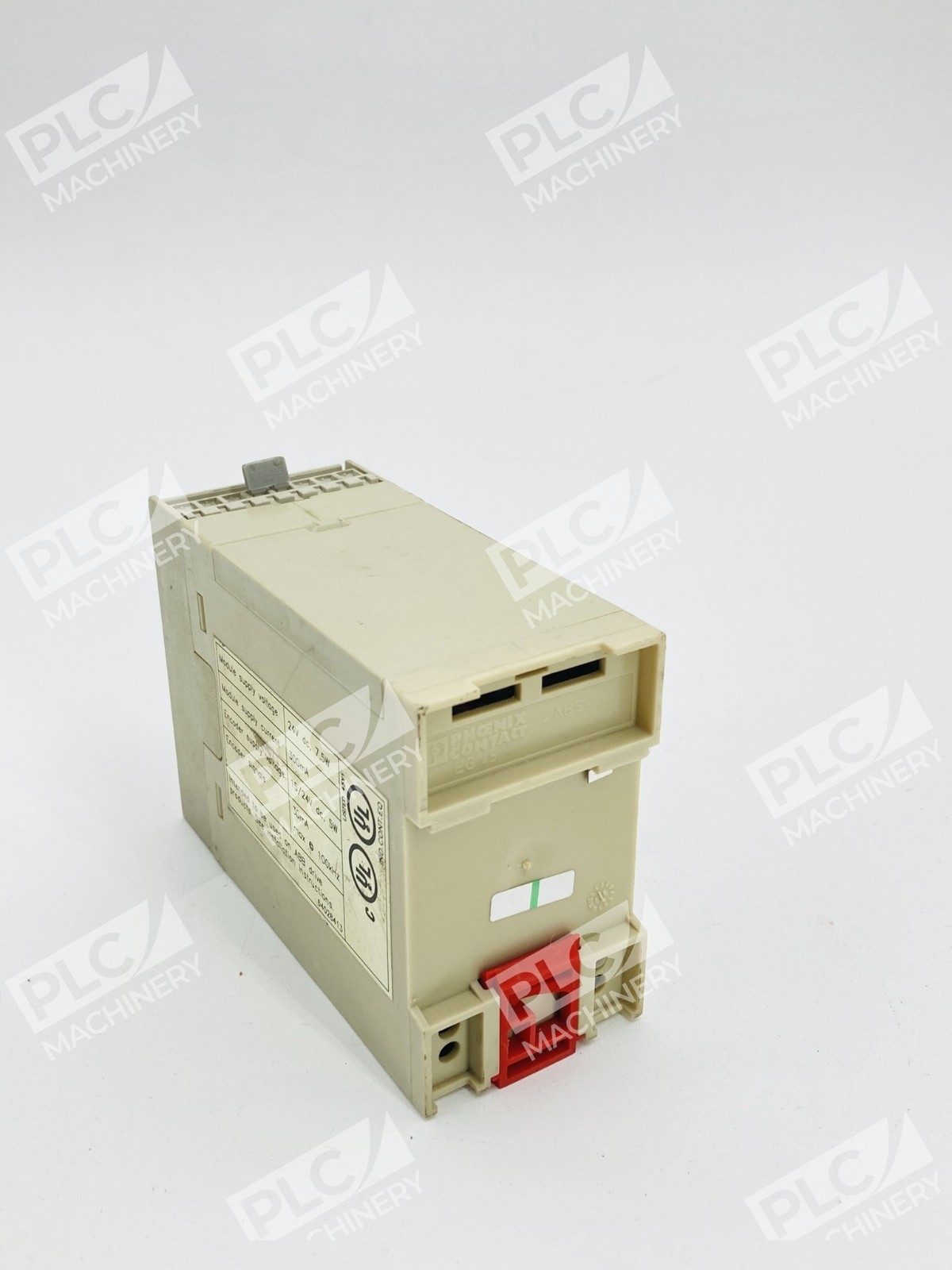

Overview

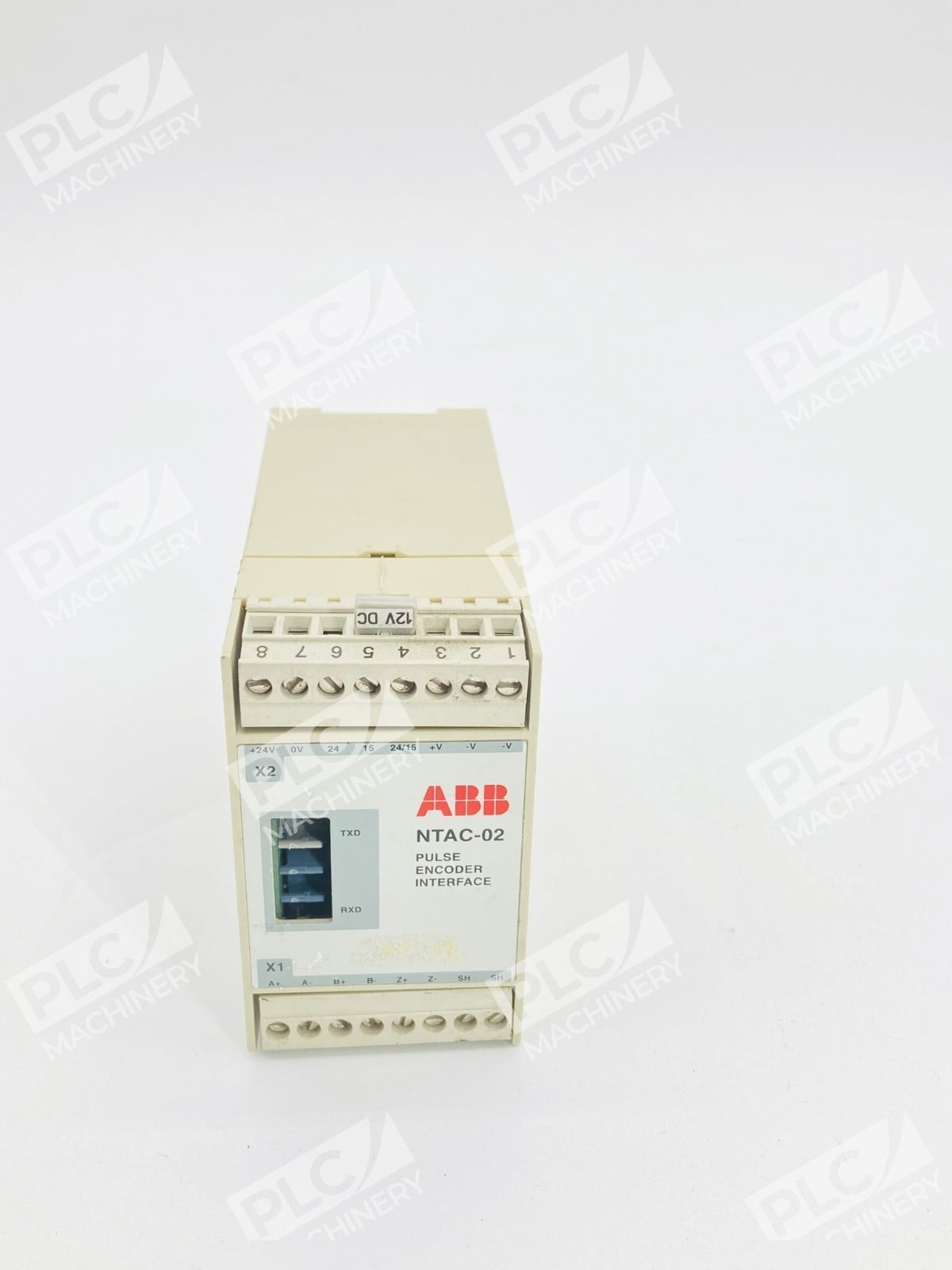

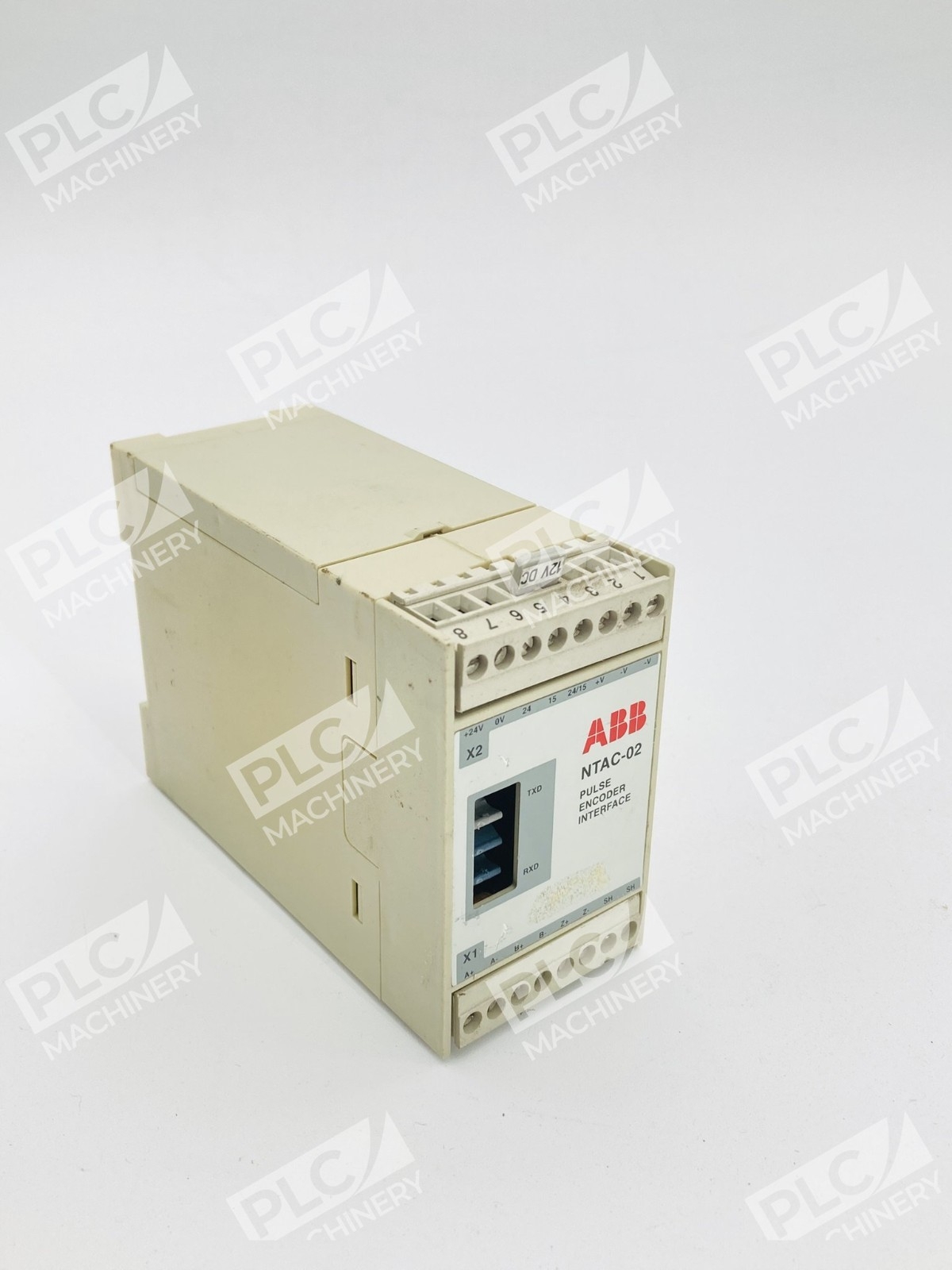

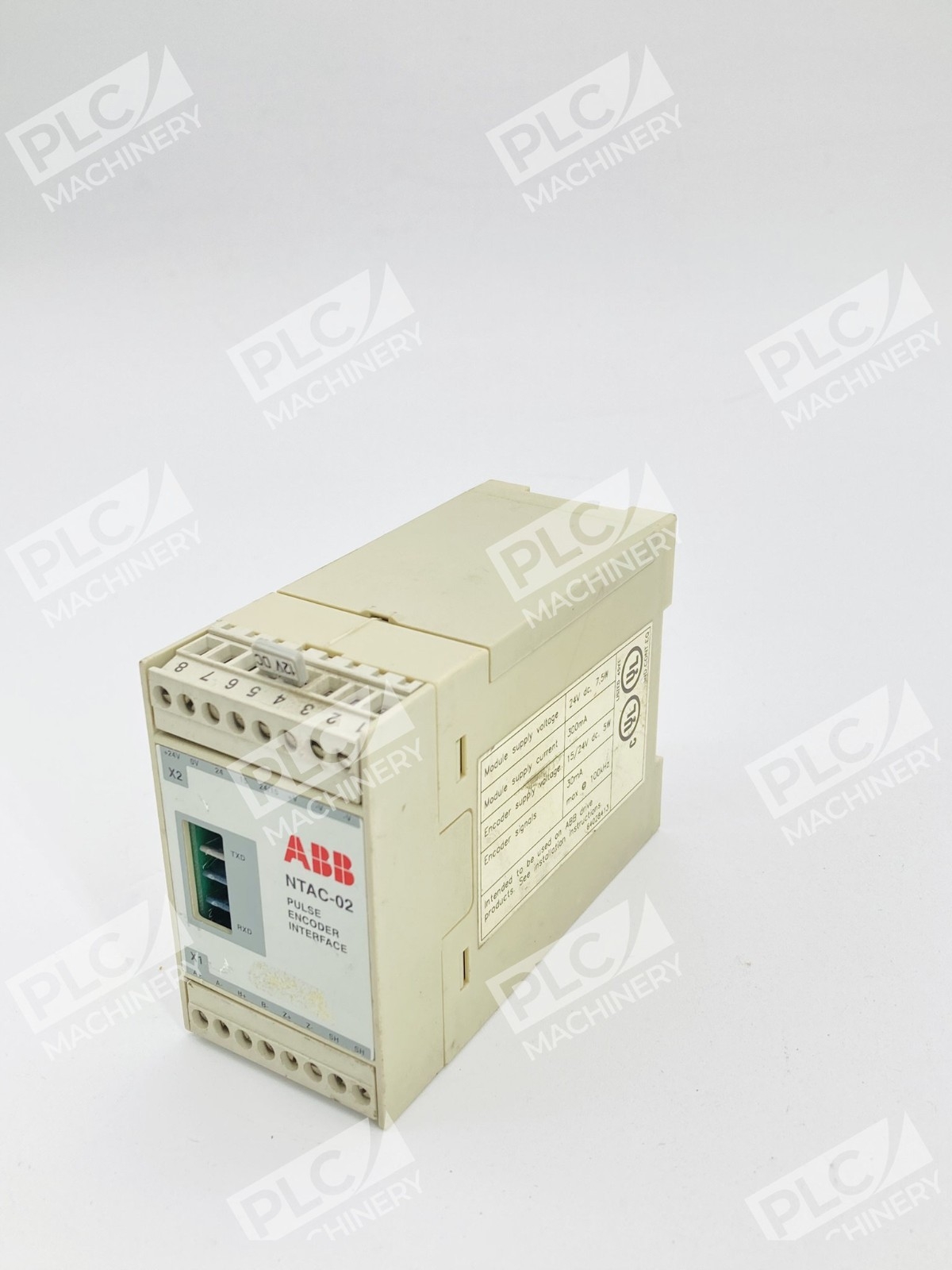

ABB NTAC-02 is a pulse encoder interface module designed specifically for ABB frequency converter systems. This interface module converts pulse signals from external encoders into digital signals that frequency converters can recognize, enabling high-precision closed-loop motor control. The NTAC-02 supports multiple encoder signal types and is ideal for applications requiring accurate speed feedback, position tracking, and synchronous motor operation.
Key Features
- Multiple Encoder Support: Handles ABZ, incremental, and other standard encoder signal types
- High-Accuracy Signal Conversion: 15-bit encoder feedback resolution (0.00305%) for precise motor control
- Fast Signal Processing: Supports signal frequencies up to 100 kHz maximum
- Industrial-Grade Connectivity: Optical transmitters/receivers (Hewlett-Packard standard) and Phoenix Contact terminal blocks for robust encoder and power connections
- Compact Form Factor: Ultra-compact PCB kit design for easy installation in control panels
- Broad Operating Range: Operates reliably across -20°C to +70°C temperature range
Technical Specifications

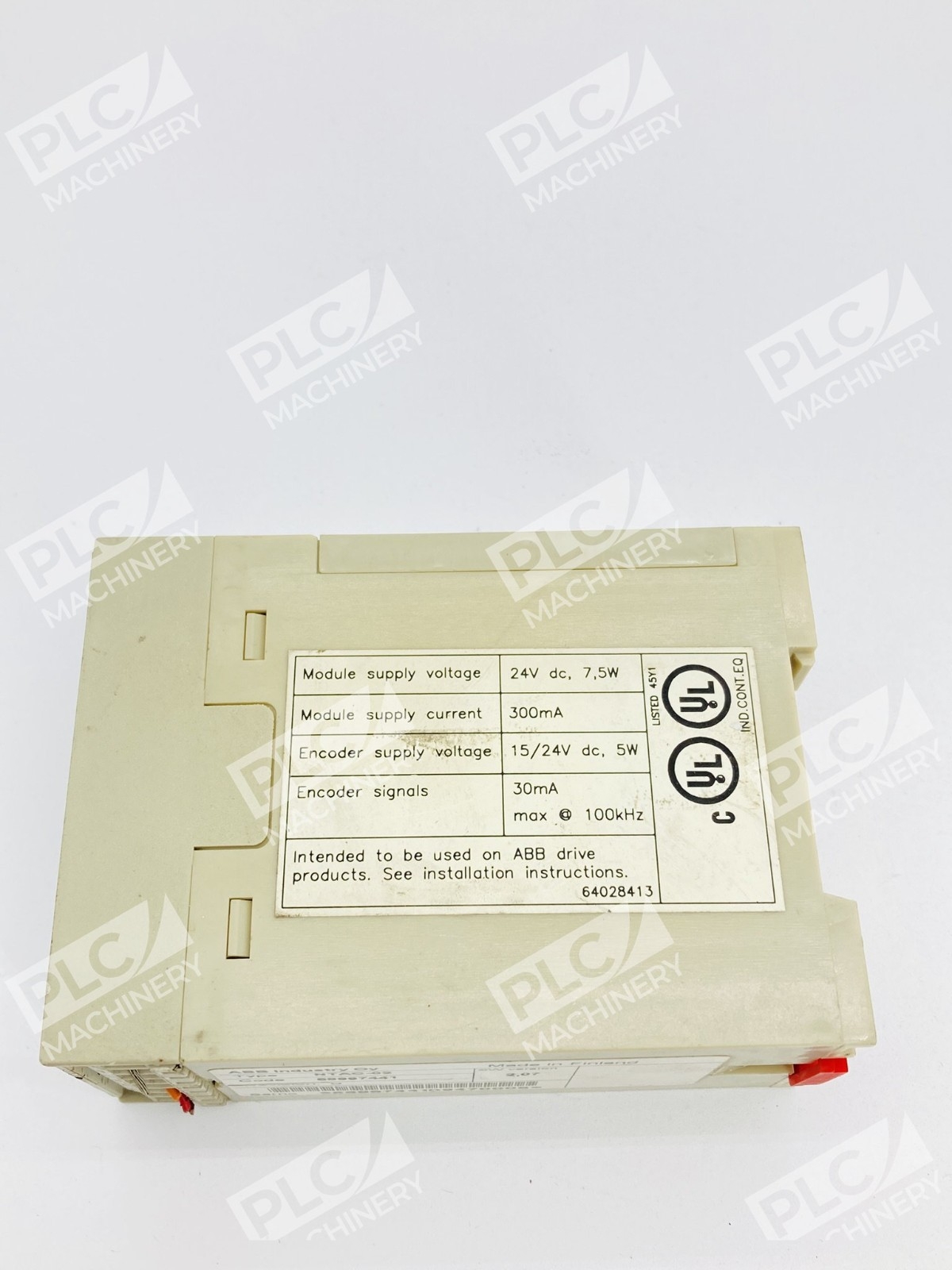

- Voltage Supply: 24V DC nominal (exact voltage depends on frequency converter model)
- Power Consumption: Maximum 250 mA at 24V DC (typical)
- Signal Frequency: Maximum 100 kHz
- Encoder Feedback Resolution: 15-bit (0.00305%)
- Input Signal Types: ABZ, incremental, and other encoder formats
- Output Signal: Digital signal compatible with ABB frequency converters
- Interface Type: Optical (Hewlett-Packard connectors) + terminal block connections
- Connector Standards: Phoenix Contact MVBSTW 2.5/8-ST-5.08 terminal blocks; wire cross-section 0.5 to 2.5 mm²
- Dimensions: 150 × 100 × 30 mm (module); PCB kit: 108 × 75 × 45 mm
- Weight: 0.15 kg (module) / 0.5 kg (PCB kit)
- Operating Temperature: -20°C to +70°C

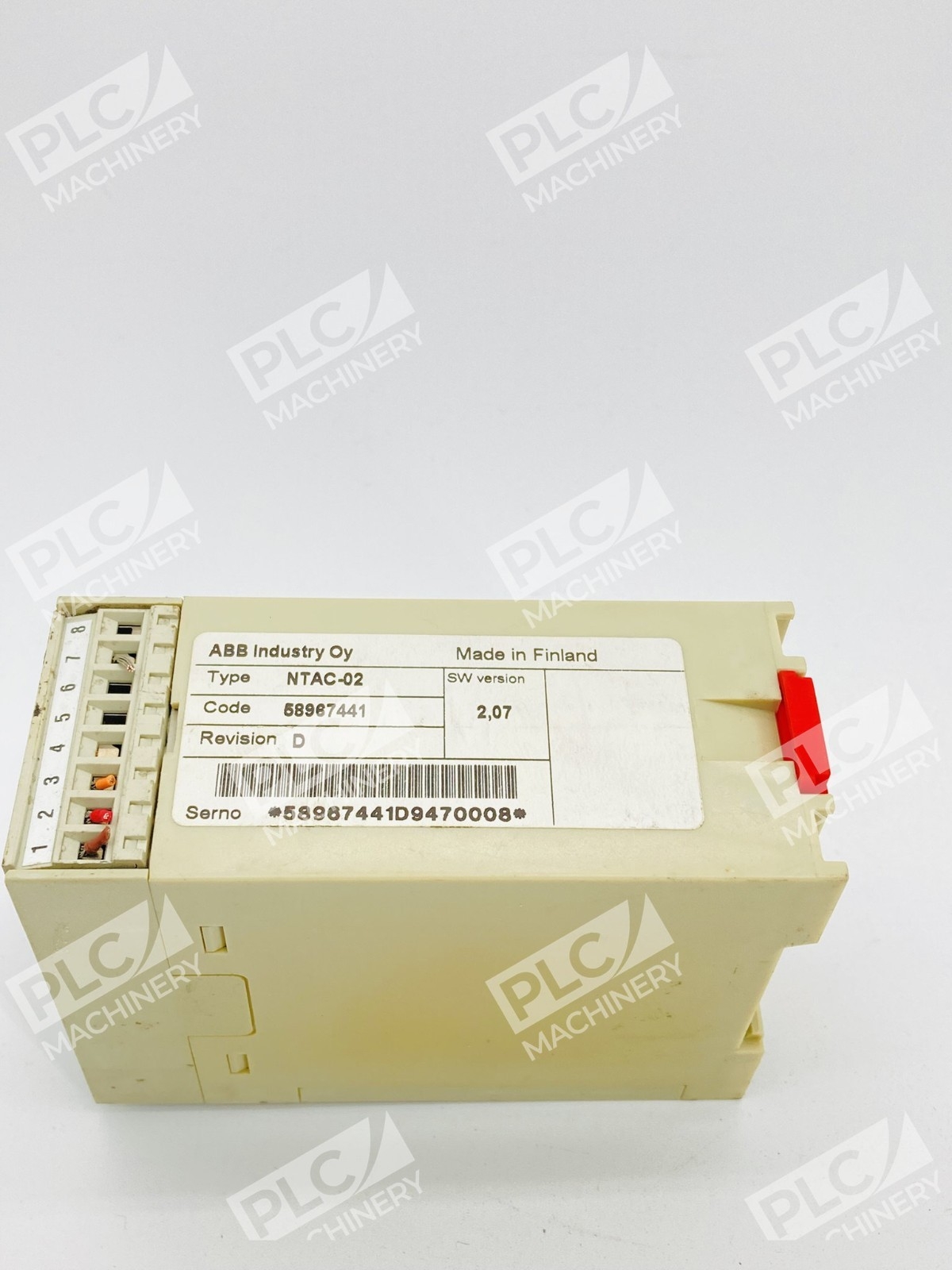

- Product ID: 58976008 (NTAC-02 OPTION/SP KIT)
- Condition: Used, fully functional
Typical Applications
- Closed-loop motor speed and position control in industrial drives
- Synchronous operation of multiple motors or machine axes
- Precision positioning systems requiring encoder feedback
- Motion control in robotics and material handling equipment
- Variable frequency drive (VFD) systems with encoder integration
- Manufacturing automation requiring accurate speed feedback
Compatibility & Replacements
Compatible With
- ABB frequency converter family (ACS 600 and compatible models)
- Systems requiring ABZ, incremental, or pulse encoder signal conversion
- Industrial automation platforms supporting optical and terminal block encoder interfaces
- 24V DC control voltage systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The NTAC-02 is designed as a direct interface module for ABB frequency converters; confirm your specific converter model for guaranteed compatibility.
Works With
- ABB frequency converter software and control platforms
- Closed-loop encoder feedback algorithms
- Optical encoder signal transmission (HP connectors)
- Industrial automation control systems utilizing pulse-to-digital conversion
