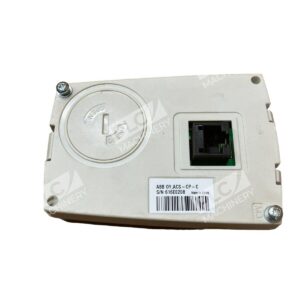

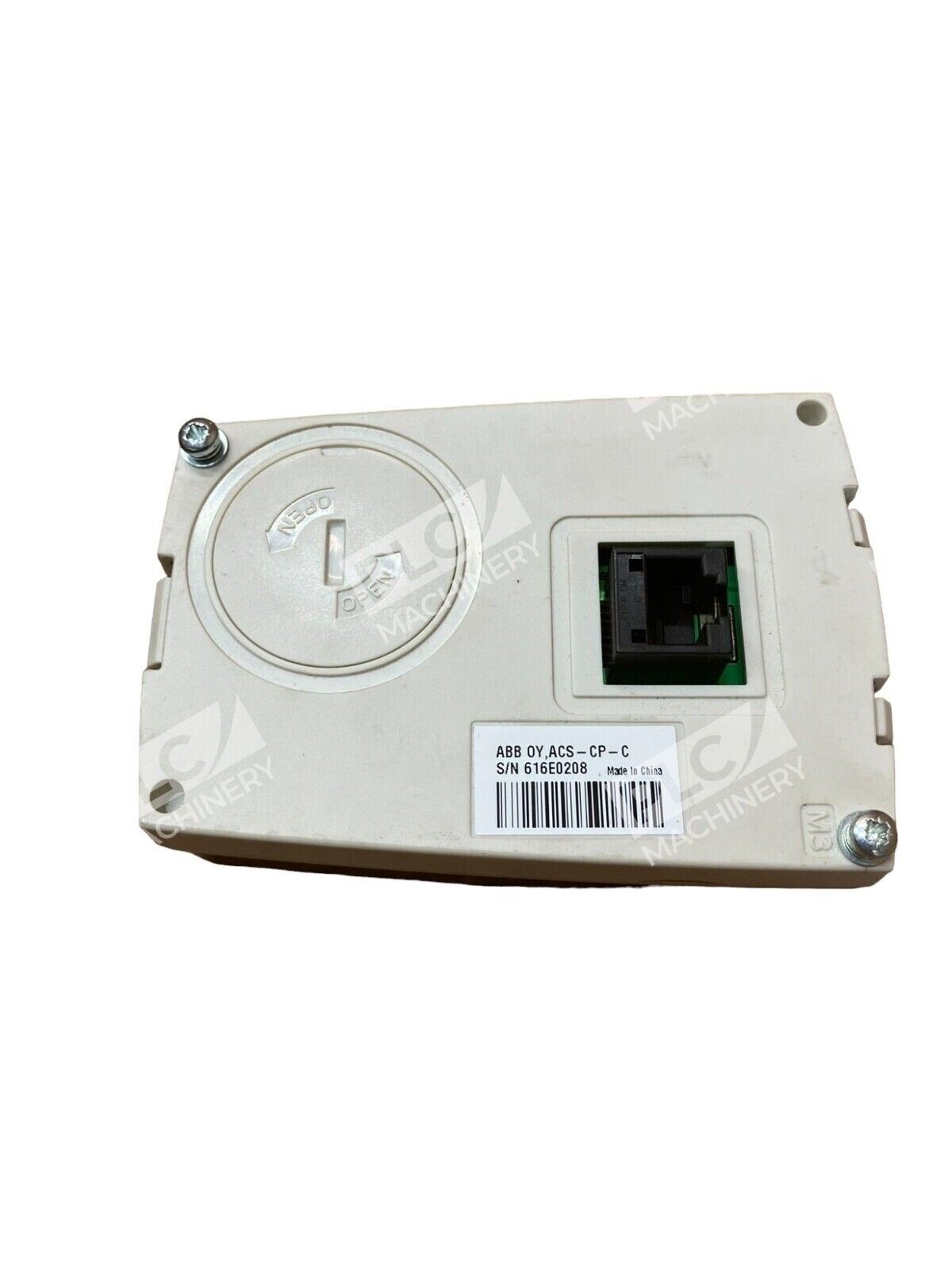

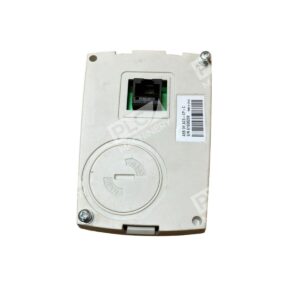

ABB ACS-CP-C Basic Control Panel

ABB ACS-CP-C Basic Control Panel

The ABB ACS-CP-C Basic Control Panel is a user-friendly interface designed for seamless integration with ABB’s ACS310, ACS350, ACS355, and ACS550 variable frequency drives. This compact control panel simplifies drive setup, monitoring, and operation, making it an essential tool for efficient motor control in various industrial applications.

Key Features

• Compatibility: Works seamlessly with ABB’s ACS310, ACS350, ACS355, and ACS550 drive series.
• Intuitive Interface: Equipped with a numeric keypad and a clear LCD display for straightforward navigation and parameter adjustments.
• Parameter Copy Function: Allows users to save drive settings and transfer configurations between drives, facilitating quick setup and maintenance.
• Compact Design: Designed for direct plug-in to the drive’s front panel, ensuring easy installation and space efficiency.

Technical Specifications

• Model Number: ACS-CP-C
• Display Type: LED segment
• Mounting: Direct plug-in to drive front panel
• Functions: Start/stop, speed reference, diagnostics, parameter navigation
• Interface: Tactile membrane keys
• Dimensions: Compact, designed to match ABB drive front panels
• Weight: Approx. 0.1 kg
• Certifications: CE compliant

Applications

The ACS-CP-C Basic Control Panel is ideal for local operator control of ABB drives, parameter adjustment during commissioning, and monitoring drive status and diagnostics. Its straightforward design makes it suitable for cost-effective automation solutions in pumps, fans, conveyors, and general machinery.

Why Choose the ABB ACS-CP-C

• Simplified Operation: Enables quick commissioning and diagnostics without the need for external tools.
• Versatility: Compatible with multiple ABB drive series, offering flexibility across various applications.
• Durability: Built to withstand standard industrial environments, ensuring reliable performance.

Incorporating the ABB ACS-CP-C Basic Control Panel into your system enhances operational efficiency, providing a reliable and user-friendly solution for motor control and drive management.
