Overview

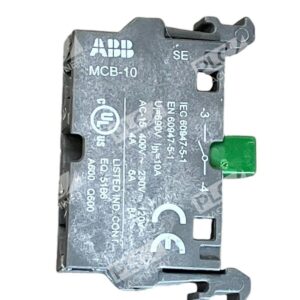

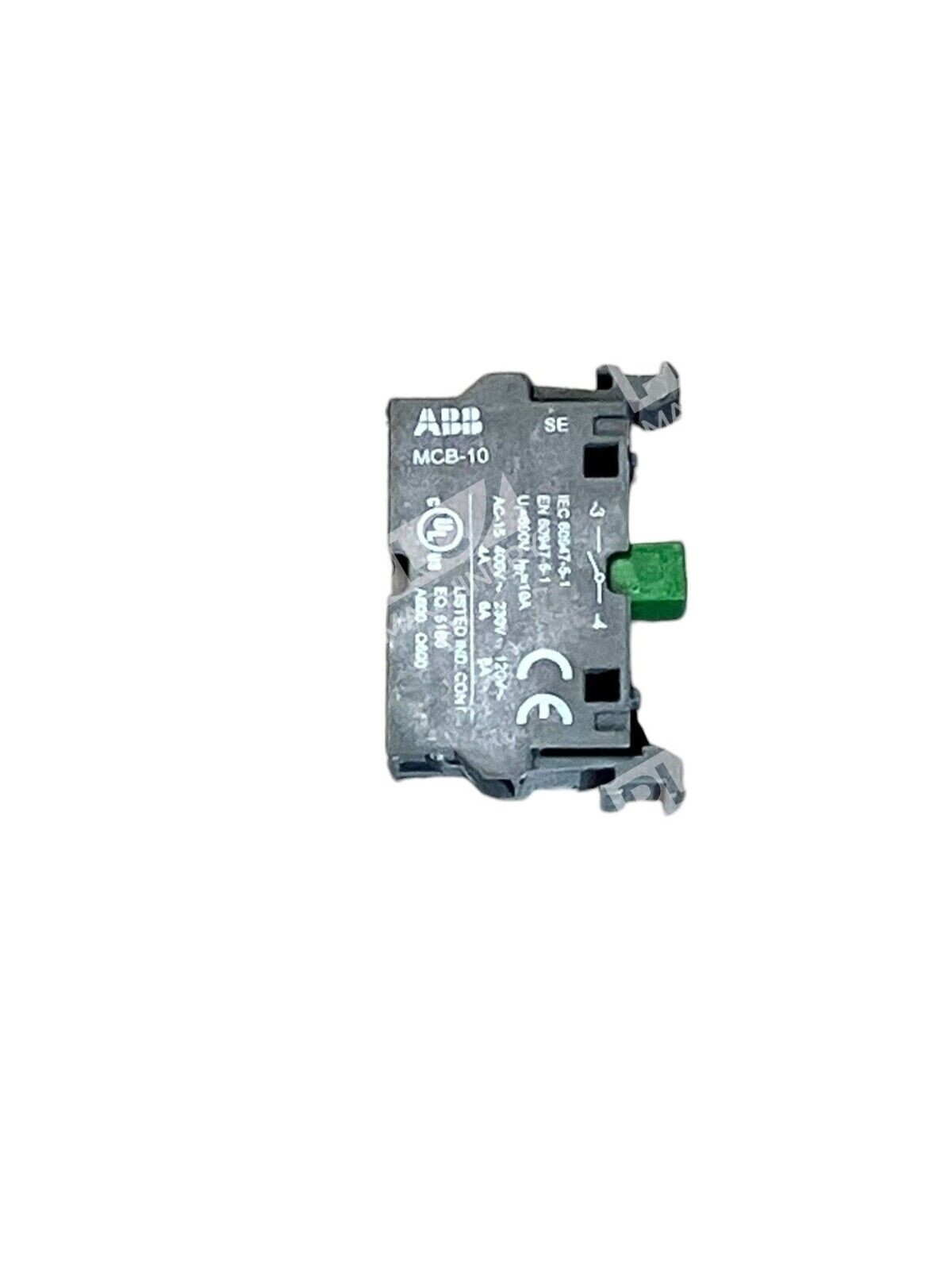

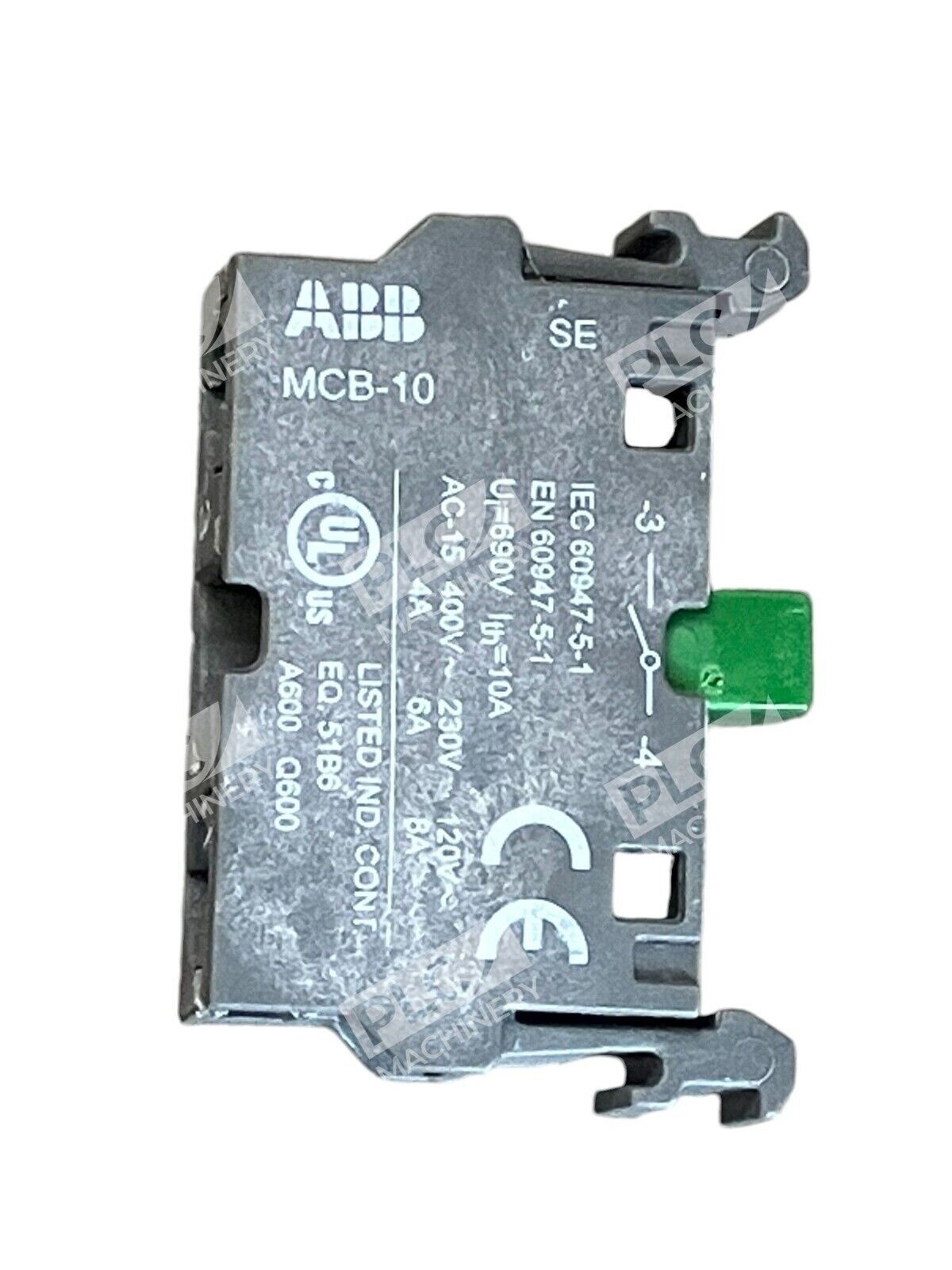

The ABB MCB-10 is a single-pole modular contact block designed for pilot-duty control applications in industrial automation and electrical equipment. Part of ABB’s versatile modular plastic range, the MCB-10 AC-15 contact block delivers dependable switching performance with a 1 NO (normally open) contact configuration and 600V rated insulation voltage. This non-illuminated, front-mounted contact block features silver-tipped contacts for long service life and integrates seamlessly with ABB’s MP, KP, MPET, and M2SS/M3SS series pushbuttons, selector switches, and emergency stop modules.
Key Features
- AC-15 Rated Duty: 6A at 230V AC, 8A at 24/127V AC ensures safe pilot-circuit operation across global voltage standards
- 1NO Contact Configuration: Single normally-open contact for flexible control logic integration
- Silver Contact Material: Reliable, low-resistance switching with excellent durability for 10 million mechanical operations
- 22mm Modular Size: Compact footprint for space-efficient control panel layouts; snaps onto 35mm DIN rail or into plastic enclosure
- NEMA 1/3R/4/4X/12/13 & IP20: Protected design suitable for industrial environments with screw terminals (#14-20 AWG)
- IEC 60947-5-1 Compliant: Meets international safety and performance standards
Technical Specifications
- AC-15 Rated Current: 6A at 230V AC, 8A at 24/127V AC
- AC-15 Rated Current (Alternative): 6A at 230V, 3A at 240V, 1.5A at 480V, 1.2A at 600V
- DC-13 Rated Current: 0.55A at 120V DC, 0.27A at 240V DC, 0.1A at 480V/600V DC
- Rated Insulation Voltage: 600V / 690V (IEC rated)
- Contact Configuration: 1 NO – 0 NC
- Contact Material: Silver (Ag) with gold-plated finish option
- Mechanical Life: 10 million operations (contact block)
- Operating Temperature Range: –25°C to +50°C (–13°F to +122°F)
- Protection Rating: NEMA 1/3R/4/4X/12/13; IP20 per IEC 60529
- Mounting: Front mounting; snaps onto 35mm DIN rail; fits plastic enclosure (0.15–0.6 cm panel thickness)
- Terminals: Screw terminals, #14–20 AWG
- Approvals: UL File #E76003; CSA File #LR19700
- Dimensions: 28mm L × 10mm W × 44mm H (0.028m × 0.01m × 0.044m)
- Series: MCB (Modular Contact Block range)
Typical Applications
The MCB-10 is ideal for pilot-duty control of electrical equipment including fans, pumps, compressors, and motor control circuits. Common installations include:
- MP, MP2, MP3, MP4 series modular pushbutton stations
- KP6 series operator controls
- MPET, MPEP, MPEK modular emergency stop stations
- M2SS and M3SS series selector switches
- MTS toggle switches and MJS joystick controls
- Industrial control panels and pilot circuits requiring reliable on/off or monitoring contacts
Compatibility & Replacements
The ABB MCB-10 is a direct fit for all ABB modular 22mm pushbutton, selector switch, and emergency stop devices. It is part of ABB’s modular plastic range and works with plastic enclosures or 35mm DIN-rail mounting systems. The block can be stacked with other MCB-series contact blocks (MCB-01, MCB-10B, etc.) to create multi-contact configurations. For equivalent competitors in the 1NO category, check IDEC HW-series or Sprecher+Schuh D7-series contact blocks, though ABB’s MCB series offers direct OEM compatibility advantages for existing installations. Verify base model compatibility before ordering (MP1–MP4, MPD1–MPD16, KP6, MPET3–MPET4, M2SS1–M2SS6, M3SS1–M3SS8, and others).
