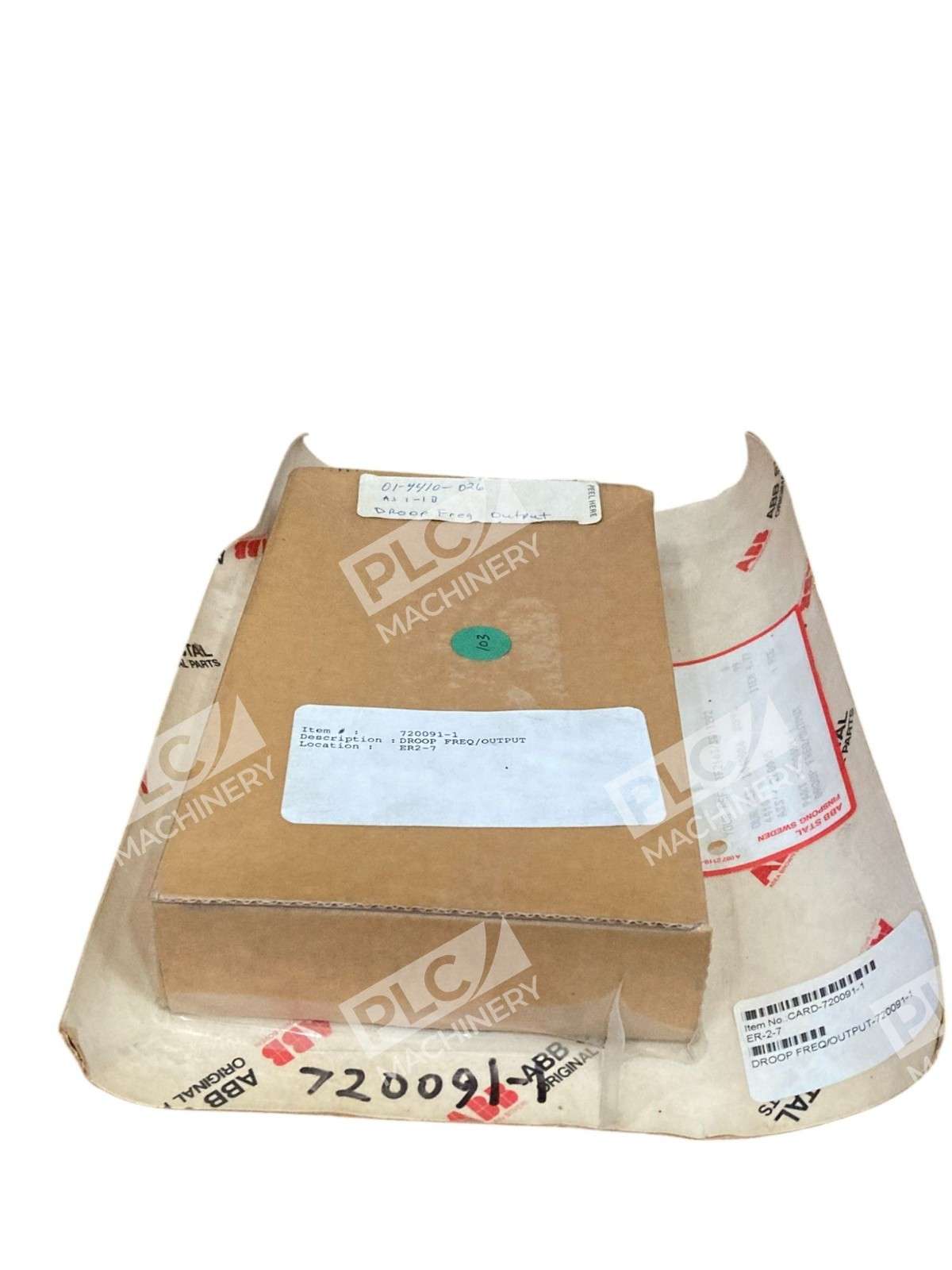

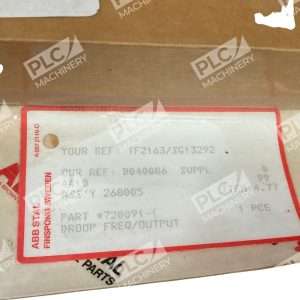

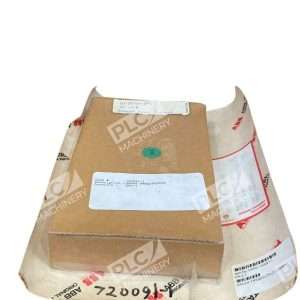

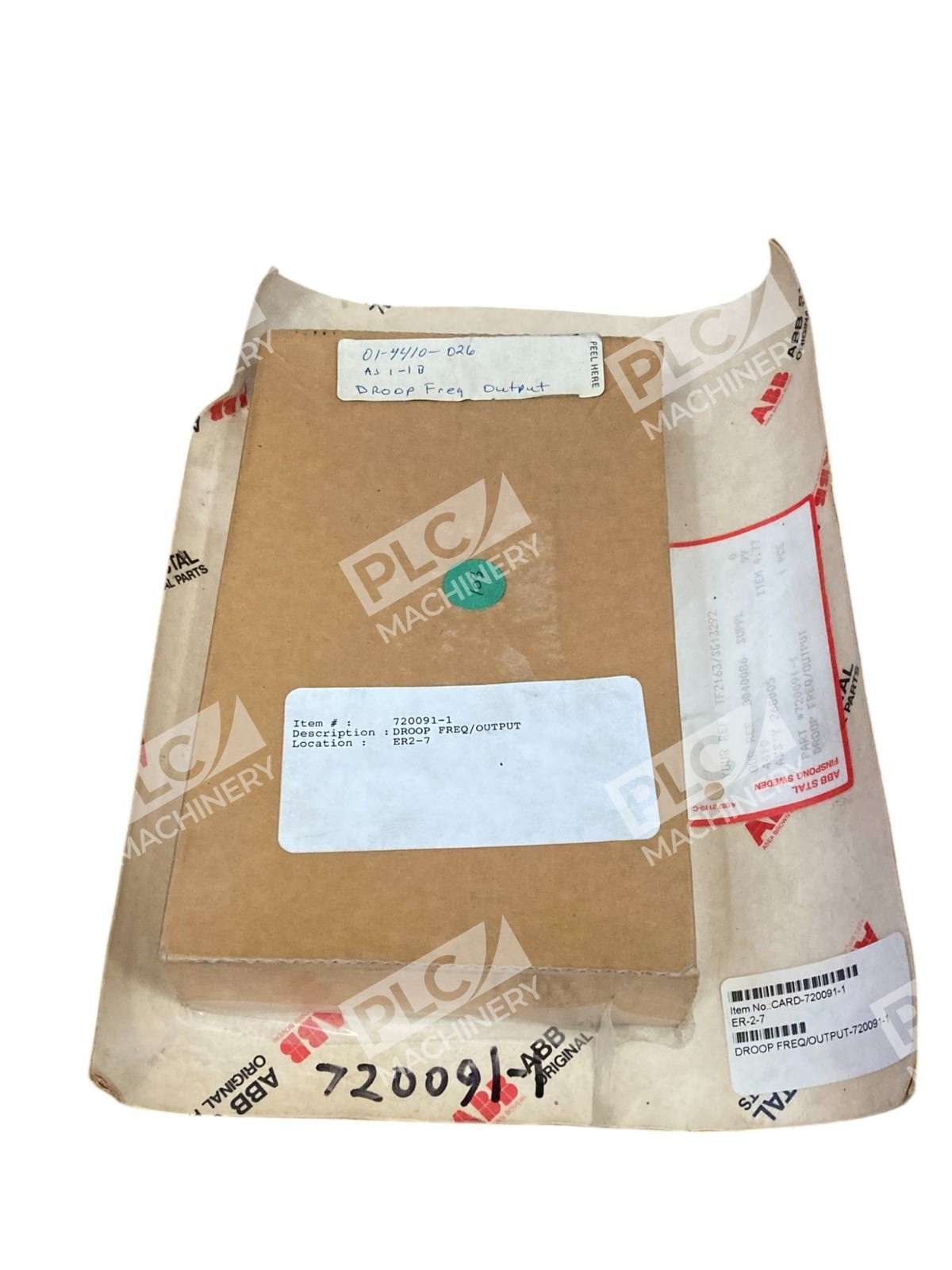

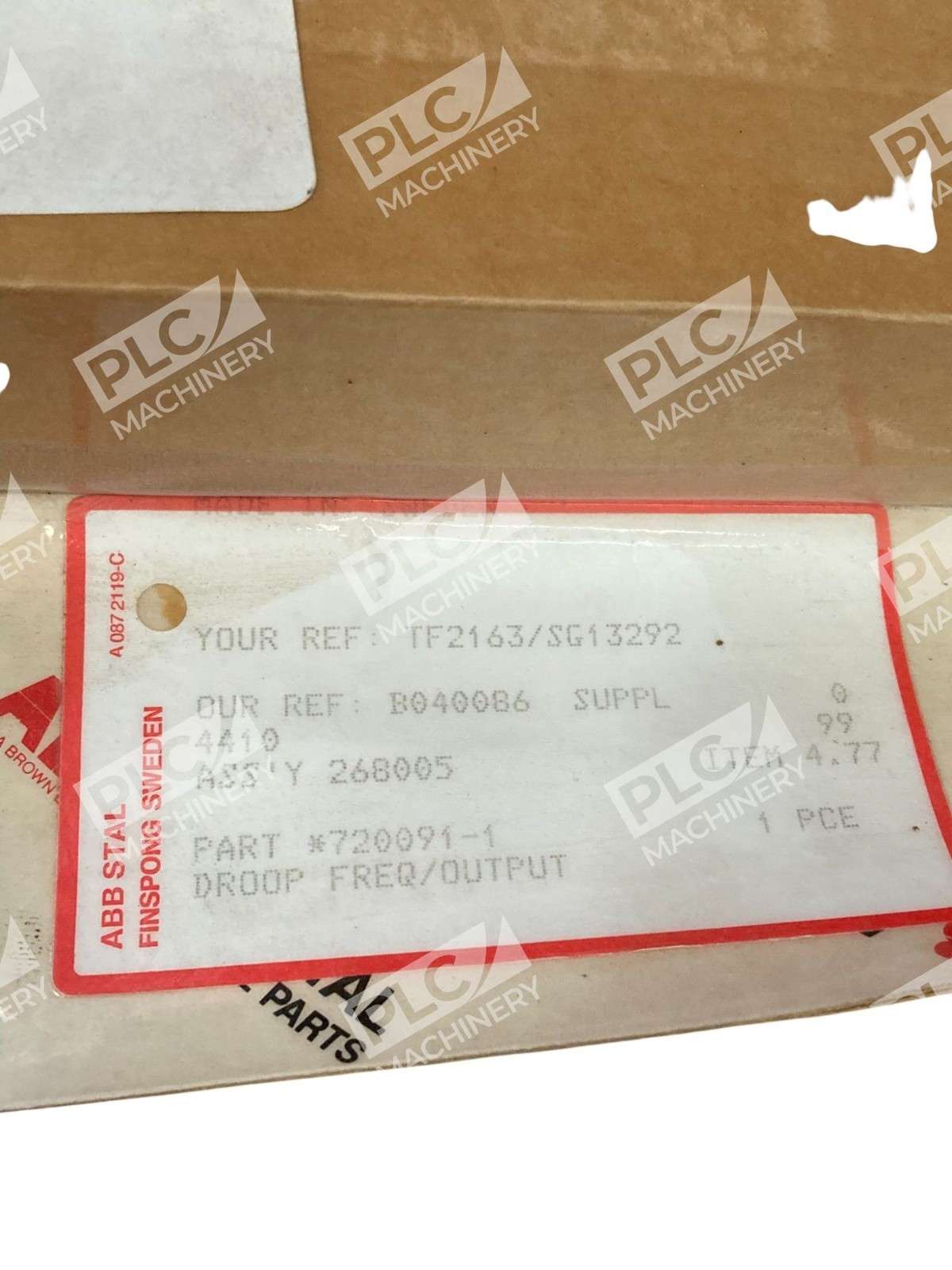

The ABB 720091-1 DROOP FREQ/OUTPUT module is engineered to enhance the performance and reliability of industrial drive systems by implementing droop control functionality.
Key Features
- Droop Control Mechanism: This module introduces a controlled reduction in drive speed as the load increases, effectively preventing conflicts between master and follower drives in multi-drive configurations.
- Adjustable Droop Rate: Users can set the droop rate as a percentage of the motor’s nominal speed, allowing for precise load sharing and system stability.
- Linear Response: The drooping effect decreases linearly with the load, ensuring smooth and predictable performance across varying operational conditions.
Operational Benefits
- Enhanced Load Sharing: By allowing slight speed differences between drives, the module facilitates balanced load distribution, reducing mechanical stress and extending equipment lifespan.
- Improved System Stability: The droop control minimizes the risk of oscillations and instability in interconnected drive systems, promoting consistent and reliable operation.
- Customizable Settings: Operators can fine-tune the droop rate to match specific process requirements, ensuring optimal performance tailored to individual applications.
Application Example
Consider a scenario where the speed controller output is at 50%, the droop rate is set to 1%, and the drive’s maximum speed is 1500 rpm. The resulting speed decrease would be calculated as follows:
Speed Decrease = 0.50 × 0.01 × 1500 rpm = 7.5 rpm
This calculation illustrates how the module effectively manages speed adjustments in response to load variations, ensuring seamless operation within the drive system.
The ABB 720091-1 DROOP FREQ/OUTPUT module is an essential component for industries seeking to optimize their drive systems through precise speed control and load management.
