Overview

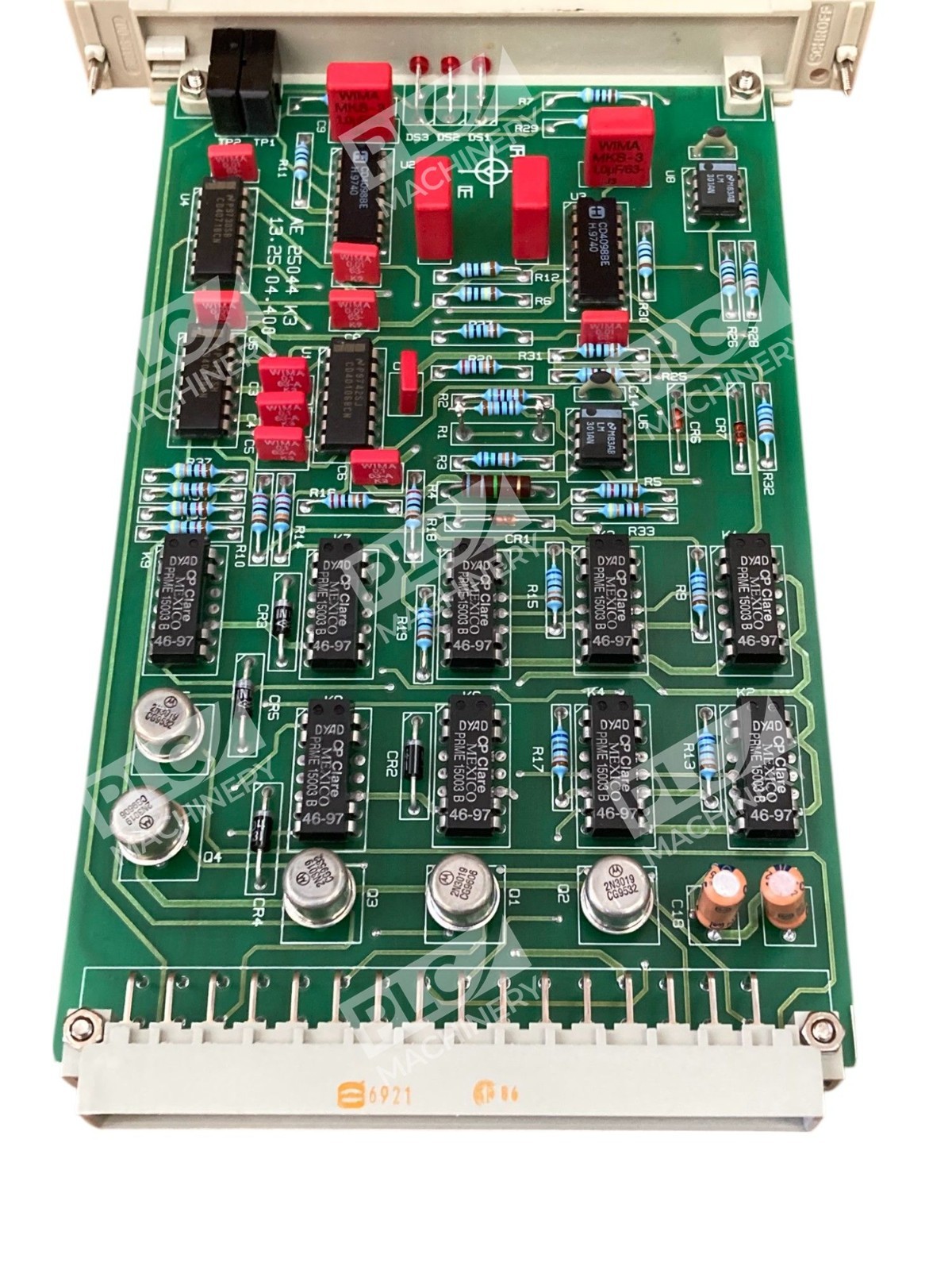

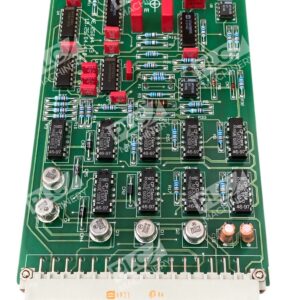

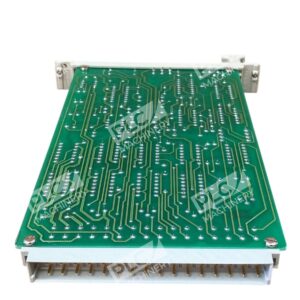

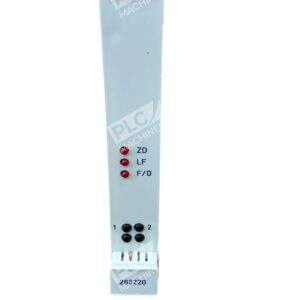

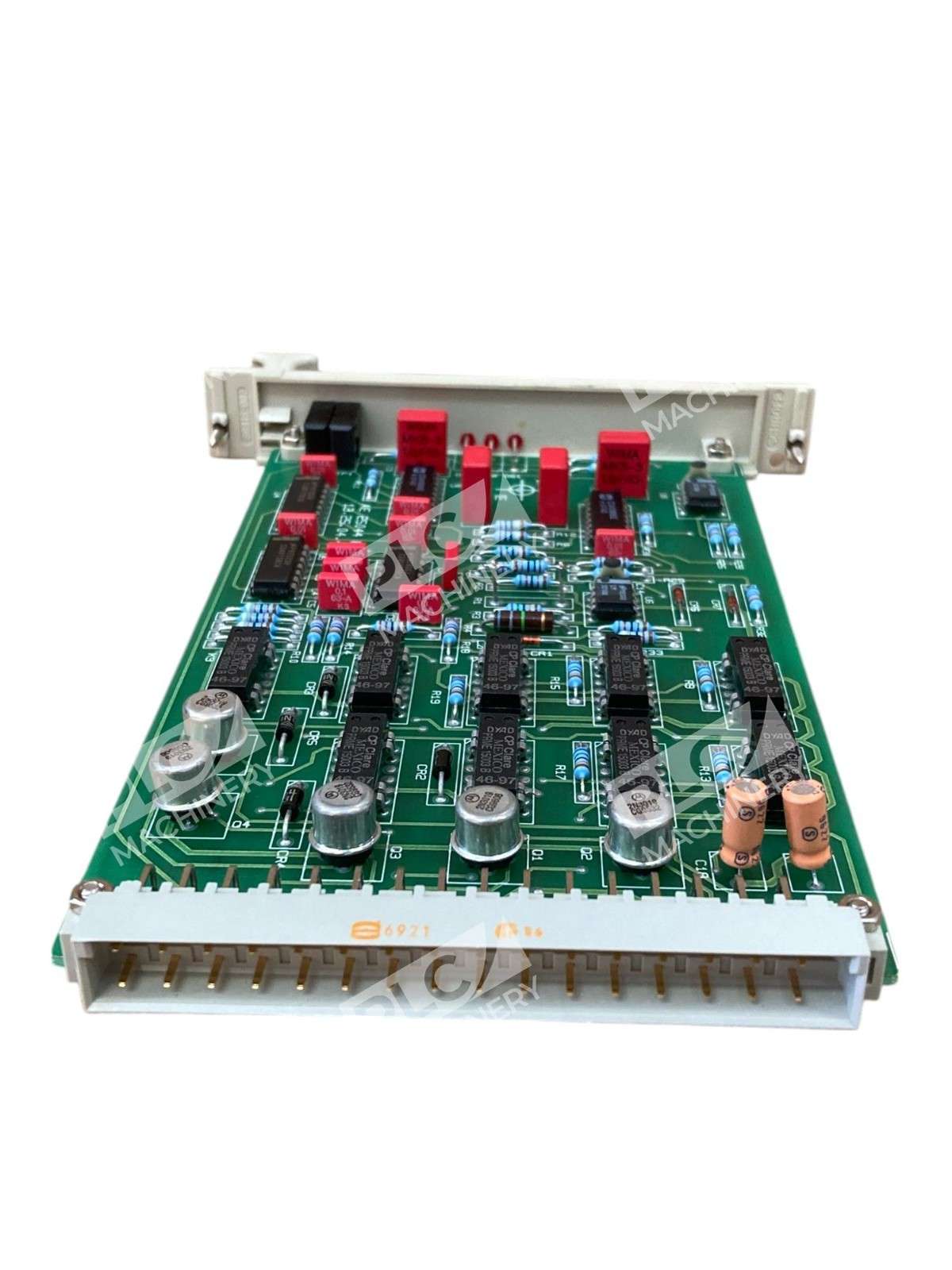

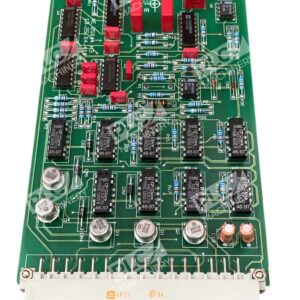

The ABB 265220-1 droop mode & select card module is a specialized control interface designed for integration into ABB STAL turbine control systems. This module provides critical droop mode regulation and mode selector functionality in power generation and industrial automation environments. The card handles load-sharing control and system response optimization, making it essential for applications requiring precise governor and control coordination.
Key Features
- Droop mode control interface for load sharing in parallel turbine operations
- Mode selector functionality for operation mode switching
- Designed for STAL turbine controller system compatibility
- Industrial-grade construction for reliable long-term operation
- Modular design allowing straightforward integration into control cabinets
Technical Specifications
The ABB 265220-1 is a dedicated control card module that interfaces with ABB STAL turbine governors. Its primary function is to handle droop mode settings—a control strategy that decreases system output proportionally as load increases—enabling multiple turbine units to share load equitably without conflict. The module also provides mode selection capability for switching between different control modes as operational requirements change.
Typical Applications
- Multi-turbine installations requiring coordinated load sharing
- Power plant governors using droop speed control
- Industrial turbine systems with parallel operation requirements
- ABB STAL-based control systems requiring mode switching functionality
- Hydroelectric and thermal power generation facilities
Compatibility & Replacements
The ABB 265220-1 module integrates with ABB STAL turbine control systems. This card is specific to ASEA BROWN BOVERI equipment and should be verified for compatibility with your existing control architecture before installation. Alternative modules or upgrades should be sourced directly from ABB to ensure control system integrity and compliance with original equipment specifications. As a legacy industrial control module, this part may have superseding versions available from ABB’s current product line.
