Overview

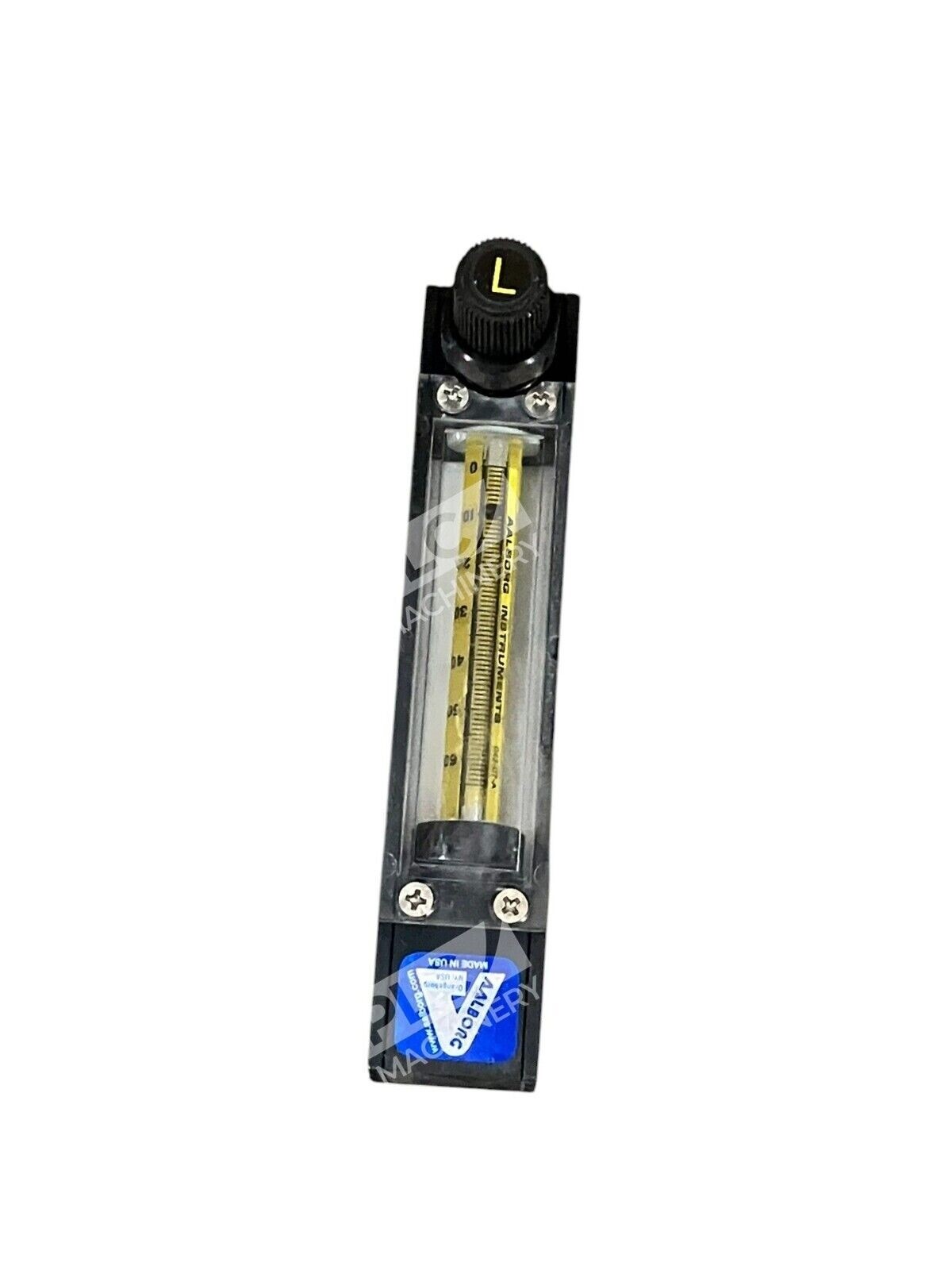

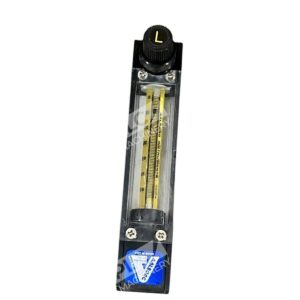

The Aalborg TMR1-010069 is a single-tube, 65mm scale PTFE rotameter designed for reliable low-to-medium flow measurement. Incorporating the principles of traditional variable area flow technology, these rugged Teflon® PTFE-Glass flowmeters offer solutions to low to medium flow range measurements of highly corrosive or ultra-pure liquids and gases. This model features an integral inlet control valve and is fully assembled with protective safety shield.
Key Features
- T-METER 1-TUBE 65mm PTFE with CV (control valve) inlet
- Direct visual flow indication with 65mm scale length
- Inert PTFE wetted components for chemical compatibility
- Supplied with thick protective magnifying safety shield
- Structurally rigid anodized aluminum frame
Technical Specifications
- Accuracy: ±2% FS on mm scales
- Repeatability: ± 0.25%
- Scale Length: 65mm
- Flowtube Material: PTFE
- Body Material: Anodized aluminum
- Inlet Configuration: Control valve (CV)
- Configuration: Single flow tube (Model T)
Typical Applications
The TMR1-010069 is well-suited for:
- Corrosive gas and liquid flow measurement
- Ultra-pure fluid applications (pharmaceutical, semiconductor)
- Laboratory and process control
- Low-to-medium flow rate monitoring
- Pneumatic and hydraulic systems requiring visual indication
Compatibility & Replacements
Compatible With
- Aalborg standard mounting brackets and fittings
- NPT inlet/outlet thread connections
- Anodized aluminum frame mounting systems
- Protective safety shield assemblies for T-series meters
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Aalborg TMR1-010069 is a specific single-tube configuration; direct replacements are model-dependent.
Works With
- Manual flow control (integral needle valve)
- Optical sensor switches (optional accessory)
- Aalborg mounting and manifold hardware
- Compatible with acrylic or glass flowtube extensions
