Overview

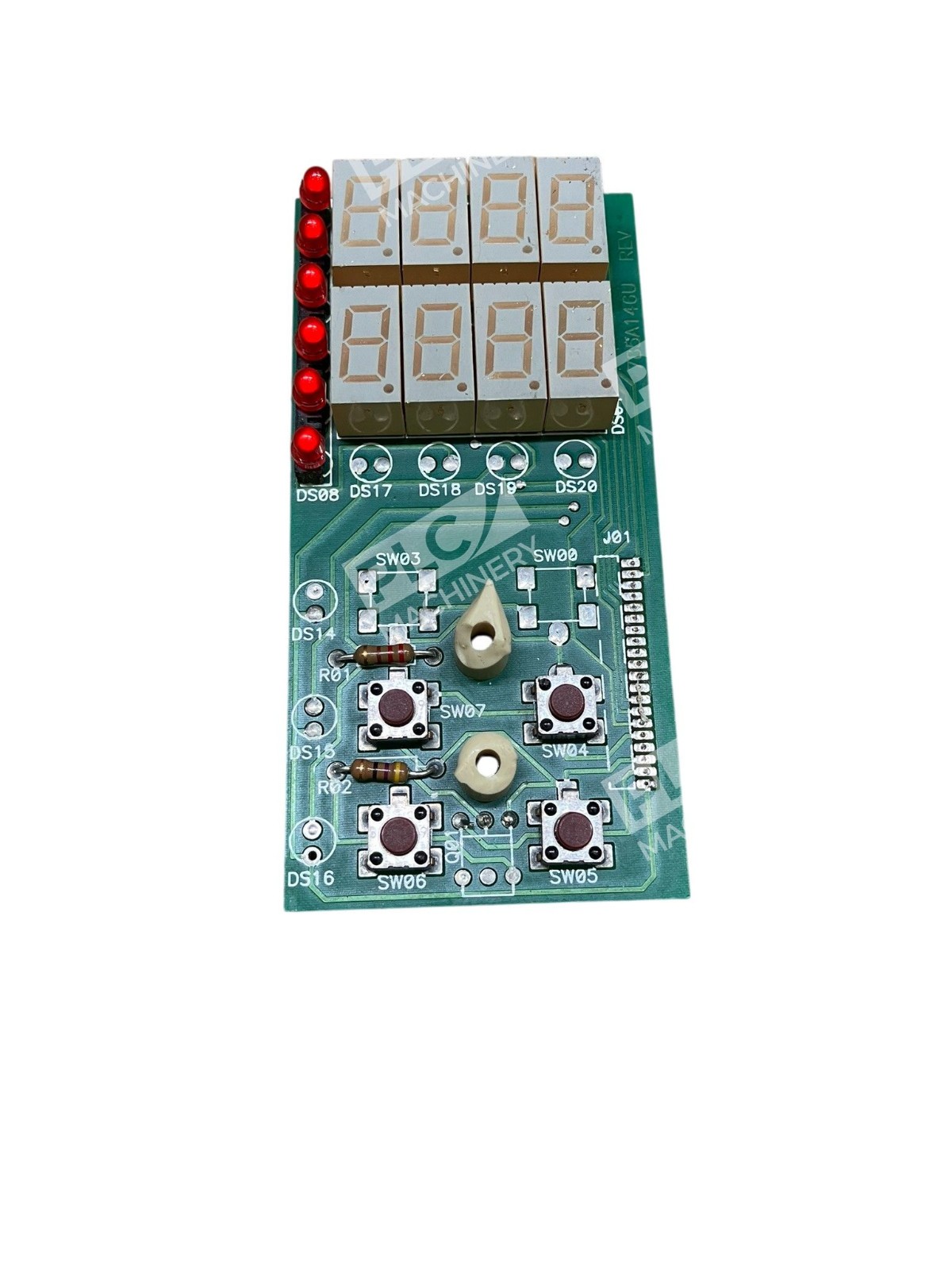

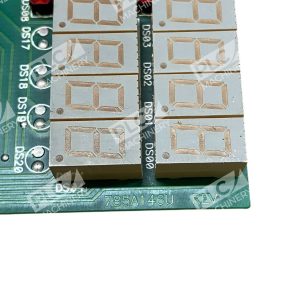

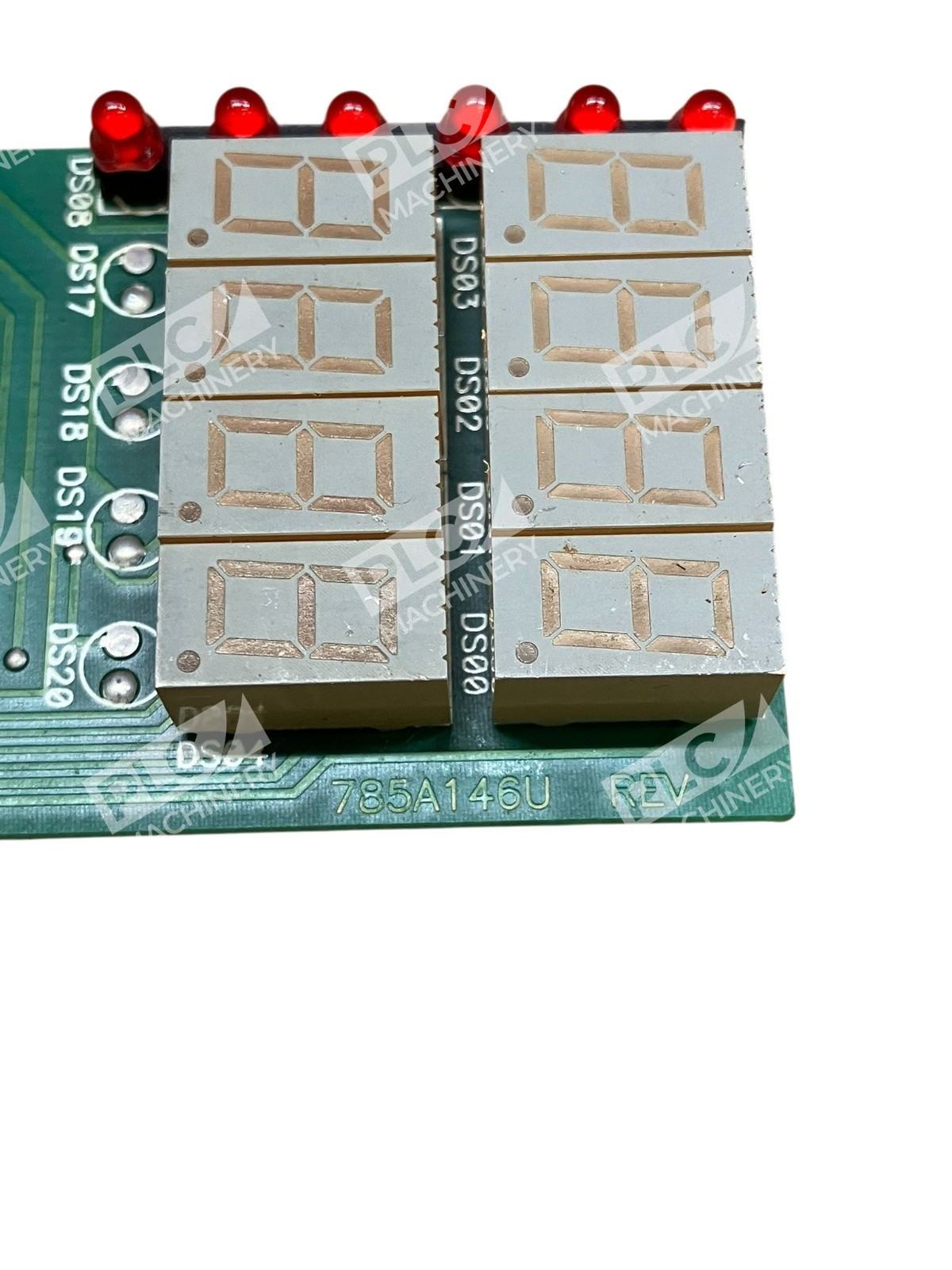

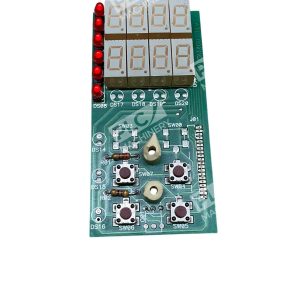

The Thermal Care 785A146U / 560A146U01 REV. D is an 8-digit 7-segment LED display board engineered for temperature control systems, process monitoring, and industrial instrumentation. This display circuit board provides a cost-effective solution for numeric display requirements in thermal management equipment and control panels. The board features discrete LED technology with individual LEDs for each segment, ensuring reliable operation in demanding industrial environments.
Key Features
- 8-digit 7-segment display configuration for numeric readout
- Individual LED construction for segment reliability
- Compact circuit board design for standard panel integration
- United States manufactured quality
- REV. D specification for compatibility with Thermal Care control systems
Technical Specifications
This display board is compatible with Thermal Care temperature control equipment and process monitoring systems. The 8-digit 7-segment format allows display of temperatures, pressures, flow rates, and other numeric values commonly used in thermal management applications. The board mounts directly into compatible control panels and integrates with existing Thermal Care instrumentation.
Typical Applications
- Thermal management control systems
- Industrial process monitoring displays
- Temperature and pressure readouts
- Control panel instrumentation
- Manufacturing equipment displays
Compatibility & Replacements
Compatible With
- Thermal Care temperature control systems
- Thermal Care chiller units
- Industrial process control equipment
- Standard instrumentation display panels
Replaces / Drop-In Replacement For
- 560A146U01 REV. D (alternate part designation)
Works With
- Thermal Care control logic boards
- DC power supply circuits
- Instrumentation multiplexing systems
- Standard 7-segment display drivers
