Overview

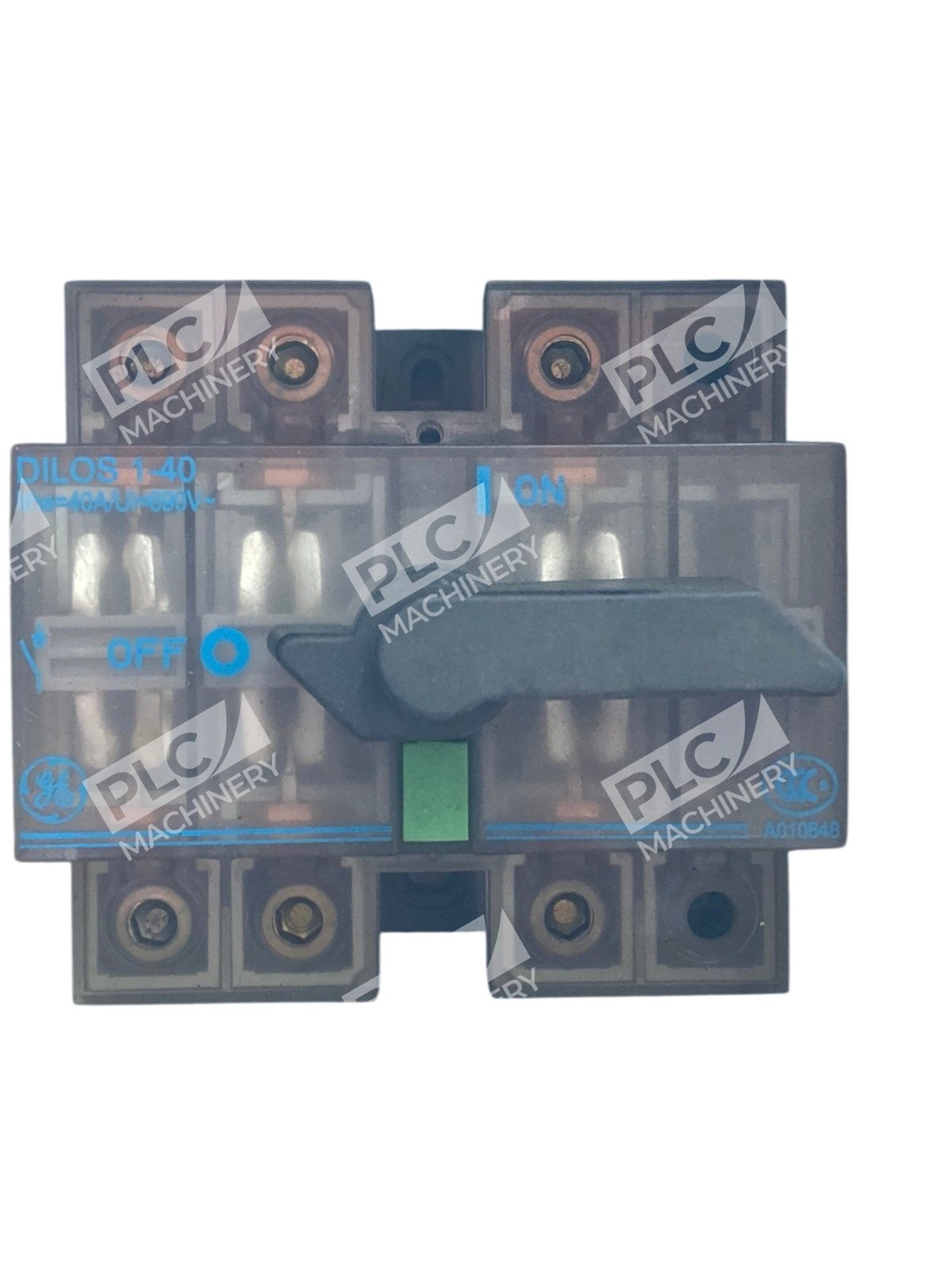

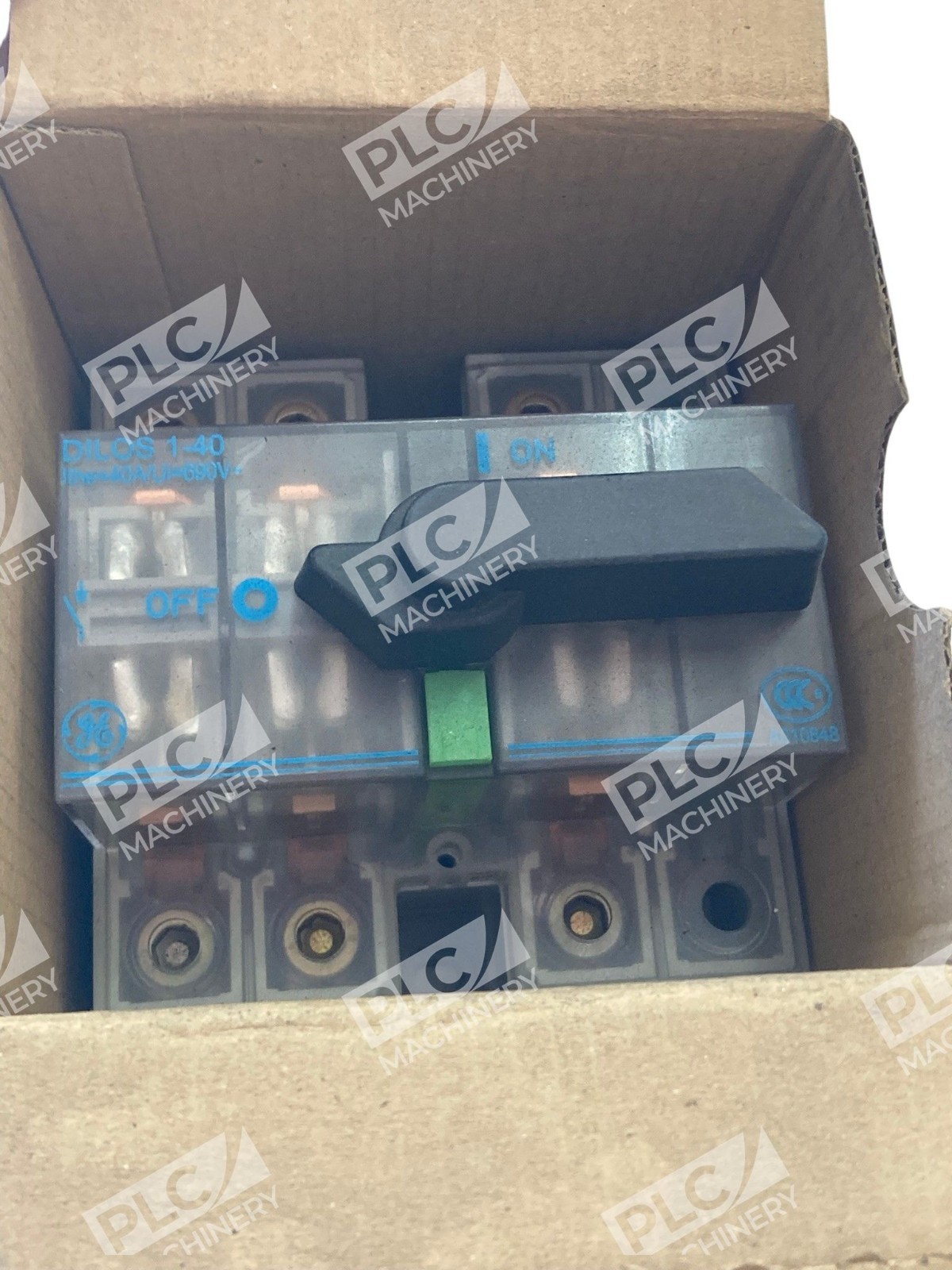

The GE 730049 Dilos 1 load-break switch disconnector is a DIN-rail mounted, 3-pole disconnect switch designed for industrial electrical distribution and control applications. With a 40A rated current, padlockable rotary handle, and dual-knife contact design, the 730049 provides reliable load-break operation and meets international safety and performance standards for low-voltage installations up to 690V.
Key Features
- Rated current: 40A with padlockable rotary handle for safety lockout
- Three-pole (3P) configuration for three-phase applications
- Double-knife contacts for high short-circuit resistance and reliability
- Quick-make, quick-break mechanism for positive contact indication (PCI)
- Independent opening and closing mechanism
- Visible contact indication for safe operation confirmation
- DIN-rail mounting for compact industrial panel integration
Technical Specifications

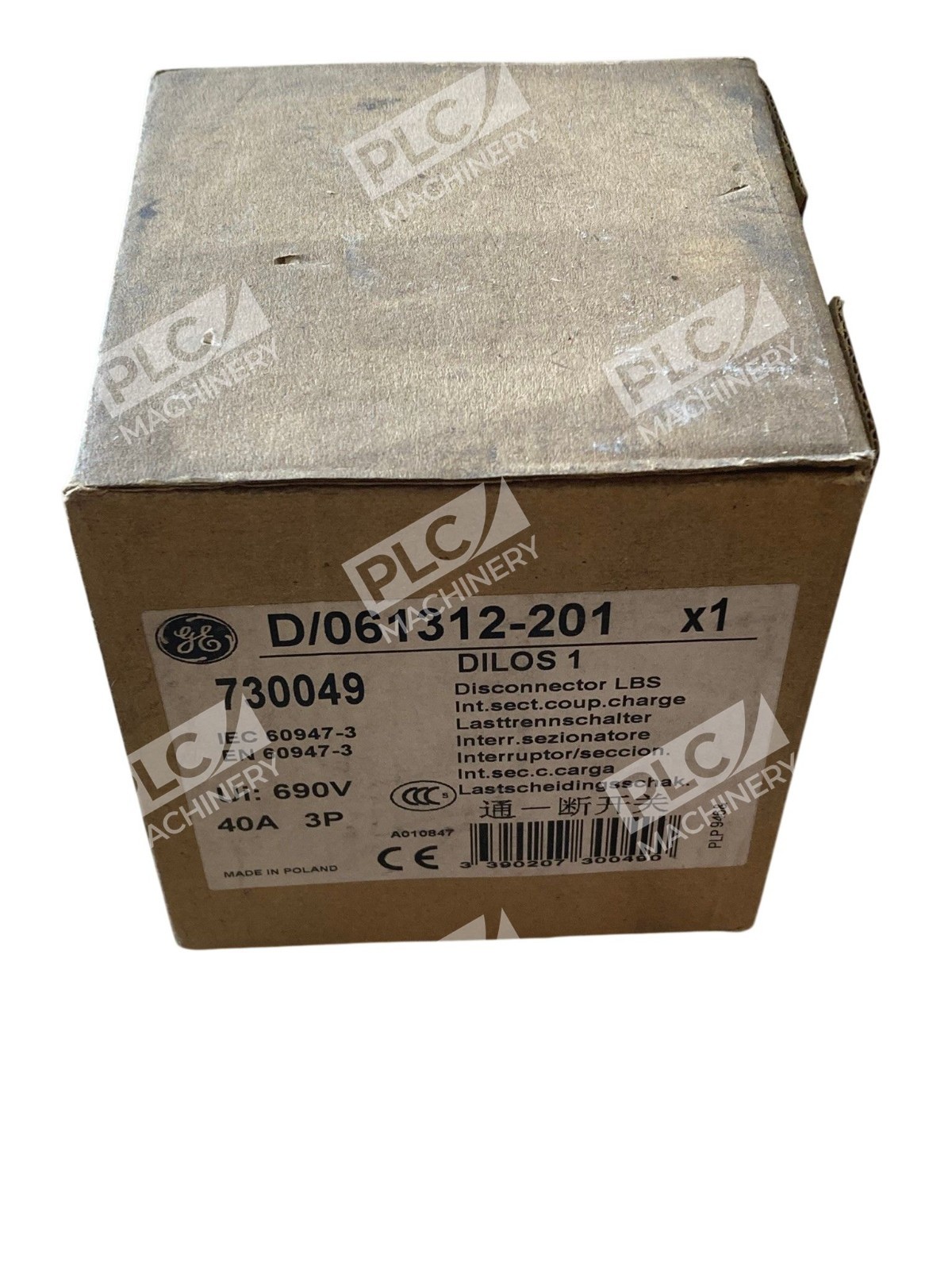

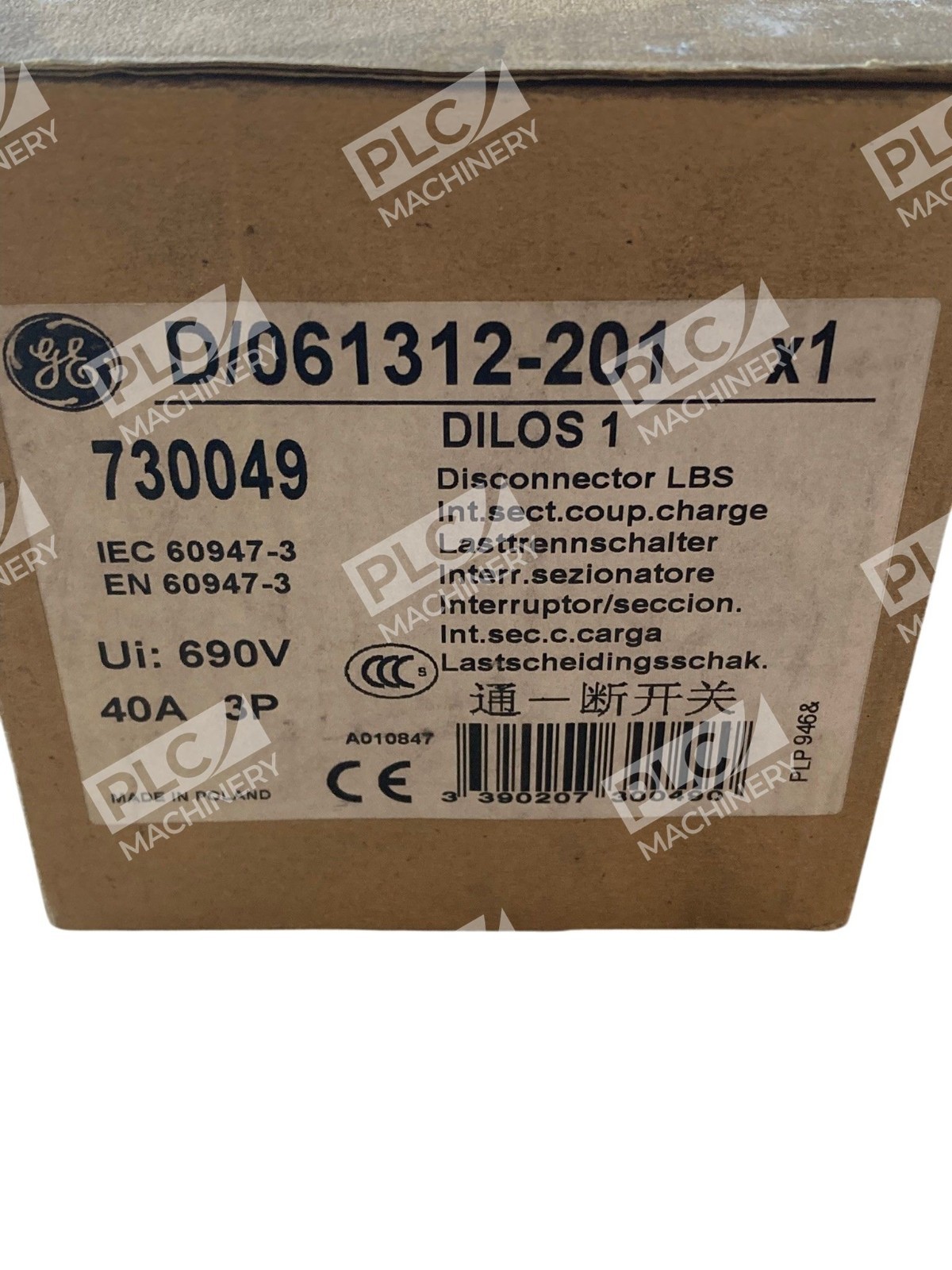

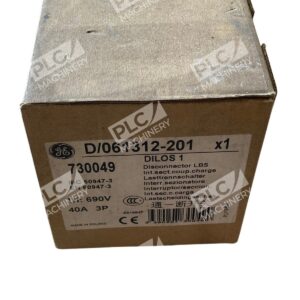

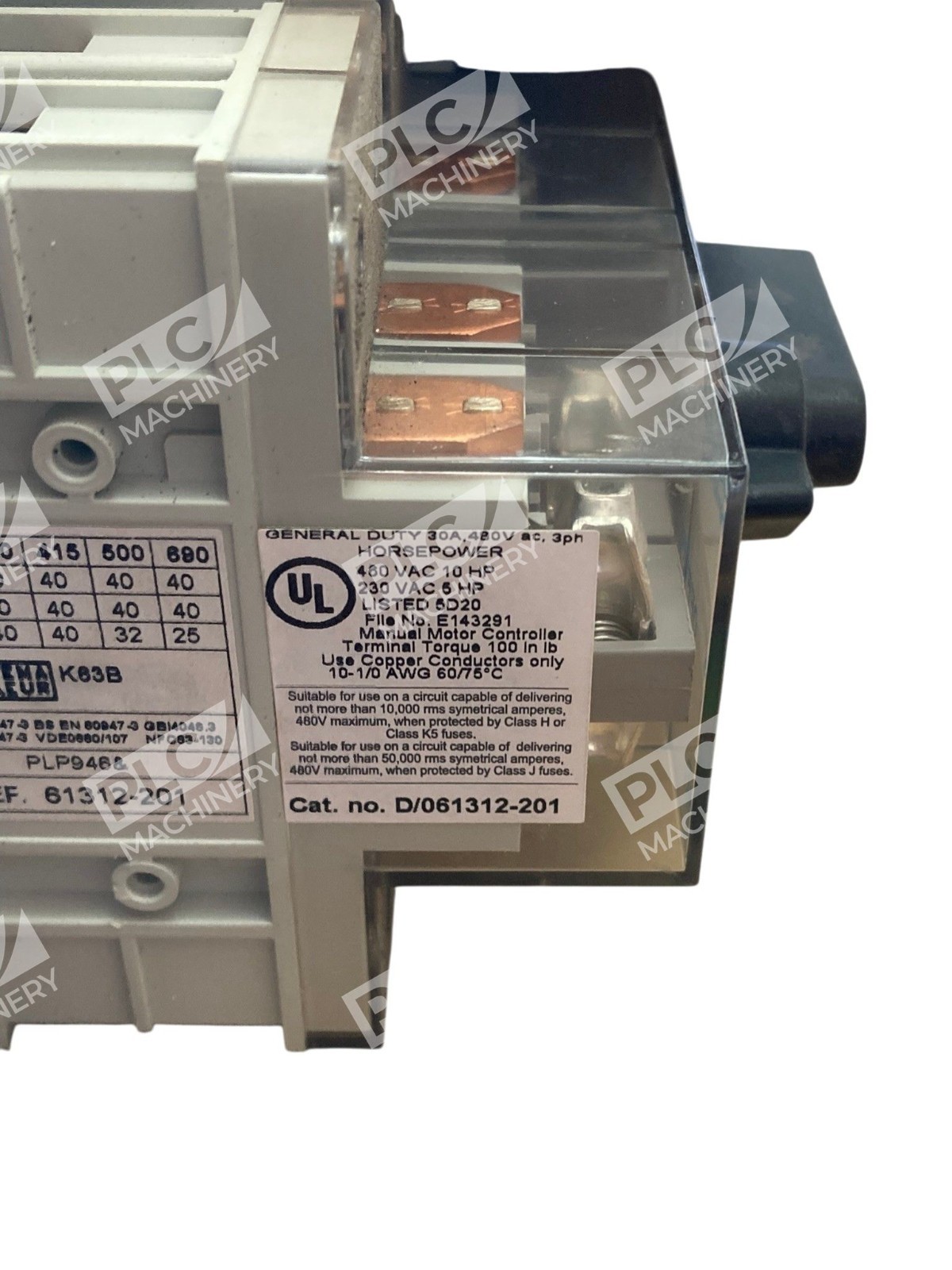

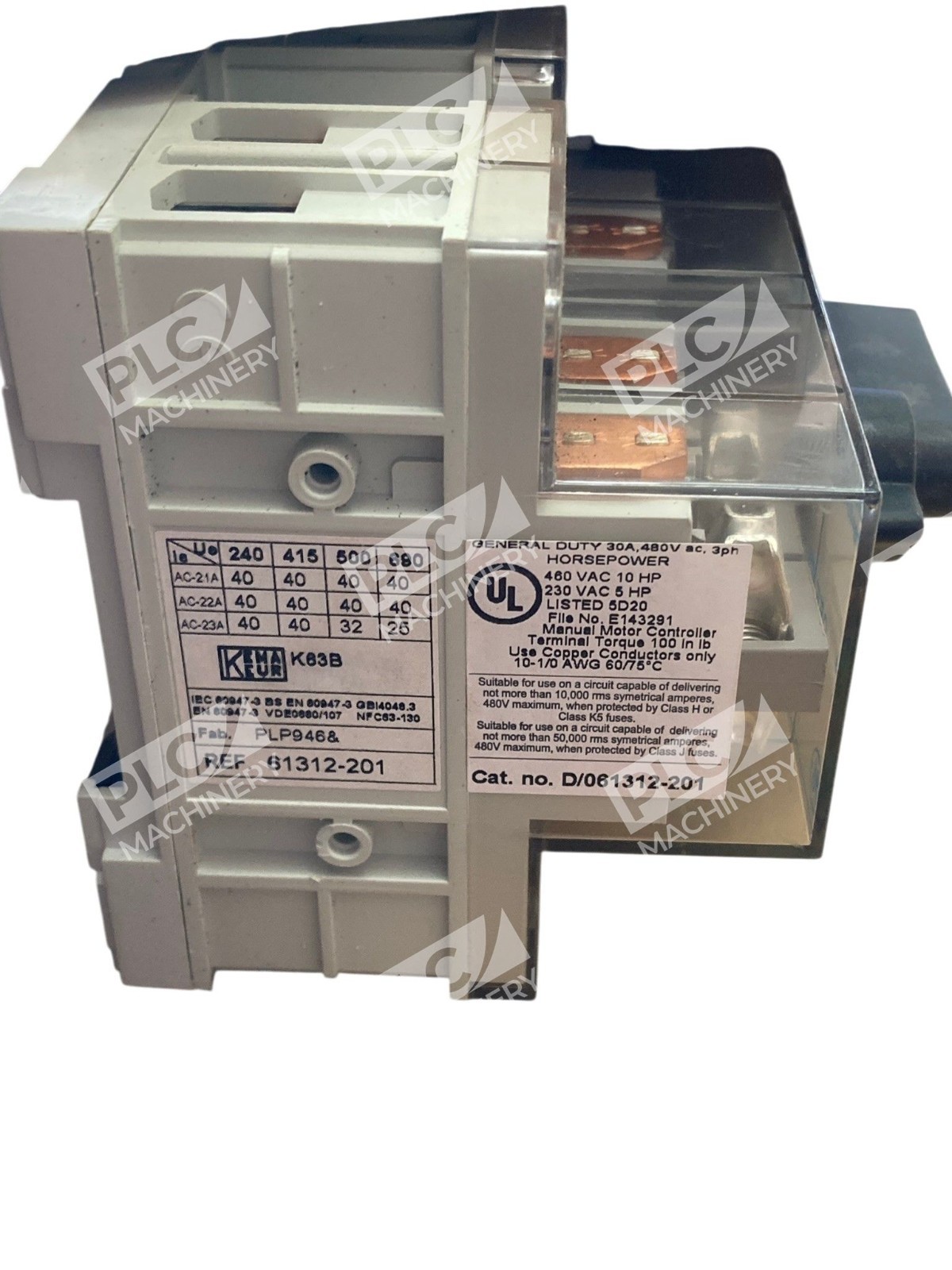

- Part Number: 730049 (Reference: D/061312-201)
- Series: Dilos 1
- Configuration: 3-Pole (3P)
- Rated Current: 40A
- Rated Operational Voltage: 690V
- Rated Insulation Voltage: 690V
- Peak Short-Circuit Withstand Current: 10kA
- Rated Short-Circuit Current: 50kA
- Short-Time Withstand Current (1s): 3kA
- Terminal Capacity (Copper): 6–50 mm²
- Mounting Type: DIN-rail
- Handle Type: Padlockable rotary handle
- Modules: 5 DIN modules
Typical Applications
- Three-phase load distribution and disconnect in industrial panels
- Emergency shutdown and isolation circuits
- Low-voltage distribution networks and substations
- Motor control and machinery disconnect functions
- Tertiary and industrial electrical installations
- Main switch, incoming, and outgoing circuit applications
Compatibility & Replacements
Compatible With
- DIN-rail mounted industrial control panels and enclosures
- Low-voltage distribution systems up to 690V
- Three-phase AC power circuits
- Industrial automation and switchgear assemblies
- Systems requiring IEC 60947-1 and IEC 60947-3 compliance
Replaces / Drop-In Replacement For
- GE Dilos 1 model variants with same 40A, 3-pole rating (verify catalog reference D/061312-201)
- Legacy load-break disconnectors in comparable amperage range
- Verify your original part number and control circuit requirements before ordering to confirm drop-in compatibility.
Works With
- Auxiliary contacts (inside and outside mounting available)
- Changeover switch systems and bypass mechanisms
- Padlockable handle extension shafts
- Terminal covers and installation accessories
- Systems designed for IEC and UL 508 safety requirements
